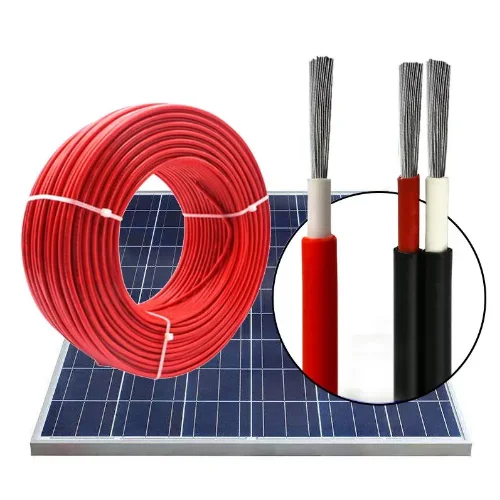

Electrical PV DC Solar Cable Chinese Factory
- Category: >>>
- Supplier: Shenzhen Brother Young Development Co. Ltd.
Share on (1600620213465):
Product Overview
Description
Recommend Products

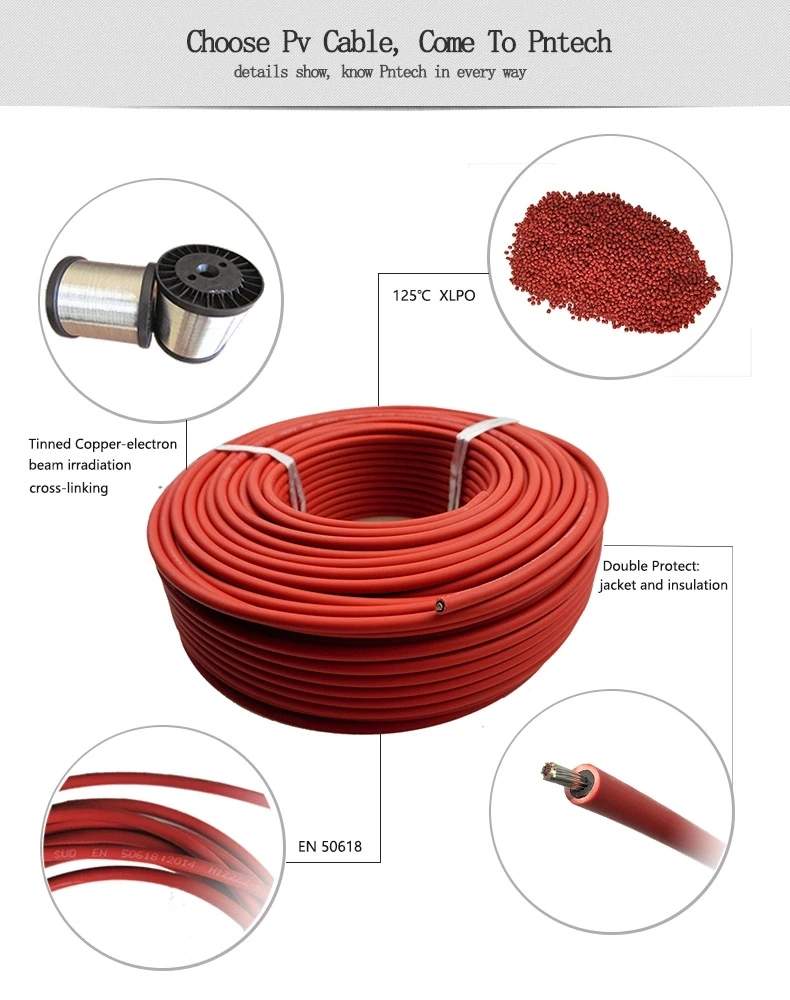

Product Description
Advantages
2. Excellent resistance to UV, oil, greases, oxygen and ozone
3. Excellent resistance to abrasion
4. Halogen free, flame retardant,low toxicity
5. Very long service life > 25 years at 90°C
Specification
Project | Standard requirements | ||||||

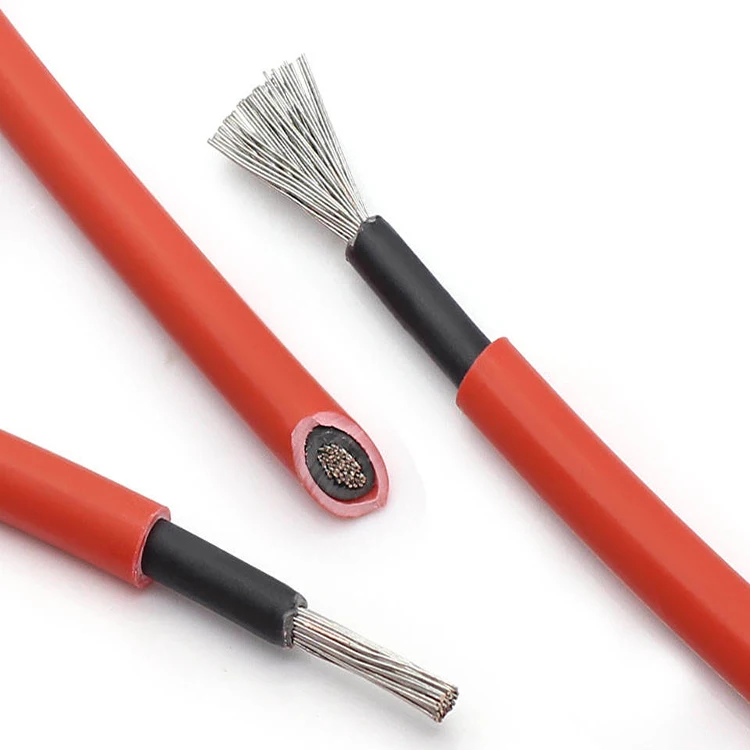

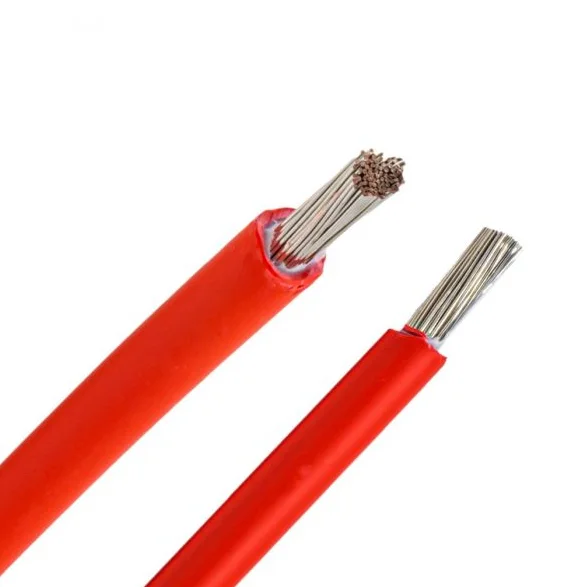

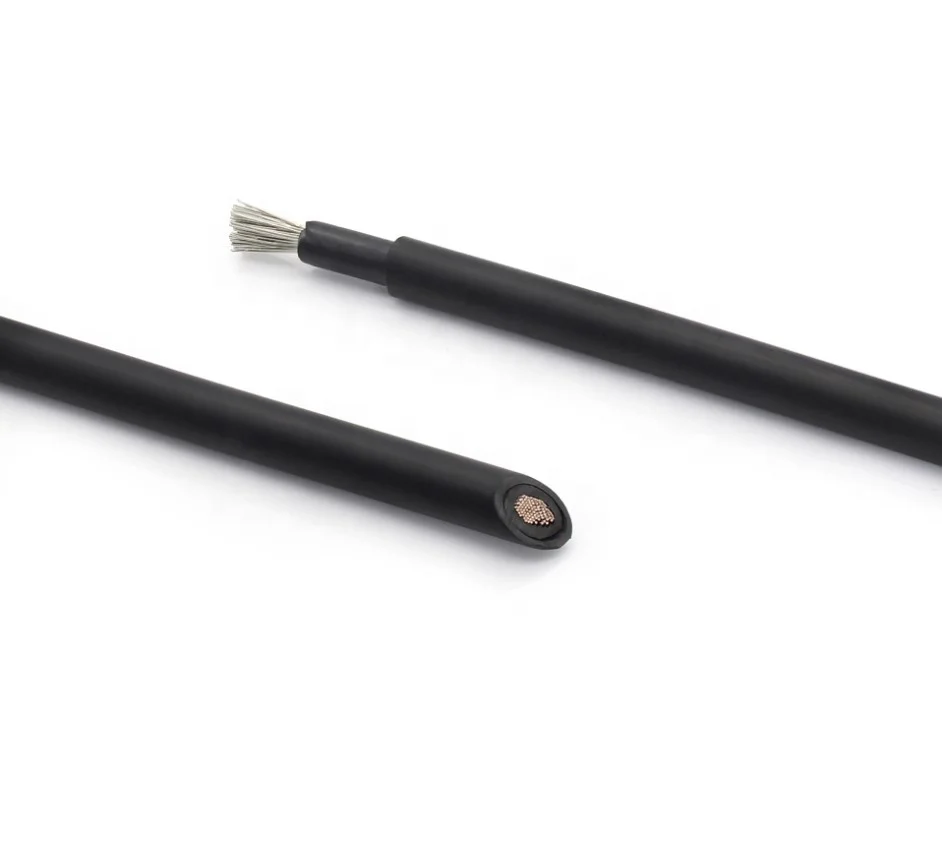

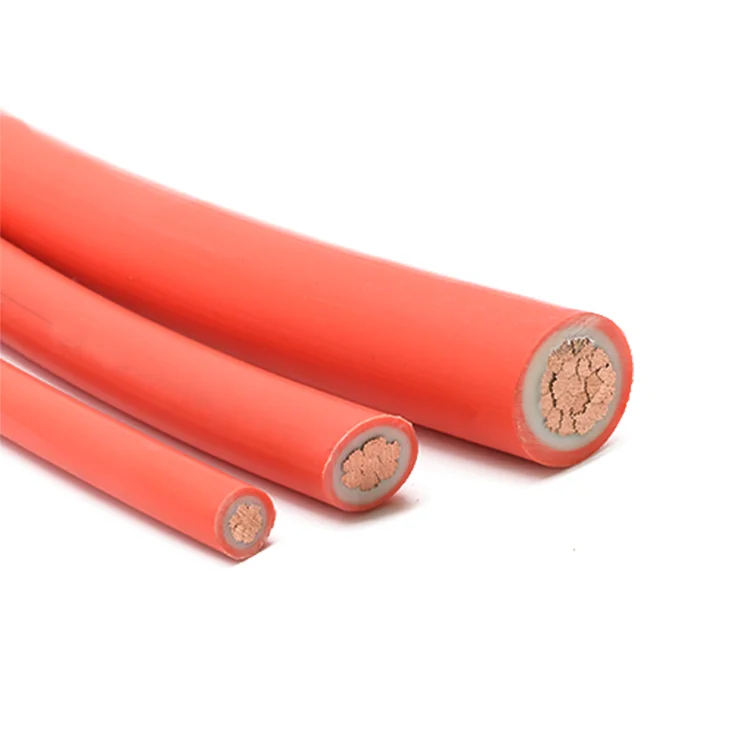

Conductor | Conductor structure | Class 5 Tinned copper conductor | |||||
Material | Tinned copper wire(TXR) | ||||||
Number of wires in conductor | 84/0.3 | ||||||
Conductor OD(mm) | 3.15 | ||||||
Insulation | Material | Polyolefin copolymer electron-beam cross-linked | |||||
Average.Wall Thickness of insulation(mm) | 1.1 | ||||||
Min.Wall Thickness of insulation(mm) | 0.88 | ||||||
Insulation OD(mm) | 5.35 | ||||||

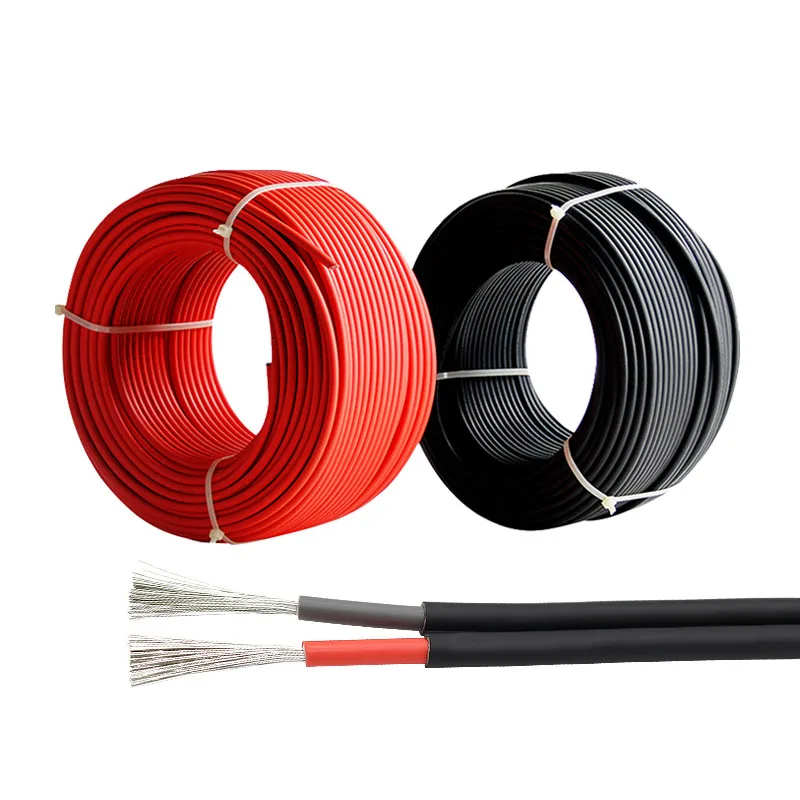

Color | Black Red | ||||||
Sheath | Material | Polyolefin copolymer electron-beam cross-linked | |||||
Average.Wall Thickness of sheath(mm) | 0.9 | ||||||
Min.Wall Thickness of sheath(mm) | 0.72 | ||||||
Sheath OD(mm) | 7.15 | ||||||
Color | Black Red | ||||||
Max. Resistance AC20oC ohm/ km | 3.39 | ||||||
60oCA Ampacity (60oCA)(A) | 70 | ||||||
A. CABLE ASSEMBLY
B. DE BREAKER
C. SOLAR SYSTEM STATION
B. INTERNAL AND EXTERNAL INSTALLATIONS
C. BE ROOF MOUNTED
Company Profile
Exhibition

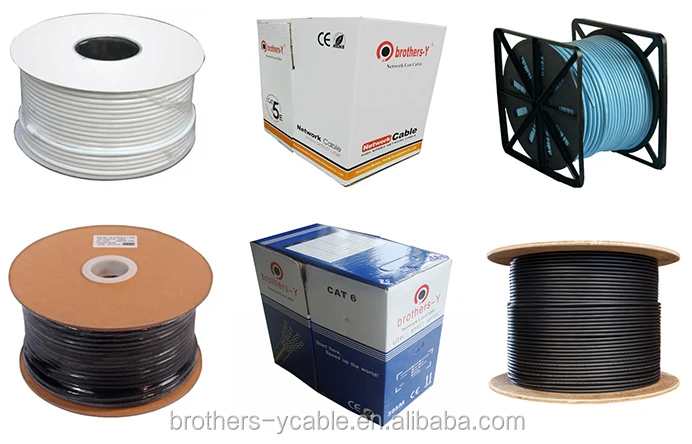

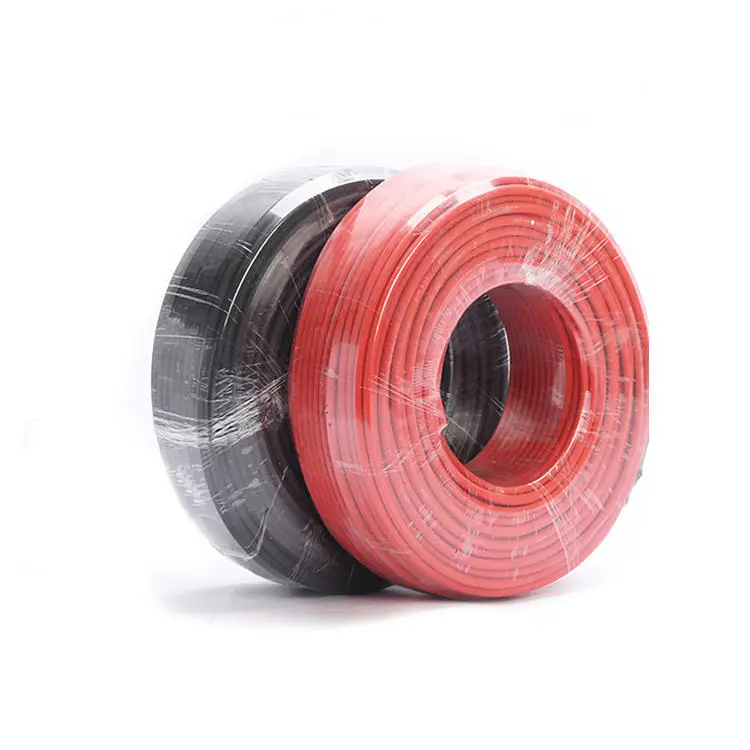

Product packaging
FAQ
Q1. Are you a factory or trading company?
A: We are a manufacturer.
Q2. What kind of products can your company supply?
A: We specialize in supplying lan cable,coaxial cable,telephone cable,speaker cable, patch cable fiber optical cable,power
cable,etc.
Q3. What's ur MOQ?
A: The MOQ of coaxial cable is 30 KM,lan cable is 300 boxes OR we can negotiate.
Q4. What's your delivery time?
A: Our delivery time is about 10-15 working days after conforming the deposit, it is based on the order quantity.
Q5. What's your payment terms?
A: Normally,we accept T/T in advance, as for other payment term,it's negotiable.
Q6. What's your trade term ?
A: We can accept FOB, CIF, CFR, EXW term.
Q7. What's your conventional packing ?
A: 100m/plastic or wooden drum,305m/wooden drum, 500m/wooden drum or woven bag.
However, we can according to ur demand.
A: We are a manufacturer.
Q2. What kind of products can your company supply?
A: We specialize in supplying lan cable,coaxial cable,telephone cable,speaker cable, patch cable fiber optical cable,power
cable,etc.
Q3. What's ur MOQ?
A: The MOQ of coaxial cable is 30 KM,lan cable is 300 boxes OR we can negotiate.
Q4. What's your delivery time?
A: Our delivery time is about 10-15 working days after conforming the deposit, it is based on the order quantity.
Q5. What's your payment terms?
A: Normally,we accept T/T in advance, as for other payment term,it's negotiable.
Q6. What's your trade term ?
A: We can accept FOB, CIF, CFR, EXW term.
Q7. What's your conventional packing ?
A: 100m/plastic or wooden drum,305m/wooden drum, 500m/wooden drum or woven bag.
However, we can according to ur demand.
