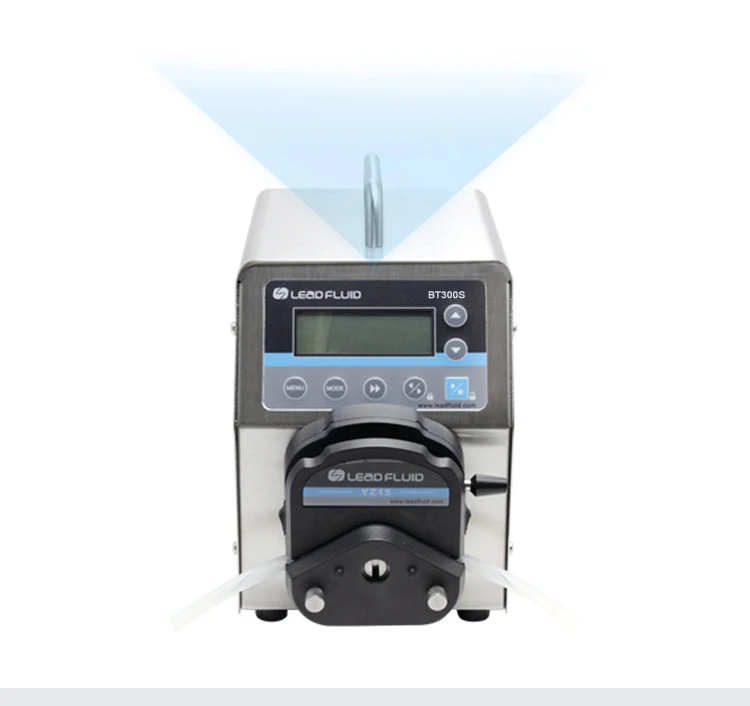

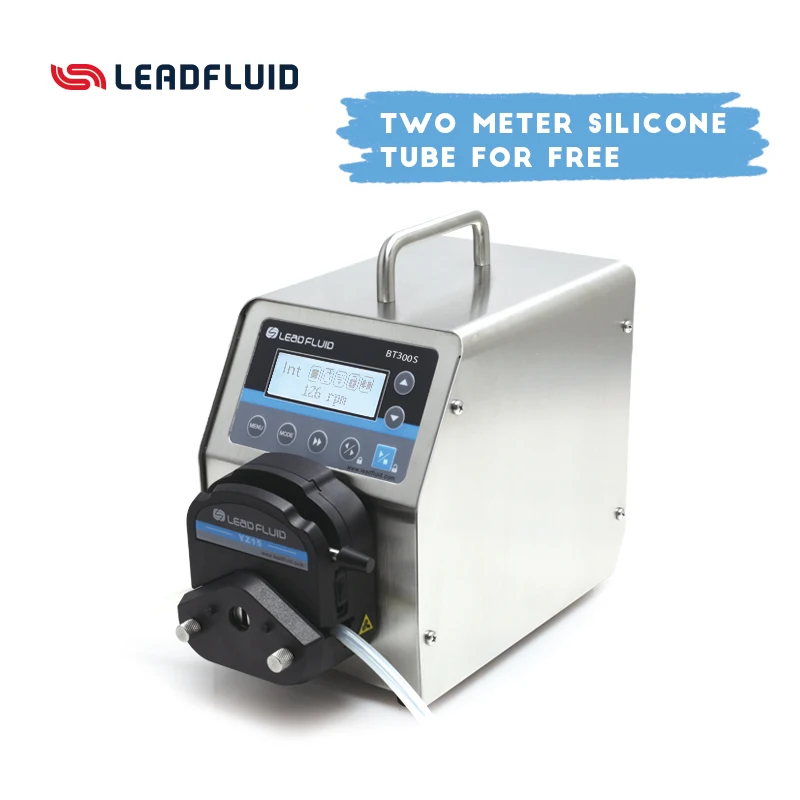

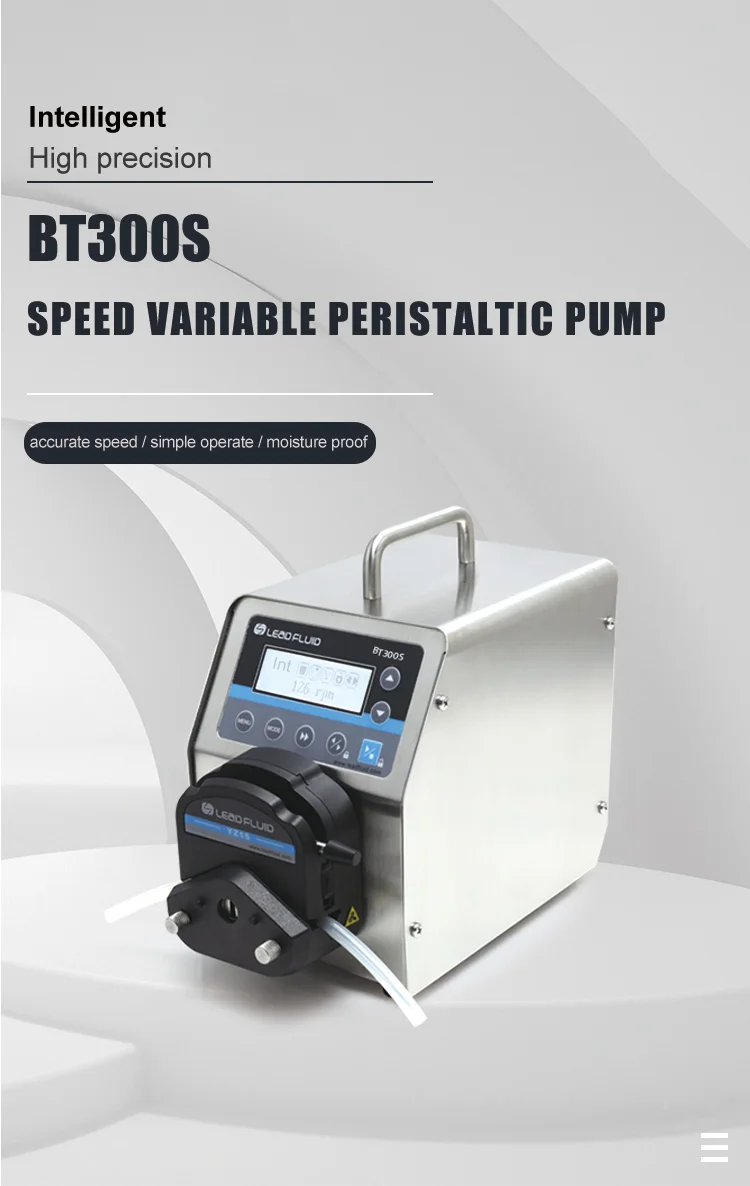

1300ml/min Chemical Dosing Speed Variable Peristaltic Pump
- Category: >>>
- Supplier: Baoding Lead Fluid Technology Co. Ltd.
Share on (1600620233287):
Product Overview
Description
Product Description
Functions and Features

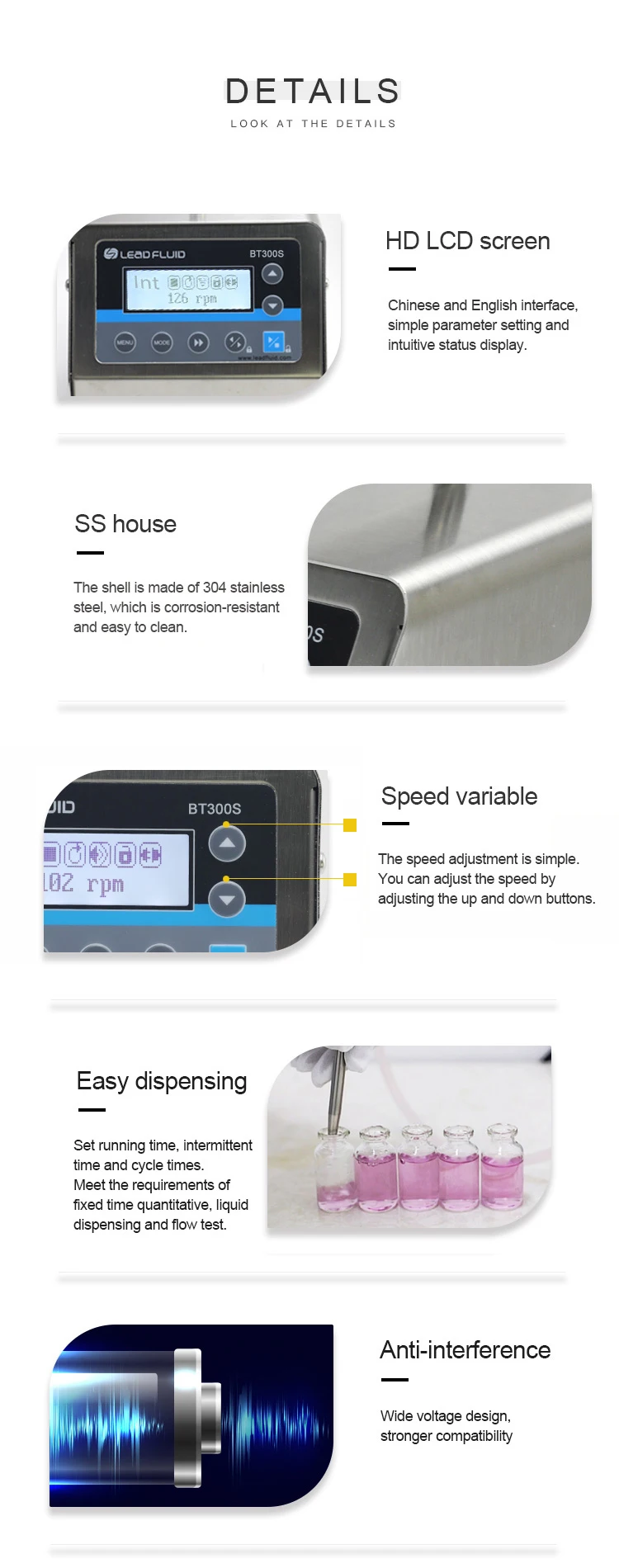

• High-quality and high-torque stepper servo motor drive, speed accuracy, wide range, operation stability, high-precision flow transmission.
• LF-Easy Change universal design, large torque output, strong expansibility, can match various high-performance pump head.
• Start/Stop, adjust speed, reversible direction, full speed and,state memory (power-down memory).
• The parameters of running time, interval time and cycle times can be set to meet the requirements of timing, quantitative, liquid dispensing and flow testing.
• Slow speed stop and suction function, which can effectively prevent the dropping of liquid when the machine stops.
• Start/Stop, adjust speed, reversible direction, full speed and,state memory (power-down memory).
• The parameters of running time, interval time and cycle times can be set to meet the requirements of timing, quantitative, liquid dispensing and flow testing.
• Slow speed stop and suction function, which can effectively prevent the dropping of liquid when the machine stops.
• Keyboard lock function to prevent miss operation.
• It can be equipped with foot switch, pulse damper, leak detector and other accessories.
Brand Name | LEAD FLUID |
Model Number | BT300S-YZ15 |

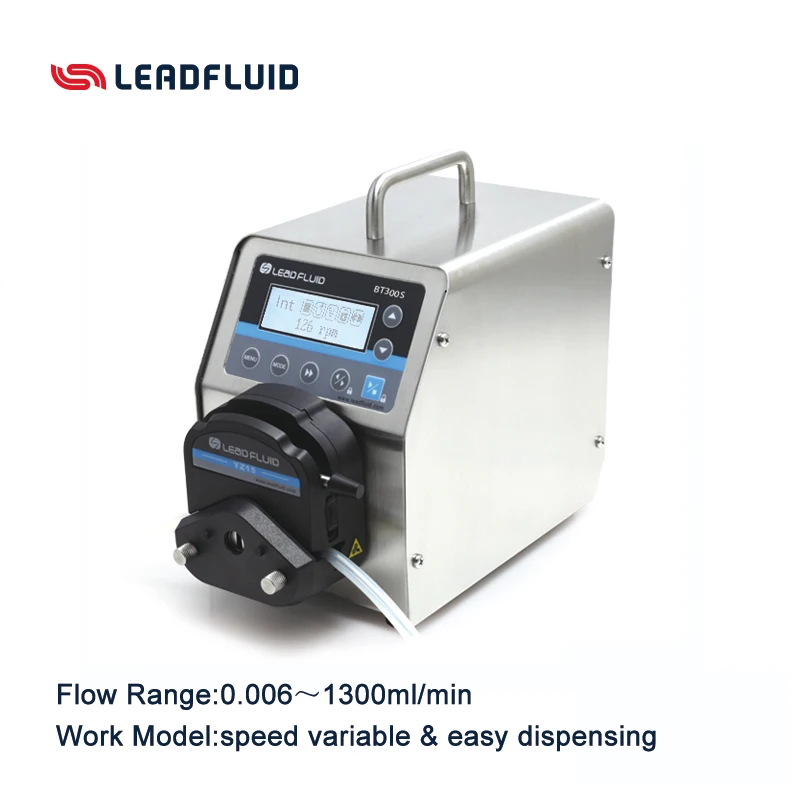

Flow range | 0.006-1300ml/min |
Speed range | 0.1~350 rpm |
Speed resolution | 0.1rpm (speed≤100rpm), 1rpm (speed＞100rpm) , speed accuracy＜±0.2% |
Language interface | Switching between Chinese and English |
Operation mode | Industrial mask key |
External control | input level 5V-24V, external control analog 0-5V, 0-10V, 4-20mA |
Timing function | Timing running time 0.1～999 S/Min/H/D, interval time 0.1～999 S/Min/H/D |
Cycle times | 0～999 (0 Infinite cycle) |
Back Suction angle | 0～720° |

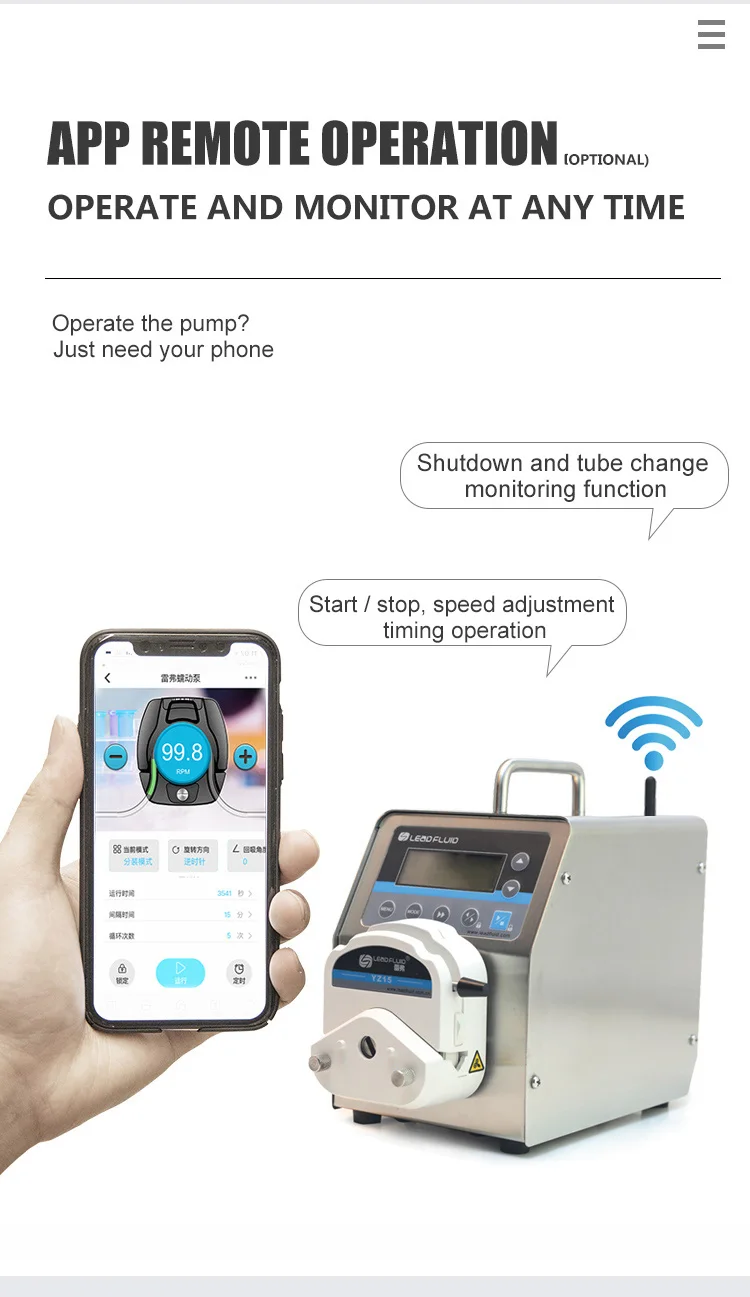

Communication interface | RS485, Modbus protocol is available, DB15 external control interface |
Power supply | AC100～240V, 50Hz/60Hz |
Power consumption | <50W |
Working environment | Temperature 0～40℃, relative humidity＜80% |
IP grade | IP31 |
Dimension（L×W×H） | 264x150x207mm |
Drive weight | 5.2kg |

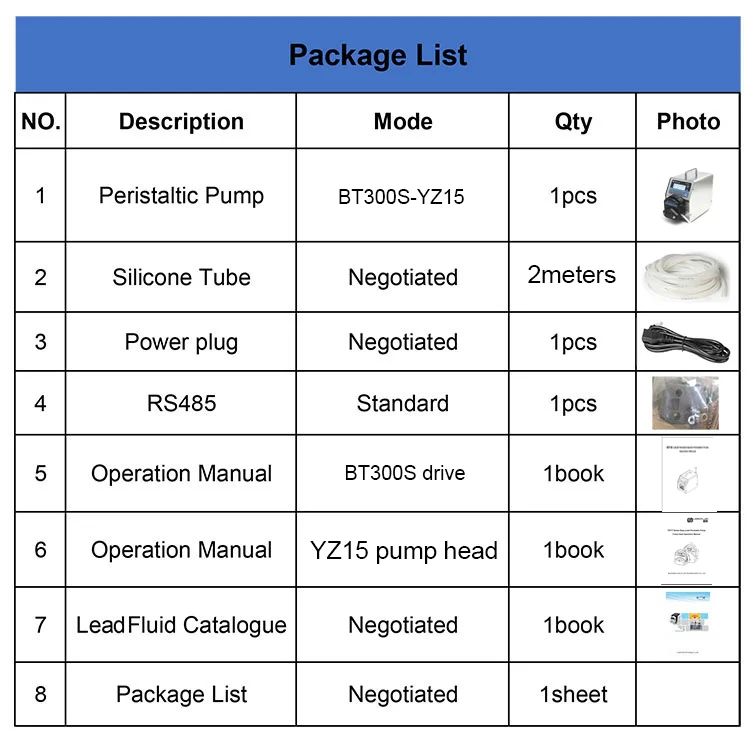

Packing & Delivery
Related Products

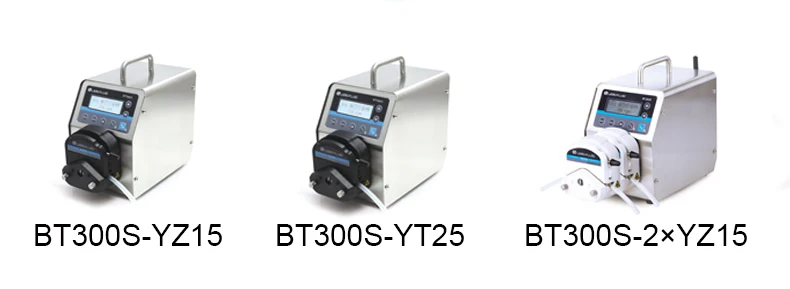

Drive type | Pump Head | Channel | Tube（mm） | Flow Rate Per Channel （mL/min） |
BT300S | YZ15 | 1 | 13#14#19#16#25#17#18# | 0.006～1300 |
2×YZ15 | 2 | 13#14#19#16#25#17#18# | 0.006～1300 | |
YT25 | 1 | 15#24#35#36# | 0.16～1690 |
Company Profile
Baoding Lead Fluid Technology Co., Ltd. was founded in October 1999. It mainly engaged in R&D, production and the sale of peristaltic pumps, laboratory syringe pumps, micro syringe pumps, precision gear pumps and related accessories, and is committed to continuously providing users with competitive micro Fluid transmission solutions and services.
● 23 years experience for peristaltic pump, syringe pump ,gear pump ,ODM pump production.
How About The Advantage About Lead Fluid Company?
● 23 years experience for peristaltic pump, syringe pump ,gear pump ,ODM pump production.
● 20000㎡ factory with 175 workers.
● 1000 ㎡ testing lab and perfect testing system ensure reliable design and stable batch production.
● 40 R & D workers ensure continuous technological innovation and provide you with perfect fluid solutions
● Strong anti-interference design, working in complex industrial environment, more reliable quality.
● Strict ISO9000 quality management system + 6S management.
● Automatic testing equipment to ensure product consistency.
● Important accessories are purchased directly by large international manufacturers to ensure quality.
● The whole product process can be traced, including raw materials, assembly, inspection and logistics.

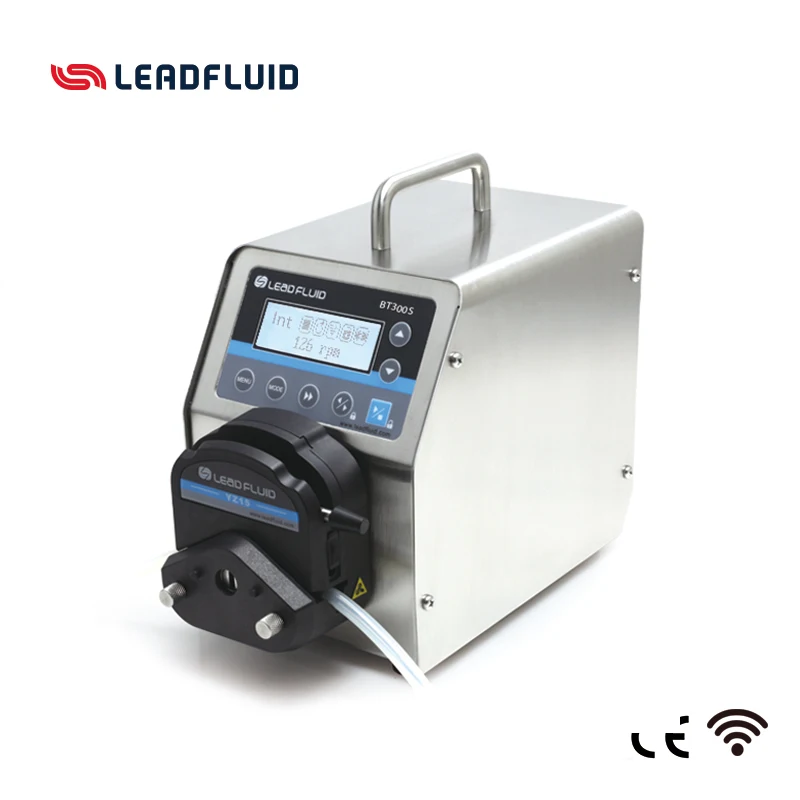

● Lead Fluid pumps has passed the CE certification of RoHS, reach, EMC, LVD and other directives, and the hose meets the GMP standard.
● 1000 ㎡ testing lab and perfect testing system ensure reliable design and stable batch production.
● 40 R & D workers ensure continuous technological innovation and provide you with perfect fluid solutions
● Strong anti-interference design, working in complex industrial environment, more reliable quality.
● Strict ISO9000 quality management system + 6S management.
● Automatic testing equipment to ensure product consistency.
● Important accessories are purchased directly by large international manufacturers to ensure quality.
● The whole product process can be traced, including raw materials, assembly, inspection and logistics.
● Lead Fluid pumps has passed the CE certification of RoHS, reach, EMC, LVD and other directives, and the hose meets the GMP standard.
