HVAC Digital Vacuum Gauge Micron Gauge 0 19000 Micron Refrigerant Vacuum Meter 1/4\
- Category: Pressure Gauges >>>
- Supplier: Wenling,Yangyi,Mechanical,And,Electrical,Products,Co.,Ltd.
Share on:
Product Overview
Description
Description
About this item
VGS-190 is a digital vacuum gauge for obtaining accurate vacuum measurements during filling refrigerants. It features a
professional vacuum sensor to precisely test vacuum. The evacuation of an HVAC and refrigeration system is to evacuate the air and moisture in the system, which, if mixed with refrigerants, may produce an acidic chemical reaction, causing damages to the system in long term. Generally, a system vacuum should be below 700 microns so that the moisture in the system can be effectively reduced. The best vacuum is 300 micron. Common refrigerants cannot meet this requirement. VG-760 is used to test system leak and discern vacuum pump quality.
professional vacuum sensor to precisely test vacuum. The evacuation of an HVAC and refrigeration system is to evacuate the air and moisture in the system, which, if mixed with refrigerants, may produce an acidic chemical reaction, causing damages to the system in long term. Generally, a system vacuum should be below 700 microns so that the moisture in the system can be effectively reduced. The best vacuum is 300 micron. Common refrigerants cannot meet this requirement. VG-760 is used to test system leak and discern vacuum pump quality.

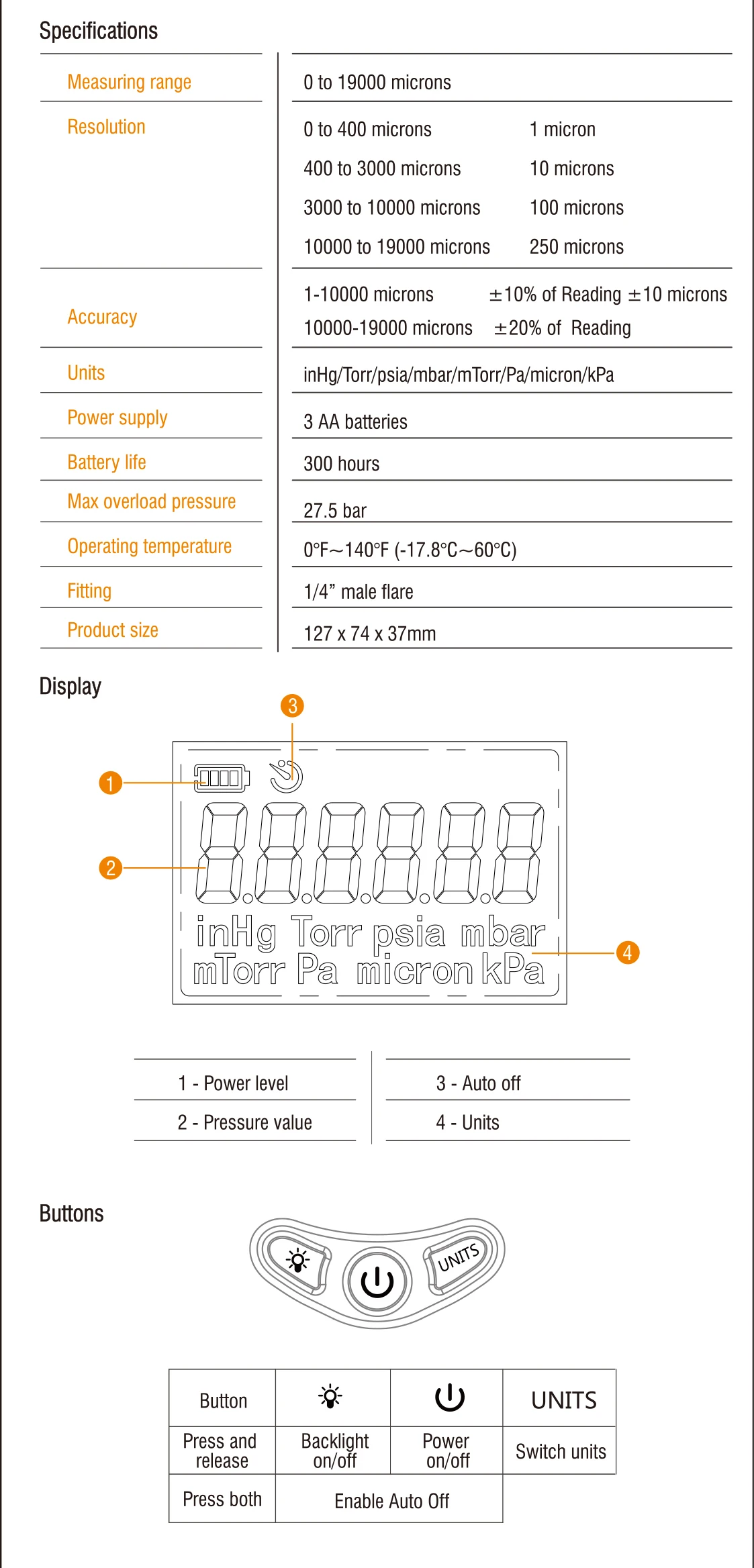

Specification
Measuring Range: 0-19000 micron
Operating Temperature: 0℉~140 (-178°C~60°C)
Fitting: 1/4'' Male Flare
Auto Off Time: 15 min
Product Size: 5''*3''*1.5''(127x74x37 mm)
Power Supply: 3 AA batteries, Battery Life: 300 hours
Max Overpressure: 27.5 bar
Accuracy: ±10% or ±10 Micron
Resolution:0-400 1 Micron; 400-3000 10 Micron; 3000-10000 100 Micron; 10000-19000 250 Micron
Operating Temperature: 0℉~140 (-178°C~60°C)
Fitting: 1/4'' Male Flare
Auto Off Time: 15 min
Product Size: 5''*3''*1.5''(127x74x37 mm)
Power Supply: 3 AA batteries, Battery Life: 300 hours
Max Overpressure: 27.5 bar
Accuracy: ±10% or ±10 Micron
Resolution:0-400 1 Micron; 400-3000 10 Micron; 3000-10000 100 Micron; 10000-19000 250 Micron
Pressure Measuring Range | 0～19000micron |
Accuracy | ±10% or ±10micron |
Resolution | 1 micron(0-400); 10 micron(400-3000); 100 micron(3000-10000); 250 micron(10000-19000) |
Fitting | 1/4'' SAE |
Measurement Units | inHg,Torr,psia,mbar, mTorr, Pa, micron, kPa |
Battery | 3*1.5V AA |
Detailed Picture
Packing and Shipping
For Packing:
Each machine is under carefully packing.
We can pack the goods into quality carton box, pallets or wooden box with shipping mark.
For Shipping:
International Express Shipping
DHL, UPS, FedEx and TNT are widely used in our shipping, it is door-to-door delivery service, transit time is as followed picture.
Air Cargo
Cost-effective for you to ship your goods over at least 100kgs. The transit time is around 3~10 business days. The shipping cost is lower than international express, but you have to pick up the goods nearby your airport and manage the customs clearance all by yourself. Import duties and taxes may be imposed, but unfortunately we have no idea how much they will cost.
Cost-effective for you to ship your goods over at least 100kgs. The transit time is around 3~10 business days. The shipping cost is lower than international express, but you have to pick up the goods nearby your airport and manage the customs clearance all by yourself. Import duties and taxes may be imposed, but unfortunately we have no idea how much they will cost.
Sea Cargo
Ocean shipping is the most cost-effective way to ship your bulky and un-urgent orders. The shipping time varies from
15~25 business days depending on the season and destination you ship to.
15~25 business days depending on the season and destination you ship to.
Southeast Asia | South America | Southern Europe | |||
Port | Ningbo/Shanghai/FOB/CIF/EXW/CFR | ||||
By Sea | 4-5 days | about 30 days | about 25 days | ||
By Air | 1-2 days | 1-2 days | about 4 days | ||
Company Profile
ETL Certification
CE
ISO9001
FAQ
