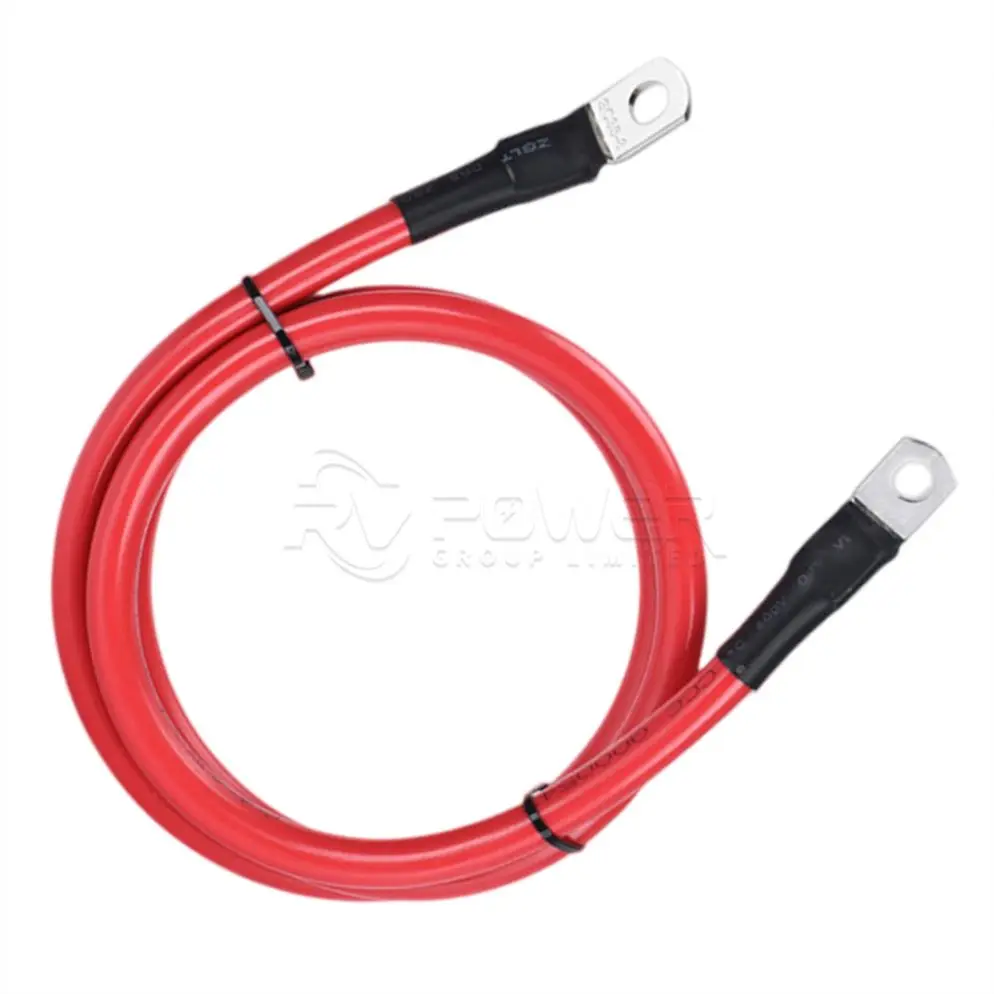

Wholesale price new energy E vehicle harness / battery Andersons plug energy storage connecting wire
- Category: >>>
- Supplier: SHANGHAI,RV,POWER,CO.,LTD
Share on:
Product Overview
Description
Product Description

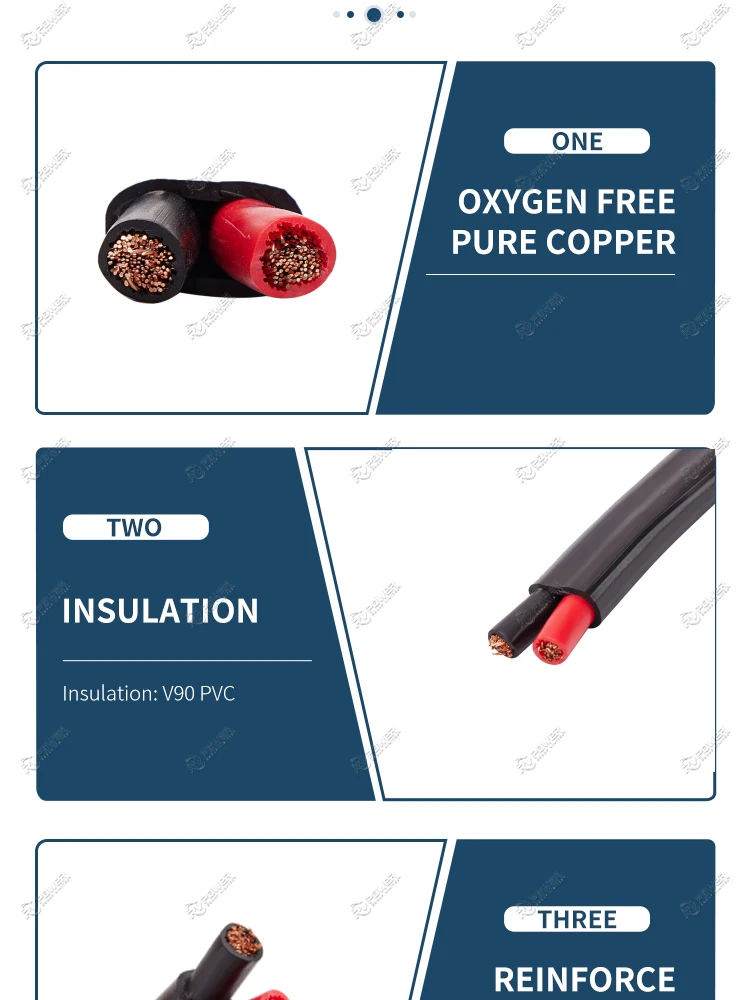

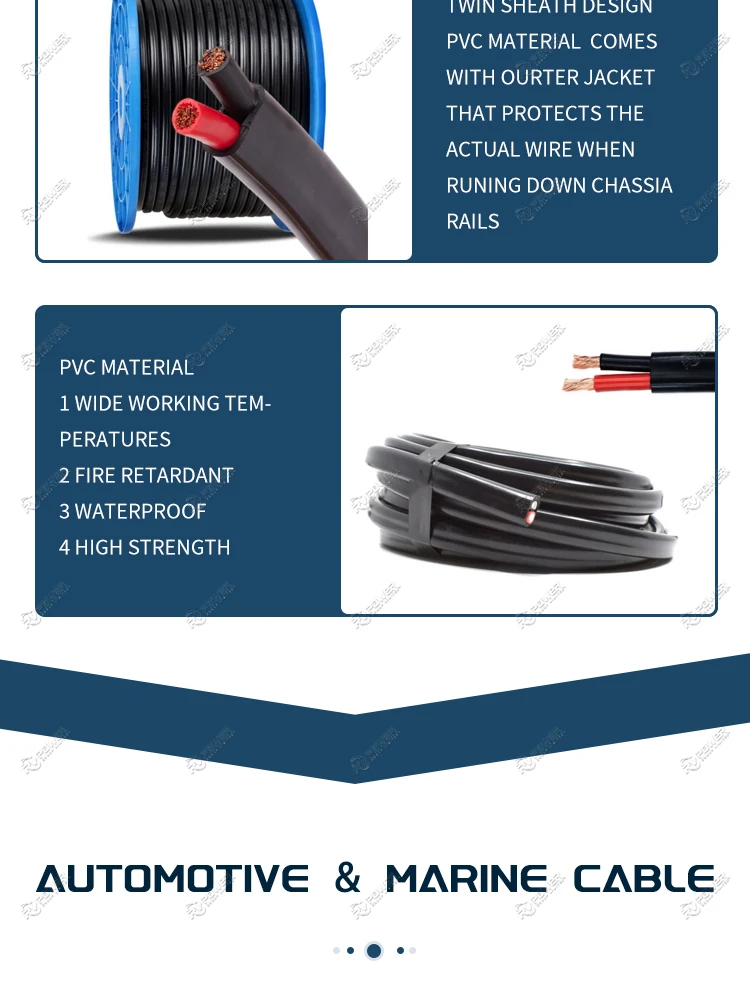

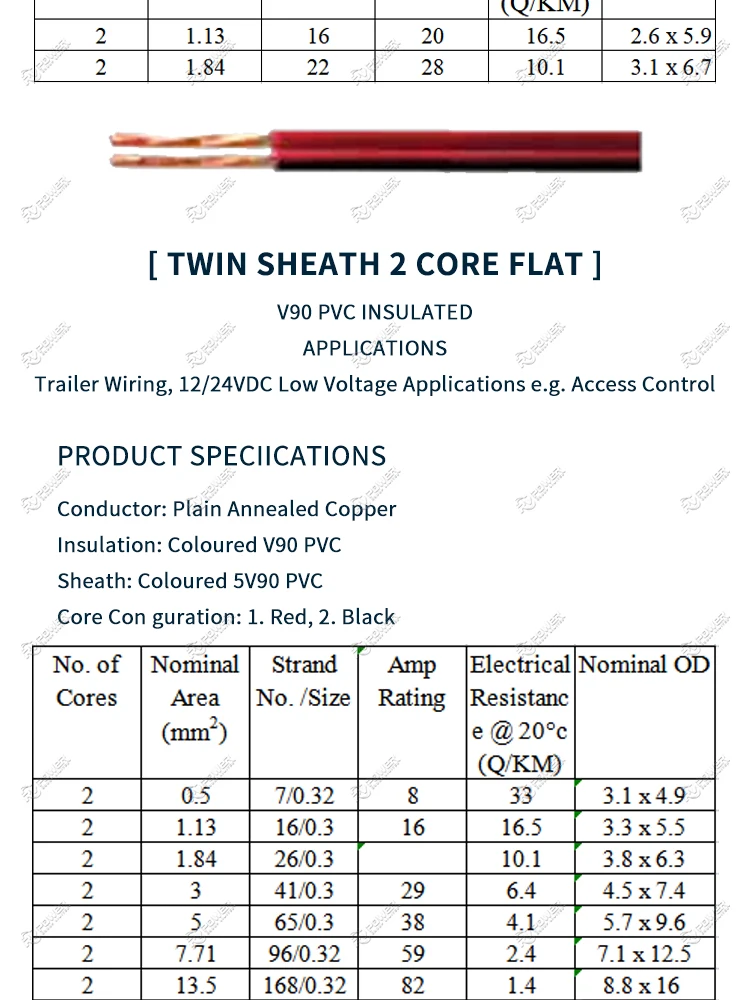

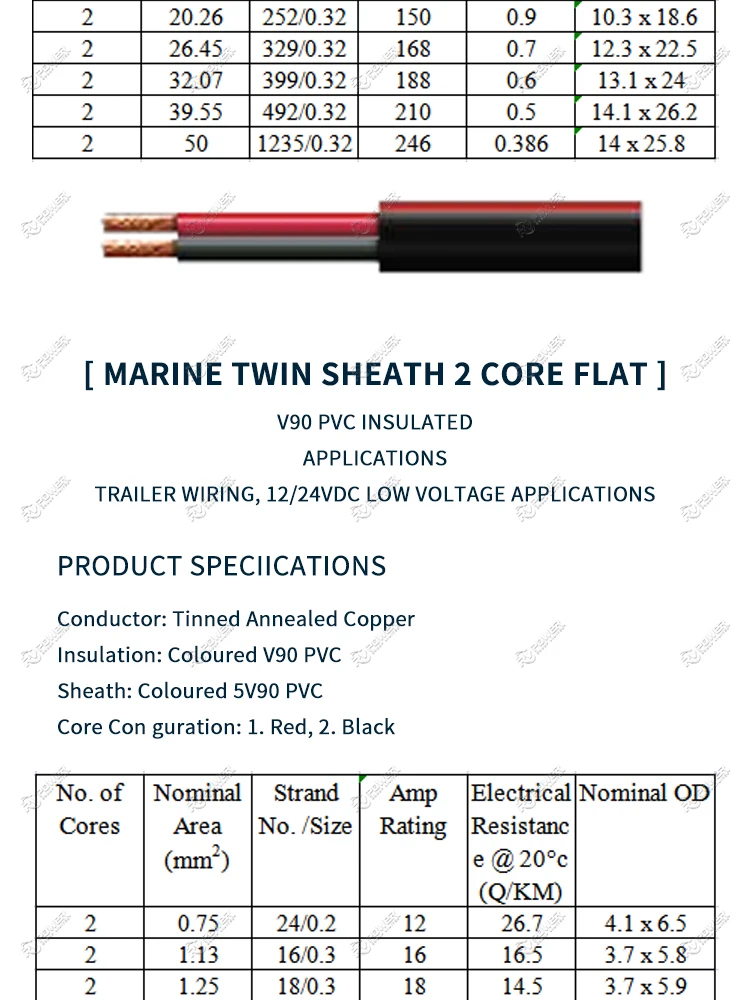

Twin Sheath 2 Core Flat MULTICORE AUTOMOTIVE CABLE |
APPLICATION: Automotive /Trailer Wiring, 12/24VDC Low Voltage Applications e.g. Access Control |
Construction Sheath: Coloured 5V90 PVC Core Color : 1. Red, 2. Black |
| No. of Cores | Nominal Area (mm2) | Strand No. /Size | Amp Rating | Electrical Resistance @ 20°c (Q/KM) | Nominal OD |
| 2 | 0.5 | 7/0.32 | 8 | 33 | 3.1 x 4.9 |
| 2 | 1.13 | 16/0.3 | 16 | 16.5 | 3.3 x 5.5 |
| 2 | 1.84 | 26/0.3 | 22 | 10.1 | 3.8 x 6.3 |
| 2 | 3 | 41/0.3 | 29 | 6.4 | 4.5 x 7.4 |
| 2 | 5 | 65/0.3 | 38 | 4.1 | 5.7 x 9.6 |
| 2 | 7.71 | 96/0.32 | 59 | 2.4 | 7.1 x 12.5 |
| 2 | 13.5 | 168/0.32 | 82 | 1.4 | 8.8 x 16 |
| 2 | 20.26 | 252/0.32 | 150 | 0.9 | 10.3 x 18.6 |
| 2 | 26.45 | 329/0.32 | 168 | 0.7 | 12.3 x 22.5 |
| 2 | 32.07 | 399/0.32 | 188 | 0.6 | 13.1 x 24 |
| 2 | 39.55 | 492/0.32 | 210 | 0.5 | 14.1 x 26.2 |
| 2 | 50 | 1235/0.32 | 246 | 0.386 | 14 x 25.8 |
