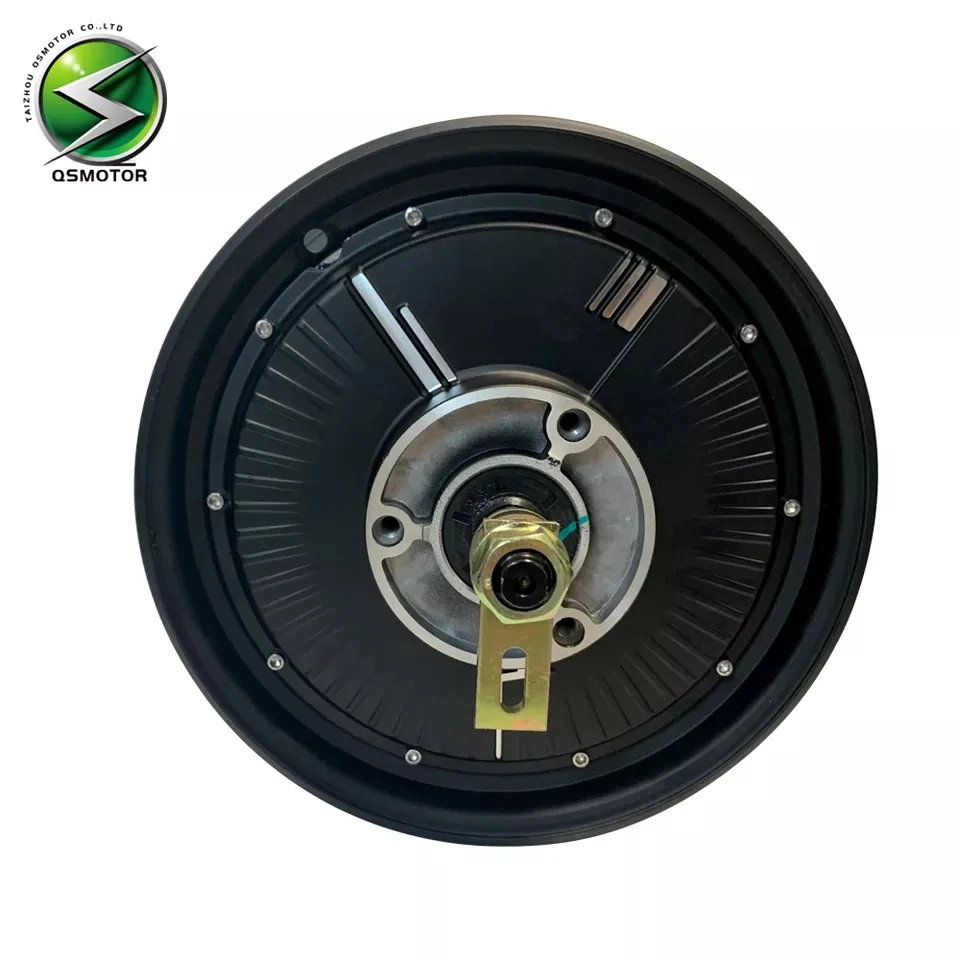

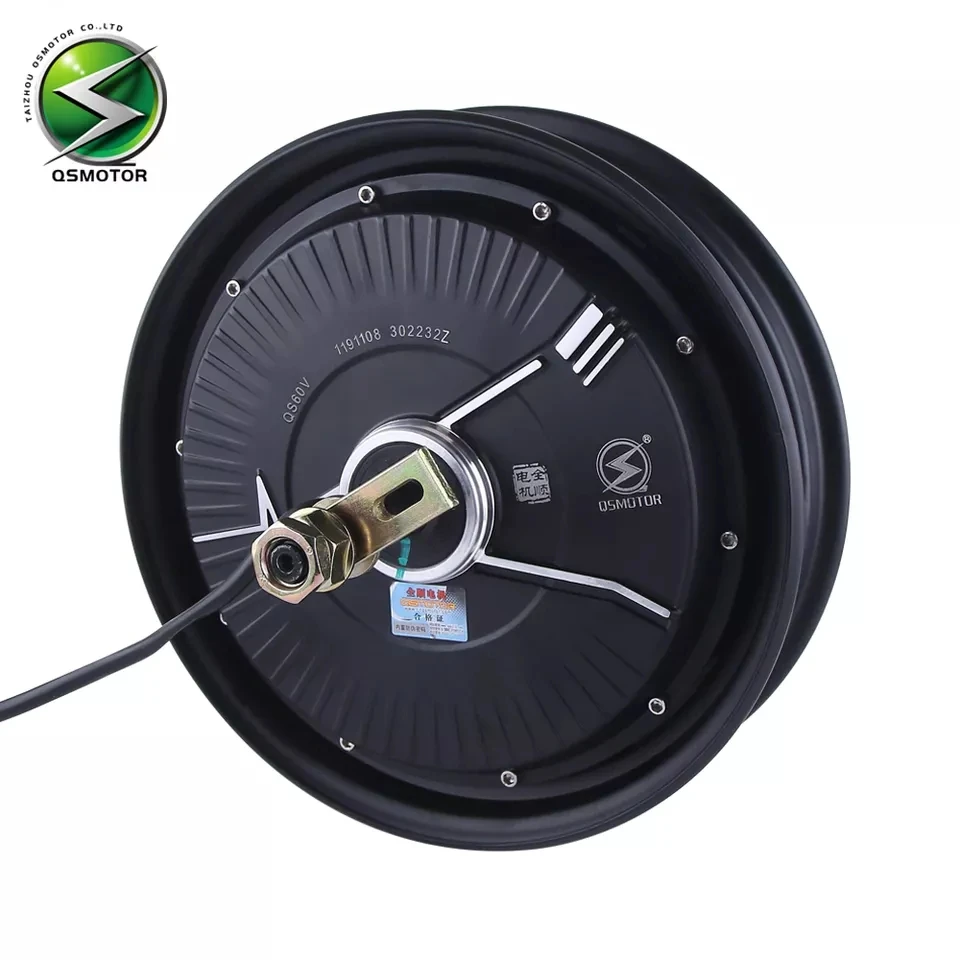

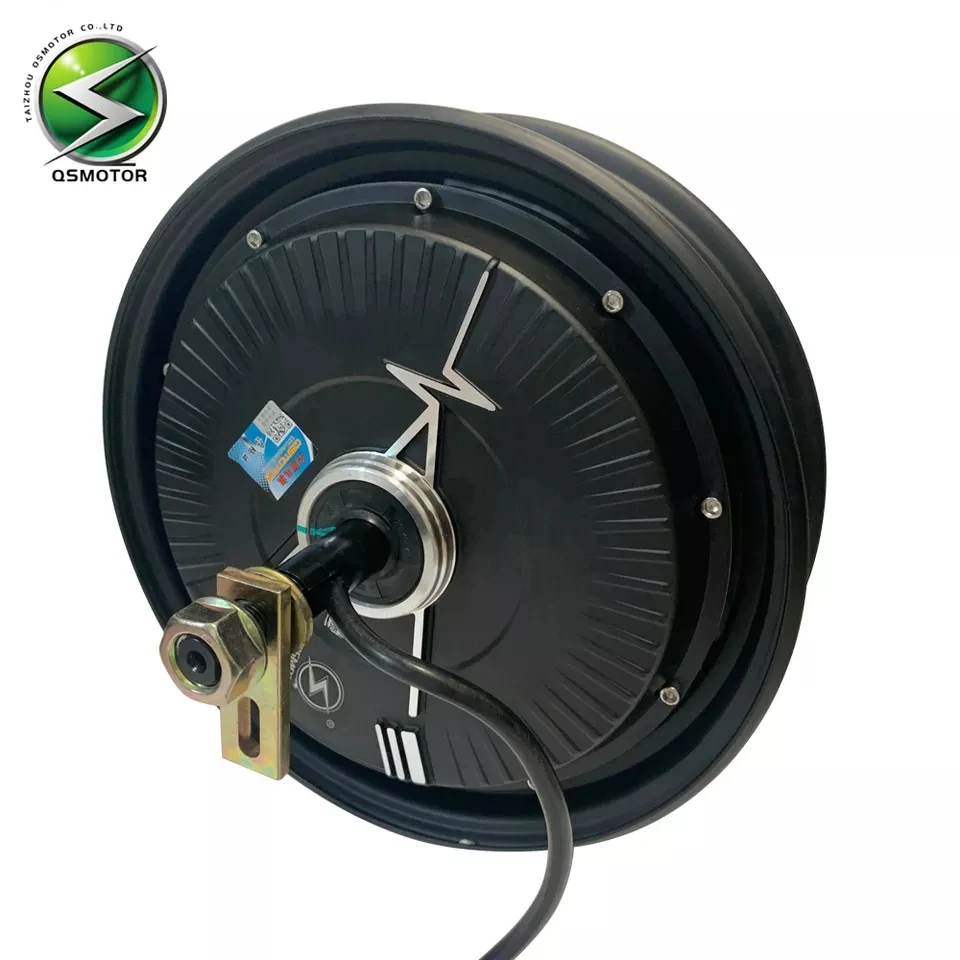

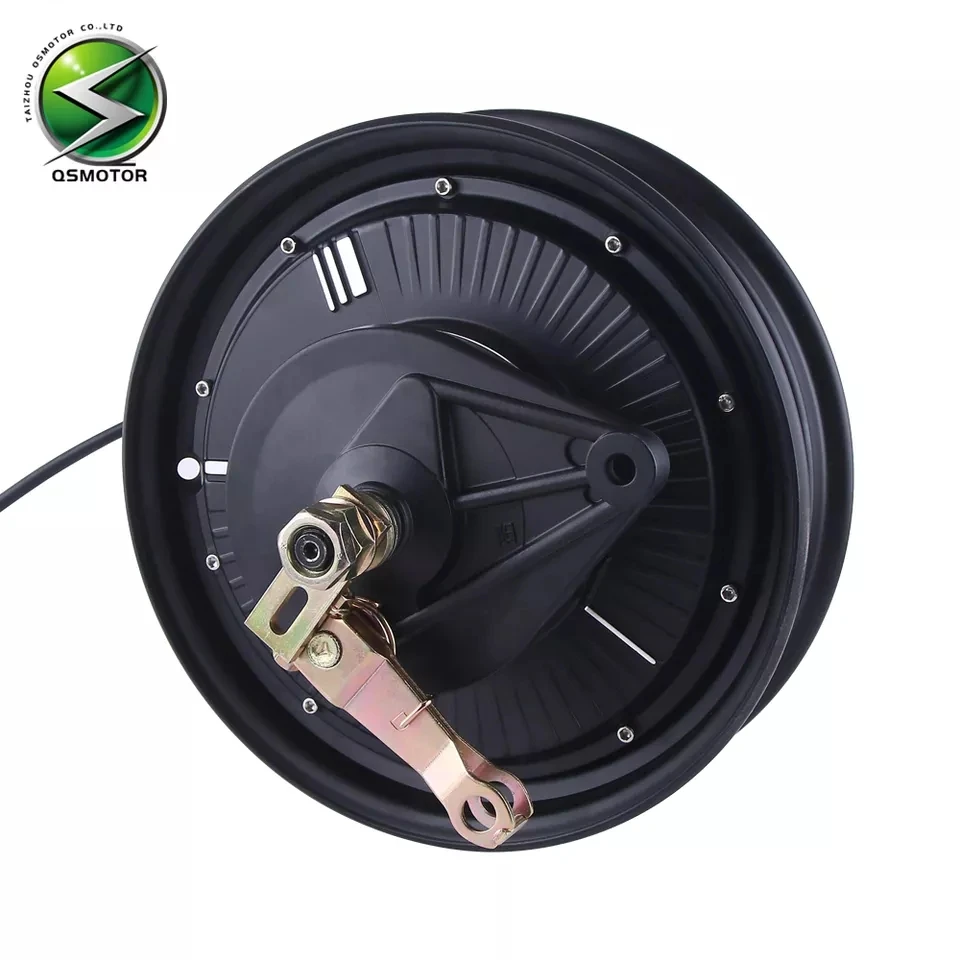

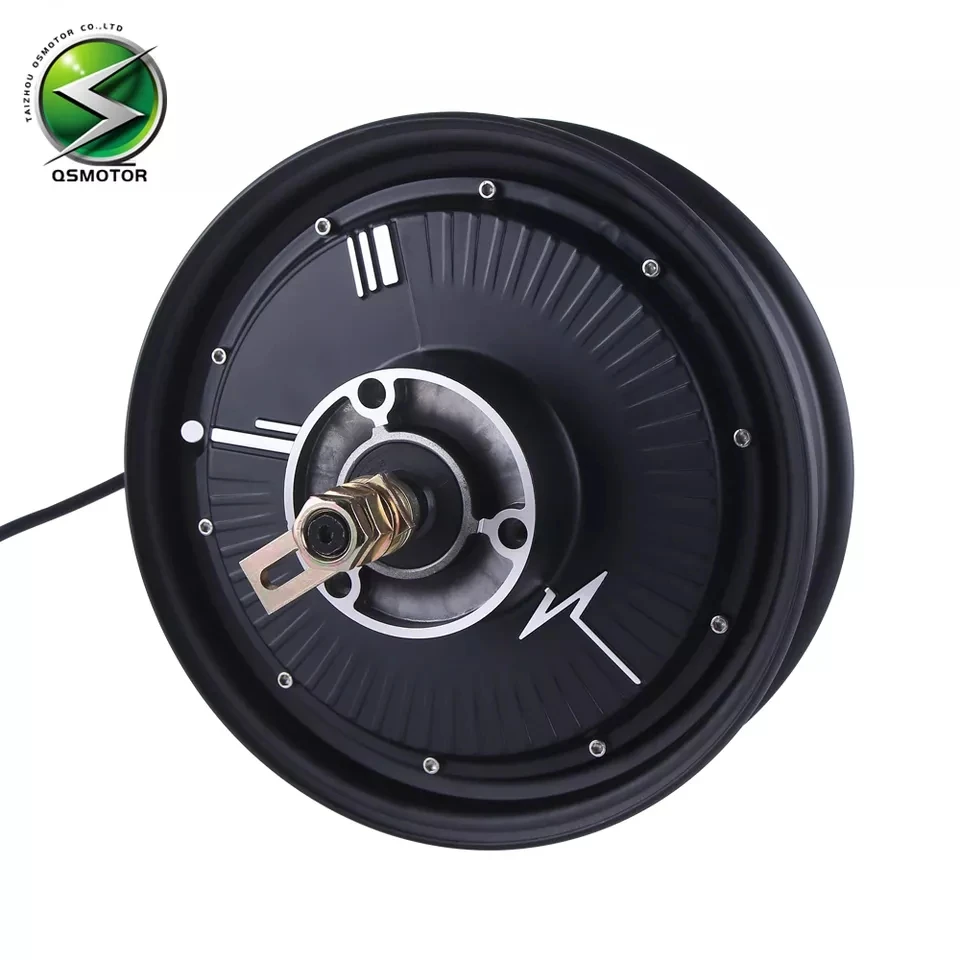

IP54 Waterproof 25 45KMPH electric scooters drum brake or disc brake optional 10 inch 1000W wheel Hub Motor
- Category: >>>
- Supplier: Hangzhou Reacher Technology Co. Ltd.
Share on (1600620335867):
Product Overview
Description
Key Features
1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space. 2). It could
beinstalled in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
beinstalled in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
Motor Type | BLDC Hub Motor with Permanent Manget |
Motor design | Double axle out with 10inch rim |
Rim size | 2.15-10 |
Matached Tire | 3.0-10, 3.5-10 |
Magnet Height | 30MM |
Pole Pairs | 23 paris |
Rated Power | 1000W |
Max Power | 1600W |
Rated Voltage | 48V( 60V/72V Can be optional) |
Speed | 45km/h (30-55km/h can be customized) |
Max No-load RPM | 650RPM |
Max Torque | 98N.M |
Max Efficiency | 90% |
Continious current | 23A |
Max current | 40-45A (Peak 70A in short time) |
Brake type | Disc brake or Brum brake(Optional) |
Rear Fock width for installation | 200mm |
Winding Core material | Steel |
Cross Section of Phase wire | 8 mm2 |
Hall sensor phasing angle | 120 degree |
Temperature Sensor | Optional |
Working Temperature | 70 degree, Peak 120 degree |
Waterproof Grade | IP54 |
Color | Black or Silver |
W./ G..W. | 11kgs / 12kgs |
Package Size: | 34*34*33CM |
