Price:$8,000.00

Quantity:


Product Overview

Description

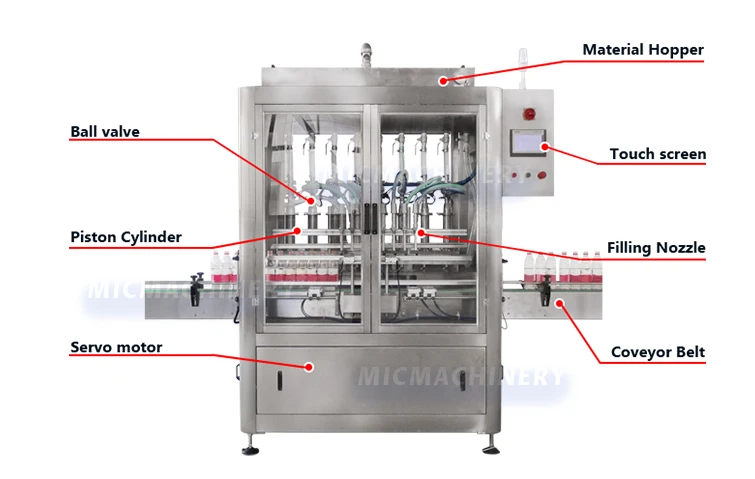

This machine adopts PLC touch screen, Siemens control and piston filling form. The machine material adopts SUS304. The material of filling nozzle, material tank and liquid contact part is SUS316, Teflon and POM. The machine have protection device, it will stop and alarm when it is out of material. This machine is customized according to customer's requirement, different material viscosity can be set for dive filling and vacuum filling. Each filling head is independent and the filling can be controlled separately by touch screen.




Weight
700KG
Voltage
Customized
Filling Volume
100-1000ml
Filling Error
≤3%
Suitable Filling Material
Oil, shampoo, detergent, sauce, honey, etc
Suitable Bottle Diameter
40-100mm
Suitable Bottle Height
80-300mm
Working Pressure
0.55-0.65Mpa
Dimension
2000*1300*2200mm
Power
1.5KW
Filling Nozzle
8 nozzles
Capacity
≤4000BPH

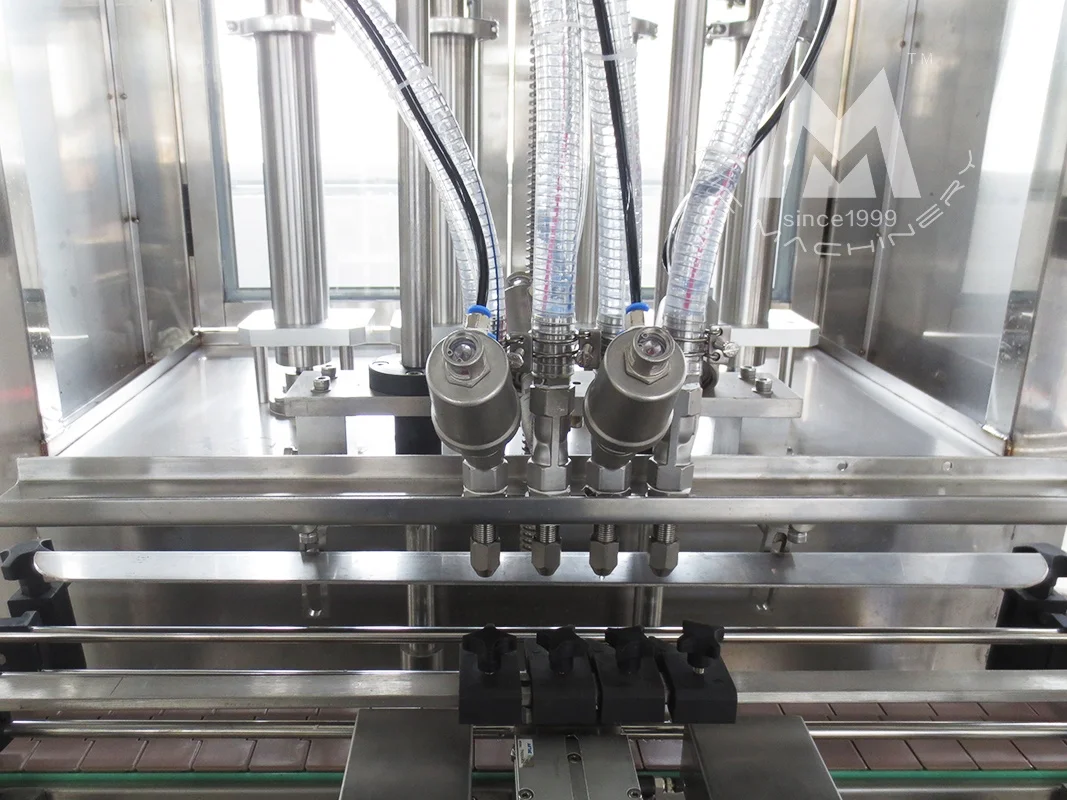

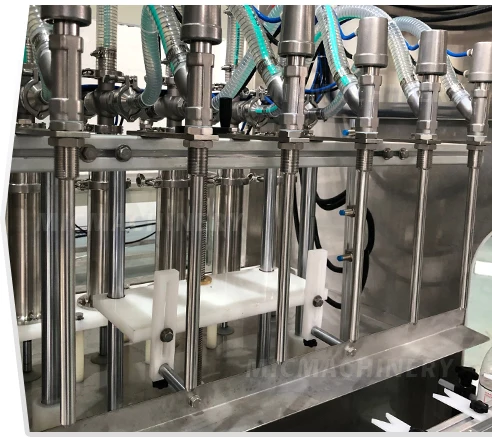

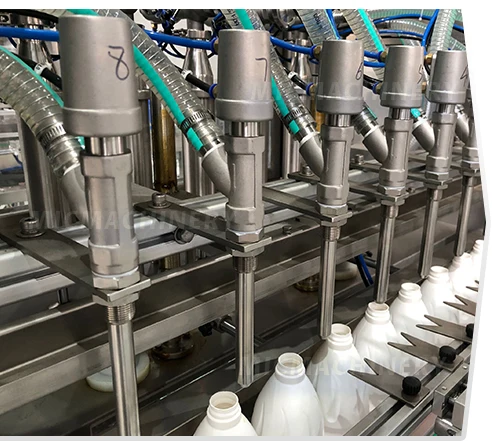

Filling heads
Each filling head has an anti-drop design to prevent wasted material. Filling head diameter is based on customer’s barrel mouth diameter.

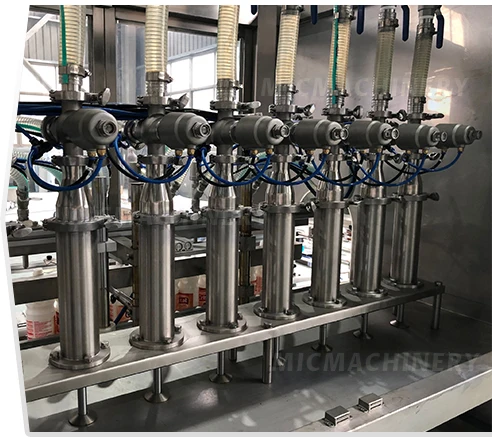

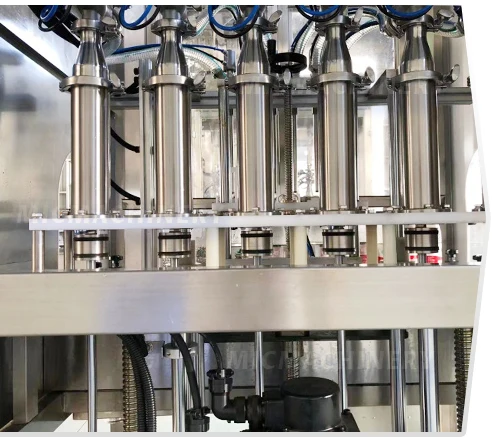

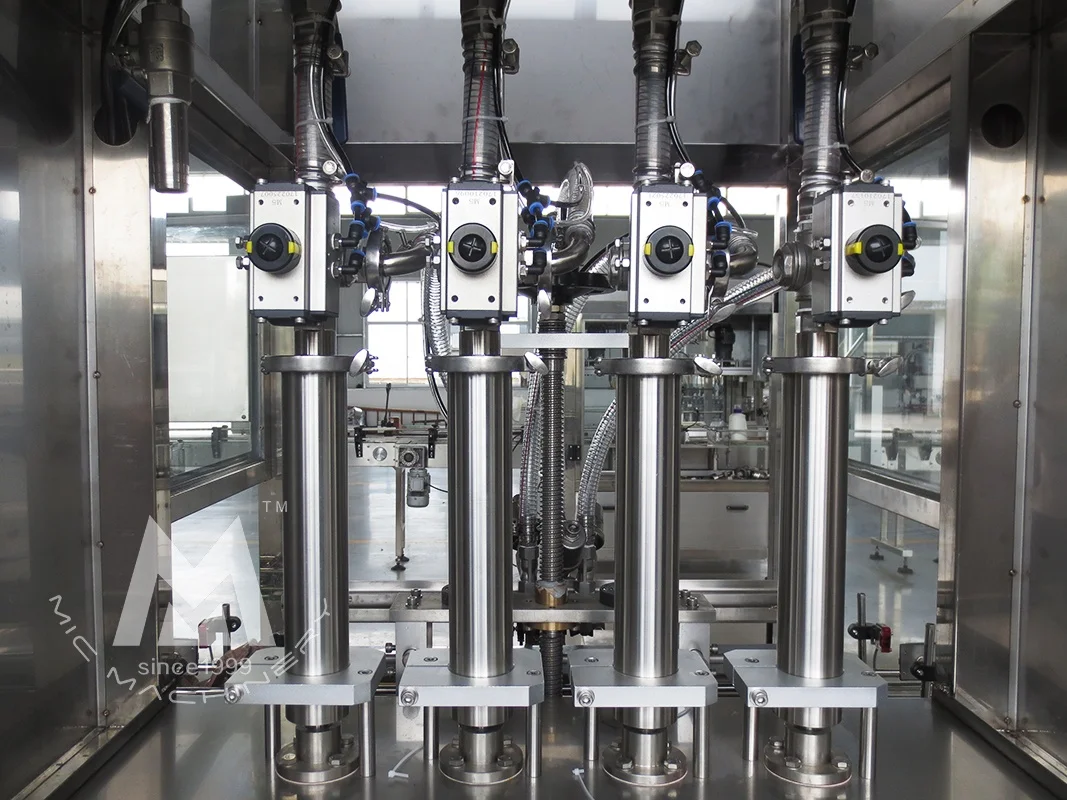

Piston cylinder
The piston is drawn back in its cylinder so that the product is sucked into the cylinder. The rotary valve then changes position so that the product is pushed out of the nozzle instead of back into the hopper.

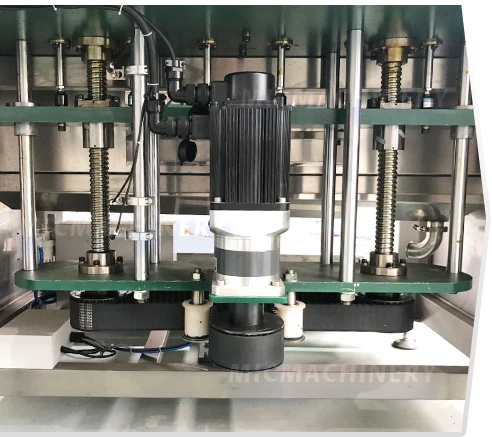

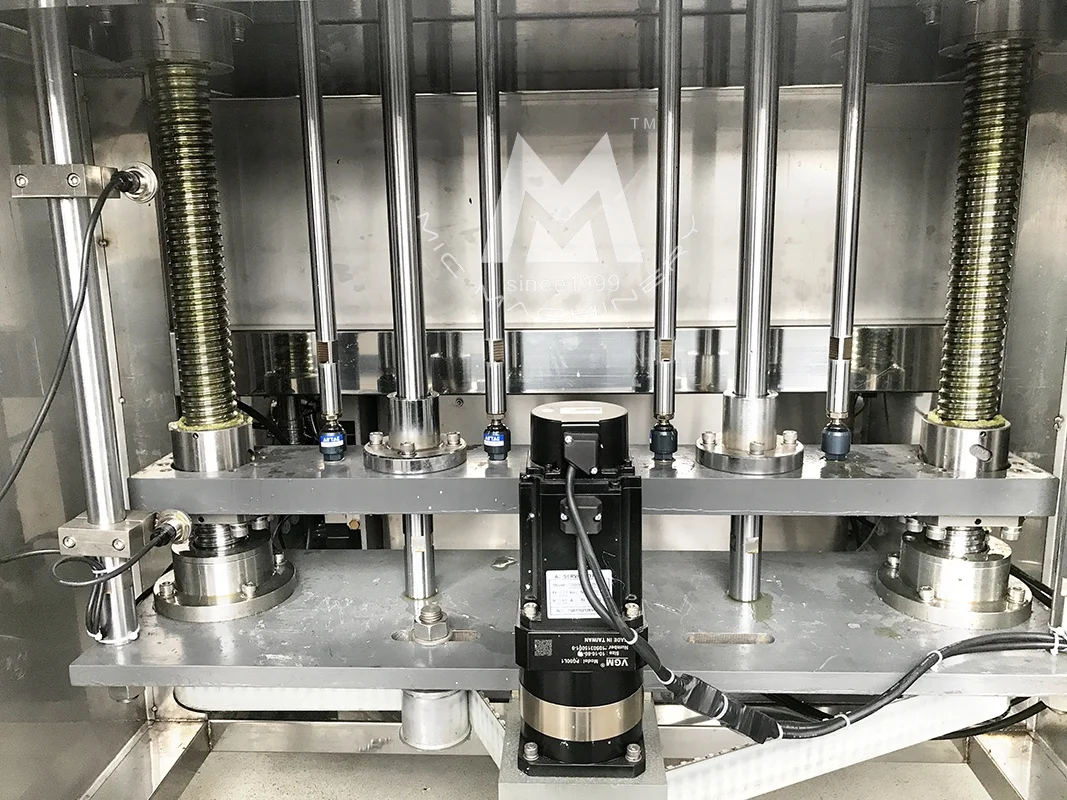

Servo motor
Servo motor can control filling more accurately and can realize filling nozzle diving bottom-up filling. The filling volume can also be adjusted on the touch screen and has an automatic fine adjustment function for each filling head.

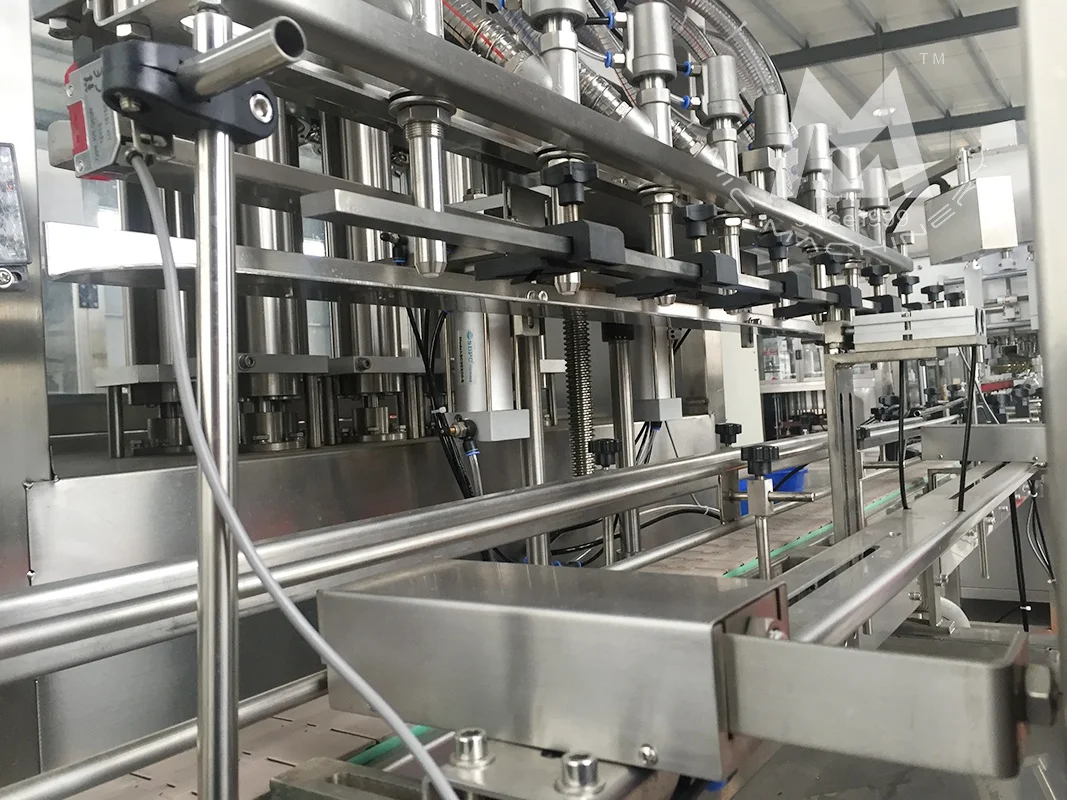

Anti-drip system
This function is to prevent material from dripping onto bottle and conveyors. And there will be a flexible plate coming out and back to catch the dripping materials.


Take off piston cylinder cleaning
The piston will take off from the cylinder automatically, then the remaining material left in the tank and barrel will be cleaned up.
