Good Quality 3003 Alloy Lacquer Coated 1050 Color Aluminum Coil Prices
- Category: Non-ferrous Metal >>>
- Supplier: Henan,Fastarriver,Industrial,Co.,Ltd.
Share on:
Product Overview
Description
Good Quality 3003 Alloy Lacquer Coated 1050 Color Aluminum Coil Prices
FASTARRIVER Industrial company supplies the most extensive aluminum sheets and coils.
For further information about any of our products, please feel free to contact me.
If you do not have the professional details, just tell me the size and use you need, I will offer a full solution for you !
Customer feedbacks
| Prof. James : Any of my questions, dear Mr. Chad reply to me always quickly. His attitude and passion attract me to keep a long cooperation with him. |
| Dr. Pankaj : I did not have much faith on China products before. I only ordered few tons for test at first. Now I just place 40tons of two containers again. They let me feel what is the win-win cooperation and how to keep a longtime partner. |
| Engr. Tariq : Customer service during request for quote and ordering process was exceptional. Quick fulfillment. Rapid shipping. Product quality exceeded expectations. I love this man. |
Ms. Katazyna : Very positive shopping experience. Dimensions are exact to my specs. Packaging is impressive. I will be back again. Dear Chad is definitely worthy of my trust and support. |
 |
Description
Common Specifications
Shape | Aluminum coils or sheets |
Color | RAL colors, like white, gold, red etc, and wood grain, stone pattern |
Process | Single or double coating, single or double sides coated etc |
Common Width | 30 - 1800mm |
Common Thickness | 0.2mm - 5mm |
Coating Material | PE, HDPE, PVDF |
PE Thickness | Over 18 micron |
PVDF Thickness | Over 25 micron |
Unit Weight | 500kg - 2000kg per coil |
Technology | Hot rolling, cold rolling |
Delivery | 15 - 19 days of 5-10 tons for reference |
Certifications | MTC, CO, FORM E, SGS, ISO |
Samples | Free |
Main features | Long color life, bright colors, rustless |
Usage | ACP, Decoration of wall, roofing, License plate, Shutter door, etc |
 | |
Features
| 1. Rustless. | 2. Eco-friendly. |
| 3. High definition. | 4. Vibrant colors. |
| 5. Super texture and feel. | 6. Excellent fire resistance. |
| 7. Excellent impact strength. | 8. Super weather resistance. |
| 9. Waterproof and easily clean. | 10. Good gloss and smoothness. |
| 11. Light weight and easy to process. | 12. Uniform and plenty colors of coating. |
| 13. Extremely durable scratch resistant surface. | |
 | |
 | |
 | |
 | |
 | |
 | |
 | |
 | |
| Customized dimensions |
 |
| Technical Data of PE | |||
| Test Item | Test Result | Coating Film Thickness | 16μm (average 17μm) |
| Gloss Tolerance | 1.5 | Abrasion Resistance | 1000 times No change |
| Pencil Hardness | 3H | Acid Resistance | No change |
| Coating Flexibility | 1T | Solvent Resistance | No change |
| Impact Resistance | 50kg·cm | Boiling-Water Resistance | No change |
| No depainting, no crack | |||
 | |||
| Technical Data of PVDF | |||
| Test Item | Test Result | Color Retention | E=0.35 |
| Coating Thickness | 26μm | Chalk Resistance | No change |
| Gloss Tolerance | 38% | Gloss Retention | 84.50% |
| Pencil Hardness | 2H | Surface Bruning Behavior | Class:A |
| Coating Flexibility | 2T | Salt-spary Resistance | 3000hrs no blister |
| Adhesive Force | 4B | Humidity Resistance | 3000hrs no blister |
| Abrasion Resistance | 55L/mil | Solvent Resistance | No change |
| Impact Resistance | >=100kg-cm | Acid Resistance | No change |
| Boiling-water Resistance | No change | Alkali Resistance | No change |
 | |||
| Common Chemical Composition (%) | ||||||||
| Grade | Si | Fe | Cu | Mn | Mg | Zn | Ti | Al |
| 1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 | 99.5 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | 99.6 | |
| 3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | 0.1 | Rem. | ||
All colors for your choice, or exact same as your sample |
|
With double sides (front and back) all color painted |
 |
With embossed process |
 |
With mirror polished process |
 |
Applications
1. For constructional exterior curtain walls, ACP of aluminum composite panel, Decorative Renovation Buildings, Building Facades, Siding, Window, , Exterior and Interior Cladding Wall Panel, Indoor and Outdoor Ceiling, Roller Shutter Doors, Roofing Material and so on.
2. Eaves Trough, Rain Gutters and Downspouts, Soffits and so on.
3. Decorative renovation for storey-added old buildings, Wallboard and ceilings for tunnels.
4. Channel Letters, Advertisement board, display platforms, LED Signs, UV printing, Advertising Boards, Billboards, Signboards, Wallboards and so on.220318C
5. Material for Vehicle Bodies, Yacht Bodies, Boat Bodies, Bus Body, and so on.
6. Fan blade sheets, louver window shades blinds.

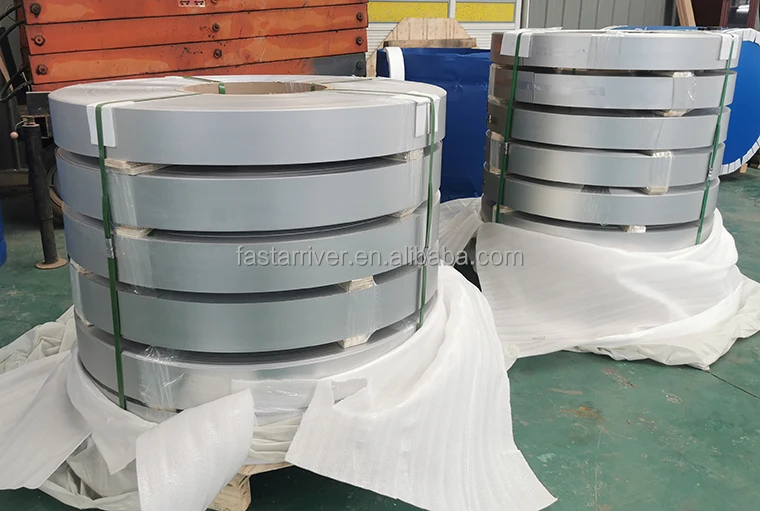

Packaging & Shipping
| Standard seaworthy exporting packing with wooden carton and pallets. |
| 1. Waterproof plastic and strong wrapping paper cover. |
| 2. Metal belts baling and wooden pallets on the bottom. |
| Also can pack as your request. And clear dimensions are calculated by your inquiry. |
| Shipping from Shanghai or Qingdao port usually, other main ports in China is available too. |
150mm, 300mm, 400mm, 500mm inner diameters for your further process easily.
|
|
 |
 |
Recent Exhibitions
More exhibitions are arranged and going on, wish to meet you next.
Company Information
Henan FASTARRIVER Industrial Co., Ltd., aluminum products factory!!!
| We are located in Zhengzhou, here is the professional and leading place in China of aluminum products. "Quality is culture! " We insist WIN-WIN cooperation to build longtime relationship with our customers. Hope to improve with you to make us advanced together. |
 |
 |

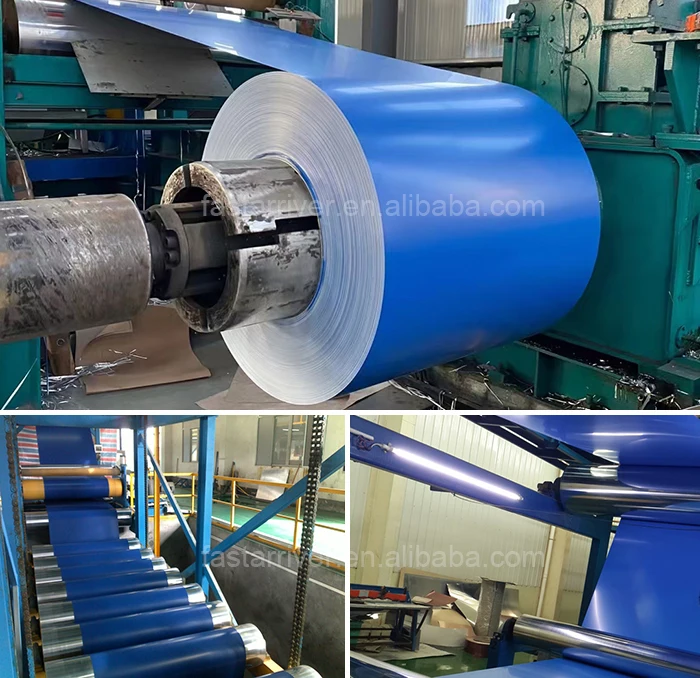

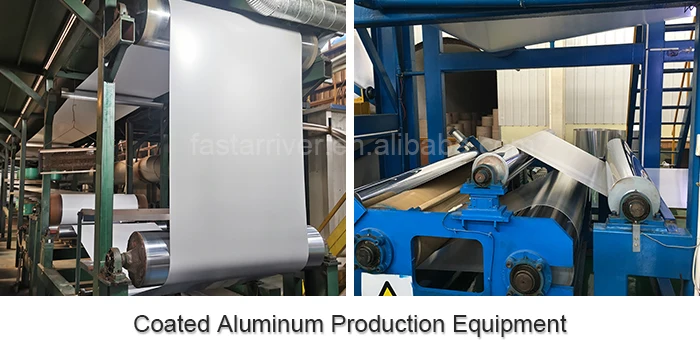

We have a complete production, processing and quality control system.
| 6 continuous casting-rolling production lines. | 4 sets cold rolling machines. |
| 4 sets foil rolling machines. | 2 sets continuous rotary coating machines. |
| 2 sets mirror surface polishing machines. | 2 sets laminating machines. |
| 3 sets embossing machines and other processing machines. | |
| In addition, we provide a complete suite of aluminum processing services, includes mill finish, colored, embossed, brushed, mirror polished, etc. The most important is we are focusing on and leading the insulation jacketing aluminum, with Polysurlyn or Polykraft Moisture Barrier. | |
 | |
Our Services
 | |
| OXM | Acceptable. |
| Quality assurance: | Chemical analysis test, hardness test, tensile test, and bent test. |
| Customized design | Available. 220318C |
| Fast delivery: | Complete production lines ensure a short production time. |
| Processing ability: | Mill Finish, Coated, Embossed, Printed, Colored etc. |
| All products are available in many different thickness, widths, alloys and tempers to meet your specifications.220318C | |
Quality control system
| Chemical analysis laboratory, oil analysis laboratory, spectral analysis laboratory, tensile laboratory, micro analysis laboratory. Strict control of production materials, and strictly monitor the production process, meet customers' demands exactly. |
 |
