Ttgo Lilygo T-internet-poe Esp32 Wroom Lan8720a Chip Ethernet Adapter And Downloader Programmable Hardware Expansion Board
Ttgo Lilygo T-internet-poe Esp32 Wroom Lan8720a Chip Ethernet Adapter And Downloader Programmable Hardware Expansion Board
Ttgo Lilygo T-internet-poe Esp32 Wroom Lan8720a Chip Ethernet Adapter And Downloader Programmable Hardware Expansion Board
Ttgo Lilygo T-internet-poe Esp32 Wroom Lan8720a Chip Ethernet Adapter And Downloader Programmable Hardware Expansion Board
Ttgo Lilygo T-internet-poe Esp32 Wroom Lan8720a Chip Ethernet Adapter And Downloader Programmable Hardware Expansion Board
Ttgo Lilygo T-internet-poe Esp32 Wroom Lan8720a Chip Ethernet Adapter And Downloader Programmable Hardware Expansion Board

Ttgo Lilygo T internet poe Esp32 Wroom Lan8720a Chip Ethernet Adapter And Downloader Programmable Hardware Expansion Board

Share on (1600620442276):


Price:$19.50 - $23.80

Quantity:


Product Overview

Description



Product Description




T-Internet-POE Specifications


MCU
ESP32
Wireless Connectivity
Wi-Fi:802.11 b/g/n/,BLE V4.2
FLASH
4MB
Onboard Functions 1
2 Buttons(RST+BOOT)
Onboard Functions 2
Support TF Card
USB
Type-C Power Supply
Downloader
(Only T-Internet-POE Suit Contains)
CH9102
Si3404 PoE PD
Voltage input range
2.7V~10.1V
LAN8720 Ethernet Network Port
Single-Chip Ethernet Physical Layer Transceiver
Flexible Power Management Architecture



T-Internet-POE

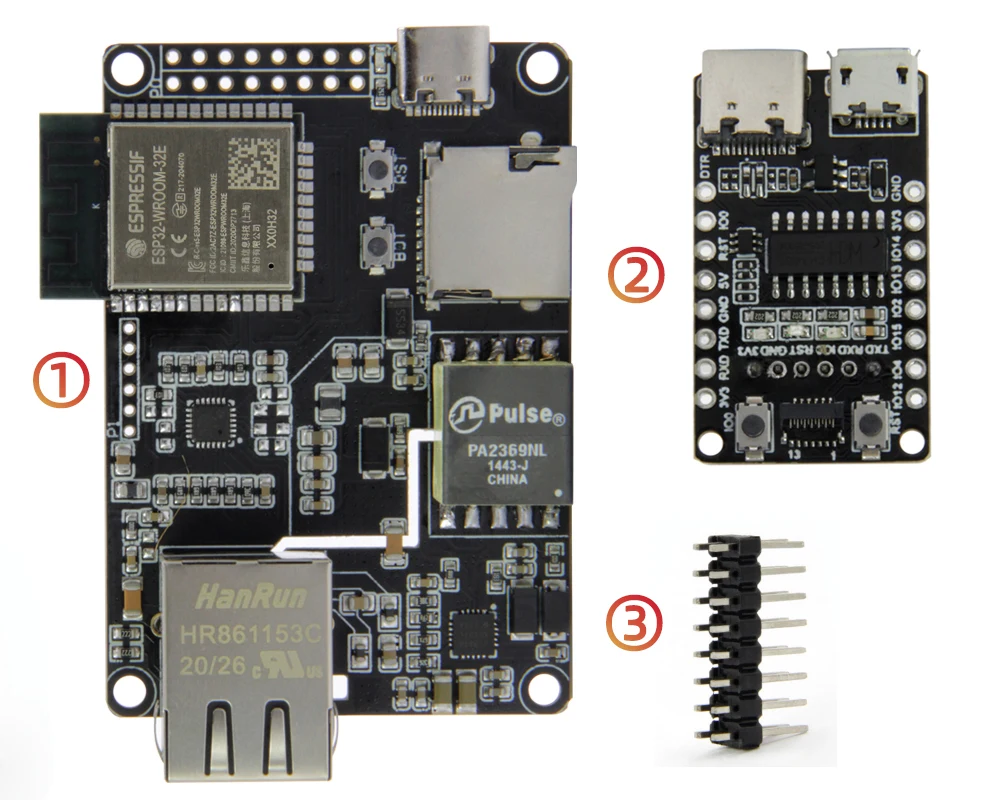

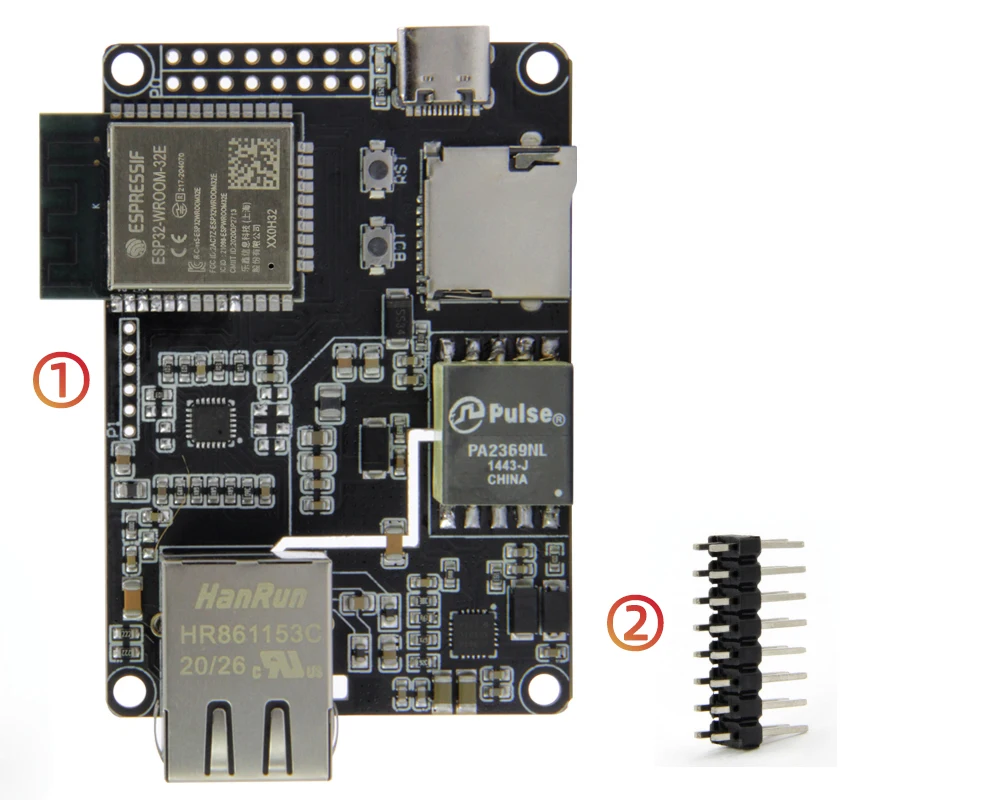

① 1 X T-Internet-POE

② 1 X Double Row Pin







T-Internet-POE Suit

① 1 X T-Internet-POE

② 1 X Downloader

③ 1 X Double Row Pin





* Compatible with PoE mode A (powered by data pair) and PoE mode B (powered by backup pair) and auto MDIX, allowing the use of
straight and crossover Ethernet cables.

* 20 needle footprint with 3.3V, V+ power and 15 ESP32GPIO are available for your application.

* The compact 75mm by 40mm footprint is compatible with 4 mounting holes of ordinary M2.5 or 4-40 screws.

* A small programming/USB serial console sub-module has been created so that the Inter-POE module can be easily programmed to
meet the user's application needs.


More Information:

https://github.com/Xinyuan-LilyGO/LilyGO-T-ETH-POE


Note:the USB interface only has a charging function, the product needs downloader to program .
If you need a downloader, you can go to buy it, or buy the T-Internet-POE Suit option that includes a downloader.


Specification


item
value
Model Number
T-internet-poe Esp32
Type
Ble 4.2
Country of Origin
China
Brand
RXT
Application
ILOT
Product Name
T-Internet-POE
Chip
ESP32,LAN8720A
Collocation
Downloader Expansion Board
Use Reference
Ethernet Adapter
Module
ESP32 Ethernet
USB
Type-C Power Supply
Downloader
CH9102
Si3404 PoE PD Voltage input range
2.7V~10.1V
FLASH
4MB
Wireless Connectivity
Wi-Fi:802.11 b/g/n/,BLE V4.2
