Car fan 6 inch 150mm metal heat resistant fans 12v 24v 3000rpm industrial exhaust fan motor
- Category: >>>
- Supplier: Shenzhen Duo Li Technology Company Limited
Share on (1600620451480):
Product Overview
Description
Products Description
Fan type | DC axial type fan | ||||||||
Size | 150 x 150 x 50 mm | ||||||||
Voltage | 12v 24v dc | ||||||||
Speed range | 2000 - 5000 rpm | ||||||||
Frame | Metal Aluminum material | ||||||||
Impeller | PBT plastic UL94V-0 Rating | ||||||||
Bearing | Ball Bearing system | ||||||||
Motor | Brushless DC Motor | ||||||||
Connection | Lead wire or Pin type | ||||||||
Protection | Impedance or Polarity protection | ||||||||
Operating | Ball Bearing : - 20 ~ + 80 degrees | ||||||||
Insulation | Above 10M Ohm,DC500V | ||||||||
Life Expectancy | Ball Bearing | Temperature | |||||||
6,0000 HR | at 25 degreess | ||||||||
40,000 HR | at 40 degreess | ||||||||
25,000HR | at 55 degreess | ||||||||
15,000 HR | at 70 degreess | ||||||||
Operating Voltage : | Rating voltage +/-15% | ||||||||
Additional signal:
FG: Output speed signal,
RD: Lock alert function,
TC: Temperature adjustment function,
PWM: Duty/Pulse speed regulation,
EC: Ac to DC,
VCC: (Voltage control/Automatic control) function.
FG: Output speed signal,
RD: Lock alert function,
TC: Temperature adjustment function,
PWM: Duty/Pulse speed regulation,
EC: Ac to DC,
VCC: (Voltage control/Automatic control) function.
Additional protection:
Automatic lock/start function of AS,
Slow start function,
Overcurrent protection,
Reverse connection protection,
Overvoltage protection,
dustproof waterproof IP54 IP55, IP67.
Automatic lock/start function of AS,
Slow start function,
Overcurrent protection,
Reverse connection protection,
Overvoltage protection,
dustproof waterproof IP54 IP55, IP67.

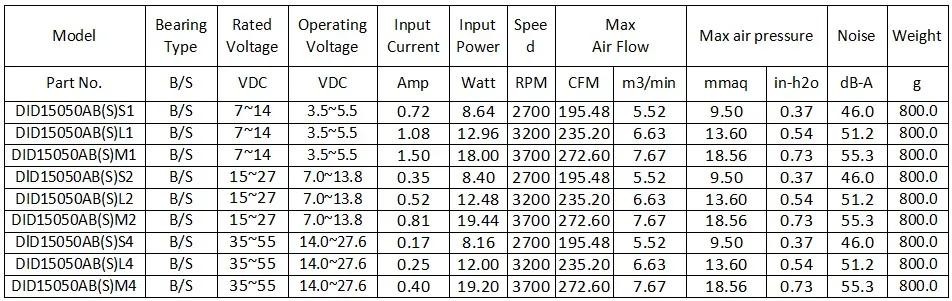

Product Paramenters
Product Application
Company introduction
Shenzhen Duo Li Duo Technology Co., Ltd. (Didfan) specialized in producing DC compact brushless fans, like Dc axial flow fan, Dc blower fan, Dc centrifugal fan. we have developed a variety of low noise, strong air volume, high stability and long life products, which is widely used for industrial, medical, home appliances, consumer electronics, and other fields. such as industrial equipment, servers, new energy, communication equipment, medical equipment, instruments and meters, stage lights,cabinets, industrial power supply, ventilation and heat dissipation system, air purification, heating and cooling ventilation system, military and other products and other industries. We will always provide customers with reliable quality and stable performance of the fan, according to customer requirements to develop a variety of structure and performance of the cooling fan,and real-time technical communication with customers, respond to customer needs in short time, and help customers select the most suitable products in the shortest time. We will also collect relevant information and carry out forward-looking development according to the market situation and customer demand tendency. To expand product performance advantages and product series.
FAQ
Q1: What's your company nature?
A: We are a combination of manufacturers and agents, with the Top Professional Team, serving dc brushless fan and motor, dc axial fan, dc blower fan, dc centrifugal fan, high speed fan, high pressure fan, low noise fan.
Q2:What's your products MOQ?
A: We provide you small MOQ for each item, it depends your specific order!
Q3: How about your delivery time?
A: Generally, our stock products would be shipped in 2-3days after payment received, finally depends on order quantities.
Q4: What's your warranty?
A: All of our products will be 100% test before shipment. Warranty 1year!
Q5: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit ; We
respect every customer as our friend and we sincerely do business and make friends with them,It's not something that can be replaced.
Q6: Do you also support quote BOM list? then Shipment to us together?
A: Yes, we also can support quote BOM and shipment all components together. Please send list to us for check.

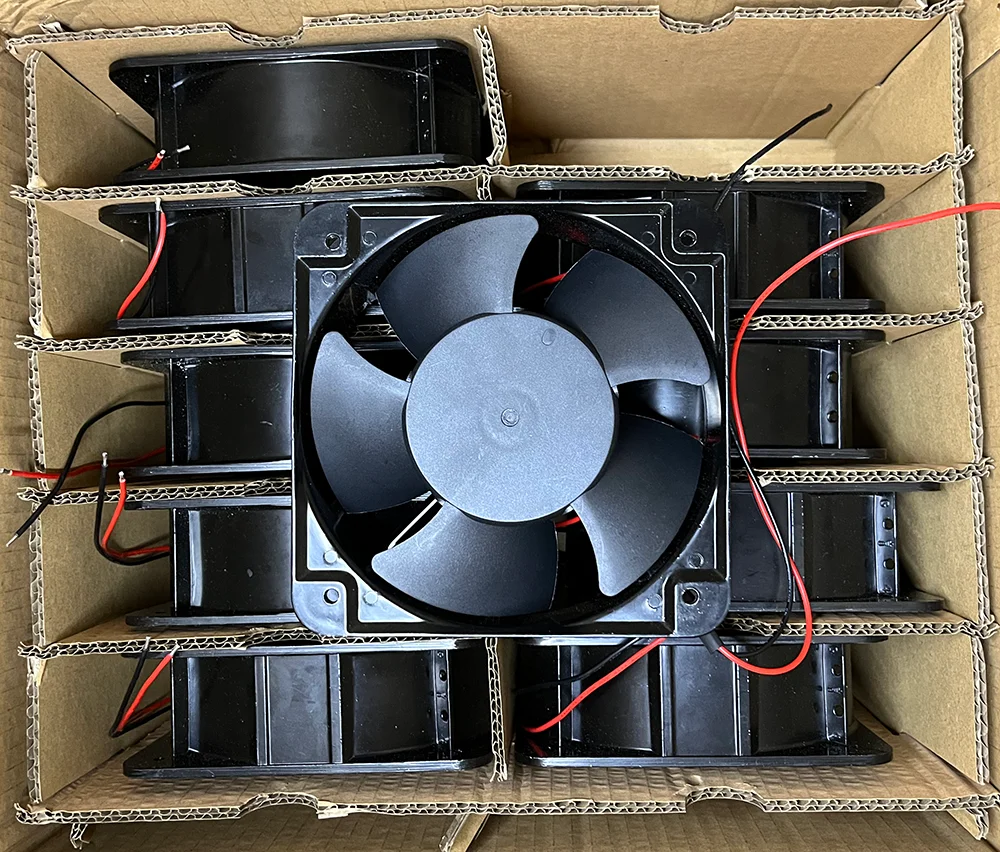

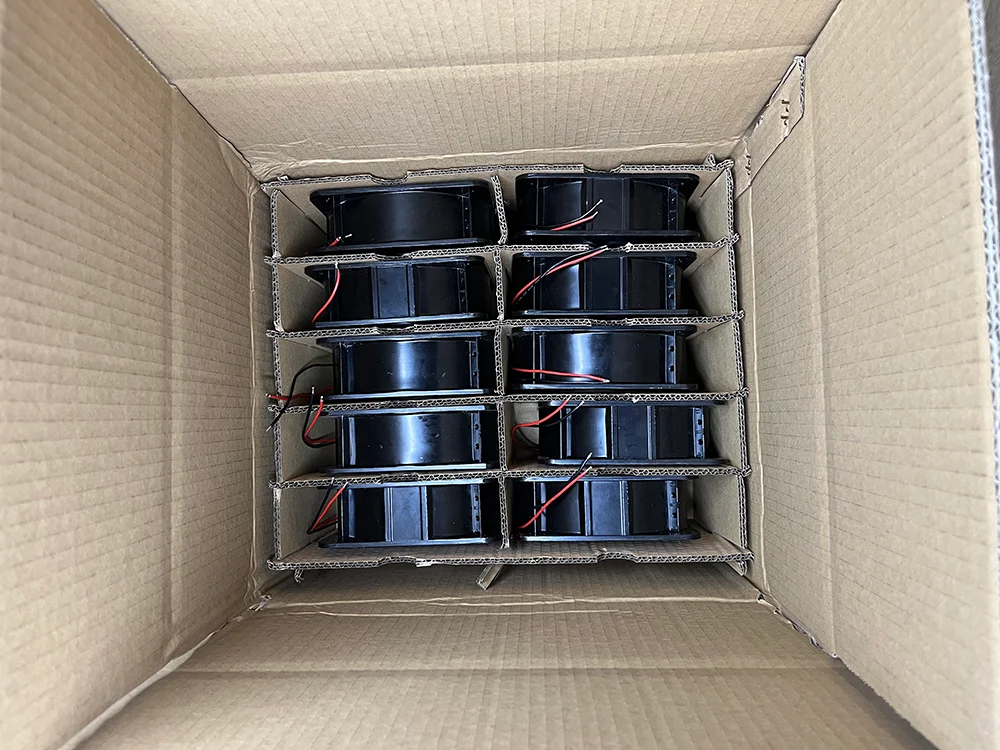

Product transportation
