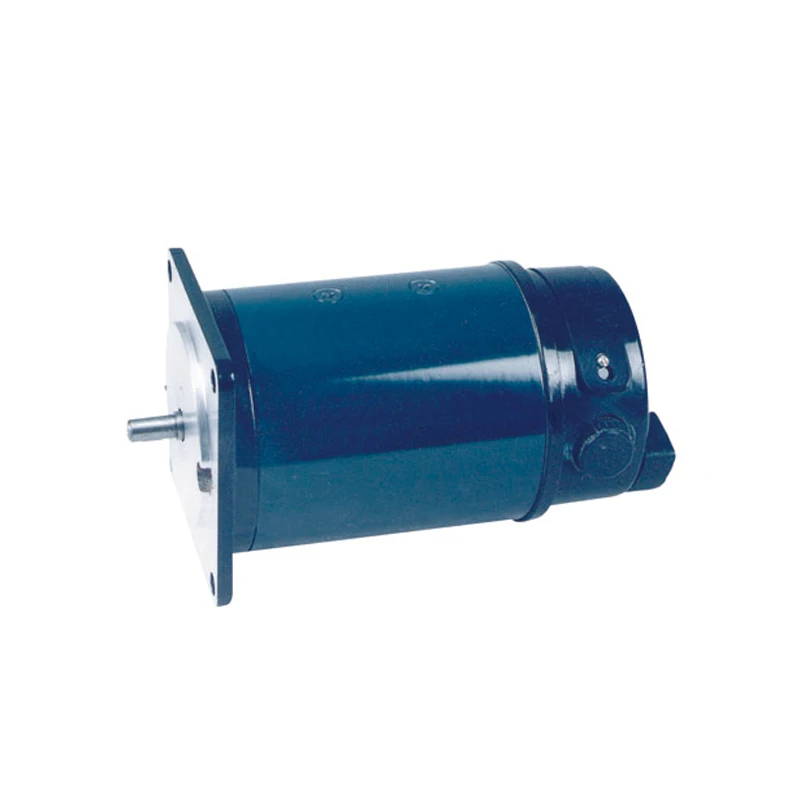

63ZYT 12V 24v brushed DC motor 30w 45w 65w 90w 100w 120w 150w for medical equipment
- Category: >>>
- Supplier: Ningbo Biote Mechanical Electrical Co. Ltd
Share on (1600620509367):
Product Overview
Description
Product Description
1, Product Application
Motor type : Brush commutated permanent magnet DC motor Optional gearbox type : Planetary/Spur/Worm/Right Angle

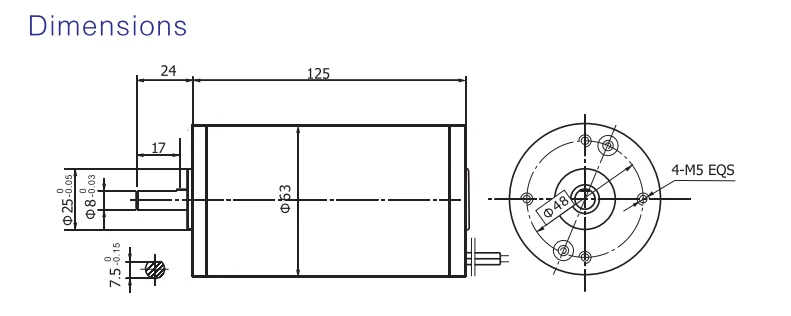

Diameter : 63mm
Length : 105mm
Length : 105mm
Nominal voltage : 12V/24V DC or customized
No load current : 0.25A; 0.35A; 0.50A
No load speed : 2000rpm; 3000rpm; 5000rpm
Norminal current : 1.80A; 2.20A; 6.0A
Nominal speed : 1600rpm; 2400rpm; 4000rpm
Nominal torque : 165mN.m; 180mN.m; 230mN.m
Nominal power : 30W; 45W; 90W
Nominal power : 30W; 45W; 90W
IP rating : up to IP68. EMC
Applicationsindustrial, for medical equipment, with built-in encoder, for household appliances, for the automotive industry
Type | Voltage VDC | No-load speed r/min | No-load current A | Rated speed r/min | Rated torque mN.m | Power W | Rated current A | Stall torque mN.m | Stall current A |
63ZY01 | 24 | 2000 | 0.25 | 1600 | 165 | 30 | 1.8 | 760 | 7.3 |
63ZY02 | 24 | 3000 | 0.35 | 2400 | 180 | 45 | 2.2 | 790 | 11.2 |
63ZY03 | 24 | 5000 | 0.5 | 3200 | 230 | 90 | 6.0 | 920 | 15.5 |
63ZY04 | 24 | 3000 | 0.5 | 2500 | 265 | 65 | 4.6 | 950 | 15.2 |
63ZY05 | 24 | 3500 | 0.8 | 2800 | 320 | 95 | 6.0 | 1100 | 19.3 |
63ZY06 | 24 | 4000 | 1.2 | 3200 | 450 | 150 | 9.0 | 1200 | 22.6 |
Specifications
ZYT Series PMDC Motor/Brushed DC Motor
24VDC 100W 3000RPM flange mounted
Permanent Magnet DC Motor
ZYT Series PMDC Motor/Brushed DC Motor
1. Summery
ZYT Series PM DC Motor is used with Ferrite PM magnet, clouse and self-cooling. It is used for driven element in any equipment system.
2. Mounting Model
Flange Mounting:A3(single shaft extension),AA3(double shaft extension)
3. Usage
a. No more than 4000m above sea level.
b. Ambient temperature:--25°C--+40°C
c. Relative humidity ≤95%(at +25).
d. The followed temperature rise: no more than 75K(when 1000m above sea level).
4. Technical Data
The following data changes within range depending on exact model,customer can refer to them when making selection.
Type reference:
Model | Torque | speed | power | voltage |
55ZYT | 60-90 (Nm.m) | 3000rpm, 6000rpm, 7500rpm | 20-70w | 24v, 27v,48v ,110v |
70ZYT | 150-250(Nm.m) | 3000rpm, 6000rpm, 9000rpm | 50-150w | |
80ZYT | 380-510(Nm.m) | 1500rpm, 3000rpm | 80-150w | |
90ZYT | 400-600(Nm.m) | 1500rpm, 3000rpm | 80-300w | 24v, 36v, 48v, 90v, 110v, |
110ZYT | 700-2500(Nm.m) | 1500rpm, 3000rpm | 100-700w | 24v, 110v, 220v |
130ZYT | 4000-6000(Nm.m) | 1500rpm, 3000rpm | 700-1500w | 24v, 110v, 220v |
Detailed Images

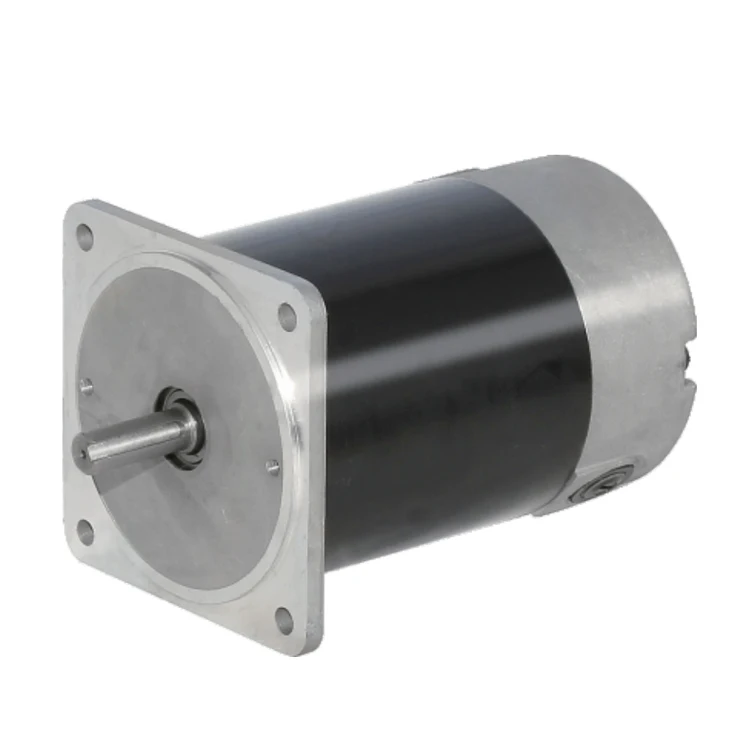

55ZYT Series PMDC Motor
Power: 20w- 120w
Voltage: 24v, 27v, 36v, 48v, 90v, 110v, 220v
Speed: 1500rpm, 2000rpm, 2500rpm, 3000rpm, 5000rpm, 6000rpm, 7500rpm, 10000rpm
Contact us for more information.
We accept Custom and OEM order.

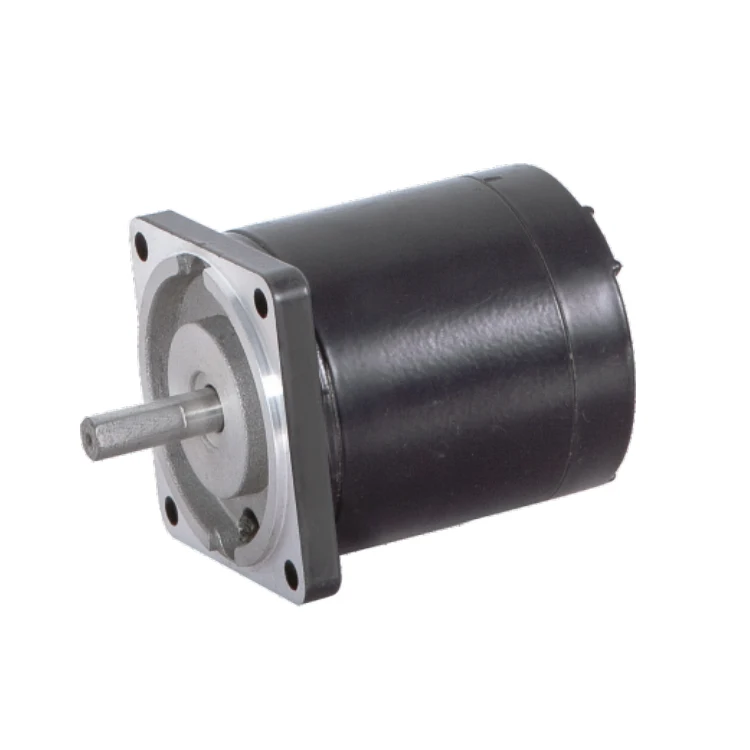

80ZYT Series PMDC Motor
Power: 50w- 150w
Voltage: 12v, 24v, 27v, 110v, 220v
Speed: 1200rpm, 1500rpm, 1800rpm, 2000rpm, 2400rpm, 3000rpm
Contact us for more information.
We accept Custom and OEM order.

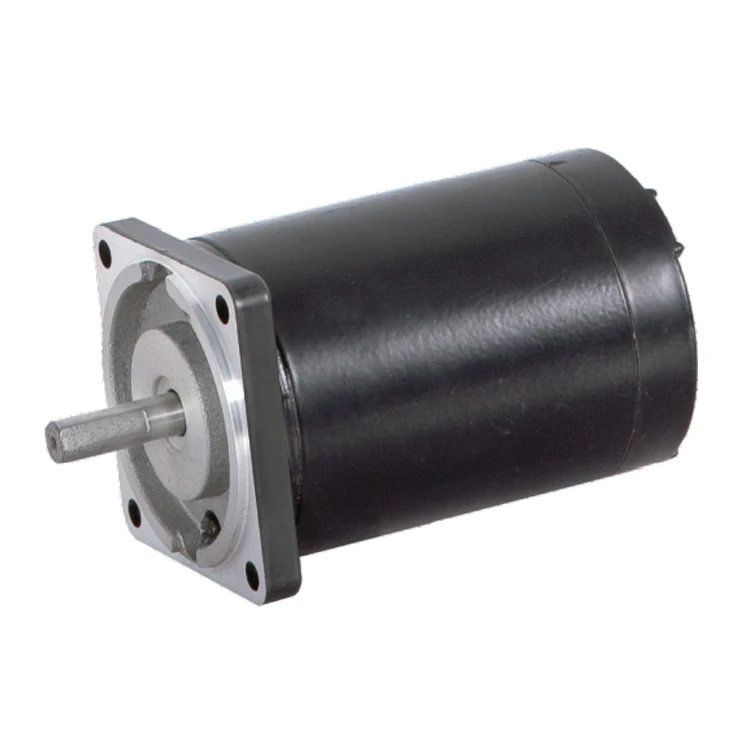

90ZYT Series PMDC Motor
Power: 80w- 300w
Voltage: 24v, 36v, 48v, 90v, 110v, 180v, 220v
Speed: 900rpm, 1000rpm, 1500rpm, 1800rpm, 2000rpm, 2600rpm, 3000rpm, 4200rpm, 5500rpm
Contact us for more information.
We accept Custom and OEM order.

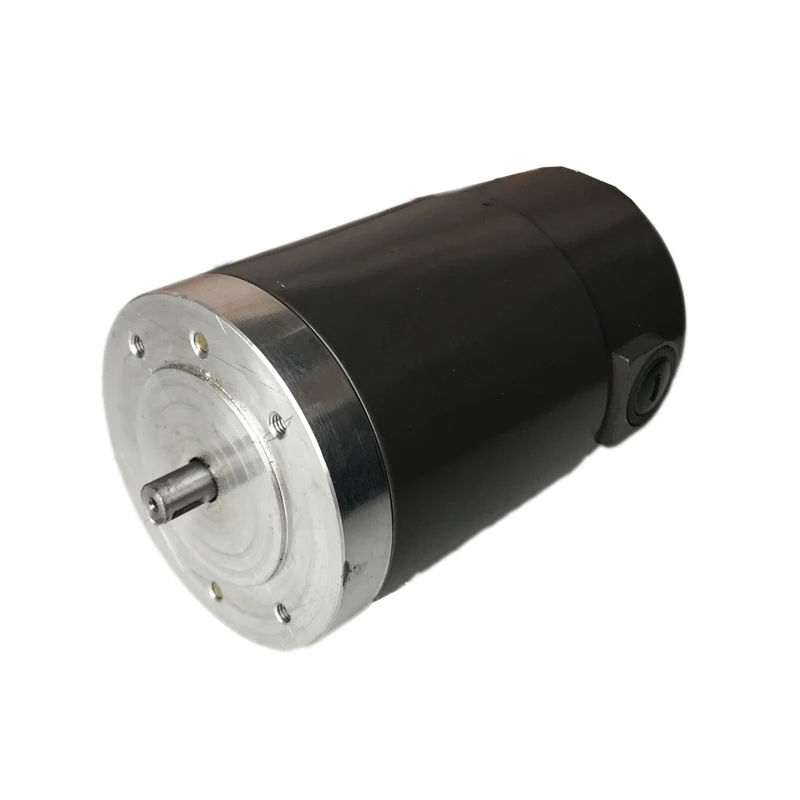

100ZYT Series PMDC Motor
Power: 150w- 650w
Voltage: 24v, 110v, 170v, 220v
Speed: 1000rpm, 1300rpm, 1500rpm, 1800rpm, 2000rpm, 2750rpm, 3000rpm
Speed: 1000rpm, 1300rpm, 1500rpm, 1800rpm, 2000rpm, 2750rpm, 3000rpm
Contact us for more information.
We accept Custom and OEM order.

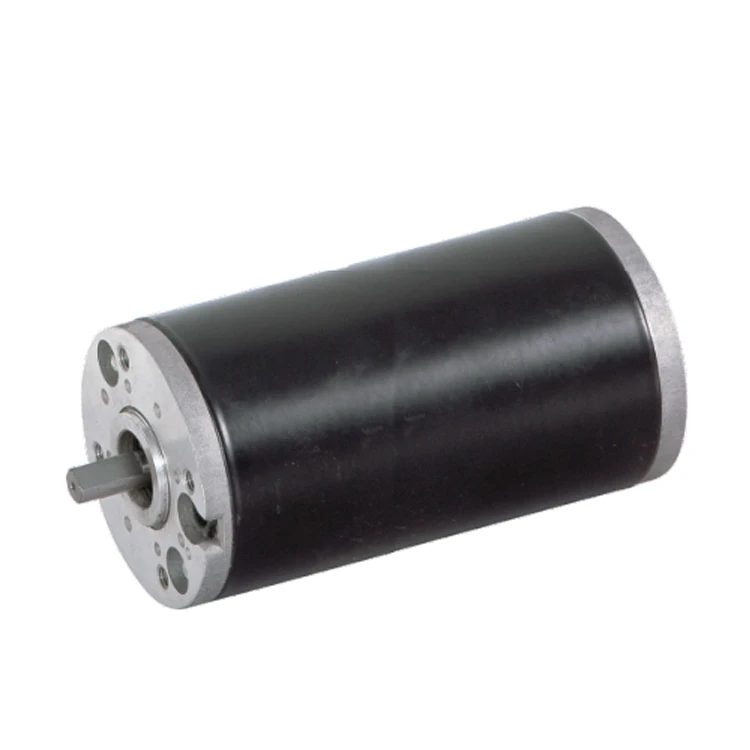

110ZYT Series PMDC Motor
Power: 180w- 700w
Voltage: 24v, 36v, 260v, 180v, 200v, 220v
Speed: 450rpm, 1200rpm, 1500rpm, 1750rpm, 2000rpm, 2500rpm, 3000rpm, 4000rpm
Contact us for more information.
We accept Custom and OEM order.
130ZYT Series PMDC Motor
Power: 300w- 800w
Voltage: 12v, 24v, 110v, 180v, 220v
Speed: 600rpm, 1500rpm, 1750rpm, 2500rpm
Contact us for more information.
We accept Custom and OEM order.
Our Company

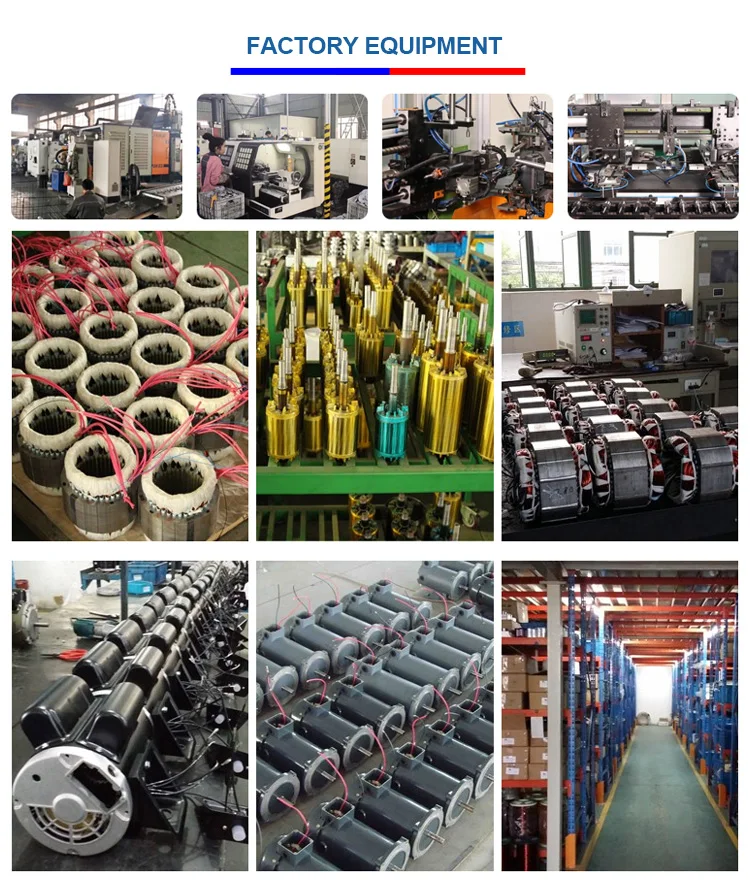

Workshop Show
Application
Exhibition
Recommend Products
FAQ
Q1: What kind motors you can provide?
A1: For now, we mainly provide Permanent Magnet Brush DC motors, Brushless DC Motor, DC Gear Motor, Micro DC Motor, AC Gear Motor, Planetary Gear Motor, with diameter range in 42~110mm. NEMA dc motor. NEMA DC Motor. Stainless Steel motor
Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 30% to 50% difference based on different style.
Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, gear ratio, rated torque and shaft diameter etc. The price also varies according to different order qty. So it’s really difficult for us to provide a price list. If you can share your detailed specification and order qty, we’ll see what offer we can provide.
Q4: Are you motors reversible?
A4: Yes, nearly all dc and ac motor are reversible. We have technical people who can teach how to get the function by different wire connection.
Q5:How about your delivery time?
A5: For micro brush dc gear motor, the sample delivery time is 2-5 days, bulk delivery time is about 15-20 days, depends on the order qty. For brushless dc motor, the sample deliver time is about 10-15 days; bulk time is 15-20 days.Please take the sales confirmation for final reference.
