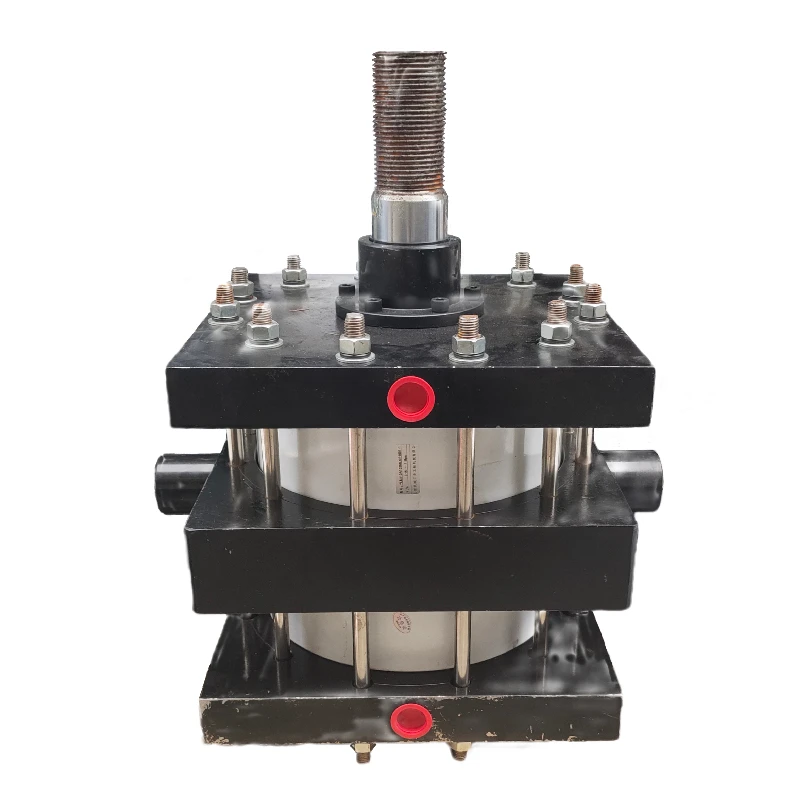

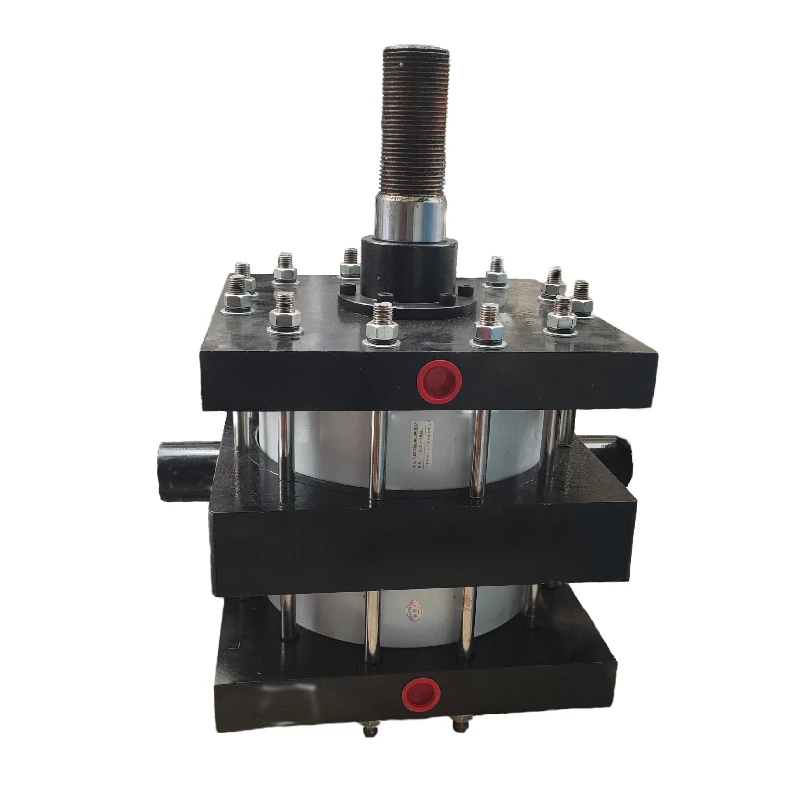

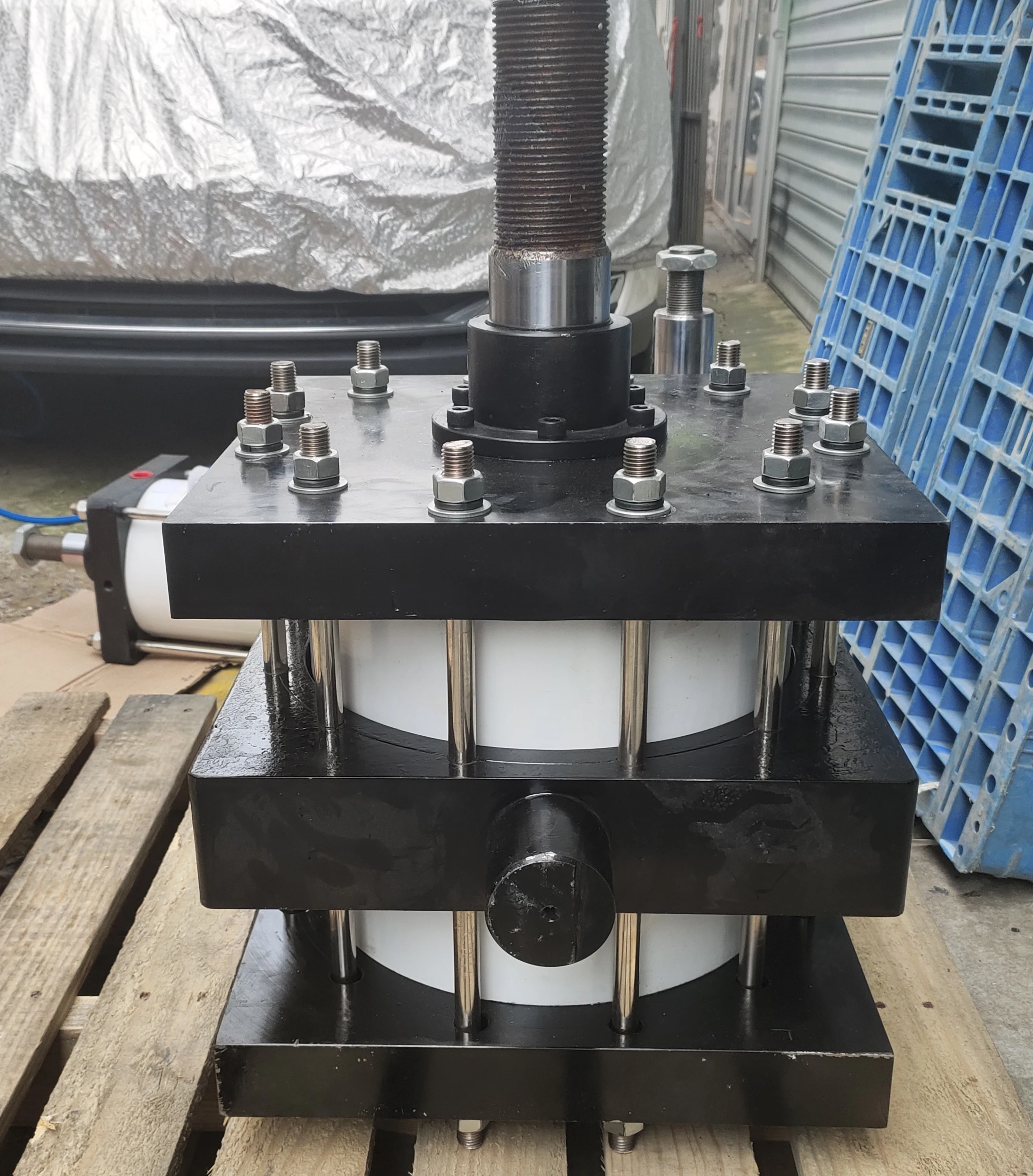

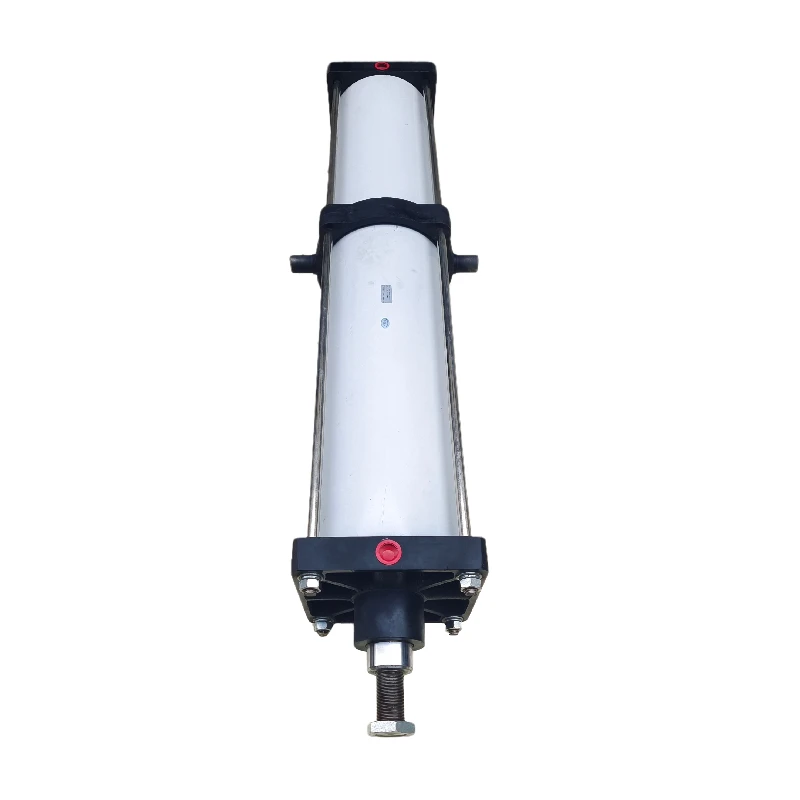

High Pressure Big Force Heavy Duty OD320 Double Acting Piston Air Cylinder Metallurgy Pneumatic Cylinder
- Category: >>>
- Supplier: Shandong Kewill Automation Equipment Co. Ltd.
Share on (1600620569856):
Product Overview
Description

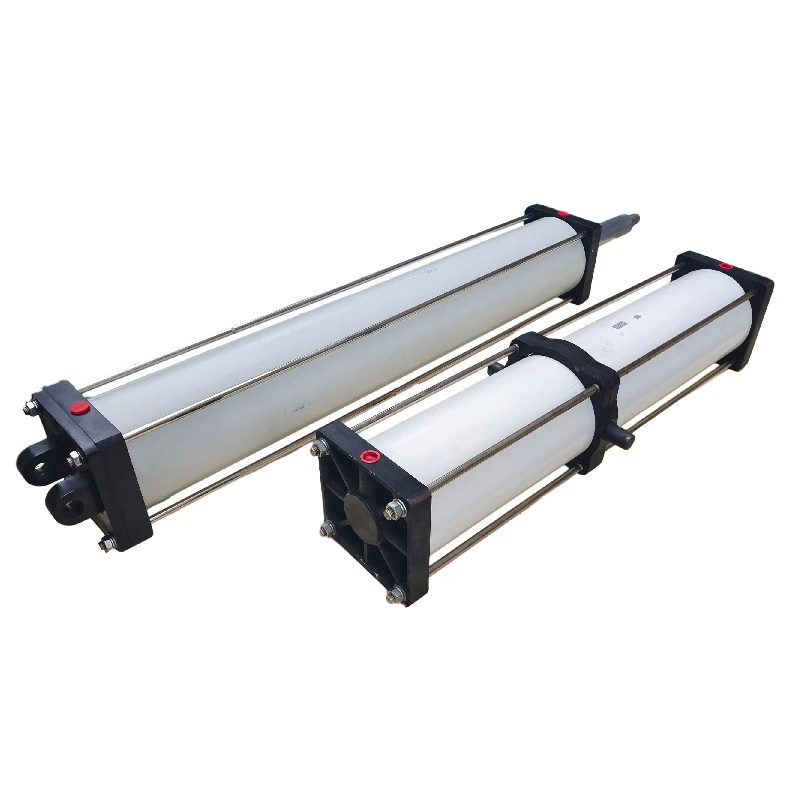

Big Bore Pneumatic Cylinder Features
*Conventional product, newly innovated，
*Conventional product, newly innovated，
*Reliable functions and long service life;
*Various mounting styles, multiple utilization and chromed rod.
*Speed range: 50-300mm/s.
*Various mounting styles, multiple utilization and chromed rod.
*Speed range: 50-300mm/s.
Cylinder Bore D(mm) | 80 | 100 | 125 | 160 | 200 | 250 | 320 | 400 | ||||||||||
Stroke Range(mm) | ≥60 ≤800 | ≥80 ≤1200 | ≥80 ≤1200 | ≥100 ≤3000 | ≥120 ≤3000 | ≥120 ≤3000 | ≥120 ≤3000 | ≥120 ≤3000 | ||||||||||
Theoretical Applied Force (N) (0.4MPa) | Pushing Force | 2010 | 3140 | 4906 | 8038 | 12560 | 19625 | 32154 | 50240 | |||||||||
Lifting Force | 1727 | 2857 | 4404 | 7536 | 11775 | 18086 | 29610 | 47697 | ||||||||||
Action type | Double Action | |||||||||||||||||
Working Medium | Air | |||||||||||||||||
Pressure Range | 0.15-1MPa | |||||||||||||||||
Ensured Pressure Resistance | 13.5Kgf/cm² | |||||||||||||||||
Temperature Range | 350℃ | |||||||||||||||||
Speed Range | 50-500mm/s | |||||||||||||||||
Buffer Type | Adjustable Buffer | |||||||||||||||||
Buffer Stroke | 24 | 32 | ||||||||||||||||
Note: Special Bore or Strokes can be customized. | ||||||||||||||||||
Pneumatic Cylinder Avalaible Choose Materials:
Cast iron (spheroidal graphite cast iron, gray cast iron HT200/HT300)
Cast aluminum
Cast steel (45#)
45# forging
40Cr forging
40CrMO
Stainless steel 316
Stainless steel 304
Cast aluminum
Cast steel (45#)
45# forging
40Cr forging
40CrMO
Stainless steel 316
Stainless steel 304

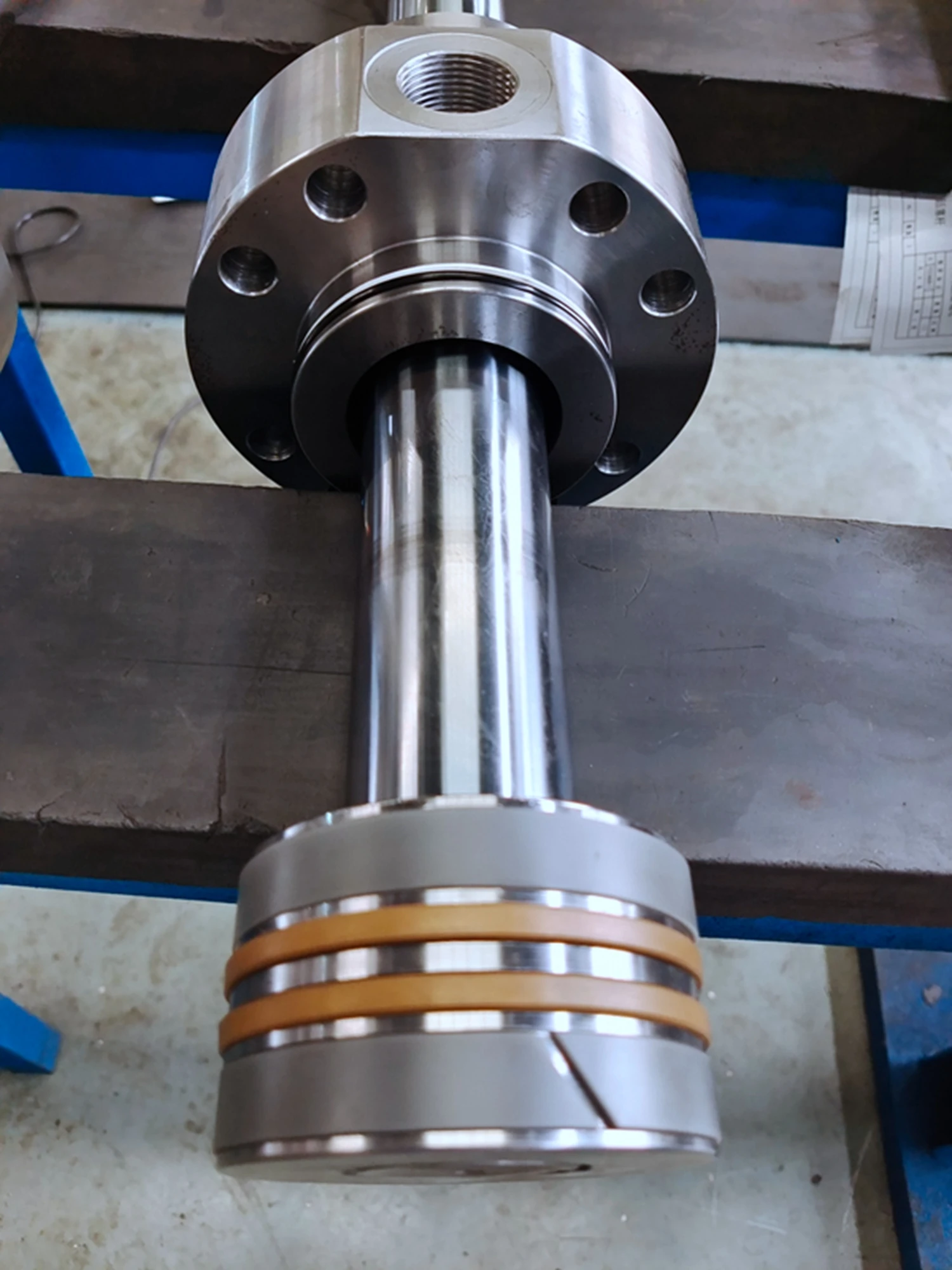

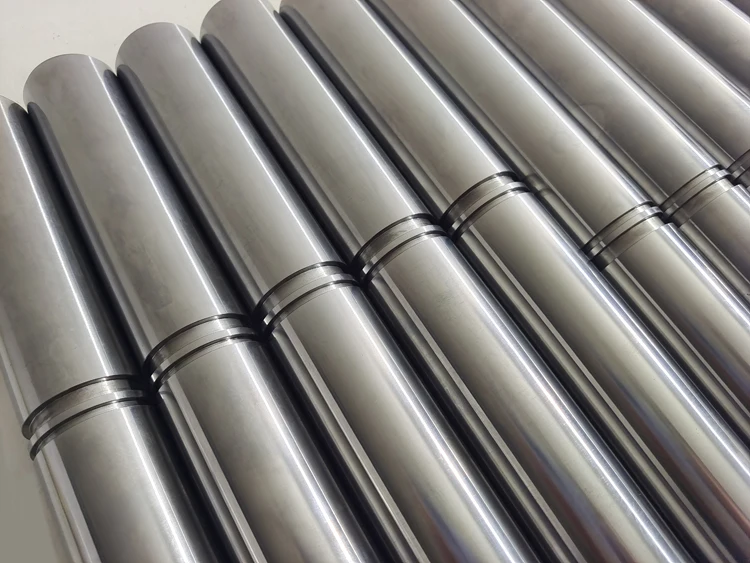

Piston rod
Material: 45#42Cr, 42CrMo
Heat treatment adopts quenching and tempering and high frequency treatment
Hardness: HRC55~60
Electroplating polishing treatment
The surface is chrome-plated on one side,
Roll grinding treatment
Improve the surface hardness and wear resistance of the inner wall of the cylinder
The service life is 3-5 times longer than that of the grinding tube
The paint is well-proportioned and has strong adhesion
High corrosion resistance
Heat treatment adopts quenching and tempering and high frequency treatment
Hardness: HRC55~60
Electroplating polishing treatment
The surface is chrome-plated on one side,
Roll grinding treatment
Improve the surface hardness and wear resistance of the inner wall of the cylinder
The service life is 3-5 times longer than that of the grinding tube
The paint is well-proportioned and has strong adhesion
High corrosion resistance

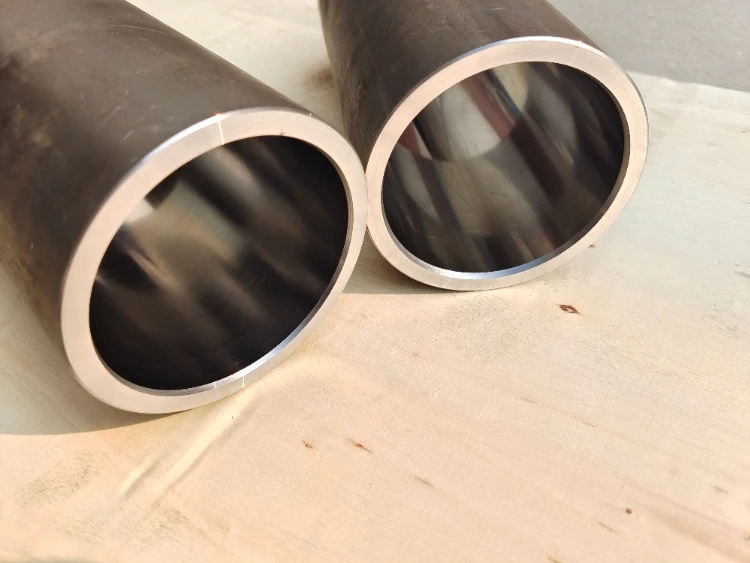

Cylinder bore
Using 20#/45# steel,
Roll grinding treatment,
Improve the surface hardness and wear resistance of the inner wall of the cylinder
The service life is 3-5 times longer than that of the honing tube.
The paint is well-proportioned and has strong adhesion,
High corrosion resistance
Roll grinding treatment,
Improve the surface hardness and wear resistance of the inner wall of the cylinder
The service life is 3-5 times longer than that of the honing tube.
The paint is well-proportioned and has strong adhesion,
High corrosion resistance

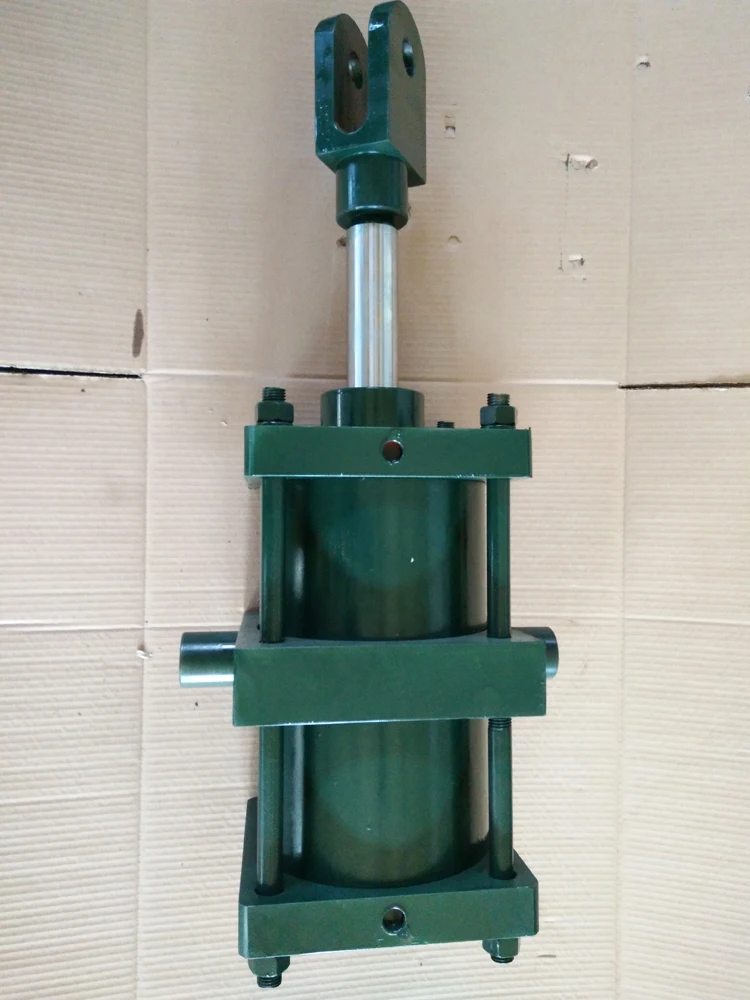

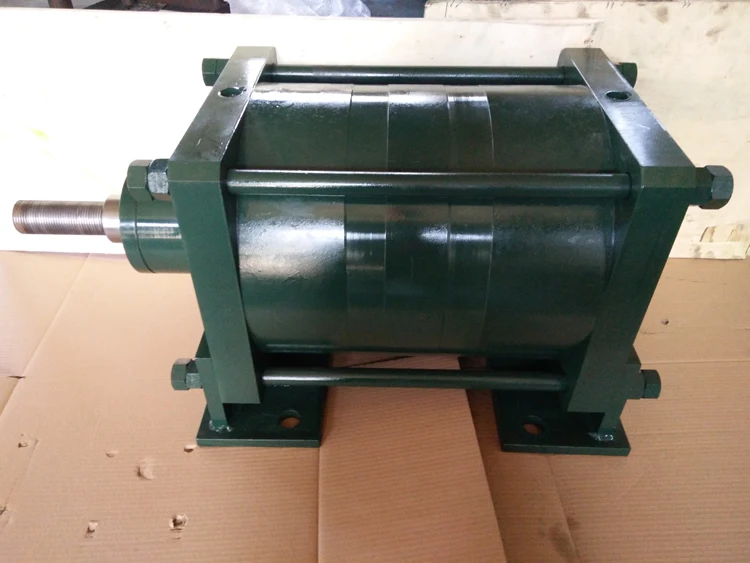

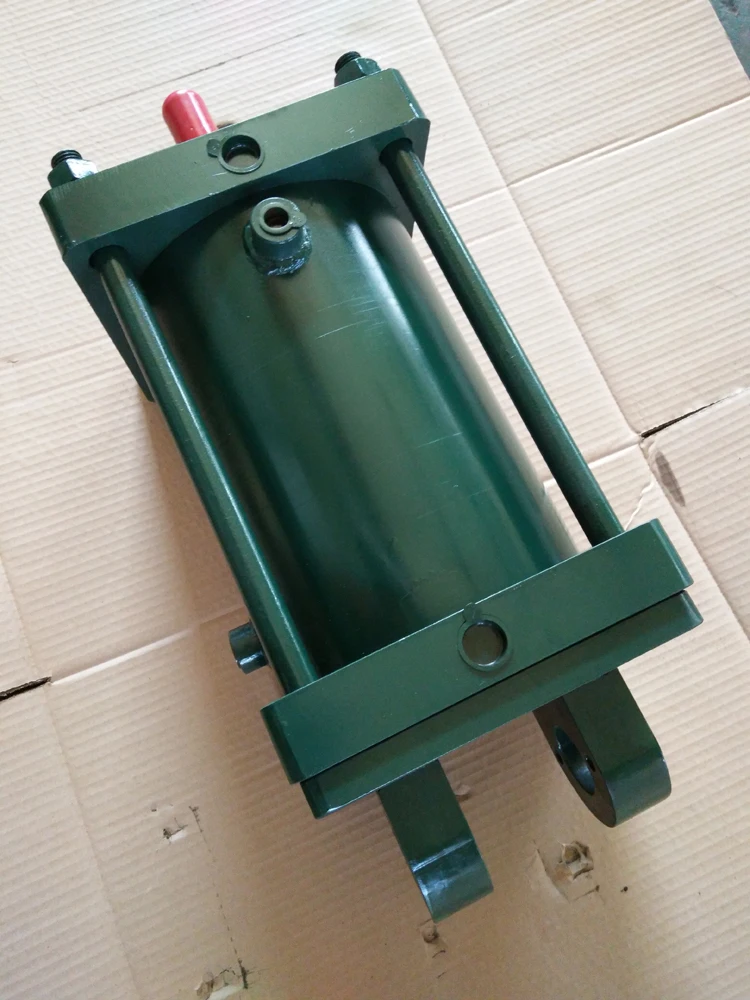

Multiple Connecting Ways
1.Are you a trading company or a manufacture?
We are a professional manufacture of pneumatic&hydraulic cylinders with over 30 years rich experiences, you are warm welcome to visit us anytime.
2. How can I make payment?
We accept Alibaba trade online and T/T bank transfer, L/C. accept CNY,USD,EUR.
3.How do you ensure your product and service quality?
Quality is an enterprise foundation, no quality no further business , no company progress. So for us, each cylinder after fully assembled will be strictly inspected and tested before packaging and shipment.
4.What about cylinders packing?
With standard export packing- wooden box, or according customer required.
5. Do you accept OEM and customized cylinders?
Sure accepted, for further details please consult our sales staff.
6.What about shipment ?
Small quantity we advice by air/express. Large quantity order by sea.
7. What products do you make and sell?
CYLINDERS/ AIR COMBINATIONS/VALVES AND HYDRAULIC CONTROL SYSTEMS ETC.
8. What is the lead time?
5-15 days depending on the product you choose and purchasing quantity.Standard cylinders we have stock deliver fast, special customized cylinders need around 5 working days. Also it depend on the quantity you ordered.
We are a professional manufacture of pneumatic&hydraulic cylinders with over 30 years rich experiences, you are warm welcome to visit us anytime.
2. How can I make payment?
We accept Alibaba trade online and T/T bank transfer, L/C. accept CNY,USD,EUR.
3.How do you ensure your product and service quality?
Quality is an enterprise foundation, no quality no further business , no company progress. So for us, each cylinder after fully assembled will be strictly inspected and tested before packaging and shipment.
4.What about cylinders packing?
With standard export packing- wooden box, or according customer required.
5. Do you accept OEM and customized cylinders?
Sure accepted, for further details please consult our sales staff.
6.What about shipment ?
Small quantity we advice by air/express. Large quantity order by sea.
7. What products do you make and sell?
CYLINDERS/ AIR COMBINATIONS/VALVES AND HYDRAULIC CONTROL SYSTEMS ETC.
8. What is the lead time?
5-15 days depending on the product you choose and purchasing quantity.Standard cylinders we have stock deliver fast, special customized cylinders need around 5 working days. Also it depend on the quantity you ordered.
