Manufacturer 45 CBM Tipper Trailer 60 Tons Dump Semi Trailer Dumper for sale 3 Axles Dump Semi Trailer For Sale
- Category: >>>
- Supplier: Shandong Hongdong Truck Trade Co. Ltd.
Share on (1600620679295):
Product Overview
Description

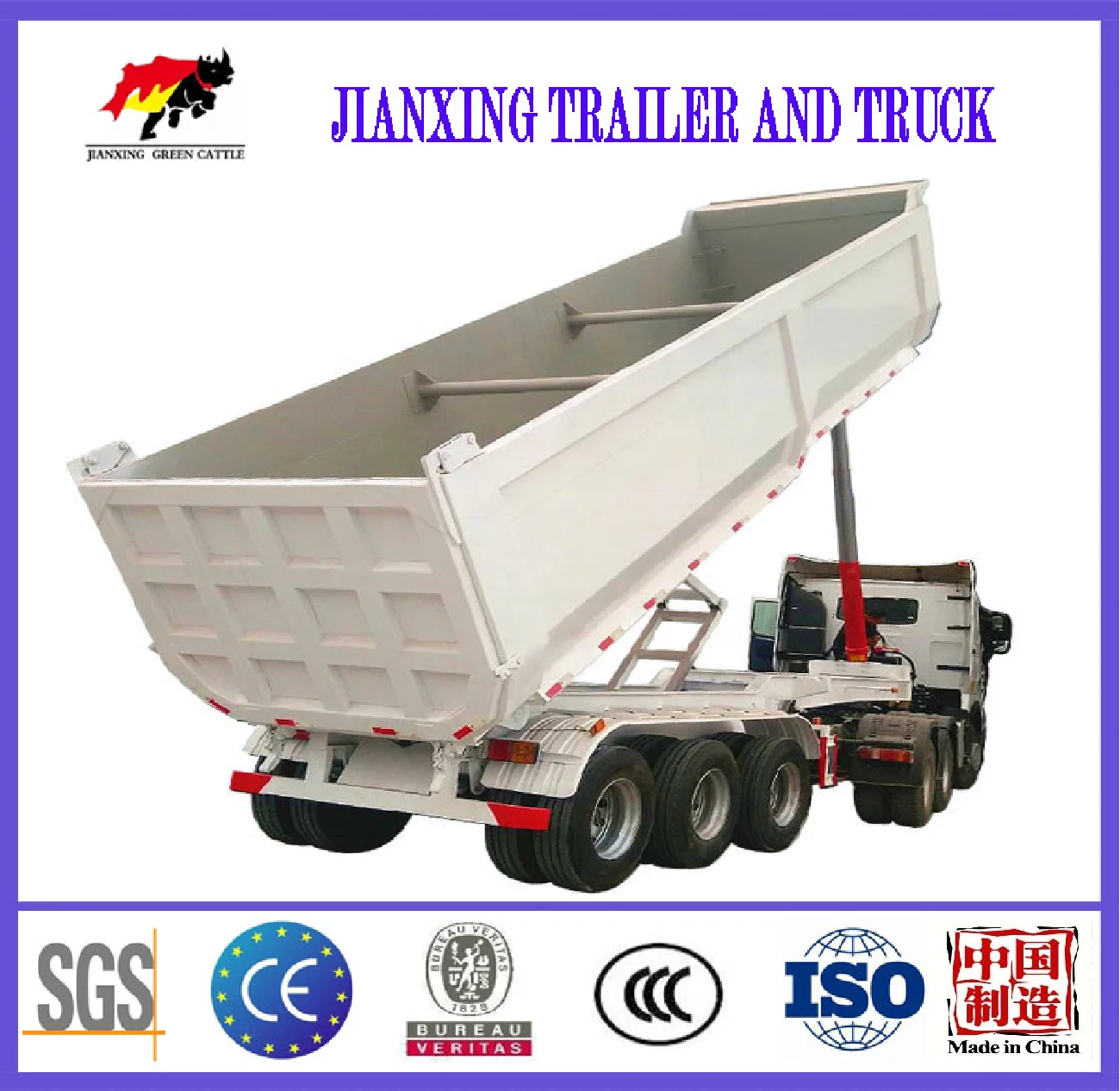

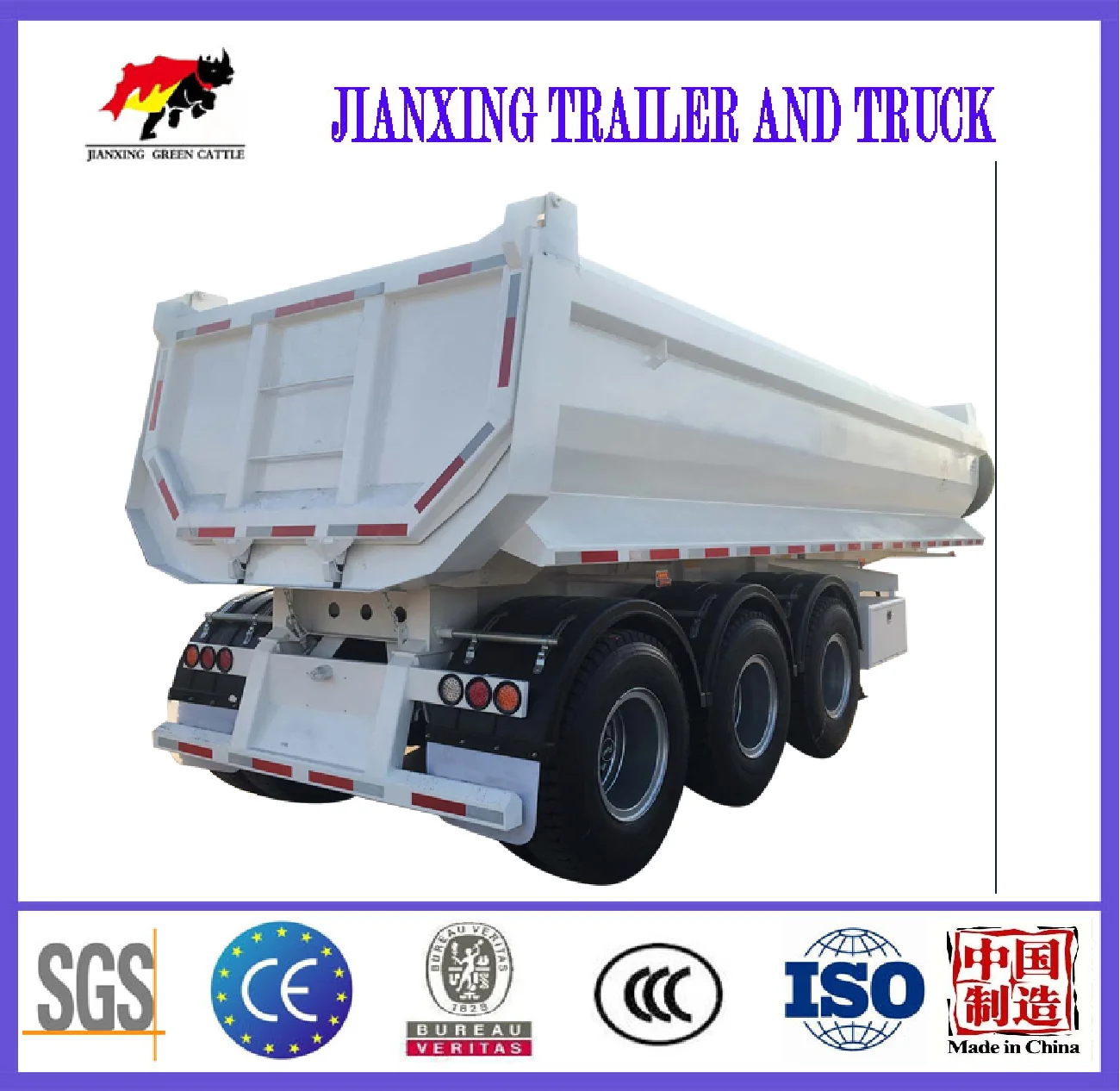

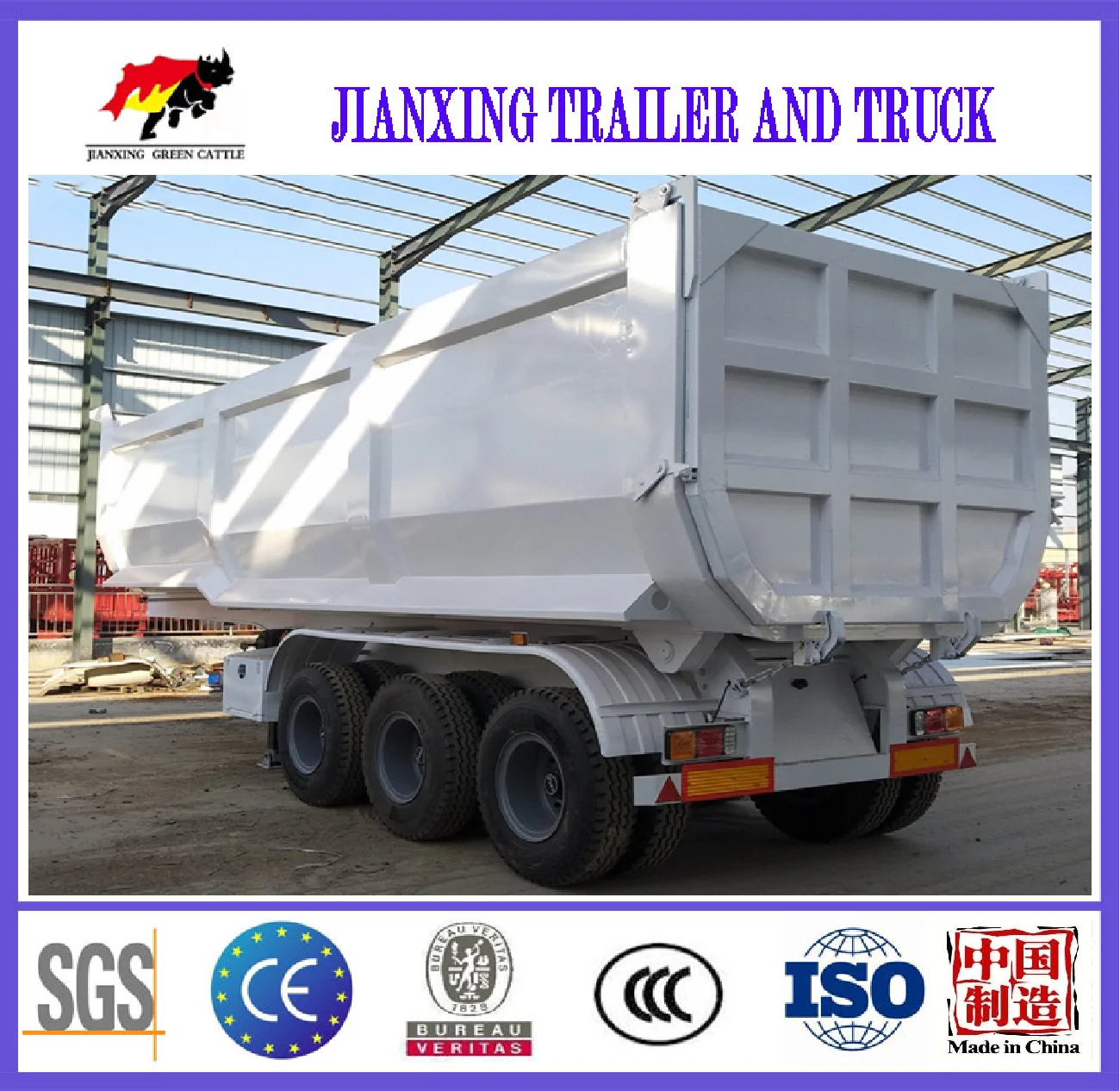

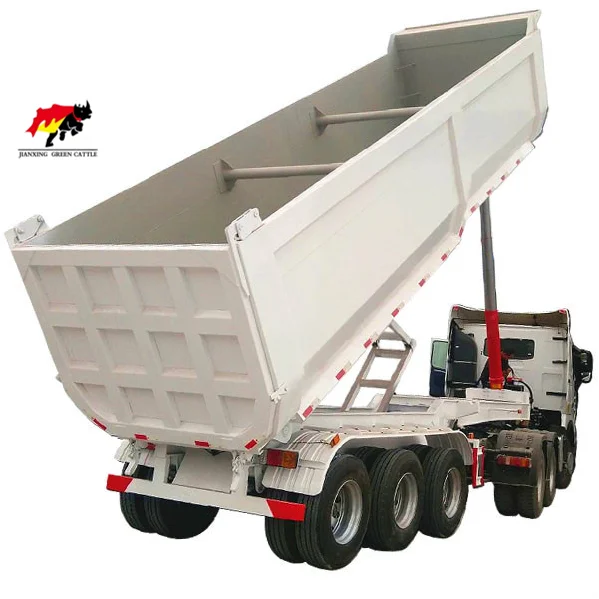

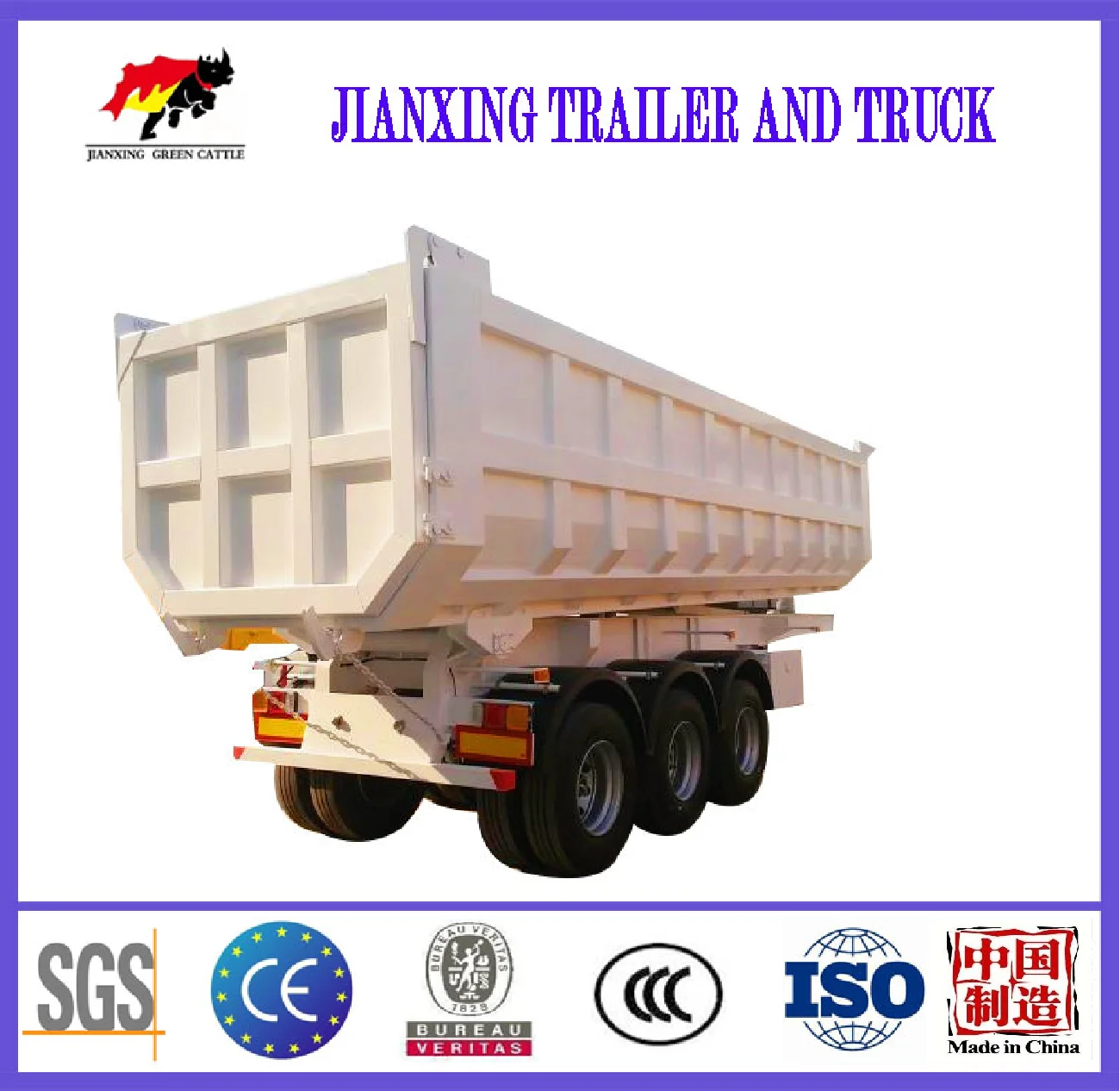

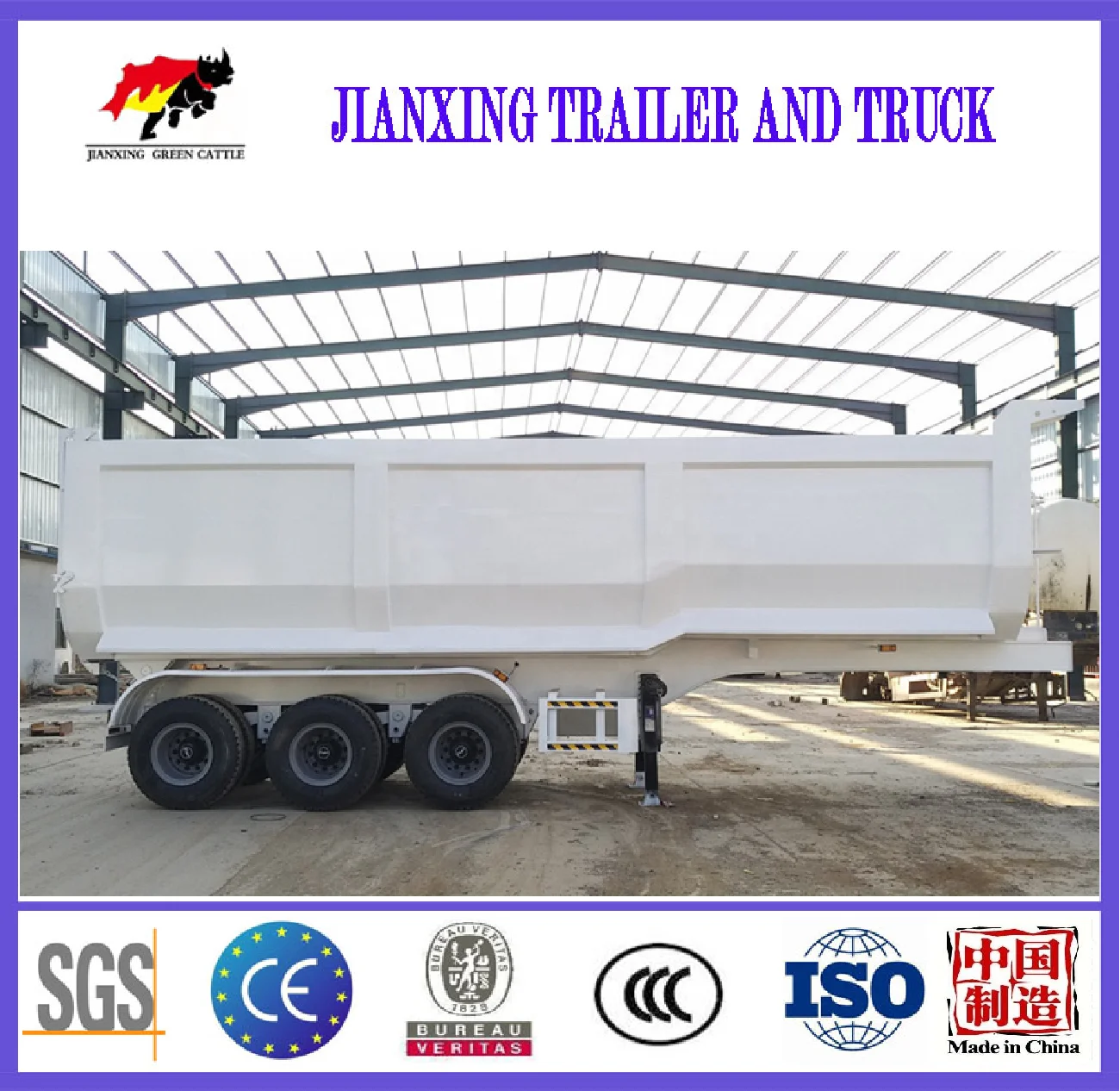

High Specialized Vehicle Bulk Coal Sand Transportation Tipper High Load Capacity 3 Axle U Shaped Hydraulic End Semi Trailer
A dump trailer is a type of trailer with an open box bed and the ability to lift the front of that bed to dump the materials out easily. Broken down into the simplest form, these trailers help you take large quantities of materials and deposit them at a different locations.
Dump semi trailer adopt advanced design concept. For the tipper trailer box, we adopt high strength steel to make it durable when load the sand or small stones or rocks, especially under the off road condition.
All accessories are world famous brand or independent products of Jianxing factory, quality is guaranteed.
---Dump box dimensions,U-shape,box thickness,HYVA hydraulic cylinder and optional
accessories(two pieces spare tire carriers, water tank, fuel tank, etc.) are all customized by different cargo needs which build modern transportation.
accessories(two pieces spare tire carriers, water tank, fuel tank, etc.) are all customized by different cargo needs which build modern transportation.
---Chassis adopts special chassis produced by various chassis manufacturers, with advanced technology and reliable performance. The advanced software optimizes the design of the products to meet the individual needs of customers.The process tooling of flow operation ensures the excellent quality of products.

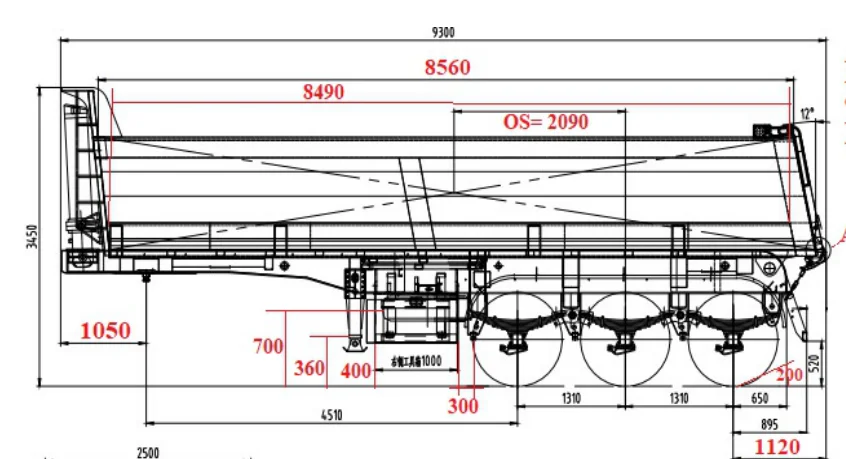

MAIN DESCRIPTION | ||
Overall Dimension | 9.8m*2.5m*3m(L*W*H) | |
Tare Weight | 9000kg | |
Pay Load | 50ton | |
King Pin Setting | 1220mm | |
RUNNING GEAR | ||
Suspension | 3 axle mechanical suspension with 11-pcs leaf spring | |
Axle | FUWA, BPW axle, load capacity 16ton | |
Rims & Tires | Rim 8.0-20 or 8.5-20, tire 11.00R20 or 12.00R20 | |
Brakes | Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake | |
UNDER FRAME | ||
Main Beam | Mild Alloy (16Mn) by Automatic submerged arc welding. The height of the beam is 500mm, upper plate is 18mm. down plate is 20mm, middle plate is 12mm | |
Cross Beam | Mild Alloy Q235 | |
King Pin | Welded kingpin, size 50# (2'') or 90#(3.5’’) | |
Landing Gear | FUWA 28ton | |
CARGO BODY | ||
Inside Dimension | 9.3m*2.3m*1.5m(L*W*H) | |
Steel sheet | Floor thickness 6mm, side wall thickness 4mm | |
Hydraulic Jack | Full set of HYVA hydraulic system, front setting telescopic jack | |
Tailgate | One-piece tailgate with upper articulation, safety lock system | |
ELECTRICAL & PAINT | ||
Lights & Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |
Wiring | 24V, 6 lines | |
Air/Elec. Connector | ISO standard air connector, 24V 7 pin plug socket | |
Paint | Sand blasting before painting, color upon request | |

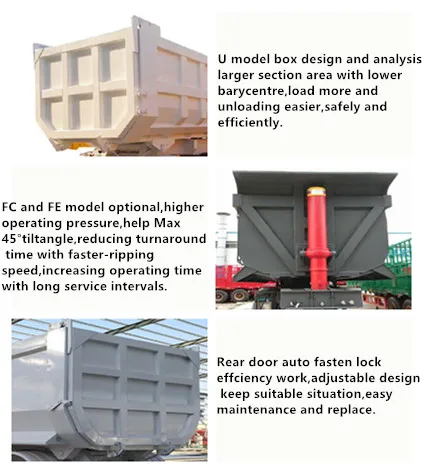

Details
Automatic welding
Automatic welding construction of submerged arc welding, strengthening of key parts, targeted welding, avoiding some parts prone to welding leakage, to ensure that vehicles work for a long time without maintenance.
About axles
2/3 Axles *13 Ton/16Ton VEHICLE MASTER/FUWA/BPW/Other
About leaf spring
High strength springs and suspension save you maintenance costs
The paint
Good spray paint surface after sandblasting treatment, so that the steel surface and paint tightly combined.
We make every part carefully
The above parameters of dump semi-trailer are only common configurations, our factory can customize according to your needs.
Shandong Hongdong Truck Trade Co., Ltd, was established in 2021, which is one of the professional suppliers of various semi-trailers belongs to Hongdong special truck factory located in Yuncheng,shandong province.
After 20 years of development, Hongdong become a comprehensive factory with production and trade. as one of the biggest trailer manufactures all in the world, The site covers an area of 140 acres, plant area 90 acres, with about 300 employees.
After 20 years of development, Hongdong become a comprehensive factory with production and trade. as one of the biggest trailer manufactures all in the world, The site covers an area of 140 acres, plant area 90 acres, with about 300 employees.
We have world-class automatic equipment, professional R&D and sales team, high-quality raw materials and famous brand components in and out. All trailers are with novel shape, unique design, reasonable structure and durable using life.
There are more than 40 types of products to meet your different needs. Such as heavy duty low bed semi trailer, flatbed container semi trailers, skeletal container semi trailer, side wall semi trailer, cargo box semi trailer, dump trailers, bulk cement tanker trailer, fuel tanker semi trailer, stainless steel tank trailers, aluminum tank trailers, car carrier semi trailers.
Meanwhile we are dealing with sinotruk HOWO and A7 truck tractor, dump truck, fuel tanker truck, water tanker truck, cargo truck , concrete mixture truck etc with competitive price and good service.
The products passed the China Quality Certification Center "CCC" certification and ISO9001: 2000 quality management system certification. BV certification, SGS certification, CE certification, etc.
The products passed the China Quality Certification Center "CCC" certification and ISO9001: 2000 quality management system certification. BV certification, SGS certification, CE certification, etc.
Markets covering Southeast Asia, Central Asia,The Middle East, Africa and other parts of the world. currently we are the largest semi-trailer exporter in Vietnam market with a share of over 55%.
With first-class products and excellent services Welcome cooperators all over the world to build long term business with us.
With first-class products and excellent services Welcome cooperators all over the world to build long term business with us.
1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, Our company promise one-year warranty preiod,during this period,under normal use if there is damage to the accessories,we will provide our customers with free new accessories.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, Our company promise one-year warranty preiod,during this period,under normal use if there is damage to the accessories,we will provide our customers with free new accessories.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
