Introduction of iray X-ray digital panel detector CsI scintillator wireless flat panel detector, iray Mars1717V-VSI panel

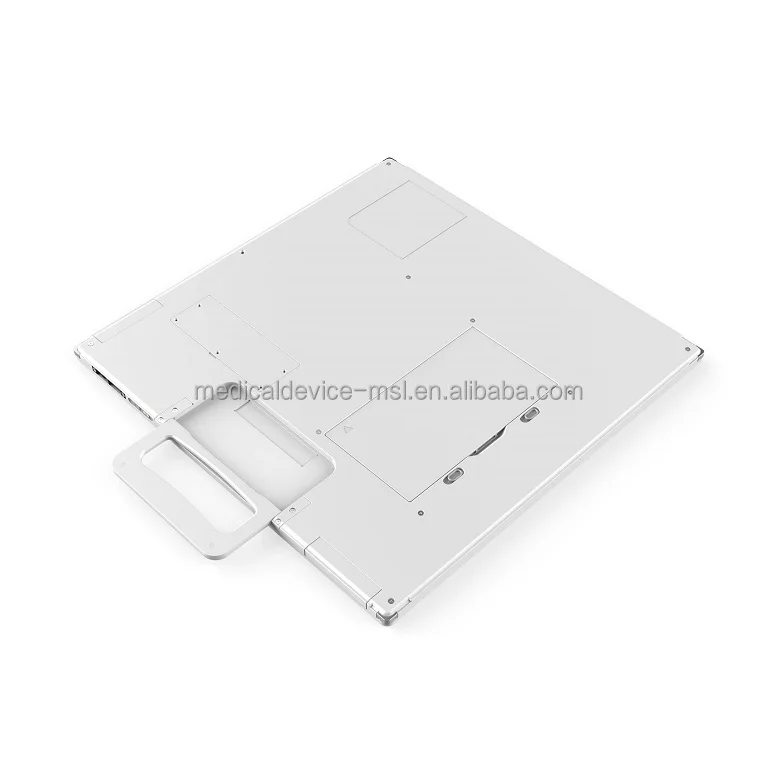

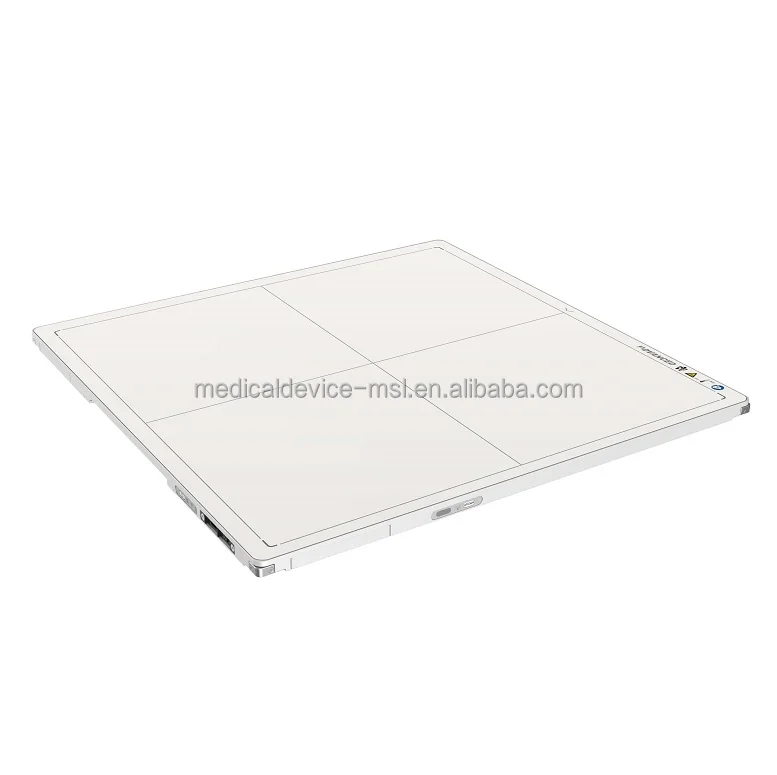

MSLFP06 is a 17x17 inch wireless portable flat panel detector designed for Human used/Veterinary use digital radiography.
Fast workflow

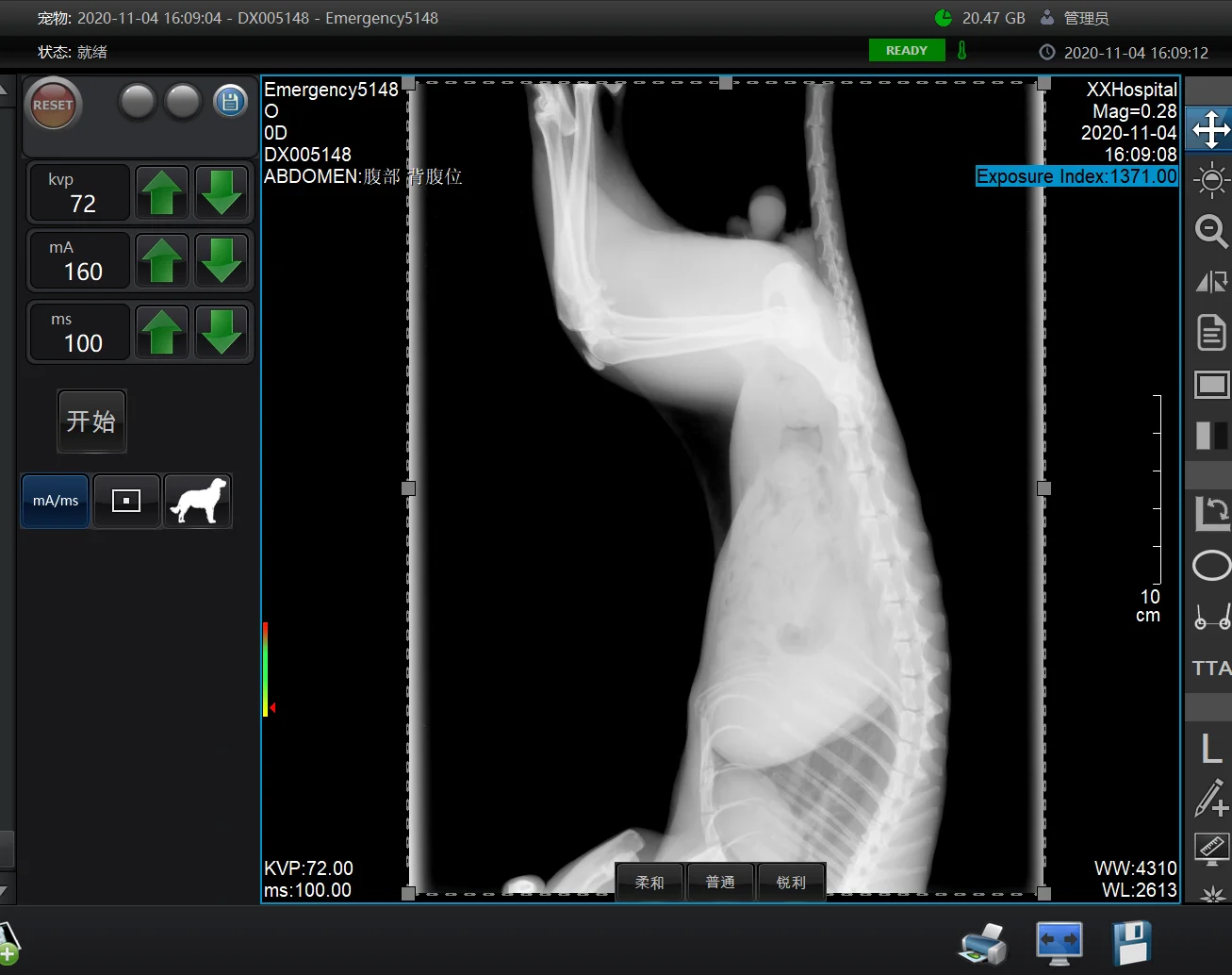

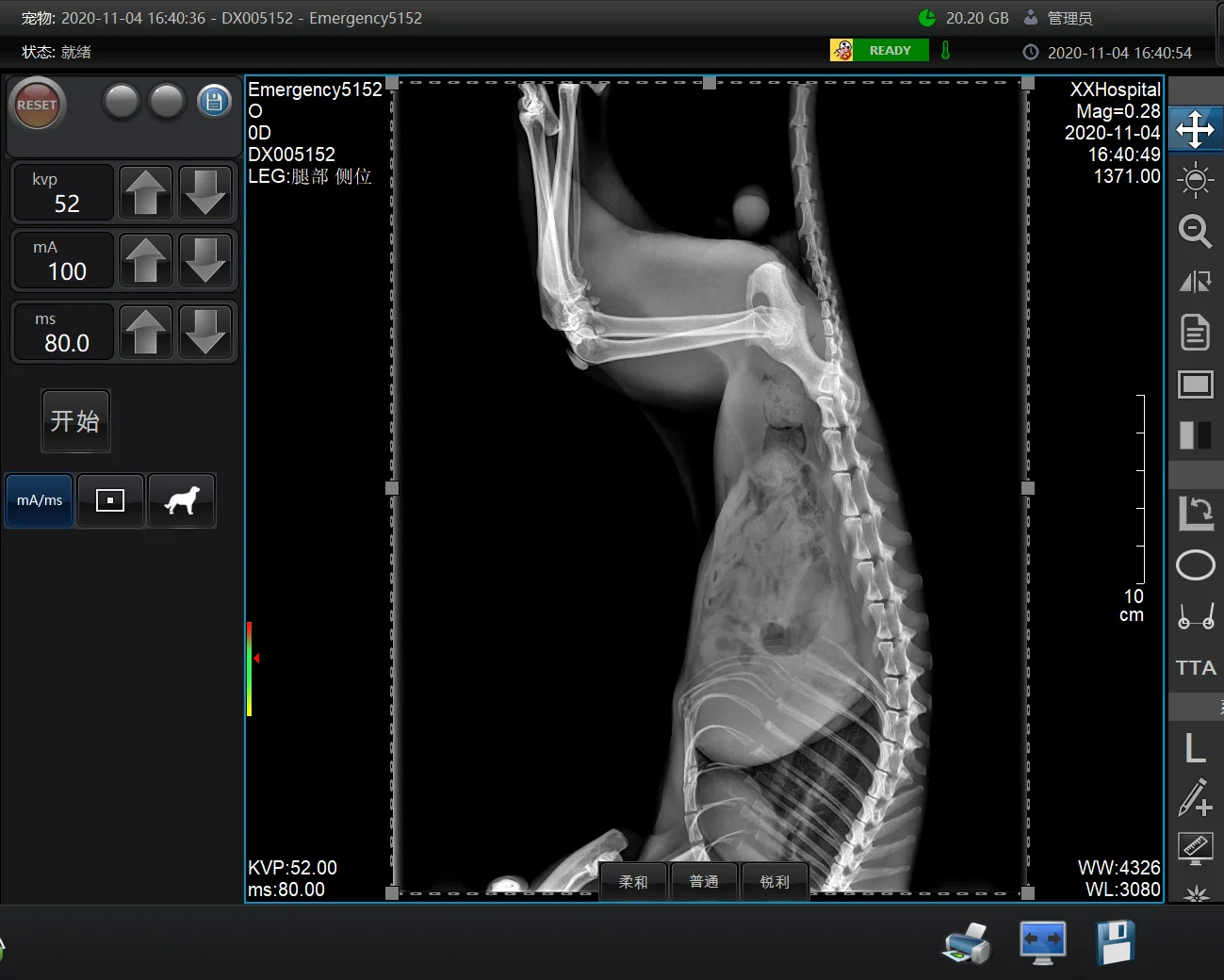

More image details
Excellent image quality
17*17inch or 14*17 inch flat panel detector
Feature
Feature of iray X-ray digital panel detector CsI scintillator wireless flat panel detector, iray Mars1717V-VSI panel

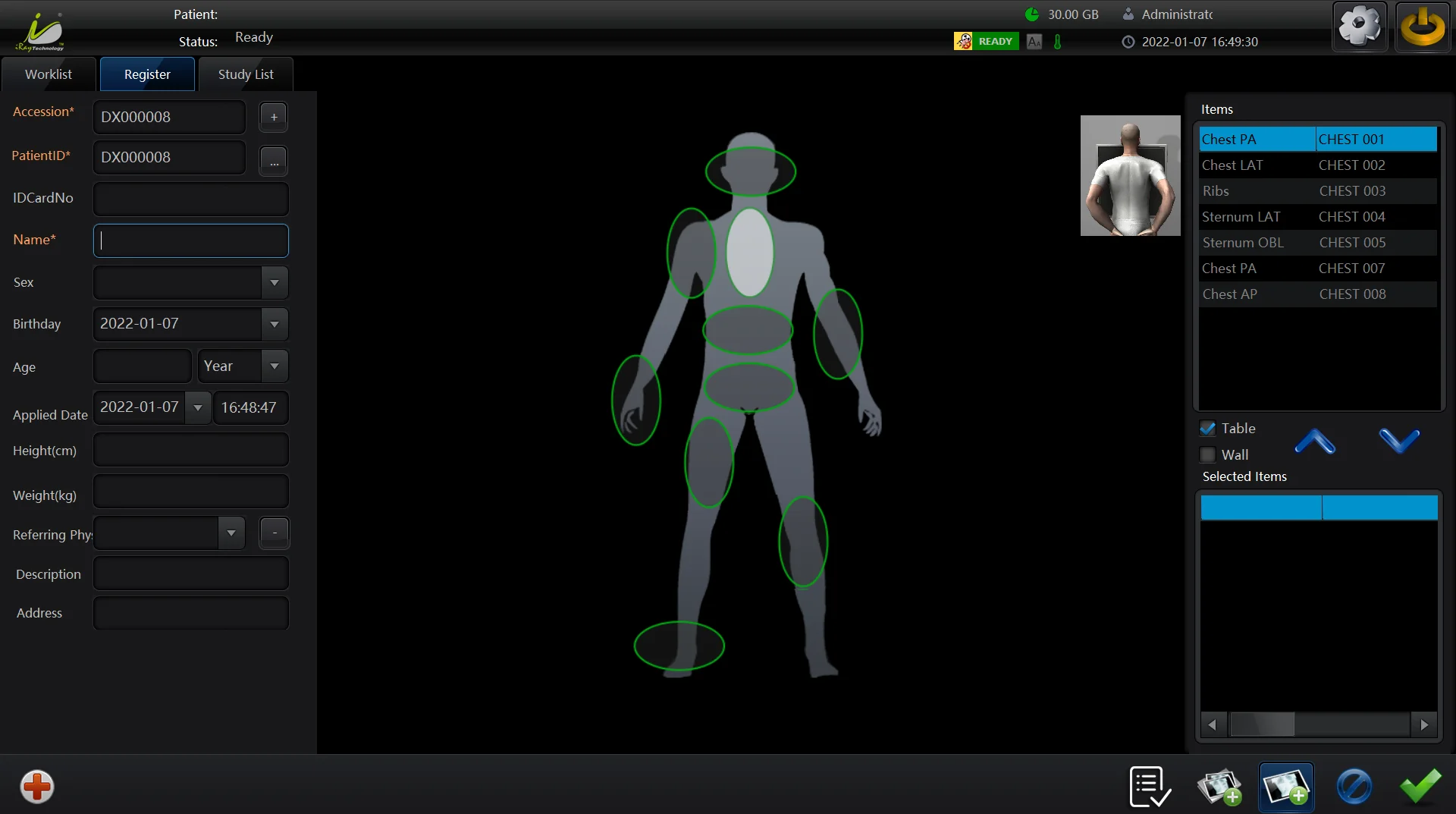

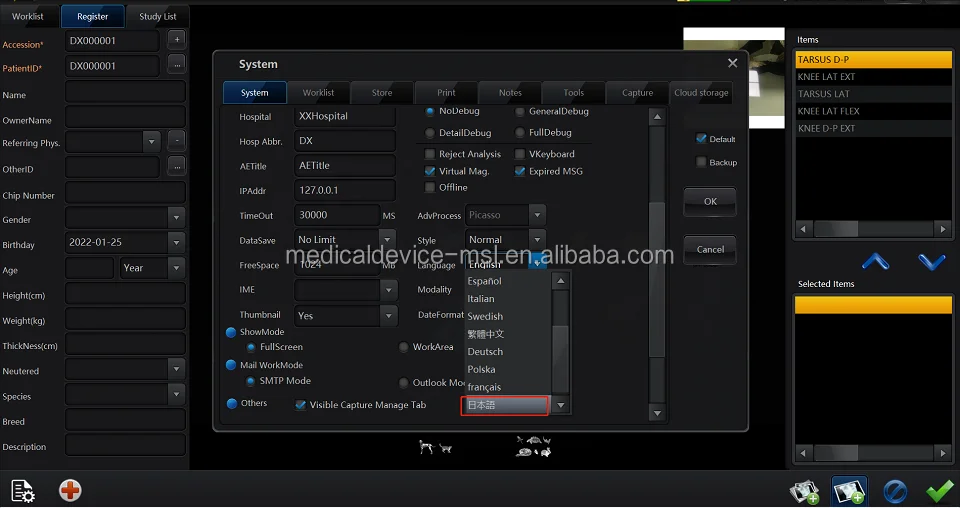

can choose different language
Specification
Specification of iray X-ray digital panel detector CsI scintillator wireless flat panel detector, iray Mars1717V-VSI panel
Detector Technology | Amorphous Silicon |
Scintillator | CsI |
Active Area | 427mm x 427mm |
Number of Pixels | 3072 x 3072 |
Pixel Pitch | 139 um |
AD Conversion | 16 bit |
Trigger Mode | AED(Optional)/Software |
Data Interface | WiFi(802.11ac) |
Dimension | 460mm x 460mm x 15.4mm |
Weight | 4.6 kg |
Static Loading | 150kg Uniformly |
Battery Capacity | 8 h |
1. Image Performance
Sensitivity(LSB/uGy) | Typ. Value | Min. Value |
Sensitivity(LSB/uGy) | 700 | 600 |
Maximum Linear Dose(uGy) | 65 | 55 |
MTF @ 0 LP/mm | 1 | 1 |
MTF @ 0.5 LP/mm | 87% | 85% |
MTF @ 1.0 LP/mm | 70% | 68% |
MTF @ 1.5 LP/mm | 56% | 52% |
MTF @ 2.0 LP/mm | 43% | 39% |
MTF @ 2.5 LP/mm | 32% | 28% |
MTF @ 3.0 LP/mm | 24% | 20% |
MTF @ 3.5 LP/mm | 17% | 14% |
DQE @ 0 LP/mm(2.5uGy@RQA5) | 66% | 60% |
DQE @ 0.5 LP/mm(2.5uGy@RQA5) | 57% | 50% |
DQE @ 1.0 LP/mm(2.5uGy@RQA5) | 48% | 42% |
DQE @ 1.5 LP/mm(2.5uGy@RQA5) | 41% | 35% |
DQE @ 2.0LP/mm(2.5uGy@RQA5 | 35% | 28% |
DQE @ 2.5LP/mm(2.5uGy@RQA5) | 28% | 22% |
DQE @ 3.0LP/mm(2.5uGy@RQA5) | 21% | 15% |
DQE @ 3.5LP/mm(2.5uGy@RQA5) | 14% | 10% |
2. Workflow
Trigger Mode | AED(Optional)/Software |
Preview Image | Typ. 3s |
Full Image Time | Typ. 5s |
Cycle Time | Typ. 8s |
3. Environmental Requirement
Operating Temperature | 5℃~35℃ |
Storage & Transport Temperature with Package | -20℃~55℃ |
Operating Humidity | 10%~90% |
Storage & Transport Humidity with Package | 5%~95% |
Operating Atmospheric Pressure | 700mbar~1060mbar |
Storage & Transport Atmospheric Pressure | 700mbar~1060mbar |
After Sell Service

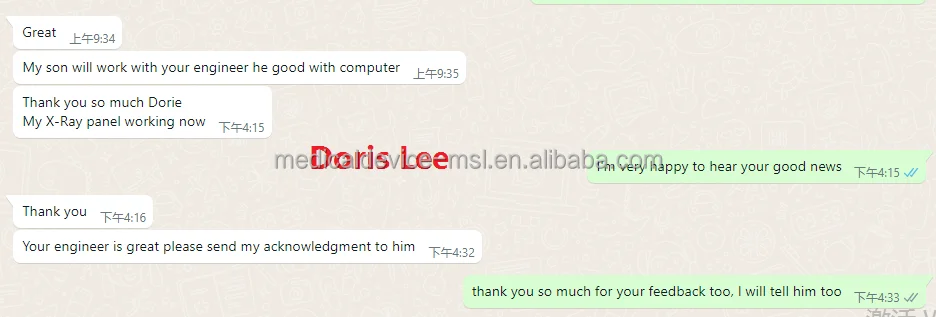

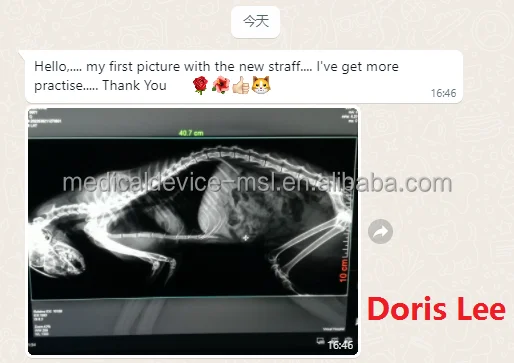

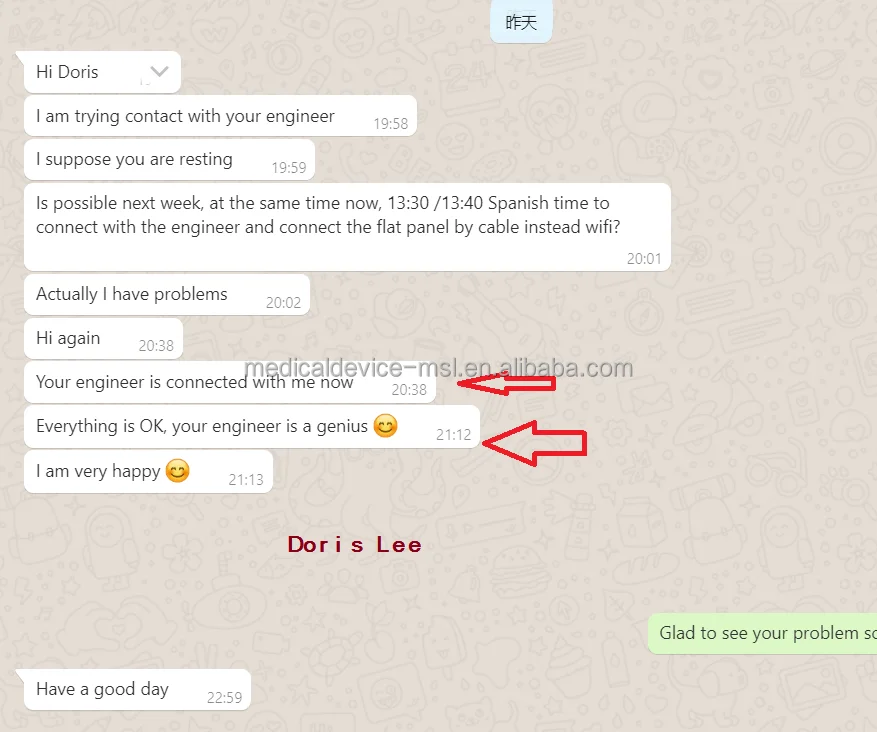

MSL After Sell Service feedback from clients.
