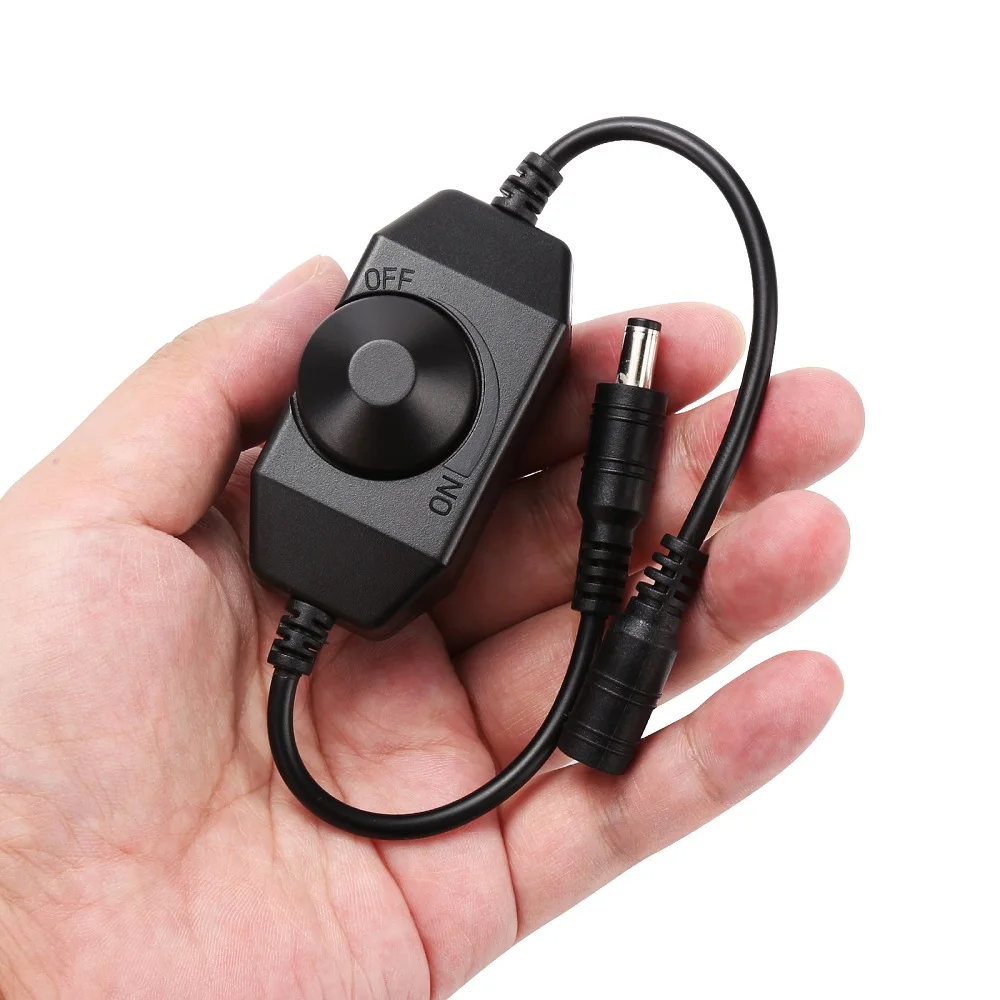

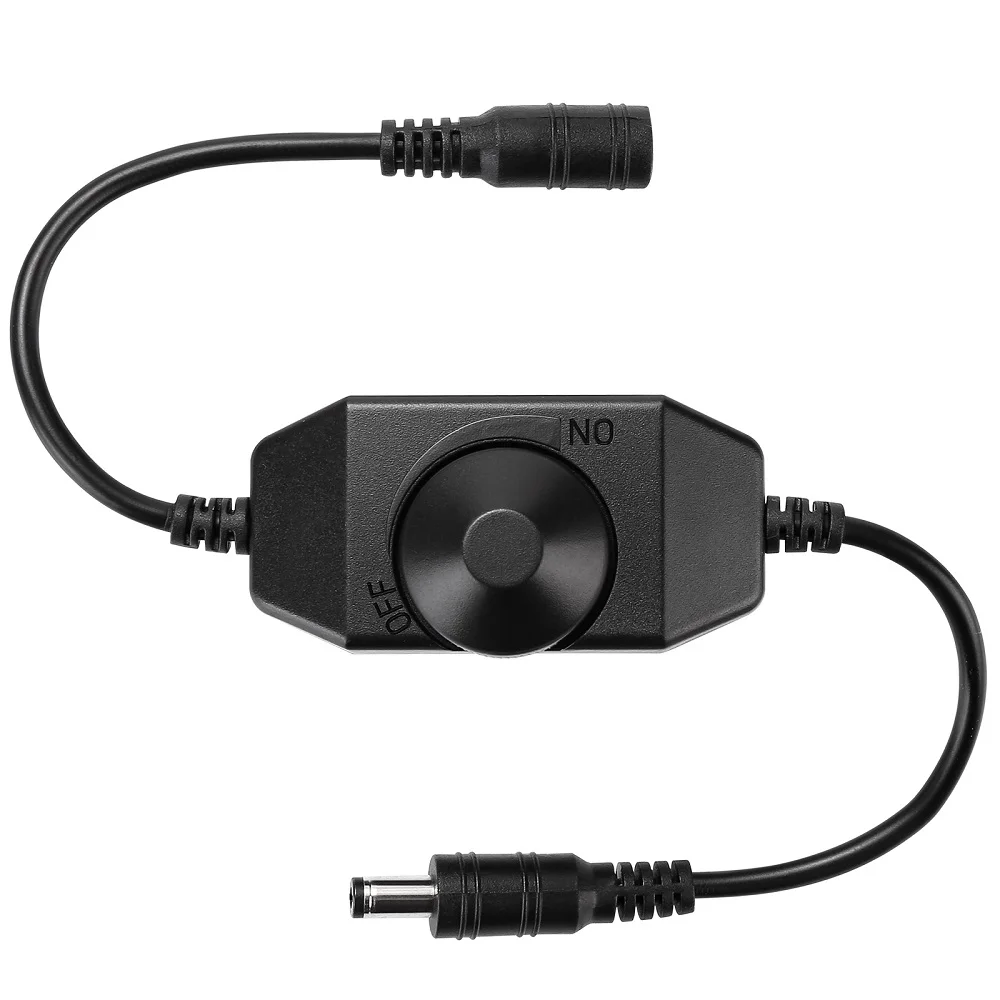

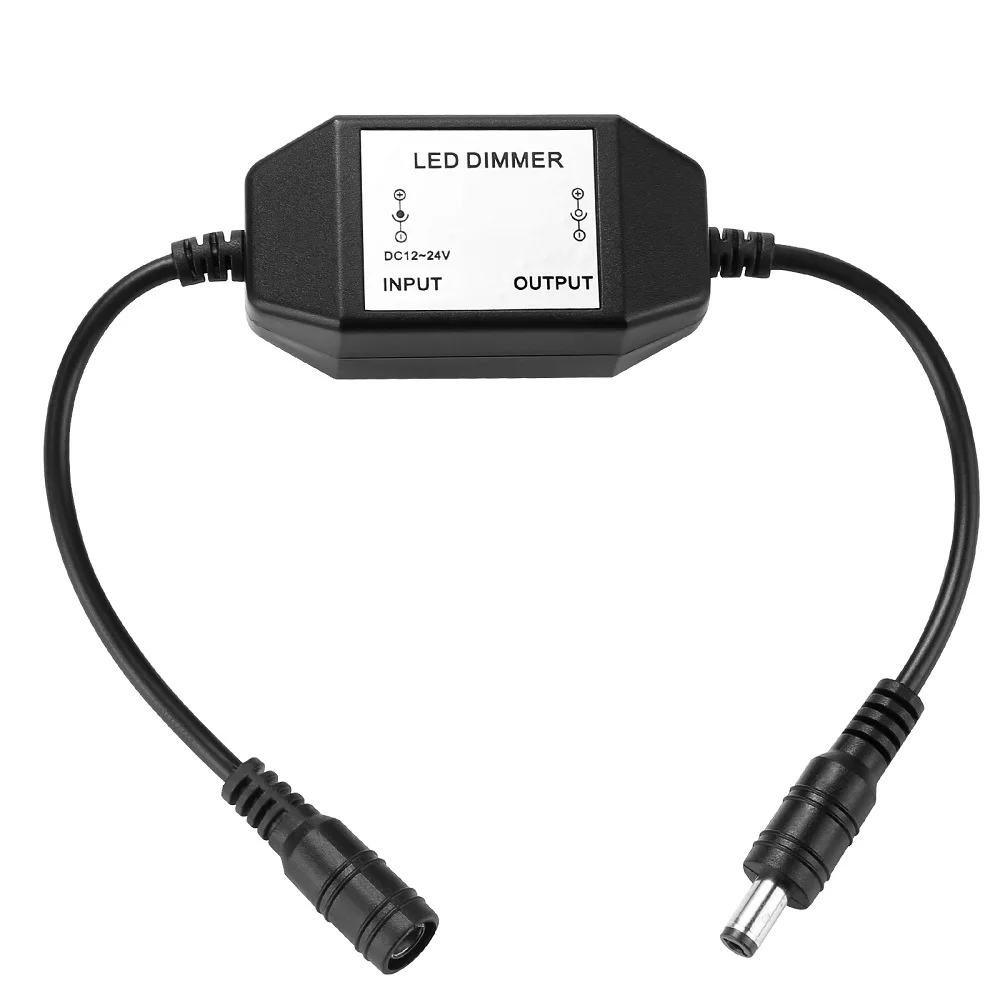

HOOANKE 12V LED Strip Dimmer, DC 12 Volt LED Dimmer Switch for Strip Lights 3528 5050 5630 5730 3014, Single Color

Product Overview

Description

HOOANKE 12V LED Strip Dimmer, DC 12 Volt LED Dimmer Switch for Strip Lights 3528 5050 5630 5730 3014, Single Color



Product Description
The 12V dimmer switch for strip lights is a practical stepless dimming controller. Compatible with 3528 5050 5630 5730 and 3014 single color LED strip lights. Using knob control mode, you can adjust the light to the appropriate brightness according to your needs.

Easy to install and simple wiring. Connect the load (LED strip lights) first and then the power supply. Make sure there is no short circuit between the wires before powering on.

Main Features

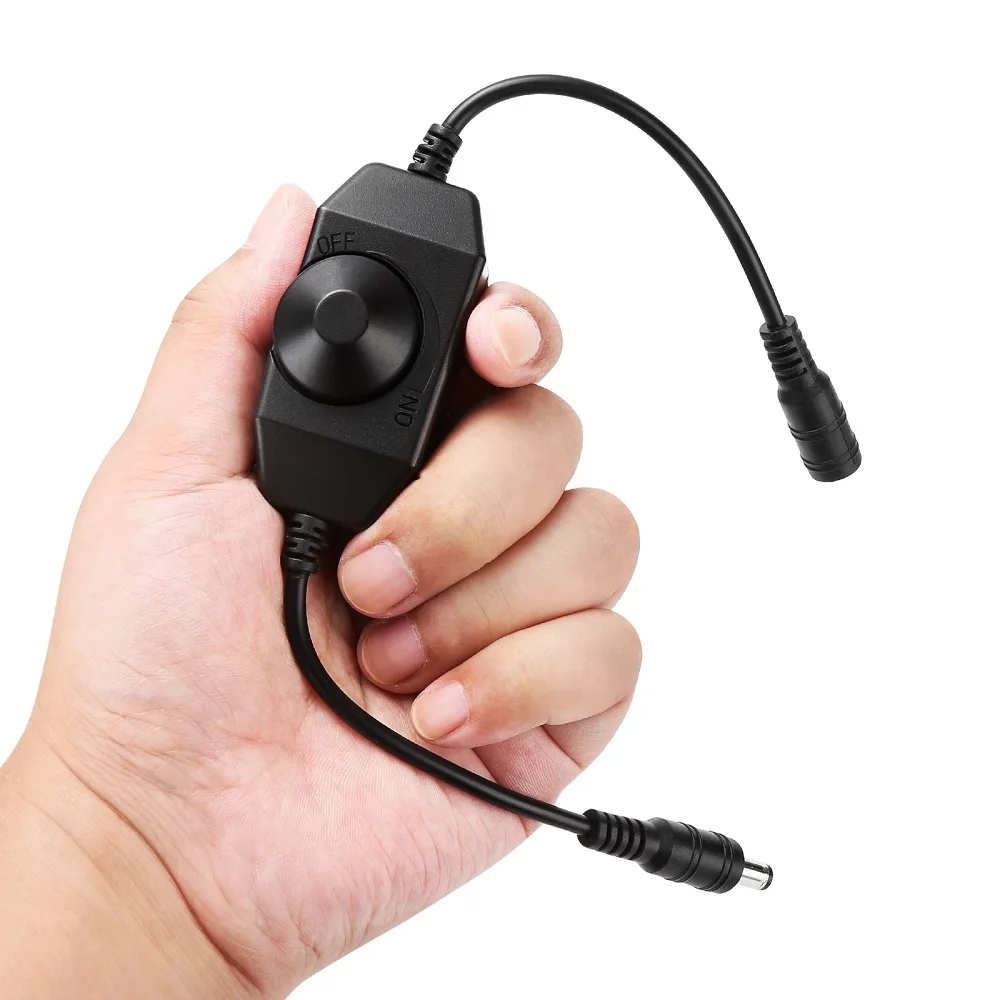

• The 12 volt led dimmer switch is knob-operated control. You could easily adjust the brightness or turn on/off the strip lights or LED rope light via rotating the knob.

• PMW dimming: 0-100% smooth dimming range, no flickering no humming.

• Widely used for single color 3528/ 5050/ 5630/ 5730/ 3014 LED strip light, LED rope or ribbon lights.

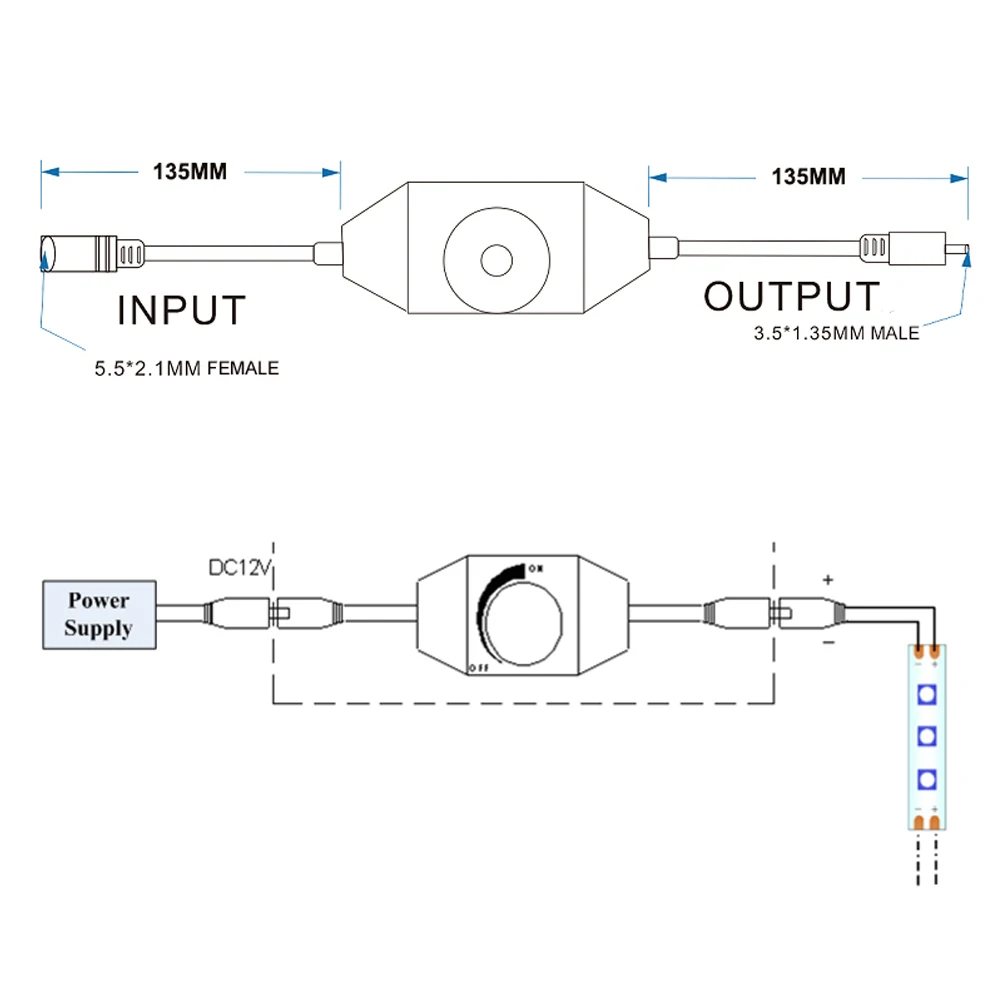

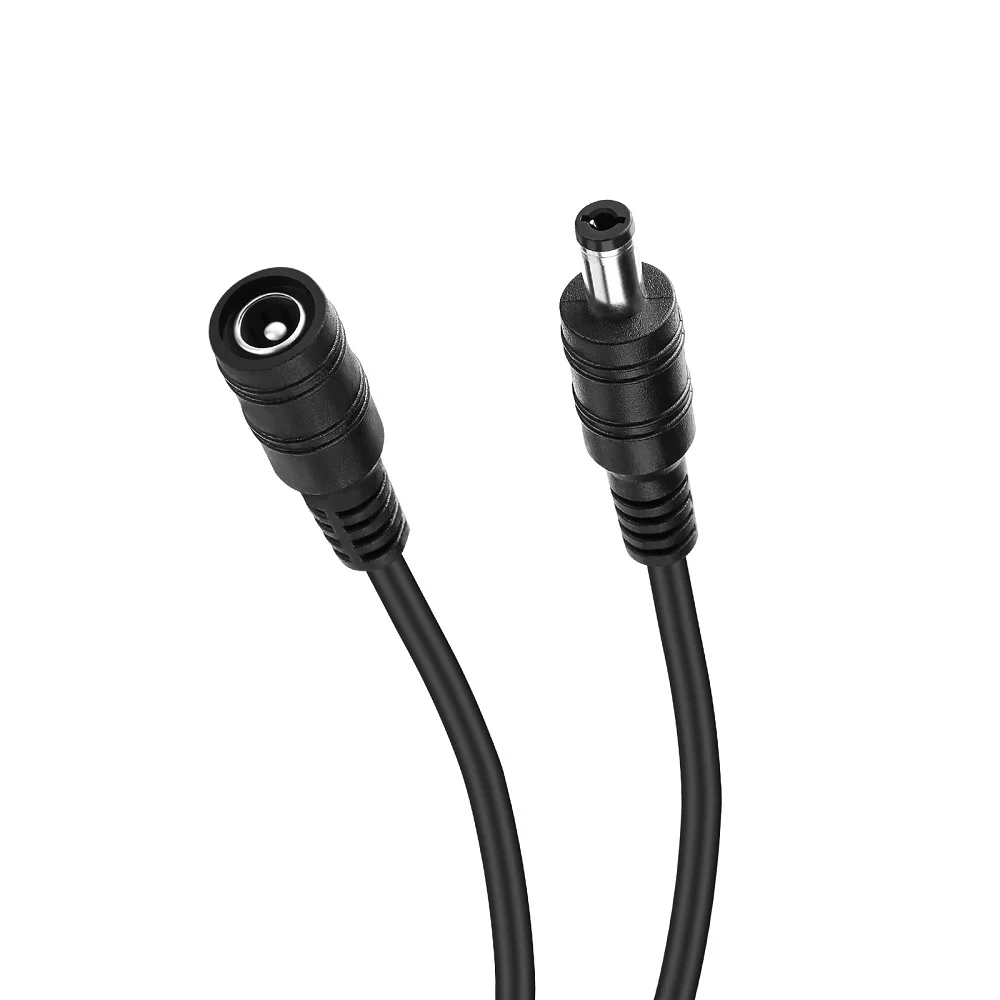

• The cable lenght is 5.3 inches for each side and the body size: 2.56*1.26*1.34 inch. The LED strip light dimmer comes with a standard DC 5.5*2.1mm female/ 3.5*1.35mm male connector, easy to use and simple wiring.

• Notes: DO NOT overload use. The Max. output current is 2A and the Max. output power is 60W. The supply voltage of the LED strip light dimmer is DC12V~24V.

Specifications

• Color: Black


• Size: 2.56*1.26*1.34 inch


• Working Voltage: DC 12-24V


• Connector: DC 5.5*2.1MM


• Max Output Current: 2A


• Max Output Power: 60W


• Output Channel: 1CH


• Working Temperature: -20~60℃


• Static Power Consumption: 1W


• Compatible with 3528 5050 5630 5730 and 3014 Single Color LED Strip

Precautions

1. The supply voltage is DC12V~24V, and shall not be connected to other voltages;

2. The leading wire shall be correctly connected according to the color and label provided in the wiring diagram;

3. Don't overload use.
