Product Overview
Description

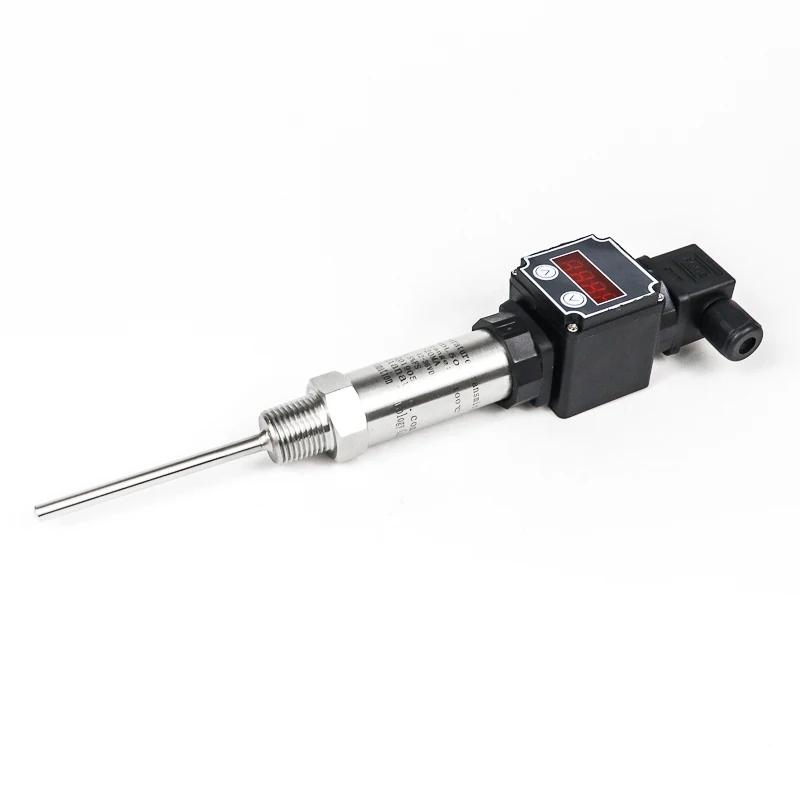

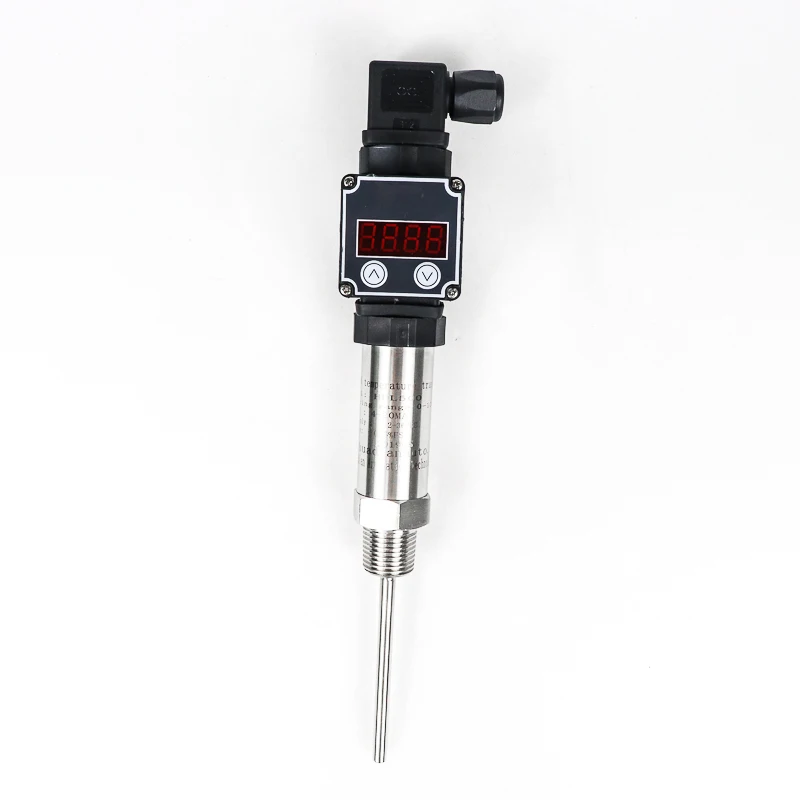

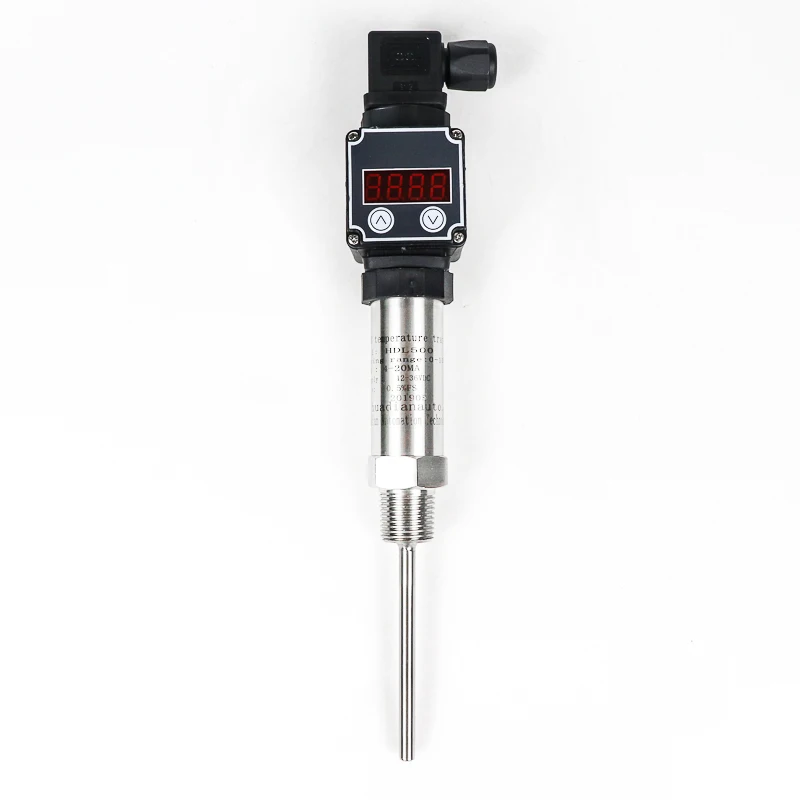

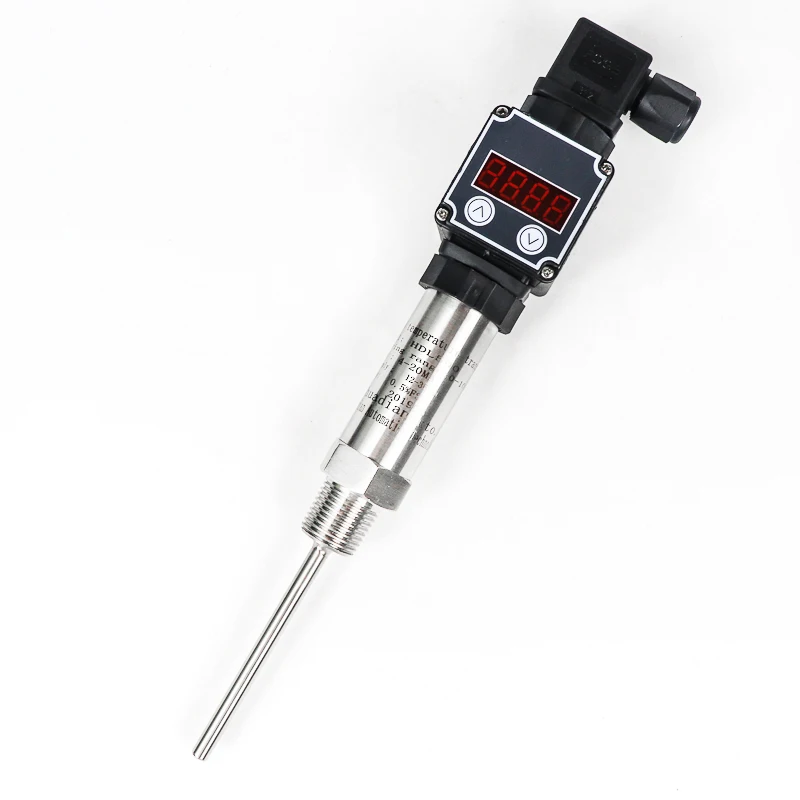

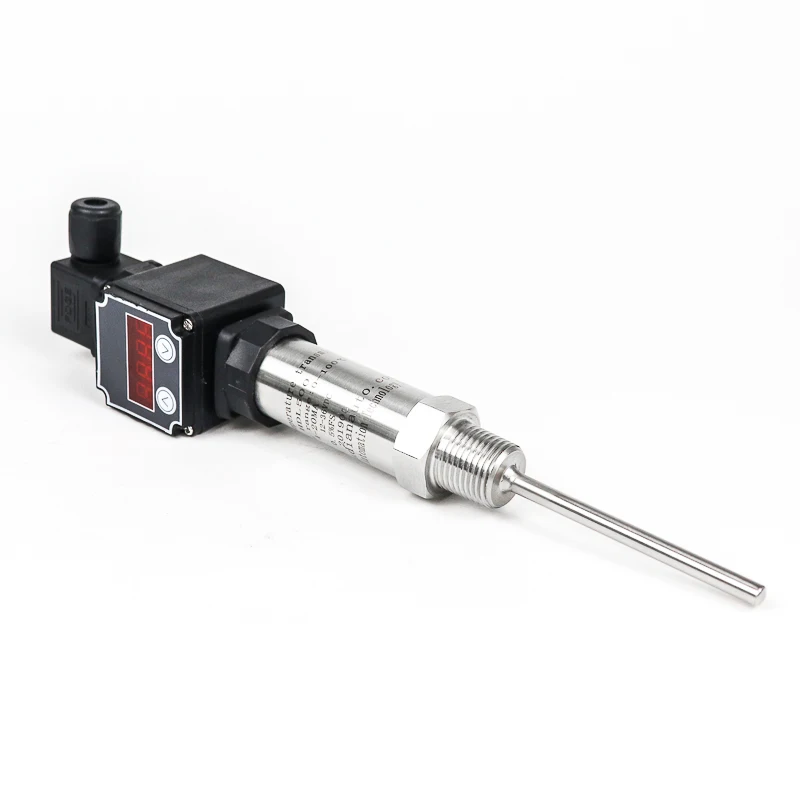

Made In China Stainless Steel Analog 4-20mA Temperature Transmitter For HVAC
Product Description
HGT-100 Hirschmann Integrated Temperature Transmitter take the advantages that the resistance value of platinum resistance changes with the temperature changes, and with a certain function relationship to measure the temperature of the measured fluids.
It consists of three structure: the temperature sensor, the compensation circuit and the conversion circuit, and with the advantages of stable performance, high sensitivity and strong reliability. It adopts all stainless steel welded structures, integrated 2088 aluminum shell.
It widely used in automatic temperature measurement and process control such as petroleum machinery, chemical machinery, pumps and compressors, electric power, boilers, and natural gas pipeline networks etc. And can be match used with kinds of regulators, panel instruments, computers, etc to form various process control systems.
Features
- 2-Wire 4-20Ma Output For Remote Process Control.
- It'S Cold Junction With Low Temperature Drift And Non-Linear Automatic Compensation Function.
- It'S With High Measuring Accuracy And Long-Term Stability.
- The Signal Converter Encapsulated Into Module With Epoxy Resin, It With Functions Of Anti-Vibration, Anti-Corrosion, Anti-Moisture Etc.
- It'S Integrated Design With Simple Structure Protection Ip 65.
- It Supports Local Led/Lcd Display
- ......

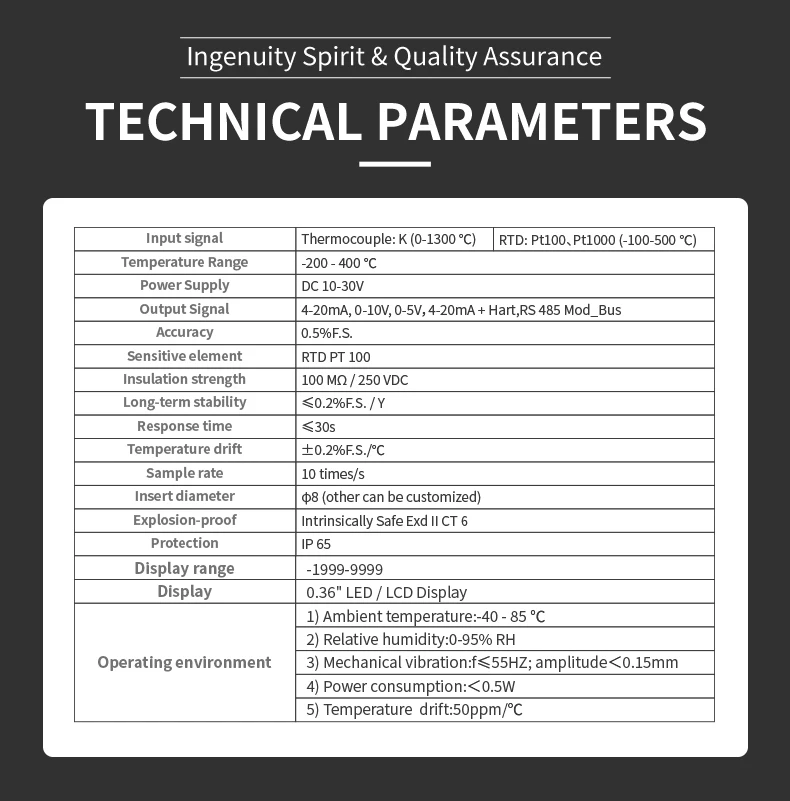

Technical Parameters
| Input signal | Thermocouple: K (0-1300 ℃) RTD: Pt100, Pt1000 (-100-500 ℃) | Temperature Range | -200 - 400 ℃ |
| Power Supply | DC 10-30V | Output Signal | 4-20mA, 0-10V, RS 485 Mod_Bus ... |
| Accuracy | 0.5%F.S. | Sensitive Element | RTD PT 100 |
| Insulation Strength | 100 MΩ / 250 VDC | Long-term Stability | ≤0.2%F.S. / Y |
| Response Time | ≤30s | Temperature Drift | ±0.2%F.S./℃ |
| Sample Rate | 10 times/s | Insert diameter | φ8 (other can be customized) |
| Protection | IP 65 | ambient temperature | -40 - 85 ℃ |
| Display Range | -1999-9999 | Display | 0.36" LED / LCD Display |
Selection Table
| Model | HGT-100 |
| Temperature Range | -200-450℃ |
| Power Supply | V1: DC 8-32V |
| V2: DC 3-5V | |
| Display | D1: No Display |
| D2: LCD Display | |
| D3: LED Display | |
| Electrical Connections | N1: Hirschmann |
| N2: Direct Lead (Water-proof) | |
| N3: Aviation Plug-In | |
| Thread Size | A1: M20*1.5 |
| A2: G 1/2" | |
| A3: 1/2" NPT | |
| A4: Other | |
| Insertion Diameter | 8: φ8mm |
| 10: φ10mm | |
| O: Other | |
| Insertion Length | L50: 50mm |
| L100: 100mm | |
| L200: 200mm | |
| O: Other | |
| Output Signal | F1: 4-20mA DC |
| F2: 0.5-4.5V DC | |
| F3: 0-10V DC | |
| F4: RS 485 Mod_Bus | |
| Additional Features | K: Compact Type |
| E: Explosion-proof Function | |
Eg: HGT100-03-V1-D2-N1-A3-φ8-L100-F1-K | |
Measuring Range & Code Selection
| Code | Range | Code | Range |
| 01. | -50-100℃ | 06. | 0-100℃ |
| 02. | -50-200℃ | 07. | 0-150℃ |
| 03. | -100-100℃ | 08. | 0-200℃ |
| 04. | -100-200℃ | 09. | 0-400℃ |
| 05. | 0-50℃ | 10. | Other |

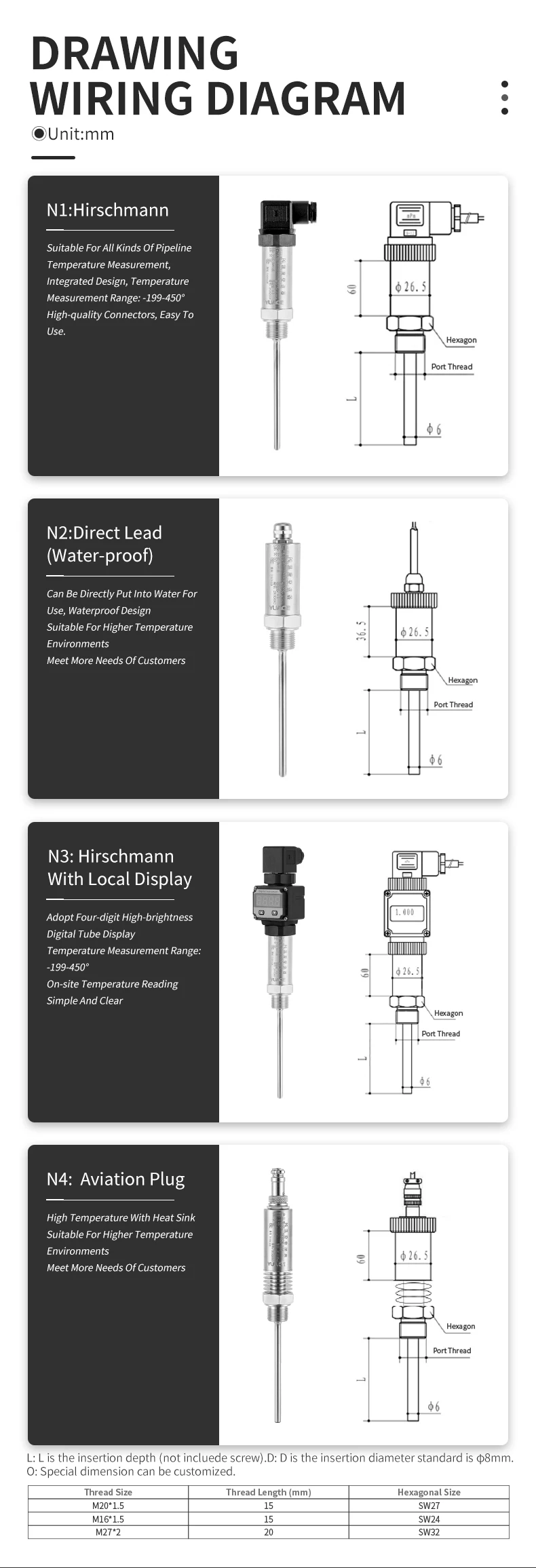

Drawing OF Dimension

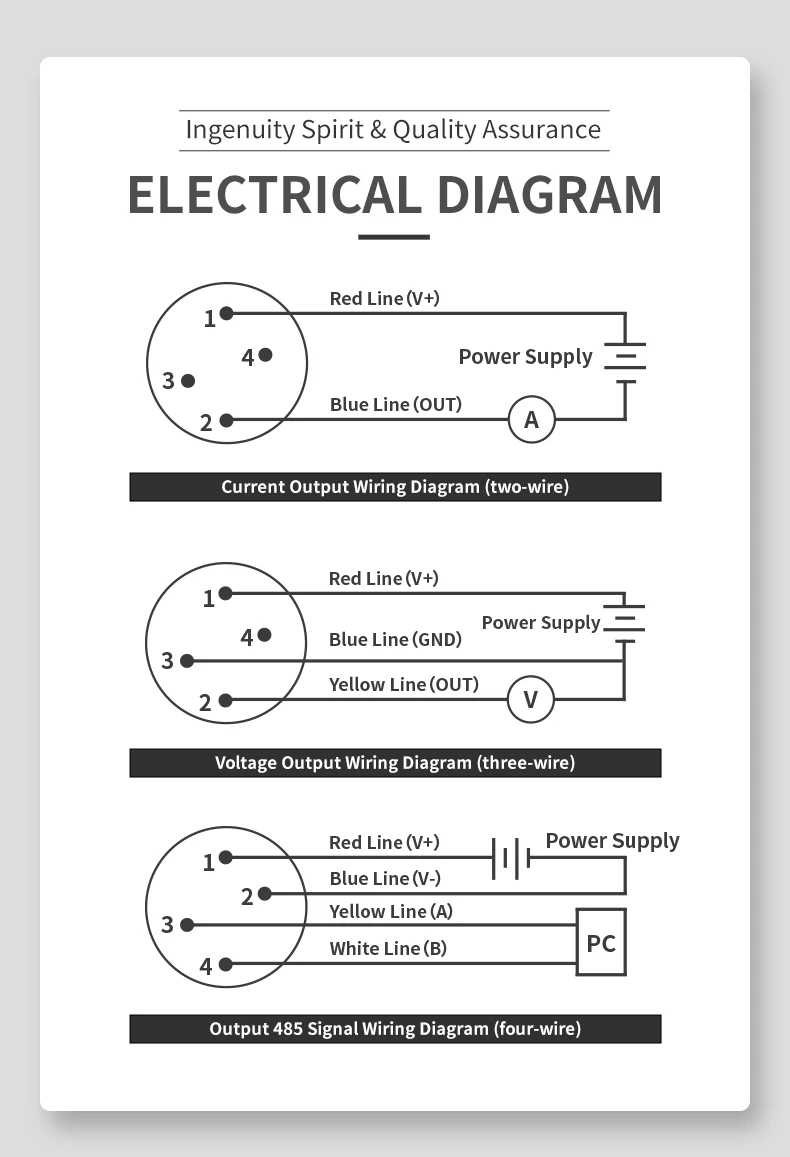

Wiring Diagram
