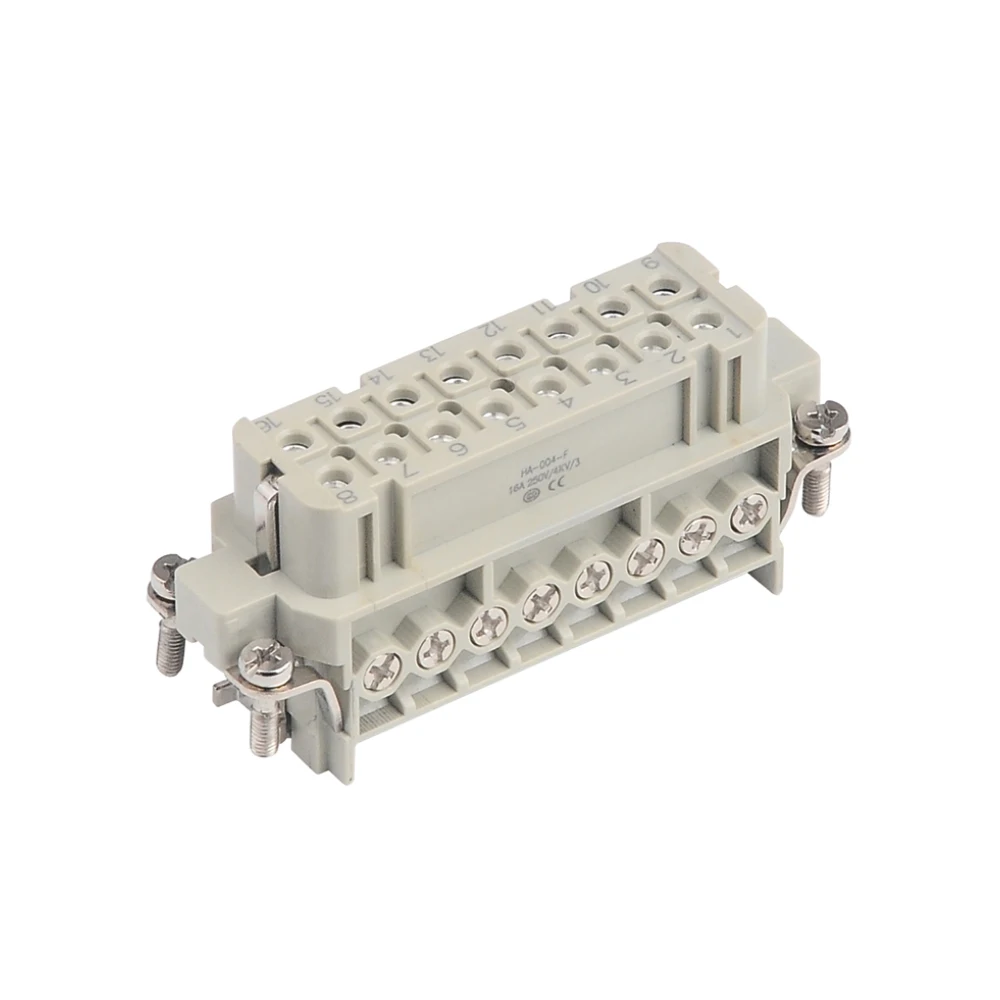

WZUMER 16A 250V HA Series 16 Pins ha 016 m/f Heavy Duty Connector Plug Inserts Male and Female Replacement 16pin
WZUMER 16A 250V HA Series 16 Pins ha-016-m/f Heavy Duty Connector Plug Inserts Male and Female Replacement 16pin
WZUMER 16A 250V HA Series 16 Pins ha-016-m/f Heavy Duty Connector Plug Inserts Male and Female Replacement 16pin
WZUMER 16A 250V HA Series 16 Pins ha-016-m/f Heavy Duty Connector Plug Inserts Male and Female Replacement 16pin
WZUMER 16A 250V HA Series 16 Pins ha-016-m/f Heavy Duty Connector Plug Inserts Male and Female Replacement 16pin
WZUMER 16A 250V HA Series 16 Pins ha-016-m/f Heavy Duty Connector Plug Inserts Male and Female Replacement 16pin
WZUMER 16A 250V HA Series 16 Pins ha-016-m/f Heavy Duty Connector Plug Inserts Male and Female Replacement 16pin

WZUMER 16A 250V HA Series 16 Pins ha 016 m/f Heavy Duty Connector Plug Inserts Male and Female Replacement 16pin

Share on (1600620762372):


Price:$2.25 - $2.75

Quantity:


Product Overview

Description

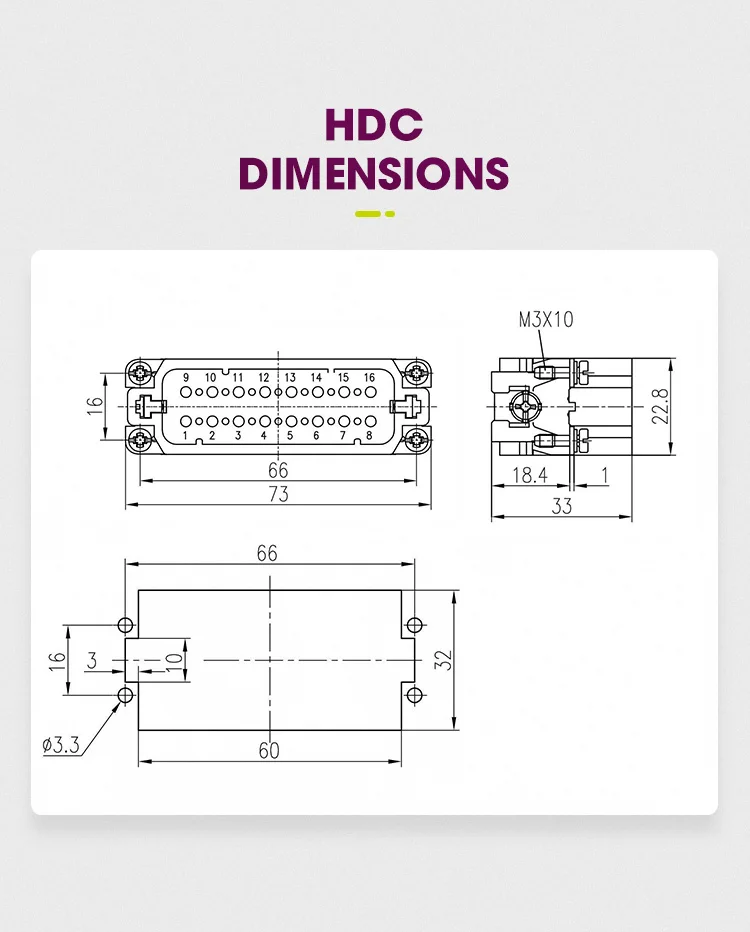

Details Images






Products Description




Technical Characteristics:


Number of Contacts
16
Electrical Data Acc.to
EN61984
Rated Current
10A
Rated Voltage
500V
Rated Impulse Voltage
6KV
Pollution Degree
3
Flammability Acc.to (UL94)
VO
Insulation Resistance
≥10 10Ω
Material
Polycarbonate
Limiting Temperature
-40℃±125℃
Mechanical Working Life
≥500
Rated Voltage Acc.To UL/CSA
600V


Contacts:


Material
Copper Alloy
Surface
Hard-silver,Hard Gold Plated
Contact Resistance
≤1mΩ
Crimp Teminal
Screw terminal
- mm2
0.14-4.00mm2
-AWG
26-12
-Wire Gauge
-AWG
-Hexagonal Driver
-Stripping Length
Stripping length
0.5-2.5mm2(AWG18-14)
18-14
SW 5
16mm
7-9mm
Tightening Torque
0.5Nm




Our Main Products

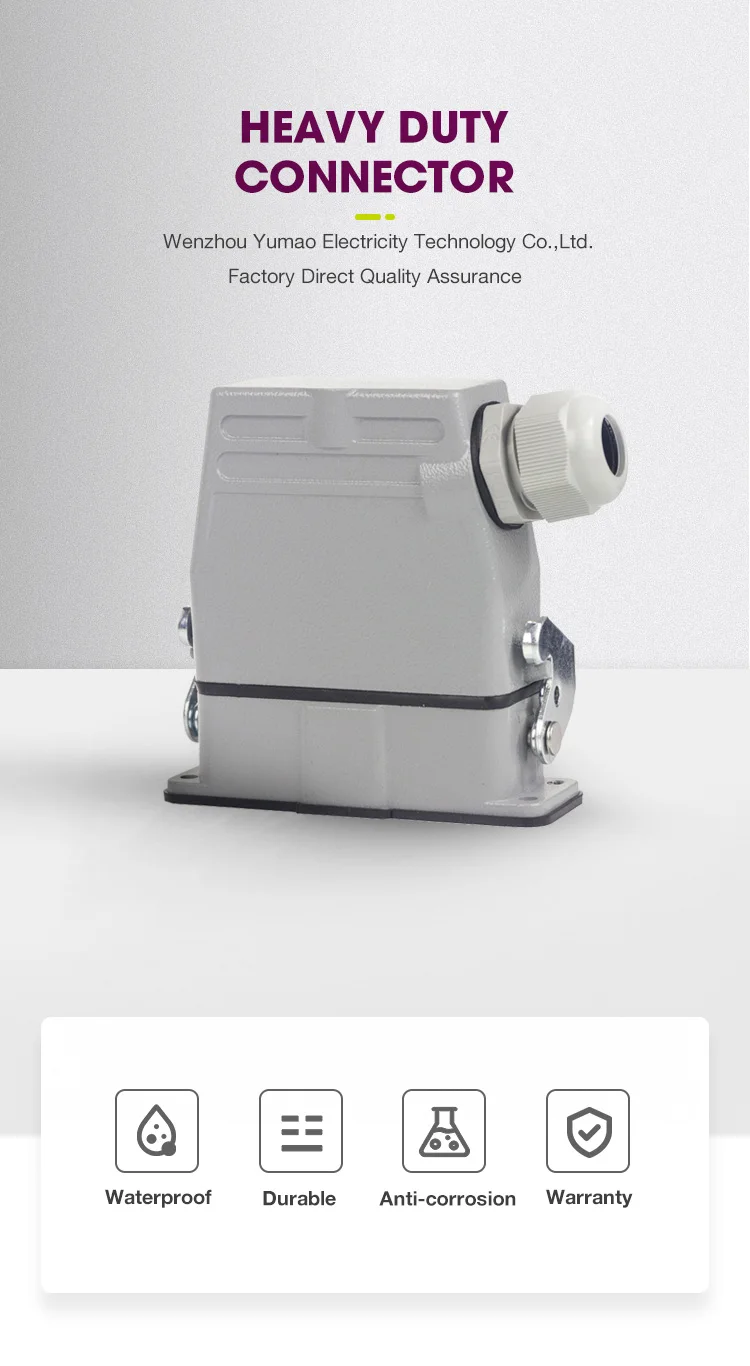

Heavy Duty Connector
Heat Shrink Tube
Cable Clamp
Cable Gland
Insulation Piercing Connector
Ground Rod
Cable Lugs
Cable Ties

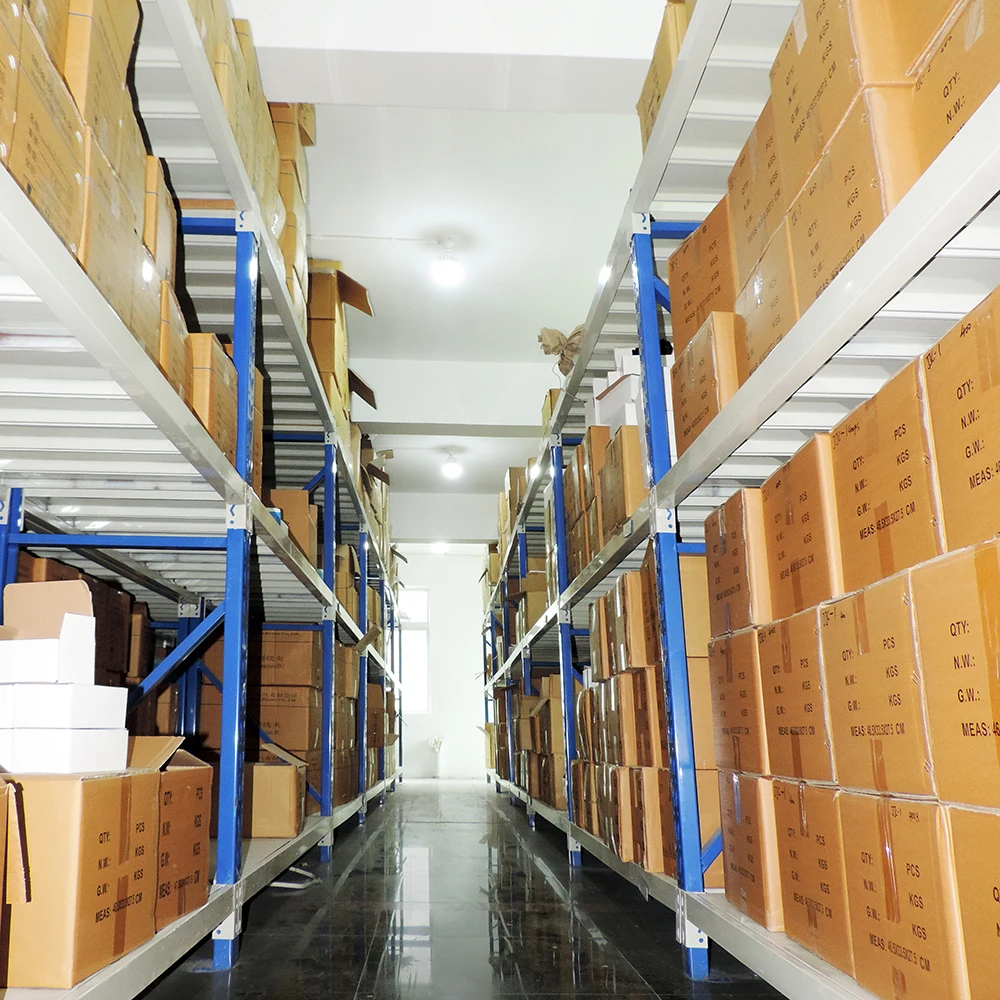

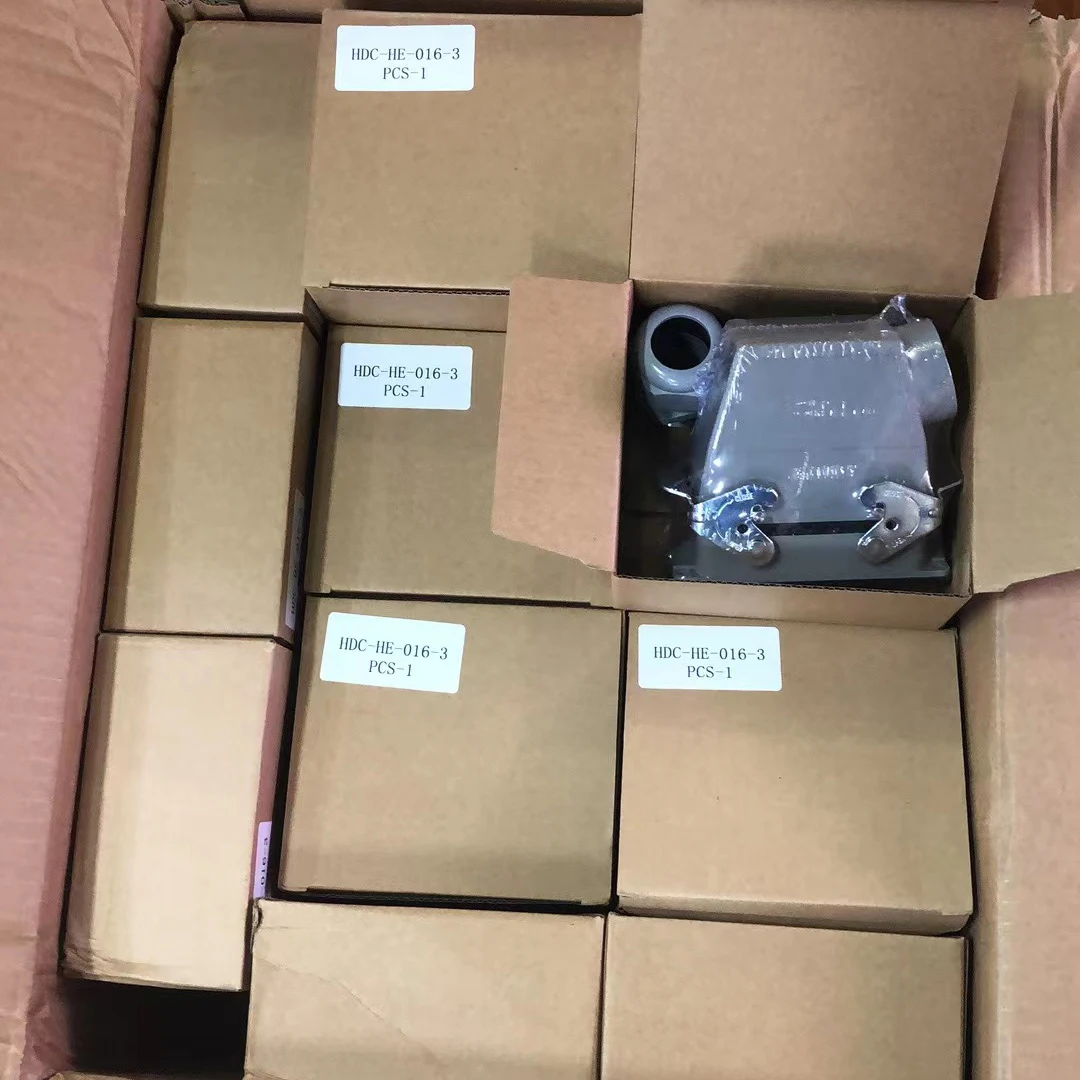

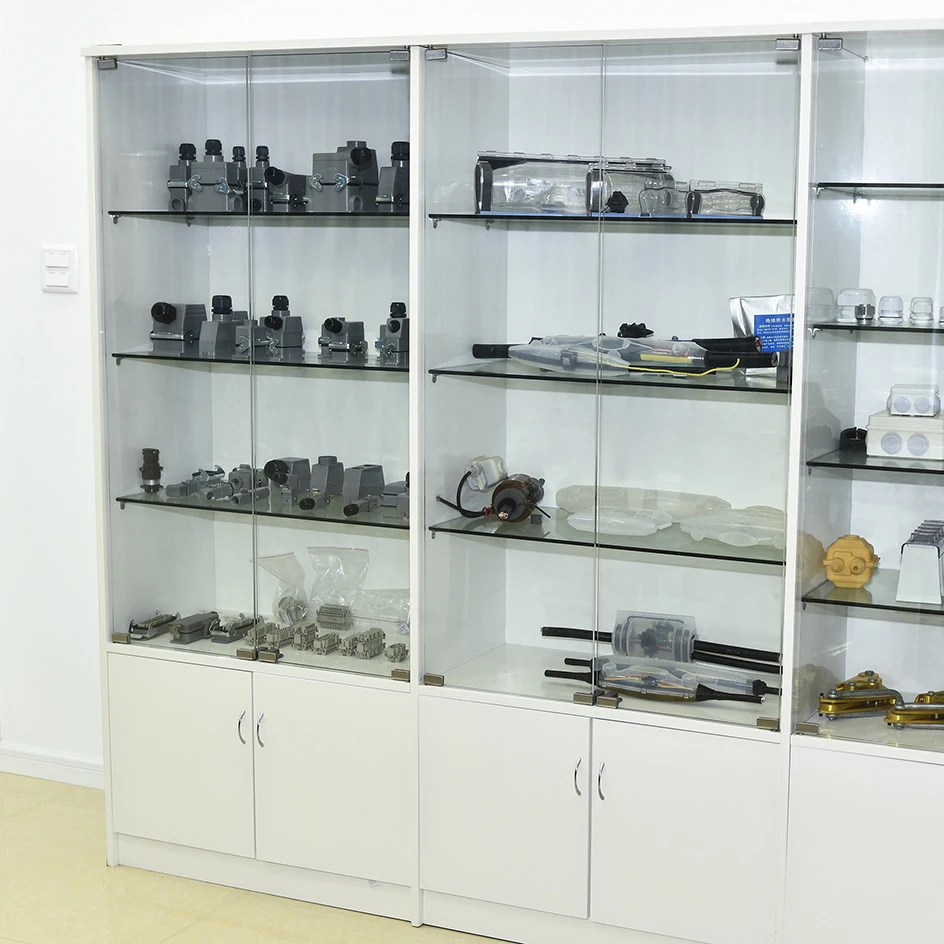

Workshop & Packing
