Hollow Bars C62400 Aluminum Bronze Brass Rod Round
US $4.50-$8.10

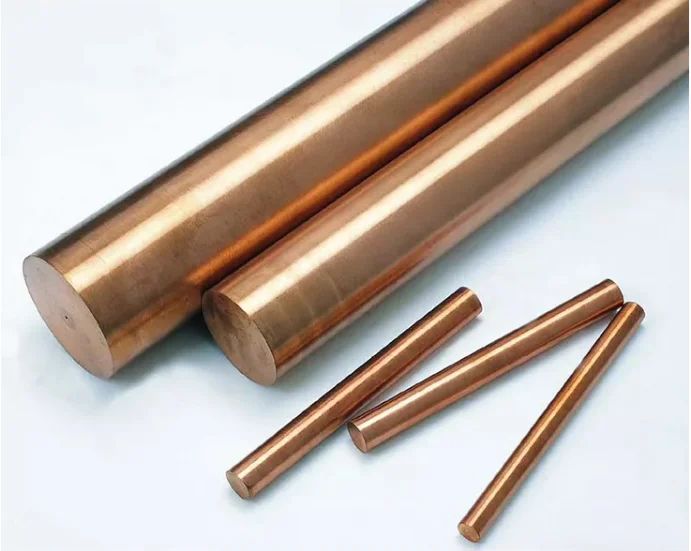

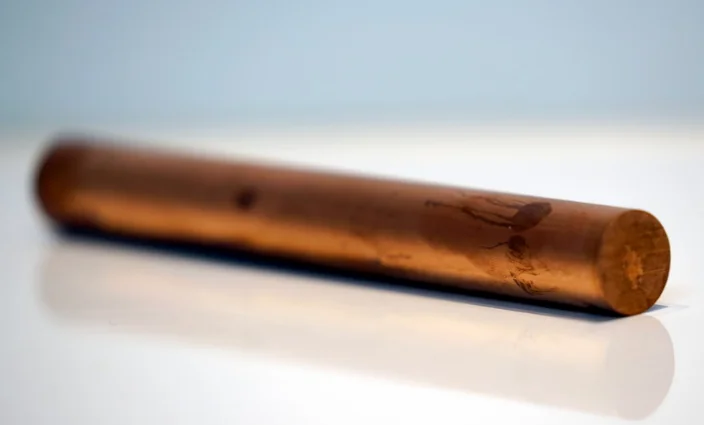

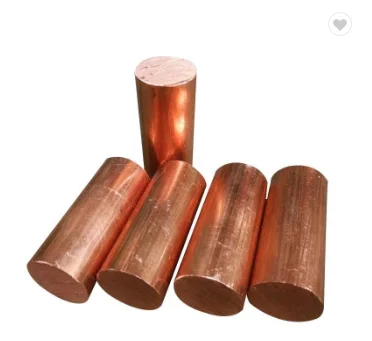

Pure Red Round C10100 rod, C10100 OFC cooper rod, TU0 rod Copper Bar / Rod 2mm 3mm 4mm 5mm 6mm 8mm
- Category: Copper Bars >>>
- Supplier: Zhejiang Shengqi Technology Co. Ltd.
Share on (1600620815519):
Product Overview
Description
Product Description
item | value |
Place of Origin | China |
Brand Name | HI SOLAR |
Application | Electronic Component, Construction |
Shape | Round |
Cu (Min) | 99.99 |
Alloy Or Not | Is Alloy |
Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
Purity | Cu: 99.995% |
Oxgen content | O≤3ppm |
Shape | customized according to customer requirements |
Application 1 | wire drawing, special cable, Transistor Component Bases |
Application 2 | High Resistance-Ratio Cryogenic Shunts, Bus Conductors |
Application 3 | Wave Guides, Hollow Conductors, Anodes for Vacuum Tubes |
Application 4 | Coaxial Cable, Coaxial Tube, Klystrons, Microwave Tubes |
Application 5 | Bus Bars, Lead-in Wire, Vacuum Seals, Conductors, Glass-to-Metal Seals |
C10100 OFHC Copper is produced by the direct conversion of selected refined cathodes and castings under carefully controlled conditions to prevent contamination of the pure oxygen-free metal during processing. The method of producing OFHC copper ensures extra high grade of metal with a copper content of 99.99%. With so small a content of extraneous elements, the inherent properties of elemental copper are brought forth to a high degree.
Characteristics of OFHC copper are:
·High Ductility
·High Electrical & Thermal Conductivity
·High Impact Strength
·Good Creep Resistance
·Ease of Welding
·Low Relative Volatility under high vacuum
·High Conductivity
·Ultra Low Oxygen
Characteristics of OFHC copper are:
·High Ductility
·High Electrical & Thermal Conductivity
·High Impact Strength
·Good Creep Resistance
·Ease of Welding
·Low Relative Volatility under high vacuum
·High Conductivity
·Ultra Low Oxygen
Oxygen Free Copper Rods Chemical Composition | ||||||||||
Nation | China | USA | ||||||||
Standard No. | GB | ASME B49 | ||||||||
Classification | TU0 | TU1 | Grade1 C10100 | Grade 2 C10200 | ||||||
Chemical Composition | Cu+Ag (%Min) | 99.99 | 99.9 | 99.99 | 99.95 | |||||
O2 P (PPM) | 10Max 3max | 10max N/A | 5Max 3Max | 10Max N/A | ||||||
Nation | U.K | Germany | Japan | ||||||
Standard No. | BS 6017 | DIN 2.0040 | JIS H2123 | ||||||
Classification | Cu-OFE C103 | Cu-OF C110 | OF-Cu 2.0040 | Grade1 C1011 | Grade2 C1020 | ||||
Chemical Composition | Cu+Ag (%Min) | 99.99 | 99.95 | 99.95 | 99.99 | 99.98 | |||
O2 P (PPM) | 10Max 3Max | NA NA | NA NA | 10Max 3max | 10max N/A | ||||
1) Cu is determined by the difference between the impurity total and 100%. The Cu value is exclusive of Ag.
Note: This is a high conductivity copper which has, in the annealed condition a minimum concuctivity of 100% IACS except for Alloy C10100 which has a minimum conductivity of 101% IACS.
Note: The following additional impurity maximum limits shall apply: Bi, 1ppm (.0001%); Cd, 1ppm (.0001%); Fe, 10ppm (.0010%); Pb, 5ppm (.0005%); Mn, 0.5ppm (.00005%); Ni, 10ppm (.0010%); Se, 3ppm (.0003%); Ag, 25ppm(.0025%);S, 15ppm (.0015%); Sn, 2ppm (.0002%); Zn, 1ppm (.0001%).
Note: This is a high conductivity copper which has, in the annealed condition a minimum concuctivity of 100% IACS except for Alloy C10100 which has a minimum conductivity of 101% IACS.
Note: The following additional impurity maximum limits shall apply: Bi, 1ppm (.0001%); Cd, 1ppm (.0001%); Fe, 10ppm (.0010%); Pb, 5ppm (.0005%); Mn, 0.5ppm (.00005%); Ni, 10ppm (.0010%); Se, 3ppm (.0003%); Ag, 25ppm(.0025%);S, 15ppm (.0015%); Sn, 2ppm (.0002%); Zn, 1ppm (.0001%).
