12V Balancer door to door 4s 3s 5A 5.5A Lipo NCM Battery protect equalization charging discharging Lifepo4 Active Equalizer
- Category: >>>
- Supplier: Chengdu Heltec Automation Technology Co. Ltd.
Share on (1600620829941):
Product Overview
Description
Product description

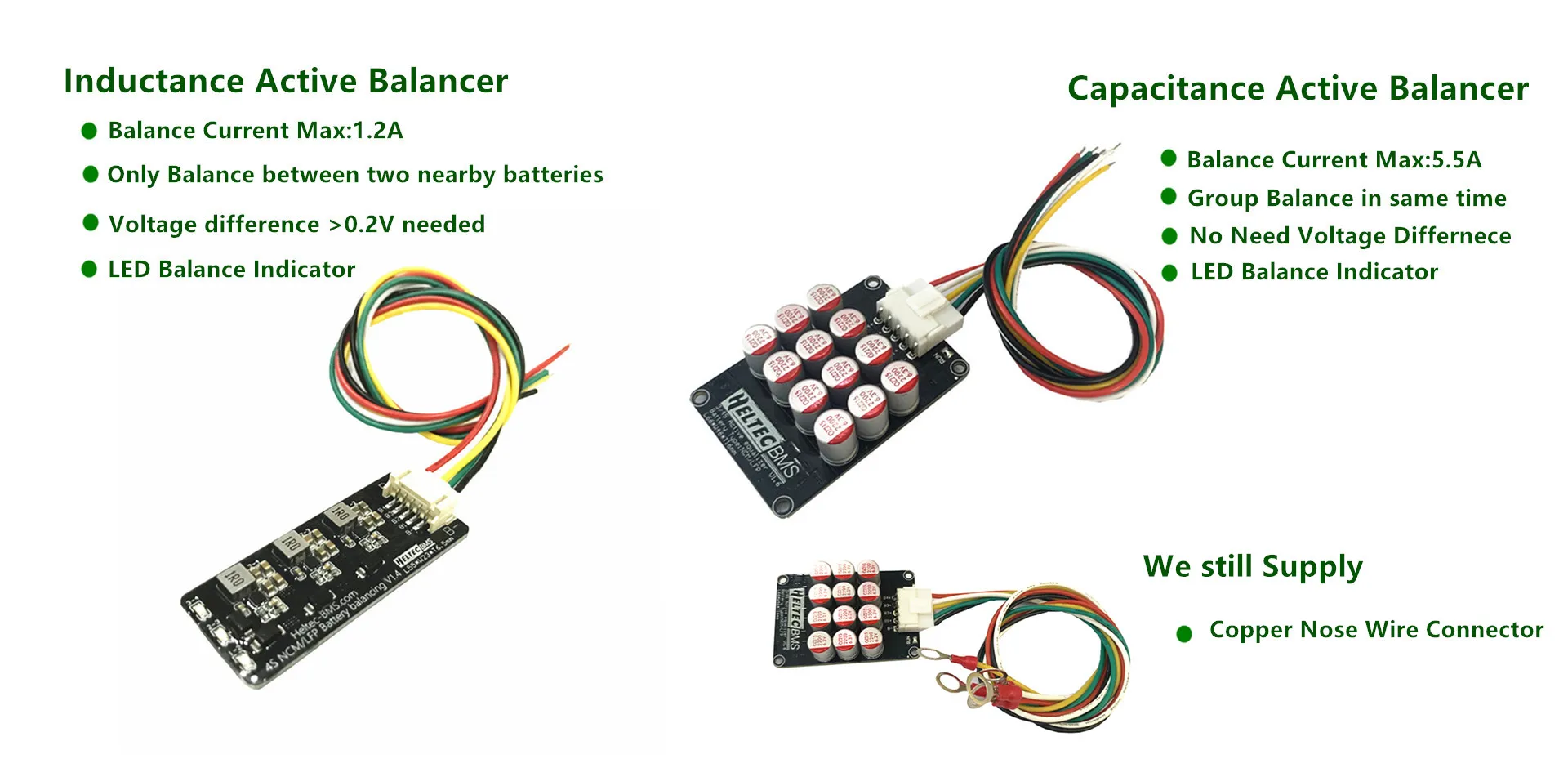

Capacitive Balancer
Capacitive equalization is the energy transfer between neighboring batteries through capacitors. First, the high-voltage battery is discharged to charge the capacitor, and then the capacitor discharge is used to charge the adjacent low-voltage battery to achieve the purpose of equalization.Capacitive equalization is the energy transfer between neighboring batteries through capacitors. First, the high-voltage battery is discharged to charge the capacitor, and then the capacitor discharge is used to charge the adjacent low-voltage battery to achieve the purpose of equalization

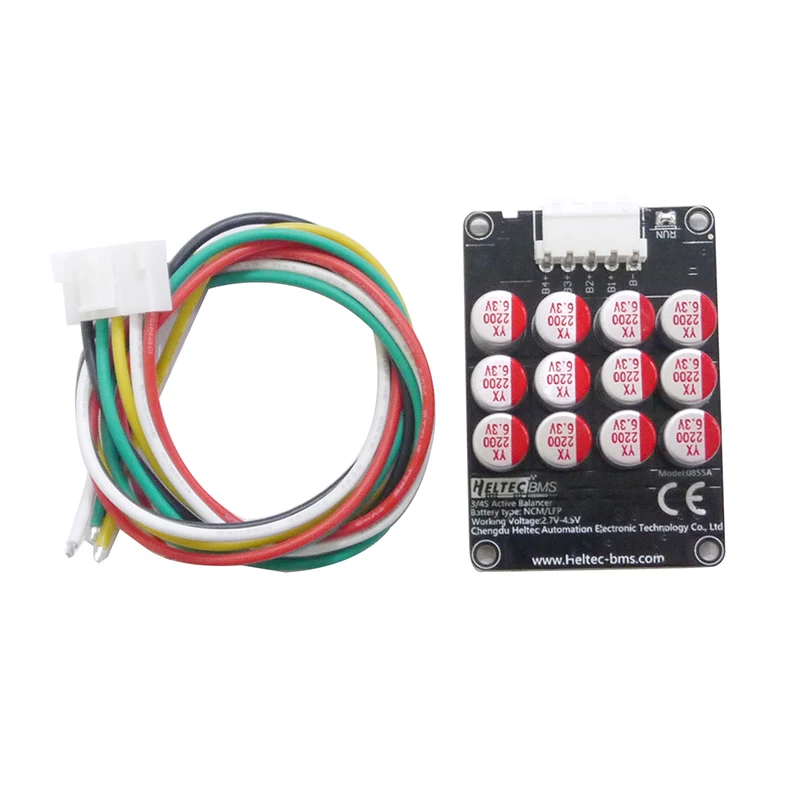

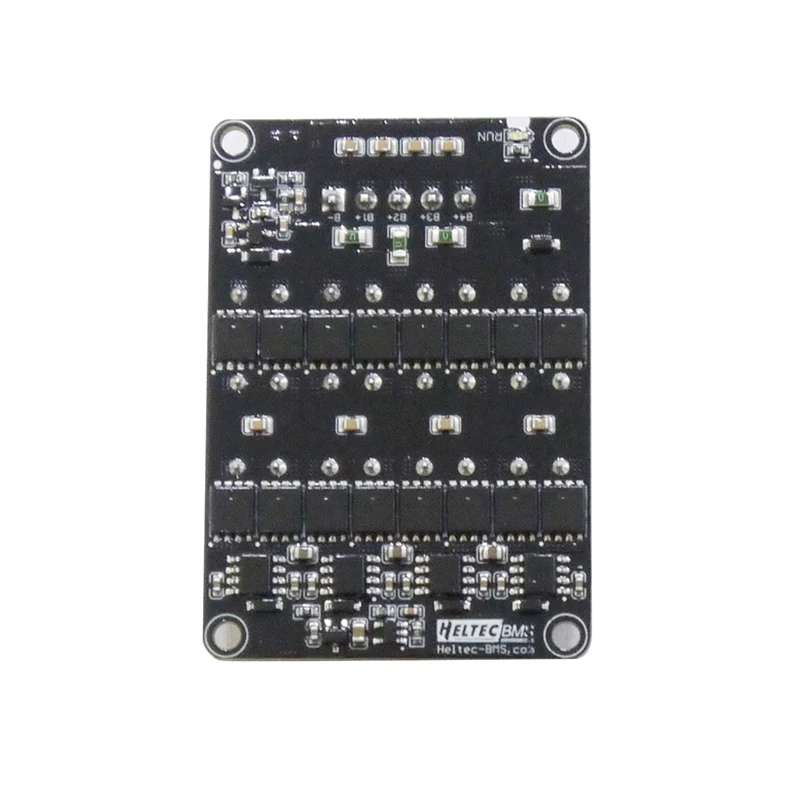

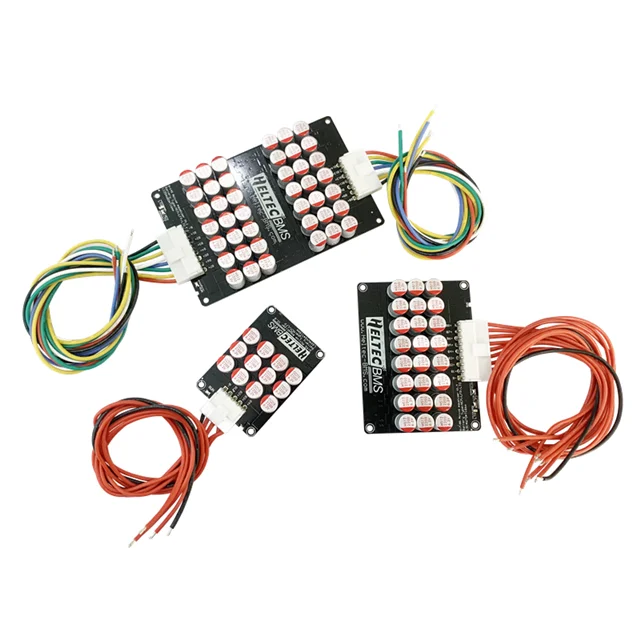

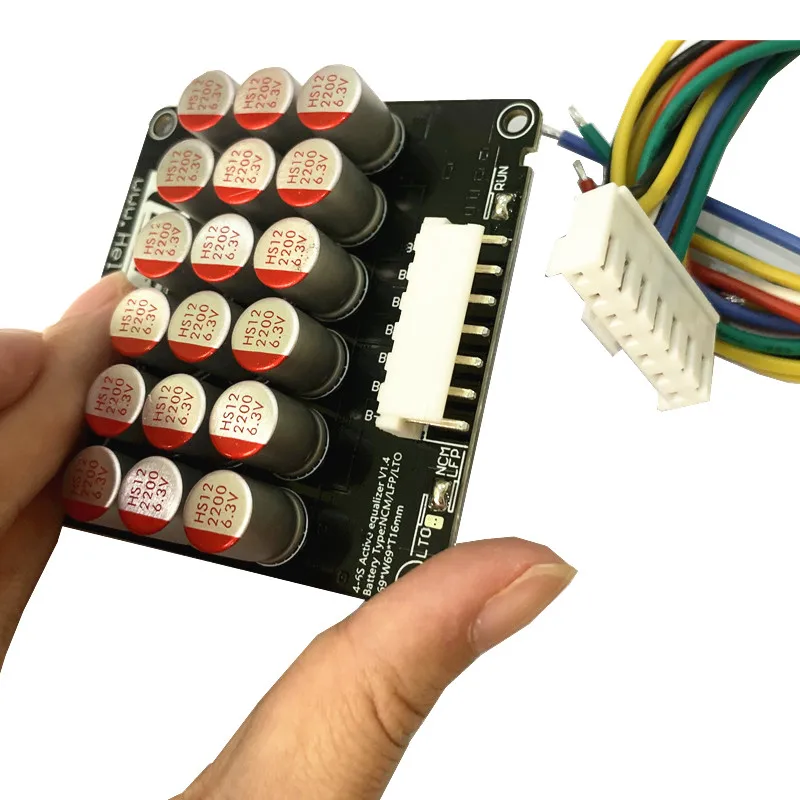

Fit capacitor active balancer
Attention:

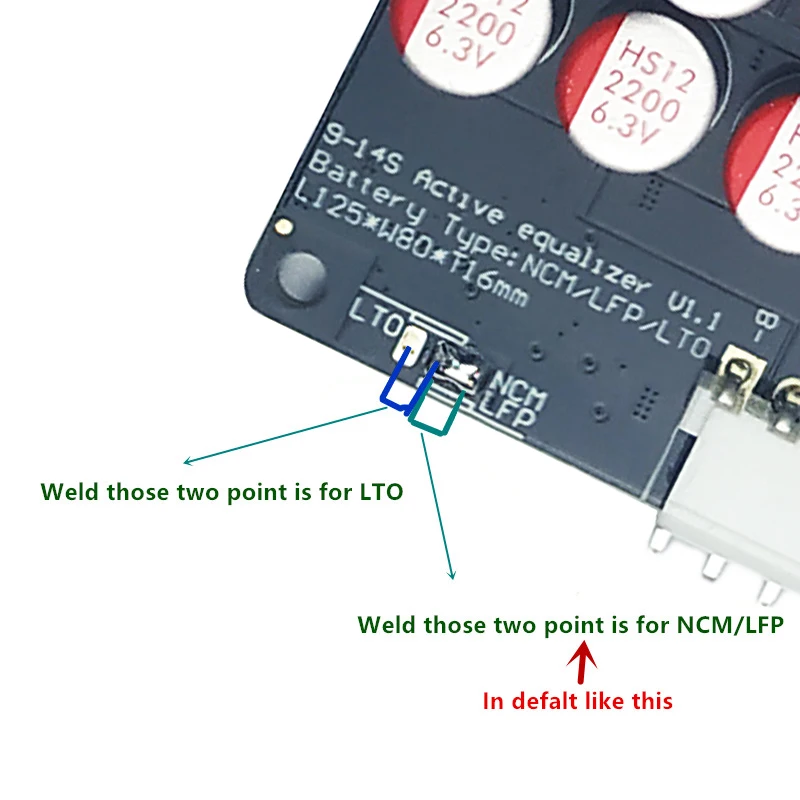

3s-4s type can not be used for LTO battery, If you need LTO type, please contact us in advance.

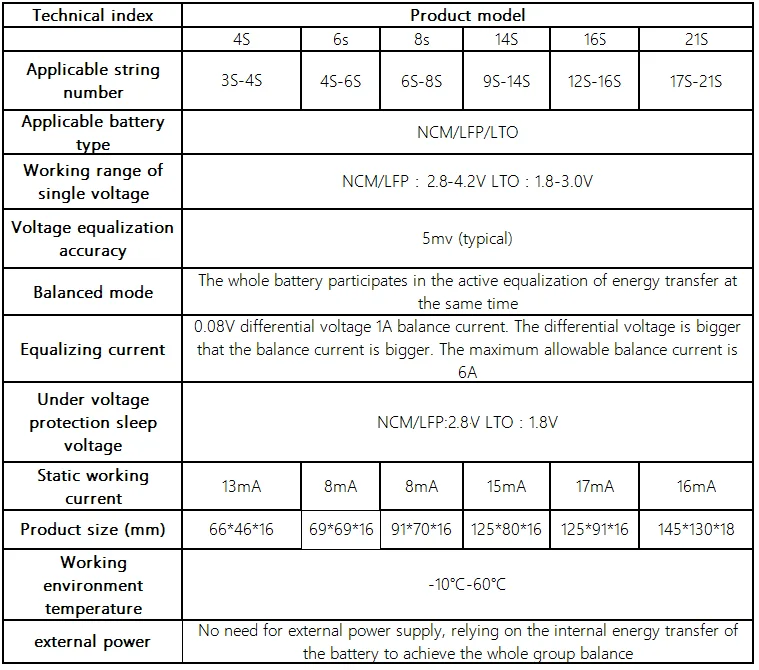

Working Conditions | Ternary lthium /LFP lithium iron phosphate parameters |
Balanced starting voltage | 2.8V-4.2V |
Balanced termination voltage | 2.8V(into undervoltage sleep state) |
Balance accuracy | ≤5mv |
Sleeping current | ≤1mA |
Maximum balance current | The whole group error is 0.1V 1A/0.5V 3.5A/1.0V 5.5A(18awg 30cm cable test) |
3S quiescent current | Full power state(4. 2v 3cell)12 6v 12mA |
4S quiescent current | Full power state(4.2v*4cell)16. 5v 15mA |
7S quiescent current | Full power state(4. 2v 7cell)29 4v 15mA |
8S quiescent current | Full power state(4 2v*8cell)33 6v 11mA |
15S/16S/17S on same board quiescent current | Full power state(4.2v*17cell)71.4v 10mA |
Whether external power supply is required | No external power supply is needed, and the whole group is balanced by the internal energy transfer of the battery. |
Working environment temperature | 0-60°C |
Working conditions | Lithium titanate special equalization plate parameters |
Balanced starting voltage | 1.8V-3.0V |
Balance termination voltage | 1.8V ( into undervoltage sleep state ) |
Balance accuracy | 5mv |
Maximum balance current | The whole group error is 0.1V1A : 0.5V3.5A; 1.0V5.5A ( 18awg 30CMcable test) |
5S-LTO quiescent current | Full power state ( 2.8v*5cell) 14V 12mA |
6S-LTO quiescent current | Full power state ( 2 8v*6cell ) 16.8V 15mA |
Whether external power supplyisrequired | No external power supply is required. and the internal energy balance of the battery is used to transfer the entire set of equalization. |
Working environment temperature | 0-60°C |

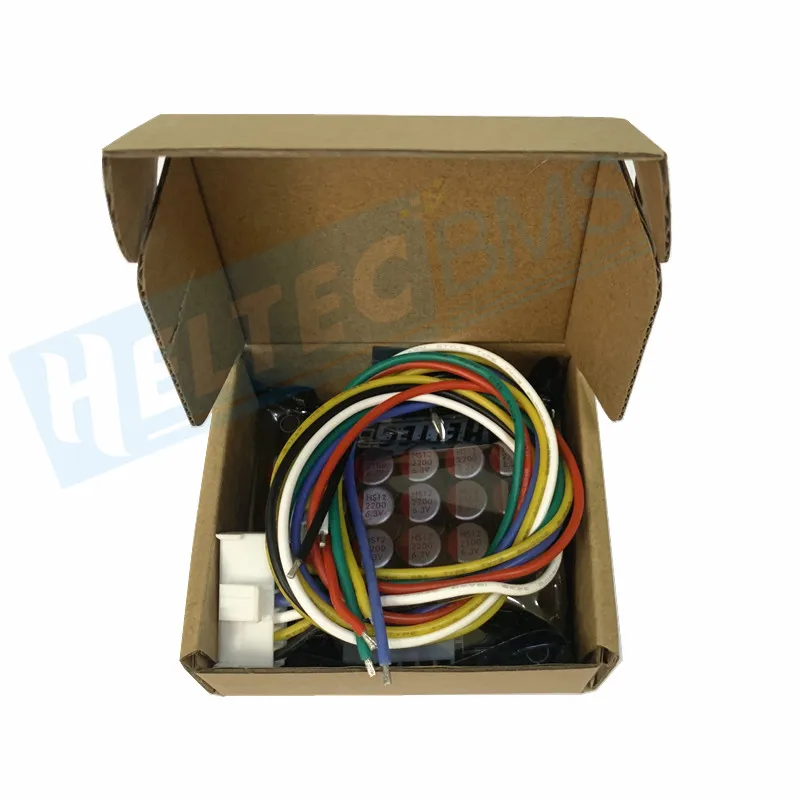

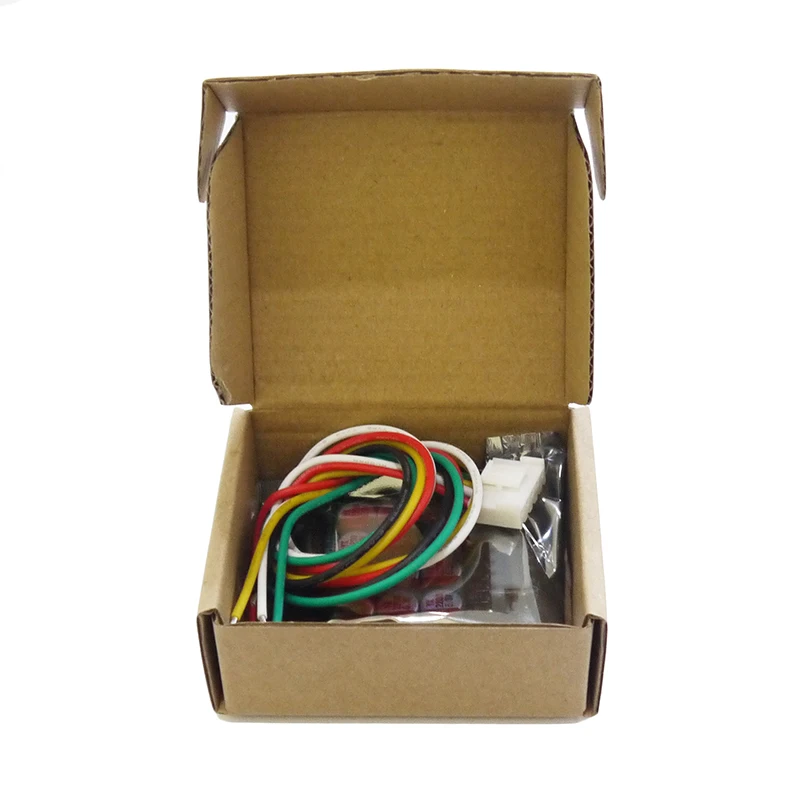

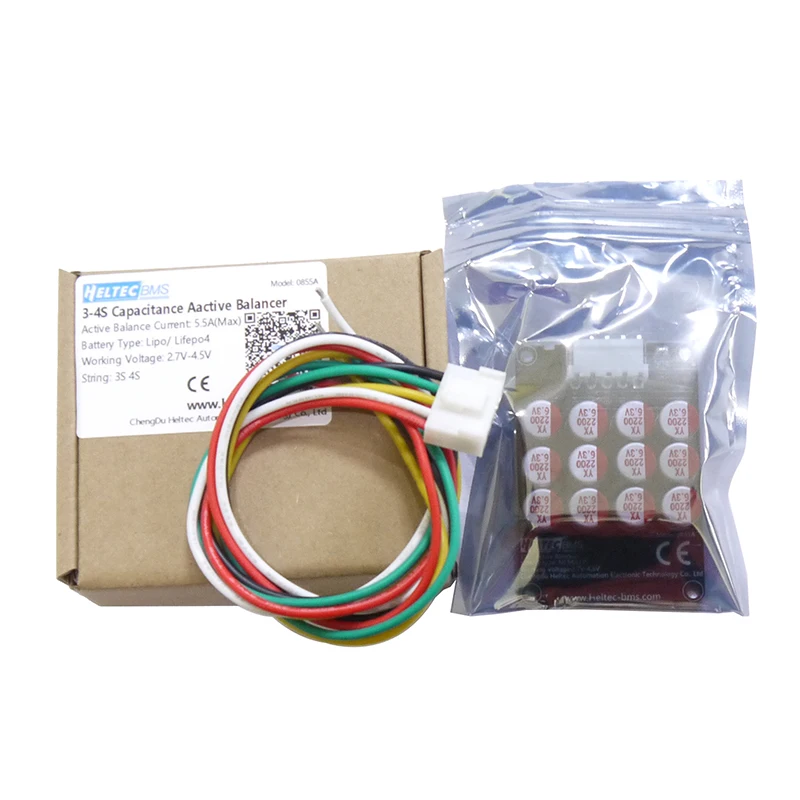

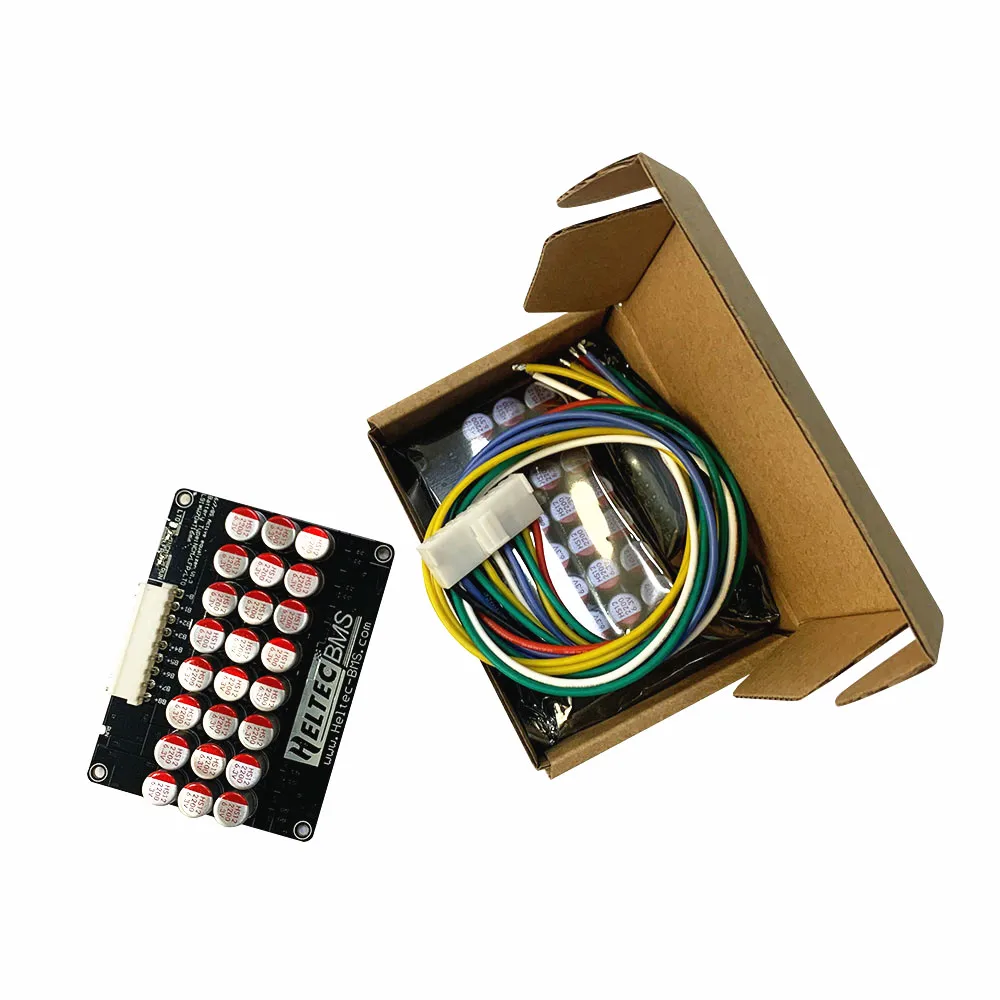

Packing & Delivery
