Water Chiller Factory Price CW 3000 6000 CO2 Laser Water Tank Cooler Industrial Chiller For Lab
- Category: >>>
- Supplier: Nanjing Hengde Electrical Equipment Co. Ltd.
Share on (1600620876558):
Product Overview
Description
Products Description

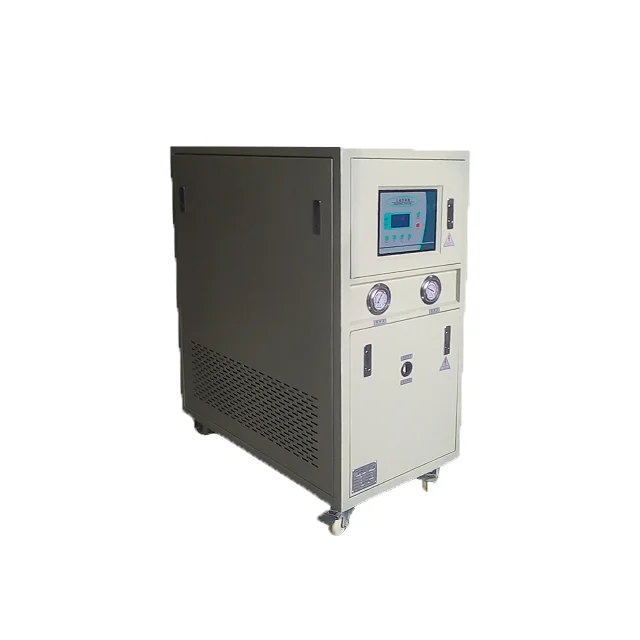

Water-cooled chiller
Industrial chillers are widely used in plastic molding, injection molding, extrusion, bottle blowing, thermoforming, casting, surface treatment, electroplating, medical equipment, electronics industry, circuit board production, aluminum profiles, tempered glass, coated glass production, ultrasonic cleaning Xian and other industries. Adopt world famous brand imported compressor, excellent low temperature performance, reliable and durable, the product is designed according to the characteristics of industrial applications, built-in low temperature circulating water pump and stainless steel refrigerated water tank, very convenient to use, unique modular design, the system of each compressor is safe and independent, Even if there is a problem with one system, it will not affect the normal operation of other systems. We offer more than 100 models and customization, the best choice for modern industry.
Widely used in various industries
Industrial chillers can effectively provide cooling and cooling for industrial equipment, take away the heat generated in the operation of industrial equipment, improve product quality, shorten the cycle, and better ensure the operation of industrial equipment. Thus maximizing productivity.
Product Specifications
Item/Model | HC-03W | HC-05W | HC-06W | HC-08W | |||||||
Cooling Capacity | Kcal/h | 50HZ | 7740 | 12900 | 15480 | 20640 | |||||
60HZ | 9270 | 15450 | 18540 | 24720 | |||||||
KW | 50HZ | 9 | 15 | 18 | 24 | ||||||
60HZ | 10.8 | 18 | 21.6 | 28.8 | |||||||
Input Power | KW | 2.95 | 5.29 | 5.95 | 8.05 | ||||||
Power | 3PH 380V 50HZ (200V/220V/415V 50HZ/60HZ) | ||||||||||
Refrigerant | Type | R22 (R134a/407c/404a/410a) etc | |||||||||
Control Mode | Capillary | ||||||||||
Compressor | Type | Fully enclosed vortex type (Piston) | |||||||||
Power（KW） | 2.25 | 3.75 | 4.5 | 3*2 | |||||||
Condenser | Type | Shell and tube (Stainless steel plate condenser) | |||||||||
Cooling Water Flow(m3/h) | 2.1 | 3.5 | 3.6 | 5.2 | |||||||
2.5 | 4.2 | 4.4 | 6.1 | ||||||||
Pipe Diameter （inch） | 1 1/2" | 1 1/2" | 1 1/2" | 1 1/2" | |||||||
Evaporator | Type | Tank coil (Dry type shell and tube / Stainless steel plate evaporator) | |||||||||
Frozen Water Flow（m3/h） | 1.58 | 2.58 | 3 | 4.1 | |||||||
1.86 | 3.08 | 3.7 | 4.9 | ||||||||
Water Tank Capacity（L） | 65 | 80 | 80 | 150 | |||||||
Pipe Diameter（inch） | 1" | 1" | 1" | 1" | |||||||
Pump | Power（KW） | 0.37 | 0.75 | 0.75 | 0.75 | ||||||
Maximum Head（M） | 20 | 20 | 20 | 22 | |||||||
Safety Protection | Compressor overheating, over current, high and low pressure, over temperature, traffic, phase sequence / phase loss protection, exhaust overheating protection | ||||||||||
Size | Length(mm) | 850 | 850 | 850 | 1200 | ||||||
Width(mm) | 520 | 520 | 520 | 600 | |||||||
Height(mm) | 930 | 930 | 930 | 1280 | |||||||
Weight | KG | 92 | 110 | 115 | 250 | ||||||
Measures Exchange | 1KW=860kcal/h 1RT=3.024kcal/h 10000Btu/h=2520kcal/h | ||||||||||
If you want more specifications, please contact us for details.
Product Details
Security system
Compressor overheat protection,Over current protection,High and low pressure protection,Over temperature protection,Phase sequence/phase loss protection,Exhaust overheating protection

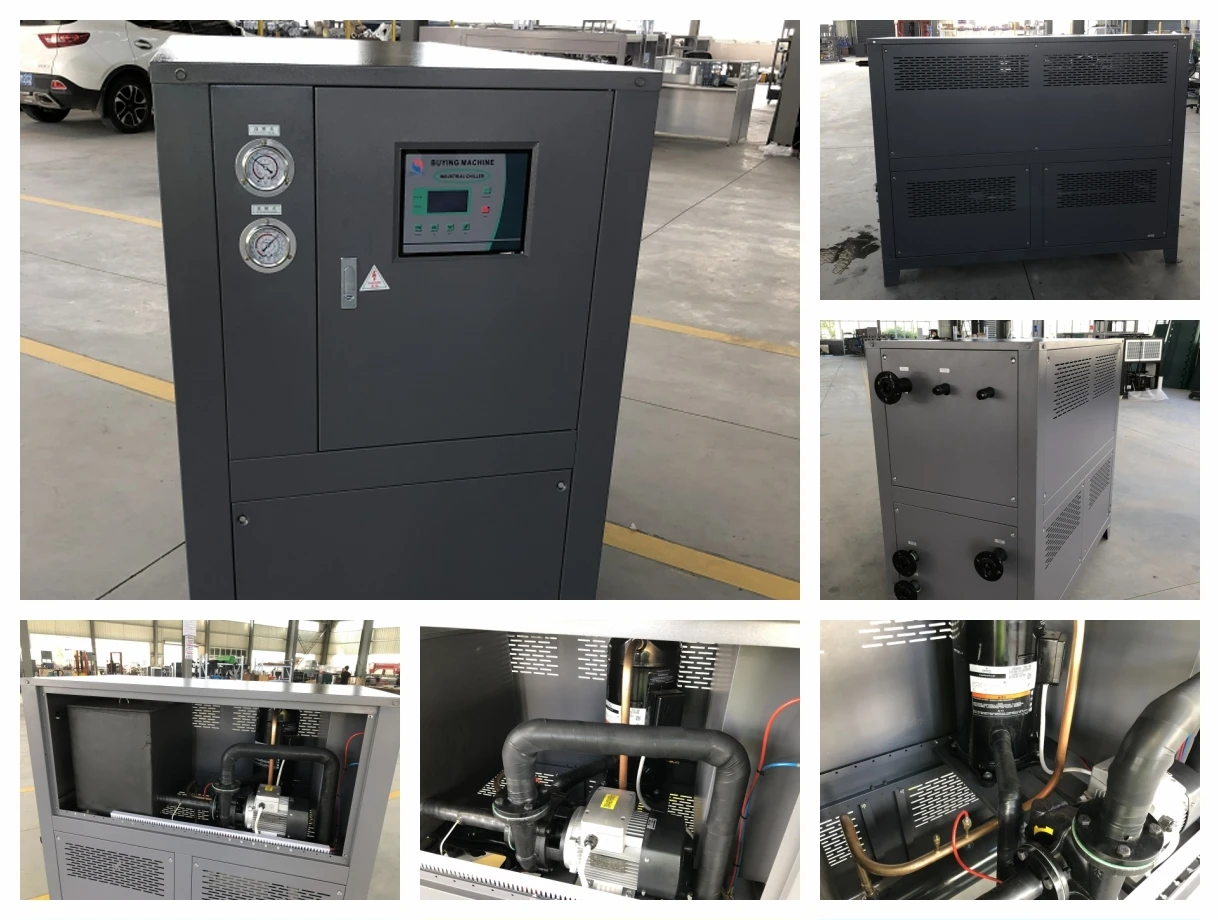

Product Real Pictures
About Us
Company Profile
Nanjing Hengde Electrical Equipment Co., Ltd. is one of the earliest productiontemperature control equipment of the professional manufacturers, engaged inplastic molding auxiliary equipment and industrial refrigeration equipmentdesign, manufacturing, sales and service.Over the years, by virtue of professional production technology,excellent product quality,Hengde wins ahigh reputation in temperature control equipment manufacturing industry athome and abroad, which is the first choice for many related enterprises.
Hengde has passed ISO9001, CE,SGS and other related quality certificationsystems, and always been the pursuit of advanced international managementmode, increasingly innovative,which makes the company lead an advancedlevel of the domestic temperature control equipment manufacturing industry.
The company has always been aiming at the policy of professional quality andhigh-efficient service, which is stepping forward to the international moderntemperature equipment manufacturing enterprises at a high speed development pace.
Hengde has passed ISO9001, CE,SGS and other related quality certificationsystems, and always been the pursuit of advanced international managementmode, increasingly innovative,which makes the company lead an advancedlevel of the domestic temperature control equipment manufacturing industry.
The company has always been aiming at the policy of professional quality andhigh-efficient service, which is stepping forward to the international moderntemperature equipment manufacturing enterprises at a high speed development pace.
Manufacturing Technique
PUMP
Sheet metal welding
Punch debugging.
workshop
workshop
workshop
welding
Heating pipe
Assemble
Certifications
Exhibition & Partner
Maldives
America
Portugal
Product packaging
FAQ
1. What makes you different with others?
1) Our Excellent Service For a quick, no hassle quote just send email to us We promise to reply with a price within 24 hours - sometimes even within the hour.
2)Our quick manufacturing time For Normal orders, we will promise to produce within 15-20 working days.
As a manufactory, we can ensure the delivery time according to the formal contract
2. May I know the status of my order?
Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.
3.Can I use our own brand logo on the products?
Yes. We provide OEM/ODM service to our customers. Our professional engineers having rich experience in heat pump design and manufacture. Just tell us your ideas or provide the drawing, we can help you to carry out your ideas.
4.What is your terms of delivery?
We accept FOB, CFR, CIF, EXW etc. You can choose the one which is the most convenient or cost effective for you.
5. What is your payment terms?
1) T/T 40% deposit, T/T balance 60% paid before shipment;
2) T/T 40% deposit, balance 60% paid through irrevocable L/C at sight;
3) Other payment terms are negotiable.
1) Our Excellent Service For a quick, no hassle quote just send email to us We promise to reply with a price within 24 hours - sometimes even within the hour.
2)Our quick manufacturing time For Normal orders, we will promise to produce within 15-20 working days.
As a manufactory, we can ensure the delivery time according to the formal contract
2. May I know the status of my order?
Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.
3.Can I use our own brand logo on the products?
Yes. We provide OEM/ODM service to our customers. Our professional engineers having rich experience in heat pump design and manufacture. Just tell us your ideas or provide the drawing, we can help you to carry out your ideas.
4.What is your terms of delivery?
We accept FOB, CFR, CIF, EXW etc. You can choose the one which is the most convenient or cost effective for you.
5. What is your payment terms?
1) T/T 40% deposit, T/T balance 60% paid before shipment;
2) T/T 40% deposit, balance 60% paid through irrevocable L/C at sight;
3) Other payment terms are negotiable.
