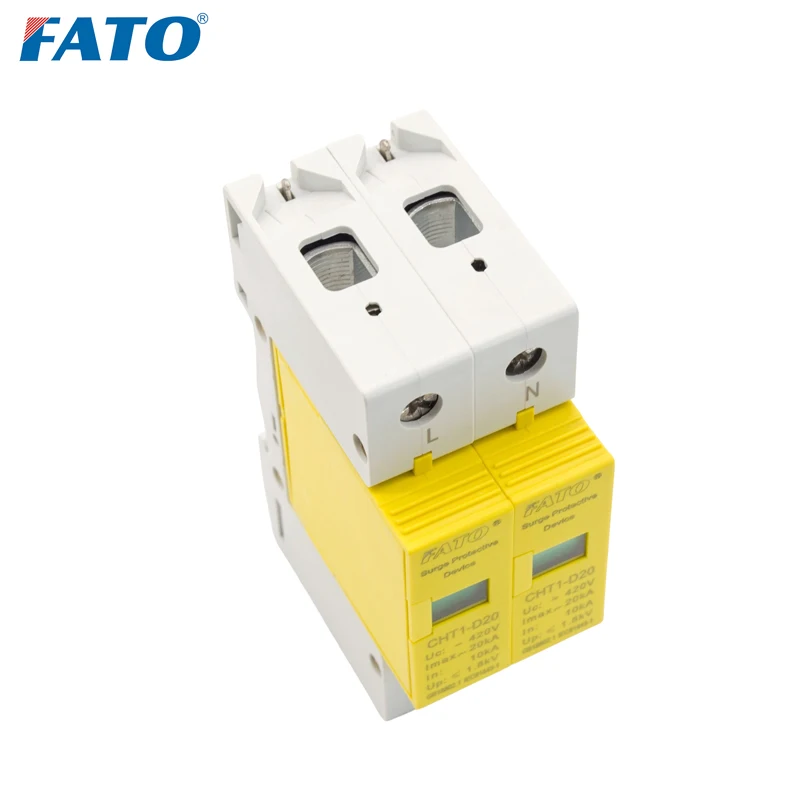

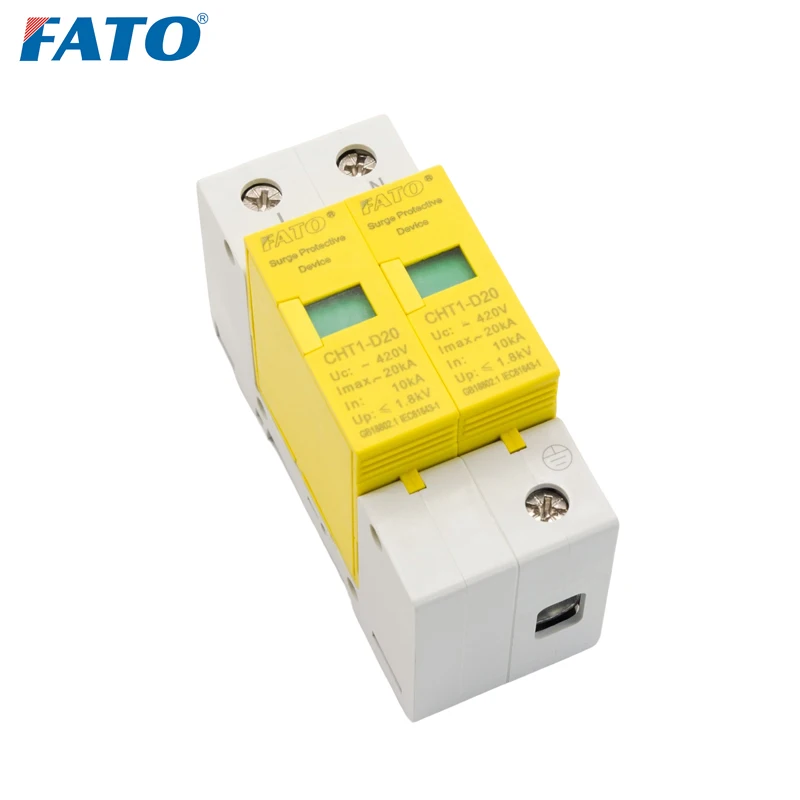

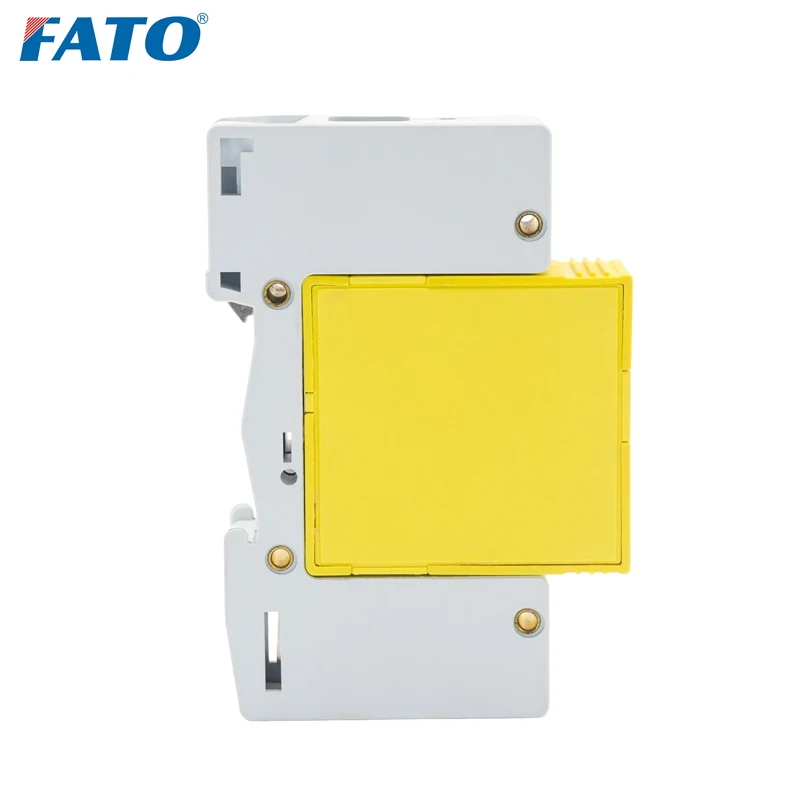

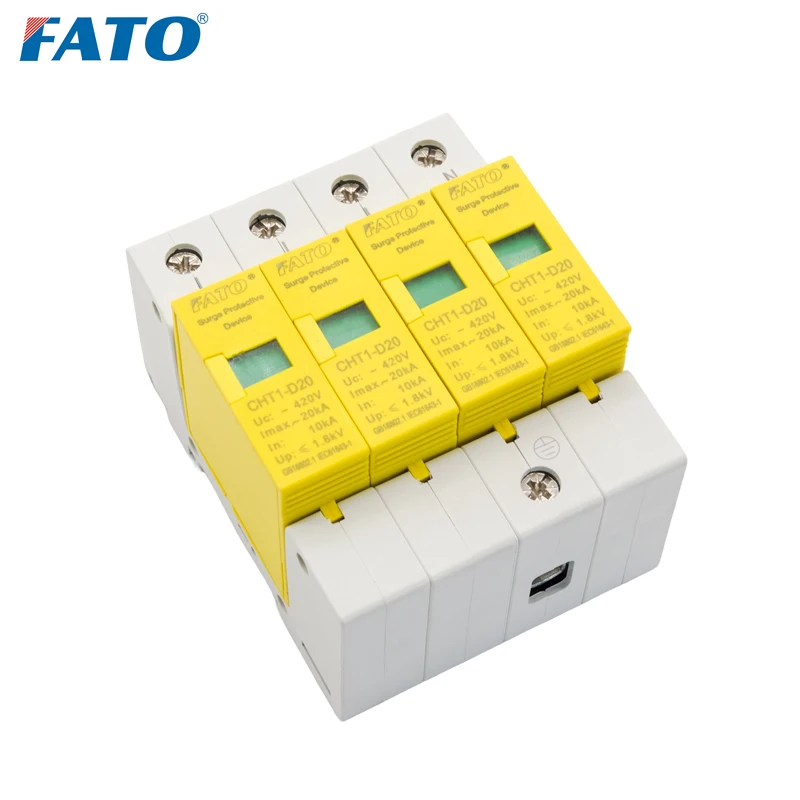

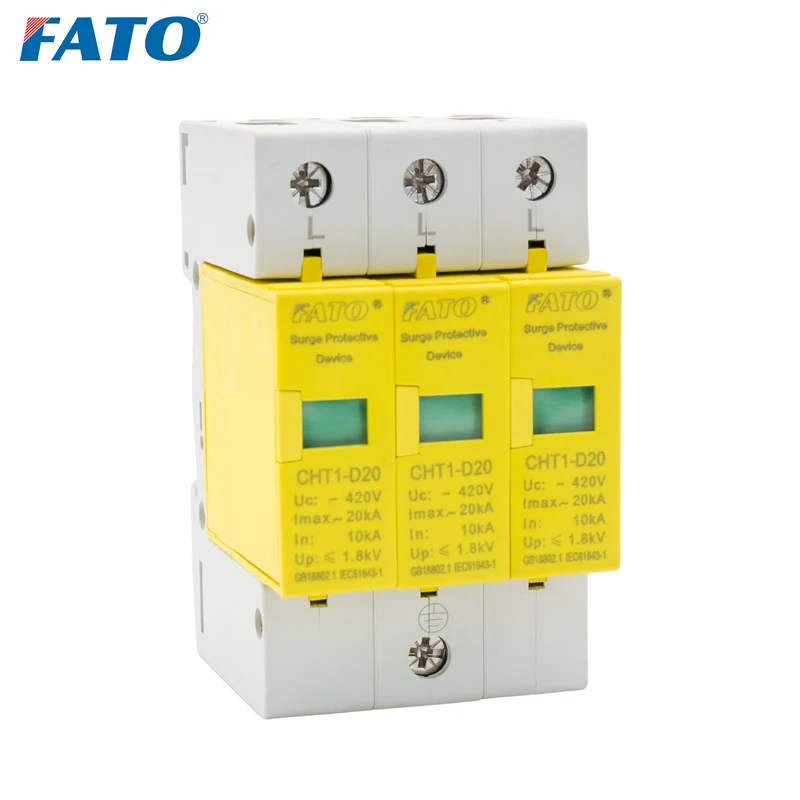

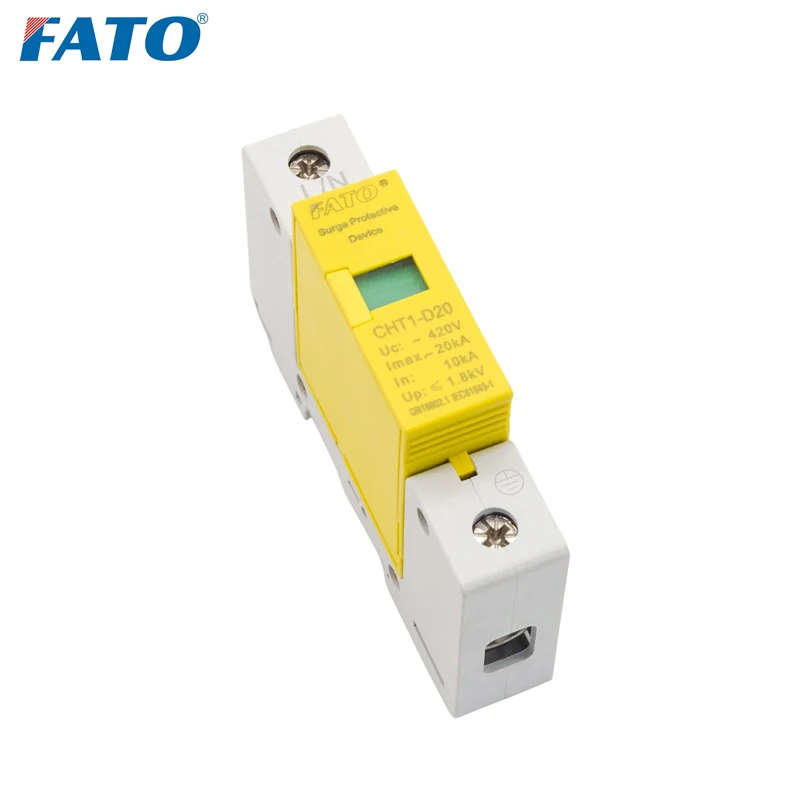

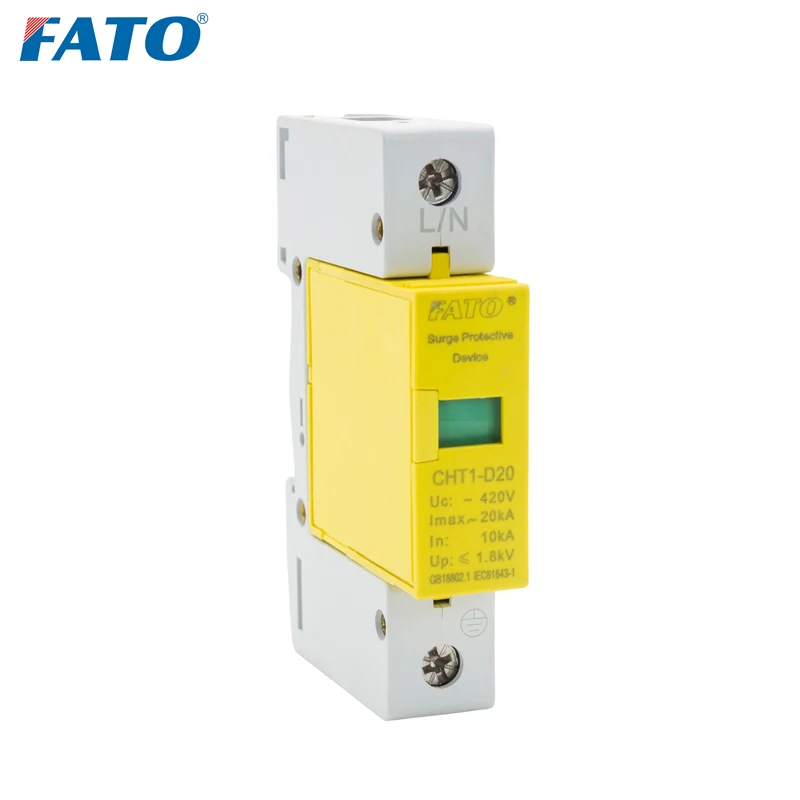

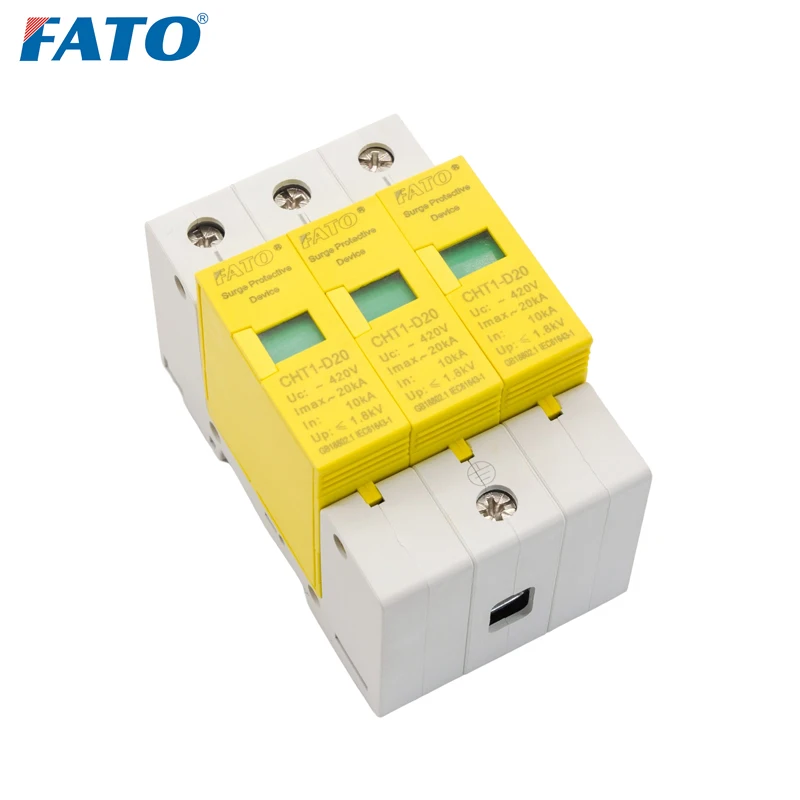

FATO SPD Surge Protector Device 220V 380V AC 10A 16A 25A PV Power Arrester

Product Overview

Description



1.Could be replaced for the module not need power cut.
2.Maximum current of endure the lightning stroke 20kA(8/20 μs).
3.Time of response < 25ns.
4.The color of visible window shows operating status,green means normal, red means abnormal.



     CHT1-D series surge protective device (in short: SPD, alias: surge protector, surge arrecter)is suitable for TN-S,TN-C-S. TT. IT ect. Power supply system of AC 50/60Hz, =380V, installed on joint of LAP1 or LPZ2 and LPZ3, it's designed according to IEC61643-1. GB18802.1, it adopts 35mm standard rail, there is a failure release mounted on the module of suge protective device. When the SPD fails in breakdown for over-heat and over-current, the failure erelease will help electric device separate from the power system and give the indication signal, green means normal, red means abnormal, it's also could be replaced for the module when has operating voltage.





Techical Parameters	CHT1-D
Rated Operating Voltage Uc(V~)	220V	380V	220V	380V
Maximum Continuous Operating Voltage Uc(V~)	275V	385V	320V	385V
Voltage Protection Level Up(V~)kv	≤0.7	≤1.0	≤1.2	≤1.5
Nominal Discharge Current ln(8/ μ 20 μ s)kA	5		10
Maximum Discharge Current Imax(8/ μ 20 μ s)kA	10		20
Response Time ns	<25
Test Standard	GB18802,IEC61643-1
The Cross Section of LN Line(mm2)	6
The Cross Section of PE Line(mm2)	10
Fuse or Switch(A)	10A,16A		16A,25A
Operating Environment(c )	-40℃ ~+85℃
Relative Humidity(25℃ )	≤95%
Installation	Standard Rail 35mm
Material of Outer Covering	Fiber glass reinforced plastic



    It's suitable for D grade lightning-proof, CHT1-D series surge protective device according to GB188021.1-2002, installed on the joint of LPZ1. LPZ2 and LPZ3, usually installed in household distribution boards, computer equipment, information equipment, electronic equip ment and in the socket box in front of control equipment or near the control equipment.
