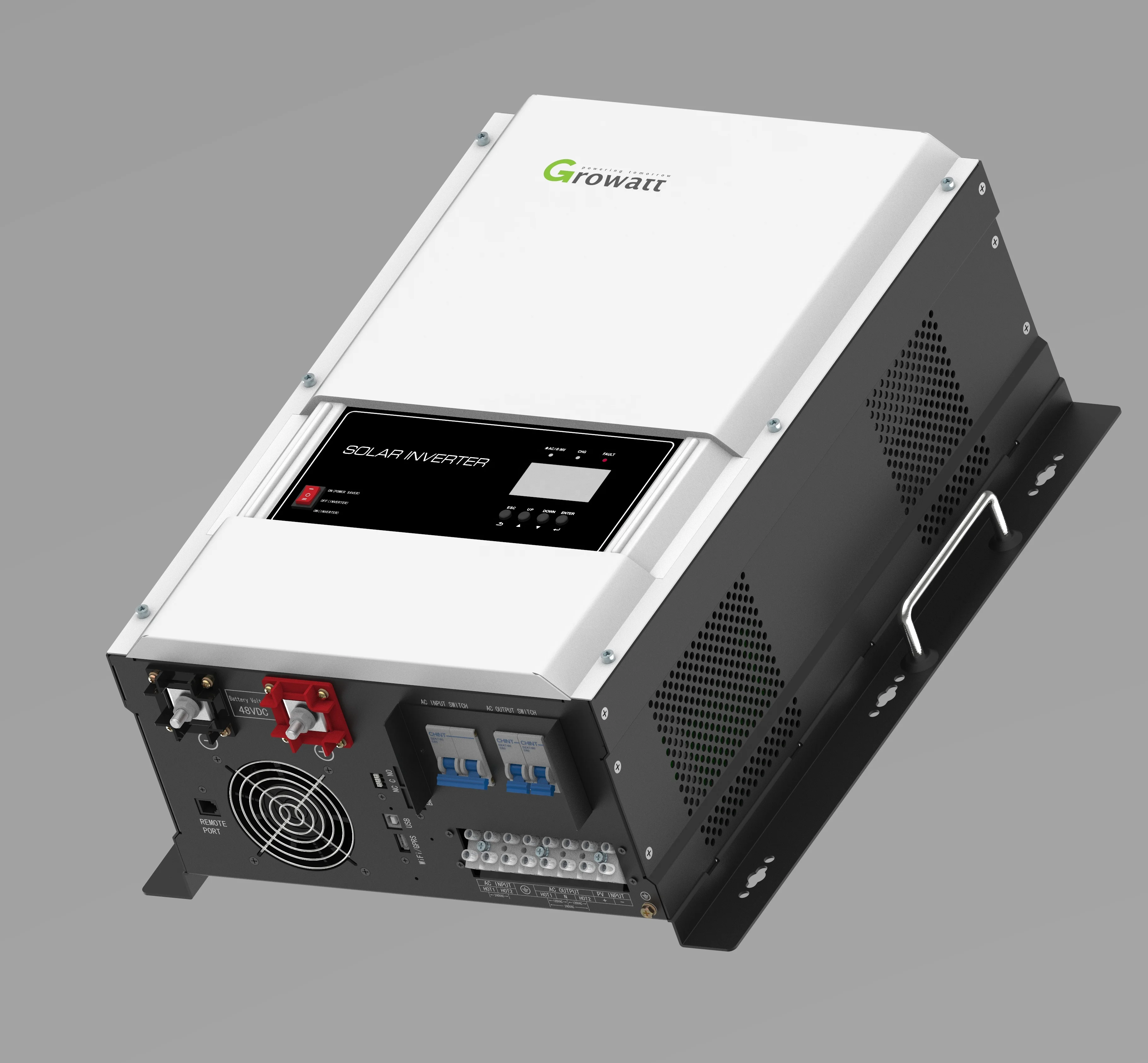

Growatt Solar Inverter SPF 4000 12000TL HVM Series 50HZ/60HZ Solar Power Inverter
Growatt Solar Inverter SPF 4000-12000TL HVM Series 50HZ/60HZ Solar Power Inverter
Growatt Solar Inverter SPF 4000-12000TL HVM Series 50HZ/60HZ Solar Power Inverter
Growatt Solar Inverter SPF 4000-12000TL HVM Series 50HZ/60HZ Solar Power Inverter
Growatt Solar Inverter SPF 4000-12000TL HVM Series 50HZ/60HZ Solar Power Inverter
Growatt Solar Inverter SPF 4000-12000TL HVM Series 50HZ/60HZ Solar Power Inverter
Growatt Solar Inverter SPF 4000-12000TL HVM Series 50HZ/60HZ Solar Power Inverter

Growatt Solar Inverter SPF 4000 12000TL HVM Series 50HZ/60HZ Solar Power Inverter

Share on (1600620954077):


Price:$785.00 - $869.00

Quantity:


Product Overview

Description





Product Description










Specification


Datasheet
SPF 4KT HVM
SPF 5KT HVM
SPF 6KT HVM
SPF 8KT HVM
SPF 10KT HVM
SPF 12KT HVM
Battery voltage
48VDC
Battery type
Lithium/Lead-acid
INVERTER OUTPUT
Rated power
4KW
5KW
6KW
8KW
10KW
12KW
Surge rating
12KW
15KW
18KW
24KW
30KW
36KW
Waveform
pure sine wave
Output voltage
220/230/240VAC
Output frequency
50/60HZ
Inverter efficiency
>85%
Line model efficiency
>95%
Power factor
1.0
Transfer time
10ms typical,20ms max
SOLAR CHARGER
Maximum pv charge current
80A
120A
Maximum pv array power
5000W
7000W
Number of independent mppt tracker/strings per mppt tracker
1/1
2/1
MPPT range
60-145VDC
Maximum pv array open circuit voltage
150VDC
Maximum efficiency
>98%


AC INPUT
Voltage
230VAC
Selectable voltage range
154-272VAC(for appliance),184-272VAC(for UPS)
Frequency range
50/60HZ
Maximum charge current
40A
50A
60A
70A
80A
100A


MECHANICAL SPECIFICATIONS
Protection degree
IP20
Dimension(W/H/D)
360/540/218mm
380/650/255mm
Net weight(kg)
38
41
45
64
66
75


OPERATING ENVIRONMENT
Operation temperature range
0-45 degree


Datasheet

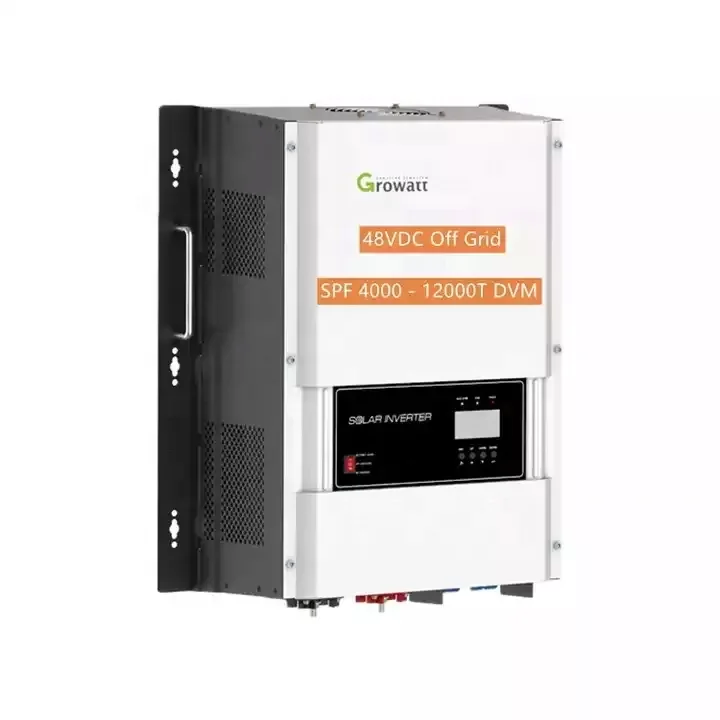

SPF 4KT DVM
SPF 5KT DVM
SPF 6KT DVM
SPF 8KT DVM
SPF 10KT DVM
SPF 12KT DVM
Battery voltage
48VDC
Battery type
Lithium/Lead-acid
INVERTER OUTPUT
Rated power
4KW
5KW
6KW
8KW
10KW
12KW
Surge rating
12KW
15KW
18KW
24KW
30KW
36KW
Waveform
pure sine wave
Output voltage
104-110-115-120/208-220-230-240VAC(optional)
Output frequency
50/60HZ
Inverter efficiency
>85%
Line model efficiency
>95%
Power factor
1.0
Transfer time
10ms max
SOLAR CHARGER
Maximum pv charge current
80A
120A
Maximum pv array power
5000W
7000W
Number of independent mppt tracker/strings per mppt tracker
1/1
2/1
MPPT range
60-145VDC
Maximum pv array open circuit voltage
150VDC
Maximum efficiency
>98%
AC INPUT
Voltage
240VAC
Selectable voltage range
154-272VAC(for appliance),184-272VAC(for UPS)
Frequency range
50/60HZ
Maximum charge current
40A
50A
60A
70A
80A
100A
MECHANICAL SPECIFICATIONS
Protection degree
IP20
Dimension(W/H/D)
360/540/218mm
380/650/255mm
Net weight(kg)
42
47
52
64
66
75
OPERATING ENVIRONMENT
Operation temperature range
0-45 degree

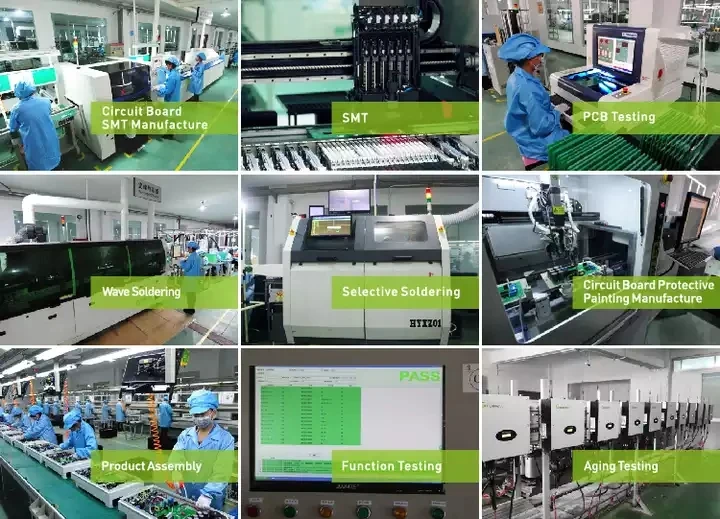

Produce Line

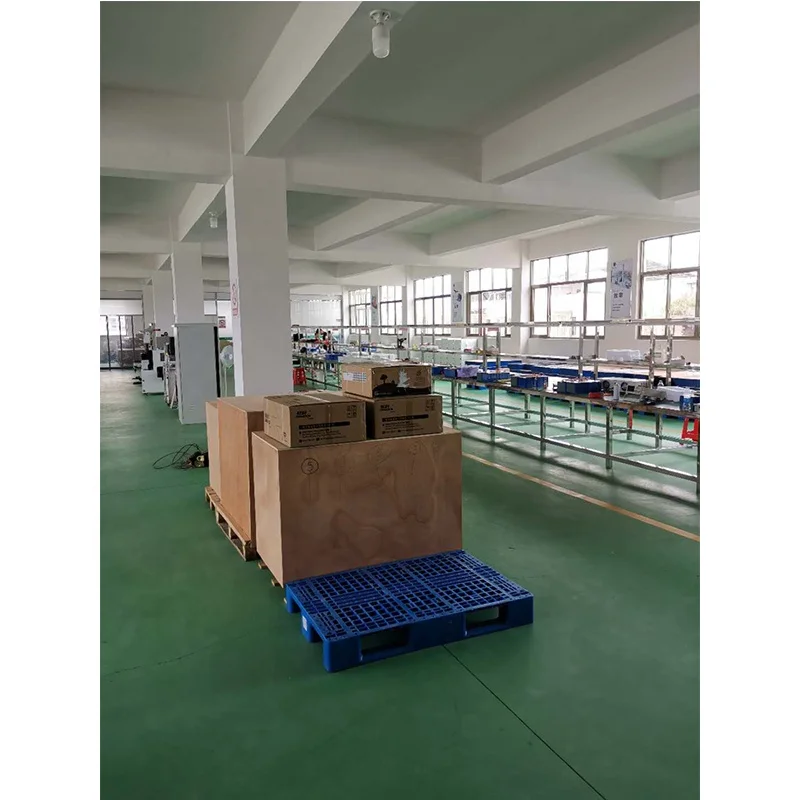

Pack&shipping




Delivery & Payment Terms







Payment Terms


T/T
EXW
30%T/T in advance,paid the balance before shipment
FOB
CFR(C&F)
30%T/T in advance,paid the balance against copy of B/L
CIF
L/C
Optional L/C amount above 50,000usd, we can accept L/C at sight
West Union

Optional for amount less than 5000usd
paypal
Delivery Time
7~10 days after receiving payment for one container
