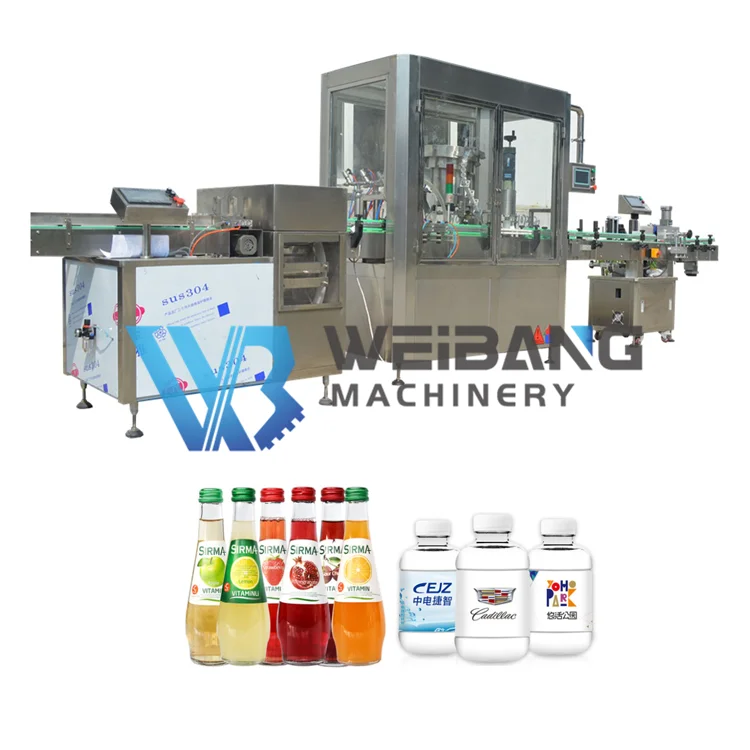

WB YG6 Automatic Liquid Bottles Filling Equipment Glucose Normal Saline Filling Machine

Product Overview

Description

WB-YG6 Automatic Liquid Bottles Filling Equipment Glucose Normal Saline Filling Machine



Samples:





Usage and Features:

This machine is mainly used for syrup, drinks, soybean sauce, vinegar, cod-liver oil, olive oil, liquid calcium, wine, liquid fertilizer, essential oil, toner, hair oil, laundry detergent, ink, injection, industrial alcohol and various medical liquid filling and capping.



1.Adopts plunger type metering pump filling, high precision; The structure of pump adopts fast
disassembly institutions, easy to clean and disinfect.

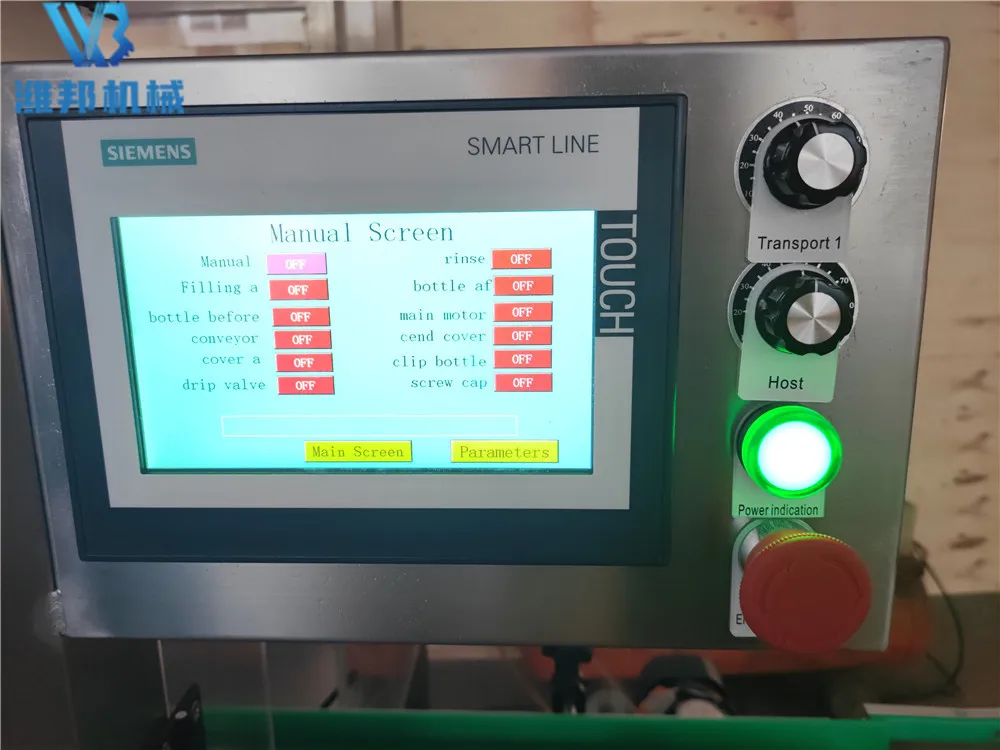

2.PLC control system, color touch screen display, machine has function of counting automatically.

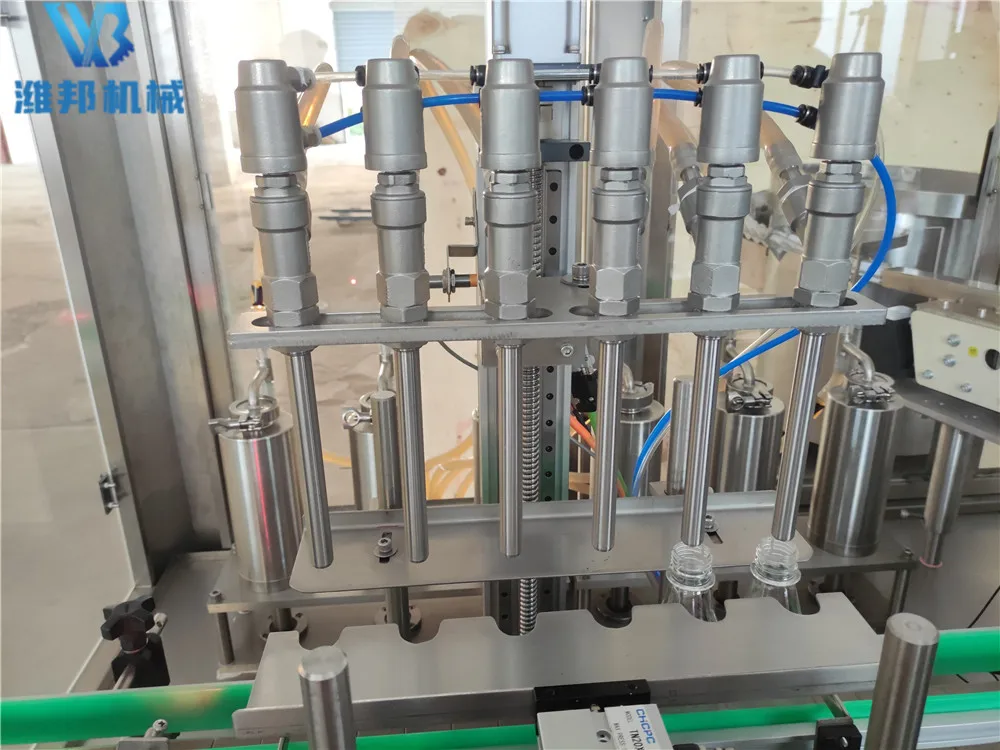

3.The filling nozzle was equipped with drip-proof device.
4.When filling liquid, the filling nozzle dive into the bottom of bottle, rising slowly, it can effectively prevent bubbles.
5.Main electrical elements adopts foreign well-known brand.
6.Machine body is made of 304 stainless steel, full compliance with GMP standard.



Technical Parameter:

Model	WB-YG6
Filling head number	6
Capping head number	1
Capacity	20-60 bottles/min
Filling accuracy	≤ ±1%
Pass rate	≥ 98%
Power supply	1 Ph. AC220V, 50/60Hz
Total power	1.6 KW
Net weight	650kg
Overall dimension	L2400 × W1500 × H1900mm

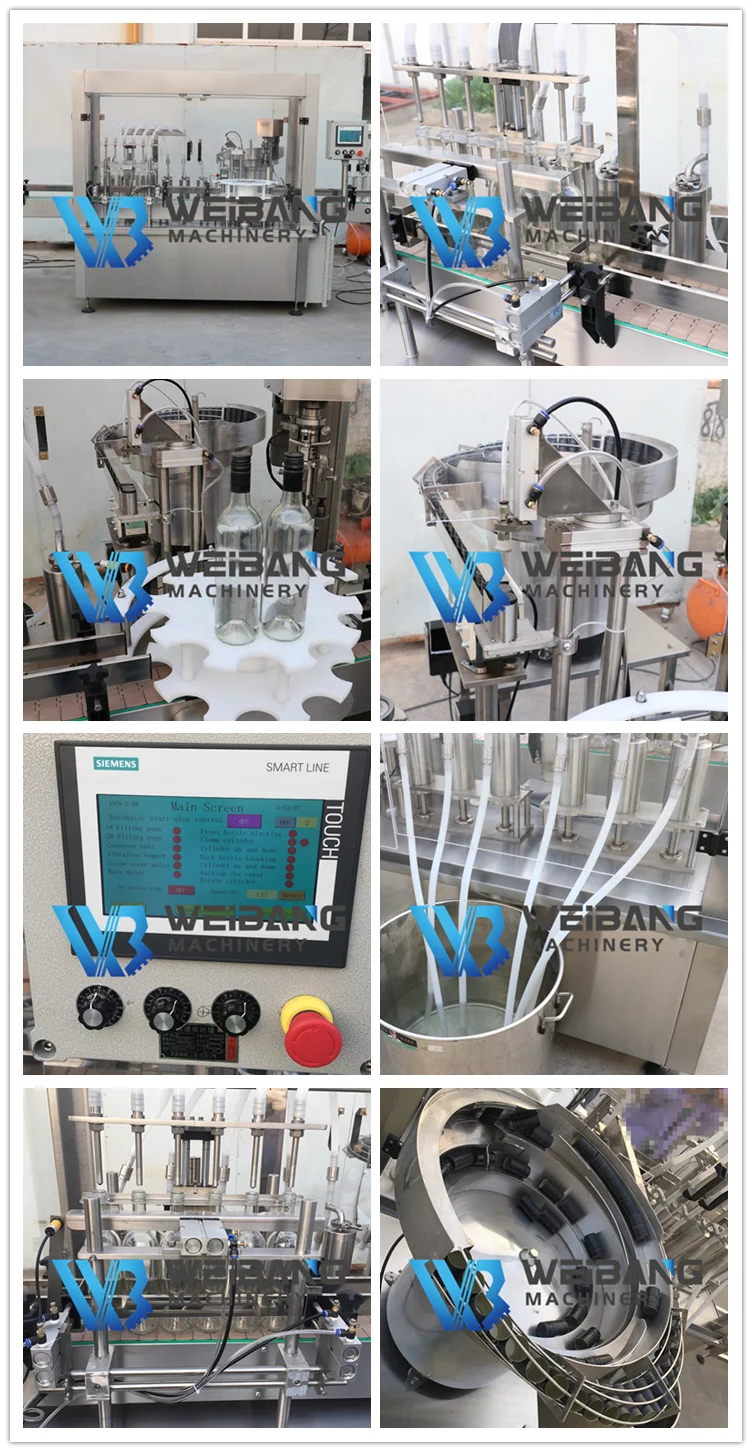

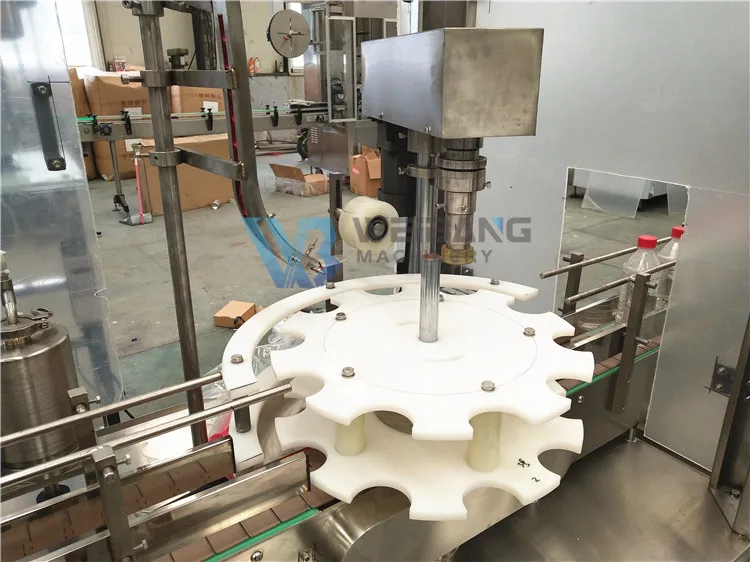

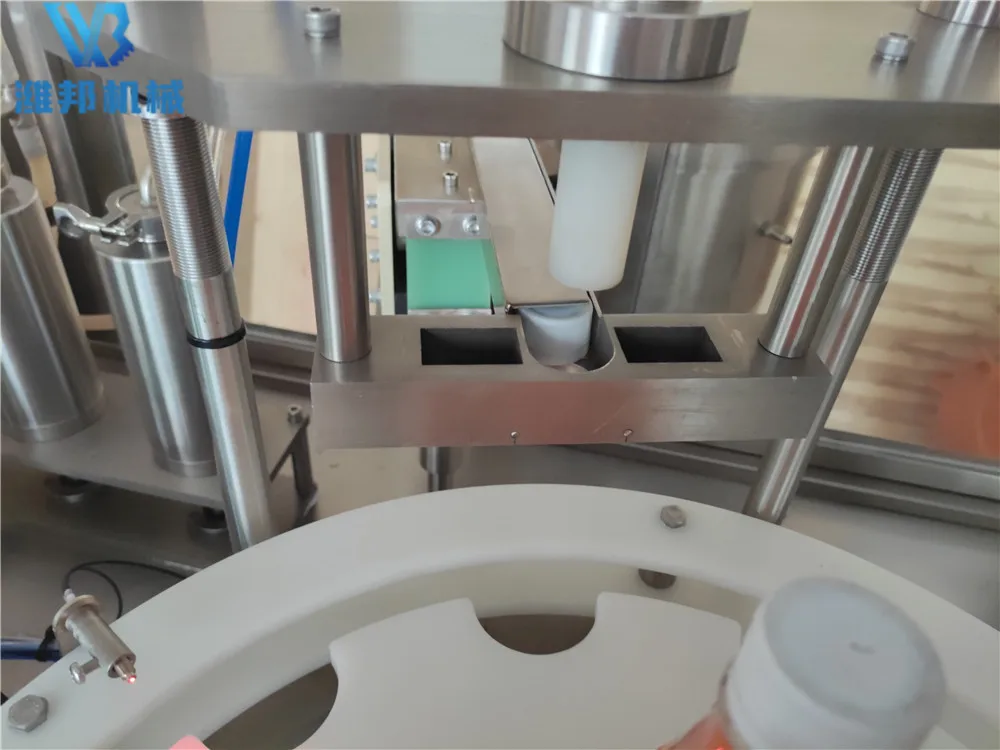

Machine details:
