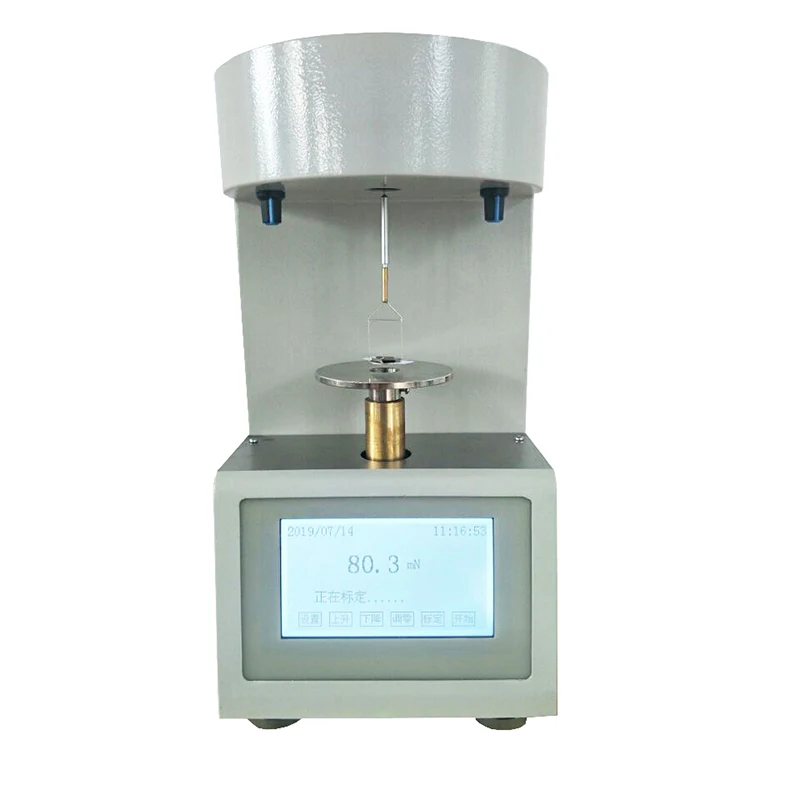

Electric Factory Price Surface Interfacial Tensiometer High Quality Oil Interfacial Tension Meter

Product Overview

Description



I.interfacial tensiometer Introduction

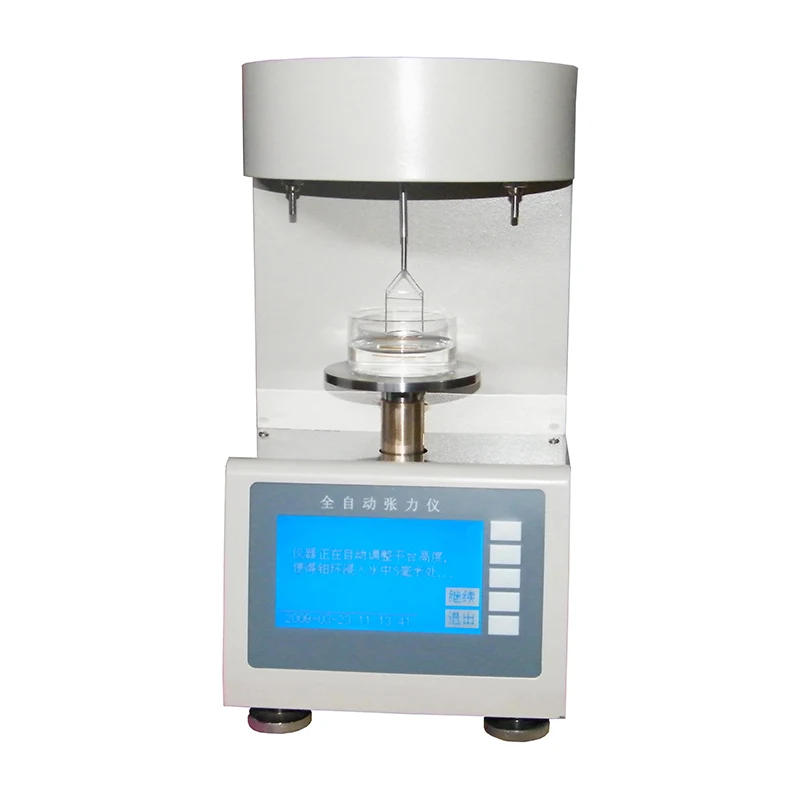

Intermolecular Forces formed liquid surface tension.Numbers of tension reflect on liquid sample's physics and chemical properties, it is one of the most important index to product quality. ST-ZL2000C  automatic tension tester apply to GB/T6541,it can test kinds of liquid surface tension and boundary surface tesion.this method sample and accuracy,so it's used widely.

II.interfacial tensiometer Function

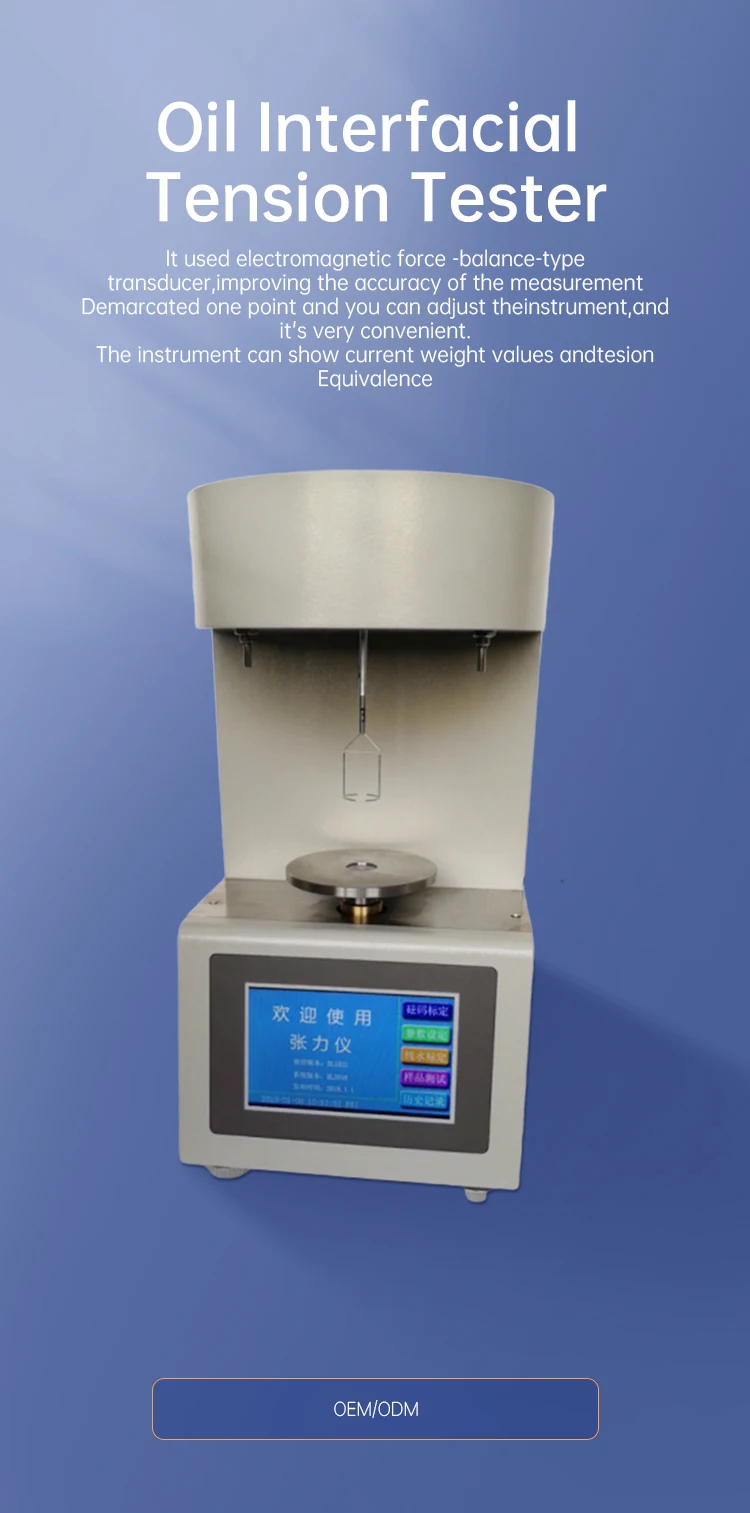

It used electromagnetic force -balance-type transducer, improving the accuracy of the measurement
Demarcated one point and you can adjust the instrument, and it's very convenient.
The instrument can show current weight values and tesion Equivalence
The instrument can revise the test result Automatly

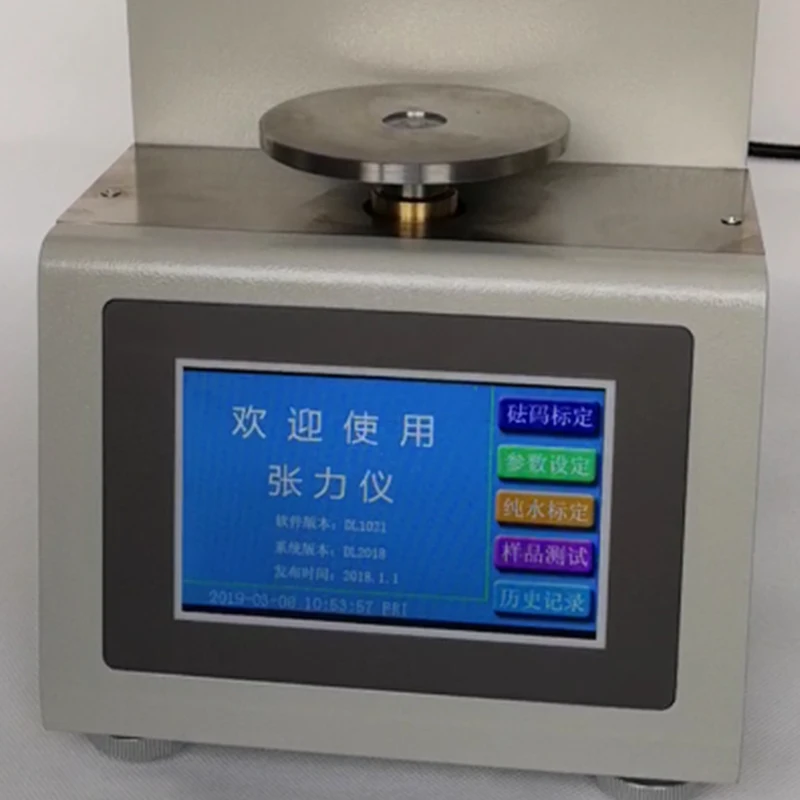

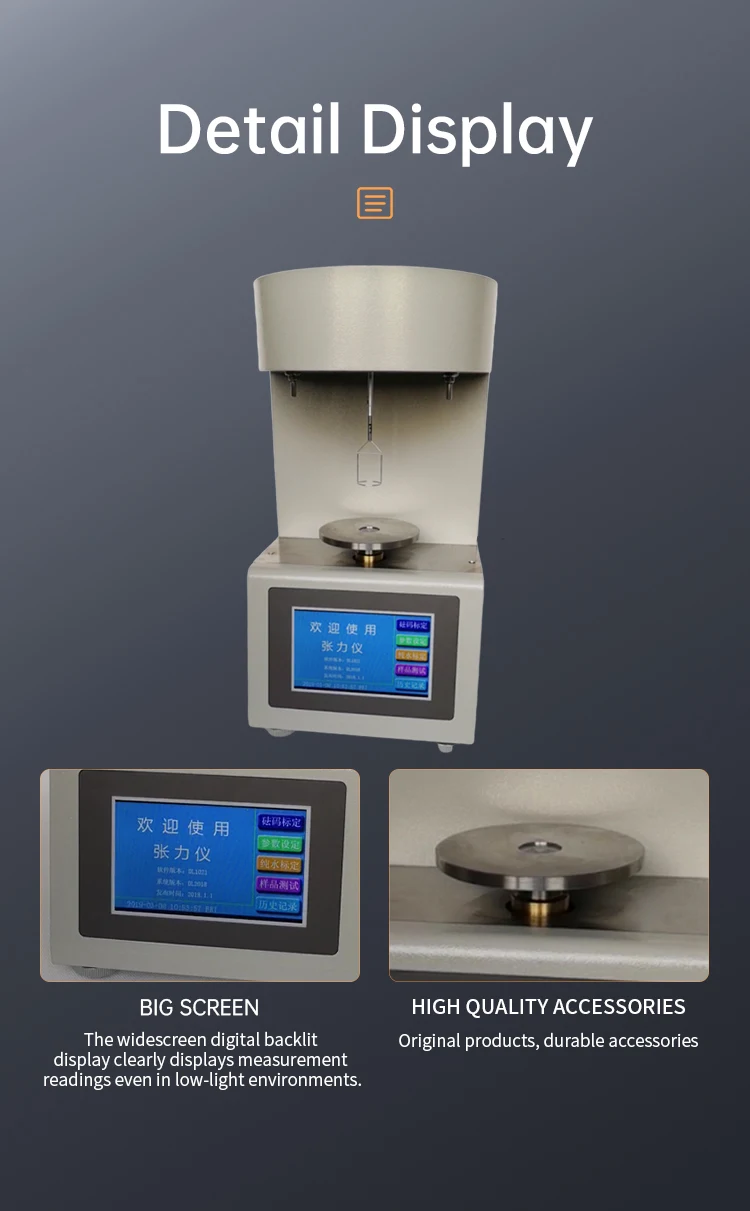

Used high-quality screen,the life of screen extended
The instrument can storage 255 records
The instrument has a mini- printer,you can print the test result any time.
The instrument has RS232 interface equipment,it can connect to computer,and it convenient for data processing.

III.interfacial tensiometer Specifications



Measuring range:0-200mN/m

Accuracy:0.1%( test result)±0.1 mN/m

Precision: 0.1mN/m

Sensibility: 0.1mN/m

Mains voltage: AC220V±20%  50HZ±10%

Maximum power dissipation:20W

Suit ambient temperature: 10~30℃(25℃the best)

Suit  ambient  humidity:  ≤85% RH

Overall  dimensions: 200×300×330(mm)

Weight:6kg
