The Newest Core Water Well Hydraulic Rotary Drilling Rig
- Category: >>>
- Supplier: Shanghai Vostosun Industrial Co. Ltd.Shanghai Ltd.
Share on (1600620991112):
Product Overview
Description

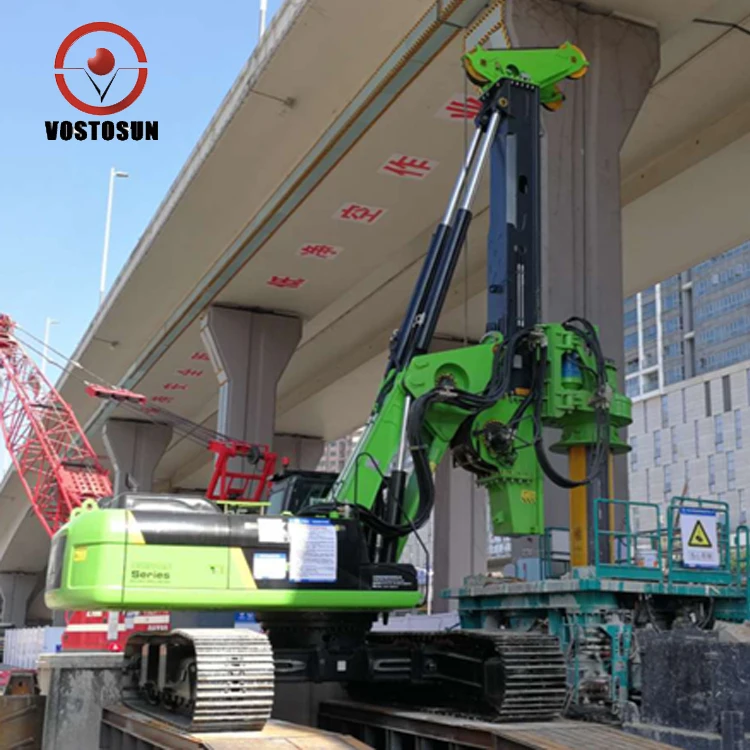

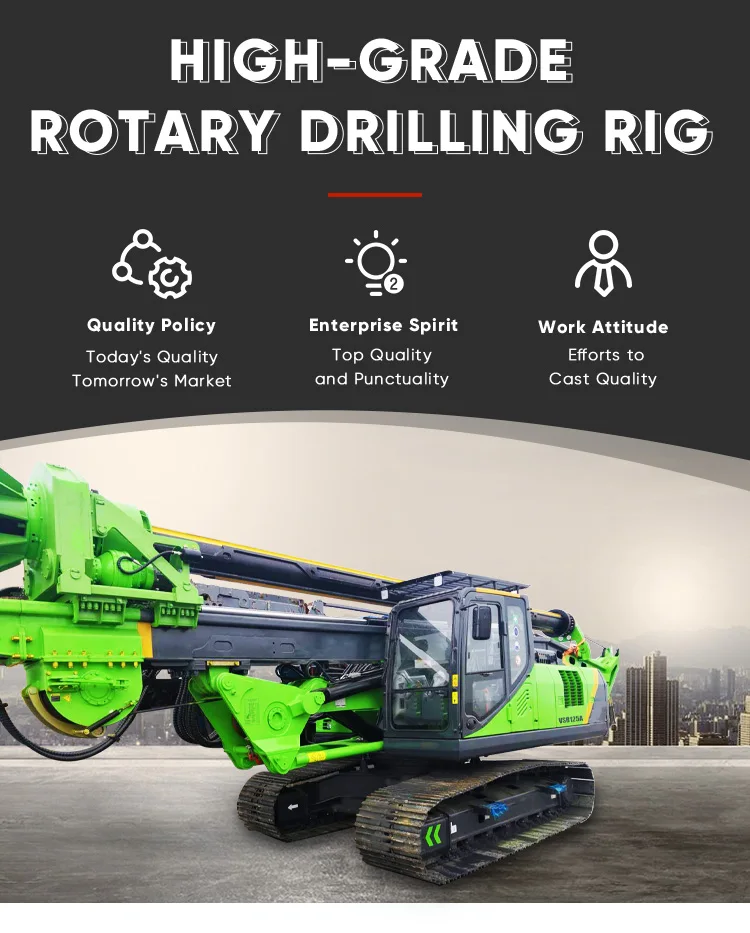

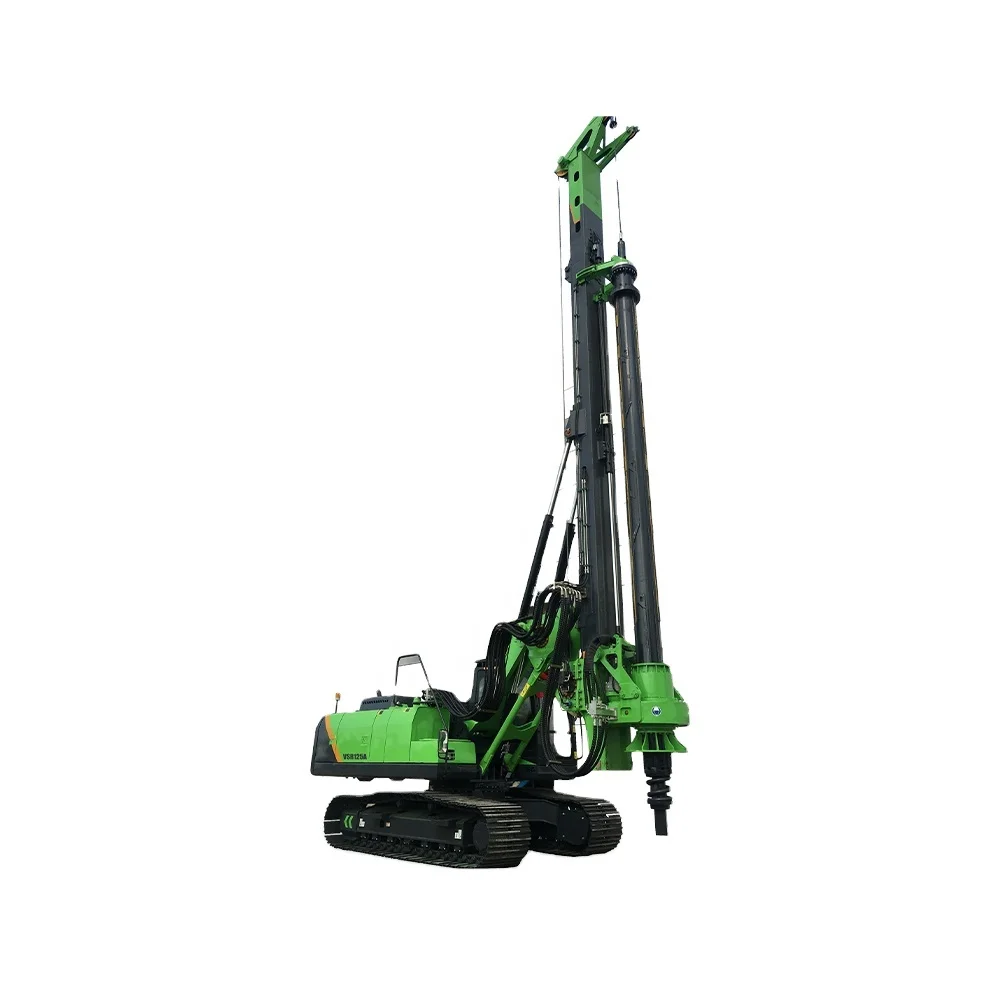

Product Display

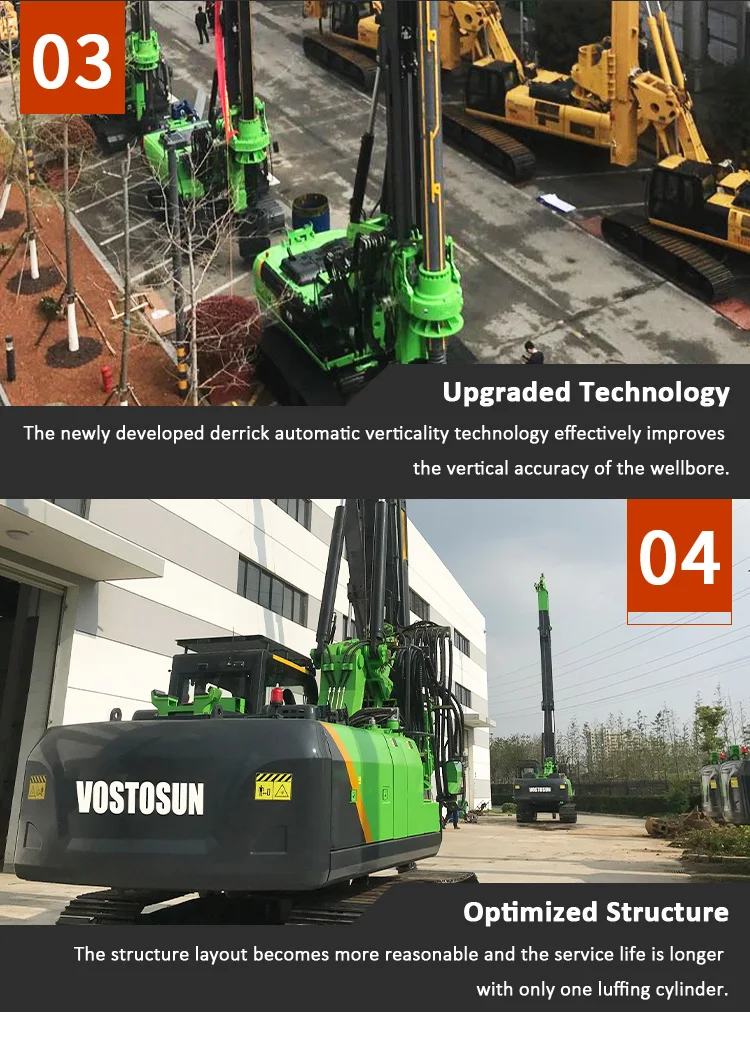

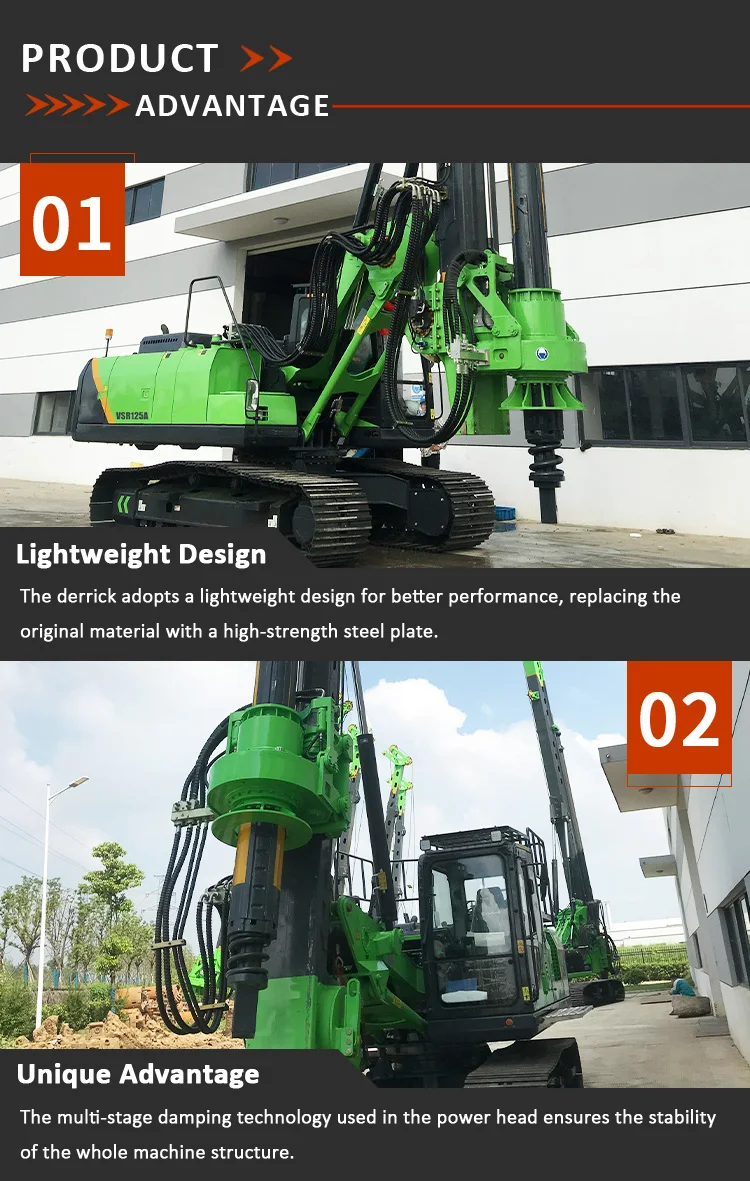

Product Advantages
Product Features

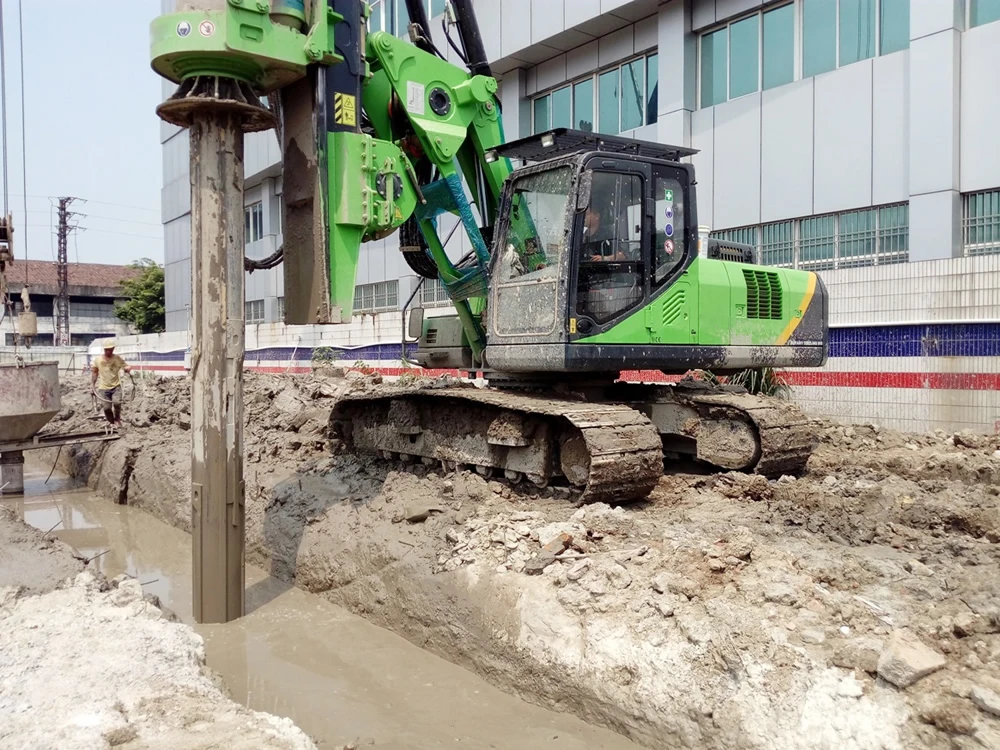

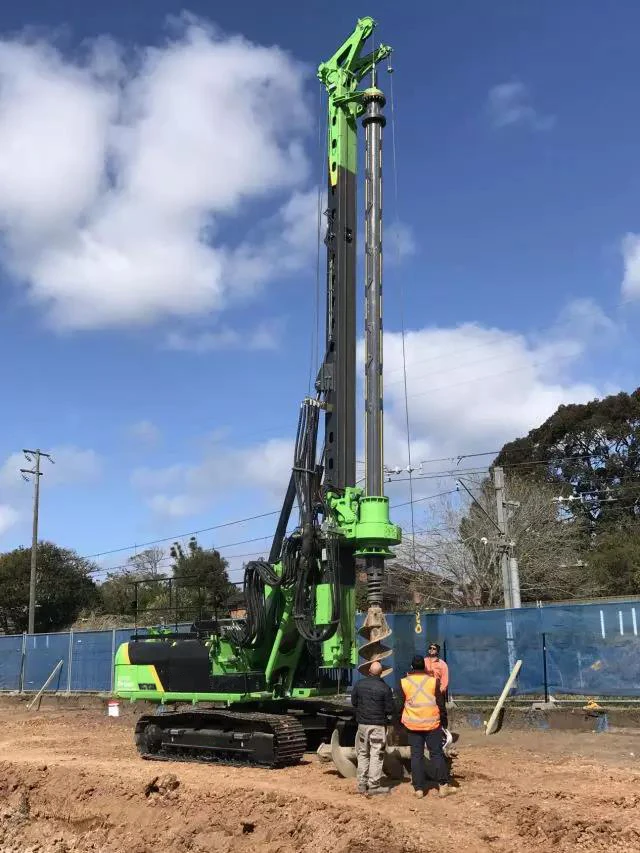

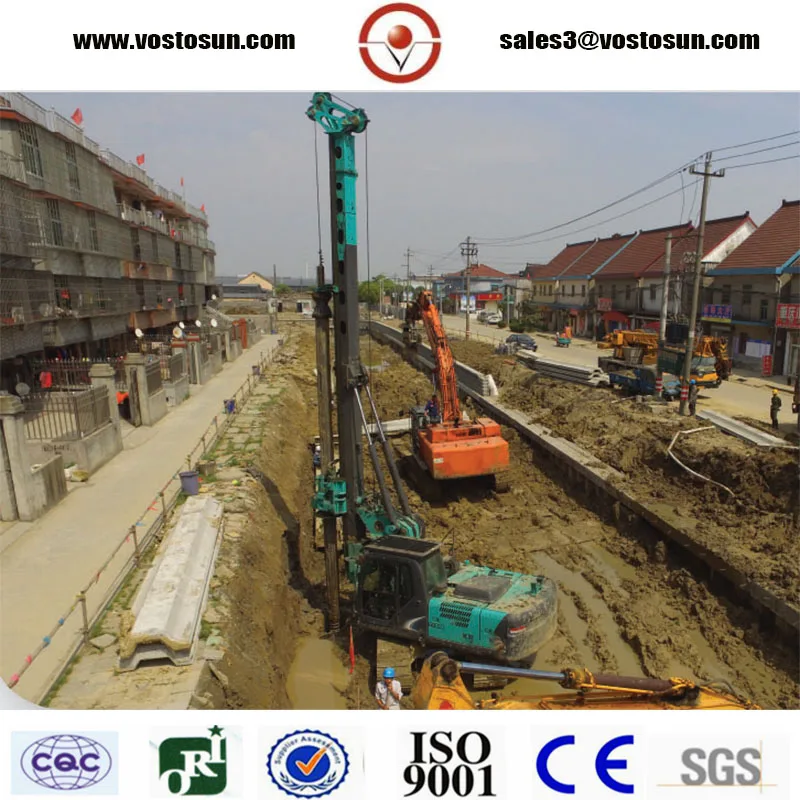

Application
Product specifications
Technical Specification of VSR125A Rotary Drilling Rig | ||
Type | VSR125A | |
Torque | 125 KN.m | |
Max. diameter | 1300 mm | |
Max. drilling depth | 37 m(Lock)/ 43 m(Friction kelly bar) | |
Speed of rotation | 8~30 rpm | |
Max. crowd pressure | 100 kN | |
Max. crowd pull | 150 kN | |
Main winch line pull | 110 kN | |
Main winch line speed | 78 m/min | |
Auxiliary winch line pull | 60 kN | |
Auxiliary winch line speed | 60 m/min | |
Stroke(crowd system) | 3200 mm | |
Mast inclination(lateral) | ±3° | |
Mast inclination(forward) | 5° | |
Max. operating pressure | 34.3 MPa | |
Pilot pressure | 3.9 MPa | |
Travel speed | 3 km/h | |
Traction force | 220 kN | |
Operating height | 14980 mm | |
Operating width | 3000mm | |
Transport height | 3580 mm | |
Transport width | 3000 mm | |
Transport length | 13830mm | |
Overall weight | 35 t | |
Company Profile
FAQ
Q1:Which country do you export to?
Asia:India,Philippines,Thailand,Burma,Vietnam,Bangladesh,Kazakhstan,Turkmenistan,etc.
Middle east:Saudi Arabia,UAE,Jordan,Oman,Pakistan,etc.
Europe:Russia,Ukraine,Belarus,Bulgaria,etc.
Africa:South Africa,Kenya,Congo,Ethiopia,Nigeria,Ghana,Algeria,Senegal,Tunisia,etc.
South America:Brazil,Peru,Chile,Cuba,Venezuela,Mexico,etc.
Oceania:Papua New Guinea,Australia,etc.
Q2:What is the proportion of your products export?
85% of our products are exported to all over the world.
Q3:What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers.TT,L/C,D/P,depending on the cooperation time,country and contract value.
Q4:What kind of logistic service do you supply?
FOB,CIF,DAP,ETC.
Q5:What about the delivery time?
7-30 days after receiving the deposit.
Q6:What about the warranty time?
12 months after shipment or 2000 working hours
Asia:India,Philippines,Thailand,Burma,Vietnam,Bangladesh,Kazakhstan,Turkmenistan,etc.
Middle east:Saudi Arabia,UAE,Jordan,Oman,Pakistan,etc.
Europe:Russia,Ukraine,Belarus,Bulgaria,etc.
Africa:South Africa,Kenya,Congo,Ethiopia,Nigeria,Ghana,Algeria,Senegal,Tunisia,etc.
South America:Brazil,Peru,Chile,Cuba,Venezuela,Mexico,etc.
Oceania:Papua New Guinea,Australia,etc.
Q2:What is the proportion of your products export?
85% of our products are exported to all over the world.
Q3:What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers.TT,L/C,D/P,depending on the cooperation time,country and contract value.
Q4:What kind of logistic service do you supply?
FOB,CIF,DAP,ETC.
Q5:What about the delivery time?
7-30 days after receiving the deposit.
Q6:What about the warranty time?
12 months after shipment or 2000 working hours
