Product Overview
Description
Product Description

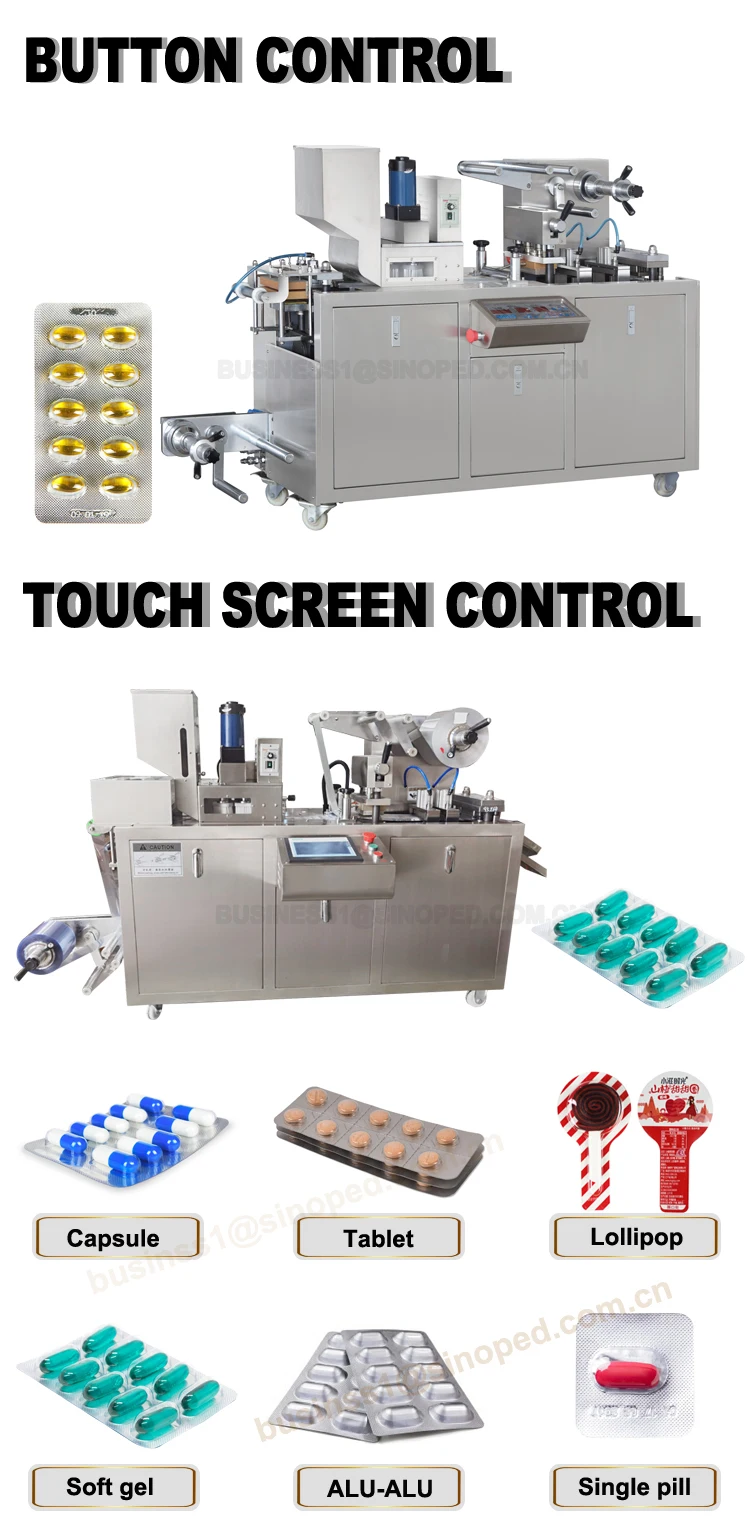

DPP80 automatic al plastic small tablet capsule blister packing machine price
Applications:
DPP80 automatic al plastic small tablet capsule blister packing machine is a new packing machine designed by our company; it has reached domestic leading level. It is suitable for capsule, tablet, big honey pill, candy, liquid, paste, syringe as well as irregular shape al-plastic, paper-plastic composite and al-al sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc. this machine adopts micro-computer PLC, frequency converter, touch panel operation high automation; it is an ideal blister packing equipment. The product passed the provincial science and technology appraisal.
Features:
1. The DPP80 blister packing machine adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
2. DPP80 blister packing machine Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement.
3. DPP80 blister packaging machine adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
4. This small blister packing machine can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
5. DPP80 ALU PVC ALU ALU Blister packing machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc for packing.
Technical Parameters
| Model | DPP-80 |
| Punch frequency | 10-33times/min |
| Production capacity | 2400plates/hour |
| Max. Forming area & Depth | 105x70(standard depth <15mm) (can be designed as per user’s required) |
| Standard Stroke range | 30-80mm(can be designed as per user’s required) |
| Standard plate size | 80*70mm (can be designed as per user’s required) |
| Air pressure | 0.4-0.6Mpa |
| Compressed air required | Air compressor≥0.3m3/min |
| Total power supply | 380V/220V 50Hz 2.8Kw |
| Main motor | 0.75Kw |
| PVC hard Film | 0.15-0.5*110 (mm) |
| PTP Aluminum film | 0.02-0.035*110 (mm) |
| Dialysis Paper | 50-100g*110(mm) |
| Mould cooling | Tap water or Recycling water |
| Overall Dimension | 1840x590x1100 (mm)(LxWxH) |
| Weight | Net 450kg Gross weight: 520kg |
| Noise index | <75dBA |

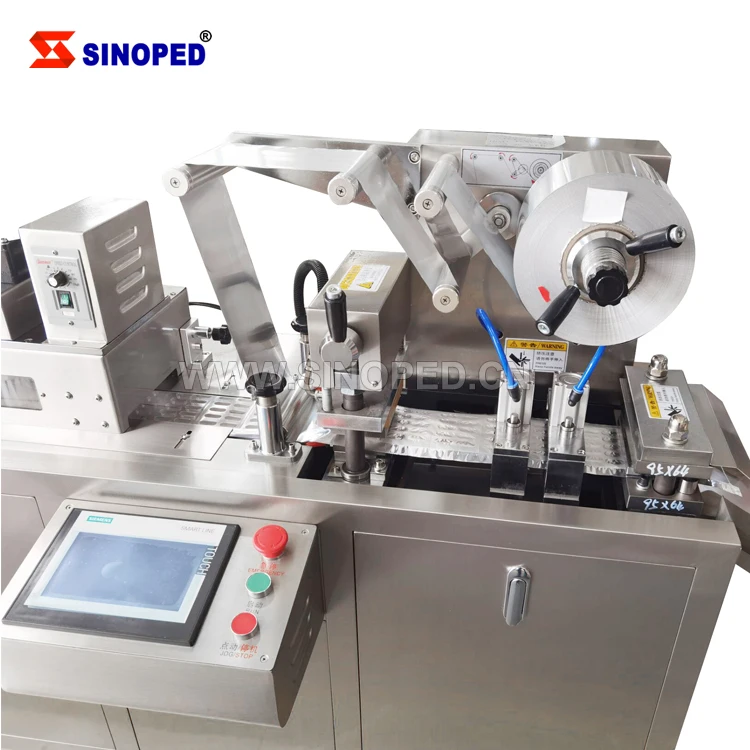

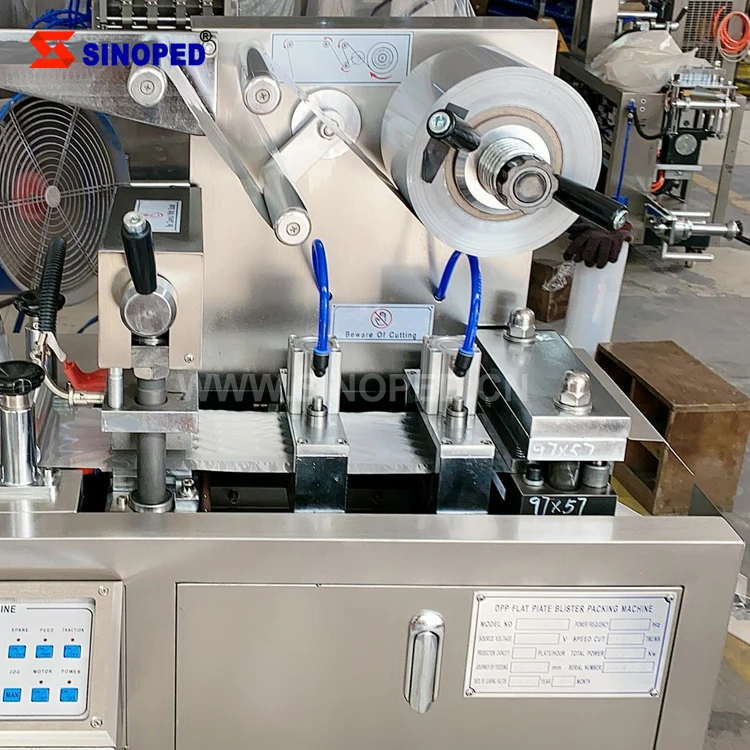

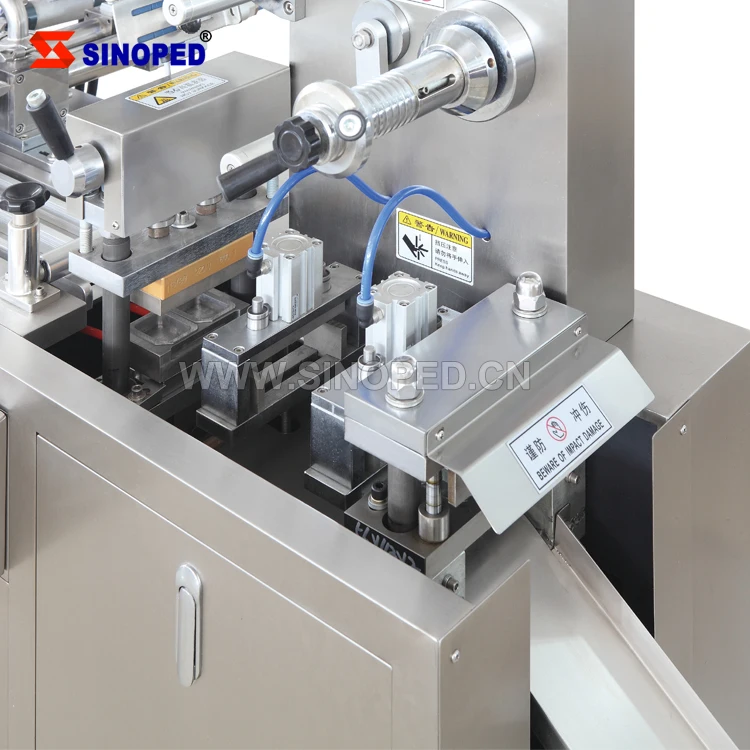

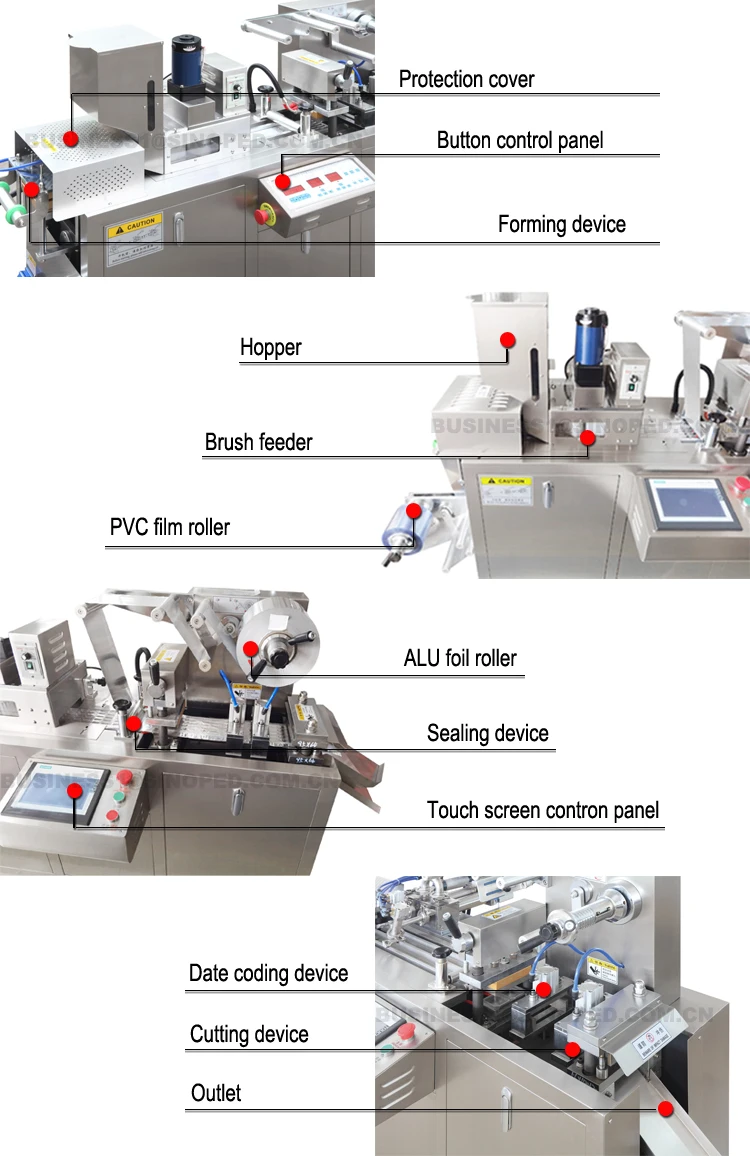

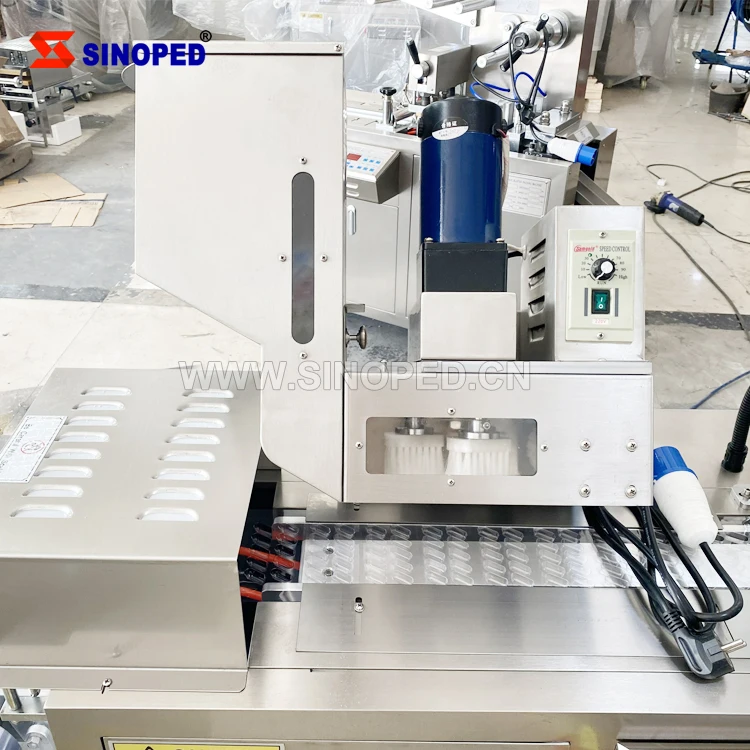

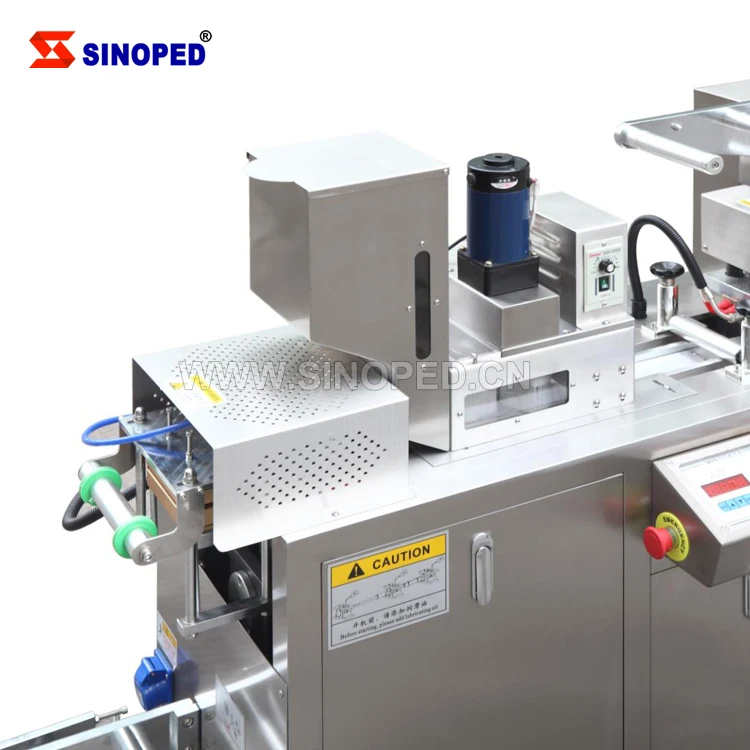

Detailed Images
Packaging

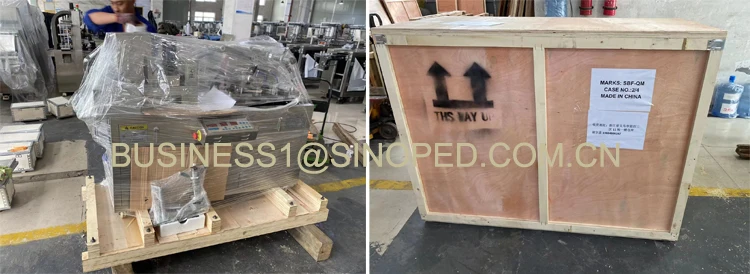

Tablet capsule blister packing machine packing:
1.Apply some oil to the equipment to prevent rust from the weather during transportation.
2.Wrap the device with a winding film to prevent water vapor from contacting the device surface and causing rust.
3. Wrap foam paper around the corners of the blister packing machine to prevent damage caused by bumping during transportation.
4. The blister packing machine is packed in export standard plywood boxes to prevent the equipment from bumping during transportation.
Our company

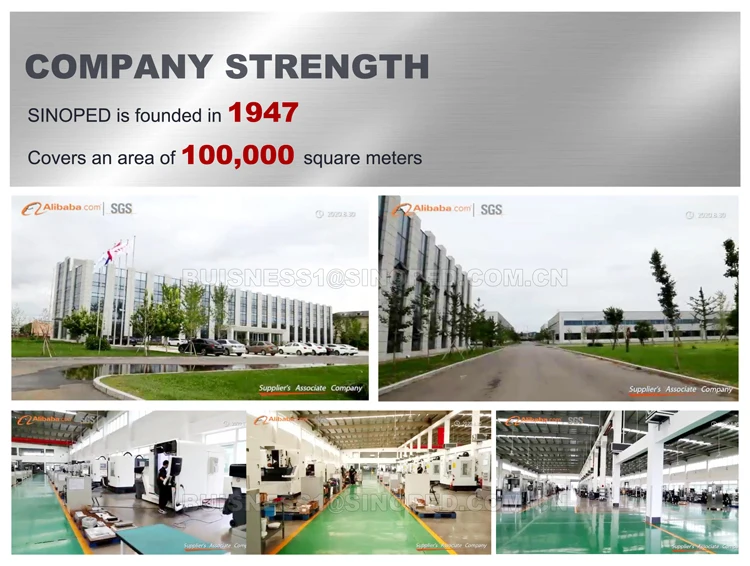

....................Company Information....................SINOPED is a large-scale manufacturer, be founded in 1947, who is professional on the manufacturing & selling of pharmaceutical machinery, and with the biggest foreign trade sales team in Liaoning province, China, all kinds of pharmaceutical machines, includes the glass-lined tanks, centrifuges, granulators, agitators, driers, blister packing machines, capsules filling machines, filling machines, tablet counting machine, capsule counting machine and counting lines, blister packing machine etc. have been exported worldwide from time to time with good reputations.

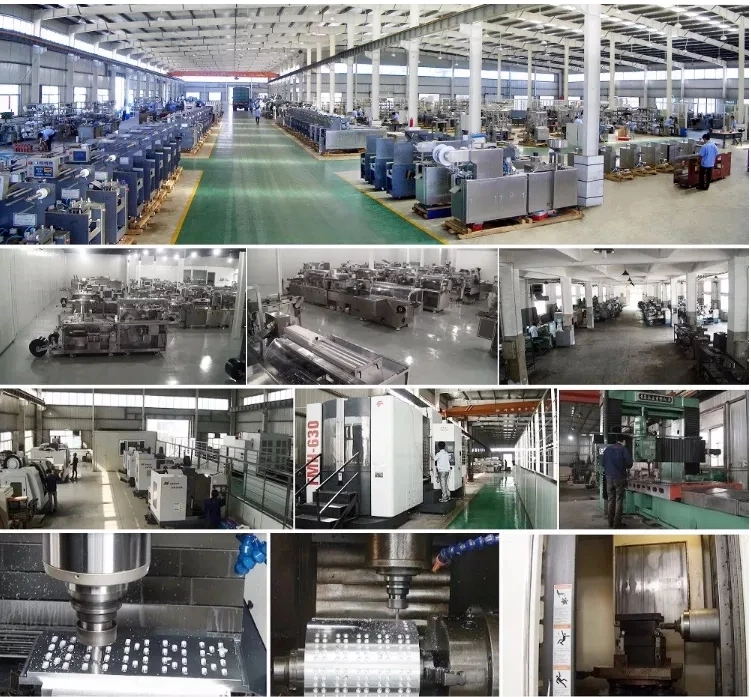

...................Manufacturing Workshop...................
We have many sets half made in stock blister packing machines, if you need, we can also provide you other machines, like pillow pack packing machine, cartoning machine, cellophane wrapping machine, case packing machine to make them to a packing line.
..............................Our Team.................................
We have a foreign trade sales team of more than 50 people. Customers are available in more than 5 languages such as English,Russian, French, Spanish, Portuguese. We have a strong technical team support, which can help customers solve technical problems and make customers feel at ease and satisfied.
......................Our Certificate......................
Certificate of blister packing machine: Our counting machine has CE certification, also can provide customers with different certification according to customer requirements, such as ISO, SGS, BV.
.......................Our Exhibition.......................
SINOPED participate in domestic and foreign exhibitions Committed to the design, manufacture and export of high quality pharmaceutical machinery. Offer perfect solutions for global pharmaceutical manufactures.

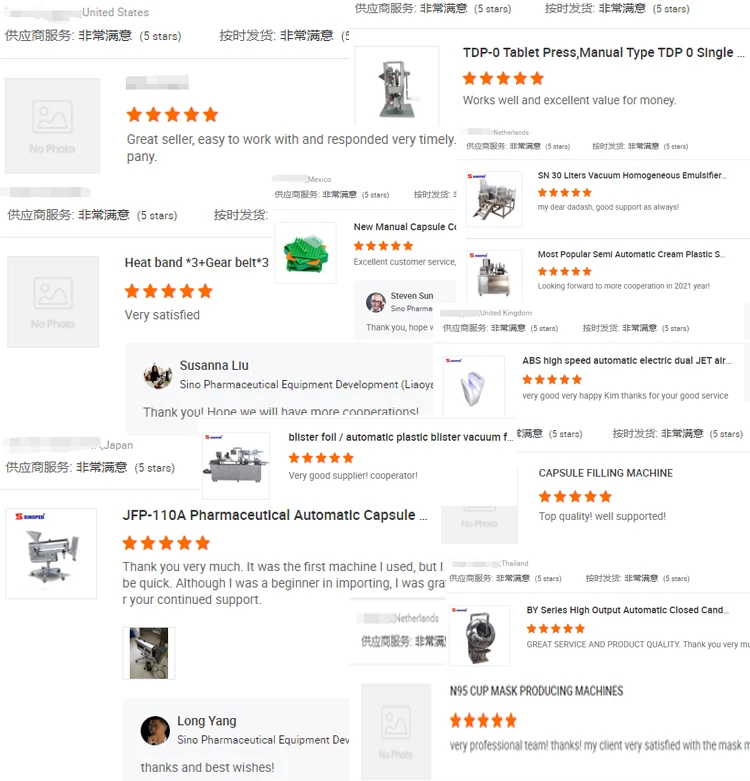

Buyer Feedback
FAQ
FAQ for Blister packing machine
Q1: What can this machine pack?
A1: It can count tablet, capsule, soft gel, small screw, candy, gummy.
Q2: When it count didn’t products, need change mold?
A2: Yes, it can pack different product by changing mold, mold can customized for you.
Q3: Is it hard to change mold?
A3: It's easy to change mold, we will provide detail videos to teach you how to change blister packing machine mold.
Q4: What’s the control method of this machine?
A4: It can use famous brand touch screen and PLC control.
Q5: Can it line with other machines?
A5: Yes. It can line with cartoning machine, pillow pack packing machine, 3D packing machine.
