10 шт. концевой выключатель 3 Pin кнопочный микро концевой выключатель Ac 5a 125v 250v все датчик микропереключателя,
- Category: Limit Switches >>>
- Supplier: Shenzhen,TwoTrees,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Product Description
5A 250VAC
Contact Resistance:≤50mΩ
Insulation Resistance:≥100MΩ
Dielectric intensity:≥1000VAC/1min
Life:≥1,000,000 Cycles
Contact Resistance:≤50mΩ
Insulation Resistance:≥100MΩ
Dielectric intensity:≥1000VAC/1min
Life:≥1,000,000 Cycles

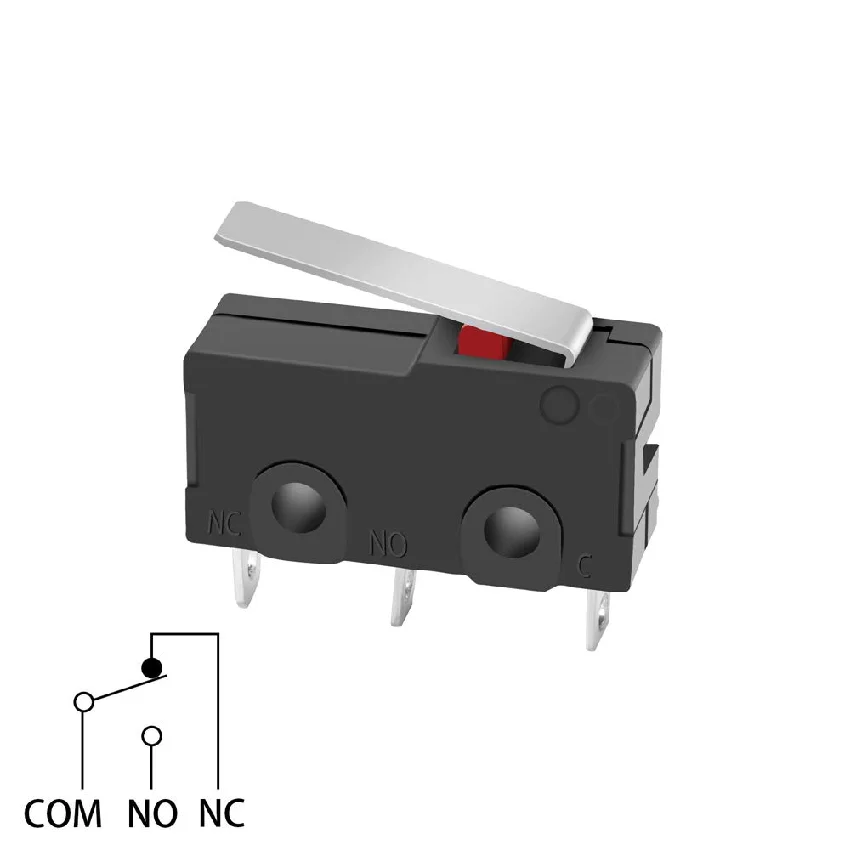

Product Name: Micro Switch; Actuator Action: Momentary; Actuator Type: Hinge Lever; Contact Configuration: 1NO,1NC(SPDT) | ||
Excellent touch switches,long service life. Life expectancy:More than 500000(Life expectancy at switch testing machine for a continuous period of work,operating at frequencies below 60 times per mimute,the working conditions:DC 40V,50mA.) | ||
Environmental Condition of utilization: Temperature -25~65℃;Relative humidity:below 85%; Rate Voltage: 125V 250V AC; Rated Current:5A. | ||
Used in home appliances, audio, toys, mouse, business machines, communication equipment and other electronic equipment. | ||
