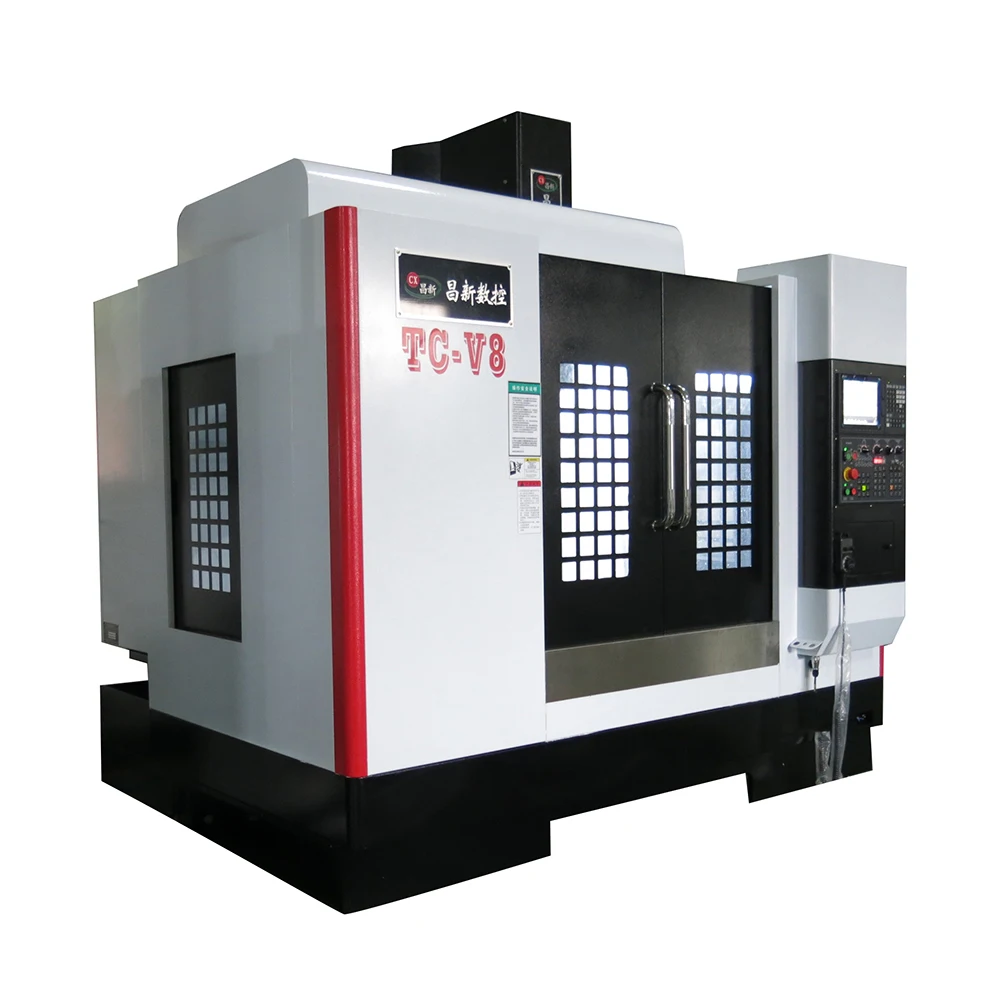

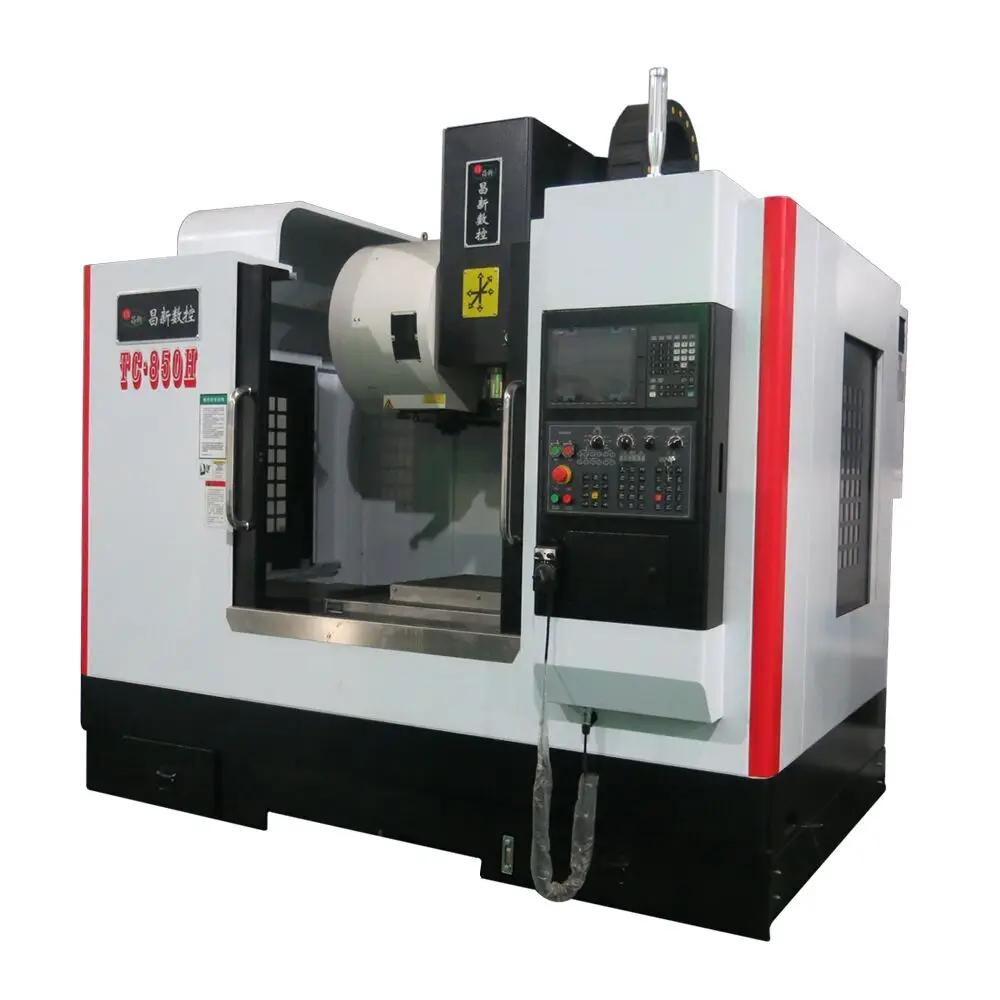

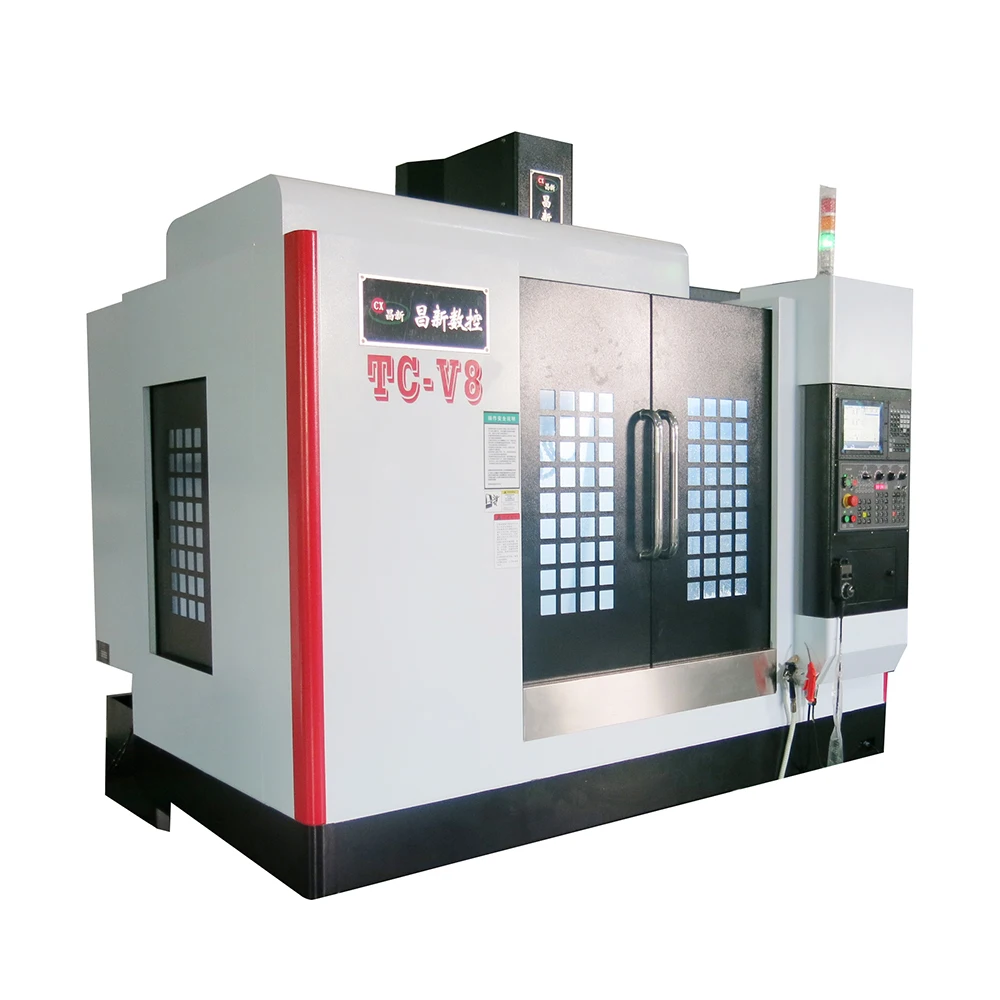

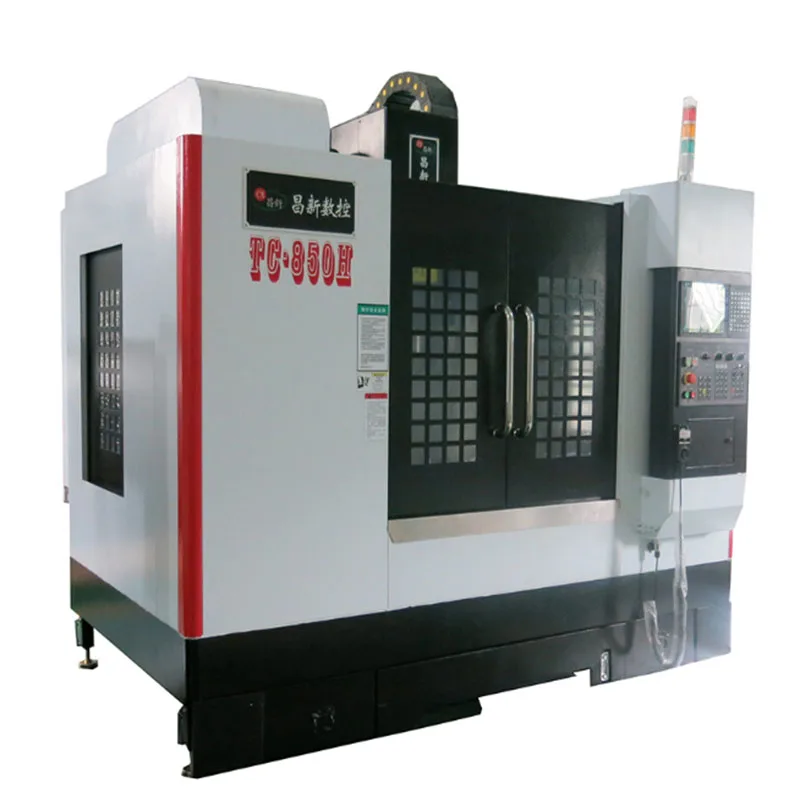

CNC 3 axis VMC 850 Taiwan Vertical Machining Center VMC850 CNC Vertical Milling Machine
- Category: >>>
- Supplier: Dongguan Chansin Hardware Machinery Co. Ltd.
Share on (1600621508673):
Product Overview
Description
Title goes here.
CNC 3 axis VMC 850 Taiwan Vertical Machining Center VMC850 CNC Vertical Milling Machine
Product Description
5 Axes CNC Machining Center CNC Milling Machine TC-1060 with X/Y/Z-axis Travel 1000/600/600mm
CNC Milling Engrvaing Machine TC-650 with with X/Y/Z-axis Travel 600/500/280mm

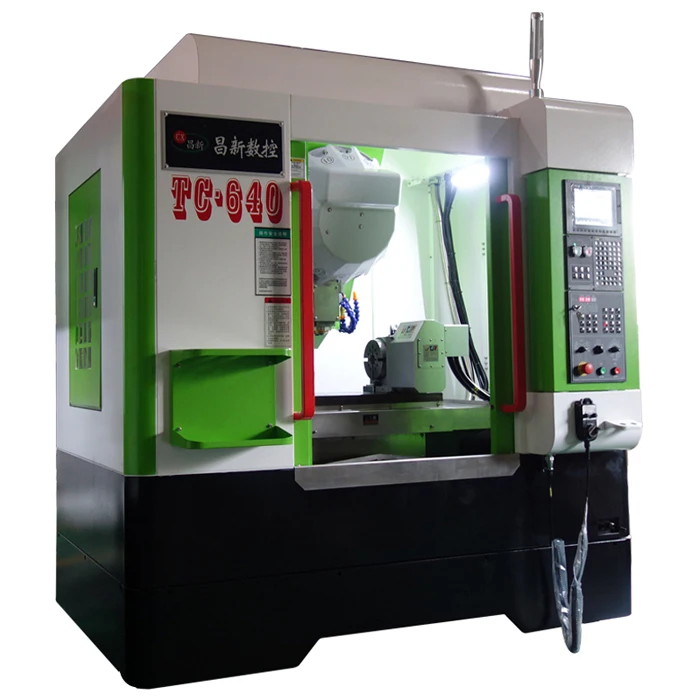

CNC Machining Center TC-V640 with X/Y/Z-axis travel 600/400/300mm

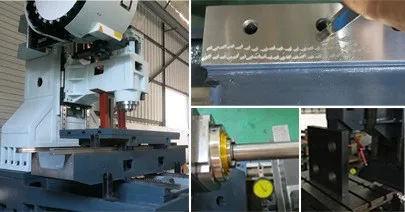

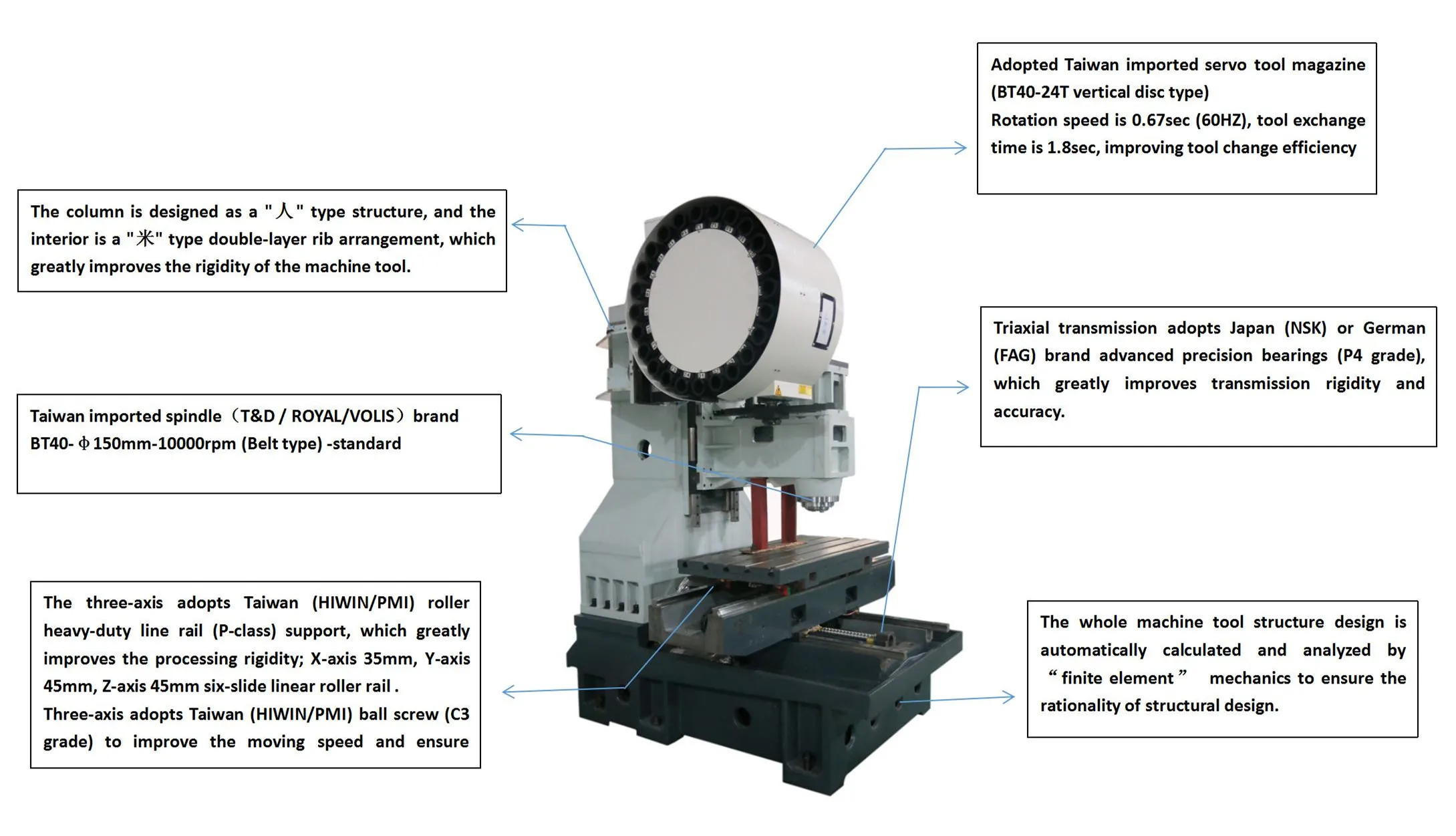

Fuselage instructions
Wide base bed +large span guide rail
The integral upper water-guide plate type broad base, 5 big pieces are all the mesh internal structure. Ultra-wide bottom“人” shaped column, body oil-water separation structure (before water after oil) , built-in pipeline.
Specification
TC-650L Specifications | ||
System | Syntec/Mitsubishi/Siemens/Fanuc | |
Motor | Yaskawa/Mitsubishi/Siemens/Fanuc | |
Tool Magazine Capacity | Automatic Tool Changer Tool Number:16 | |
Lubrication System | Automatic | |
Cooling System | Oil Cooling | |
X/Y/Z-axis Travel | 800mm/500mm/500mm | |
Distance from Spindle Nose to Table | 120mm-655mm | |
Distance Spindle Center to Column Guide Rail | 580mm | |
Working Table Size | 1000*500mm | |
Table Max Load | 800kg | |
T Slot | 5-18T | |
Spindle Rotation Speed | 10000rpm | |
Spindle Motor Power | 7.5kw | |
X/Y/Z-axis Motor Power | 2.0/2.0/3.0kw | |
Rapid Traverse(X/Y/Z-axis) | 36000/36000/36000mm/min | |
Cutting Speed | 0-10000mm/min | |
Spinldle Taper | BT40/150 | |
Positioning Accuracy | ±0.005mm/300mm | |
Repeat Positioning Accuracy | ±0.003mm/300mm | |
Machine Size | 2750mm*1270mm*2750mm | |
Machine Weight | 5.5ton | |
Warranty | One Year | |

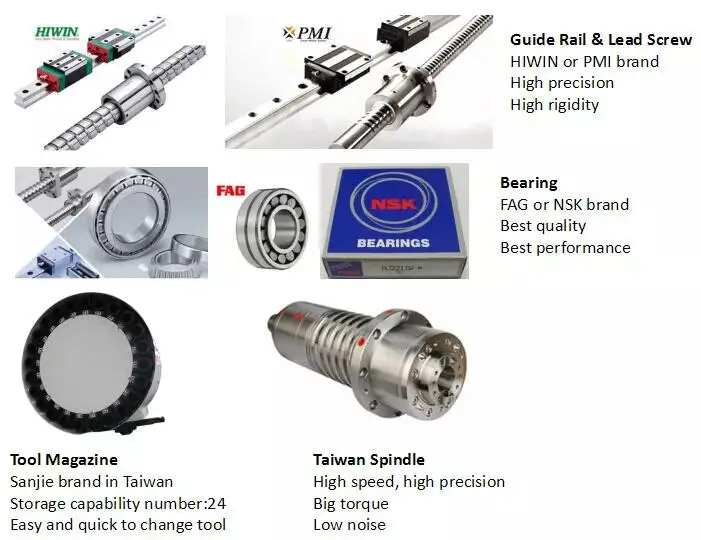

Main Component Brand | ||
System | Syntec/Mitsubishi/Siemens/Fanuc | |
Spindle | Royal/Volis in Taiwan | |
Tool Magazine | Okada/Sanjet/Deta in Taiwan | |
Bearing | NSK in Japan or FAG in Germany | |
Lead screw/Guide Rail | Hiwin/PMI in Taiwan | |
Coolant Tank | Taiwan Brand | |

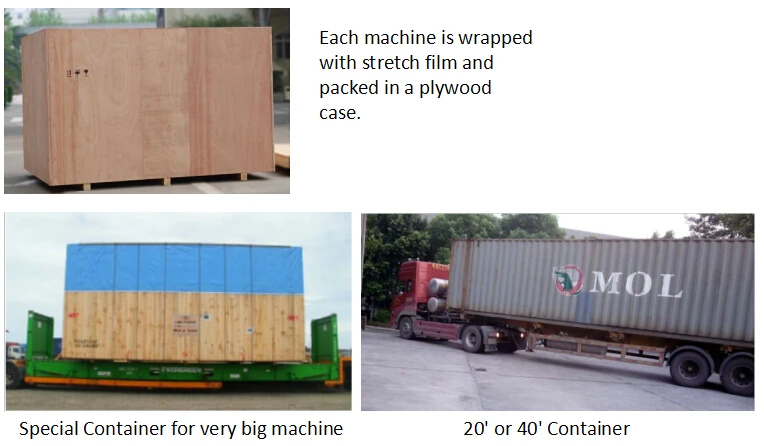

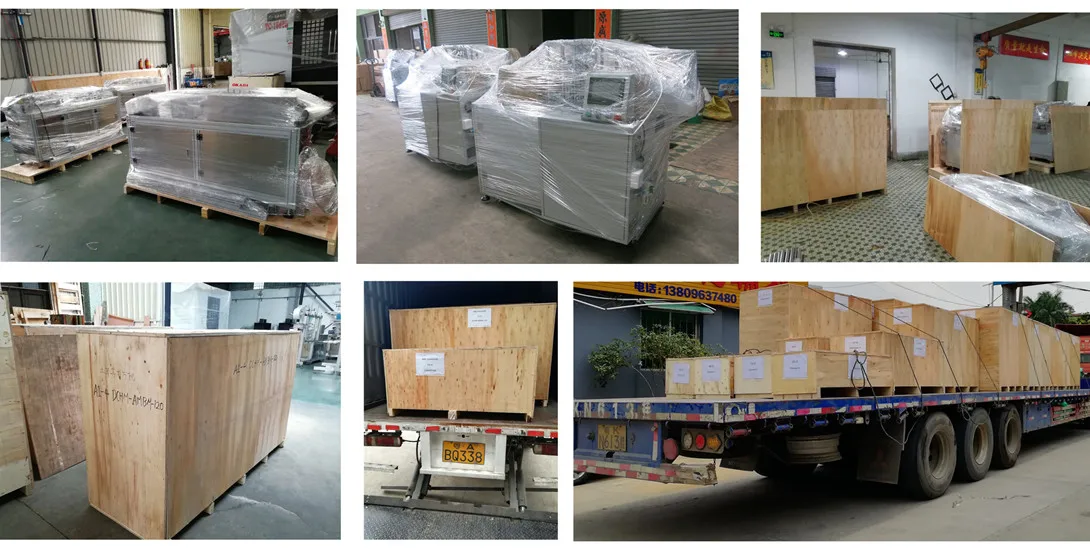

Packing & Delivery
Each machine is wrapped with stretch film and packed in a plywood case.
Company Profile
Factory introduction
Dongguan Chansin Hardware Machinery Co., Ltd., was established in 1998, is a professional manufacturer integrated research,
development, manufacture and marketing. We specialize in CNC Machining Center, CNC Milling Engraving Machine, Automatic Drilling
Machine, Automatic Tapping Machine.In the strict production management system, our products enjoy good quality and price competitive advantage.

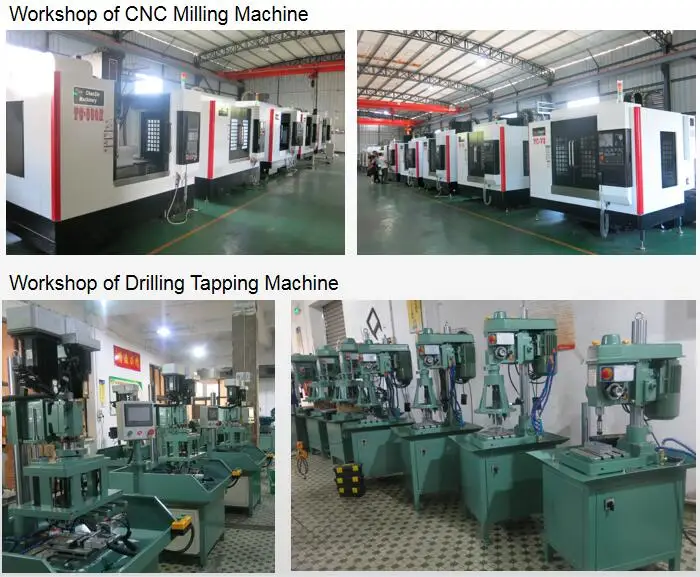

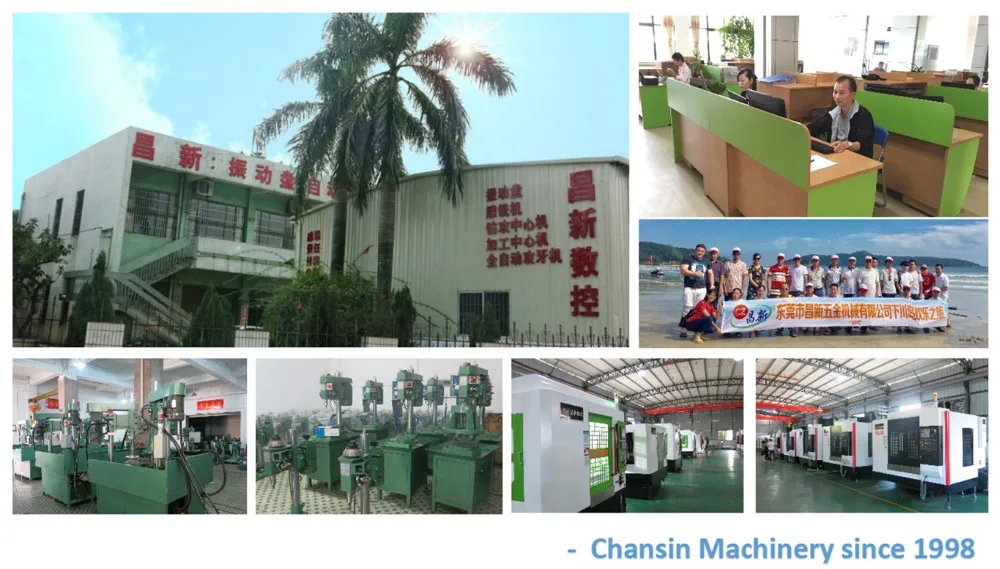

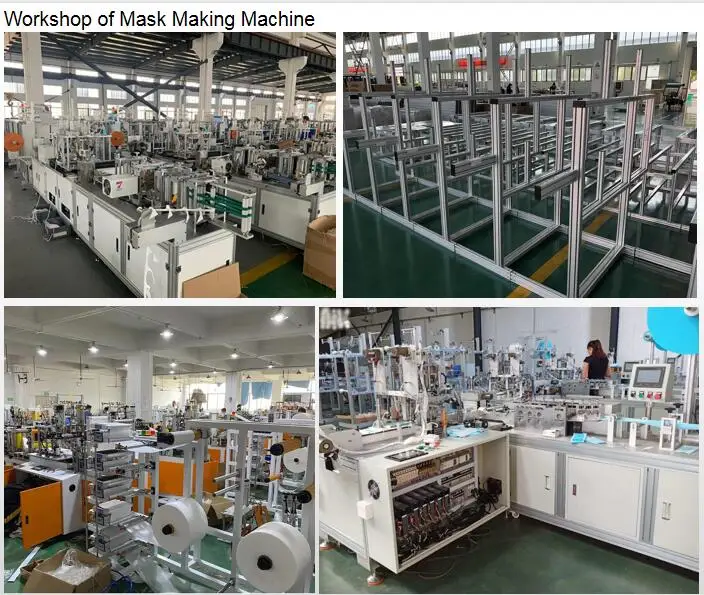

Factory scene
Product qualification
Customer factory inspection drawings
FAQ
1. who are we?
We are based in Guangdong, China, start from 2007,sell to Domestic Market(50.00%),South Asia(20.00%),North America(15.00%),South America(15.00%). There are total about 51-100 people in our office.

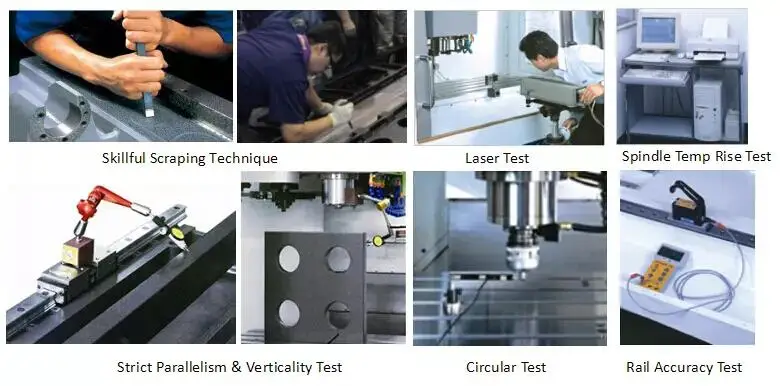

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
CNC Milling Machine,CNC Tapping Machine,Automatic Drilling Machine,Automatic Tapping Machine,Face Mask Machine
4. why should you buy from us not from other suppliers?
18 years of experience in this field. Win customers' popularity with excellent quality and best price. Our machines are exported to many countries all over the world. We have a dedicated and innovative team. Innovation is our ever-lasting pursuit.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2007,sell to Domestic Market(50.00%),South Asia(20.00%),North America(15.00%),South America(15.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
CNC Milling Machine,CNC Tapping Machine,Automatic Drilling Machine,Automatic Tapping Machine,Face Mask Machine
4. why should you buy from us not from other suppliers?
18 years of experience in this field. Win customers' popularity with excellent quality and best price. Our machines are exported to many countries all over the world. We have a dedicated and innovative team. Innovation is our ever-lasting pursuit.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
