pt10 spain trimmer potentiometer
- Category: Potentiometers >>>
- Supplier: Sichuan Qixing Electronics Co. Ltd.
Share on (1600621690987):
Product Overview
Description
PT10 10mm 100k thumbwheel potentiometer with wheel cap
Products Description

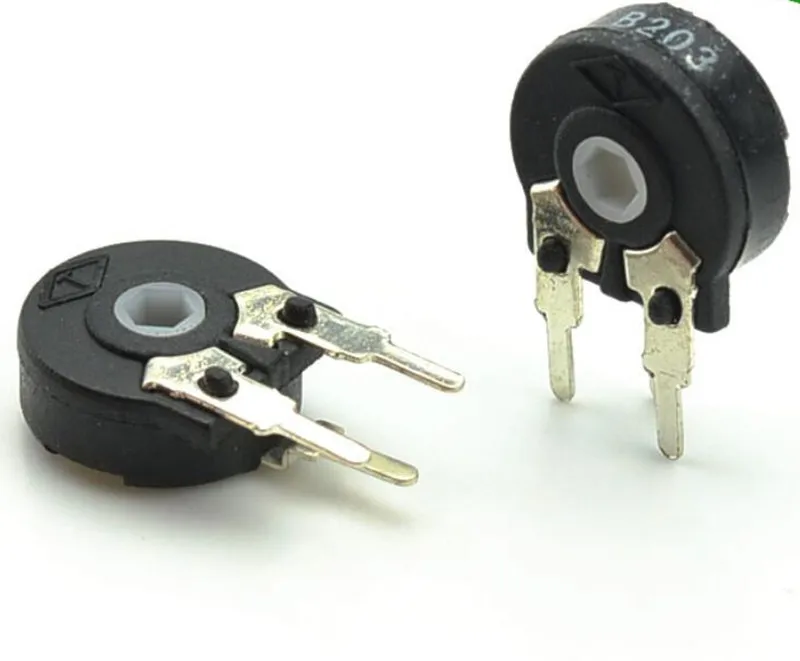

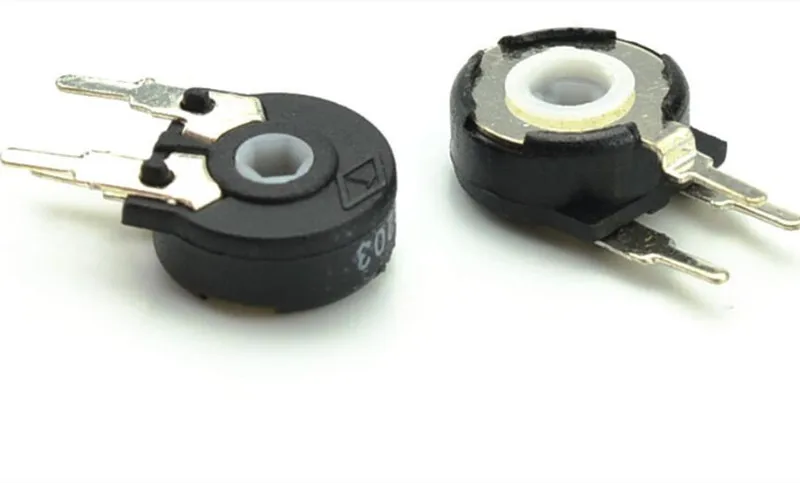

PT10 10mm 100k thumbwheel potentiometer with wheel cap vertical type

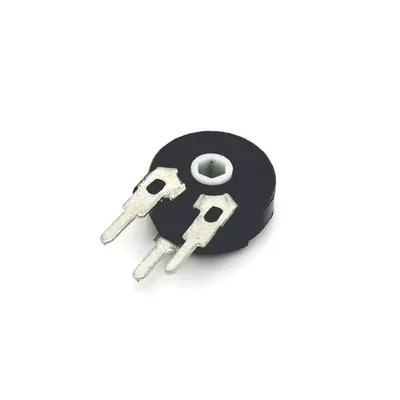

PT10 10mm 100k thumbwheel potentiometer with wheel cap Herizontal type

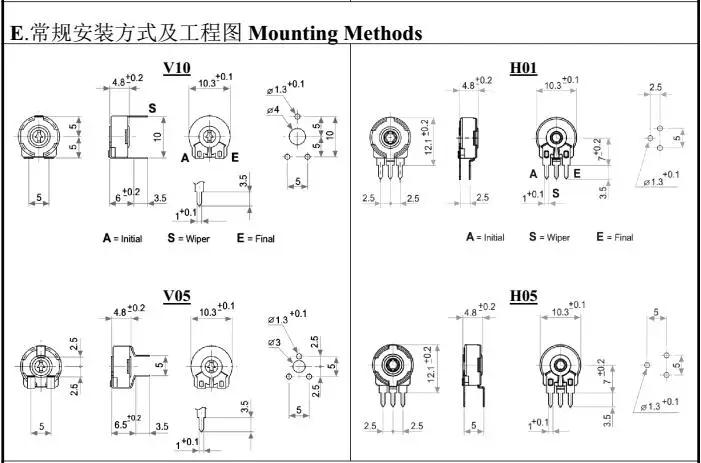

PT10 Potentiometer drawing
PT10 Potentiometer Parameter
Electronical Characteristics | ||
Nominal Resistance | From 100Ω to 1MΩ | |
Resistance Tolerance | ±10%,±20%,±30% | |
Residual Resistance | Max. 5% of Nominal Resistance Resistance, but under 30Ω | |
Resistance Taper | Linear (B) | |
Rated Power | 0.1 Watt | |
Operating Voltage | AC50V Max. | |
Rotational Life | Max. ±15% change in resistance after 100 unloaded rotations | |
Load Life | Max. ±5% change in resistance after 3 hours loaded | |
Insulation Impedance | ≥100MΩ (at 100V ac) | |
Mechanical Characteristics | ||
Variable Rotation Angle | 270º (less ±20º) | |
Rotational Torque | From 20 to 450gf.cm | |
Stop-end Strength | less 0.5Kgf.cm | |
Mechanical Strength | Bakelite Base not to be broken down under a force of 1Kg | |
Environmental Characteristics | ||
Operating Temperature | From -10°C to +70°C | |
Temperature Characteristics | Resistance change within +5%~+30% after 5 hours at 70°C | |
Humidity Characteristics | Max. resistance change within 20% after 350 hours at 40° and R.H 90% | |
Recommend Products
Packing
Company Profile
Why Choose Us

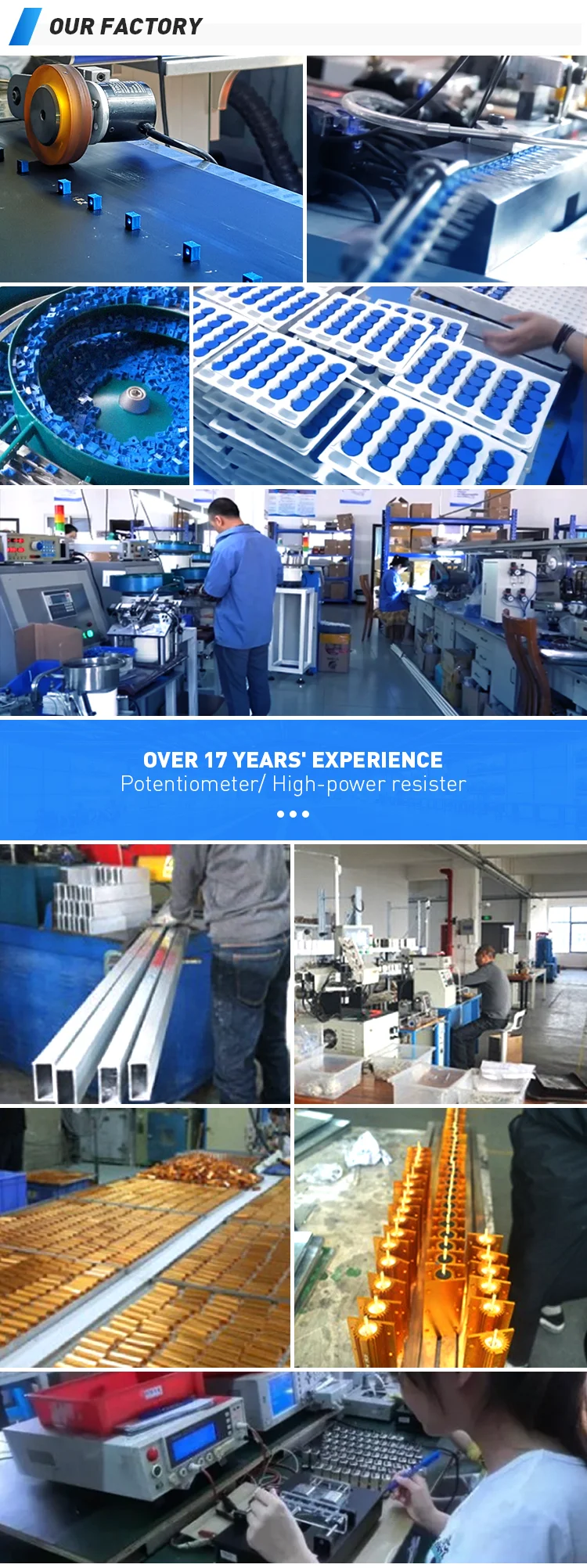

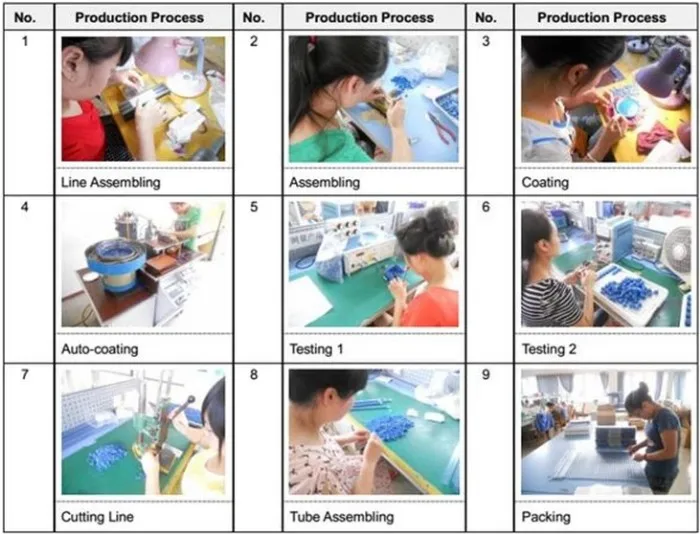

Work display
