Toothpaste Production Equipment Emulsifying Mixer with Scraper Toothpaste making machine
- Category: Cosmetics Production Equipment >>>
- Supplier: Guangzhou,Ailusi,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview
AILUSI MACHINERY
Manufacturer of Cosmetic | Pharmacuetical | Food | Daily Chemical industrial | GMP Standard
Manufacturer of Cosmetic | Pharmacuetical | Food | Daily Chemical industrial | GMP Standard

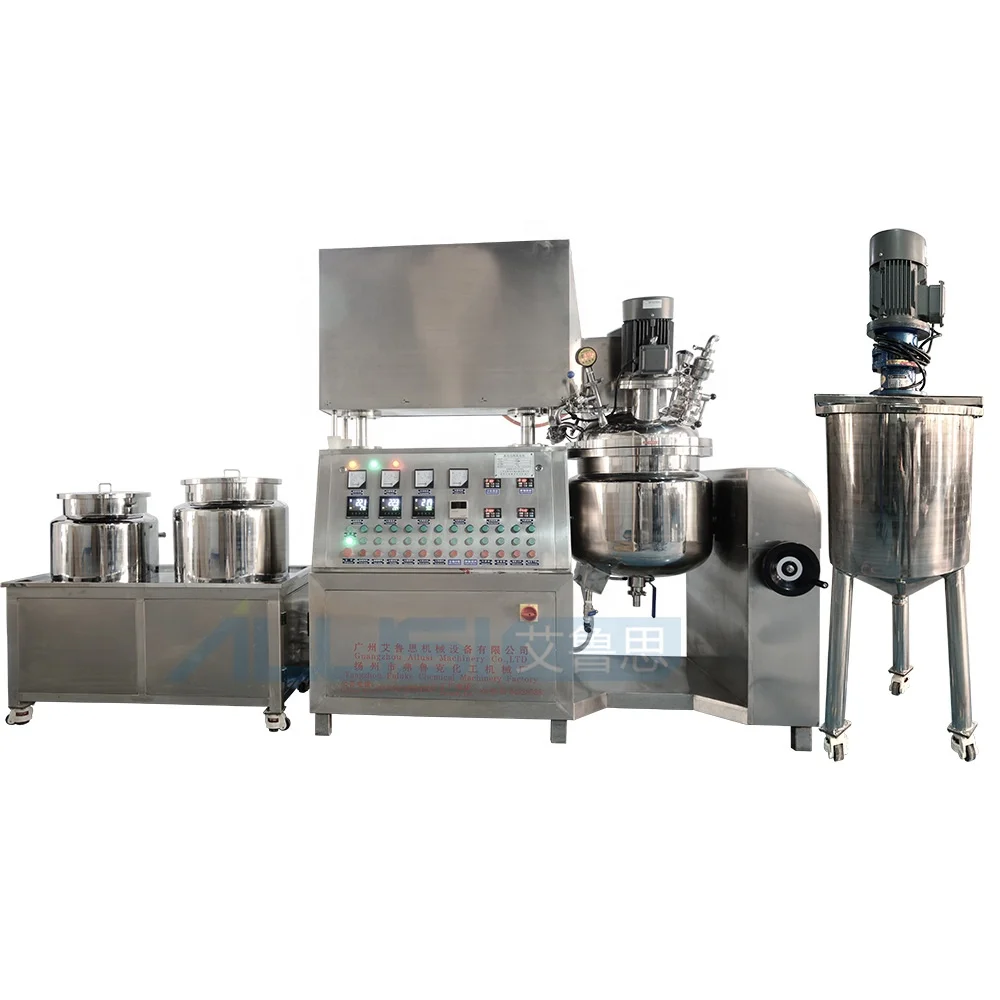

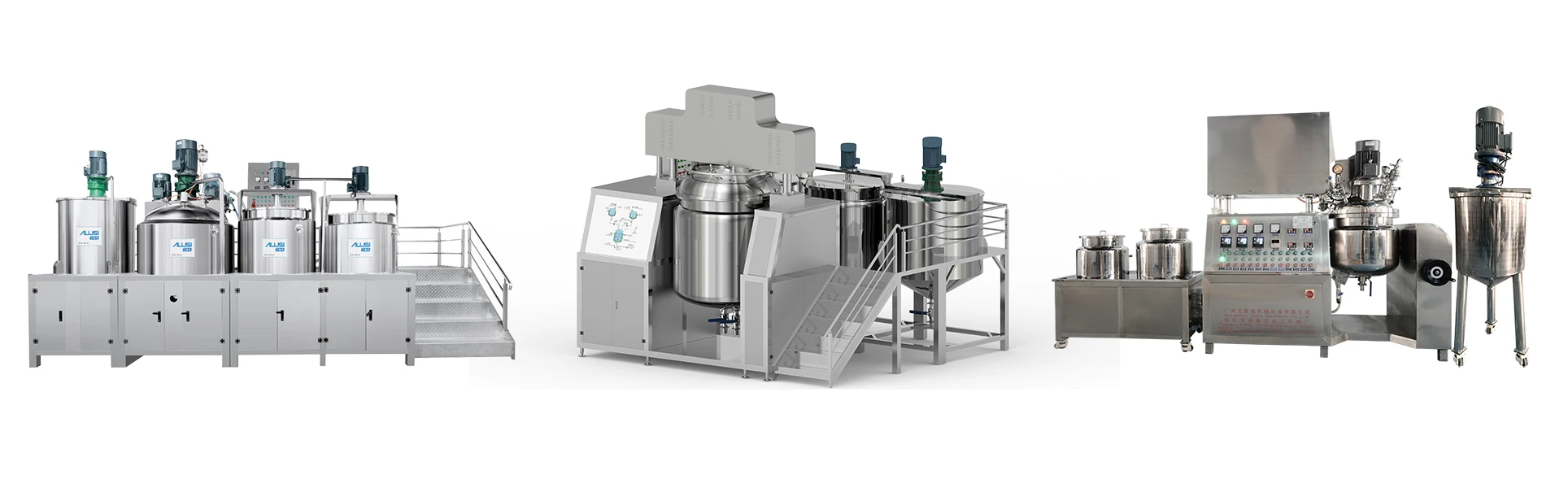

Toothpaste Vacuum Homogenizer Emulsifying Mixer
The vacuum paste making machine is the key process of toothpaste production. The working principle of the equipment is to put various raw materials into the paste making machine in turn according to a certain production process, and through strong stirring, dispersing and grinding, the various raw materials are fully dispersed and mixed evenly. Finally, it becomes a paste by vacuum degassing. AVE series paste making machine is based on the existing technology, our company has optimized the scraping paddle, high-speed dispersion system, high-shear homogenization system and vacuum system to improve the performance of the overall equipment and ensure that the production can be set according to the setting. It is an ideal toothpaste production equipment, and it is also suitable for the preparation of products with high viscosity and large proportion of powder similar to the toothpaste process, such as: medical anesthesia ointment etc.
FEATURES AT A GLANCE
Standard configuration
◆ Emulsifier, water phase tanks, oil phase tank, powder tank
◆ Emulsifier, water phase tanks, oil phase tank, powder tank
◆ Three-layer tank, steam or electric heating
◆ Variable frequency speed scraper mixing
◆ 3600rpm high-speed homogenizer, fineness 0.2-5um
◆ 1440rpm high-speed disperser * 2sets
◆ Vacuum pumps reachable -0.098Mpa
◆ Stainless steel platform ans stairs
◆ Button or HMI operation
◆ Vacuum pumps reachable -0.098Mpa
◆ Stainless steel platform ans stairs
◆ Button or HMI operation
◆Load cell, transport optional
Lid
Mixer & disperser
Inside of tank
Water& oil tank
Bottom homogenizer
Homogenizer head
Powder tank
Control panel
HMI （option）
PRODUCT SPECIFICATIONS
No | Model | AVE-50 |
1 | Working capacity | 50L |
2 | Heating method | Steam/electric |
3 | Mixing type | Upper frame oar scrape mixer |
4 | Mixing motor power | 1.1KW |
5 | Mixing frequency | 1.1KW |
6 | Mixing Speed | 0-65rpm |
7 | Homogenizer | Bottom homogenizer with frequency inverter |
8 | Bottom Homogenizer power | 2.2KW |
9 | Speed | 0-3000rpm (50Hz)/0-3600rpm (60Hz) |
10 | Disperser | 1.1KW *2 sets, 1440rpm with frequency inverter |
11 | Hydraulic lifting system | 0.55KW |
12 | Vacuum pump | Water cycle vacuum pump, power: 1.1KW |
13 | Control method | Button control/ HMI |
14 | Frequency converter | Delta/Panasonic/Mitsubishi |
15 | Electrical components | Schneider/Delixi |
16 | Jacket | Double jacket,3 layers |
17 | Tank materials | Inner layer 4mm/SUS316 Middle layer 4mm/SUS304 Outer layer 2mm/SUS304 |
PRODUCT CONFIGURATION
Siemens Motor
Reducer
Delta Frequency inverter
Stator and rotor
Rotor
Materials SUS304&316L(TISCO)
Burgmann Mechanical seal
NSK Bearing
Omron temperature controller
Time Relay
Breaker
AC contactor
Vacuum pump
Hydraulic column
Limit switch
Temperature probe
Vacuum meter
Safe valve
Materials Source
Certifications

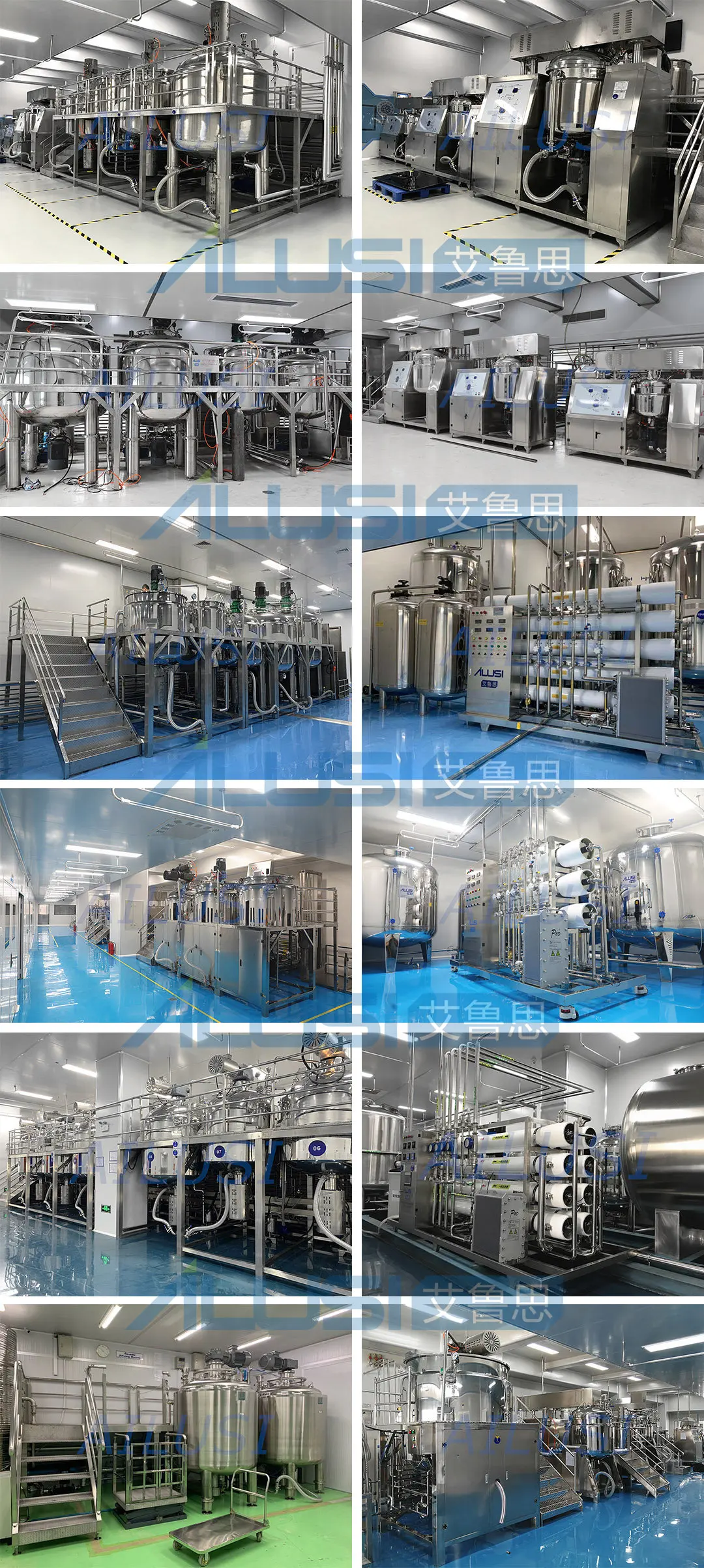

Successful Project
Packing & Delivery
The equipment is packed in imported wooden boxes.
Transportation by sea, air, express and train
