Industrial Vitamin C Candy Effervescent Tablet Packing Machine With High Speed
- Category: >>>
- Supplier: Zhejiang Aligned Technology Co. Ltd.
Share on (1600621979686):
Product Overview
Description
PRODUCT DISPLAY

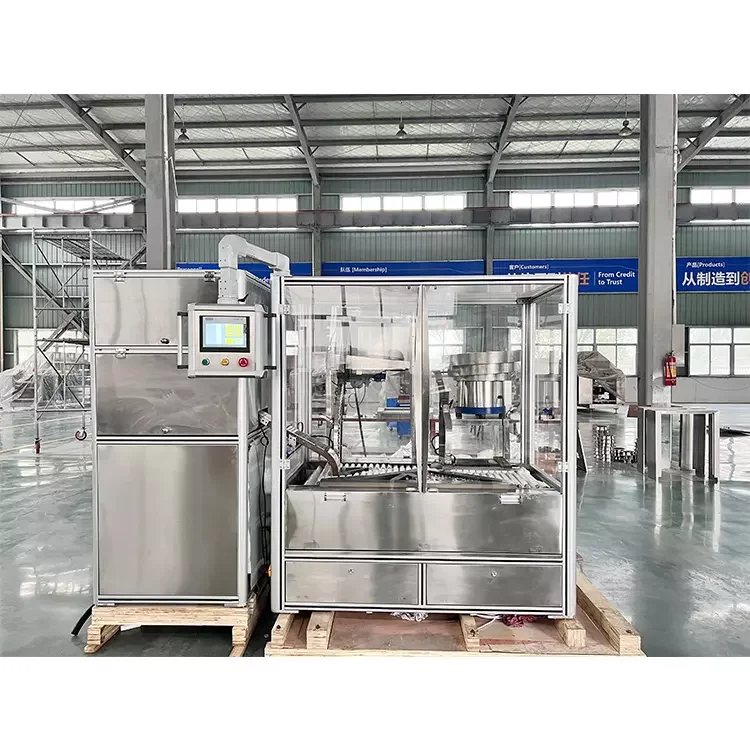

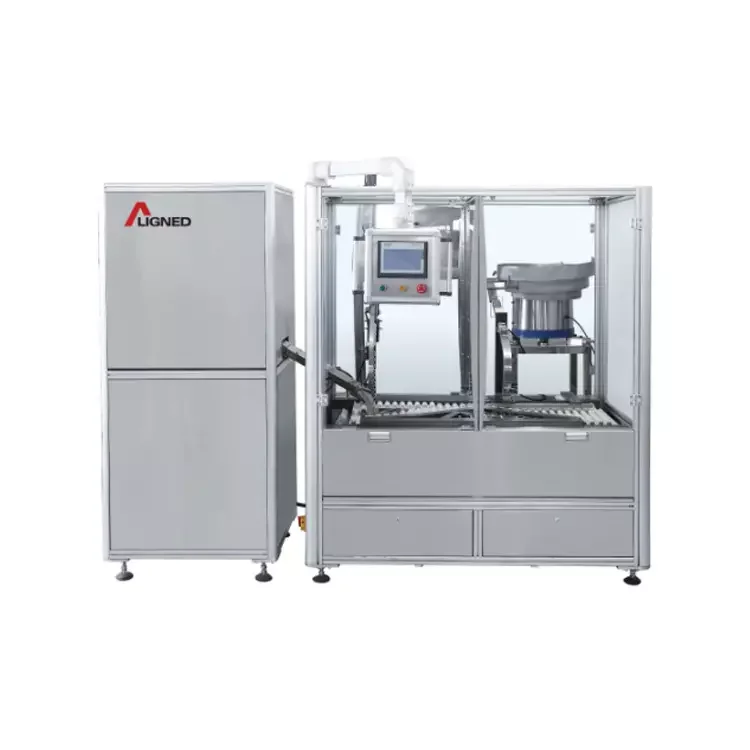

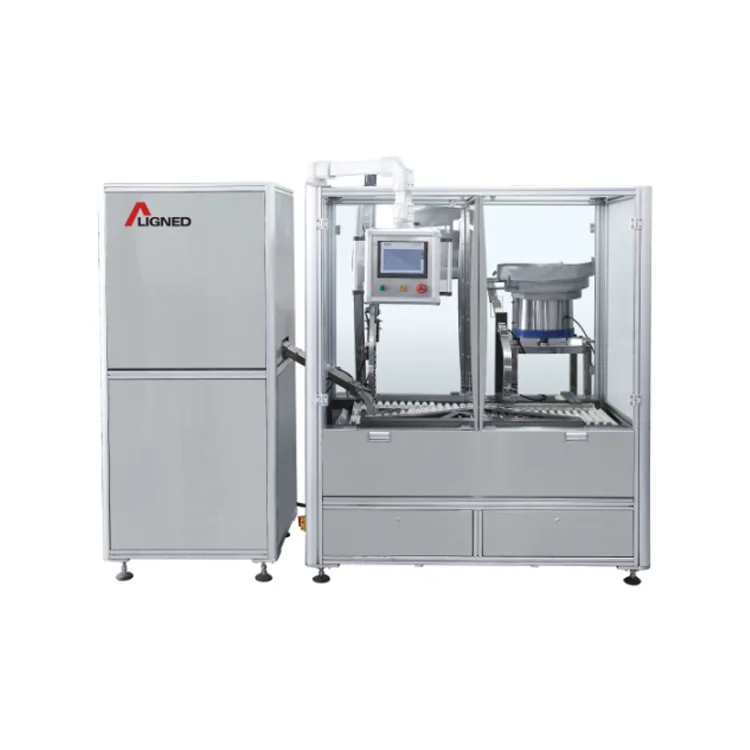

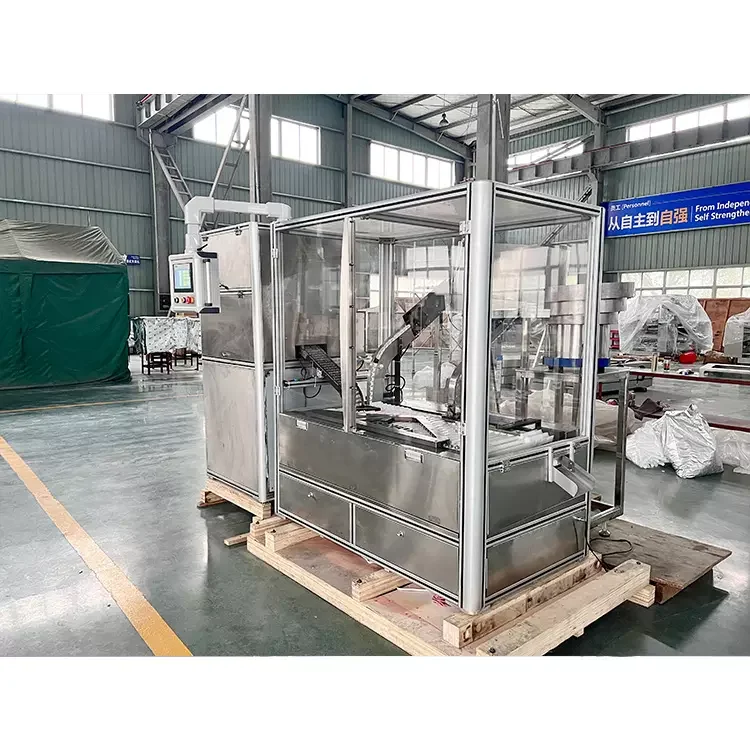

TF-120 Automatic Horizontal Effervescent Tablet Tube Filling Packaging Machine
This machine is mainly used for automatic bottle management, filling, capping and other tube and bottle functions.The equipment can greatly improve the production efficiency and achieve pollution-free production results, which fully meet the requirements of GMP. The main structure of the machine includes automatic sheet sorting, automatic cap feeding, automatic counting, automatic capping and automatic bottle output, etc., and adopts intelligent control of counting and filling system, and the pass rate can reach 100%. Widely used in food and pharmaceutical industries. It is a high-speed tube filling machine newly developed by our company, and the stable speed can reach 120 bottles per minute.
Project | Parameter |
Model | TF-120 |
Max. Output | 120tube/min |
Max. Tablet Feeding Speed | 98000pc/h |
Tablet Diameter | 16-33 mm |
Tablet Diameter (minimum-maximum), in Millimeters | 16-33 |
Tablet Thickness | 3-12 mm |
Tablet Hardness | ≥40N |
Bottling Quantity | 5-20 pc |
Tube Length | 60-200 mm |
Tube Diameter | 18-35 mm |
Power Supply | 380V 50HZ 3P |
Power | 4.5KW |
Overall Size | 2500*1600*1700mm |
Weight | About 480KG |
PERFORMANCE & FEATURES
1. Double detection photoelectricity is adopted to ensure that the tube is not missing pieces.
2. The new design structure greatly reduces the equipment space.

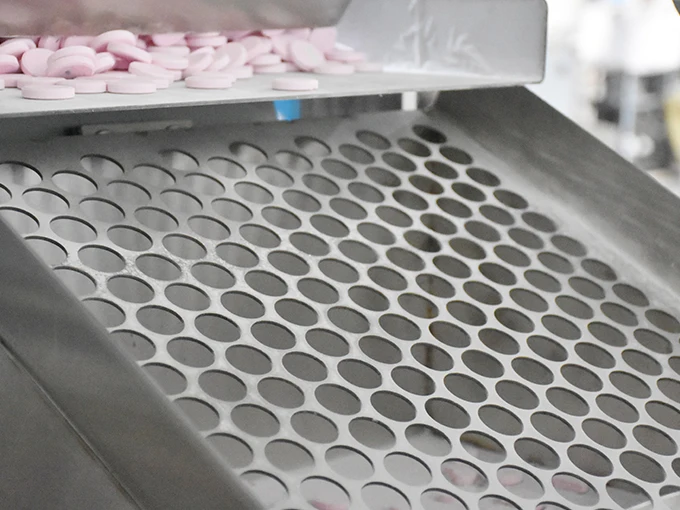

3. The vibrating turntable feeding method is adopted to avoid material blockage and reduce tablet wear.
4. According to different pipe sizes, it is very convenient to replace the mold by pulling out.
5. Double key start system: one key to start the material in place, one key to start automatic operation.
6. It can be equipped with humidity detection and alarm device.
7. One set of system control can be connected with the labeling machine.
DXH-330 Automatic Horizontal Bottle Cartoning Machine
