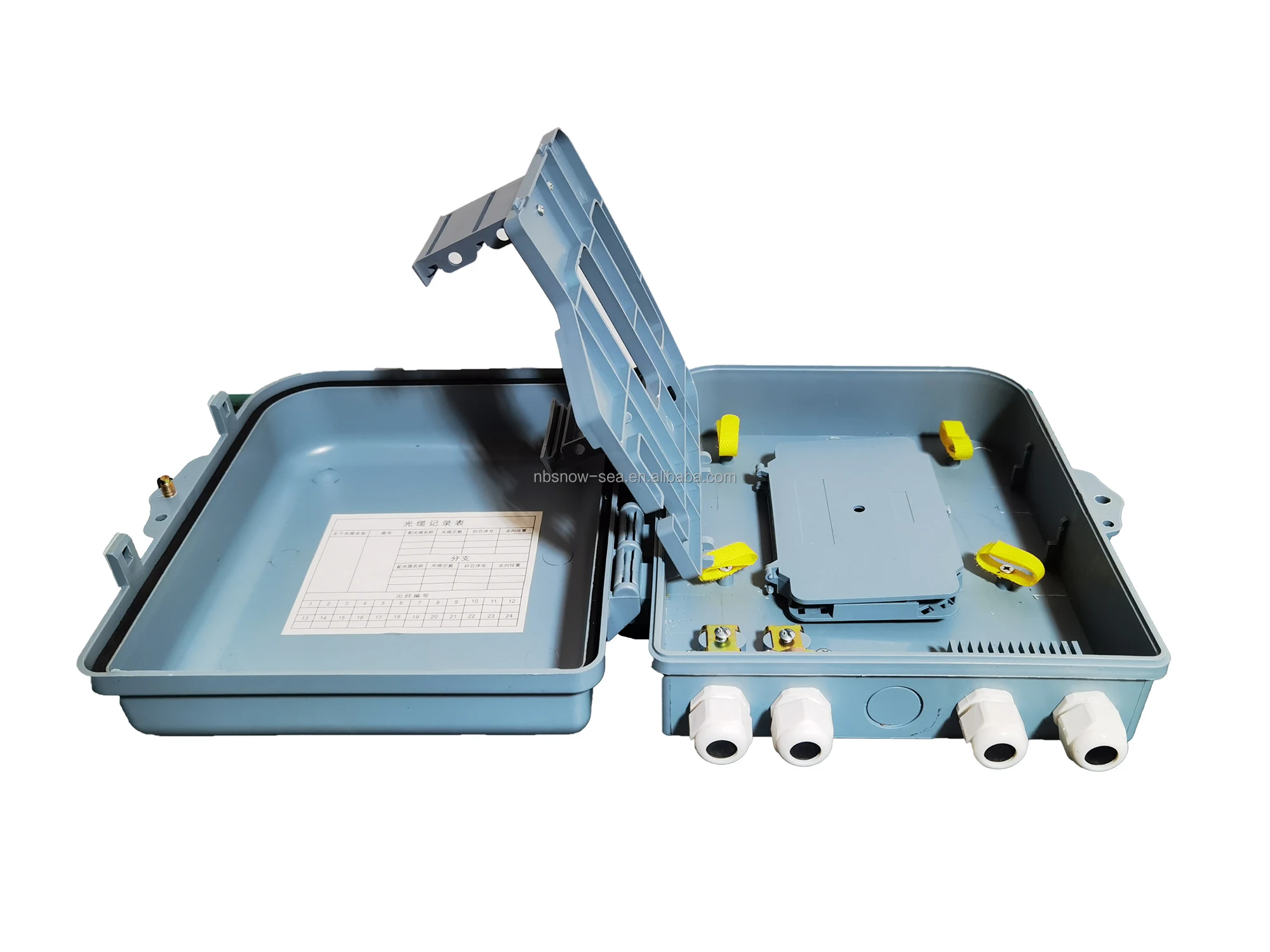

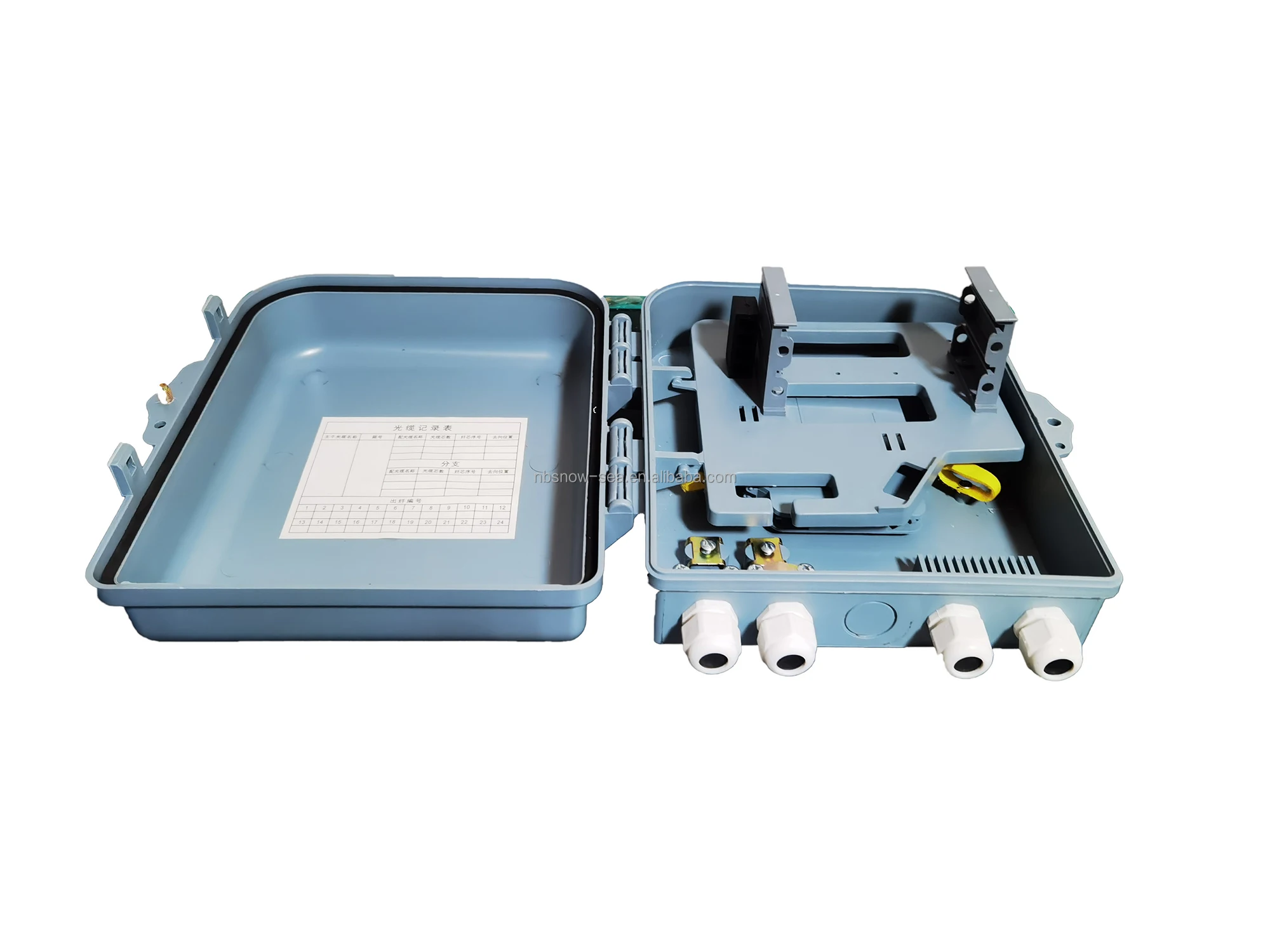

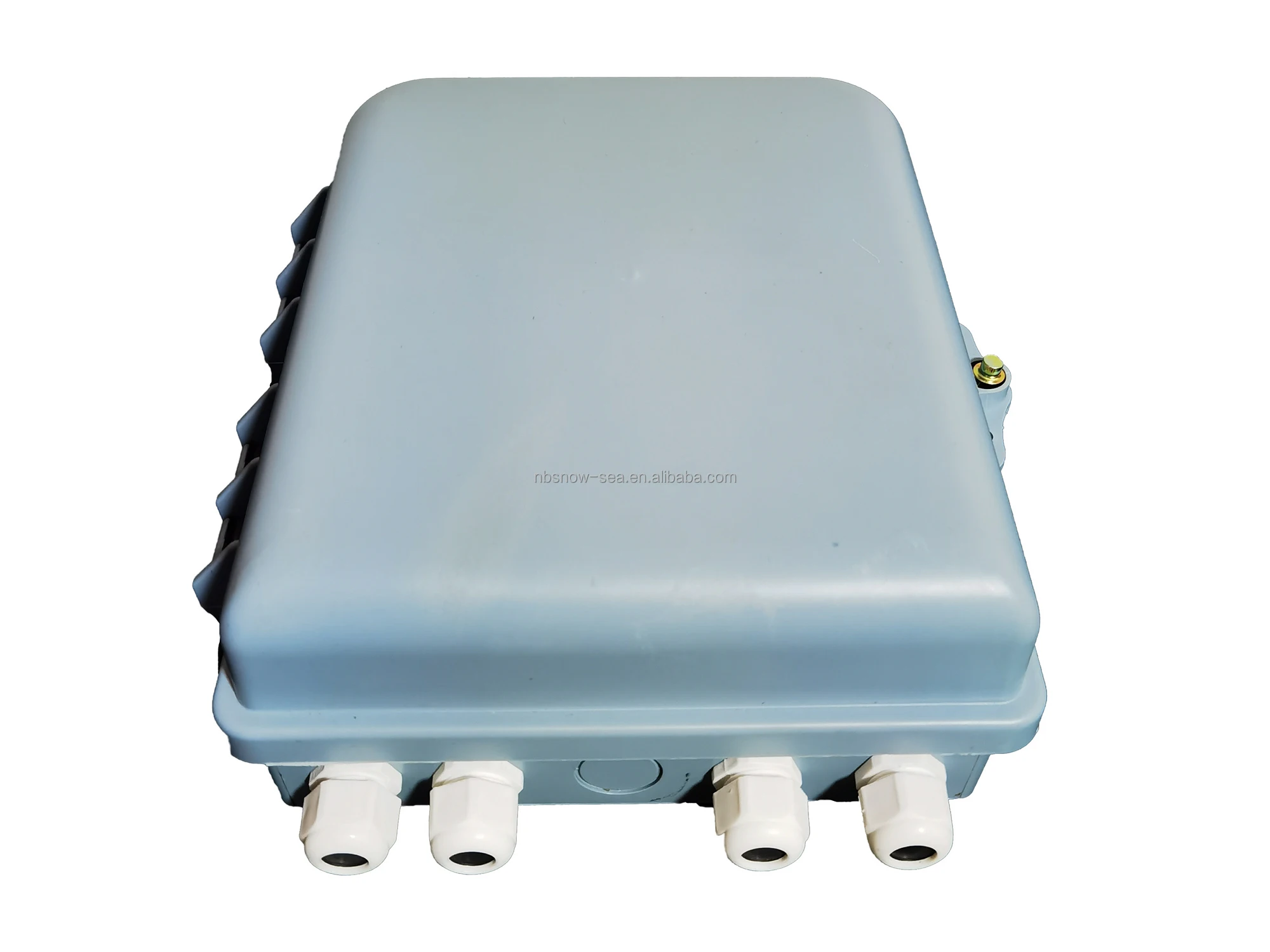

2 In 2 Out 16 Core Waterproof Optical Splitter Box for 1*16 Cassette Optical Splitter

Product Overview

Description

2 In 2 Out 16 Core Waterproof Optical Splitter Box for 1*16 Cassette Optical Splitter Box



Description

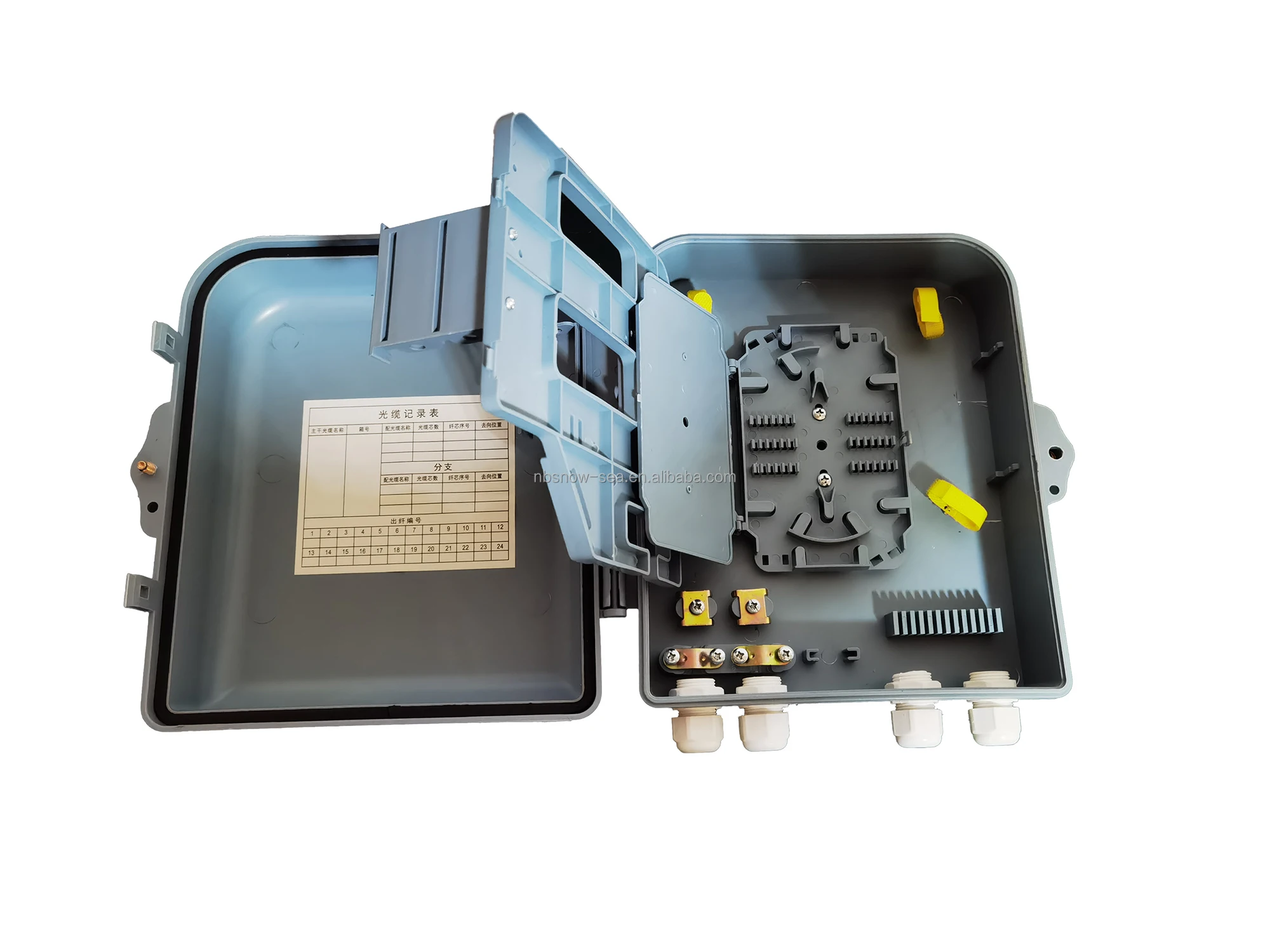

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTH communication network system. The fiber splicing, splitting and distribution can be done in this box, and in meanwhile, it provides solid protection and management for the FTTH network building.

Features

1. Total enclosed structure.

2. Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP55.

3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

4. Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.

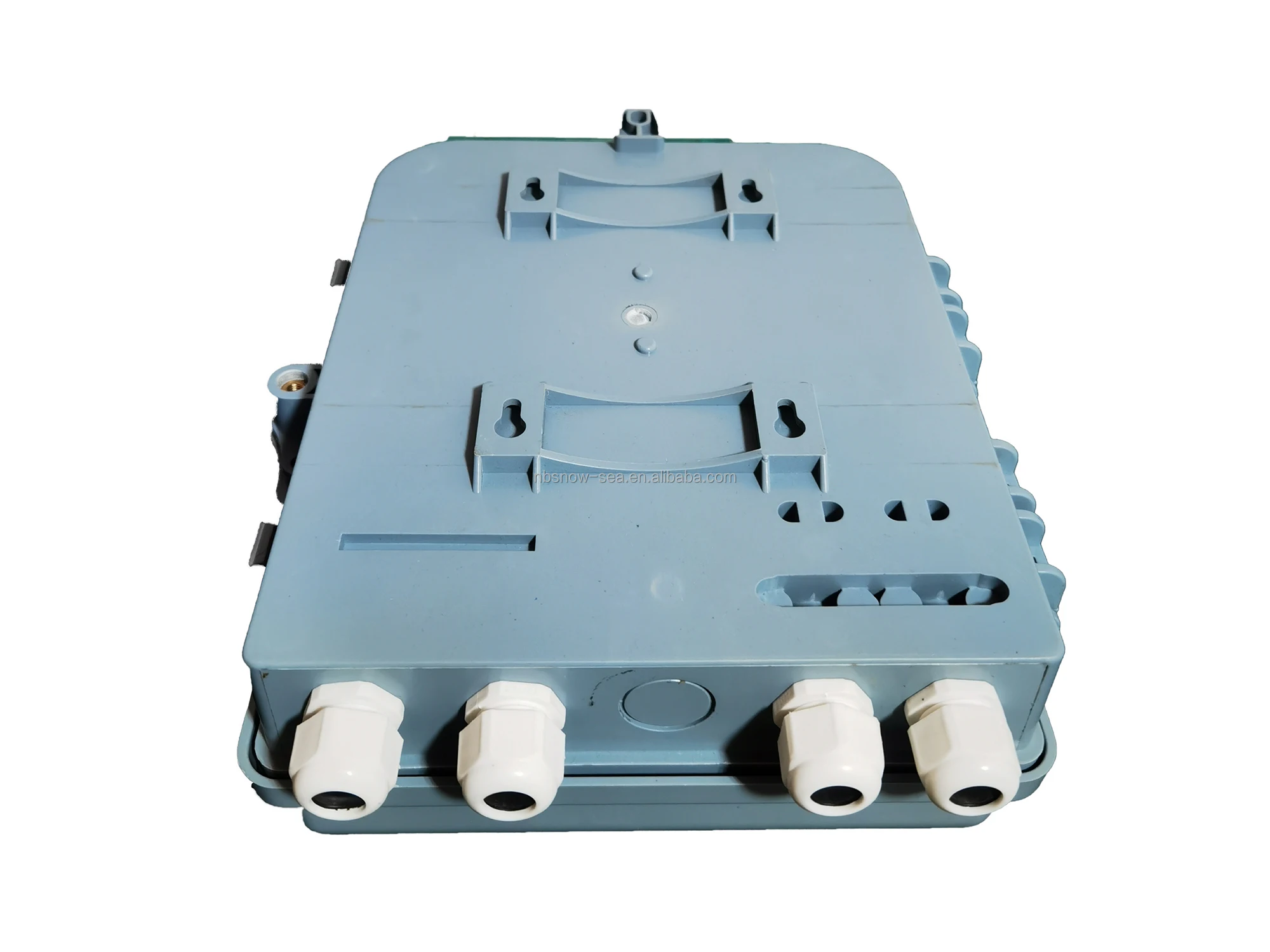

5. Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
6. The high strength plastic, anti-ultraviolet radiation and ultraviolet radiation resistant, resistant to rain;
7. For indoor and outdoor wall mounted or pole mounted.

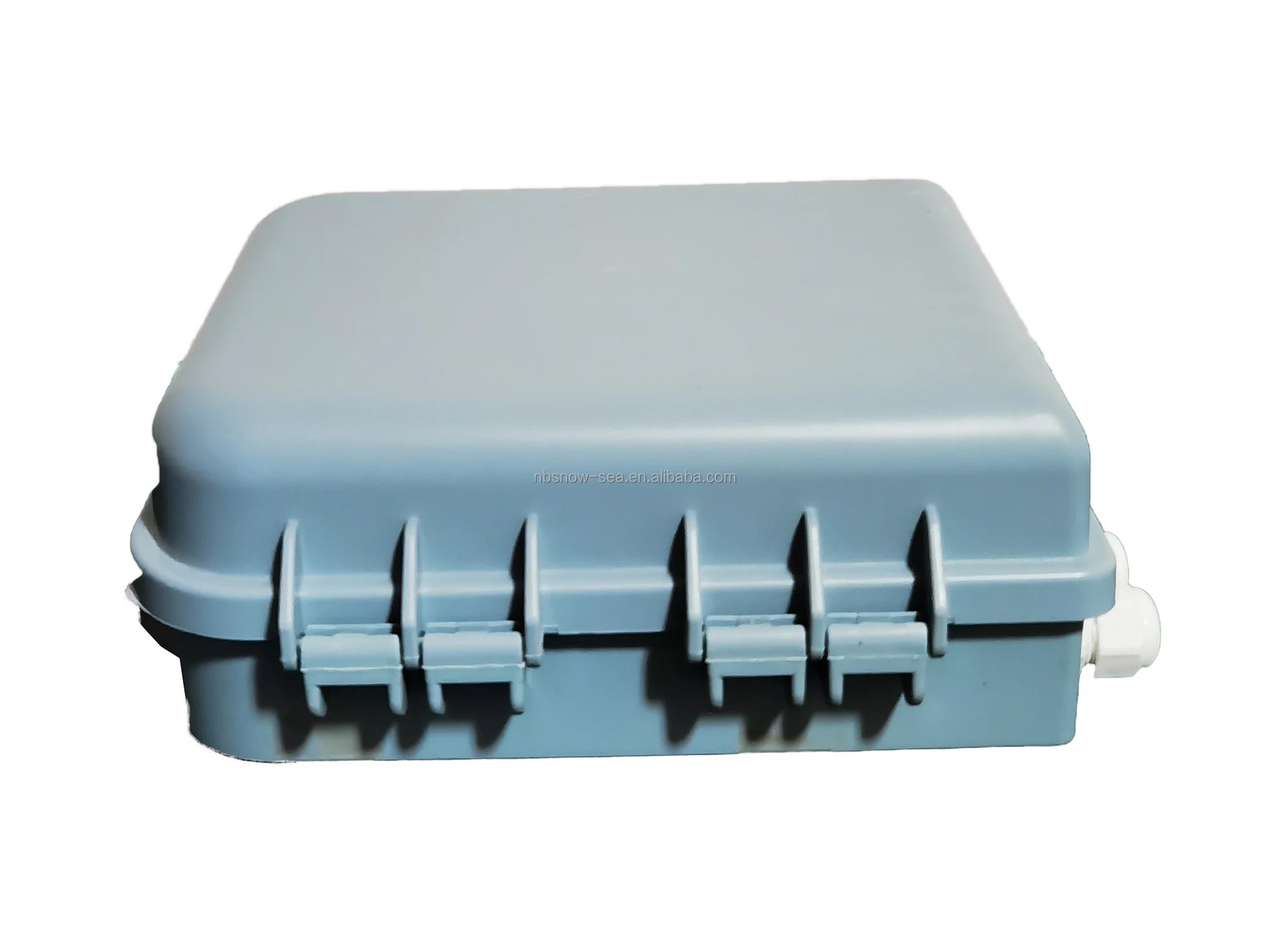

8. Box of body use "lock type" structure: Box of body switching of simple, convenient, with a lock function

9. Lateral pressure-resistance: 500N
10. Shock-resistance: 750N
12. Working temperature: -40 ~ +80℃

Specification

Product Name	16 Cores Optical Splitter Box
Application	Wall-mounted indoor, Pole-mounted outdoor

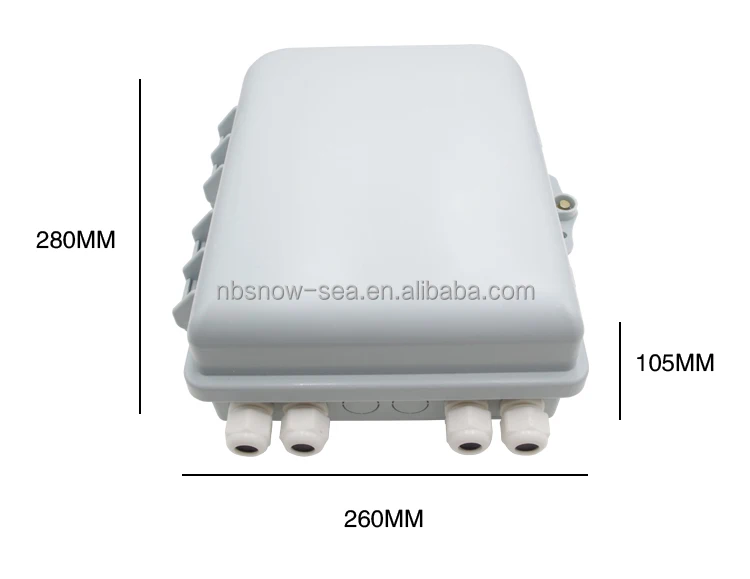

Dimension	280*260*105mm (Length/Width/Height)
Weight	0.8kg
Splitter Capacity	It can internally installed 1pcs 1*16 or 2pcs 1*8 LGX cassette type PLC optical splitter
Product Material	High quality PC+ABS material

Application
Optical LAN & WAN & CATV
FTTH PON Networks
Broadband High-bit rate data transmission
Active device terminations and Testing instruments
Optical fiber communication networks
Optical Signal Distribution
