DIAOTU Small Desktop 20w 30w 50w 60w Laser Engraving Machine Metal Plastic Fiber Laser Marking Machine for Plastic Tag
- Category: >>>
- Supplier: Shanghai Diaotool Industrial Co. Ltd.
Share on (1600622017191):
Product Overview
Description
Product display
Application Material
Certifications
Specification

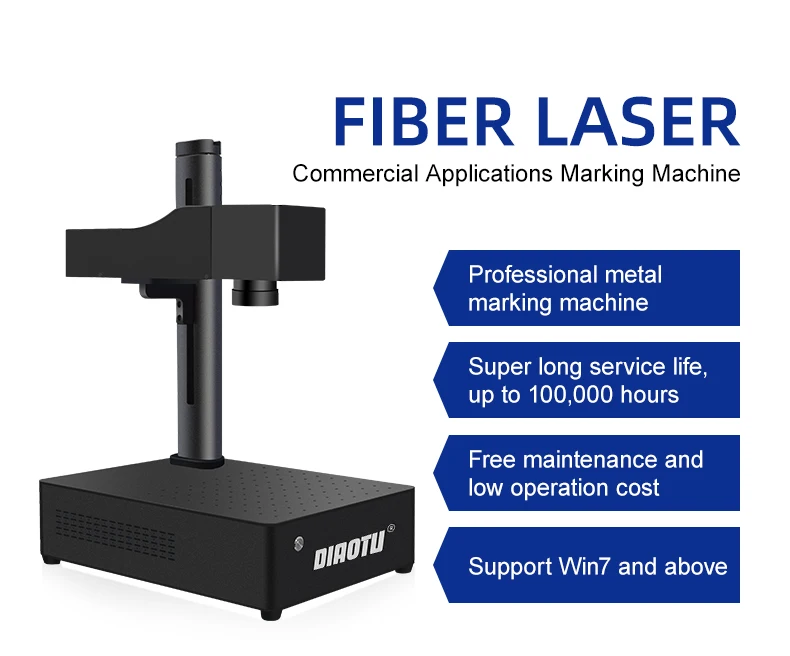

Portable Fiber Laser Marking Machine with JPT/MAX/RAYCUS Source
Fiber Laser Marking Machine is high performance fiber laser marking machine, It integrated advanced imported laser source and high quality galvo scanning system as one. It offers steady laser power output, perfect optical mode, good beam quality and fast marking speed, these advantages satisfied with customers demands towards perfect
effect and high efficiency, which can fulfil massive production.
> No Consumables, long life span Maintenance Free
The fiber laser source has super long life span of over 100,00 hours without any maintenance. No need to spare any extra consumer parts at all.
>Multi functional

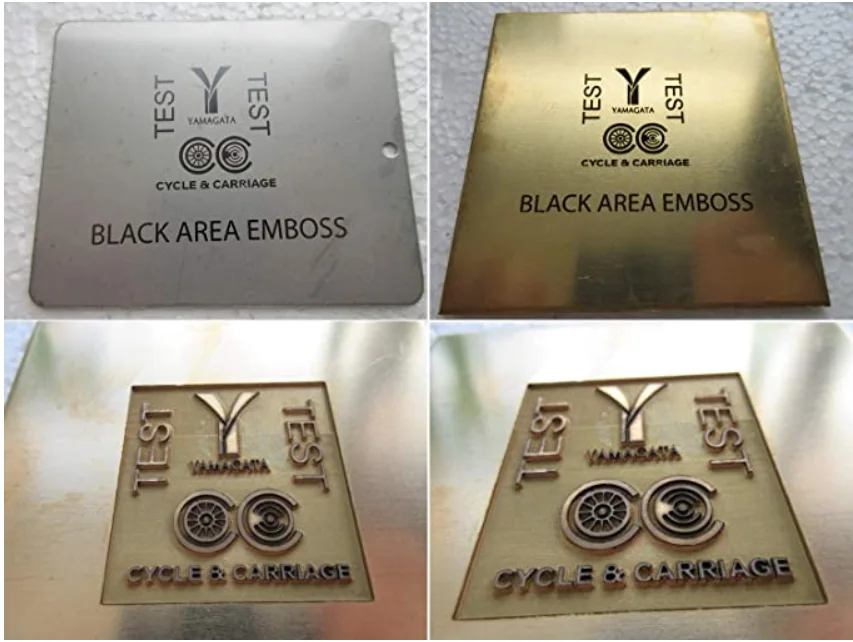

It could mark/code/engrave un-removable serials numbers, batch numbers,expiry info., best before date,logo&any characters that you want. It could also mark QR code.
>Simple Operation,Easy to use
Software supports almost all common formats,the operator does not have to understand programming, Just simply set a few parameters and click start.
>High Speed Laser Marking
The laser marking speed is vert fast,3-5 times than the traditional marking machine.

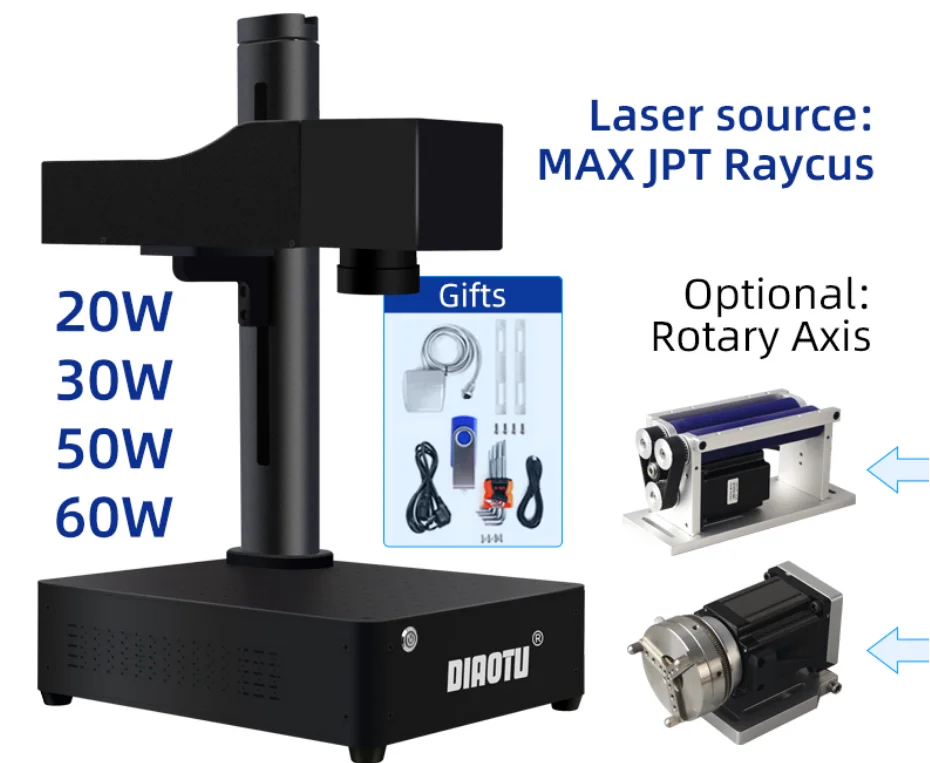

>Optional rotary axis for different cylindrical
Optional rotary axis can be used to mark on different cylindrical,spherical objects. The stepper motor is used for digital
control,and the speed can be automatically controlled by computer,which is more convenient,simple,safe and stable.
effect and high efficiency, which can fulfil massive production.
> No Consumables, long life span Maintenance Free
The fiber laser source has super long life span of over 100,00 hours without any maintenance. No need to spare any extra consumer parts at all.
>Multi functional
It could mark/code/engrave un-removable serials numbers, batch numbers,expiry info., best before date,logo&any characters that you want. It could also mark QR code.
>Simple Operation,Easy to use
Software supports almost all common formats,the operator does not have to understand programming, Just simply set a few parameters and click start.
>High Speed Laser Marking
The laser marking speed is vert fast,3-5 times than the traditional marking machine.
>Optional rotary axis for different cylindrical
Optional rotary axis can be used to mark on different cylindrical,spherical objects. The stepper motor is used for digital
control,and the speed can be automatically controlled by computer,which is more convenient,simple,safe and stable.
Production Name | Fiber Laser Marking Machine | ||||||
Power | 20w | 30W | 50W | 60W | |||
Laser source | Max/ Raycus /JPT MOPA | ||||||
Laser Wavelength | 1064um | ||||||
Beam quality | M2＜1.4 | ||||||
Repeat Accuracy | 0.001mm | ||||||
Min. line width | 0.01mm | ||||||
Min. character | 0.5mm | ||||||
Marking Speed | 0-12000mm/s | ||||||
Electric power | <500W | ||||||
Cutting Depth | 0.2mm | 0.4mm | 0.7mm | 1mm | |||
Galvano scanner | Sino | ||||||
Lens | Hansel | ||||||
Power Supply | Fengchuang | ||||||

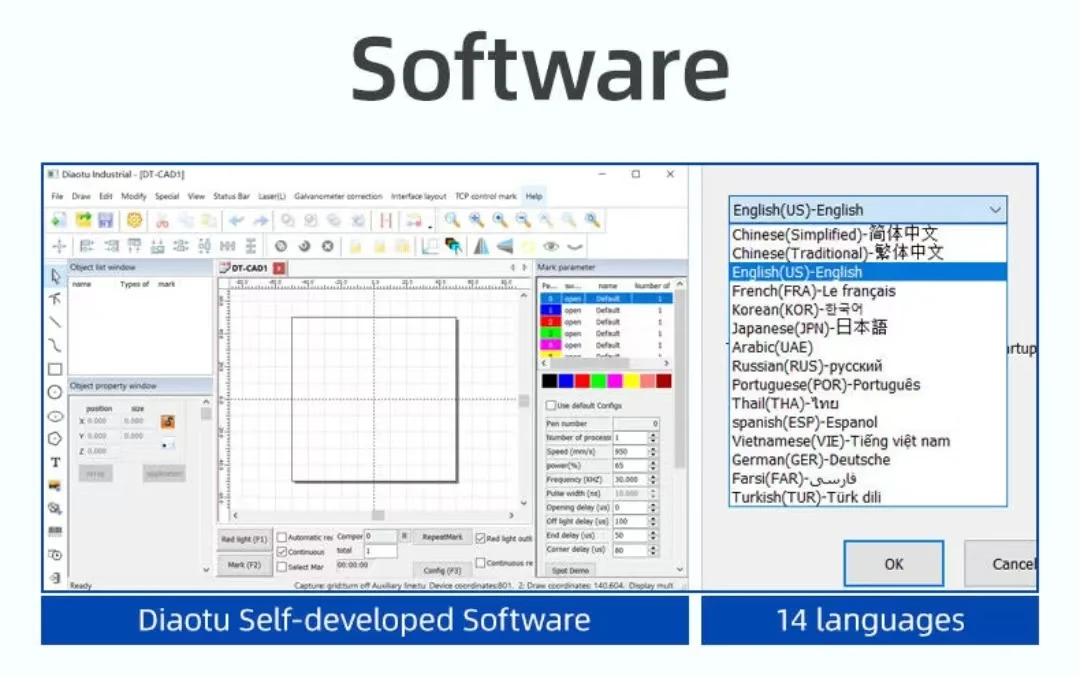

Controller software | DTCAD with 14 languages or EZCAD | ||||||
Working voltage | 110/220V ± 10%, 50/60HZ | ||||||
Graphic Format Supported | AI, PLT, DXF, BMP, Dst | ||||||
Marking Area | 7*7cm, 11*11cm, 15*15cm，20*20cm，30*30cm | ||||||
Cooling type | Air cooling | ||||||

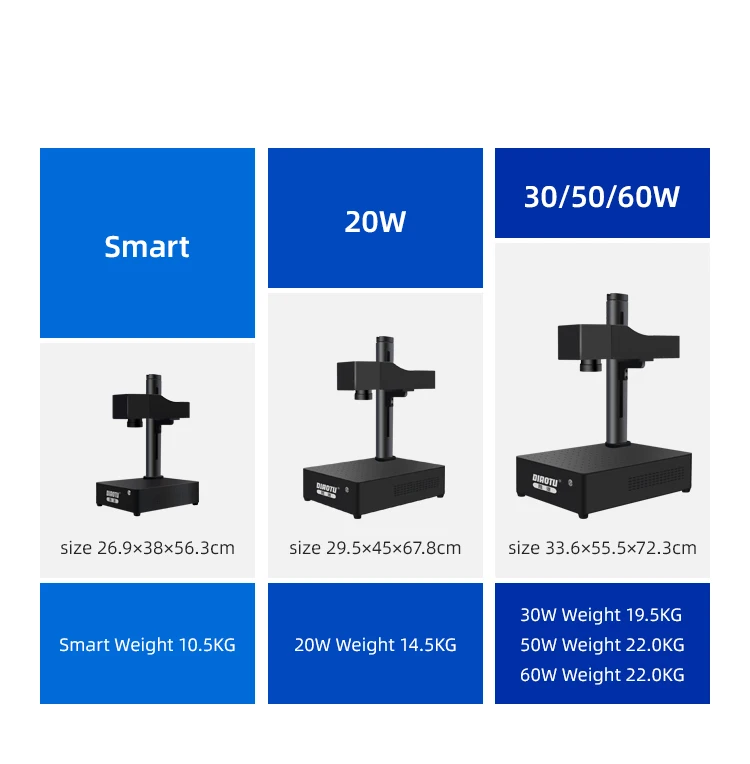

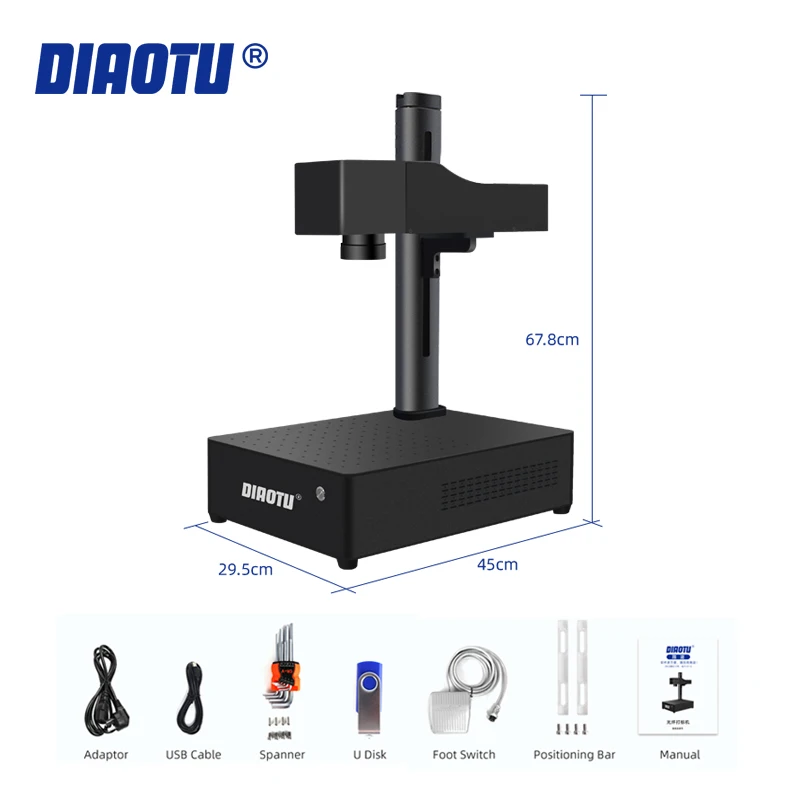

Machine size | 30*45*68cm | 34*56*72cm | |||||
Net weight | 14.5kg | 19.5kg | 22kg | 22kg | |||
Warranty | 2 years for machine,2 year for laser source | ||||||
Laser source liftime | 100，000 hours | ||||||

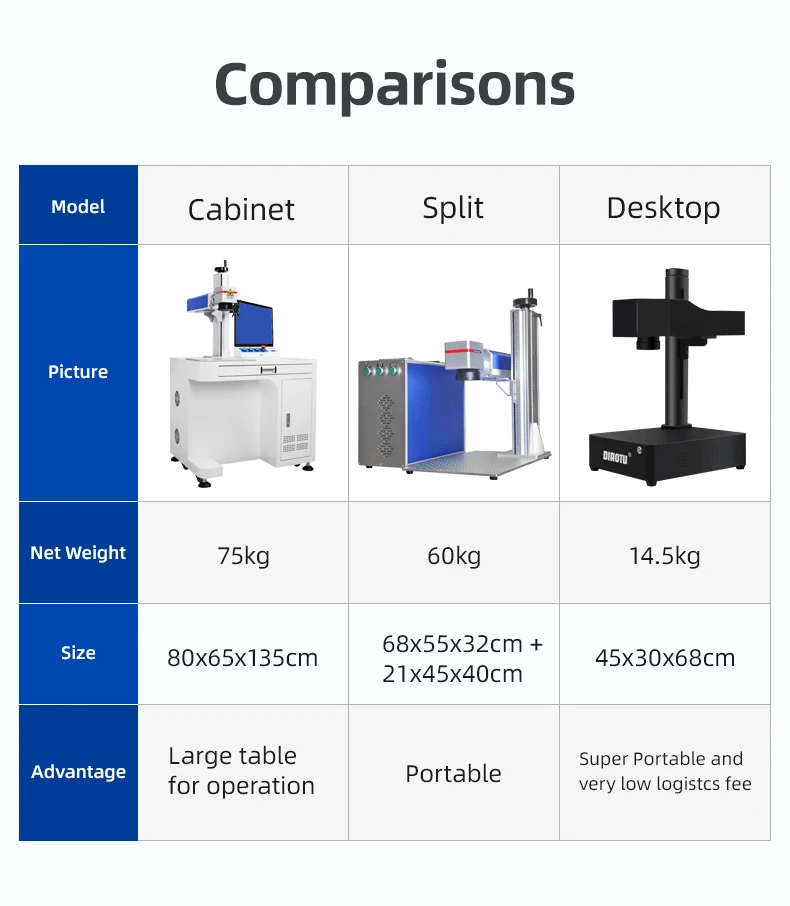

Recommend Products
Click the picture if you want to buy Model Cabinet
Click the picture if you want to buy Model Split
Company Profile
FAQ
Q: Does this machine need to be assembled when I received it?
A: Yes, our product is divided into three parts when it is packaged. You only need 5 minutes to install a few screws to assemble it.
Q: Are there software and instructions when I receive it?
A: Yes, we provide the manual in English and software in a U disk. The software is in 14 languages
Q: When I receive it, how to let it work?
A: The majority of customers are able to operate the machine following the instruction manual. However, we still provide professional guidance remotely.
Q: Are you a factory or a trading company?
A: We are a team integrated with production and trade department. And we have 10 years of business experience in laser industry supplying reliable products.
Q: What's the laser's lifetime?
A:Our laser can work for more than 4 or 5 years.
Q: How long is warranty?
A: Warranty is 2 years for the laser source.
Wanna more details, just feel free to contact us：
Email: nancy@diaotool.com
A: Yes, our product is divided into three parts when it is packaged. You only need 5 minutes to install a few screws to assemble it.
Q: Are there software and instructions when I receive it?
A: Yes, we provide the manual in English and software in a U disk. The software is in 14 languages
Q: When I receive it, how to let it work?
A: The majority of customers are able to operate the machine following the instruction manual. However, we still provide professional guidance remotely.
Q: Are you a factory or a trading company?
A: We are a team integrated with production and trade department. And we have 10 years of business experience in laser industry supplying reliable products.
Q: What's the laser's lifetime?
A:Our laser can work for more than 4 or 5 years.
Q: How long is warranty?
A: Warranty is 2 years for the laser source.
Wanna more details, just feel free to contact us：
Email: nancy@diaotool.com
Tel：+86 13341997111
