1. Surperior mechanical properties and chemical resistance at elevated temperature.
2. High heat distortion temperature
3. With excellent fatique resistance.
4. Suitable for more aggressive corrossive applications.
5. Lower casting color
HIGH TEMPERATURE NOVOLAC RESIN SWANCOR 907 CHEMPULSE
- Category: >>>
- Supplier: Zhongtritium (changzhou) Technology Co. Ltd.
Share on (1600622200503):
Product Overview
Description
Product description
Product description
Novolac Epoxy Vinyl Ester Resins
1. Surperior mechanical properties and chemical resistance at elevated temperature.
2. High heat distortion temperature
3. With excellent fatique resistance.
4. Suitable for more aggressive corrossive applications.

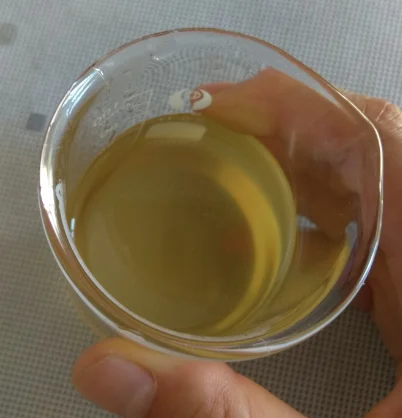

Product appearance
Product appearance

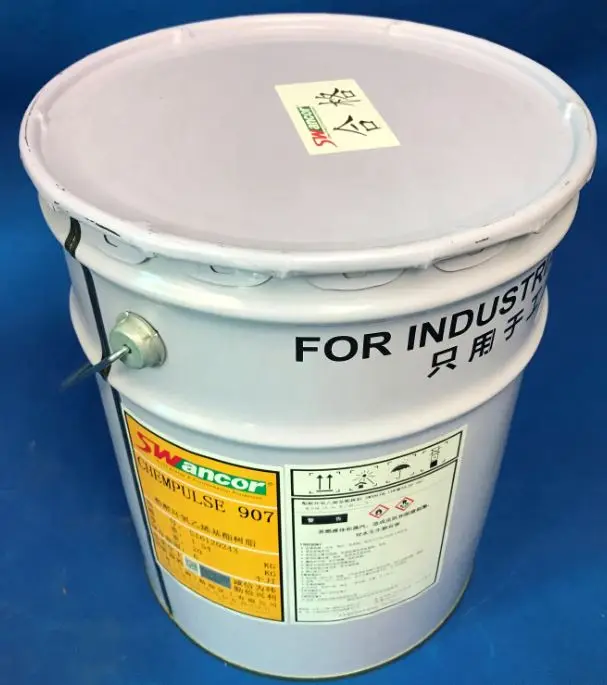

Appearance

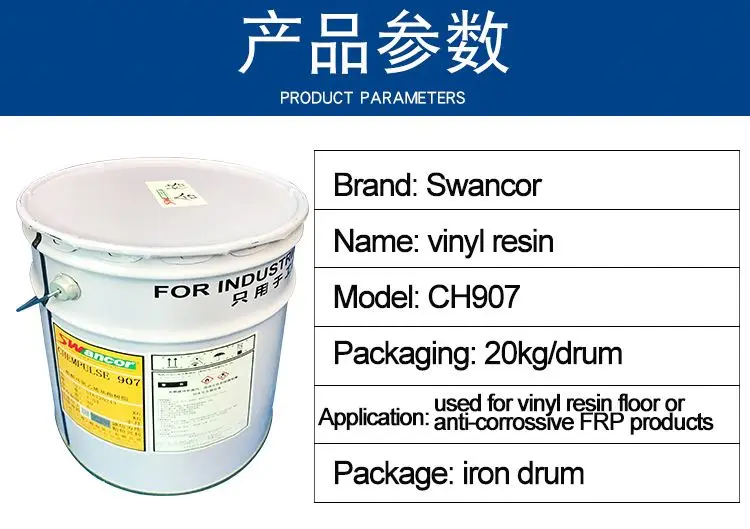

20KG/DRUM PACKAGE
Polyester resin casting body property
Polyester resin casting body property
Appearance | light yellow transparent liquid |
Density | 1.06±0.02kg/L |
Viscosity | 430±150 cps (LVT#3-60rpm/25℃) |
Solid content | 62±1.5% |
Gel time | 15-25min (55%MEKPO:1.2%,6% cobalt Octoate 0.4%,100%DMA:0.05%,temperature:25℃ water bath) |
Storage period | 4 month(below 25℃) |
Product data sheet
Product data sheet
Item | Data | Test method |
Tensile strength | 76-90MPa | ASTM D 638 |
Tensile modulus | 3.4-3.7GPa | ASTM D 638 |
Elongation | 2.5-4.0% | ASTM D 638 |
Bending strength | 124-145MPa | ASTM D 790 |
Bending modulus | 3.7-4.1GPa | ASTM D 638 |
Distortion temperature | 144-150℃ | ASTM D 638 |
Hardness | 40-46 Barcol | ASTM D 2583 |
Application
Application

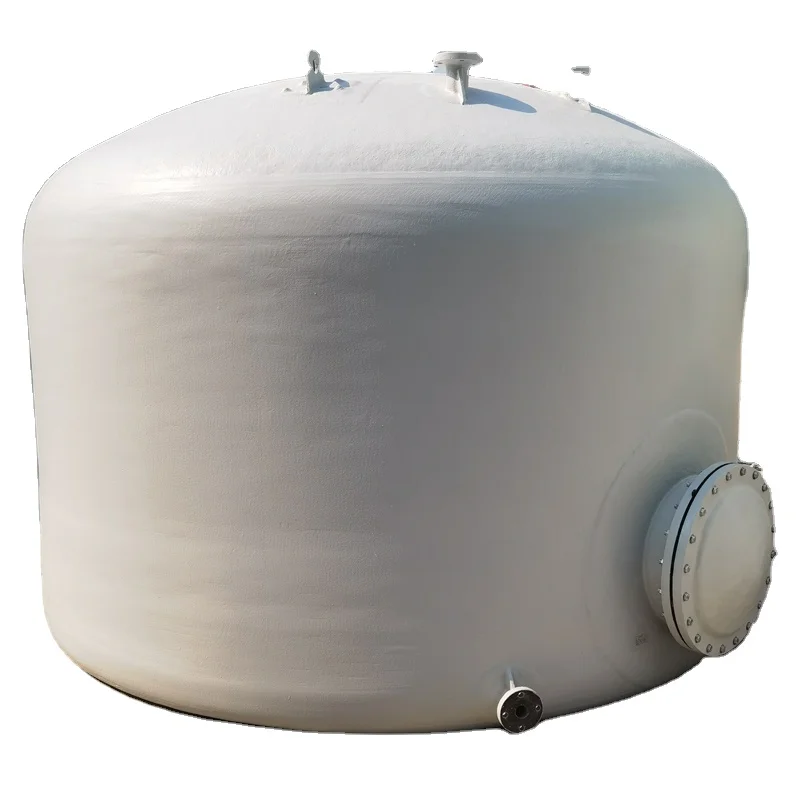

hydrochloric acid (HCL ) storage tank
Chemical: 31% HCL , temperature 60℃ Vinyl resin used : SWANCOR CHEMPULSE 907
Manufacturing process: spray up lining
SWANCOR 907 application
SWANCOR 907 series products are phenolic epoxy vinyl ester resins with high crosslinking density and good heat resistance (The
heat distortion temperature can reach 150 ℃ or even higher), especially for chlorine-containing solutions or organic solvents. It
can be used in some occasions where the temperature is relatively high, such as the preparation of high-temperature flue and smoke
pipe, and in the chlor-alkali industry, papermaking Industry, oil and gas storage, electroplating industry, metal smelting
industry, etc. are also widely used.
heat distortion temperature can reach 150 ℃ or even higher), especially for chlorine-containing solutions or organic solvents. It
can be used in some occasions where the temperature is relatively high, such as the preparation of high-temperature flue and smoke
pipe, and in the chlor-alkali industry, papermaking Industry, oil and gas storage, electroplating industry, metal smelting
industry, etc. are also widely used.

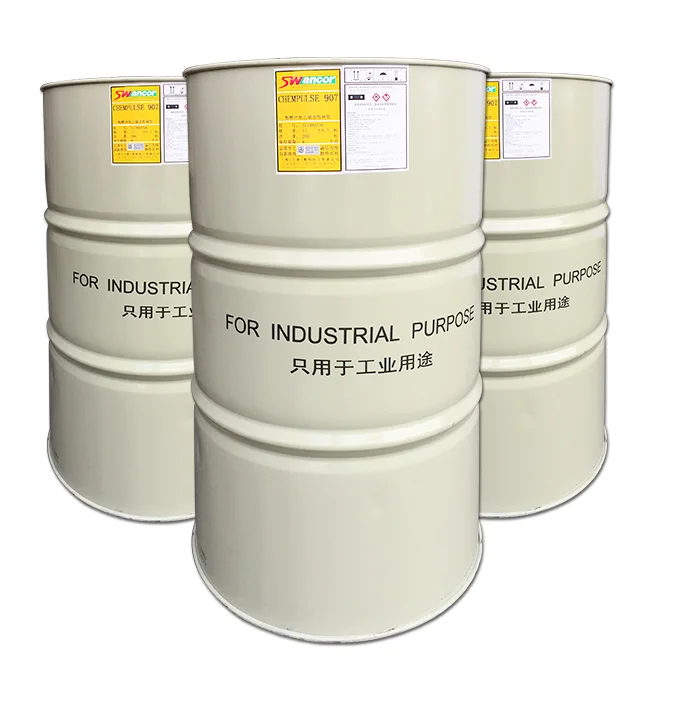

Package
Package

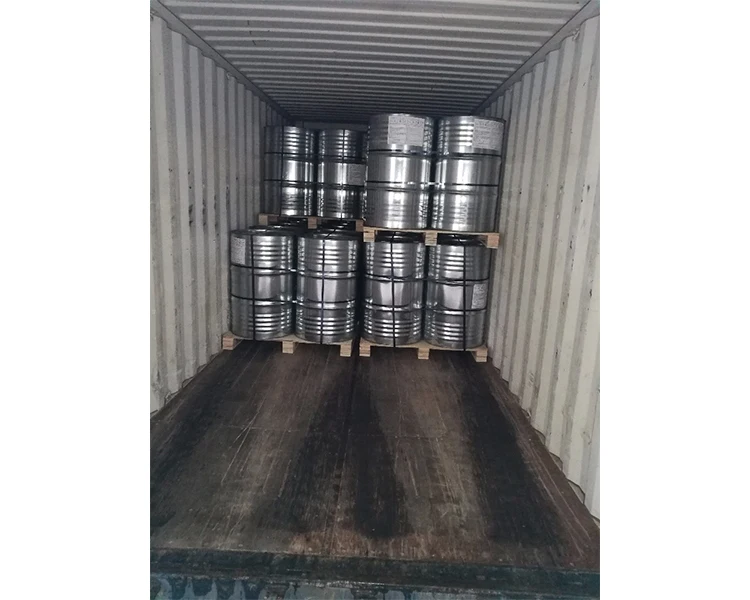

220kg/drum , 80 drums/20GP, 17.6tons/20GP

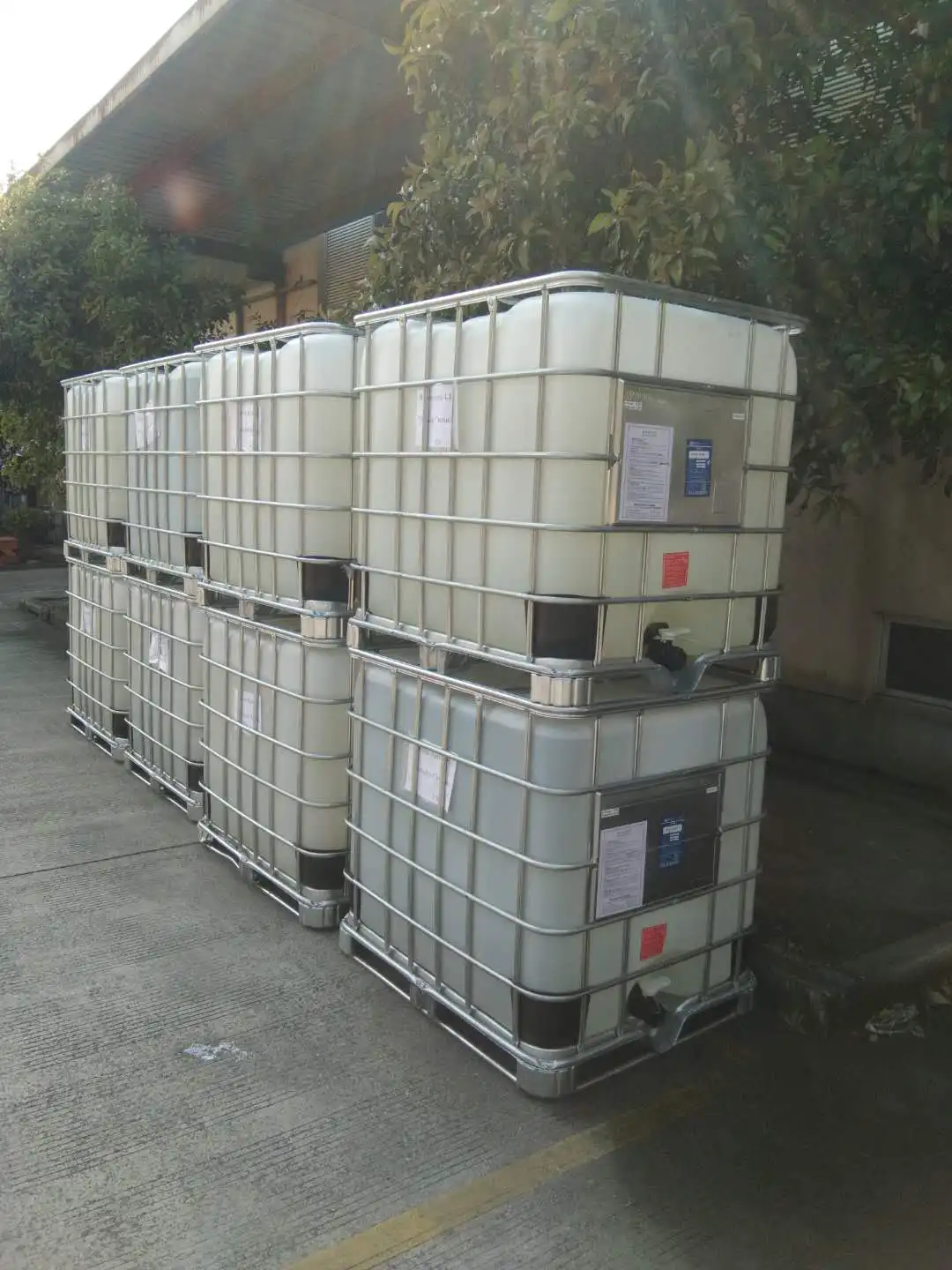

1000kg/IBC, 20 IBC/20gp , 20 tons/20GP

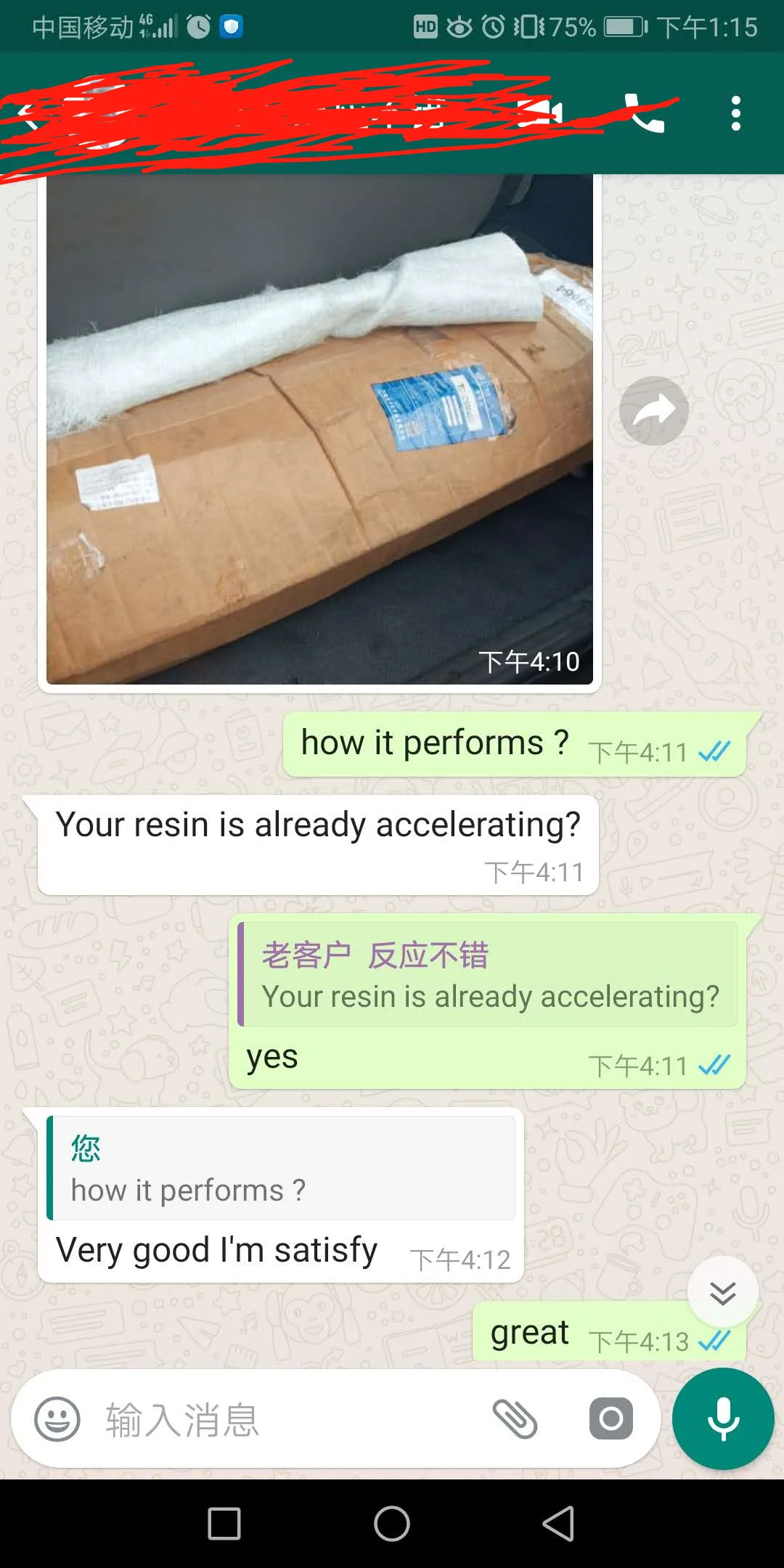

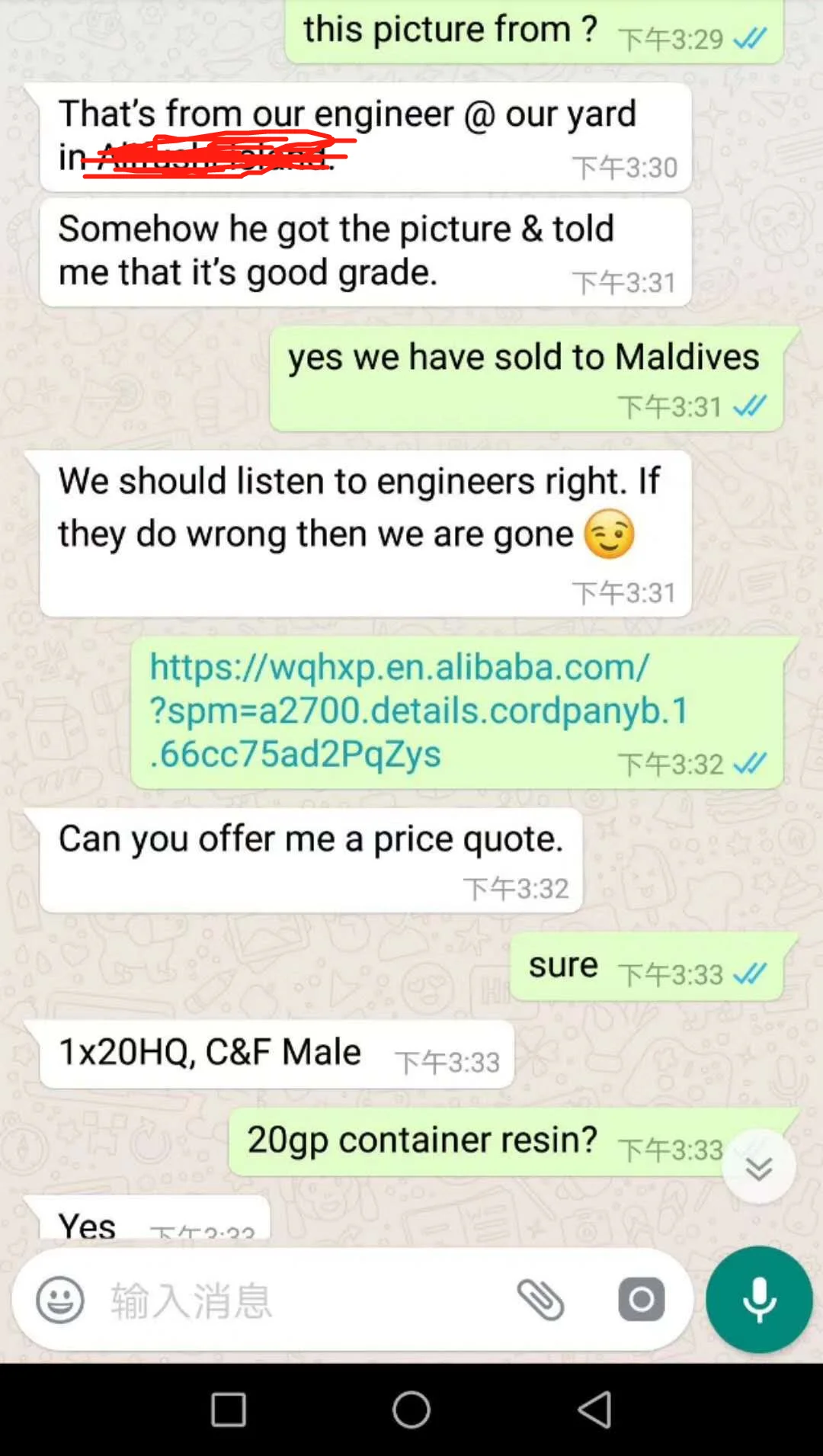

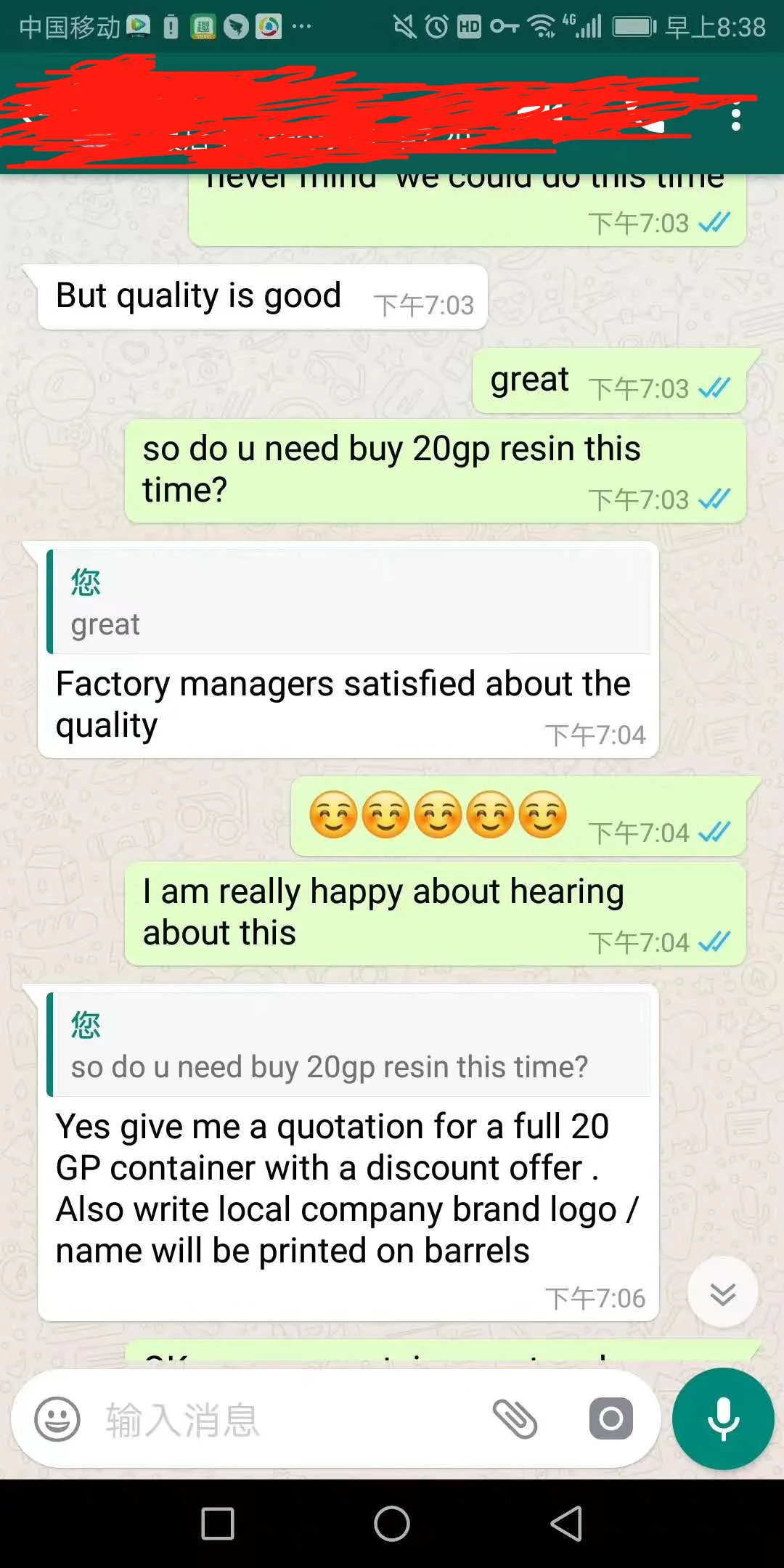

Feed back from customers
