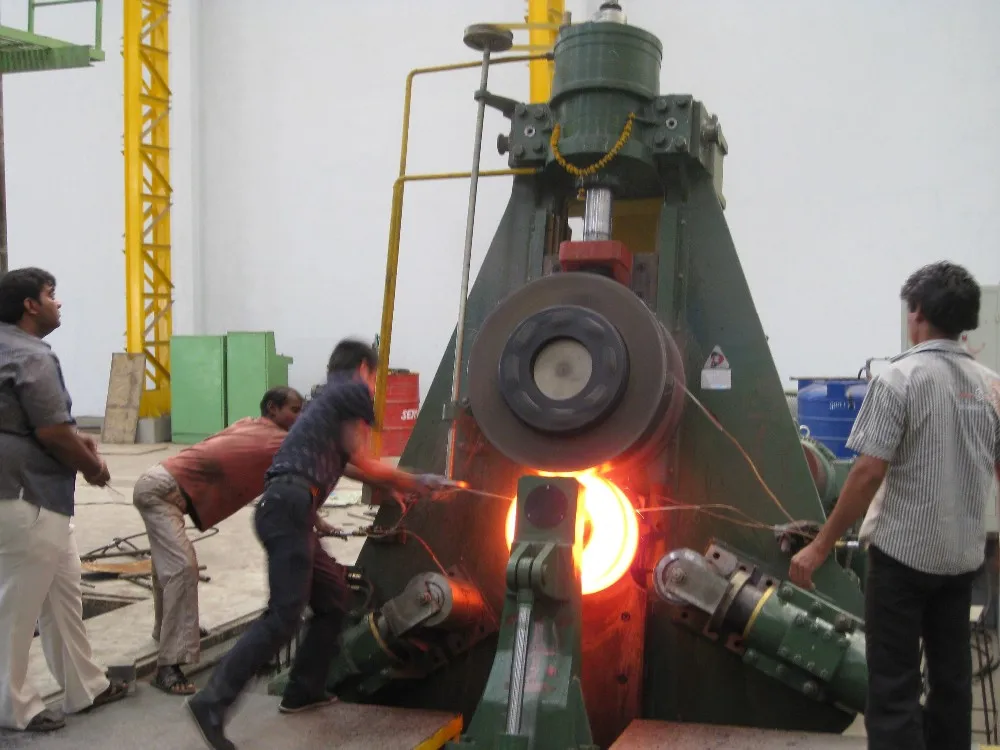

automatic High speed flange ring making machine

Product Overview

Description

                  automatic High speed  flange ring  making machine

















Compared with open die forging, Pipe flange making machine has advantages as follow:

1.High efficiency.It is 3-4 times than open die forging,the yield is dozens of times.Large,middle,small scale circular forgings can be machined.
2.High material utilization.high dimension precision,forging tolerance is 1/3-1/4 time than open die forging.If adopt coining, the forging tolerance is down to 0.1-0.05 mini,save 30%-60% material,and machining time,reduce the cost,have good economic benefit.
3.The ring rolling forgings have smooth surface, using precision forging can replace machining.
4.Good product quality. Rolling of metal fiber ring continuously distributed in the circumferential direction , and the force and wear parts used to adapt. In most cases, the internal ring rolling dense , fine grain size , mechanical properties significantly higher than other methods for processing the ring
5.It can machine complicated shaped forgings.It is difficulty to realize in open die forging equipment.
6.Small equipment tonnage,large processing range.Ring Rolling partial pressure forming process is a continuous accumulation of small deformation , small contact area between the work piece and the mold, so a small force needed to deform , small equipment tonnage.

Item		unit	D51-160E	D51-250D	D51-250E	D51-350D	D51-350E	D51-400E	D51-500E	D51-630E	D51-800E	D51-1000E
Ring size	OD	mm	200	250	300	350	350	400	500	630	800	1000
	thickness	mm	70	50	120	85	200	200	200	200,250	200,350	200,350
Max productivity		pcs/h	600	500	240	200	120	100	90	80	60	50
Nominal pressure of cylinder		kg	11300	9800	19600	15500	30000	30000	32000	32000	38000	38000/42000
slide stroke		mm	70	110	110	130	130/250	130/250	130/250	350	350	350
rolling line speed		m/sec	1.64	2.1	1.63	2.2	1.45	1.45	1.5	1.47	1.5	1.5
Main shaft speed		mm	92	80	62.3	62	41	40	40	38	38	38
OD of rolling wheel		mm	360-380	500-520	500-520	680-700	680-700	700-720	700-720	700-720	760-820	760-820
Main power		KW	30	37	55	75	90	90	90	90/110	110/132	110/132





Anyang Forging Press (Group) Machinery Industry Co., Ltd company is the biggest and the best manufacturer of forging equipment and forging auxiliary machines in China. Besides, we also specialized in manufacturing hydraulic briquette presses, baling presses for metal scrap processing and Hydraulic Riveting Machines in truck/bus chassis riveting field. Our company now covers an area of about 80 acres. We have 1600 staff members, among whom there are 210 technicians. Our workshops have more than 300 sets of excellent manufacturing equipment. Our company has small part machining workshops, large part machining workshops, heat treatment workshops, riveting and forging workshops, assembly workshops and so on 16 departments.

Our main products include CNC Hydraulic Die Forging Hammer, Electro-Hydraulic Open Die Forging Hammers, Electro-Hydraulic Die Forging Hammers, Hydraulic Open Die Forging Press, blacksmith power forging hammer, , Steel Ball Skew Rolling Mill Machine, Metal Cutting Machine, Forging Manipulators, Forging Chargers, Ring Rolling Machines, Hydraulic Briquette Presses, Hydraulic Baling Presses and Hydraulic Riveting Machines.

Our products have been exported to USA, Canada, Mexico, Brazil, Chile, UK, Germany, France, Italy, Norway, Romania, Russia, Slovenia, Burma, India, Pakistan, Egypt, South Africa etc., totally more than 60 countries and regions. Our company is located in Anyang City, Henan Province, China.
