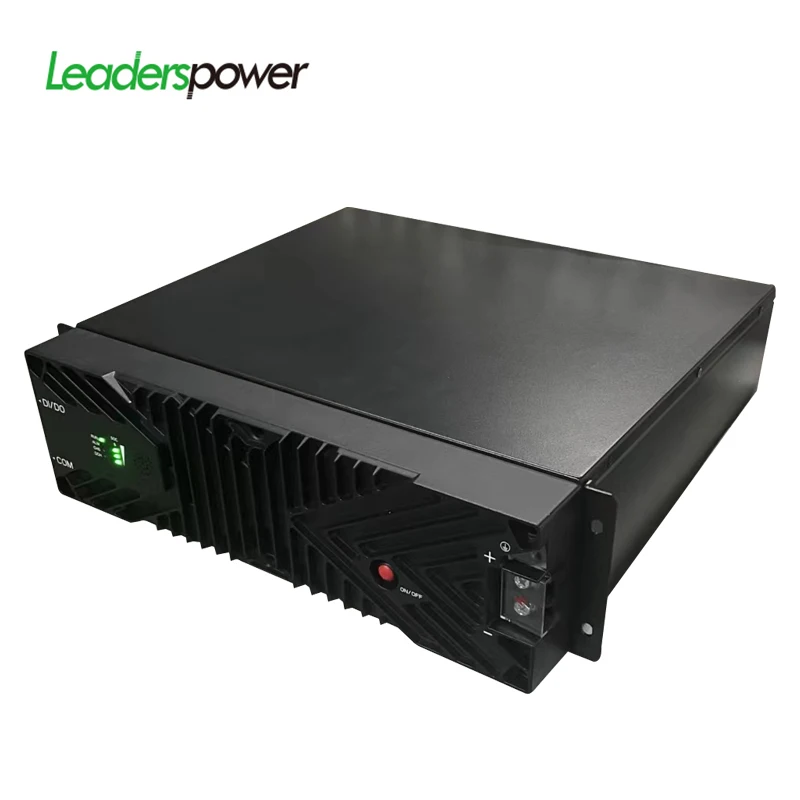

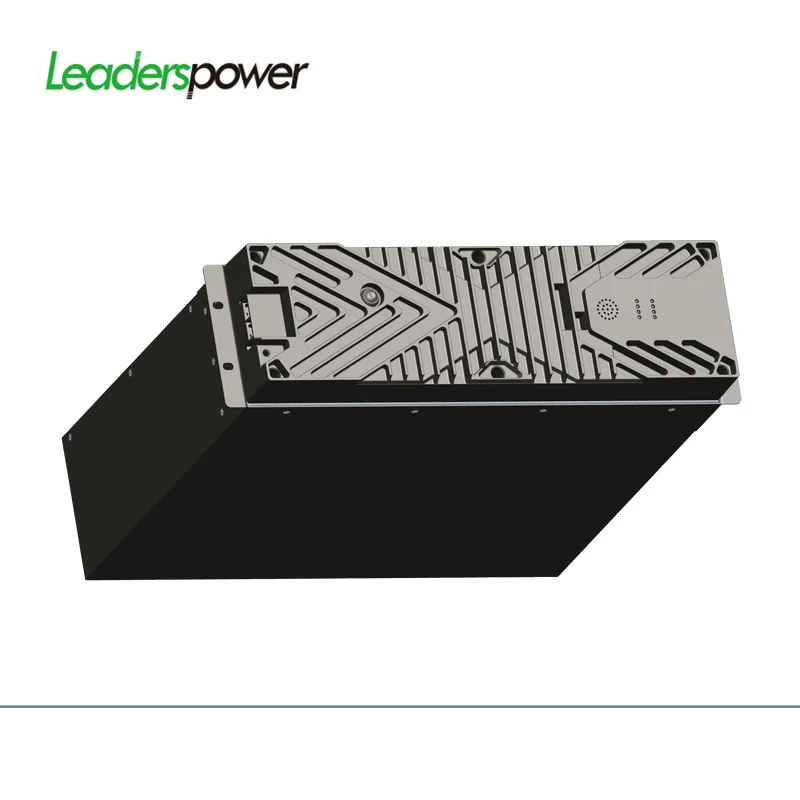

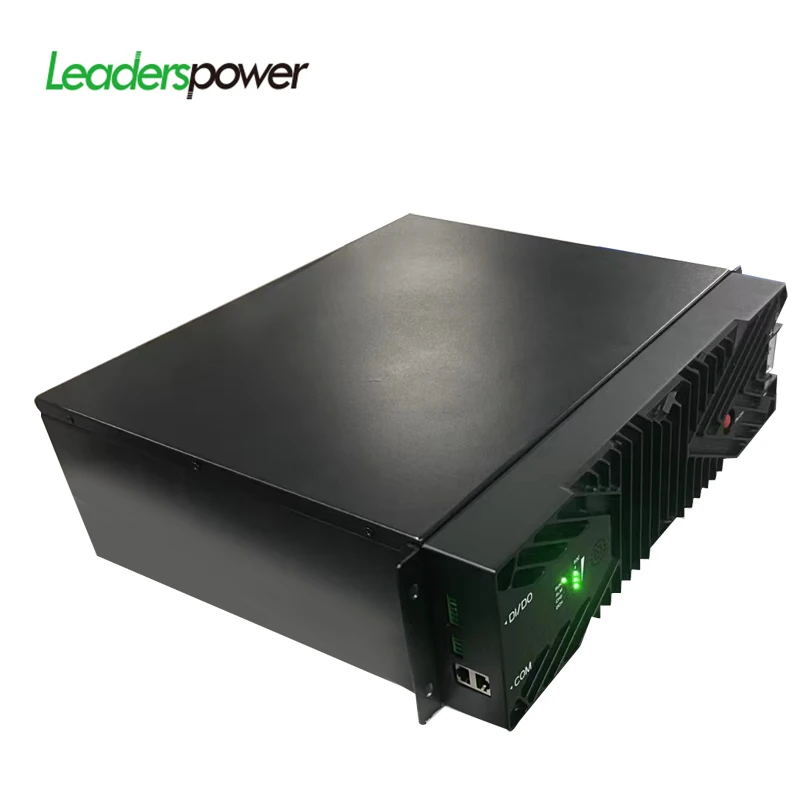

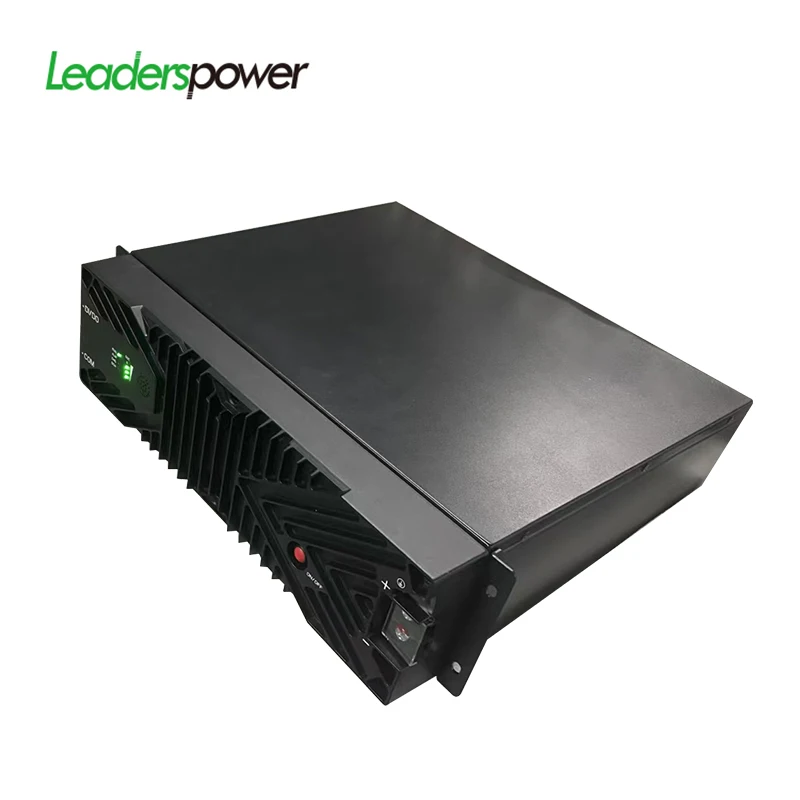

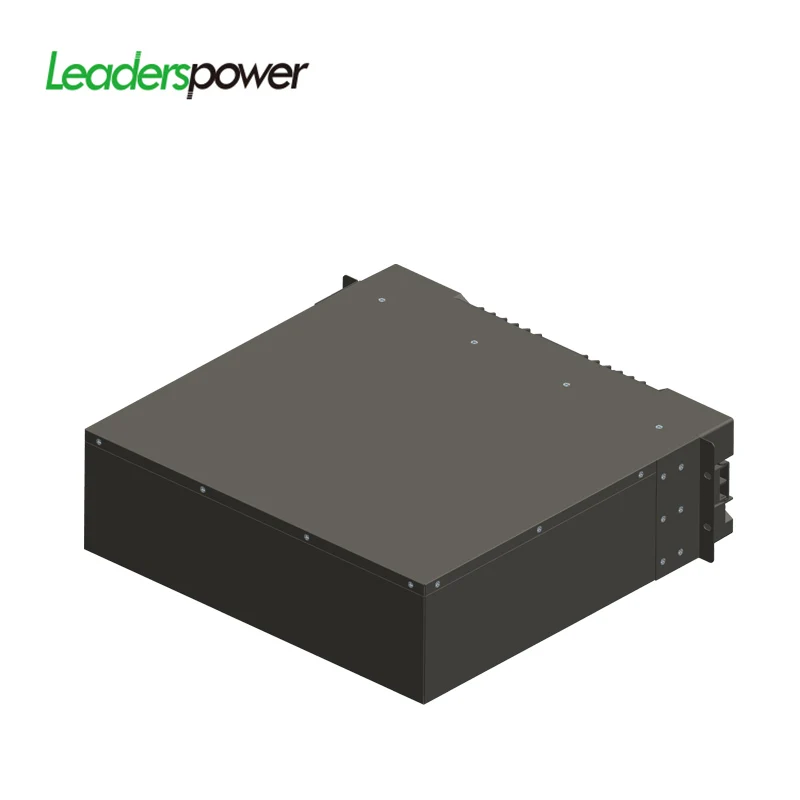

Lithium Ion solar battery 48v 52.1v 200mah solar storage lithium LiFePO4
- Category: >>>
- Supplier: Shenzhen Leaderspower Technology Co. Ltd.
Share on (1600622247774):
Product Overview
Description
Applications:
1.Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
2.Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
3.Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Electric bike / Electric Scooter / Electric bicycle
--LED Backup / Engine Starting Battery, etc
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
2.Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
3.Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Electric bike / Electric Scooter / Electric bicycle
--LED Backup / Engine Starting Battery, etc
Specification | ||||
Model | DRAPCK-B4850 | DRPACK-B48100 | ||
Rated Capacity | 50Ah | 100Ah | ||
Standard | 51.2V（16 strings） | |||
Chassis size (W*H*D) | 445*112*450（MM) | 445*132*480（MM) | ||
Chassis material | Q235 | |||
Waterproof level | IP30 | |||
Chargeable maximum voltage | 58.4V（3.65V/pcs） | |||
Dischargeable minimum voltage | 40V（2.5V/pcs） | |||
Standard charging current | 0.2C | |||
Maximum continuous charge current | 1C | |||
Standard discharge current | 0.2C | |||
Maximum continuous discharge current | 1C | |||
Cycle life | ≥2000 times | |||
Weight | About 25.0KG | About 45.0KG | ||
Discharge operating temperature range | `-20～+65℃ | |||
Storage temperature | `-20～+50℃（SOC：40%～60%） | |||
Relative humidity | 5～95%（No condensation, battery series work normally) | |||
Altitude | ＜3600m | |||
Shipment charge capacity | Half Electric (50%-60%) | |||
Communication port | RS 485 | |||
SOC LED light display | 4 LED green lights | |||
Running, warning LED light display | 1 LED green and 1 red | |||
Protective function | Overcharge protection, overdischarge protection, short circuit protection, temperature protection, charge overcurrent protection and discharge overcurrent protection | |||
Charge limited current | Start condition: ≥30A or temperature≤10℃ or temperature≥45℃ | |||
ShenZhen Leaderspower Technology Co., Ltd.
Shenzhen Leaderspower Technology Co., Ltd. is located in Shenzhen, China. We are a team of professionals with experience in selling home and outdoor PV products.
Leaderspower is committed to driving a new era of solar energy applications, entering home energy storage and outdoor energy storage markets. We have developed a detailed product plan and provide customers with one-stop service. Leaderspower's products won the global customers' trust because of the stable running and excellent perfomance, which is not only popular in China, but also North America, Europe Australia,Africa,Southeast Asia and other region.
Leaderspower is committed to driving a new era of solar energy applications, entering home energy storage and outdoor energy storage markets. We have developed a detailed product plan and provide customers with one-stop service. Leaderspower's products won the global customers' trust because of the stable running and excellent perfomance, which is not only popular in China, but also North America, Europe Australia,Africa,Southeast Asia and other region.
Q1: Are you manufacturer? |
A: Yes, we are professional brand manufacturer with many years experience. |
Q2: When can I get the quotation? |
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority. |
Q3: Can you do the design for us? |
A: Yes. We have a professional designing team provide free desing for you, just tell us your ideas and we will help to carry out your ideas into perfect products. It is also ok if you do not have the complete files. Send us high resolution images, we can design the layout you want,until you are satisfied. |
Q4: What is your terms of delivery? |
A: We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you. |
Q5: What kind of payment methods do you accept? |
A: Credit Card, Online Bank Payment, T/T, Boleto, Pay Later, Paypal, Wechat, Alipay and so on. |
Q6: Can I visit your company and factory in China? |
A: Sure. We are happy to receive you in Shenzhen, China and show you around our workplaces. |
