HFSecurity RA08T 8 inch lcd screen waterproof fingerprint sensor face recognition camera time attendance machine
- Category: >>>
- Supplier: Chongqing Huifan Technology Co. Ltd.
Share on (1600622261759):
Product Overview
Description
Product Description
Fingerprint Face Facial Biometric Access Control Products with Time Attendance Software(HF-RA08T)
1. None touch face recognition
2. Android touch screen, API/SDK for further development
3. Full metal for rugged installation
4. Ready software to use plugin and play
4. Ready software to use plugin and play
5. Different interfaces&Communication:
a. wifi, BLE, tcp/ip, 4G for option
b. USB, RS232, Wiegend, Relay(NO NC COM)
c. barcode, GPS, stand for options
Product Paramenters
Product Name | HF-RA08T Biometric Access Control |
Screen | 8inch |
Dimension | 234*125*24.5mm |
Net weight | 1.5kg |
Face Capacity | 20000faces, enough for most clients(Primary school, middle school, high school). 50000faces for optional, for university |
Logs | 1,000,000(auto override) |
Face Detection | Single, and Multi faces(5faces at most same time), save time when crowded |
Detecting Distance | 0-4 meters, adjustable |
Cameras | Binocular, RGB camera & Infrared camera, to reject photos&videos |
RGB & Infrared Camera | Progressive scan CMOS |
1600 × 1200 Resolution | |
62° Field angle | |
3.5mm Focal length | |
F2.8 Aperture | |
Support white balance | |
Support exposure | |
2.0 Mega Pixels resolution | |
Communication | TCP/IP, WIFI, 4G for option,embedded and full bands RS232, Wiegand in&out , |
Ruggedness | IP64, waterproof and dustproof, suitable for outdoor usage |
Voice volume | 0-10(default: 5) |
Lighting | 0-10(default: 5) |
Optional function | IC card QR code reader (Embedded in, below is photo ) |
Options for installation | Wall mounted Desktop bracket Turnstile type Floor stand Confirm which type you need when ordering. |

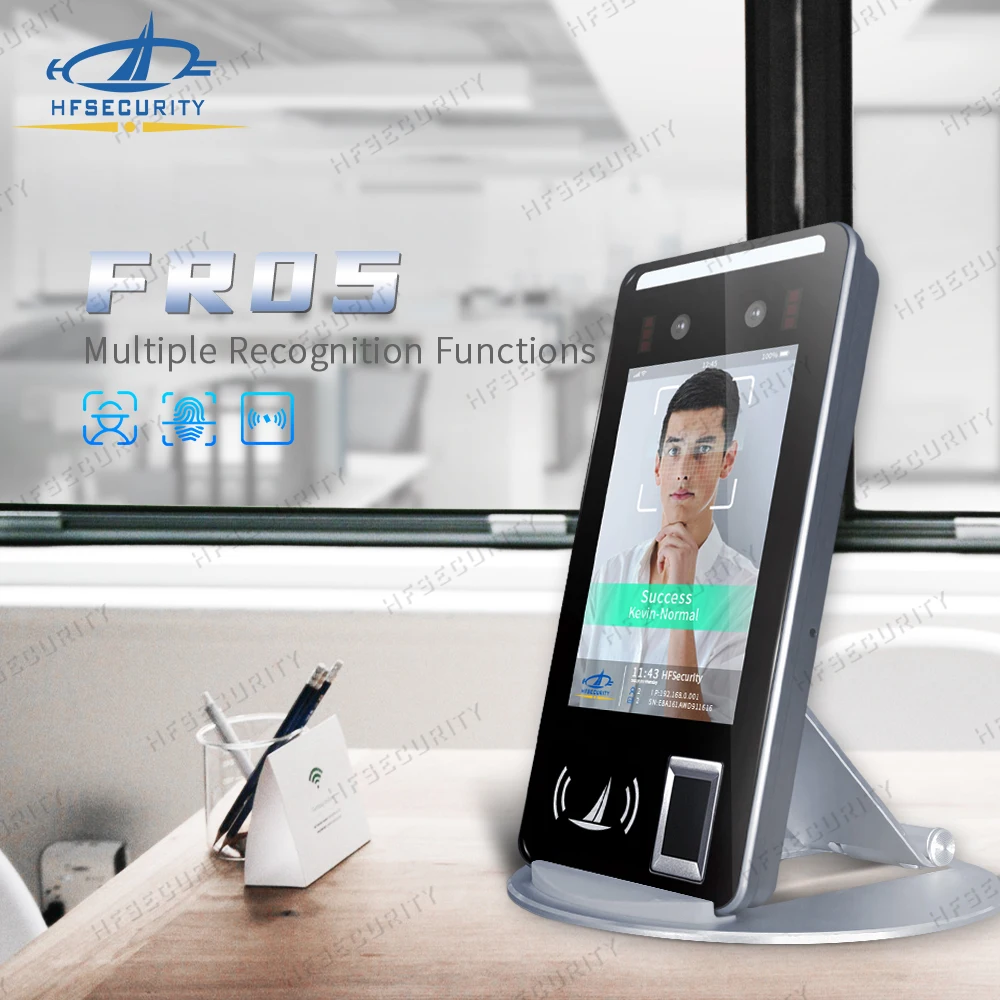

Recommend Products

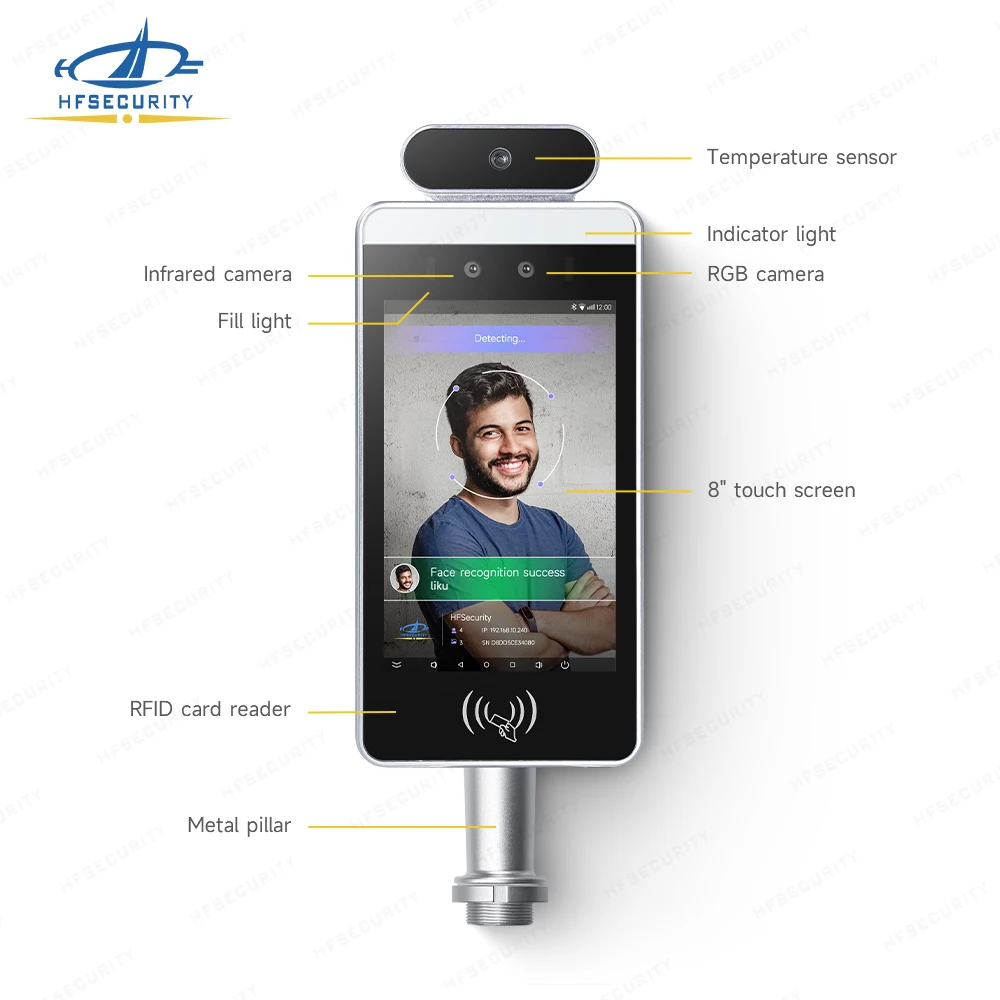

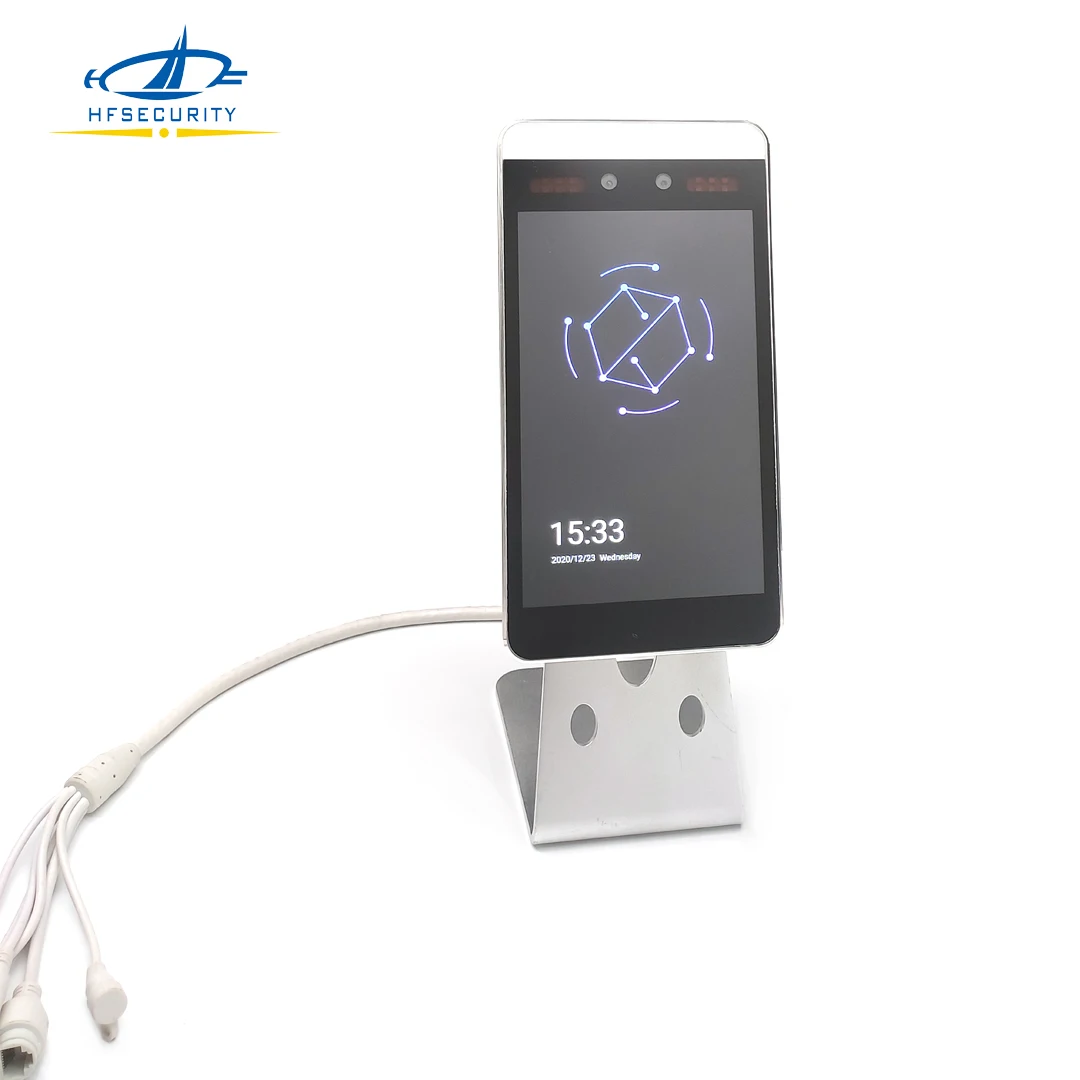

Pictures of Product
Complete interfaces
1. Relay to connect Turnstile&Magnetic lock
2. Network to connect software&hardware
3. DC to connect with power
4. Wiegend interface to connect other access control devices, e.g. access control, card reader
5. RS232 interface to communicate outside, card reader, printer etc..
6. USB interface to connect with mouse, keypad, card reader etc..
7. Other interface needed, welcome for ODM discussion.
Software
Software option 1: C/S
* USB dongle to license this software.
* Default database support miniSQL2000 and My SQL 2008, if you integrate with your own face recognition management software, no limit
* In same LAN, 254 devices together to do central management
* Real-time monitoring
* Shift rule&access control rule setting
Software Option 2: B/S
* Staff&Visitors&Stranger clear management dashboard
* Together with faceapp working, either standalone working or on pc URL working
* Attendance rule and shift setting
Newest faceapp which make RA08&RA08T face recognition device work 100% standalone. Let us explain 1 by:
Enter password: to access setting, very secure
Login Management: Allow you to change password.
App Setting: explain in next page
Pass record: can check face recognition records, name&ID&Face photo&time
Face add: add new users
Face database: check enrolled users
Custom: set all other function, e.g. language, stranger open etc..
Recognition setting: scores, distance, liveness level setting
Recognition mode: Face or card etc..
Device setting: upload logo&change company name
Temperature setting: low&high Limit, Celsius&fahrenheit, compensation
Mask setting: Weak mask alert on & off
Display setting: Show temperature or not
Callback: for real-time monitoring
Others: Wiegend 26&34, Stranger Led
Android Touch Screen TCP/IP WIFI 4G School Gate Attendance System With Face Recognition Access Control Software SDK(HF-RA08 )
4 Ways to register faces:
a. Register on RA08 terminal itself.
b. Take photos via web camera.
c. Bulk upload via software(suitable for large organizations)
d. Register on software to call RA08

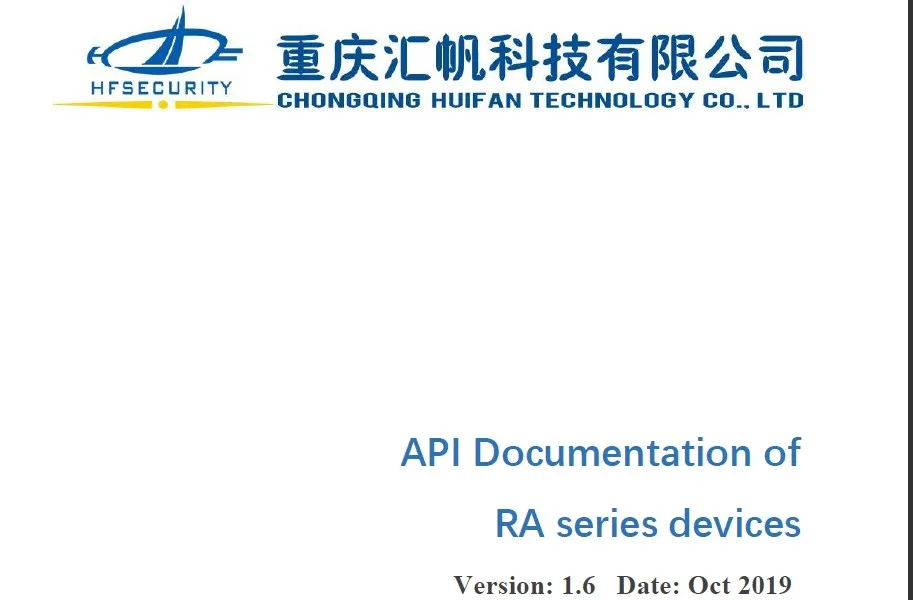

API document
With API document to do software integration or develop new software.
To have Cloud Management, efficient, reliable face time attendance and access control .
For schools, normally you can develop to sending sms to parents or teachers once students check in or check out.

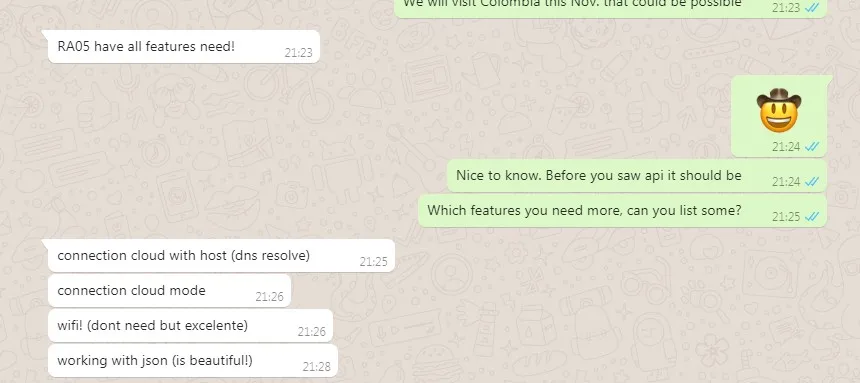

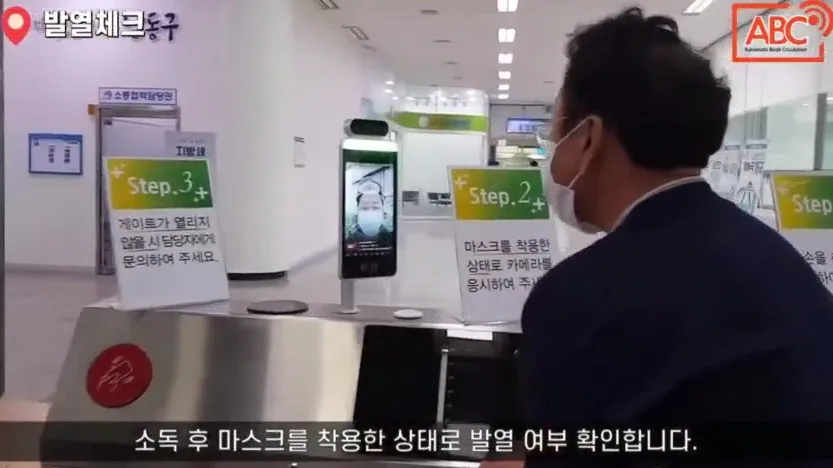

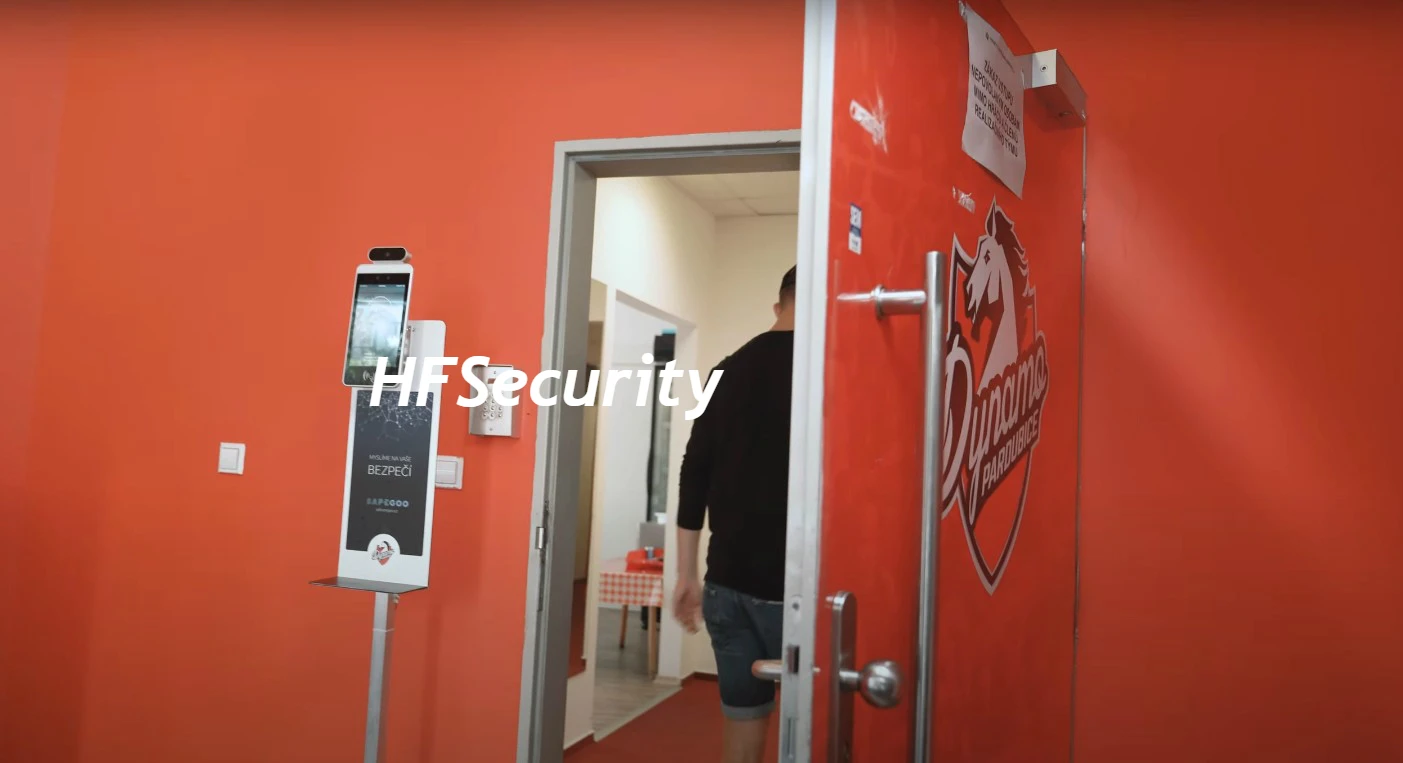

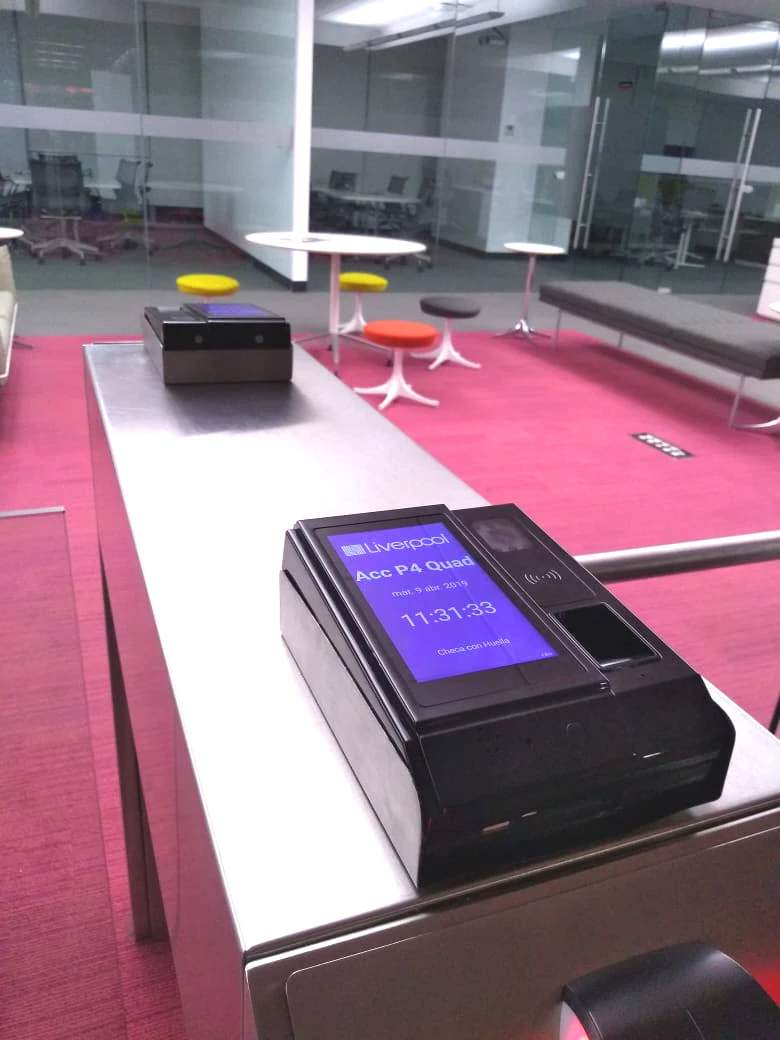

Client feedback
If you are solution company, we have complete open source model.
You can build your own app, own UI, everything.
Face algorithm sdk, hardware interface command, temperature sensor SDK etc..
All are open. Connect us right now !!!
About us
Strength:
1. Concentrated in biometrics line since 2005, concentration makes profession.
4. Professional expos attending, e.g. ID4Africa, Planet Biometrics, Connected ID, GITEX etc..
5. 6-12hours timely reply can be rest assured.
2. Rich experience in national projects,production capacity/delivery on time/technical support/reputation all are trustworthy.
3. Local market visiting to know needs better, personally support for branches/agents, work out marketing plan together, more than 10countries per year(Below some pictures FYI).
4. Professional expos attending, e.g. ID4Africa, Planet Biometrics, Connected ID, GITEX etc..
5. 6-12hours timely reply can be rest assured.
FAQ
Q:Do you offer warranty for the device?
Q:What is your MOQ?
A:MOQ is 2 normally, 1 for development and 1 for function testing.
Q:How to get software and SDK?
A:Software and SDK are free.Will send download link after order via dropbox.
Q:Can we visit factory before place order or deliver bulk order?

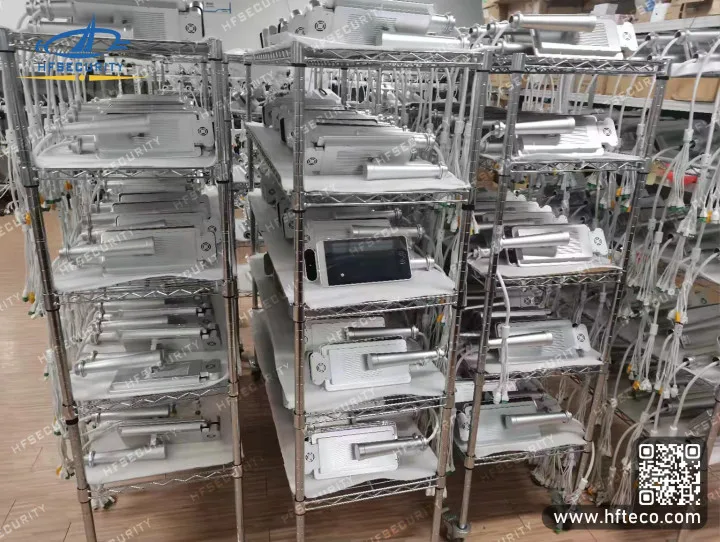

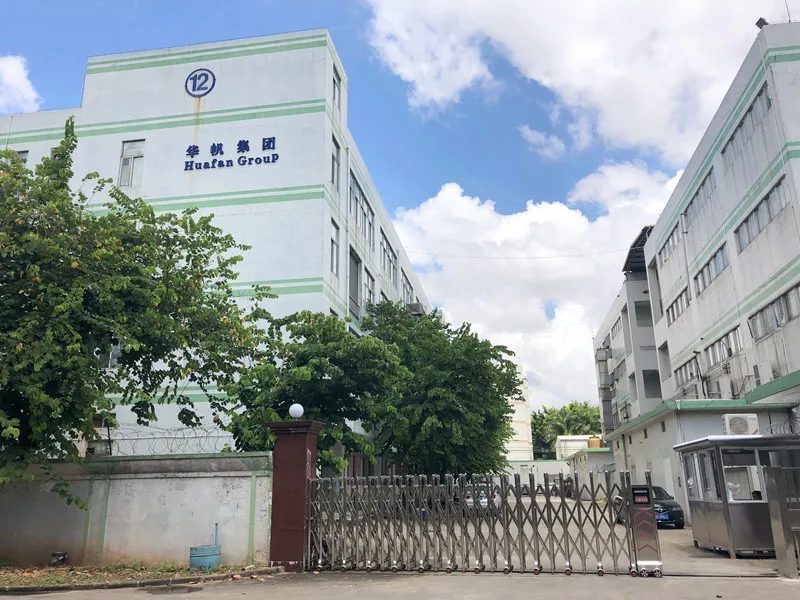

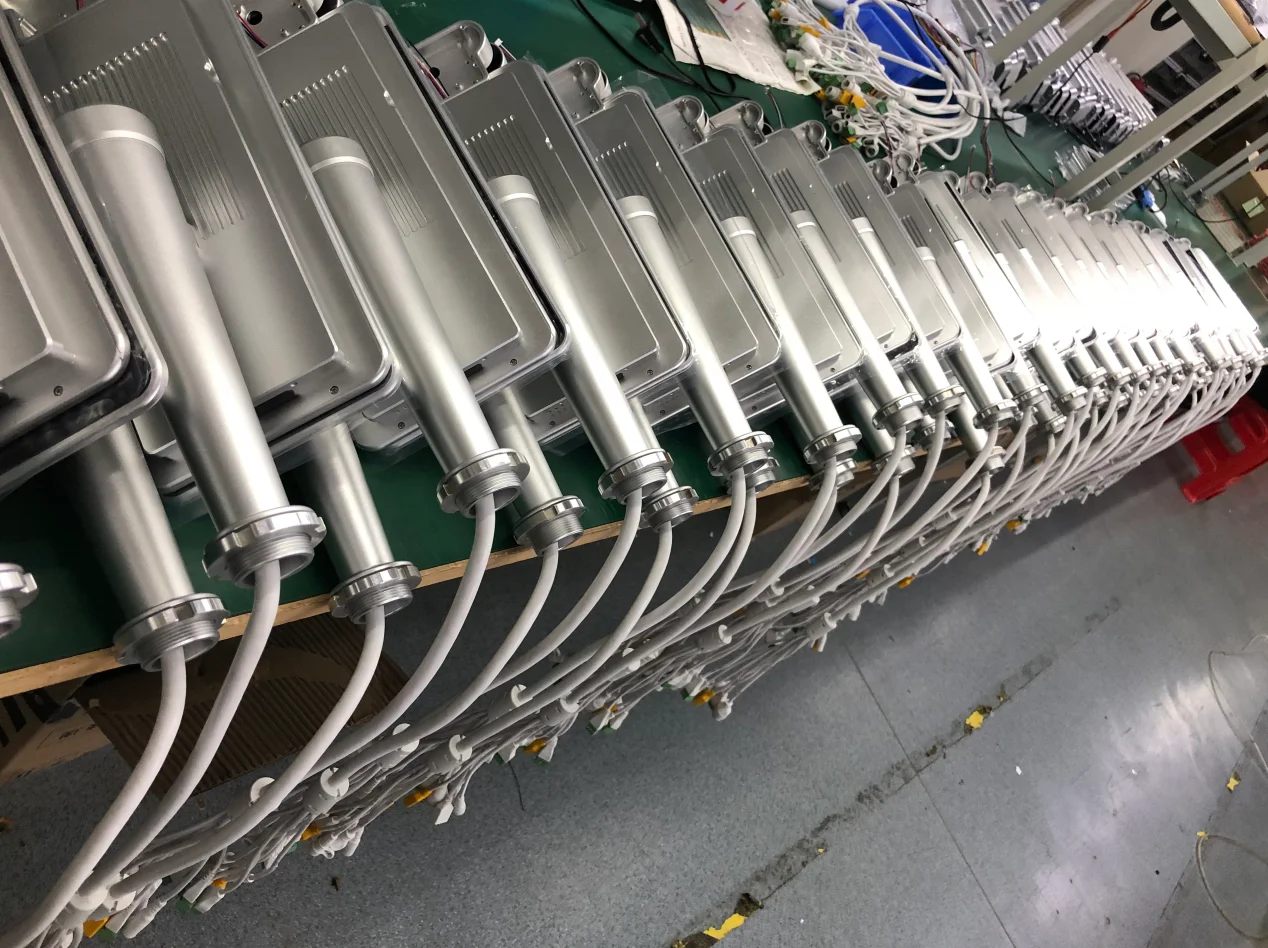

A: Surely, our factory is based in Shenzhen Longgang, welcome to visit us anytime, above with pictures FYI.
A:Yes,we offer one year warranty and lifelong technical support(18software engineers and 28 senior hardware engineers).
Q:What is your MOQ?
A:MOQ is 2 normally, 1 for development and 1 for function testing.
Q:How to get software and SDK?
A:Software and SDK are free.Will send download link after order via dropbox.
Q:Can we visit factory before place order or deliver bulk order?
A: Surely, our factory is based in Shenzhen Longgang, welcome to visit us anytime, above with pictures FYI.
