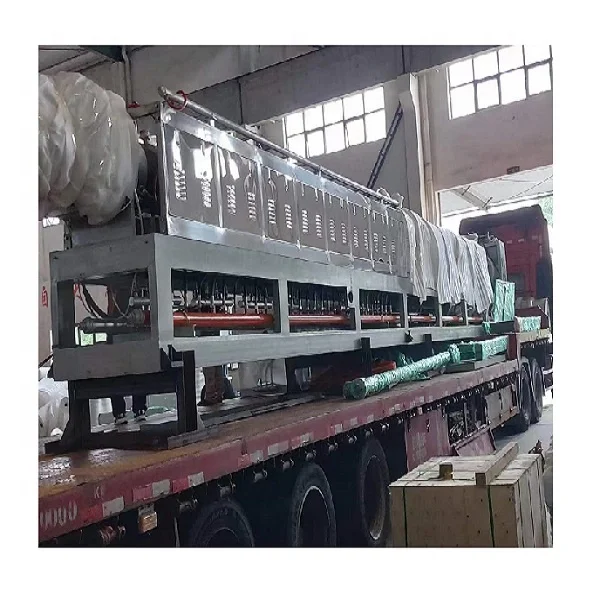

Extruder machine for Polyethylene foam for packing and crafts EPE foam sheet extruder
- Category: >>>
- Supplier: Tianchang Ocean Electric Co. Ltd.
Share on (1600622285118):
Product Overview
Description
Product Description
Extruder machine for Polyethylene foam for packing and crafts EPE foam sheet extruder
EPE extruding machine(Epe Foam Sheet Extruder), also known as epe foam extruder, epe extruders, epe extruding production line, pe foam sheet extrusion line.it is mainly used to make epe foam sheets. It melts LDPE resins and then mix it with butane, talcum powder, anti-shrinkage additive and other additives, then extrude it by the extruder and then foam it at the mould part. Later the foamed products pass the shaping circles and get the size we want, finally we roll the sheets.
If you use our EPE foam sheet extruder, you can get products with the lowest density of 14kg/m3 while some of our competitors make products with density of 20kg/m3.
Assuming that you make 16kg/m3 products with our machine while your competitors make 20kg/m3 products. To make the same one ton of material, you can get 62.5m3 of products (1000kg ÷ 16kg/m3) while your competitor can get only 50m3 of products. (1000kg ÷20kg/m3). In this way, you can produce 12.5m3 more of products. That means you can get more profit of 12.5m3.
Of course, you can adjust the machine to make different densities of products. You can also make the same density products as your competitors if you want.

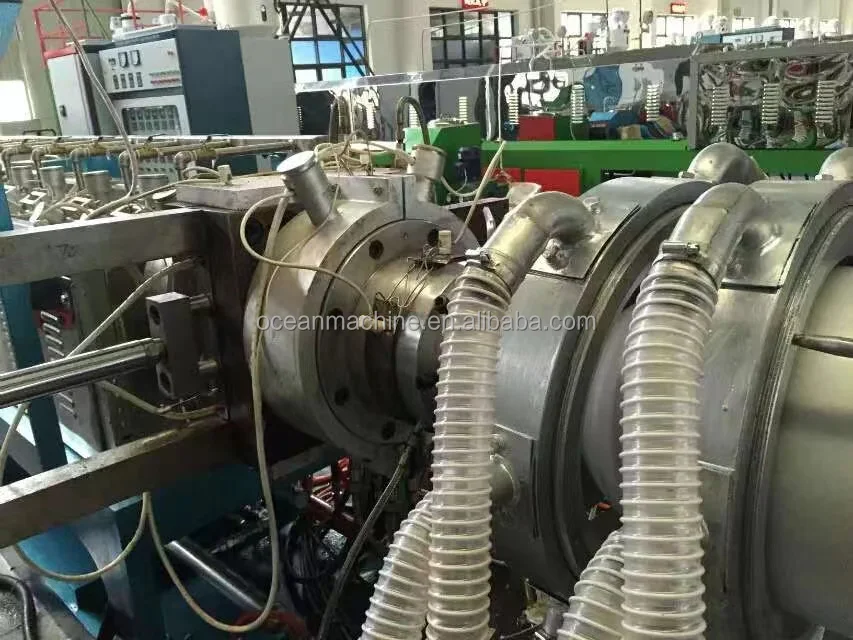

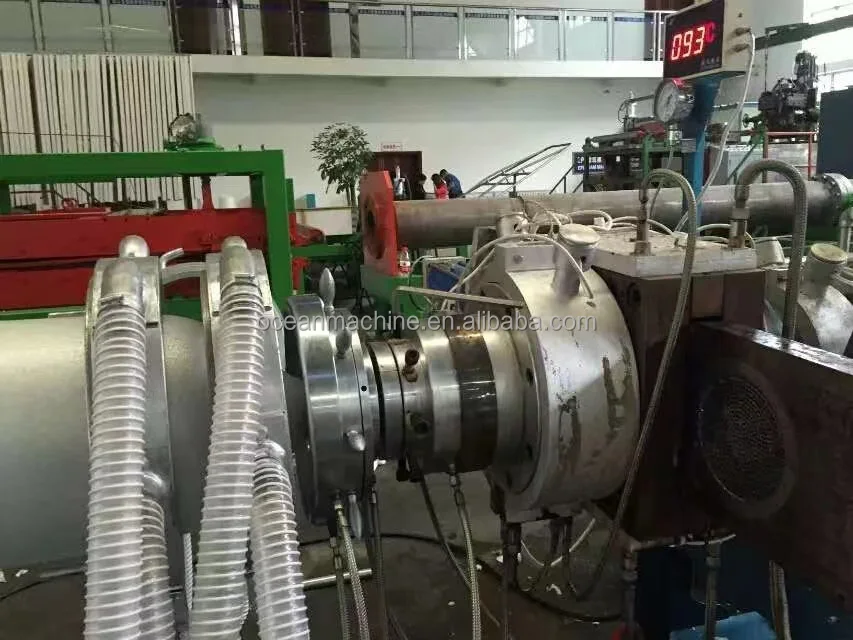

Machine head for EPE foam sheet

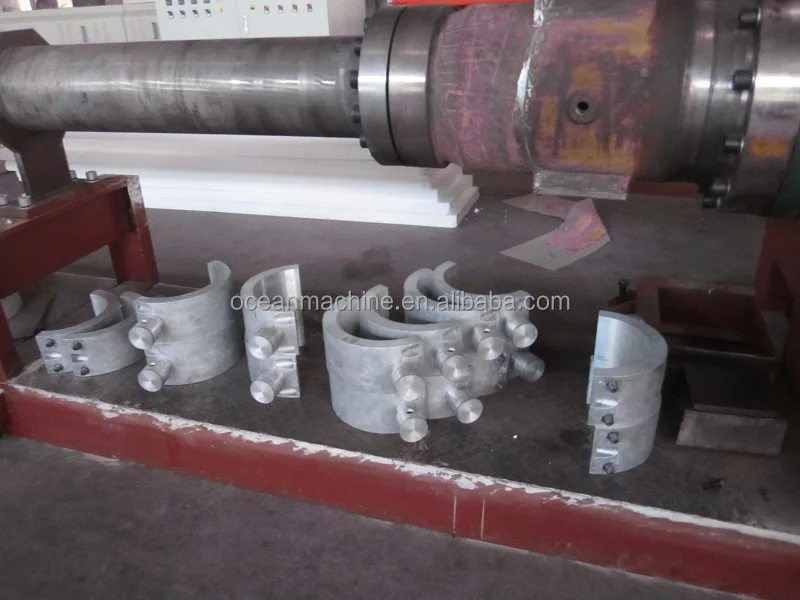

Heater is casting aluminum materials, long lifetime and better heating and cooling;

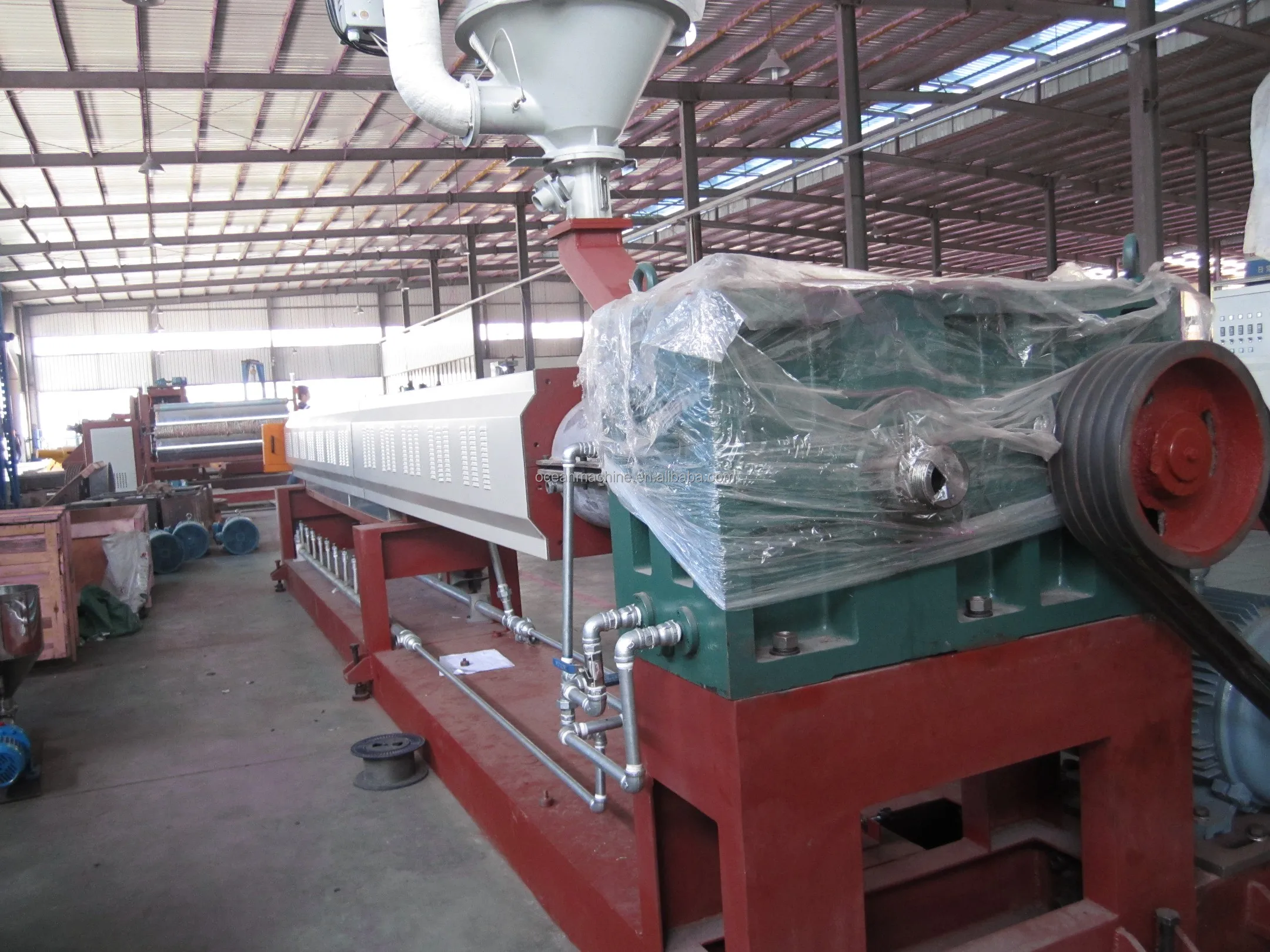

Famous brand for gear box
Specification
Model | Screw Diameter (mm) | Products Width (mm) | Products thickness (mm) | Total Power (KW) | Output Capacity (kg/h) | Foaming Ratio |
EPE-75 | 75 | 1000-1600 | 0.35-3 | 35 | 25-50 | 9-64 |
EPE-90 | 90 | 1000-2000 | 0.35-5 | 55 | 60-90 | |
EPE-105 | 105 | 1000-2500 | 0.35-6.5 | 80 | 80-120 | |
EPE-120 | 120 | 1000-3000 | 0.5-8 | 90 | 120-180 | |
EPE-135 | 135 | 1000-3000 | 1-10 | 105 | 170-220 | 9-64 |
EPE-150 | 150 | 1000-3000 | 2-12 | 168 | 250-300 | |
EPE-170 | 170 | 1000-3000 | 2-14 | 198 | 100-450 | |
EPE-180 | 180 | 1000-3000 | 3-16 | 200 | 300-500 | |
EPE-200 | 200 | 1000-3000 | 3-25 | 220 | 350-650 | |
EPE-220 | 220 | 1000-3000 | 5-25 | 260 | 400-700 | |
EPE-250 | 250 | 1000-3000 | 5-25 | 280 | 450-750 | 9-64 |
EPE-300 | 300 | 1000-3000 | 5-25 | 300 | 450-800 | |
EPE Foam (Expanded Polyethylene Foam)
EPE foam sheet is a degradable new type of packing material, it is flexible, shock proof so it has excellent performance of
decompression and shock resistance.
Products are not only protected from damage by water, but also by chemicals, fungus and static. The superior properties of Expanded Polyethylene Foam along with its abilities to absorb a large amount of shock, give rise to it as a necessity when handling and shipping products.
decompression and shock resistance.
Products are not only protected from damage by water, but also by chemicals, fungus and static. The superior properties of Expanded Polyethylene Foam along with its abilities to absorb a large amount of shock, give rise to it as a necessity when handling and shipping products.
EPE Foam (Expanded Polyethylene Foam) Application：
Packing and cushioning material for light electrical applicants and precision machine parts.
Packing and cushioning material for glass and ceramics.
Surface protective material for stainless steel product, plated product and aluminium construction material
Thermal insulating for the roof and air condition
Packing and cushioning material for glass and ceramics.
Surface protective material for stainless steel product, plated product and aluminium construction material
Thermal insulating for the roof and air condition
Why choose our EPE foam extruder(Epe Foam Sheet Extruder)?
If you want to beat your competitors in product quality and capacity, you have to use our machine. The reasons are as the following:
1.Stability.
If you use our machine, you can work continuously for 30 days and nights without stopping it. Our customers had experience of working for 35 days and nights without stopping the machine.
2. The density of the EPE products
If you use our machine, you can get products with the lowest density of 14kg/m3 while some of our competitors make products with density of 20kg/m3. Assuming that you make 16kg/m3 products with our machine while your competitors make 20kg/m3 products.
3. Low failure rate.
All the electrical parts of our machine are international famous brands. Their quality and performance are more reliable.
4. Easy operation.
Our machines have been tested by many customers and have been improved many times according to many customers’ feedback. The operation of our machine is more and more practical and easier and easier. We are the manufacturer in China that specially makes epe machine only and we are the leader of Chinese EPE foam machinery industry.
5. Professional service team.
We have engineers and technicians who engaged in the overseas installation and technical training. We also have conscientious salesperson and engineers who can give you the timely and best after-sale service.

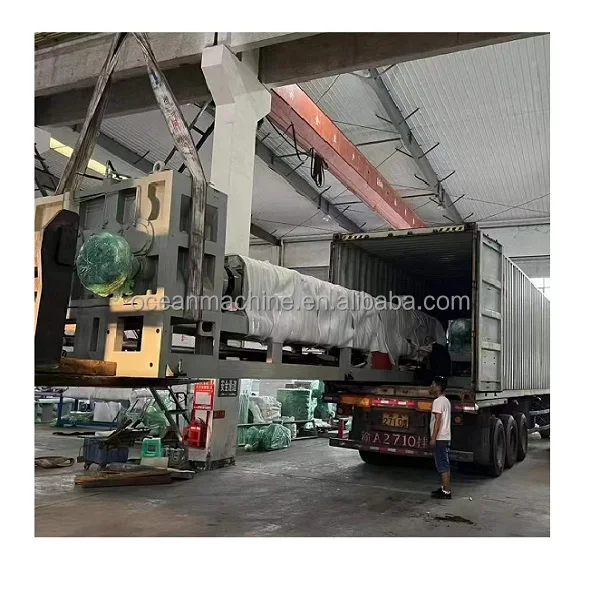

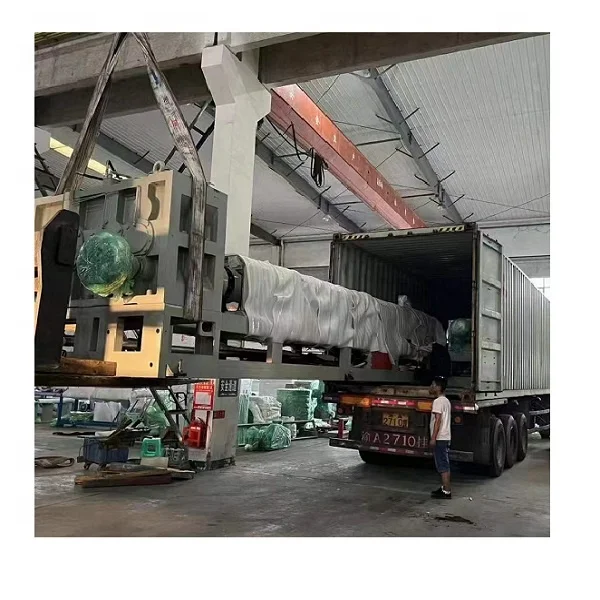

Packing & Delivery
For Protecting the key parts from damage during transportation on the sea !
1. EPE foam and stretch film packaging
2. Lubrication oil for key parts
3. Fumigation wooden box for LCL

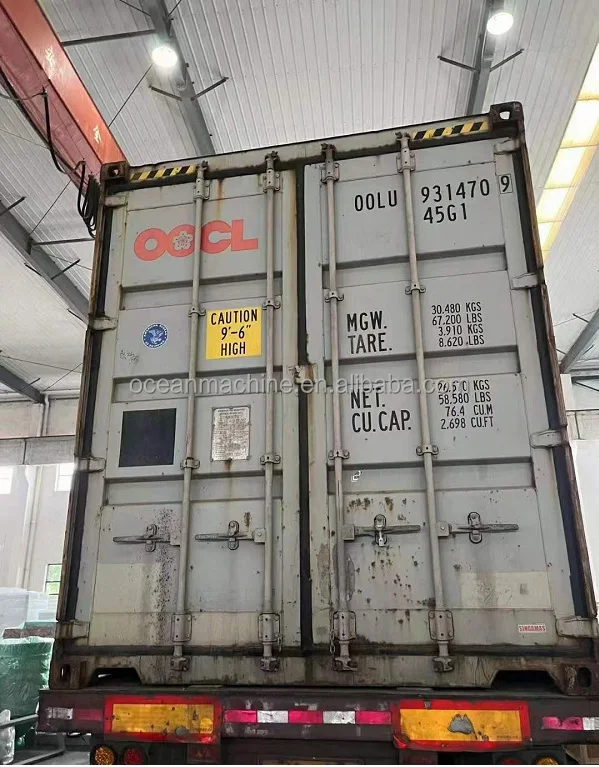

4. FCL , 20ft /40GP/40HQ
1. EPE foam and stretch film packaging
2. Lubrication oil for key parts
3. Fumigation wooden box for LCL
4. FCL , 20ft /40GP/40HQ
