Price:$12,000.00 - $15,000.00

Quantity:


Product Overview

Description



Products Description


WT Auto Feeding Digital Cnc Fabric Synthesis Genuine Leather Sofa Cover Knife Cutting Machine Apparel Textile Machinery

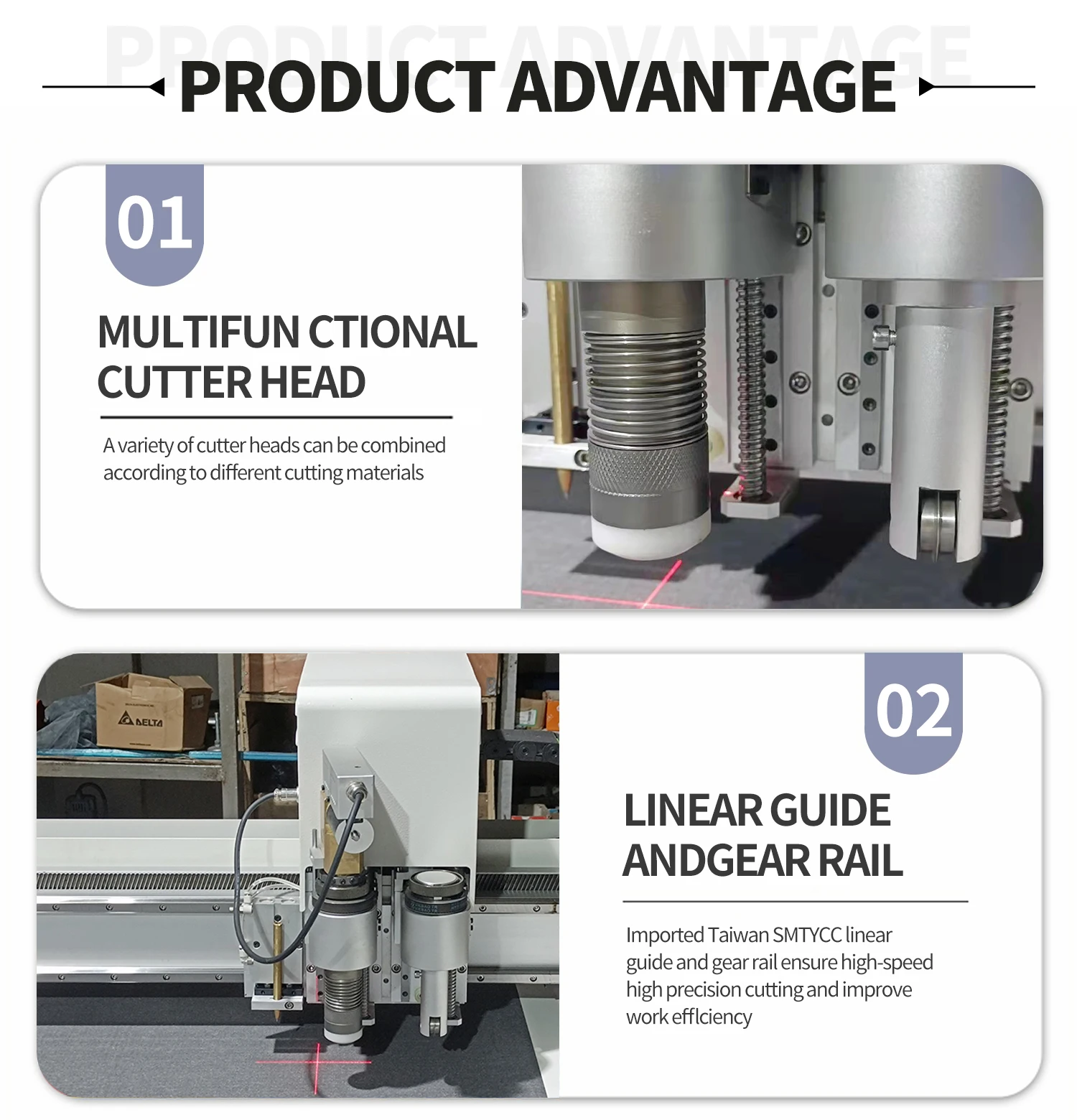

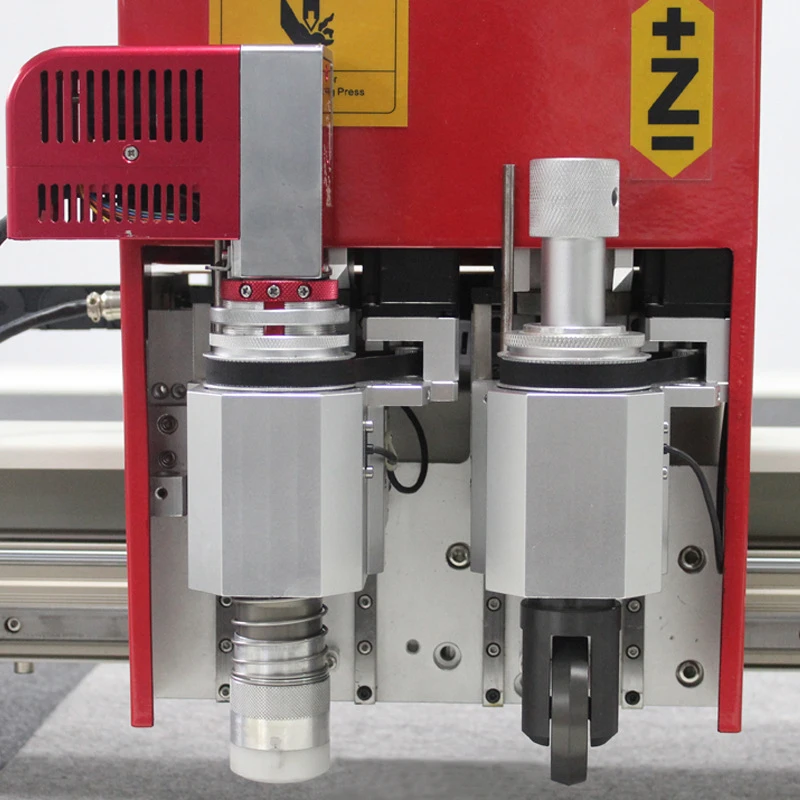

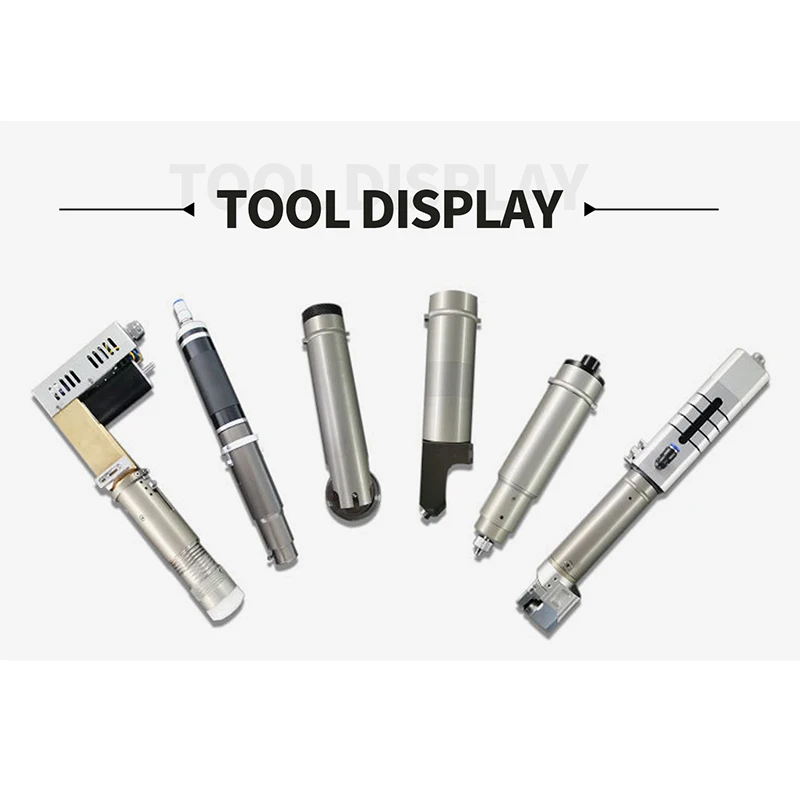

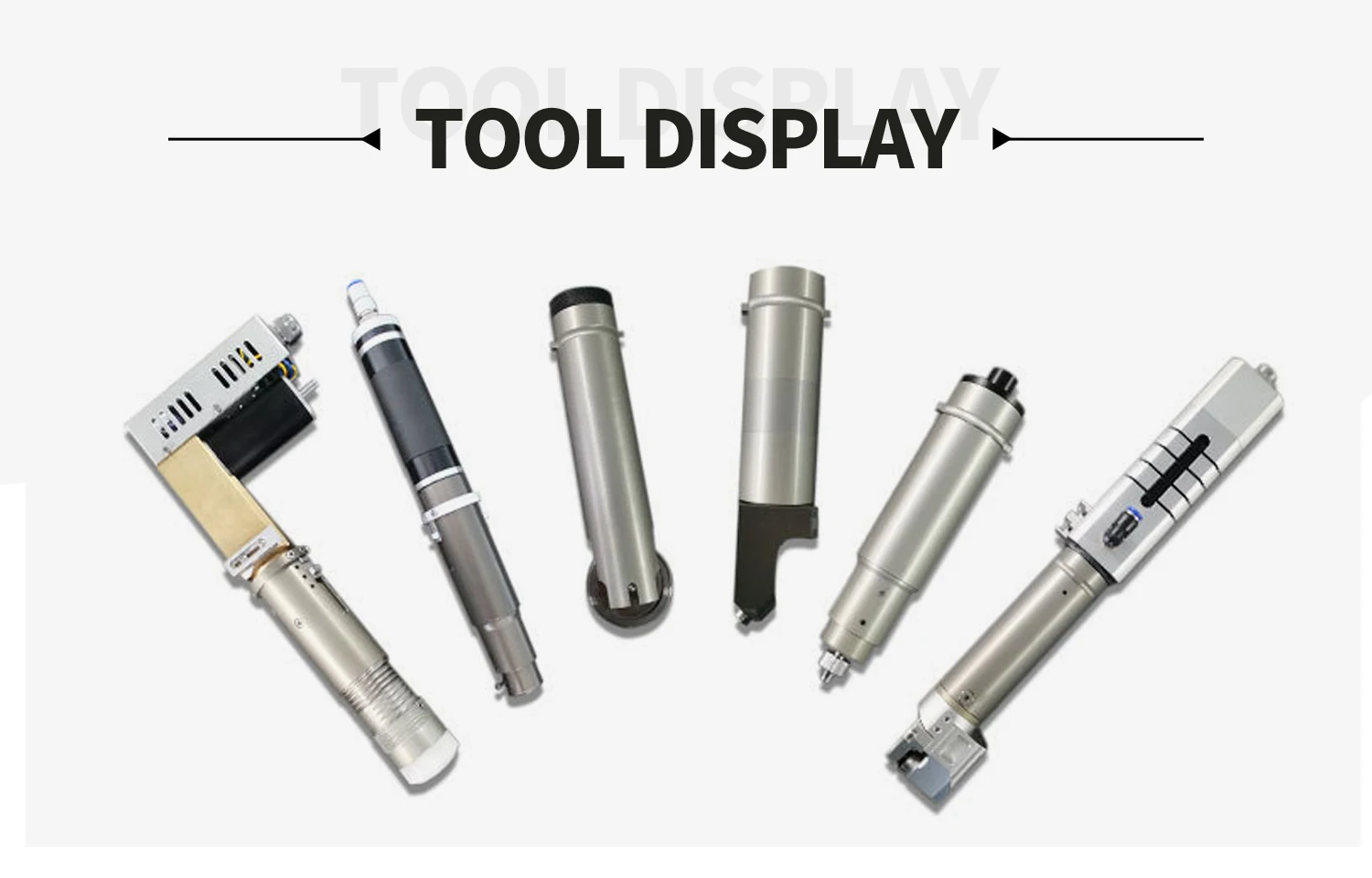

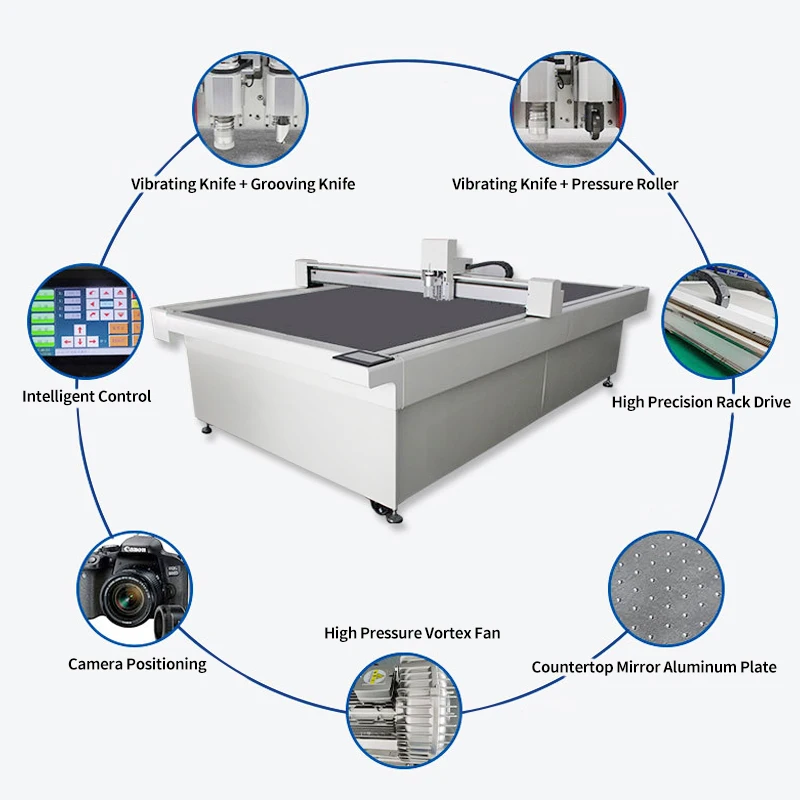

1.Multifunctional heads optonal
Vibration knife (oscillatory knife)、Circular knife (round knife / rotary knife)、Oblique knife (V-cut)、Marking pen、Punching roller (round punching/v-punching/optional)、Milling knife 、Drag knife、Penumatic knife、Projector and camera optional

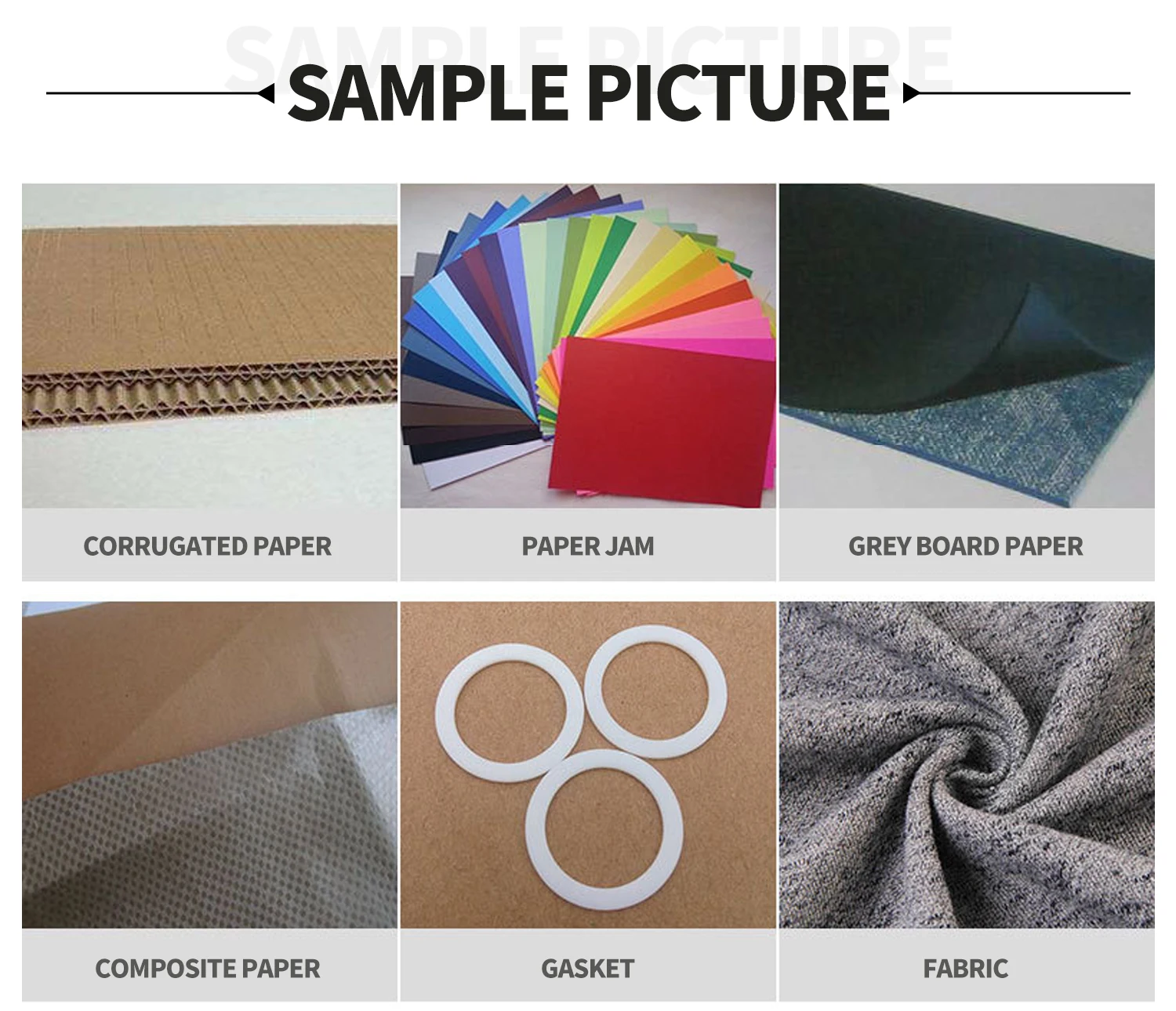

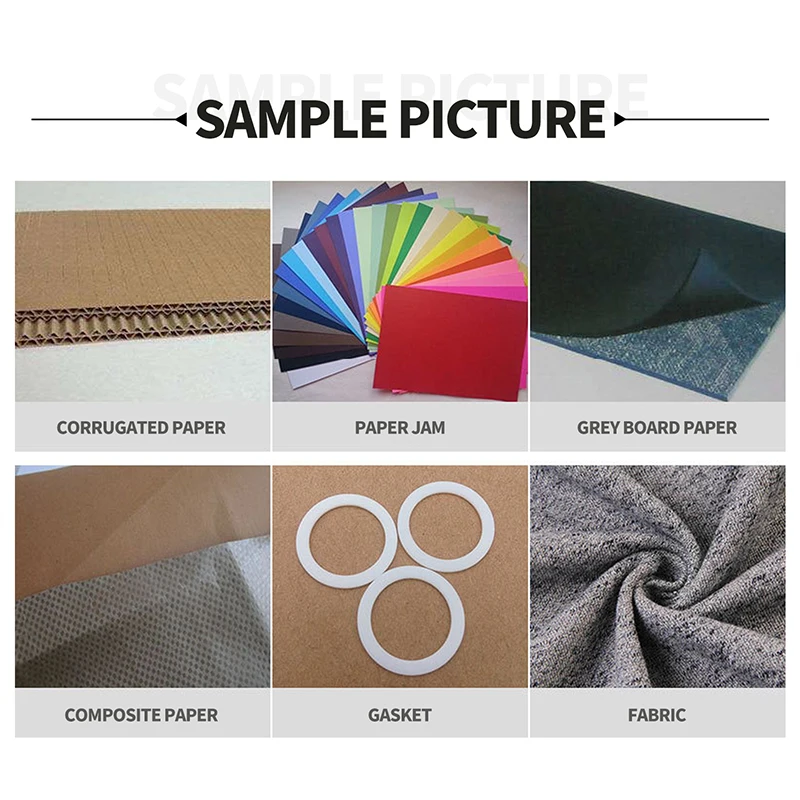

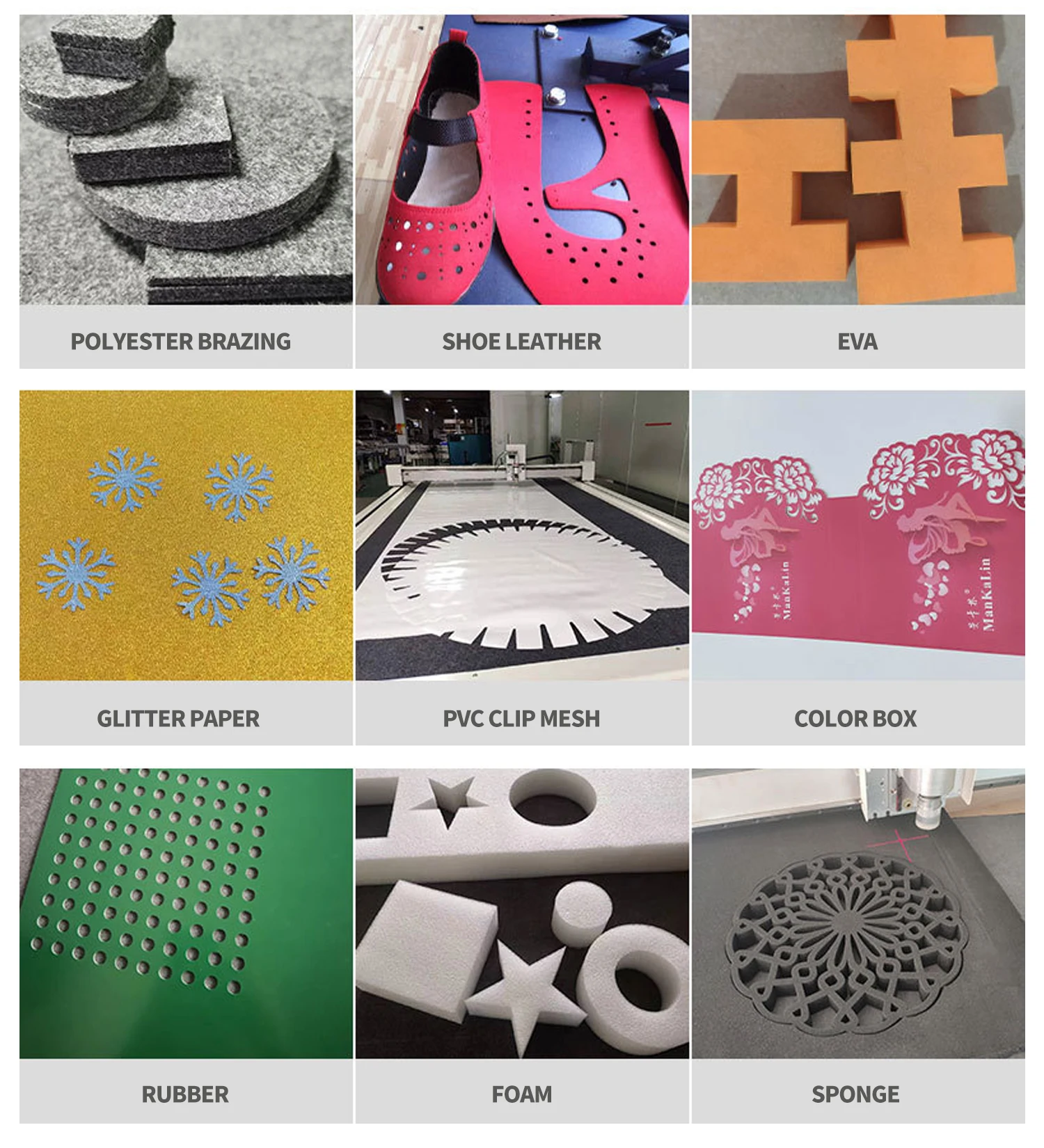

2.Cutting material
Honeycomb paperboard, corrugated paper, plastic corrugated paper, gray board paper, cardboard, stickers, film, fiber composite materials, artificial leather, cloth, PU, rubber sheet, gasket, pearl cotton, fiberboard and other materials








Product Paramenters




Technical Parameters

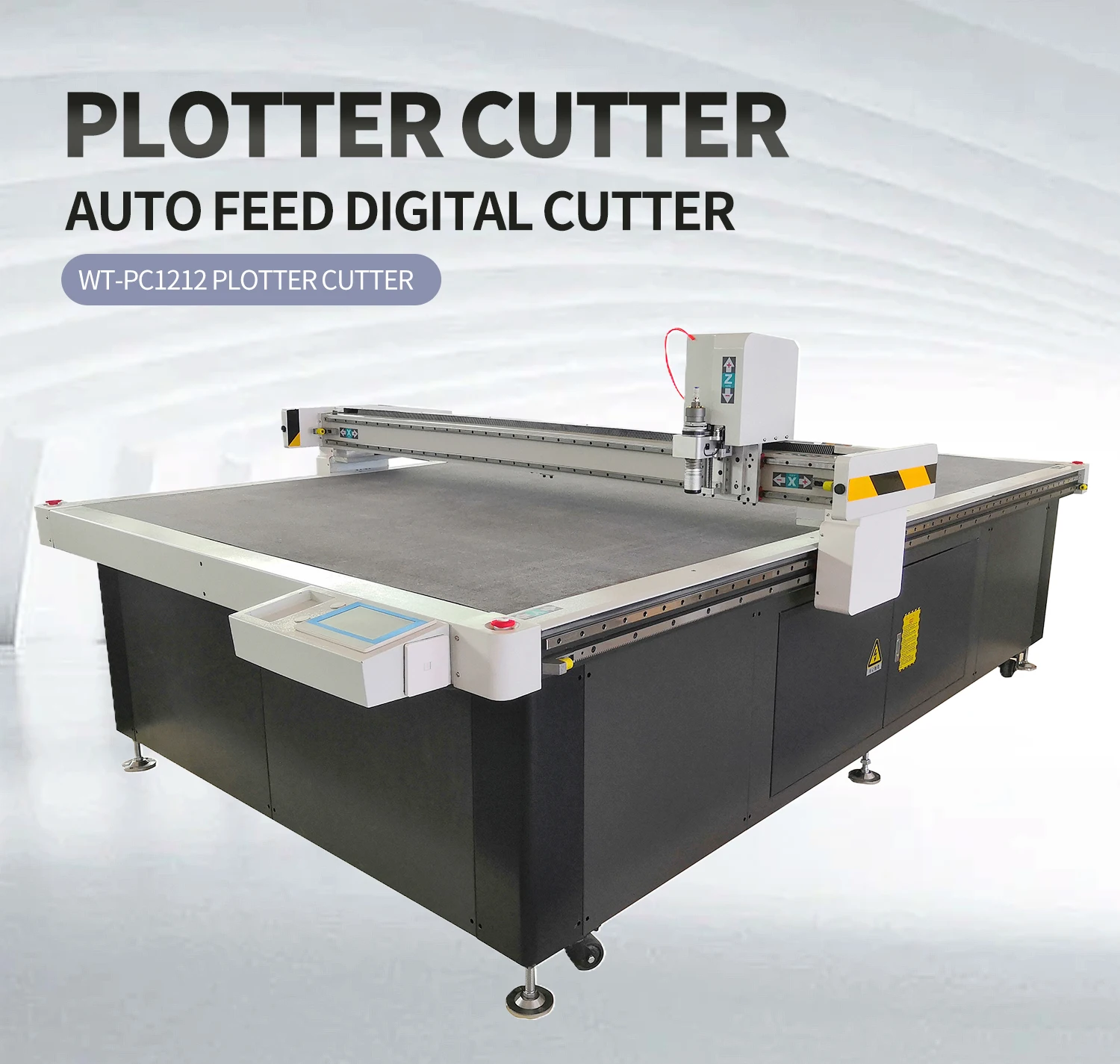

Model
WT-C1212
Cutting size
1200x 1200mm
Dimension
2400x 1880 x 1300mm
Digital Control Panel
7"Touch display control penal
Cutting speed (2)
1mm/s ~ 1000mm/s
Cutting thickness (2)
Knife cutting 0.1mm ~ 30mm, crushing thickness up to 15mm
Cutting accuracy
±0.2mm,
Repeated cutting accuracy
≤0.1 mm
Minimum cut circle diameter
≥3mm(related to materials)
Control System
9-axis independent motion controller (5-axis linkage) + multi-execution instant embedded control system
Drive System
Digital Servo
Transmission
Taiwan YYC rack and pinion, PMI linear guide, TBI ball screw pair
Towline cable
IGUS, Germany
Pneumatic components
AIRTAC
Sensor component
Baumer, Swiss
Machine material
43.5mm Honeycomb aluminum plate
Cutting table mat
4mm High ventilated fiber mat (3)
Number of pens
2 groups, crease ,Cutting knife (maximum depth can be cut 3mm)
Position Registration
Cross red light (optional visual positioning system)
Command system
HP-GL compatible format, software resolution: 0.025, 0.01, 0.1,1
Transmission interface
RJ45 network port, one-to-many and many-to-one communication, the maximum transmission distance is 100 meters
Working voltage/ frequency
AC 220V±10% 50/60±1HzPower ; MAX_ 2.5KW (requires D-type 16A socket, GB 2.5 mm2 wire)

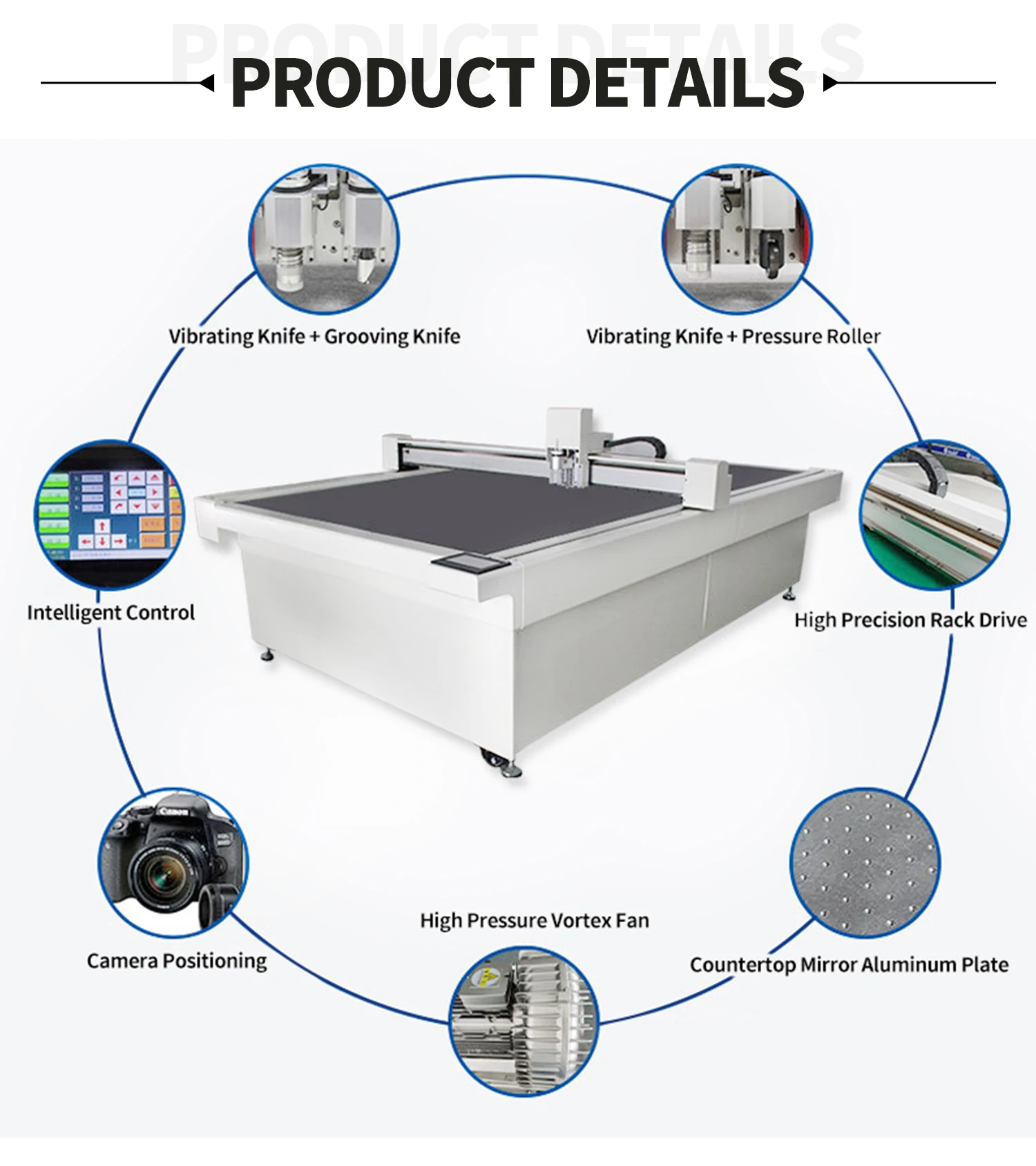

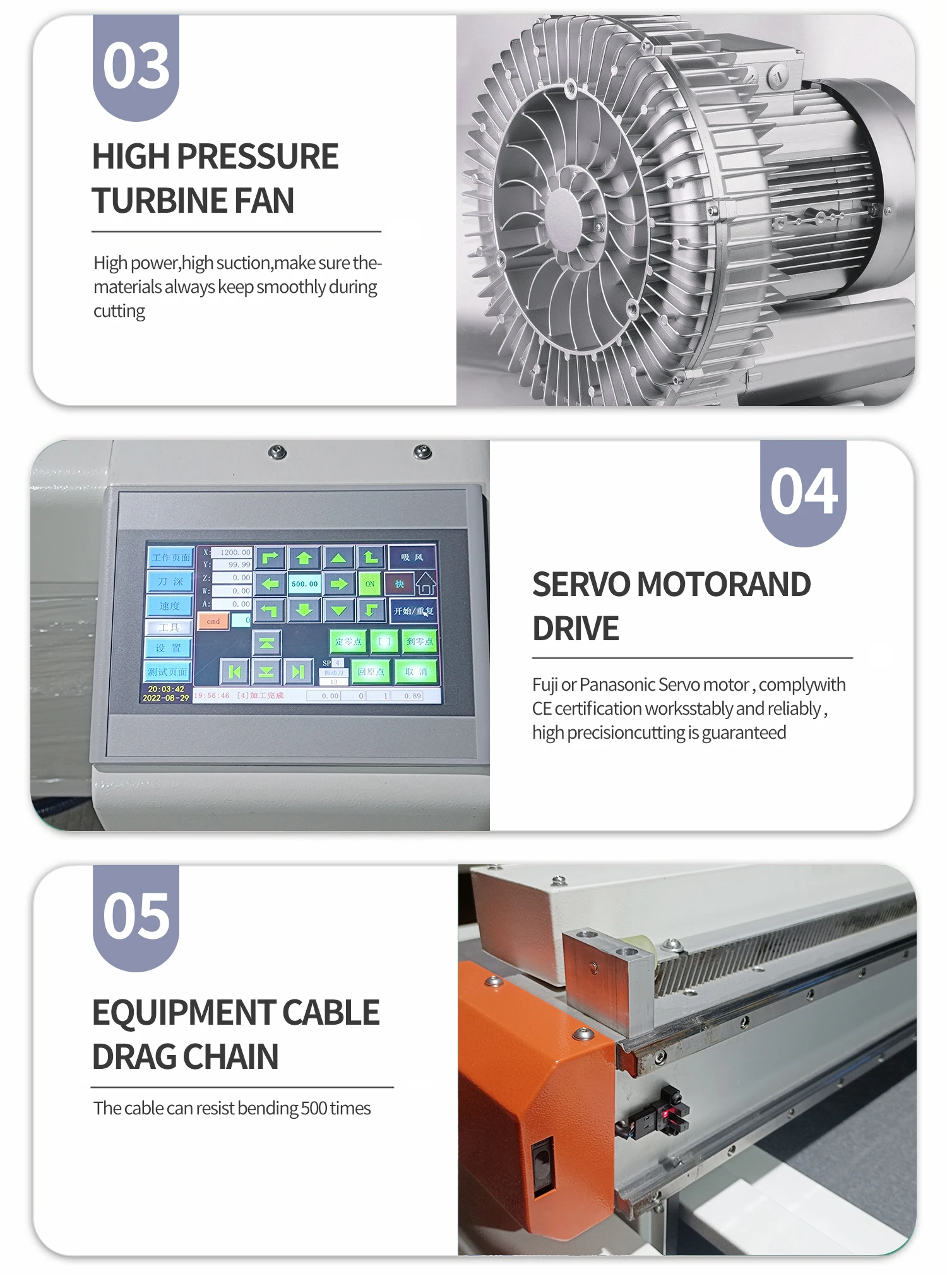

Details Images










Exhibition






Product packaging






Recommend Products

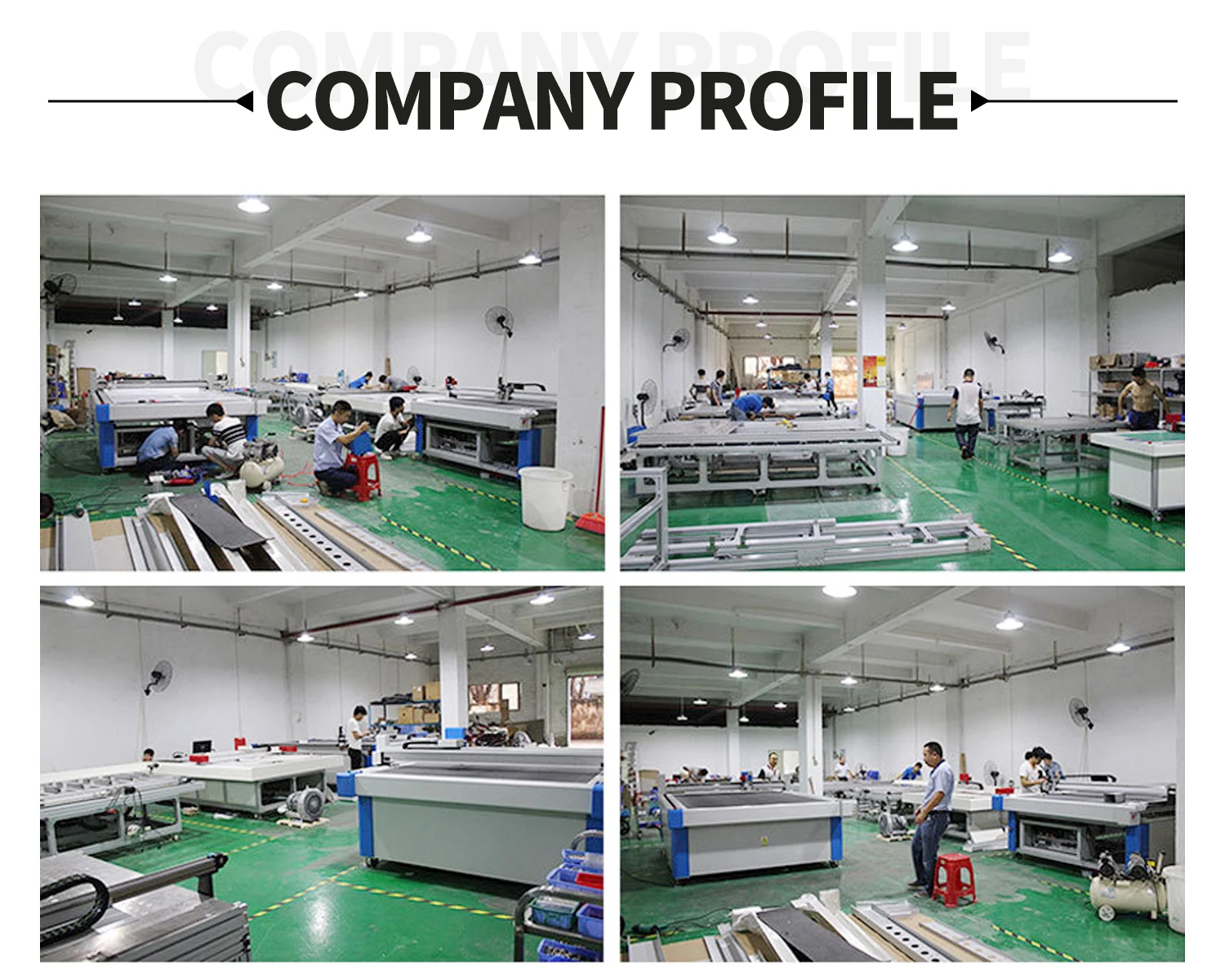

Company Profile






FAQ


Q:How about the warranty time?
A:One year.But if there is any need pls be free to contact us,we will try our best to meet your needs.We always take our clients as friends and partners.
Q:How about the installment of the machine and the after-sales service?
A:We offer machine manual and software manual instructions for each set of machine,also offer videos for your reference and 24-hour online technical support.All of these supports are free,we will be there untill you can operate the machine fluently.
Q:How about the shipment of the machine?
A:Usually the machine will be shipped by sea,however we will plan the most suitable shipping way for you according to your requirements.also will consider the budget for you of course.
Q: What is the difference between your product and the laser cutting machine?
A: a. Our products are cut with vibrating blades, no laser, no pollution, and create a good
working environment for workers.
b. Blade cutting can ensure the edge of material cutting smooth without burning.
