Automatic plastic tube filling and sealing machine portable cup water filling and sealing machine

Share on (1600622615906):


Price:$9,500.00

Quantity:


Product Overview

Description


Sealer



Introduction


Introduction

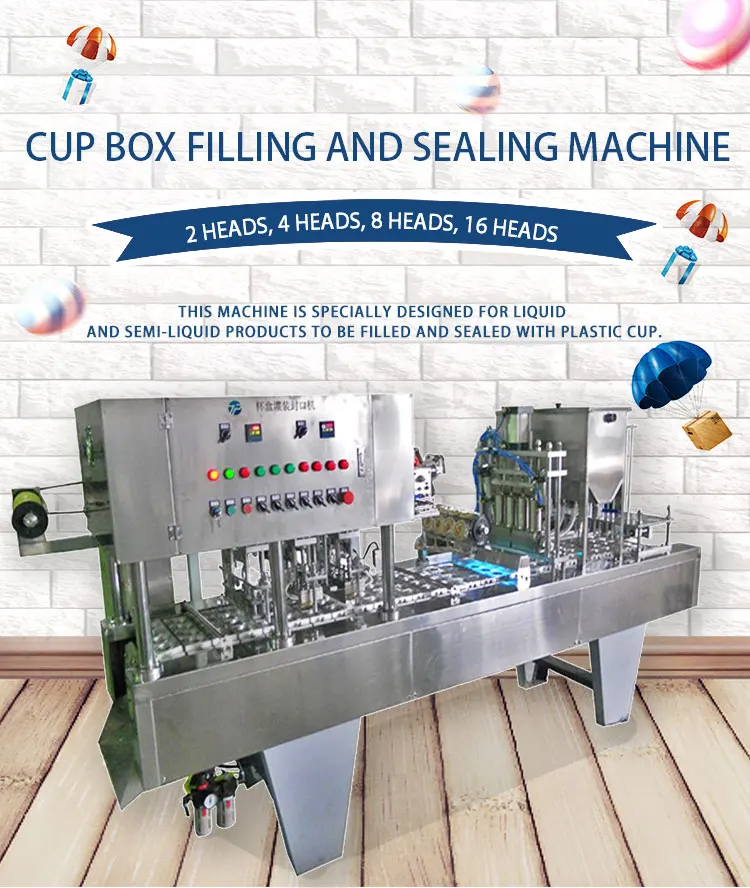

*TPP-4J cup box filling and sealing machine is fully automatic filling, suitable for liquid filling and sealing of various shapes of plastic cup boxes.
*The packaging products are beautiful and high-grade. This machine is fully automatic from cup feeding, filling, two times sealing, film closing and cup discharge. This machine is a multi-purpose high-speed automatic filling and sealing machine.
*According to user needs, other multi-purpose models can also be produced. The electrical appliances and pneumatic components of this machine adopt international famous brand products.

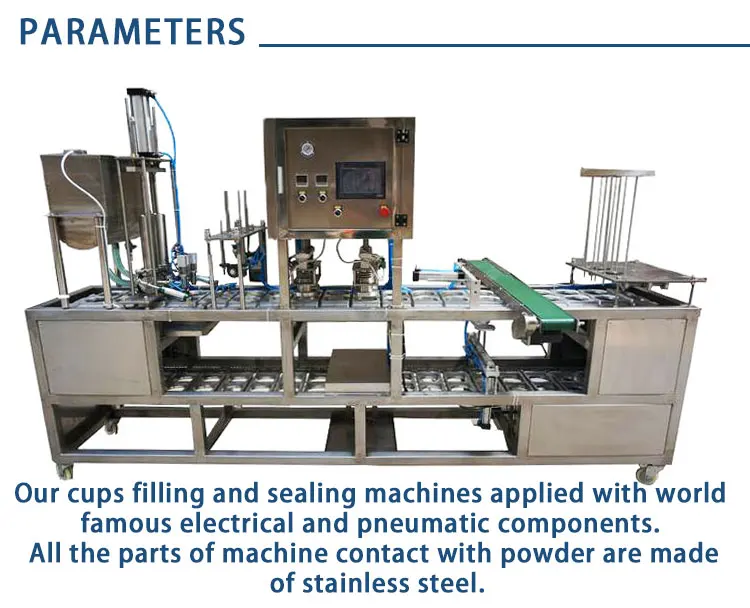

Product parameters


 Parameters


























































model



TPP-4J(1*4)



Filling head



 4 heads



Filling method



 plug filling(leak-proof)



Filling material



 Liquid or semi-liquid



capacity



 3500-3800cups/h



Filling quantity



 30-300 g adjustable



Filling accuracy



 2-3 g



power



 3.5 kw



Air consumption



 0.65m³/min



Power supply



 380V/50HZ



Temperature control



 0-400ºC



Weight



 1200 KG



Dimension



3000*800*1900 mm

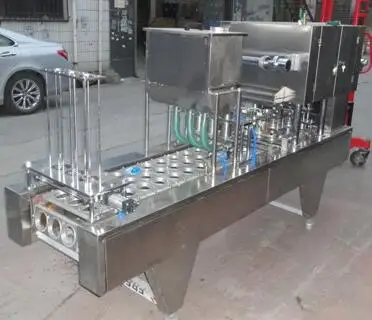

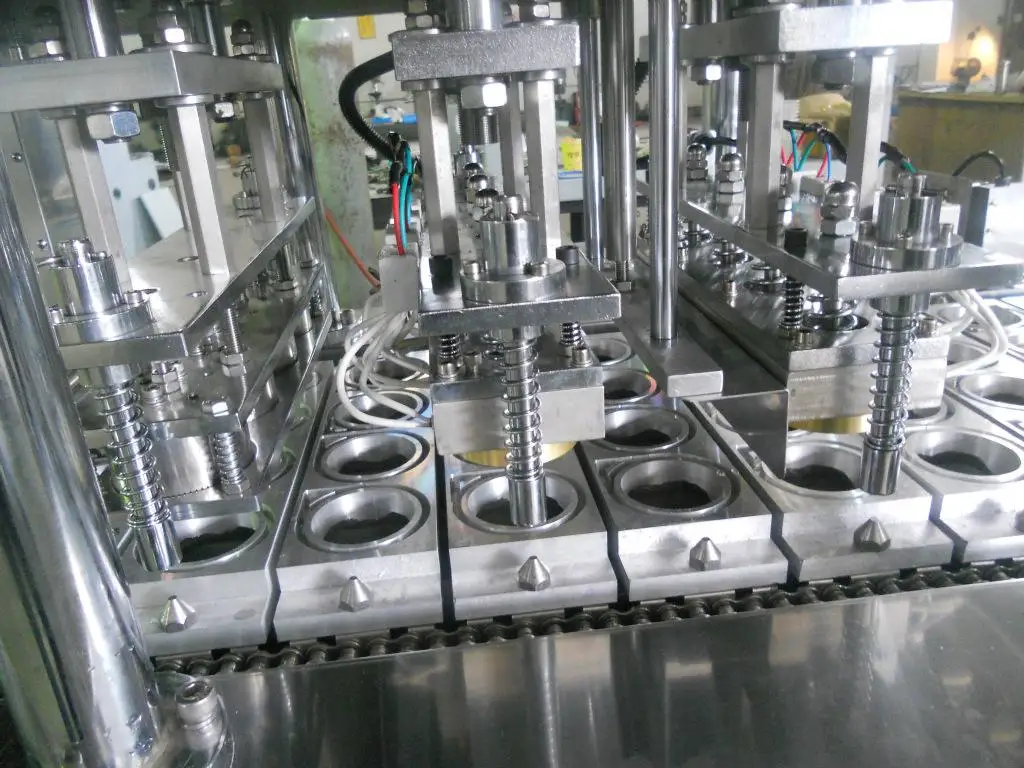

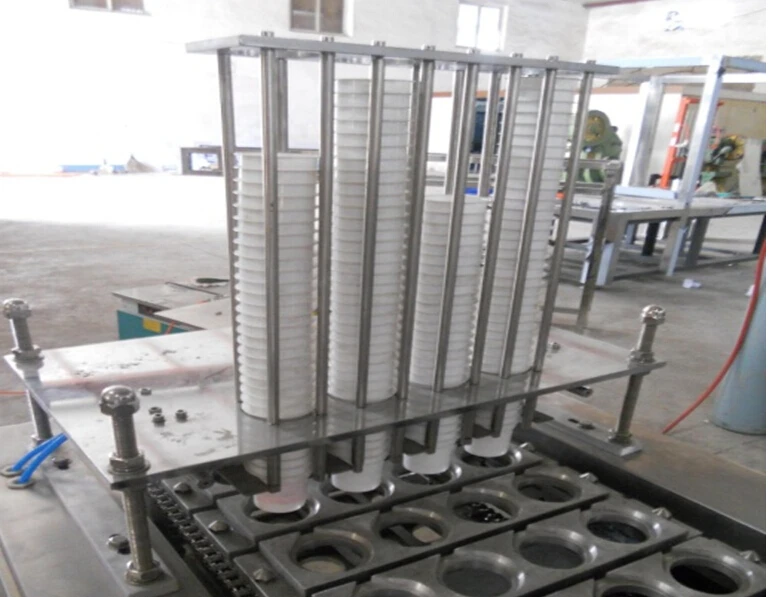

Product Image

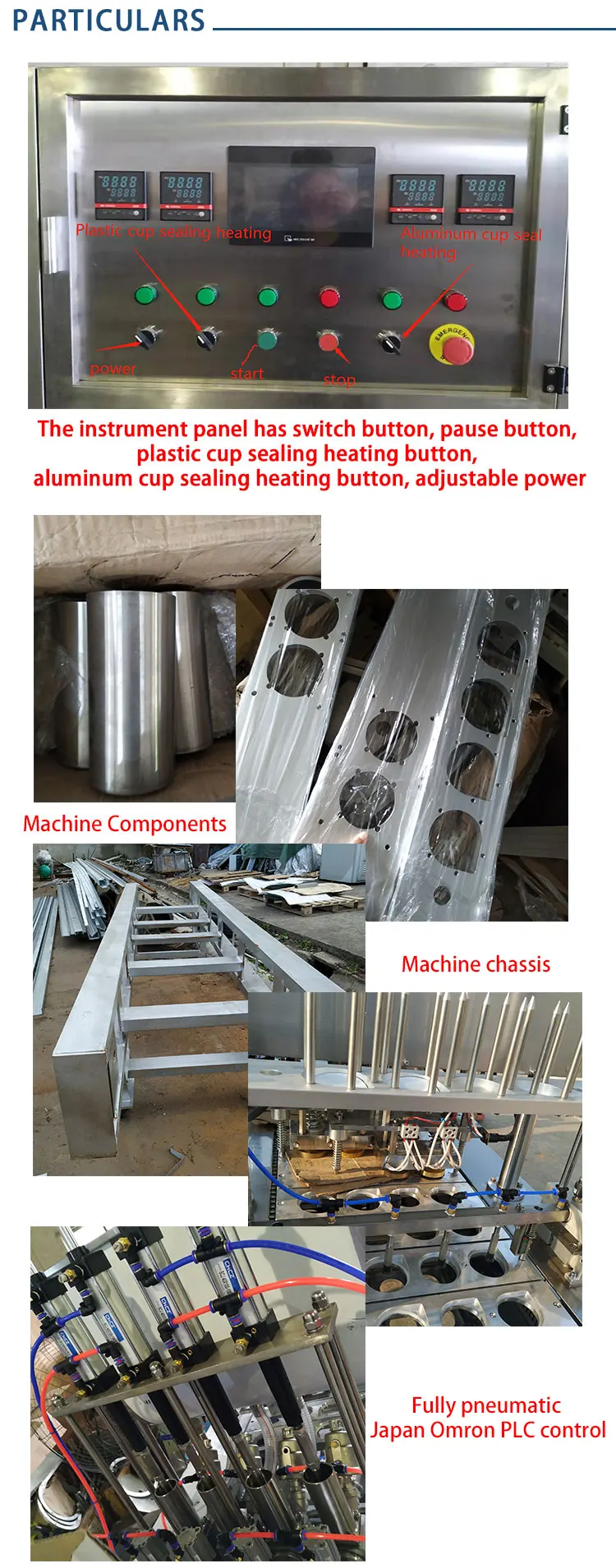

 ParticularsParticulars2

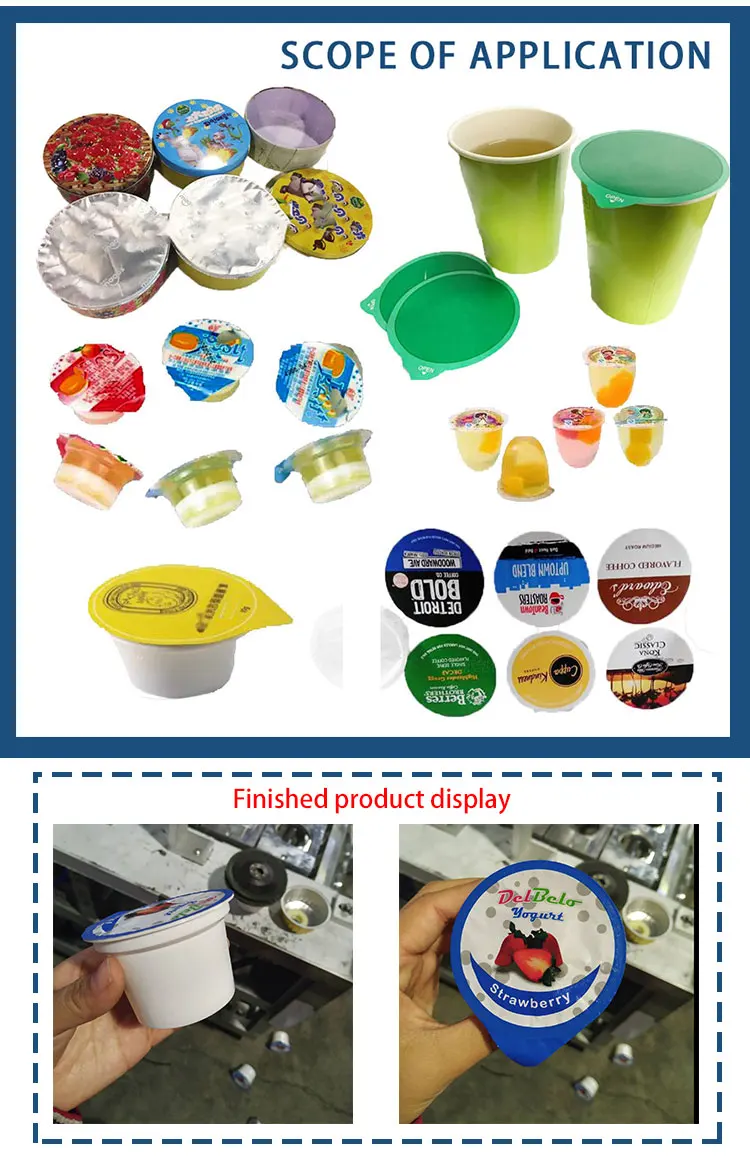

Finished Products


 3 (2).jpg3 (3).jpg3 (19).jpg
