China industry customization HVAC Panel H14 U15 Ulpa Hepa 0.2 Micron Filter
- Category: >>>
- Supplier: Shanghai Junkai Environmental Engineering Co. Ltd.
Share on (1600622684429):
Product Overview
Description

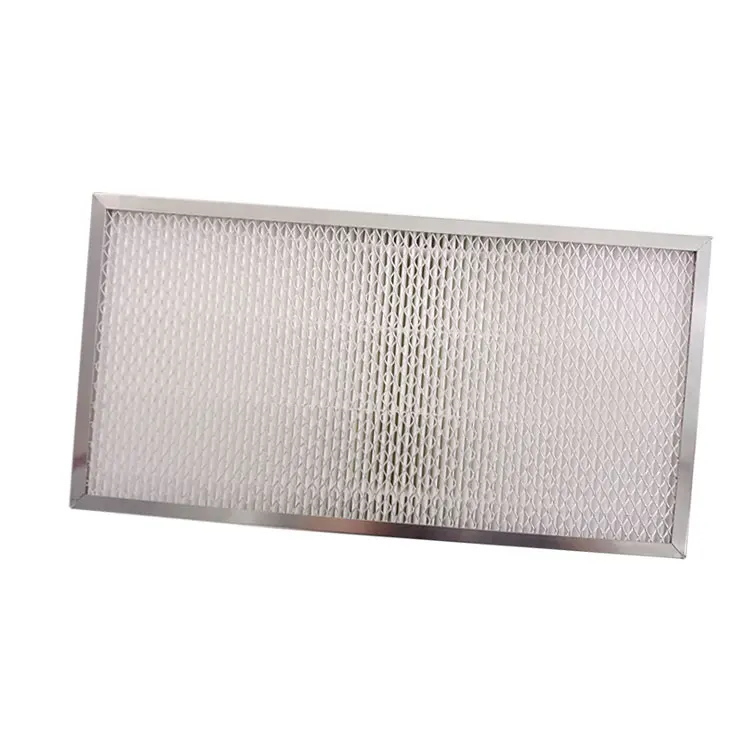

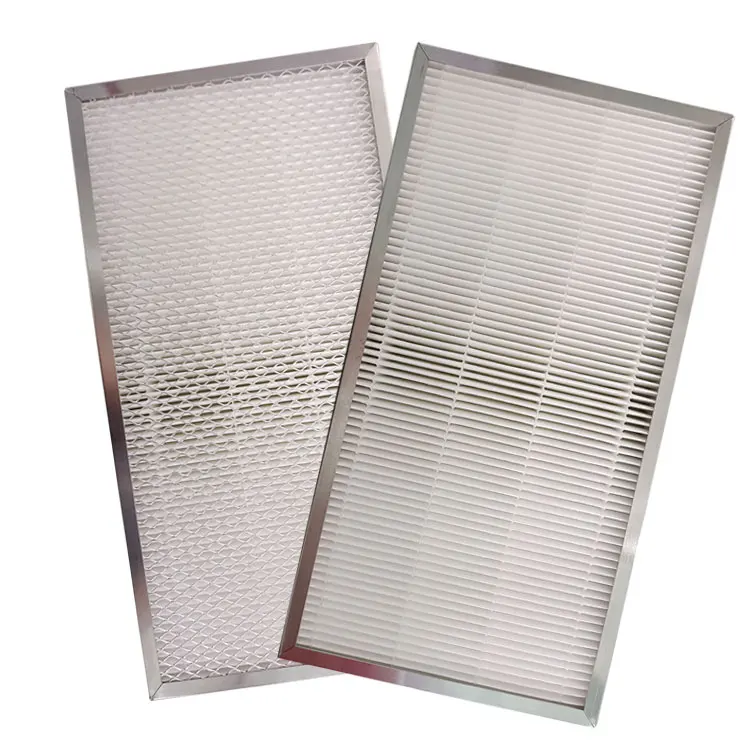

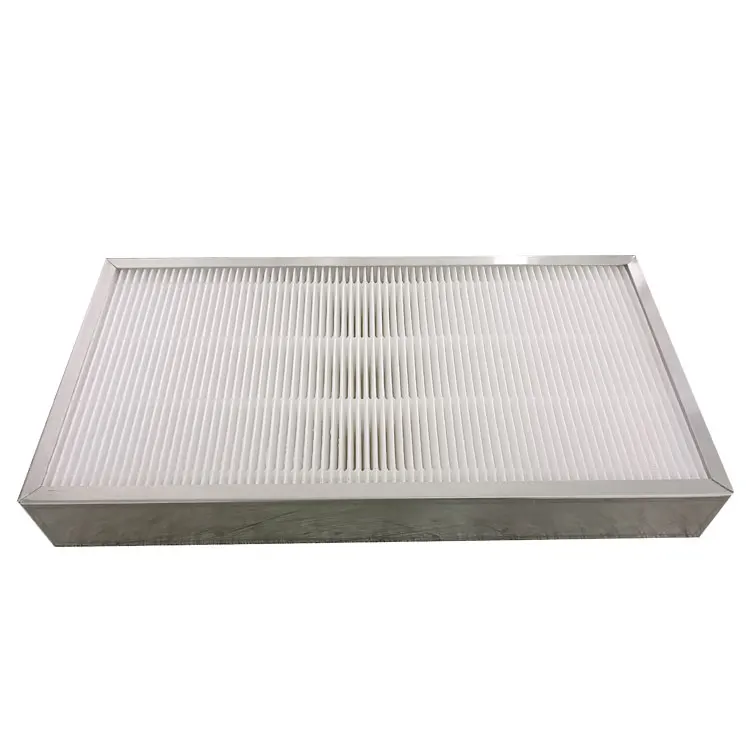

China industry customization HVAC Panel H14 U15 Ulpa Hepa 0.2 Micron Filter
About us

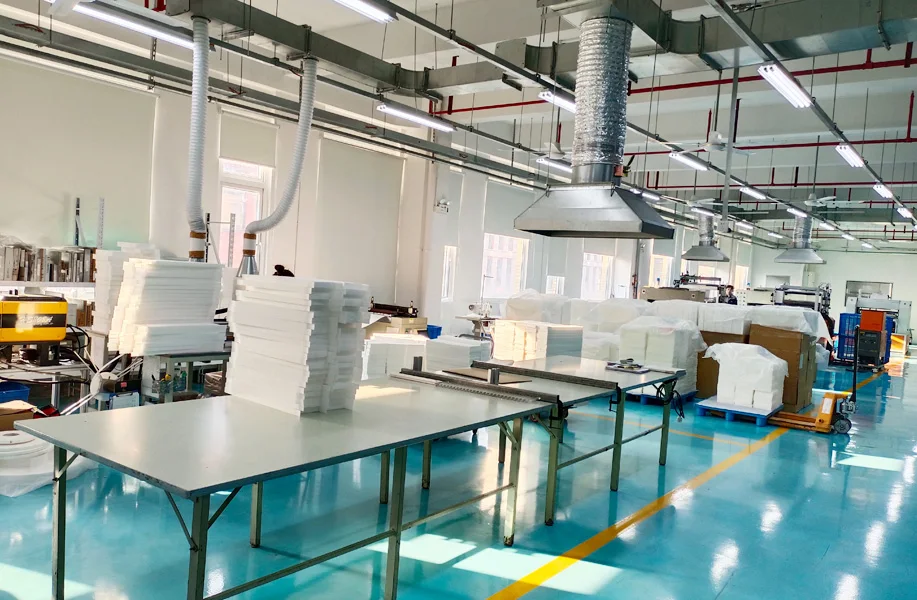

1) We are a professional air filter manufacturer with ISO9001:2008
2) Have a testing warehouse with international standards
3) We provide OEM/ODM
2) Have a testing warehouse with international standards
3) We provide OEM/ODM
Features
Frame: Galvanized frame, aluminum frame, Stainless steel frame.
Media: high performance synthetic filter, High dust- holding capacity , low initial resistance.
Efficiency:
(EN779:2002 filter class)F6,F7,F8.F9
(ASHRAE:52.2:2007 filter class) MERV12, MERV13, MERV14, MERV15.
Recommended final pressure drop:450pa.Temperature:80°C
Fire rating :DIN 53438 class F1.
Applications
1)Suitable for electronics, bio-pharmaceutical ,machinery, instrumentation, petrochemical and light industry as general air
purification systems.
2)As pre filters for hepa filters
purification systems.
2)As pre filters for hepa filters
Common Specifications
Model W x H x D | Dimensions W x H x D(mm) | Media Area (m2) | Rated Air Flow (m3/h) | Initial Pressure Drop(Pa) F6 F7 F8 F9 |
JHNS12X24X2 | 287X592X50 | 2.9 | 950 | 65 90 120 150 |
JHNS20X24X2 | 490X592X50 | 4.9 | 1500 | |
JHNS24X24X2 | 592X592X50 | 5.9 | 1900 | |
JHNS12X24X3 | 287X592X70 | 5.1 | 1075 | |
JHNS20X24X3 | 490X592X70 | 9 | 1750 | |
JHNS24X24X3 | 592X592X70 | 10.3 | 2170 | |
JHNS12X24X4 | 287X592X90 | 4.8 | 1200 | |
JHNS20X24X4 | 490X592X90 | 9.9 | 2000 | |
JHNS24X24X4 | 592X592X90 | 12.1 | 2455 | |
JHNS12X24X5 | 287X592X135 | 4.5 | 1700 | |
JHNS20X24X5 | 490X592X135 | 8.3 | 2375 | |
JHNS24X24X5 | 592X592X135 | 10.3 | 3400 |
More Material Development,Testing,Update......
