LANBOO 2822 series high end with red, green and blue light emitting IP65 2nd/3rd gear 2NO2NC metal rocker button switch
LANBOO 2822 series high-end with red, green and blue light-emitting IP65 2nd/3rd gear 2NO2NC metal rocker button switch
LANBOO 2822 series high-end with red, green and blue light-emitting IP65 2nd/3rd gear 2NO2NC metal rocker button switch
LANBOO 2822 series high-end with red, green and blue light-emitting IP65 2nd/3rd gear 2NO2NC metal rocker button switch
LANBOO 2822 series high-end with red, green and blue light-emitting IP65 2nd/3rd gear 2NO2NC metal rocker button switch
LANBOO 2822 series high-end with red, green and blue light-emitting IP65 2nd/3rd gear 2NO2NC metal rocker button switch
LANBOO 2822 series high-end with red, green and blue light-emitting IP65 2nd/3rd gear 2NO2NC metal rocker button switch

LANBOO 2822 series high end with red, green and blue light emitting IP65 2nd/3rd gear 2NO2NC metal rocker button switch

Share on (1600622728024):


Price:$3.40 - $3.80

Quantity:


Product Overview

Description

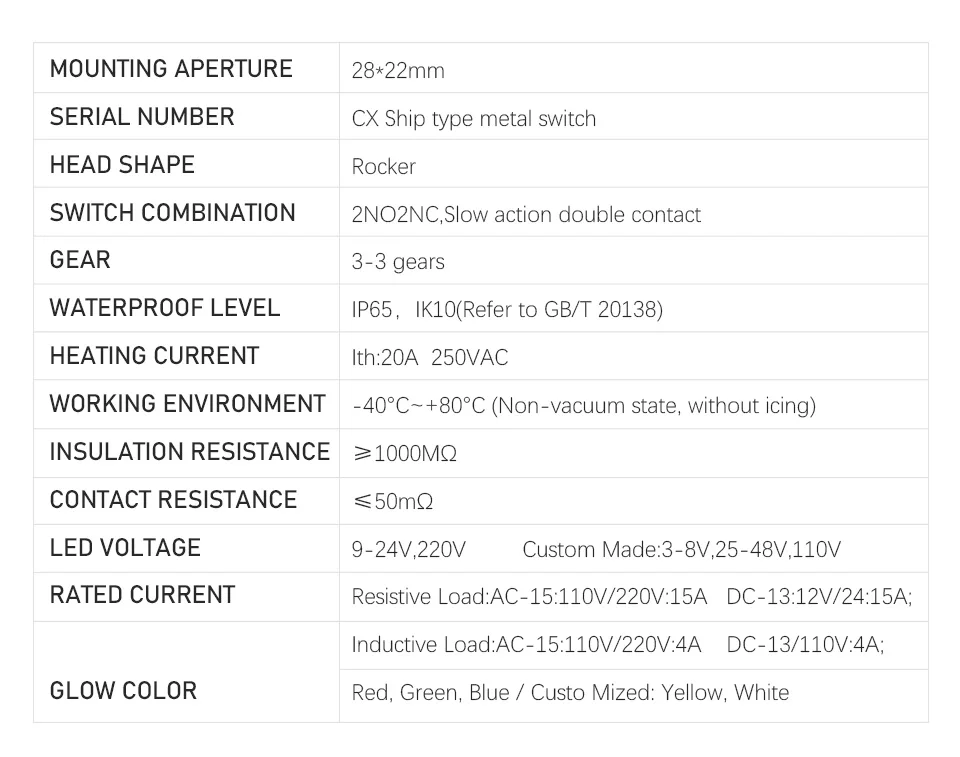

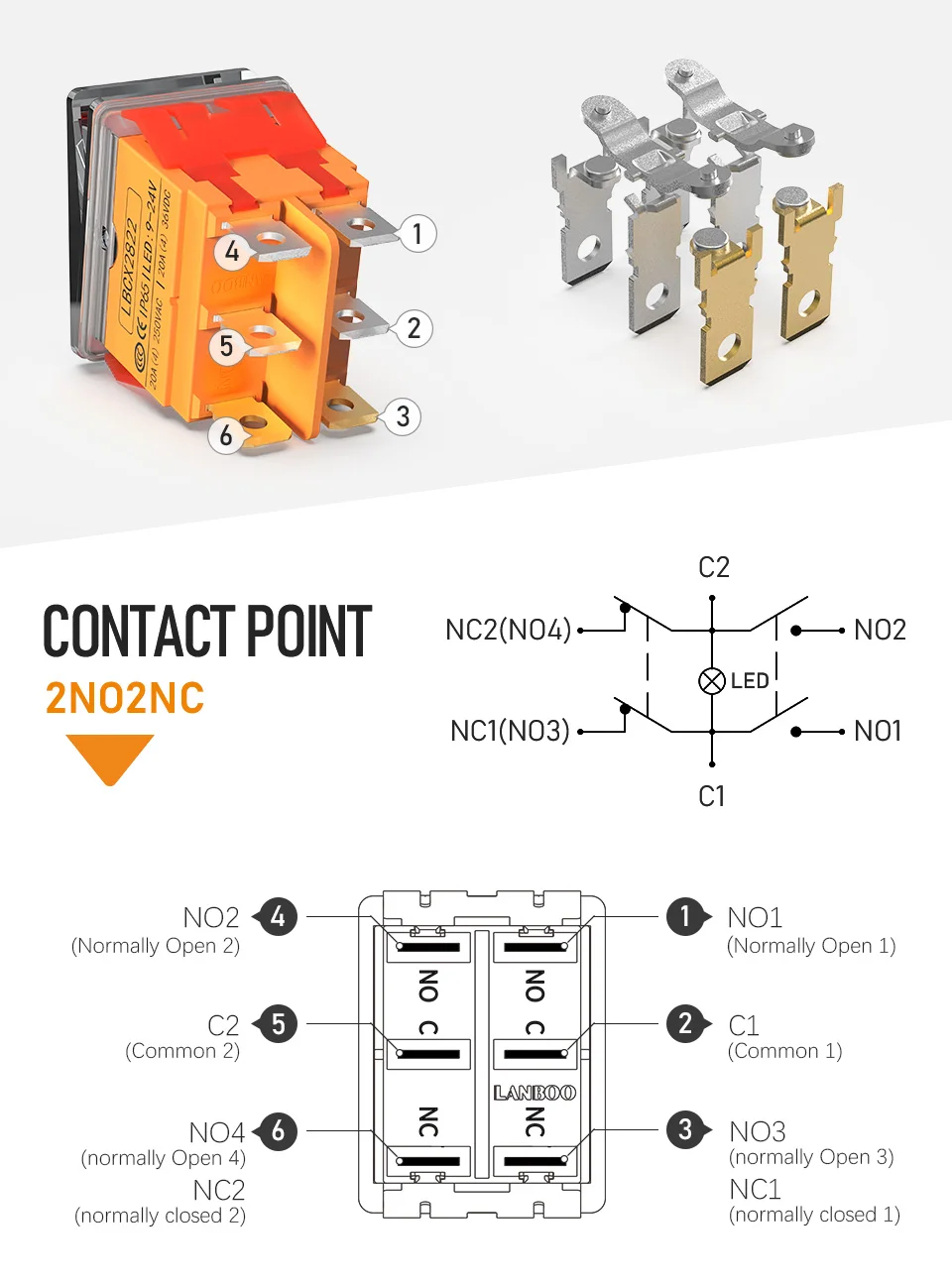

Switch Combination2NO2NC,Slow action double contact
gear:3-3 gears
Waterproof level:IP65,IK10(Refer to GB/T 20138)
Heating Current:Ith:20A  250VAC
Working Environment:-40°C~+80°C (Non-vacuum state, without icing)
Insulation resistance:≥1000MΩ
Contact resistance:≤50mΩ

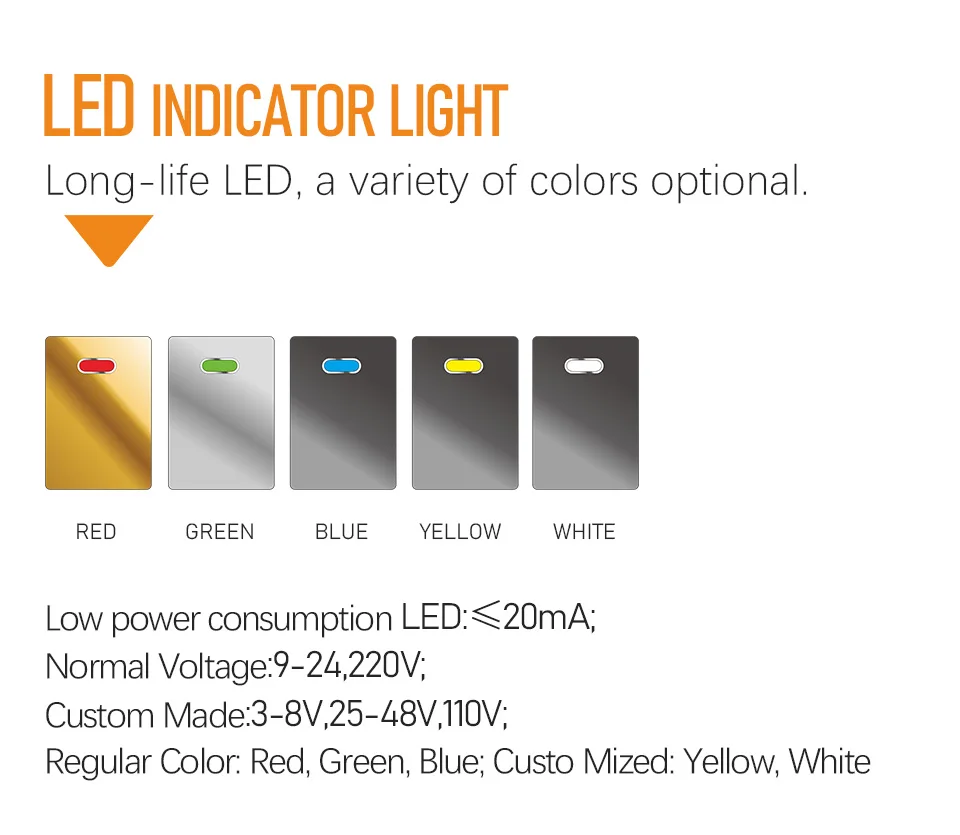

LED voltage:9-24V,220V,Custom Made:3-8V,25-48V,110V
Rated current:Resistive Load:AC-15:110V/220V:15A   DC-13:12V/24:15A;
Inductive Load:AC-15:110V/220V:4A    DC-13/110V:4A

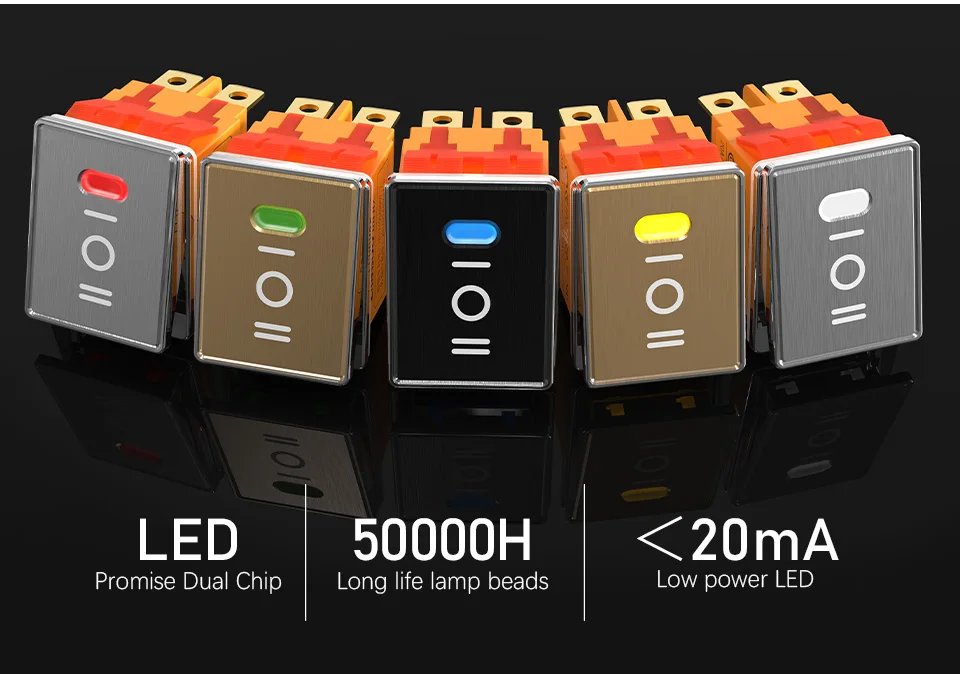

Glow colorRed, Green, Blue / Custo Mized: Yellow, White

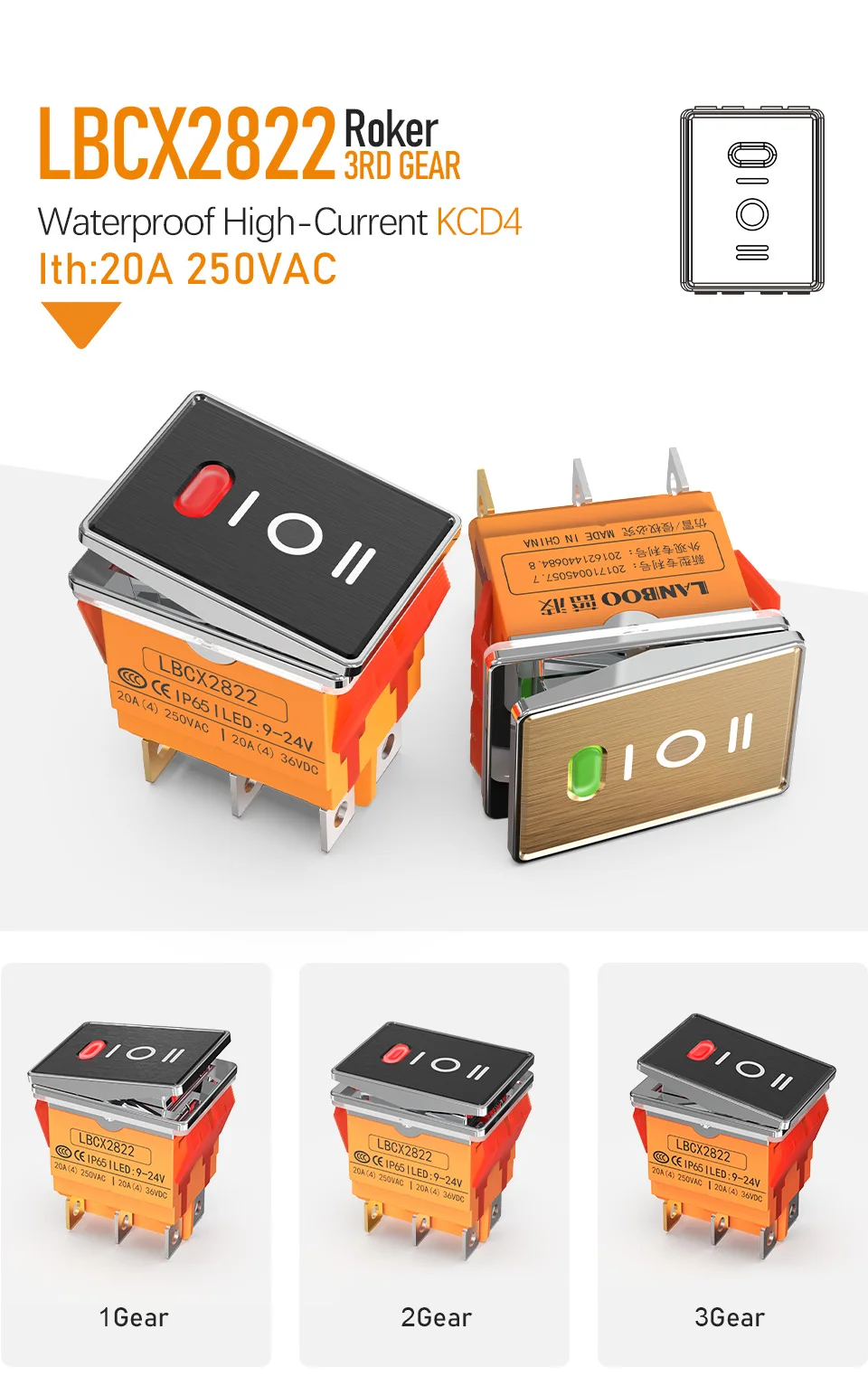

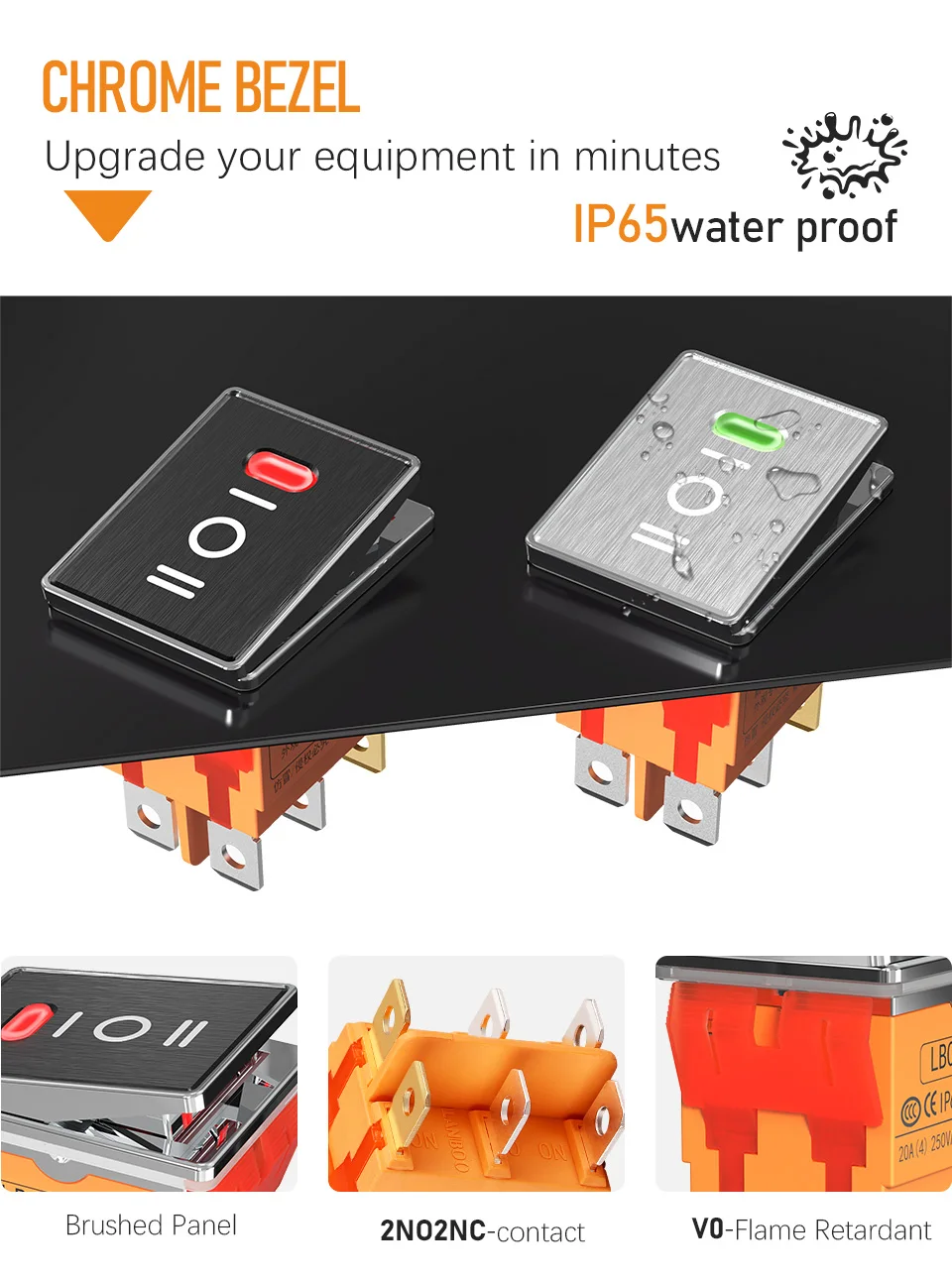

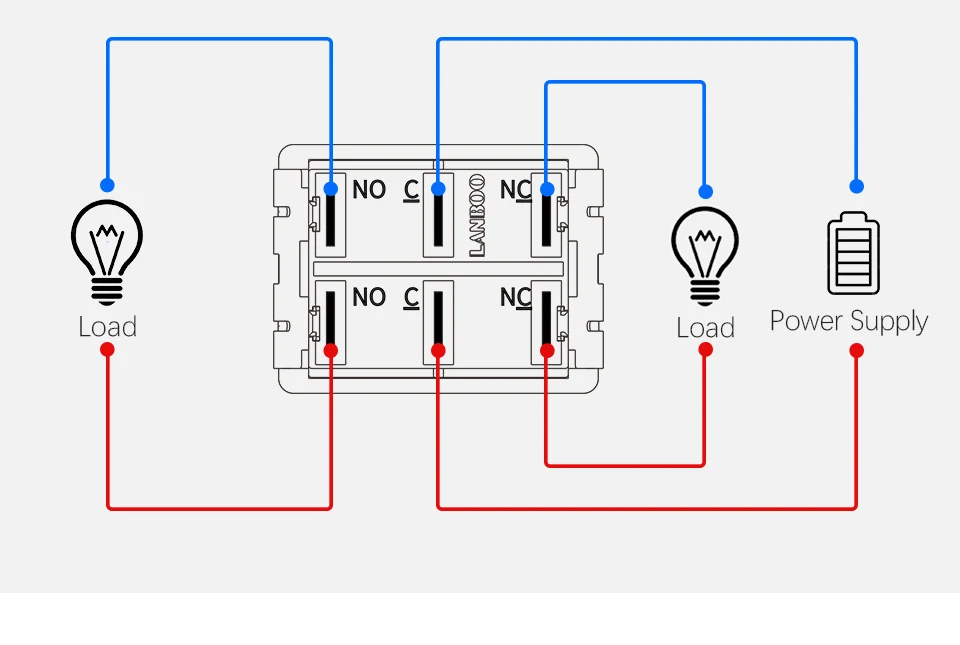

-960_01-960_02GJZ-SUMT_03.jpg-960_04960.jpg-960_06-960_07-960_09.jpg-960_10-960_11-960_122822-1- (1)2822-1- (2)2822-1- (3)2822-1--(4)2822-1- (5)2822-1- (6)2822-1- (7)
