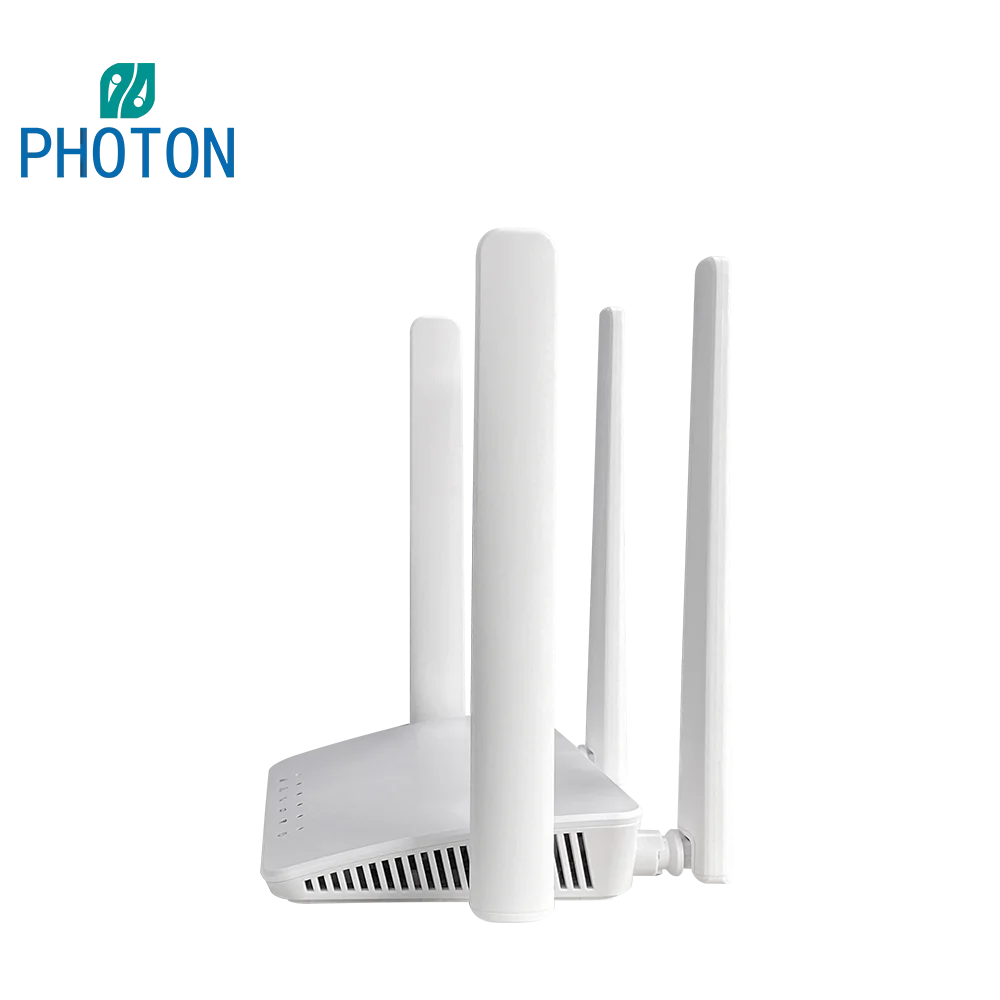

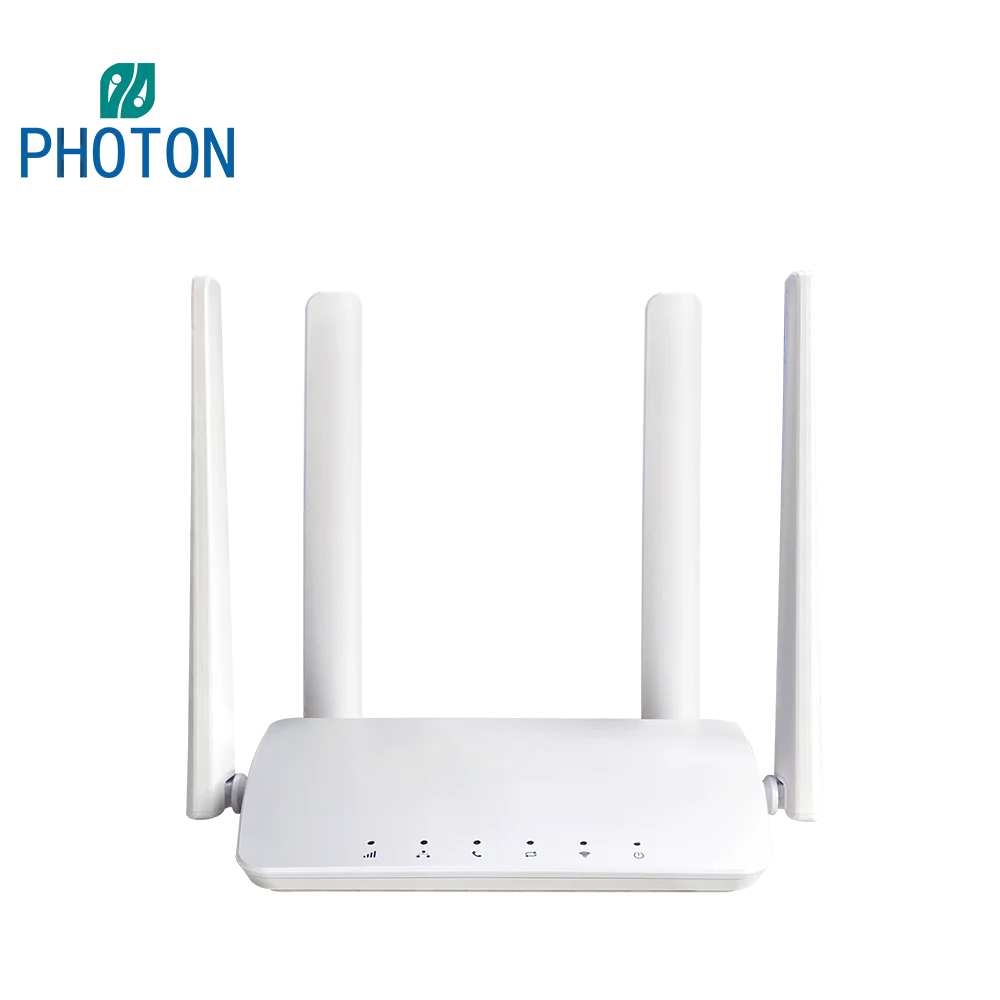

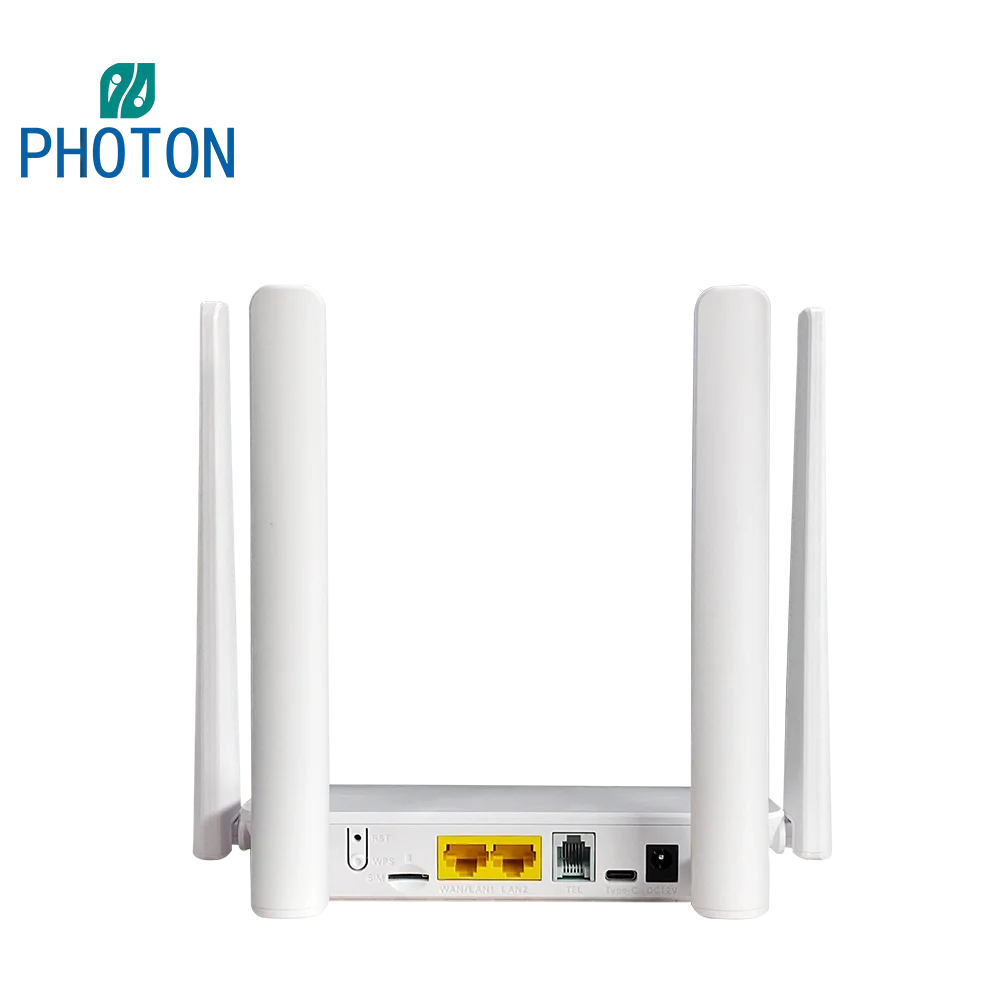

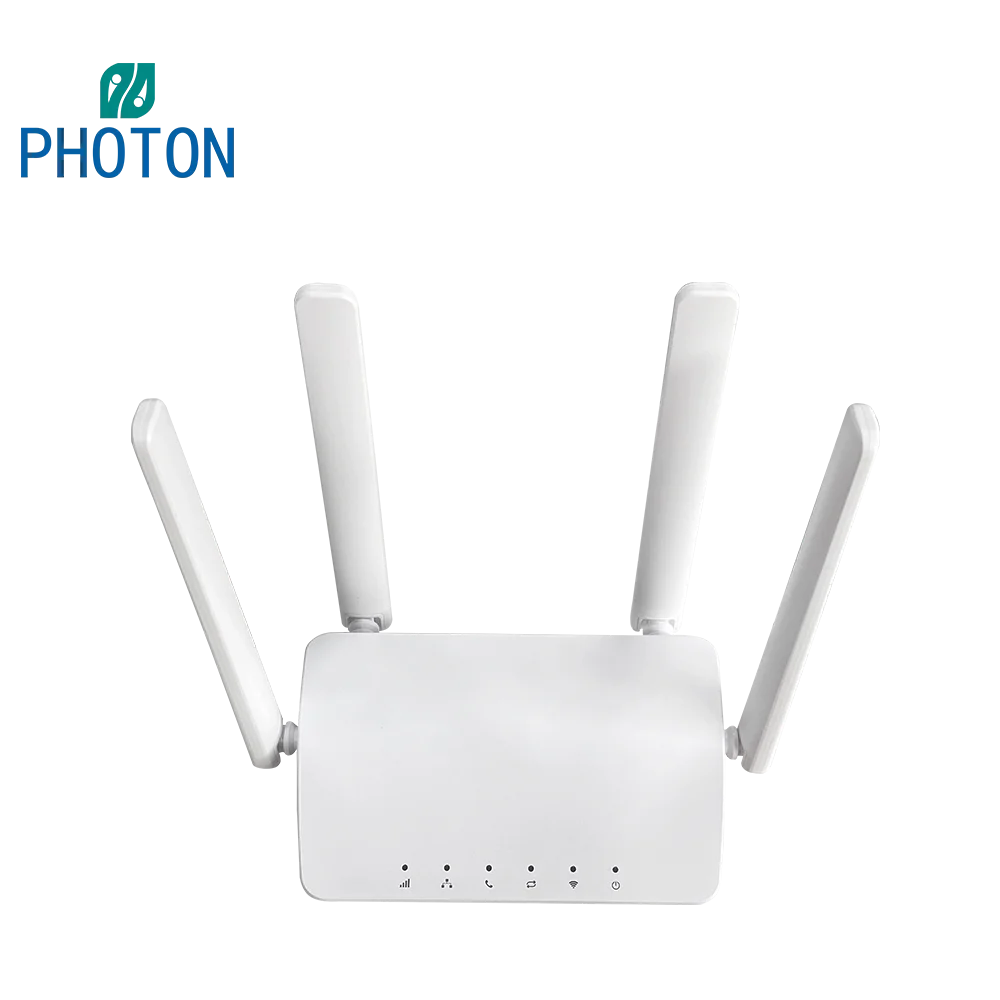

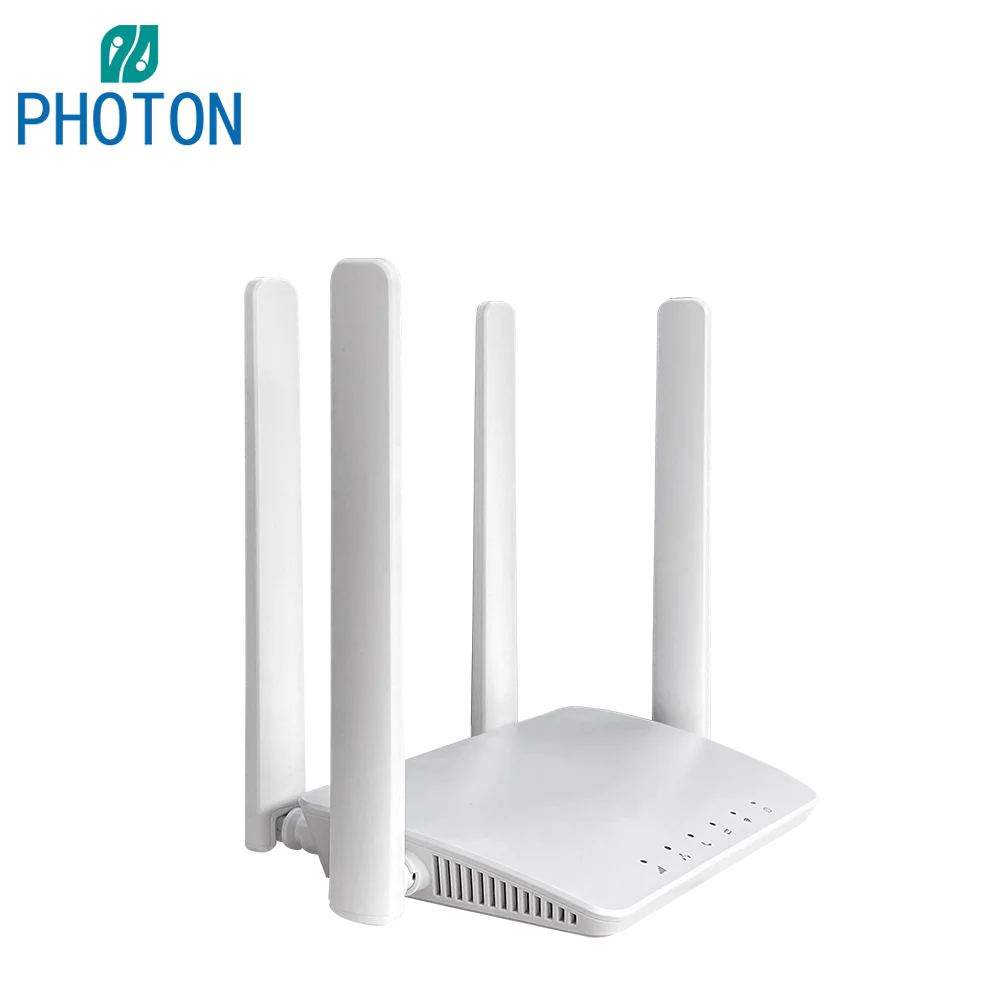

         Wireless 300Mbps CAT4  POT  4G Lte Wifi CPE PTW4262Q




















Product Description





1. Product Description


PTW4262 LTE CAT4 CPE is developed based on several worldwide proven chipset solutions, integrated with the high technologies in LTE CAT4, WIFI 4 Hotspot, two Ethernet ports (WAN/LAN) and Web-UI management. It supports TR069 remote management and FOTA. It supports both 4G CAT.4 and IEEE 802.11 b/g/n protocols, to equip the users enjoying the high speed internet surfing experience.





PTW4262Q can also be applied to a wide temperature environment, and high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees.





 2. Features


Ø 4G/3G (No 2G), Multi-mode, Multi-band, Global customizable


Ø Easy to set up and manage: CPE comes with a centralized


Ø software to help users easily manage all devices in the network


Ø High gain 2*2 MIMO antennas for LTE and WiFi, super powerful signal strengths, high speed WAN/LAN, RJ11 voice optional


Ø TR069 remote management and FOTA support


Ø Usage scenario: Indoor, Home, office, etc


Ø LTE CAT4 Technology, 150Mbps Downlink robust speedrate


Ø WIFI,300Mbps robust downlink speedrate


Ø Wider coverage, up to 180Ms connection distance and 32 connected stations

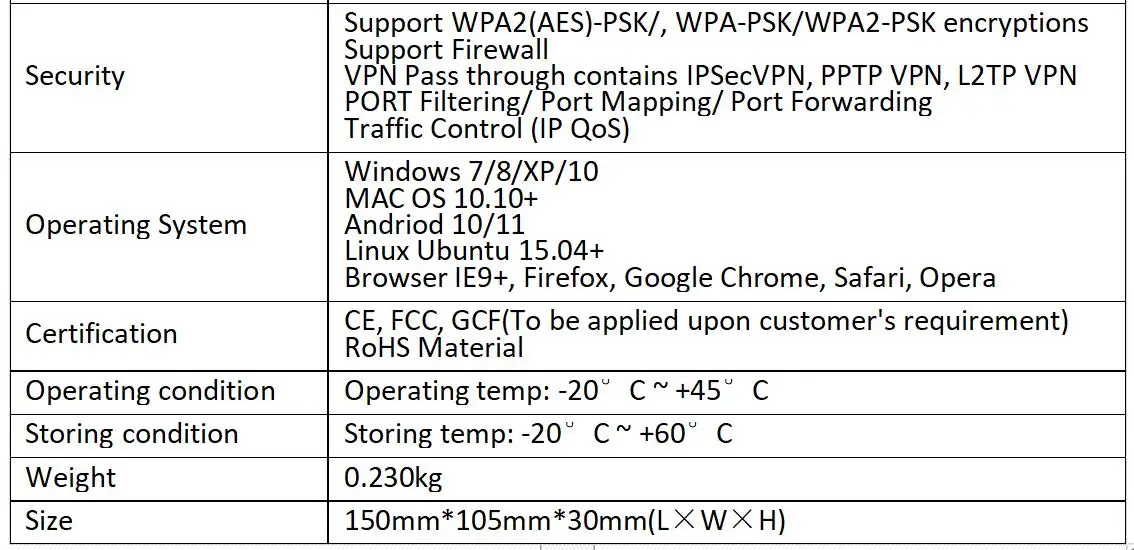

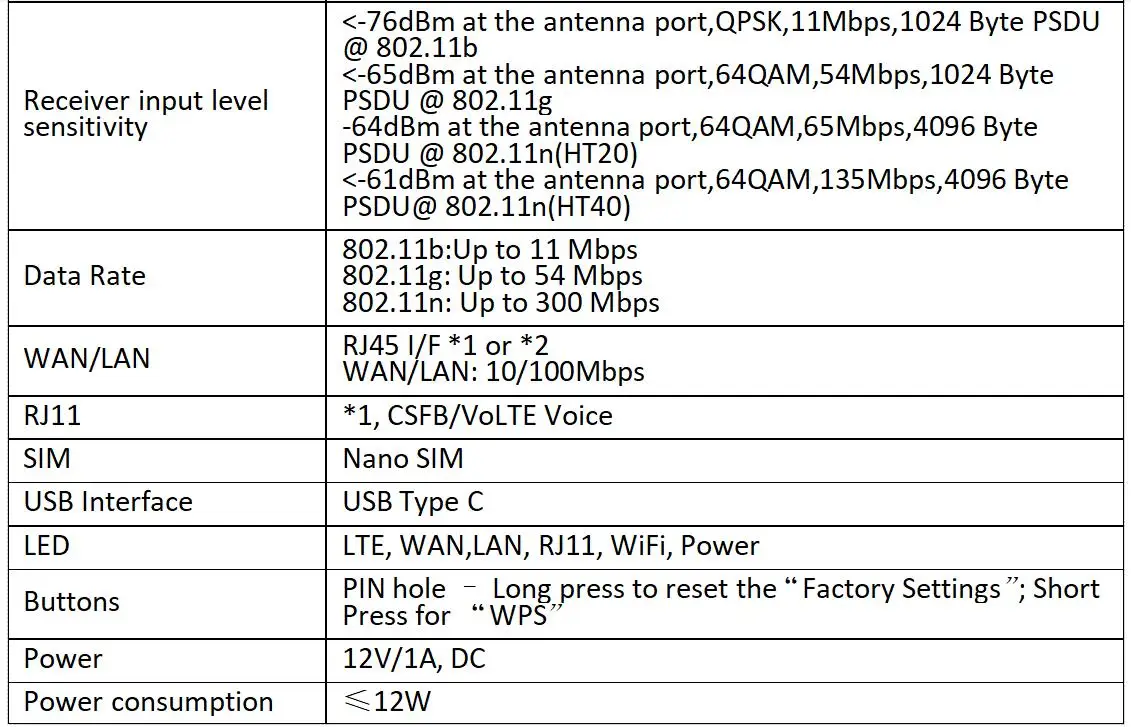

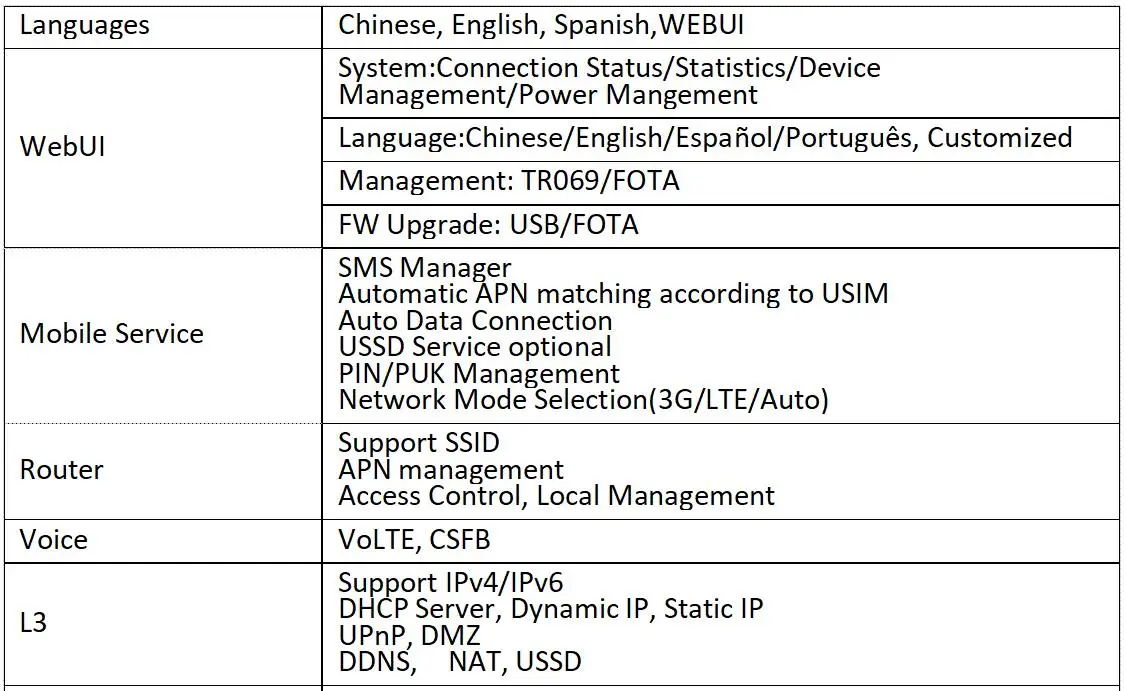

3. Technical parameters


























































Chipset



FASR1803+RTL8192ES



Interface



2FE+USB+USIM+WiFi4



Working Frequency



FDD LTE: B1/B3/B5/B7/B8/B20/B28a


TDD LTE: B38/B40/B41


UMTS: B1/B5/B8



Bandwidth



1.4/3/5/10/15/20 MHz, comply with 3GPP



Modulation



DL: QPSK/16-QAM/64-QAM, comply with 3GPP


UL: QPSK/16-QAM, comply with 3GPP



LTE Antenna



MIMO: 2 * 2 LTE Antennas



RF Power Level



LTE: Power Class 3 (23 dBm + 2.7/-3.7dB)


UMTS: Power Class 3 (24 dBm +1.7/-3.7dB)



Data Rate



4G: 3GPP R9 Cat4, FDD:DL/UL up to 150Mbps/50Mbps, TDD: DL/UL up to 110Mbps/10Mbps







3G: 3GPP R7 DL/UL up to 21Mbps/5.76Mbps



WIFI



IEEE 802.11 b/g/n/,20MHz/40MHz, 2.4GHZ ,up to 32 access points



WiFi Antenna



External, 2 x 2 MIMO



Wi-Fi Frequency



2.4GHz, 1~13Channel



Wi-Fi Transmit Power



17±2dBm @ 802.11b


15±2dBm @ 802.11g


14±2dBm @ 802.11n
