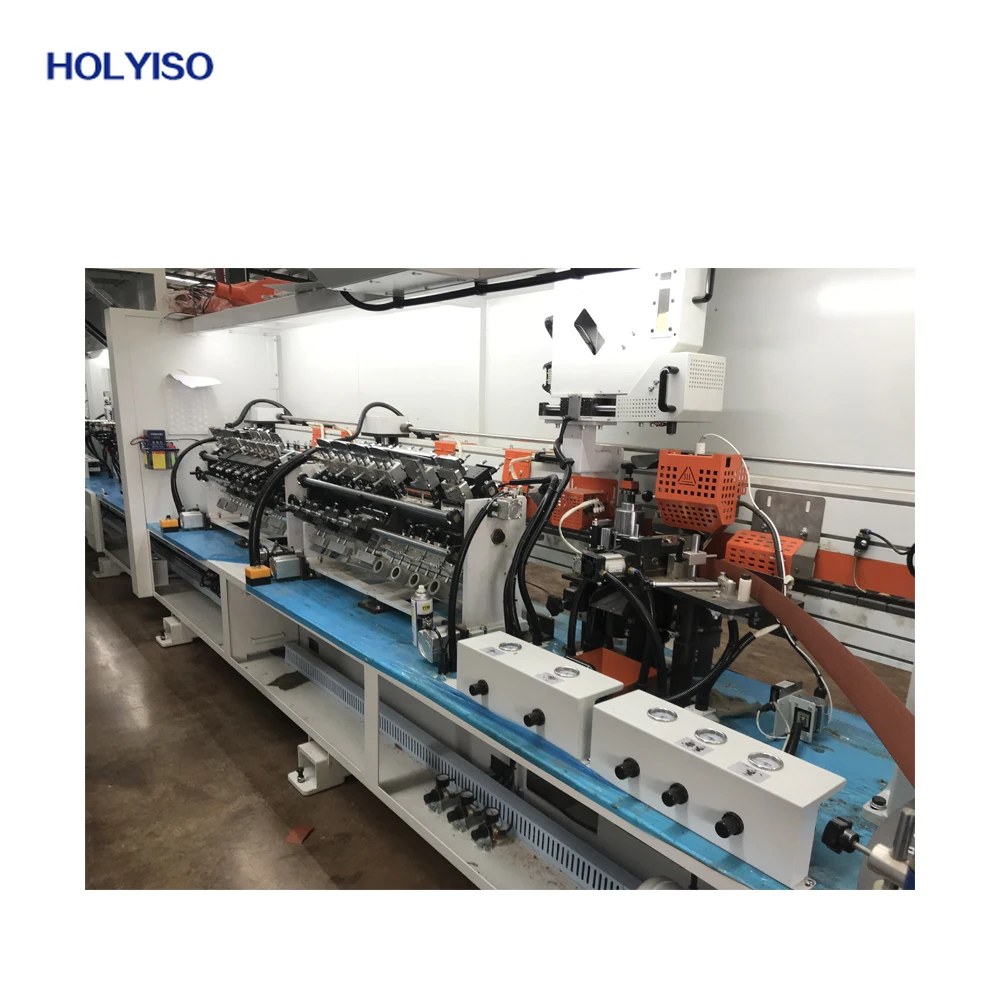

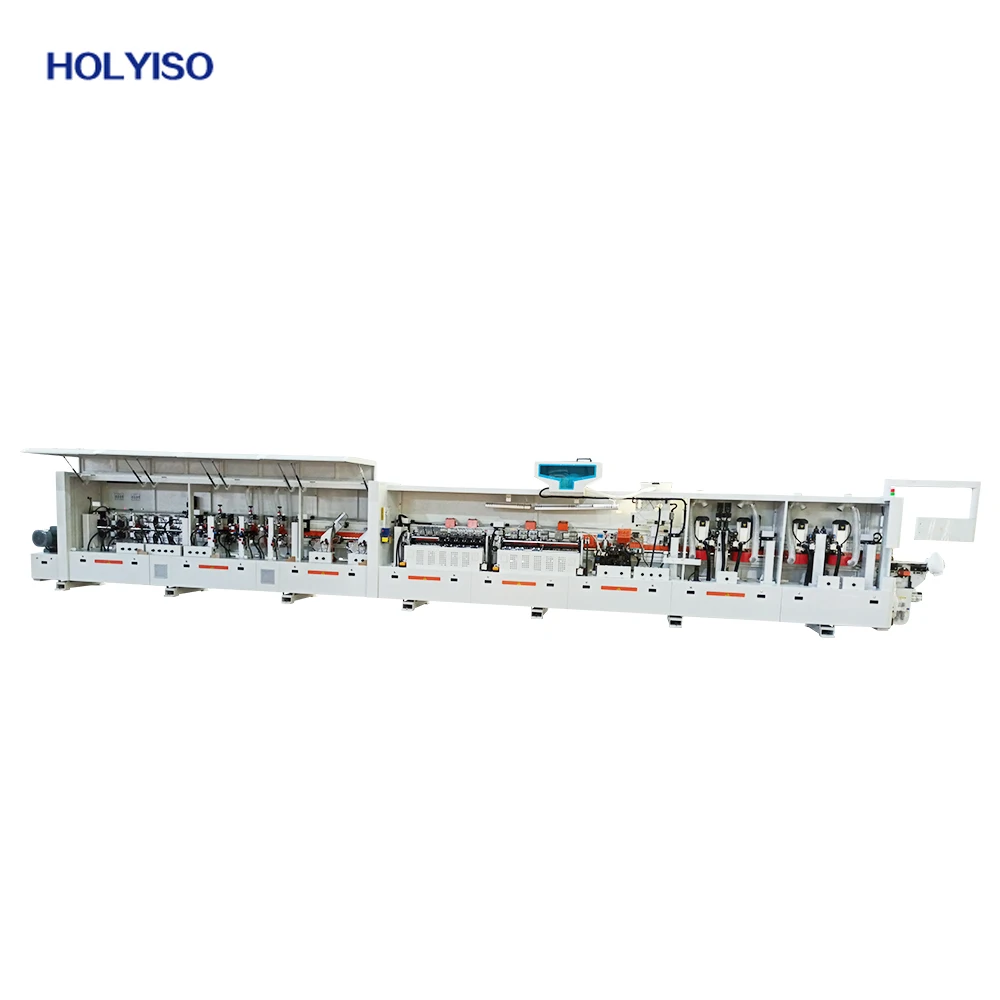

HOLYISO Automatic J Type X Type C Type 45 degree mdf pvc board soft forming edge banding machine For furniture manufacturer
- Category: >>>
- Supplier: Foshan Holyiso Machinery Co. Ltd.
Share on (1600622748386):
Product Overview
Description
Products Description
J type & C type & X type All In One
Edge banding machine
Separating agent, forming milling, slotting, gluing, forming pressing, end cutting, irregular-shaped end cutting, rough trimming, fine trimming, scraping, flat scraping 1, flat scraping 2, flat scraping 3, cleaning , Fixed buffing 1, fixed buffing 2
Model | Board shape | KIE-JCX | ||
Working Pressure | 0.6Mpa | |||
Total power | 55kw | |||
Feed speed | Medium speed：13m/min High speed：16 m/min | |||
Electric lifting | Standard（double 0.37kw） | |||
Panel Thickness | J type | 18MM | ||
C type | 18MM | |||
X type | 16MM-25MM，Straight edge fixed size 5MM | |||
J/C/X | ≧250X150mm | |||
Edge thickness | J/C | 0.6MM | ||
X | 0.8-1.5MM | |||
PVC | It is recommended to use a matte surface instead of a bright surface | |||
Overall Size(L x W x H) | 12300mm *1000mm *2000mm | |||
Weight | 4800kg | |||
* Machine functions can be customized according to your needs * >> Tell us your requirement << | ||||

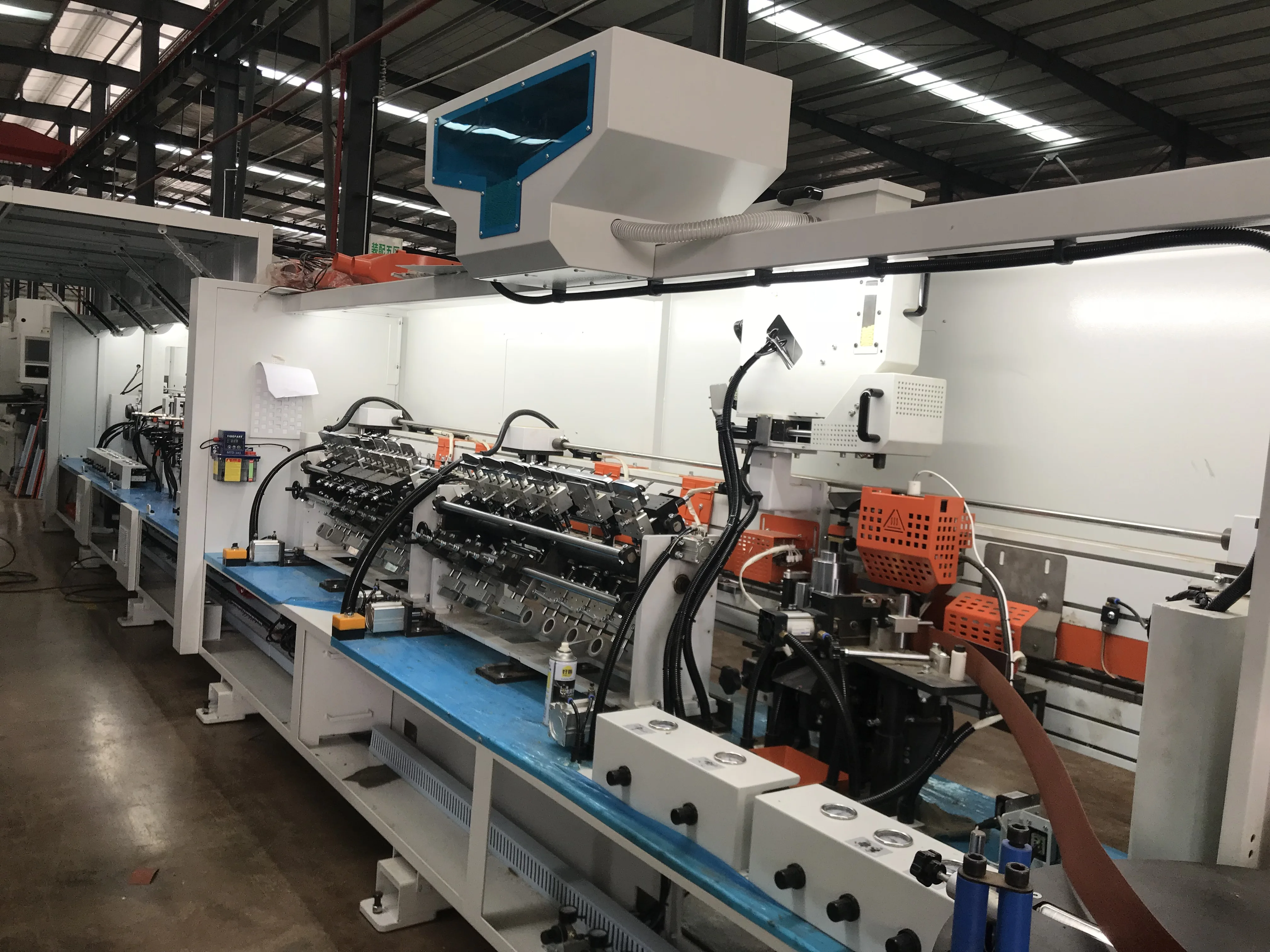

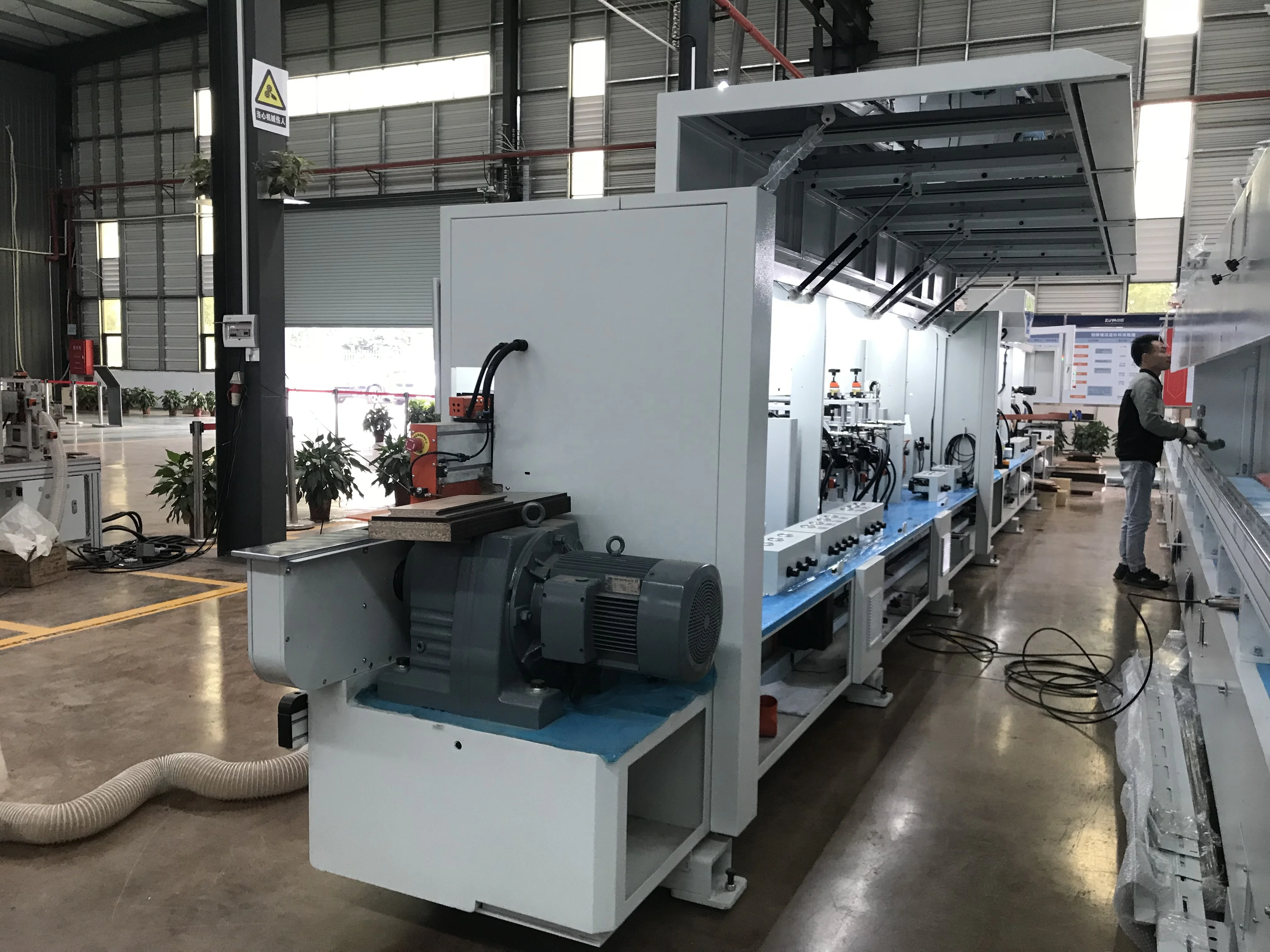

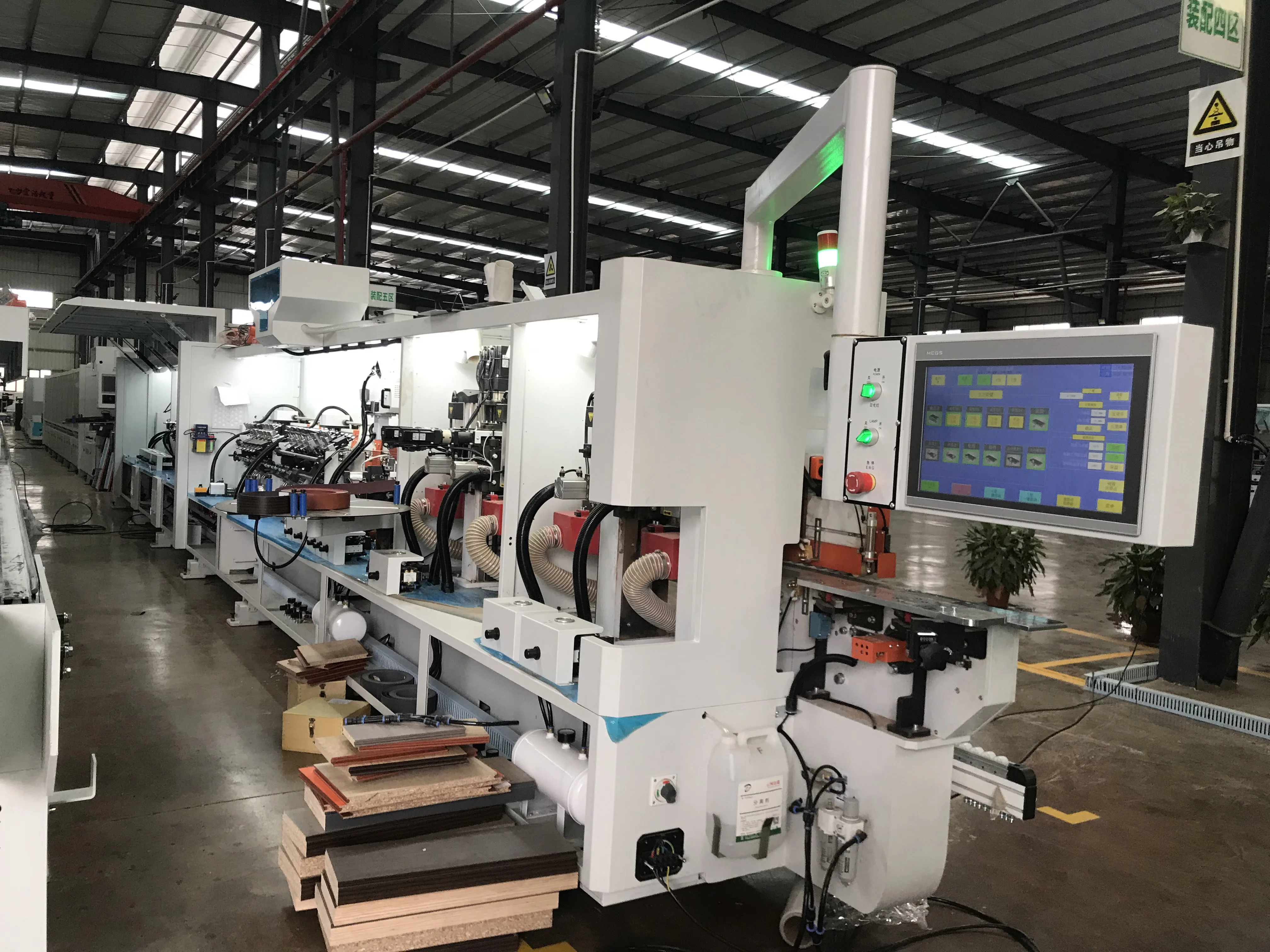

Details Images
Detail 1
Separating agent, forming milling
Detail 2
slotting, gluing
Detail 3
end cutting
Detail 4

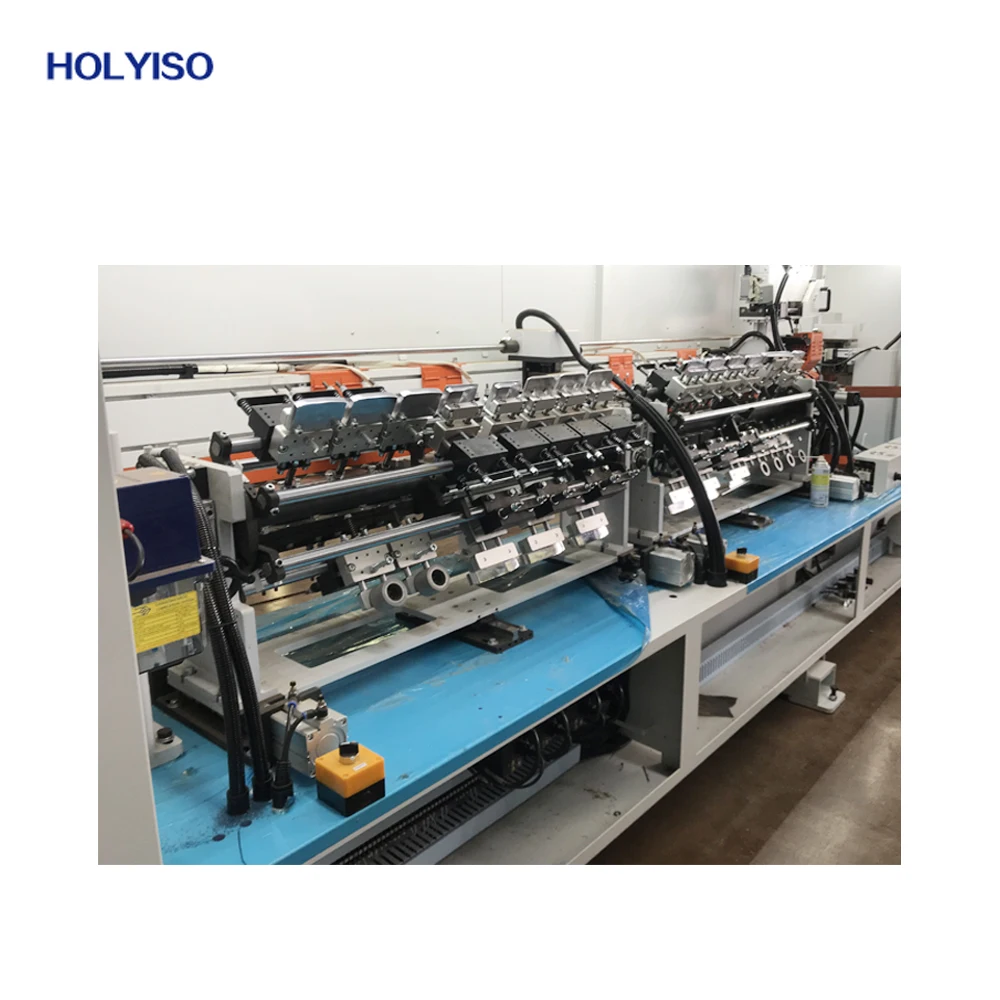

forming pressing
Detail 5

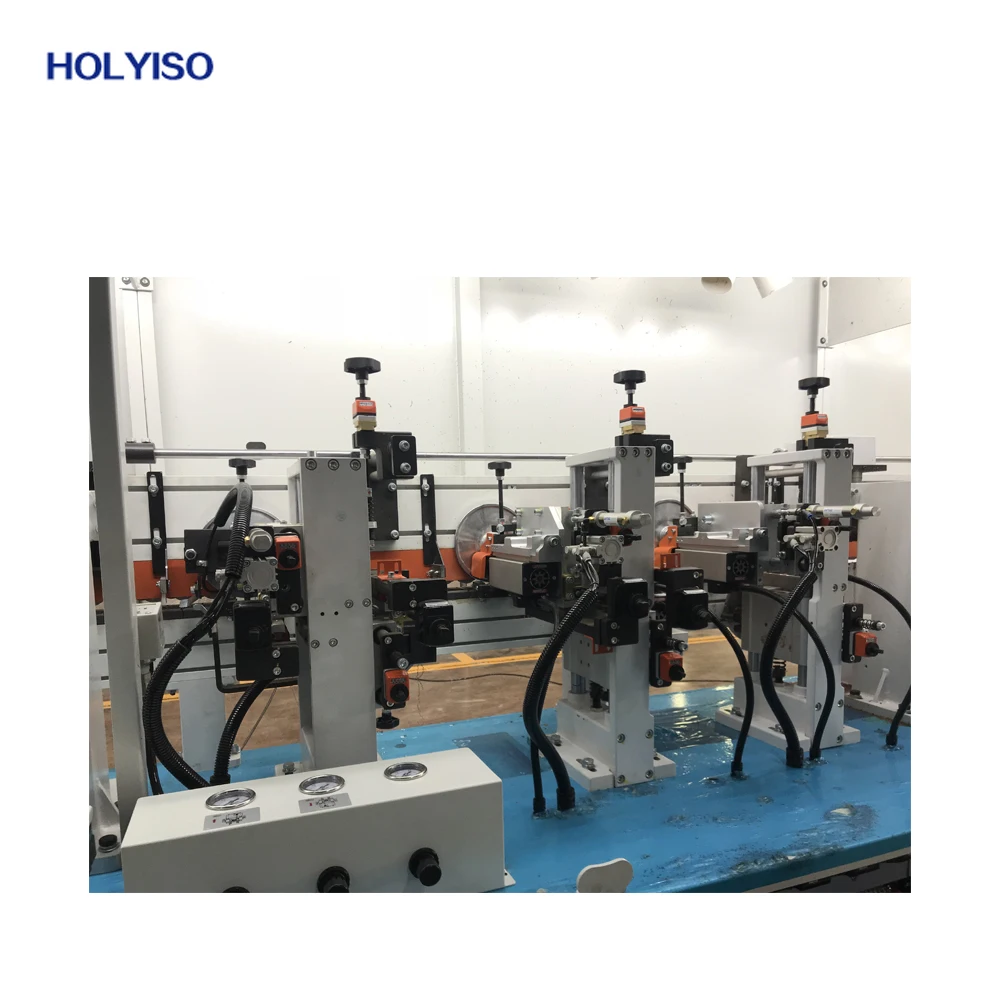

rough trimming, fine trimming, scraping
Detail 6
flat scraping, cleaning , fixed buffing

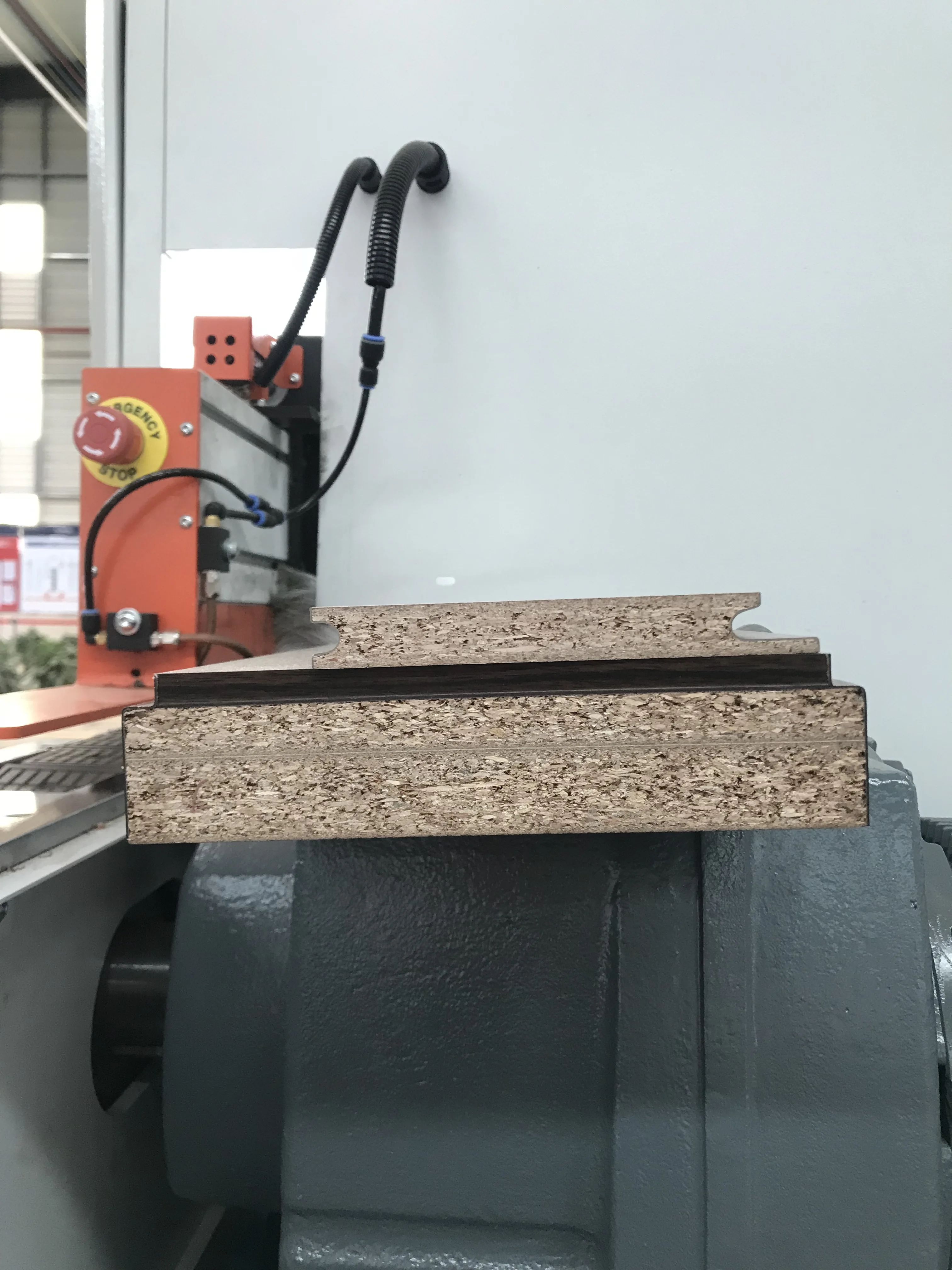

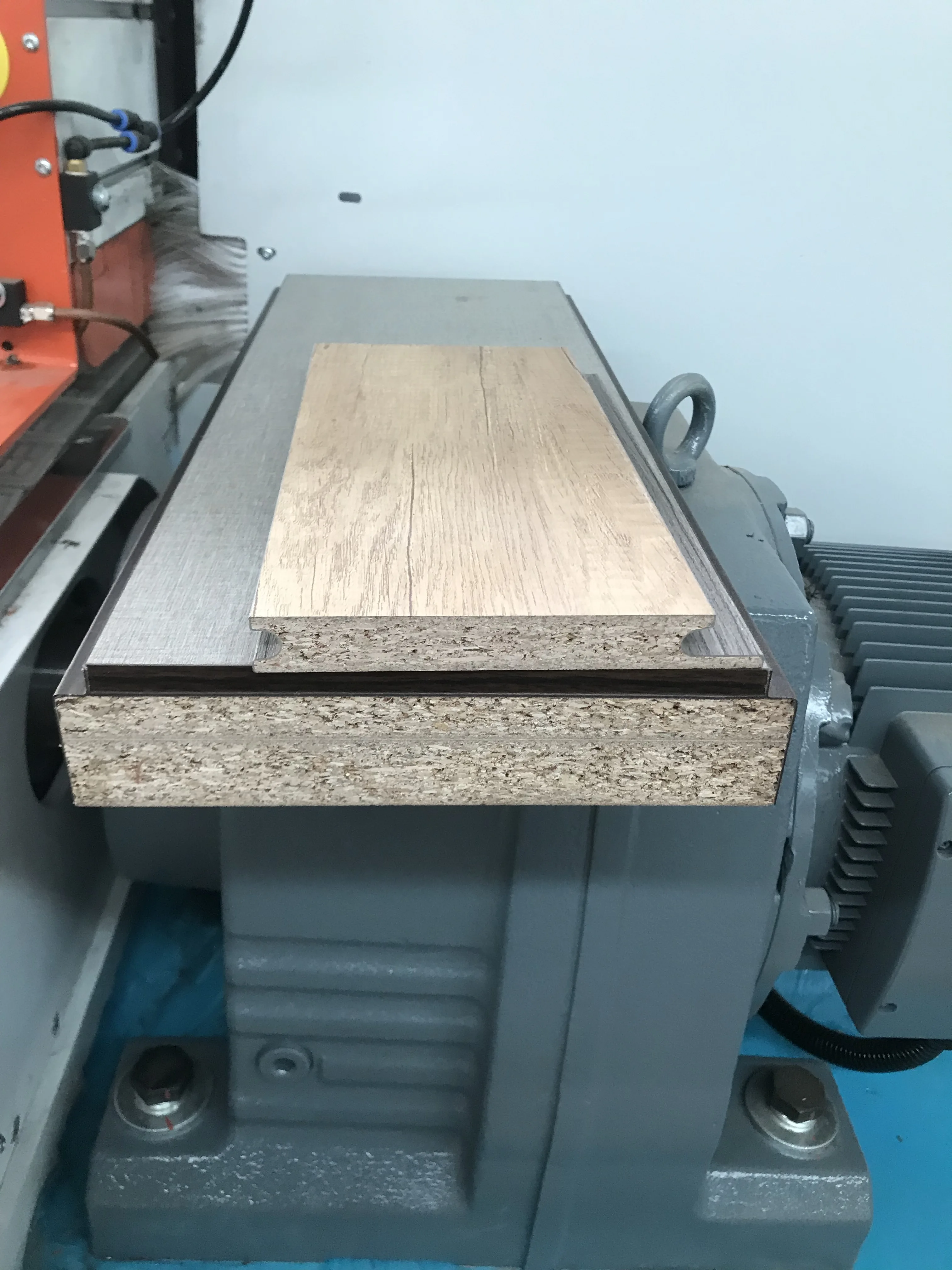

Finish Product
- Finish Product -

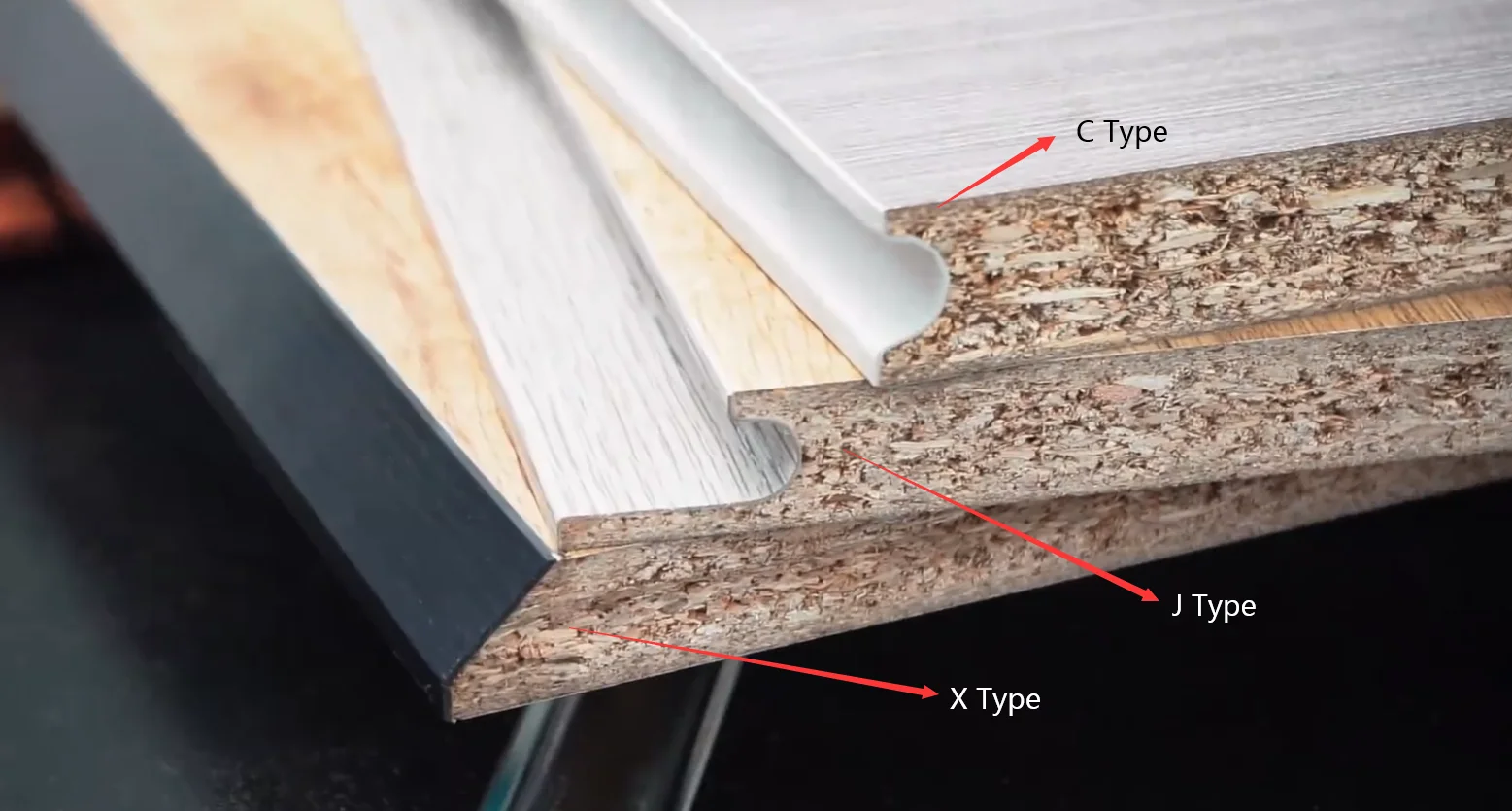

J Type, C Type, X Type, L Type function can be customized individually or in combination.
J type plate thickness
18mm (thickness of edge banding: 0.6mm), width of edge banding: 54mm
C type plate thickness
18mm (the thickness of the edge band is 0.6mm), the width of the edge band: 34mm
X type plate thickness
18mm 25mm (the thickness of the edge banding is 0.8mm-1.2mm)
18mm thick plate edge band width: 28mm, 25mm thick plate edge band width: 38mm
18mm thick plate edge band width: 28mm, 25mm thick plate edge band width: 38mm
- Work Shop -
Why Choose Us
- Our Strengths -
1. Online visit of our factory and machine.
2. Factory live every week.
3. The most favorable factory price.
4. Meet various customization requirements
Edge Banding Machine Functions
Pre-milling, corner rounding, PUR, multi-color glue port, straight edge, bevel edge, J edge, C edge, L edge banding...
Customize efficient production line solutions
Panel furniture production solutions, Solid wood furniture production solutions...
Related Products
Packing&Shiping
Delivery:
We can guarantee delivery on time.We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
Package:
We will take care of your machinery packages well like picture show.Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
We can guarantee delivery on time.We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
Package:
We will take care of your machinery packages well like picture show.Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine. If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine. If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
Company Profile
Foshan HOLYISO Machinery CO.,Ltd. is committed to providing customers all over the world with high-quality,stable and durable woodworking machinery. It is a professional manufacturer of Panel saw, Edge banding machine,CNC cutting machines and CNC drilling machine.
We have more than 30 professional R&D personnel, the total production area of the factory is more than 27,000 square meters, and more than 30 various high-precision advanced processing equipment, ensuring the perfect performance of the machine. The company uses advanced technology from Germany and Italy to develop automated woodworking CNC equipment that meets the needs of the furniture and wood products industry.
FAQ
FAQ
1.What’s the different between Rough trim&Fine trim?
1.What’s the different between Rough trim&Fine trim?
Rough trim&Fine trim can trim the exceeding edge on the top and bottom side of the panel to be more smooth.Fine trimming can be upgraded to pneumatic adjustment knife edge for increased productivity and precision.
2.Will the machine be debugged before leaving the factory?
Surely yes,our machines are commissioned before leaving the factory to ensure that every function is available. However, we suggestion that the machine be adjusted according to its actual panel after it arrives.
3.Can I pause some features if I don't want to use ?
In addition to the scraping function, most other functions can be pause.
4.Can I customize the features I want?
Of course we are special in woodworking manufacturer and exporter of quality woodworking machines in Guangzhou, China. We have been in this field for more than 20 years.We have the ability to provide professional services for you.
5.Can the edge banding machine only seal the edges straight?
We also have fully automatic Partial hypotenuse edge banding machine.
6.How much temperature reach can it work ?
Generally,when reaches 150 ° it can test the board .The best working temperature is 180°.
7.what features can be upgraded?
A.Full range of products can be customized to feed in the opposite direction.
B.Pneumatic adjustment(Including trimming and scraping)
C.Heavy-duty pneumatic pre-milling function
D.Multi-cylinder adjustment function
E.Profile tracking chamfer
F.Double color plastic pot
G.Dual guide head and tail function
H.PUR glue supply system
I.Four polishing function J.Rapid sol system K.Six-wheel press function
L.Pneumatic flat wipe function (floating edge)
2.Will the machine be debugged before leaving the factory?
Surely yes,our machines are commissioned before leaving the factory to ensure that every function is available. However, we suggestion that the machine be adjusted according to its actual panel after it arrives.
3.Can I pause some features if I don't want to use ?
In addition to the scraping function, most other functions can be pause.
4.Can I customize the features I want?
Of course we are special in woodworking manufacturer and exporter of quality woodworking machines in Guangzhou, China. We have been in this field for more than 20 years.We have the ability to provide professional services for you.
5.Can the edge banding machine only seal the edges straight?
We also have fully automatic Partial hypotenuse edge banding machine.
6.How much temperature reach can it work ?
Generally,when reaches 150 ° it can test the board .The best working temperature is 180°.
7.what features can be upgraded?
A.Full range of products can be customized to feed in the opposite direction.
B.Pneumatic adjustment(Including trimming and scraping)
C.Heavy-duty pneumatic pre-milling function
D.Multi-cylinder adjustment function
E.Profile tracking chamfer
F.Double color plastic pot
G.Dual guide head and tail function
H.PUR glue supply system
I.Four polishing function J.Rapid sol system K.Six-wheel press function
L.Pneumatic flat wipe function (floating edge)
