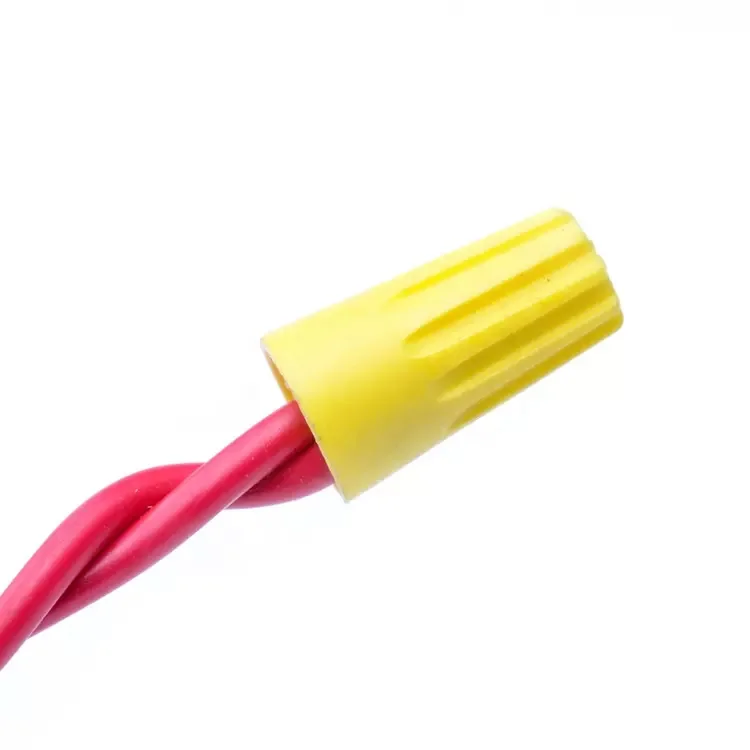

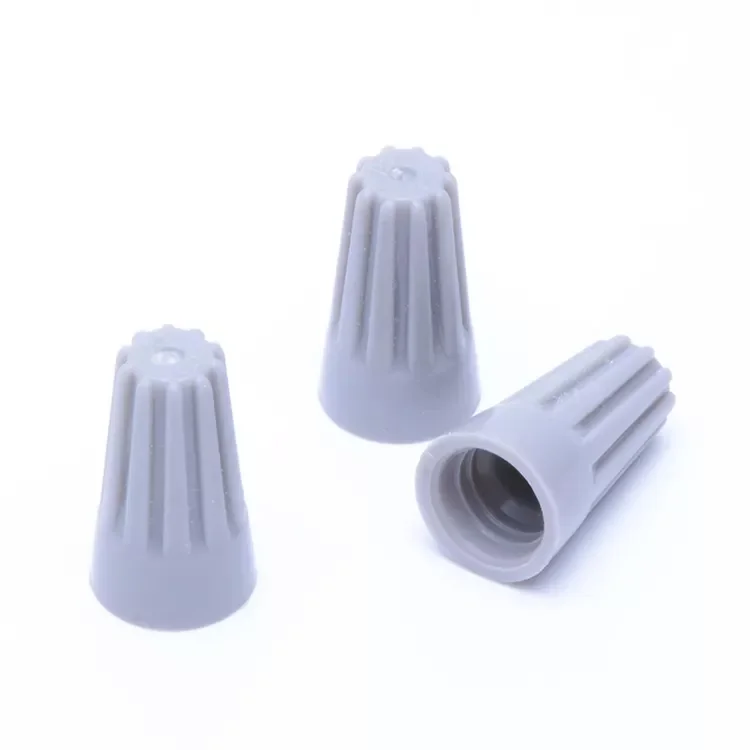

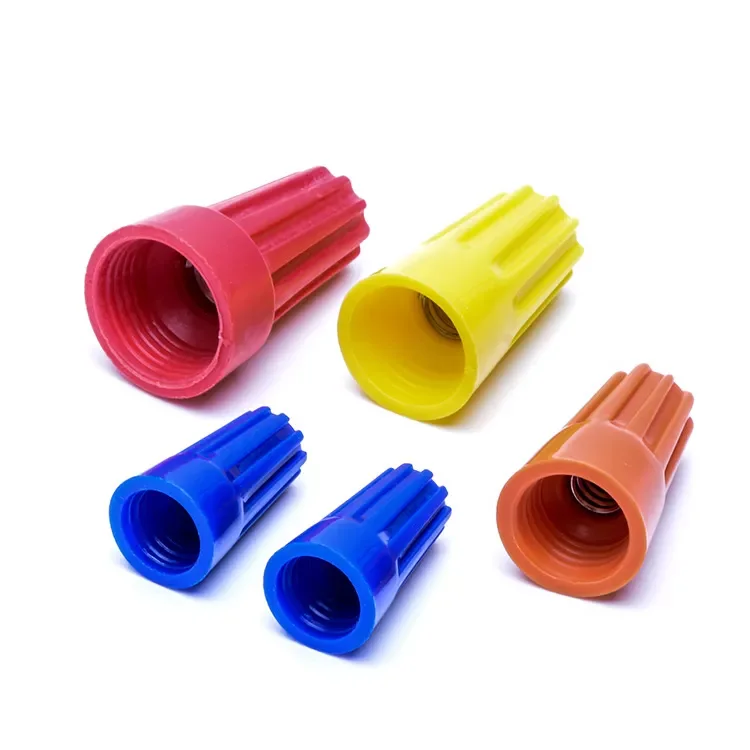

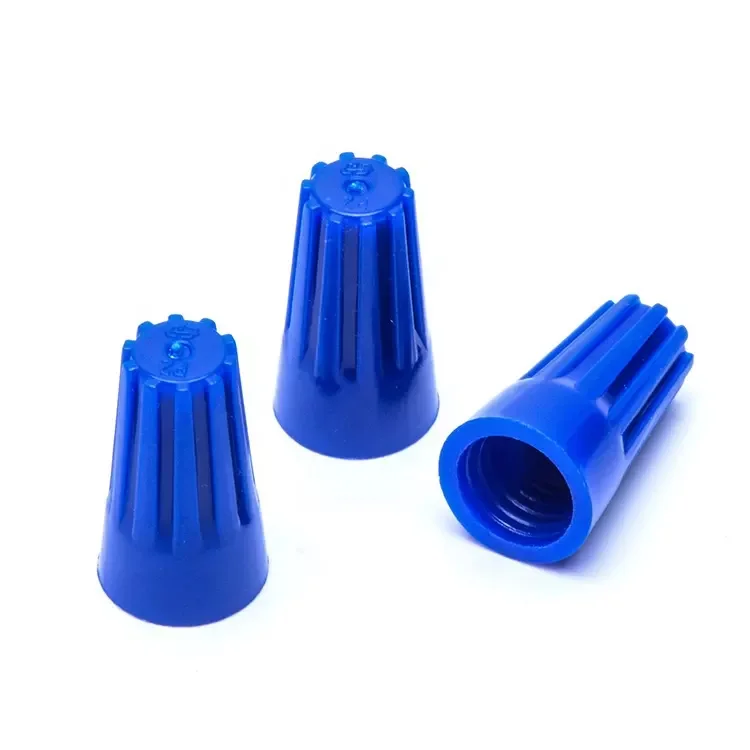

Wholesale Nylon terminals Close End Connector
- Category: >>>
- Supplier: Zhejiang Tolerance Electric Co. Ltd.
Share on (1600622756176):
Product Overview
Description
Insulation Material: | Nylon(PA66) |
Feature: | Insulation /Good electrical conductivity |
Color: | Natural |
Application: | Consumer Electronics |
Advantage: | Safety, the cable storage time longer |
Usage: | Direct set on the cable, easy to use |
Wire Range: | Different types are suitable for different cables |
Certificate: | CE ROSH |
PaymDelivery time: | 7-15 days (Depend on your order quantity) after confirm order. |
Payments: | T/T,Western Union,L/C ,PayPal |
Specification
ITEM NO | A(mm) | B(mm) | C(mm) | D(mm) | WIRE RANGE AWG/mm² |
CD-∅3 | 18.0 | 9.0 | 3.6 | 2.8 | 22-16AWG 1.25mm² |
CD-∅4 | 21.0 | 9.5 | 3.9 | 3.0 | 16-14QWG 2mm² |
CD-∅5 | 22.5 | 10.5 | 4.8 | 4.0 | 12-10AWG 5.5mm² |
CD-∅6 | 24.0 | 12.0 | 5.6 | 4.8 | 8AWG 8mm² |
CD-∅7 | 25.5 | 13.0 | 6.5 | 5.5 | 8-6AWG mm² |
CD-∅8 | 25.5 | 14.0 | 7.5 | 6.0 | 6AWG 13mm² |
CD-∅10 | 29.5 | 15.5 | 9.3 | 7.8 | 4AWG 16mm² |
