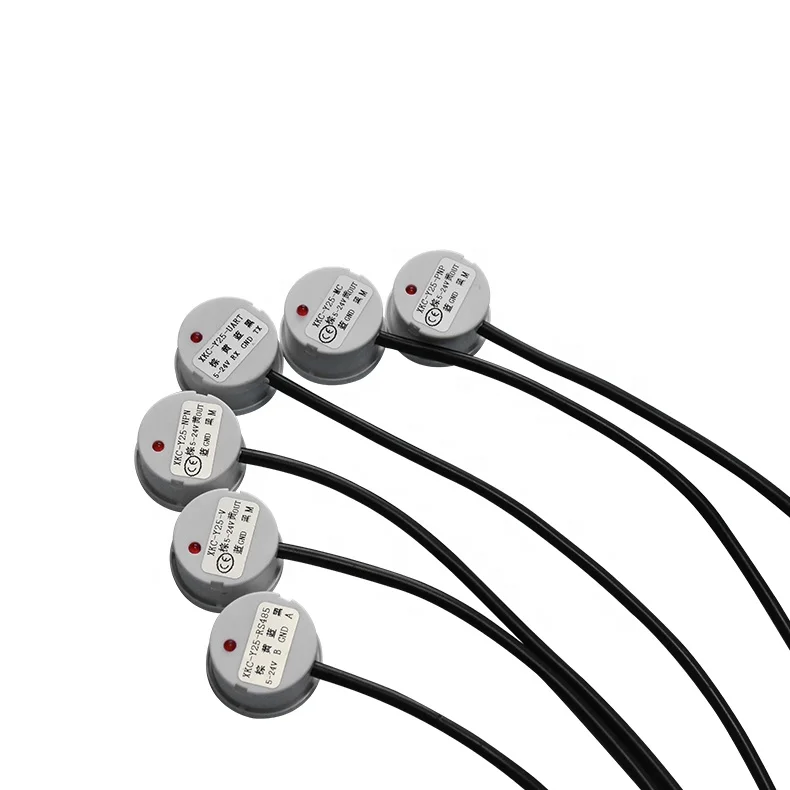

Multi function Non contact Water Level Sensor Controller Liquid Detection Switch XKC Y25 Liquid Level Alarm Sensor for Arduino
- Category: >>>
- Supplier: Shenzhen New Shining Technology Co. Ltd.
Share on (1600622798485):
Product Overview
Description
Product Description

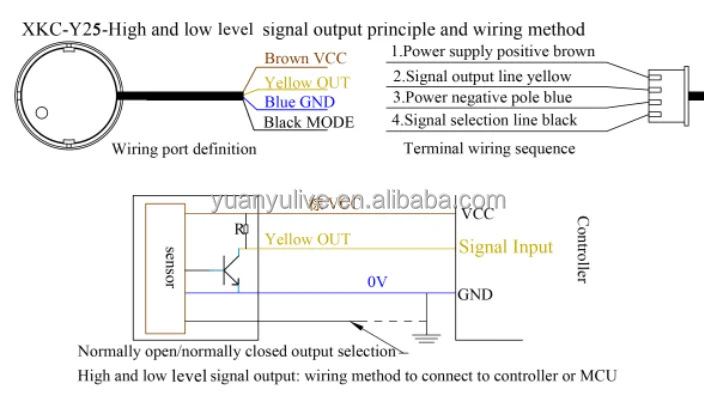

XKC-Y25 series products are specially developed for non-metallic container liquid level detection. This series of liquid level sensors has four signal output interfaces, which are high and low level output, NPN output, PNP output, RS485 output.
Intelligent non-contact liquid level sensor adopts advanced signal processing technology and high-speed signal processing chip, and it won't be influenced by container wall thickness when detecting the liquid level in an airtight container. Liquid level sensor is installed under container (high level and low level). No need to bore a non-metallic
container, easy to install. It can detect liquid level of various toxic substances, acid, alkali and all kinds liquid in high
pressure airtight container. It can be widely used and has no special requirement for liquid medium and material of container.
container, easy to install. It can detect liquid level of various toxic substances, acid, alkali and all kinds liquid in high
pressure airtight container. It can be widely used and has no special requirement for liquid medium and material of container.

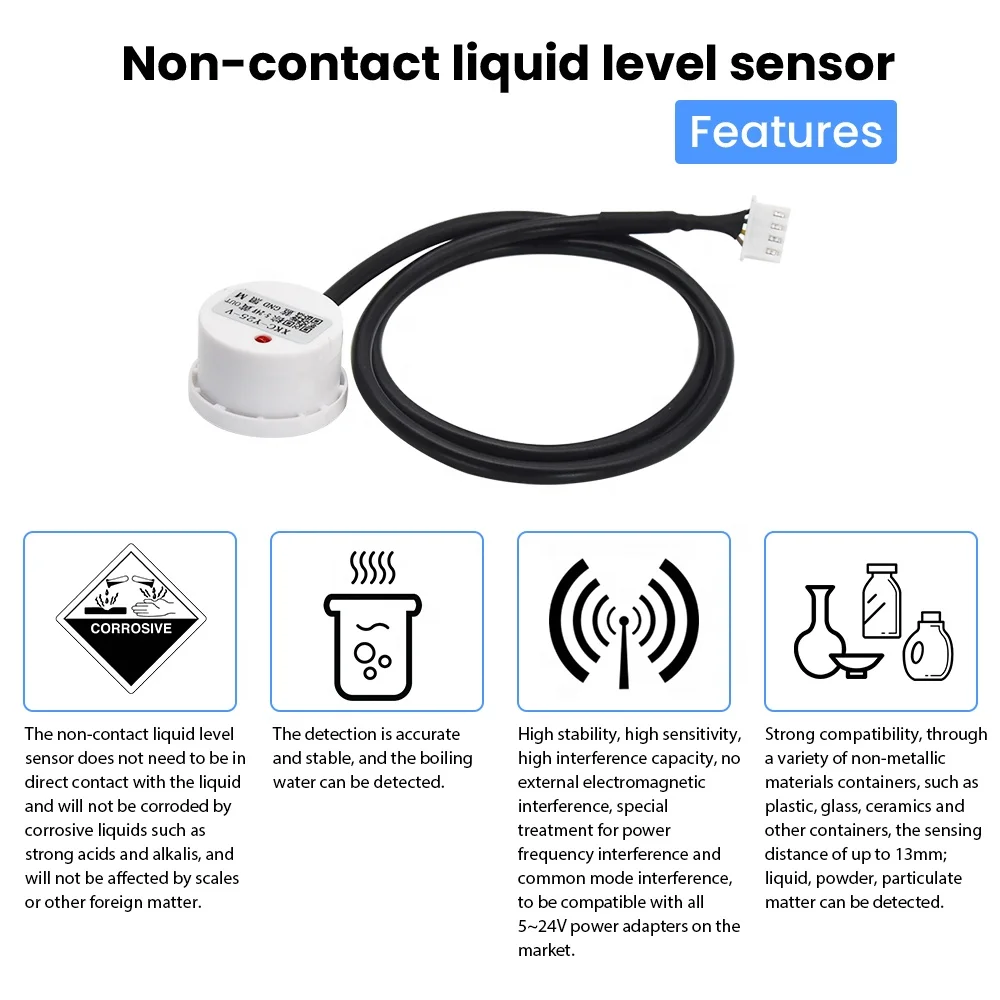

Features
1. The non-contact liquid level sensor is suitable for the outer wall of non-metallic containers without direct contact with the liquid. It will not be corroded by strong acids and alkalis and other corrosive liquids, and will not be affected by scale or other debris. It can support high and low level output, NPN, PNP signal output (please explain with the manufacturer when selecting).
2. The detection is accurate and stable, and the boiling water level can be detected.
3. Pure electronic circuit structure, non-mechanical working mode, stable performance and durability.
4. High stability, high sensitivity, strong anti-interference ability, free from external electromagnetic interference, special processing for power frequency interference and common mode interference, to be compatible with all 5-24V power adapters at the market.
5. Strong compatibility, penetrating various non-metallic containers, such as plastic, glass, ceramic and other containers, the sensing distance (container wall thickness) can reach 20mm;
6. Open collector output mode, wide voltage range (5-24V), suitable for connecting various circuits and product applications.
2. The detection is accurate and stable, and the boiling water level can be detected.
3. Pure electronic circuit structure, non-mechanical working mode, stable performance and durability.
4. High stability, high sensitivity, strong anti-interference ability, free from external electromagnetic interference, special processing for power frequency interference and common mode interference, to be compatible with all 5-24V power adapters at the market.
5. Strong compatibility, penetrating various non-metallic containers, such as plastic, glass, ceramic and other containers, the sensing distance (container wall thickness) can reach 20mm;
6. Open collector output mode, wide voltage range (5-24V), suitable for connecting various circuits and product applications.
Specification
Model Number | XKC-Y25 Series |
Type | Liquid Level Sensor |
Brand Name | Yuanyu |
Usage | Liquid Level Monitoring, Control and Alarm |
Theory | Liquid level switch |
Output | Switch Output |
Description | Liquid Level Sensor |
Material | ABS |
Input voltage | DC 5 ~ 24 V |
Current consumption | 5mA |
Output current | 1 ~ 100mA |
Output voltage | (LOW) 0 V~(HIGH)InVCC |
Response time | <500ms |
Working temperature | 0 ~ 85℃ |
Induction thickness (Sensitivity) Range | 0 ~ 20mm |
Communication | RS485 |

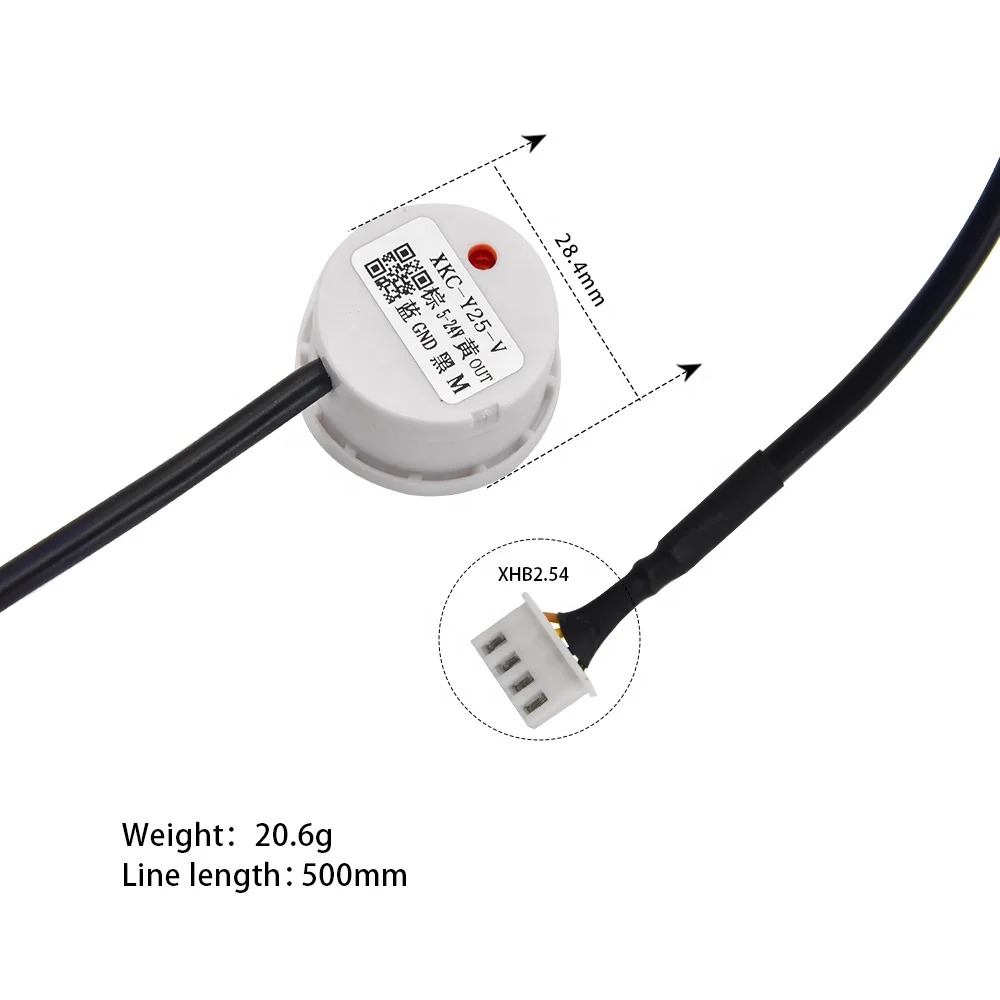

Size | 2.8x1.69cm/1.10x0.67inch(Dia.xH) |
