BLE speaker module BLE audio transmitter module fm modulator with BLE for car
- Category: >>>
- Supplier: Shenzhen Xindaxing Electric Technology Co. Ltd.
Share on (1600622843482):
Product Overview
Description
BLE amplifier module module 5v programmable BLEmodule
Absolute electrical parameters
Parameter | Describe | Min | Max | Unit |
Ts | storage temperature | -20 | 85 | ℃ |
VCC | Operating Voltage | -0.3 | 6 | V |
ESD (Human Body Model) | ESD withstand capability (Human Body Model) | - | 2 | KV |
ESD (Machine Model) | ESD withstand capability (machine model) | - | 0.5 | KV |
Working Condition
Parameter | Describe | Min | Typical Value | Max | Units |
Per | Operating temperature | -20 | 20 | 85 | °C |
VCC | power input | 8 | 3.3 | 3.6 | v |
VIL | input logic low | 0 | - | 0.3 | v |
VIH | input logic high | VCC-0.3 | - | VCC+0.3 | v |
VOL | output logic low level | 0 | - | 0.3 | v |
VOH | output logic high | VCC-0.3 | - | VCC | v |

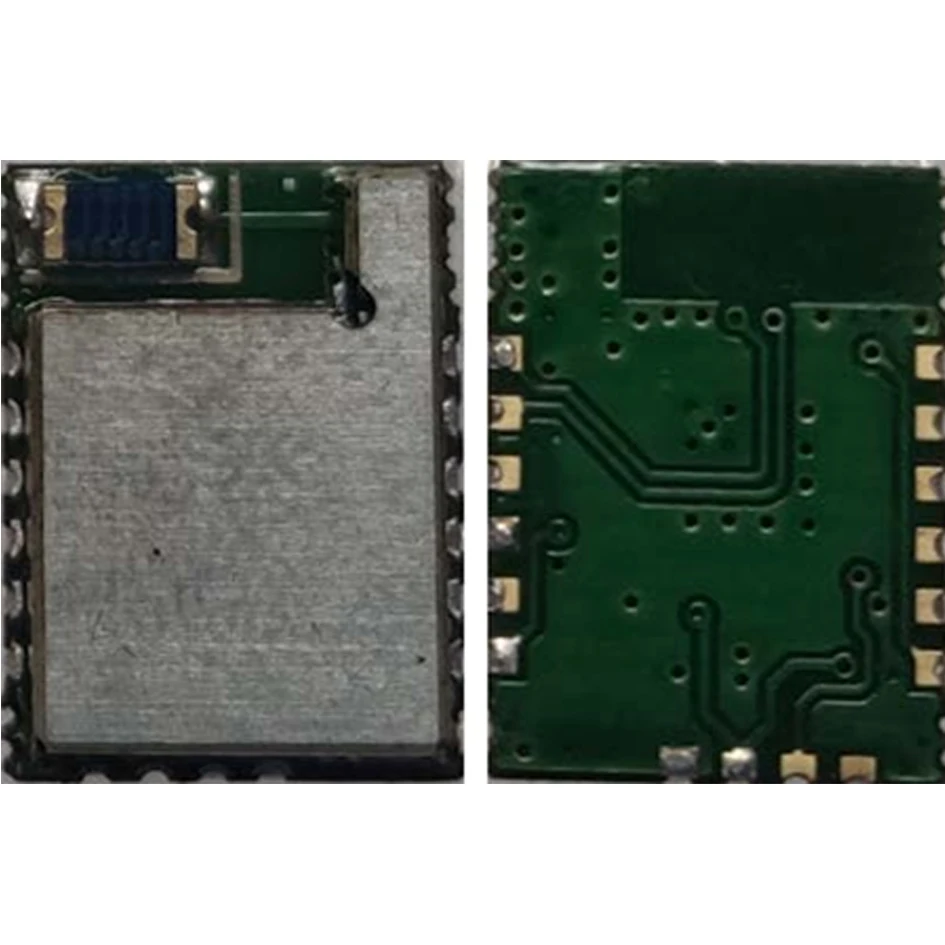

This module is a low energy Bluetooth 5.0 module. The module integrates a high performance 2.4GHz RF transceiver processor, feature-rich baseband processor, ARM® Cortex™-M0 32-bit processor and a variety of peripheral interfaces.
Built-in 512KB Flash and 138KB SRAM, supports programmable protocols to meet customer customized applications.
Main application areas
-Smart Home/ Appliances
-bluetooth toy
-Smart Home/ Appliances
-bluetooth toy
-bluetooth electronic scale
-data transmission
-data transmission
