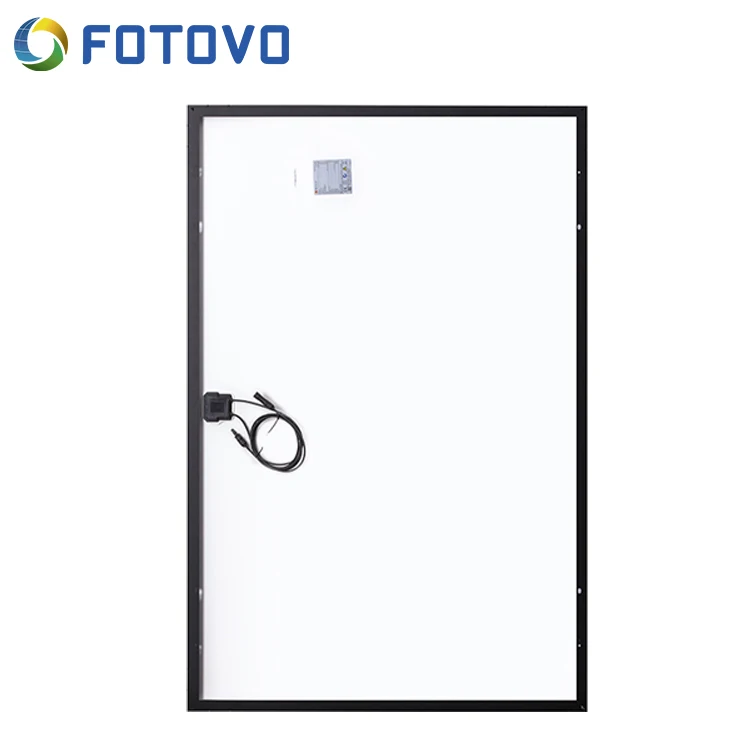

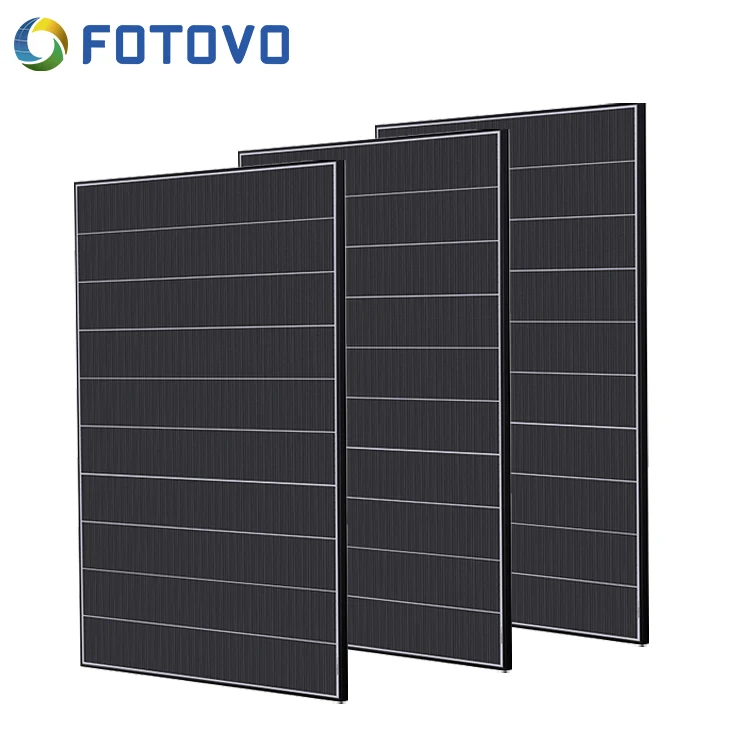

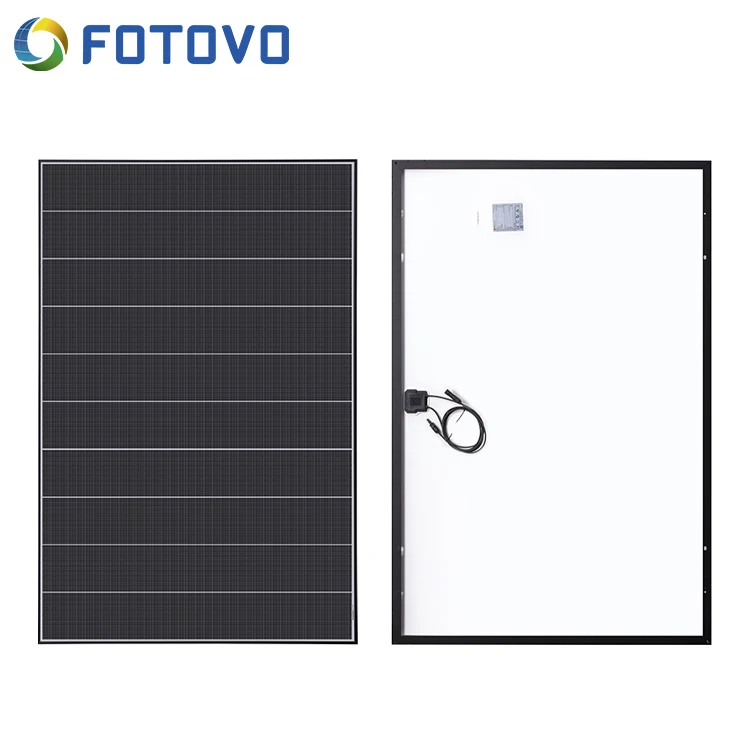

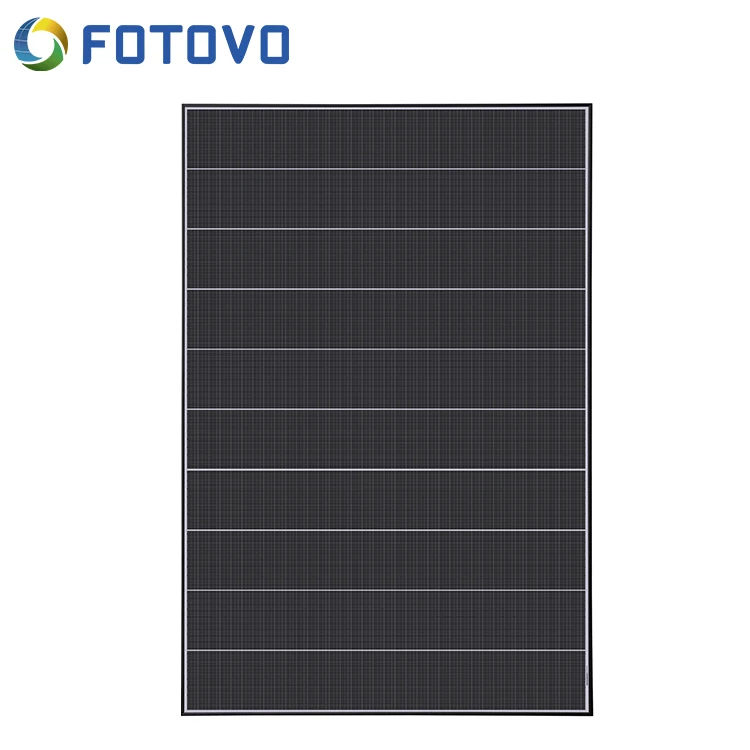

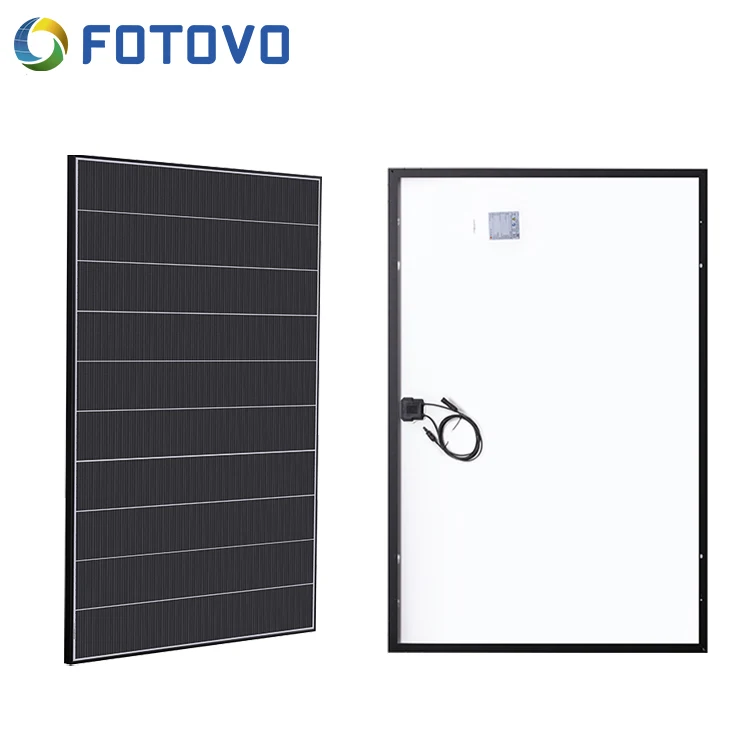

FOTOVO Overlapping PV Module 520w 530w 540w 545W 550w Solar Panels Shingled Solar photovoltaic panels for solar energy system
- Category: >>>
- Supplier: Jiangsu Elemac Energy Co. Ltd.
Share on (1600622866154):
Product Overview
Description
Product Features
Comparative advantages of shingled solar components:
1. More efficient;
2. Strong compatibility with existing battery and component production lines;
3. Adjust the layout and size of components more flexibly as needed;
4. Effectively reducing the performance impact of occlusion and hidden cracks on components.
2. Strong compatibility with existing battery and component production lines;
3. Adjust the layout and size of components more flexibly as needed;
4. Effectively reducing the performance impact of occlusion and hidden cracks on components.
●Shingling Technology
Innovative structure, low-temperature adhesive bonding, high-density layout.
●Beautiful Appearance
Uniform layout, better aesthetic.
●Superior Safety and Reliability
No hidden welding crack, low operating temperature, high pressure resistance.
●Low System Cost
High module efficiency, reducing system cost.
●Low Hot Spot Risk
Parallel circuit design reduces shading loss.
●Lower occlusion loss
Parallel layout brings high effective generation hours
●Green and environmental friendly
Insist environmental friendly faith; Fluorine-free and low Pb in module
Innovative structure, low-temperature adhesive bonding, high-density layout.
●Beautiful Appearance
Uniform layout, better aesthetic.
●Superior Safety and Reliability
No hidden welding crack, low operating temperature, high pressure resistance.
●Low System Cost
High module efficiency, reducing system cost.
●Low Hot Spot Risk
Parallel circuit design reduces shading loss.
●Lower occlusion loss
Parallel layout brings high effective generation hours
●Green and environmental friendly
Insist environmental friendly faith; Fluorine-free and low Pb in module

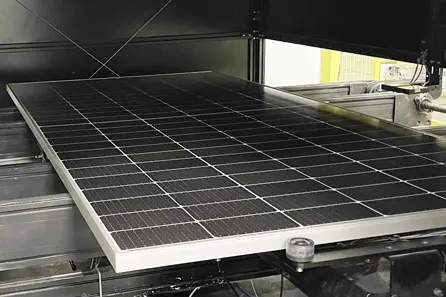

Solar Cell String EL Testing
Each solar PV cell string must be tested by EL
machine to ensure every single solar cell is perfect.
machine to ensure every single solar cell is perfect.

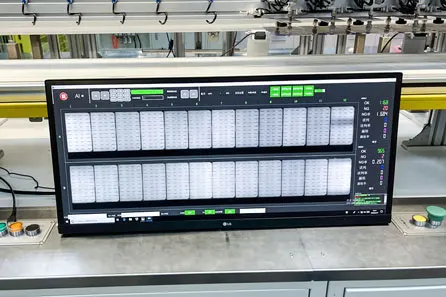

EL Testing Before Lamination
Each solar PV cell string must be tested by EL
machine to ensure every single solar cell is perfect.
machine to ensure every single solar cell is perfect.

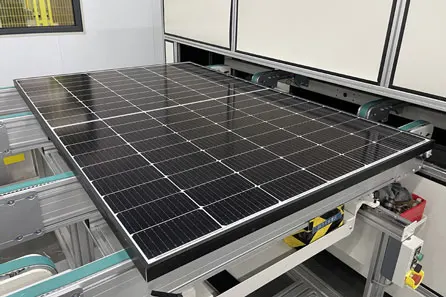

Appearance Inspection After Lamination
Each Solar Module must be inspected by QC after
lamination to ensure there is no defect during lamination.
lamination to ensure there is no defect during lamination.

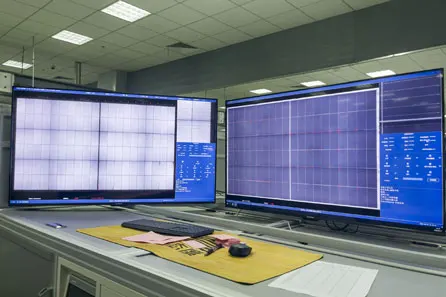

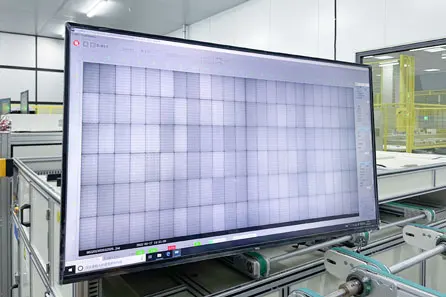

Final EL Testing
Final EL Testing 100% ensure zero intenal
electric defect for each solar module.
electric defect for each solar module.

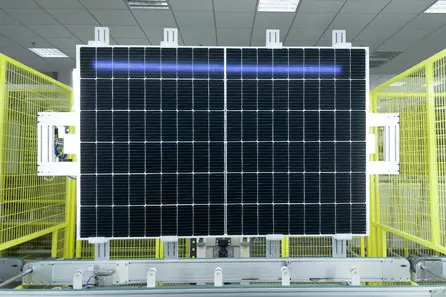

Output Power Testing
Output power testing ensure 100% positive power
tolerance and excellent power performance.
tolerance and excellent power performance.
Final Appearance Inspection
Each Solar Module must be inspected by QC before
packaging to ensure there is no defect during production process.
packaging to ensure there is no defect during production process.
Product Paramenters
545W Shingle Solar Panel | ||||
Electrical Characteristics (STC) | Maximum power - Pm (W) | 545 | ||
Open circuit voltage - Voc (V) | 48.08 | |||
Short circuit current Isc (A) | 14.657 | |||
Maximum Power Voltage-Vm (V) | 39.45 | |||
Maximum Power Current-Im (A) | 13.815 | |||
Module Efficiency-n (%) | 20.5 | |||
Mechanical Parameters | Dimensions | 2158×1236×35mm (L×W×H) | ||
Weight | 27.4kg | |||
Front Glass | Tempered glass，3.2mm | |||
Frame | Anodized aluminum profile | |||
Cells | Mono-crystalline solar cell PERC 166mm | |||
Cell Orientation | 350（35*2*5） | |||
Junction Box | IP68, two diodes | |||
Cable | 4mm² , 800mm (Be customized by customers) | |||
Temperature Parameters | NMOT | 42.3℃(±2℃) | ||
Temperature Coefficient of Voc | -0.27%/℃ | |||
Temperature Coefficient of Isc | 0.04%/℃ | |||
Temperature Coefficient of Pm | -0.34%/℃ | |||
Maximum Rated Parameters | Maximum System Voltage (V) | DC1500/1000(IEC) | ||
Series Fuse Rating (A) | 20 | |||
Surface Load Capacity (Pa) | 5400 | |||
Temperature Range (°C) | -40~+ 85 | |||
Withstanding Hail | Maximum diameter of 25 mm with impact speed of 23 m·s-1 | |||
Package | container | 40‘GP | ||
Number of pallets per container | 31 | |||
Number of modules per container | 682 | |||
Company Profile
Elemac Energy Co., Ltd is focusing on the innovation of solar module and inverter technologies and providing the best LCOE (Levelized Cost Energy) solar products to the customers worldwide. The company’s business covers solar cells, modules, inverters, energy storage systems, batteries and photovoltaic power stations.
Being recognized as an emerging international solar brand, Elemac’s FOTOVO brand adheres to the corporate philosophy of delivering reliability and values to the customers. Through its international network with the global presence of its solar modules in more than 90 countries, Elemac is your ideal partner for reliable solar energy.
Being recognized as an emerging international solar brand, Elemac’s FOTOVO brand adheres to the corporate philosophy of delivering reliability and values to the customers. Through its international network with the global presence of its solar modules in more than 90 countries, Elemac is your ideal partner for reliable solar energy.
Our Advantages
Certifications
Project Case
Production Flow
Product packaging
FAQ
Q1: How to choose a right system and products?
Q2: The advantages of home photovoltaic system
A2: Solar photovoltaic power generation performance is stable and reliable, with a service life of more than 25 years; Small
A1: Tell us your requirements, then our seller will recommend a suitable product and system to you.
Q2: The advantages of home photovoltaic system
A2: Solar photovoltaic power generation performance is stable and reliable, with a service life of more than 25 years; Small
investment, big income;zero pollution;Low maintenance costs;
Q3: Why choose us?
A3: FOTOVO have been engaged in new energy power generation for more than 16 years. Our products and services cover more than 39 countries. Our R&D team is composed of top experts in various fields. We are committed to providing first-class solutions for PV power plants.
Q4: What is the warranty of solar system?
A4: 5 years for whole system,10 years for inverter,modules,frame.And we can make sure our products will through very strictly testing,and then send to you.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.And we have offices in many
countries,if you have problems,we can arrange people to help you solve problem.
Q6: What about the package?
A6: Strict double-layer packaging design,Rigorous vibration testing.Ensure that the product is not damaged during transportation.
Q3: Why choose us?
A3: FOTOVO have been engaged in new energy power generation for more than 16 years. Our products and services cover more than 39 countries. Our R&D team is composed of top experts in various fields. We are committed to providing first-class solutions for PV power plants.
Q4: What is the warranty of solar system?
A4: 5 years for whole system,10 years for inverter,modules,frame.And we can make sure our products will through very strictly testing,and then send to you.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.And we have offices in many
countries,if you have problems,we can arrange people to help you solve problem.
Q6: What about the package?
A6: Strict double-layer packaging design,Rigorous vibration testing.Ensure that the product is not damaged during transportation.
