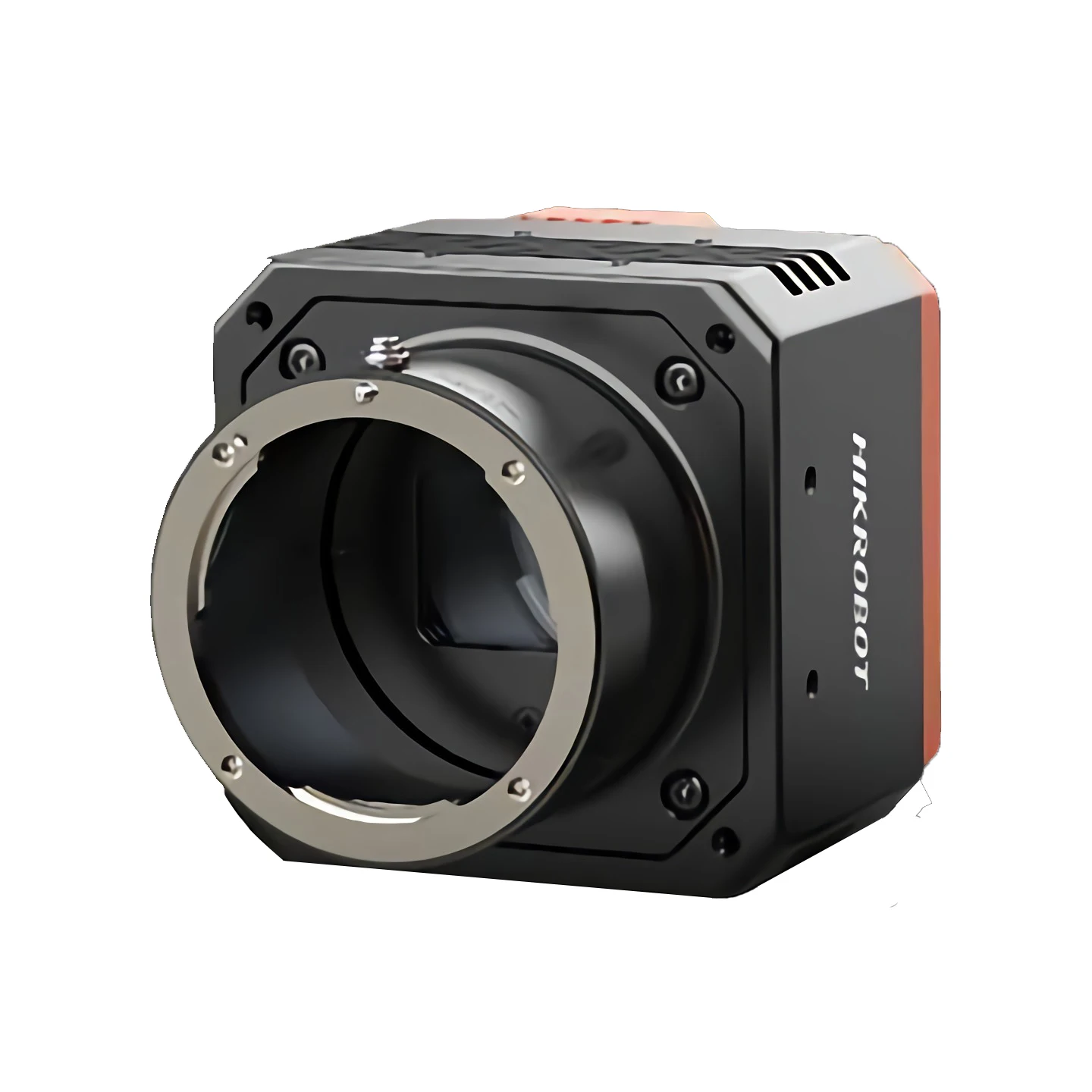

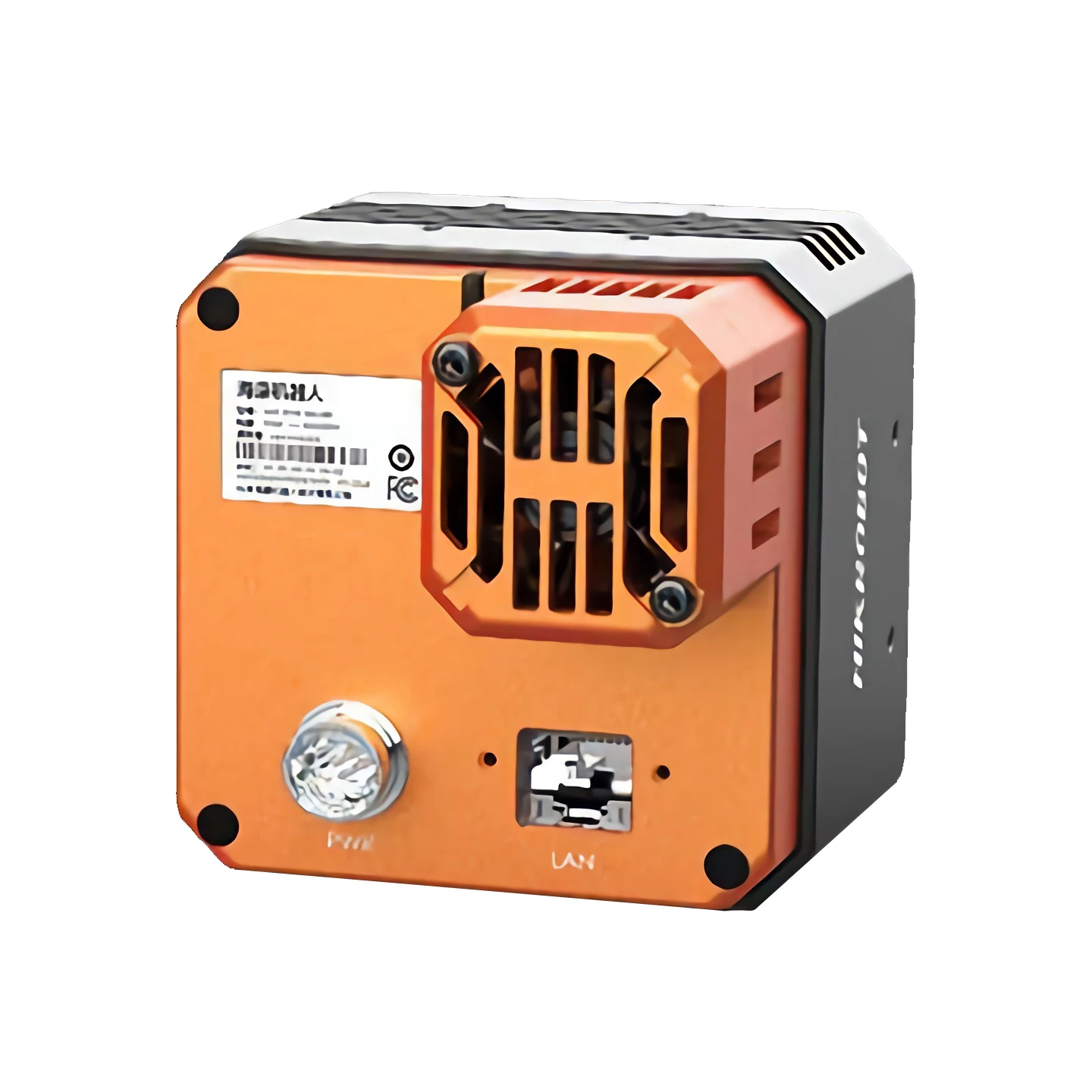

HIKROBOT MV CH650 90TM F NF Global Shutter CMOS 65MP 15.5fps F Mount Mone 10GigE Industrial Vision Camera

Model Number

Model

MV-CH650-90TM-F-NF

Name

65 million pixel 10 Gigabit area scan camera, GMAX3265, black and white, F port, with fan

Performance

Sensor Type

CMOS, Global Shutter

Sensor model

GMAX3265

Pixel size

3.2 µm × 3.2 µm

Target surface size

29.9 mm × 22.4 mm

Resolution

9344 × 7000

Maximum frame rate

15.5 fps @9344 × 7000

Dynamic range

66 dB

Signal-to-noise ratio

40 dB

Gain

1.25x ~ 6x

Exposure time

15 μs ~ 10 sec

Shutter mode

support automatic exposure, manual exposure, one-key exposure mode

Black & White/Color

Black & White

Pixel Format

Mono 8/10/10Packed/12/12Packed

Binning

Support 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4

Downsampling

1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4 supported

Mirroring

support horizontal mirroring, vertical mirroring output

Electrical Characteristics

Data interface

10GigE

Digital I/O

12-pin P10 connector provides power and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output
(Line1), 1 bidirectional configurable non-isolated I/O (Line2) , 1 channel RS-232

Power supply

9 ~ 24 VDC

Typical power consumption

11 W @12 VDC

Structure

Lens mount

F mount, flange back focus 46.5 mm

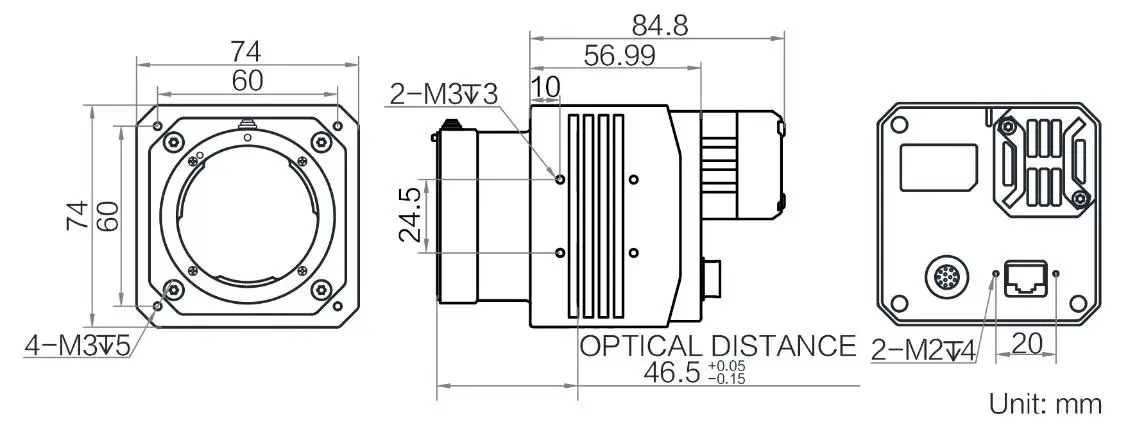

Dimensions

74 mm × 74 mm × 84.8 mm

Weight

<600 g

IP protection grade

IP40 (when the lens and cable are installed correctly)

Temperature

working temperature 0℃~50℃, storage temperature -30℃~70℃

Humidity

20% ~ 95%RH without condensation

General Specifications

Software

MVS or 3rd party software supporting GigE Vision protocol

Operating system

Windows XP/7/10 32/64bits

Protocol/Standard

GigE Vision V2.0, GenICam

Certification

CE, FCC, RoHS, KC
