Geological survey Handheld gnss receiver T2
- Category: >>>
- Supplier: Tianjin Unique Technology Co. Ltd.
Share on (1600622876040):
Product Overview
Description

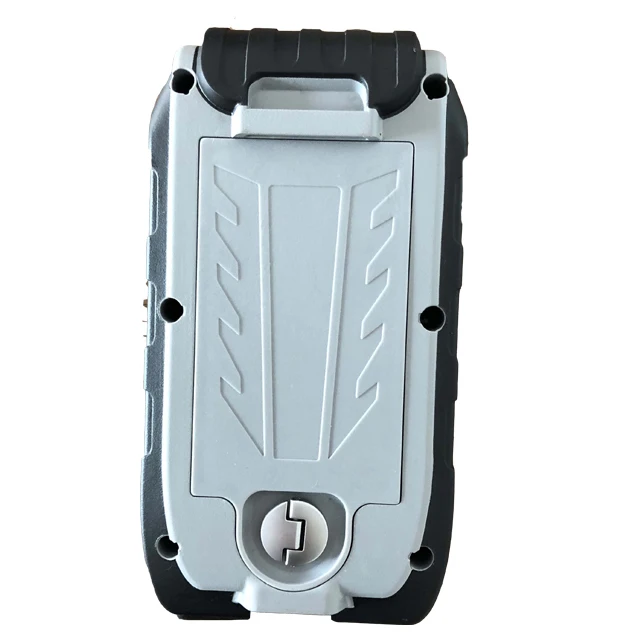

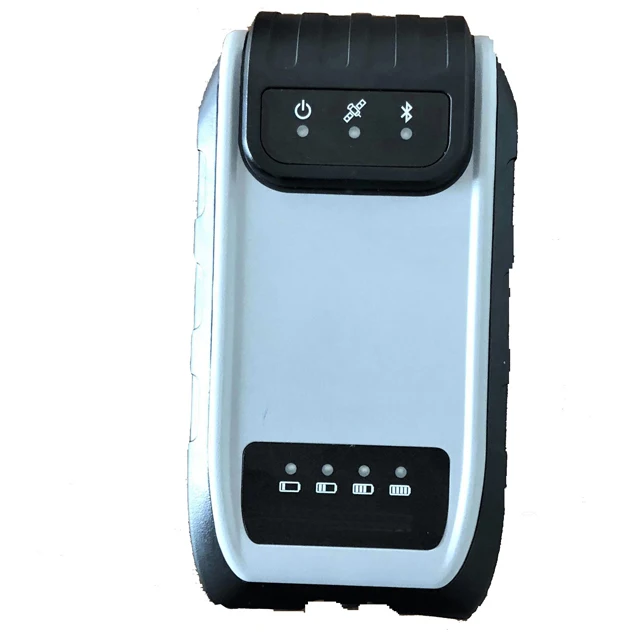

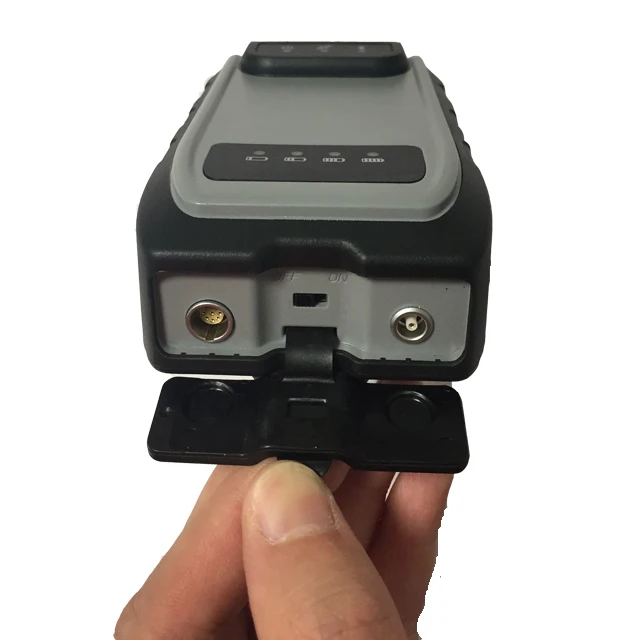

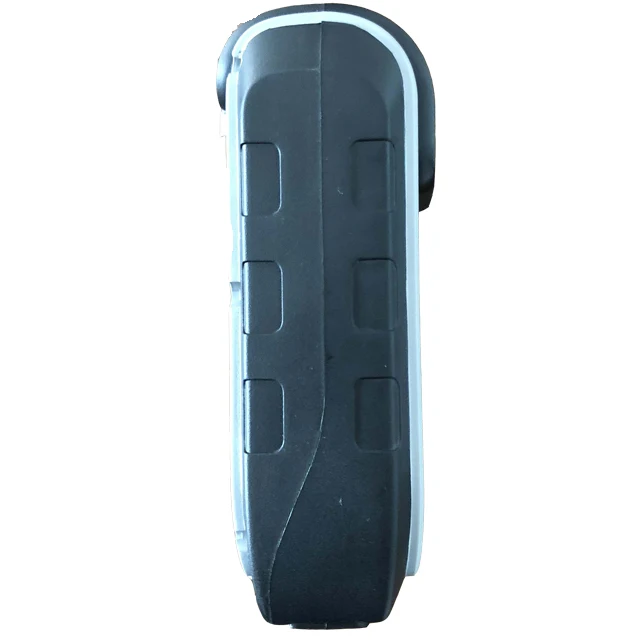

Geological survey Handheld gnss receiver T2
Product Description
UWG is an wearable high accuracy gnss receiver.It is sub-meter and centimeter accuracy optional.Fashionable industry design,unique inner mechanism design and it is light and robust. It is suitable for outdoor working. It has changeable battery can meet the requirements for long time working. It compatible with iOS,Android and Windows Mobile etc.
operating system. It can work with all kinds of table,data collector,and smart phone by Bluetoot and serial port.It can offer high accuracy positioning data for intelligent terminal.
UWG is widely used in Electricity patrol,Forestry Prospect,Pioeling patrol,Geological surveys,Land law enforcement,surveying and mapping and all kingds mobile high accuracy requirements.
Specifications
| GNSS | GPS | L1, L2 |
| GLONASS | G1, G2 | |
| Galileo | E1 | |
| Channel | 220 | |
| First to fix | <45s | |
| Update frequency | <=20Hz | |
| Accuracy | Single | 1.2m |
| SBAS | 0.5m | |
| DGPS | 0.25m | |
| RTK | 0.8cm+1ppm | |
| Communication | Bluetoot | Dual module bluetooh, compatble with Android,IOS,Window Mobile system |
| Serial port | Support | |
| Physical | Size | 137mm×72mm×50.4mm |
| Weight | <350g | |
| Operate temperature | -20°C~+60°C | |
| Store temperature | -30°C~+70°C | |
| Protection grade | IP67 | |
| Power | Battery | 340mAh,7.2V |
| Working time | >=12H | |
| Charge time | 2.5h | |

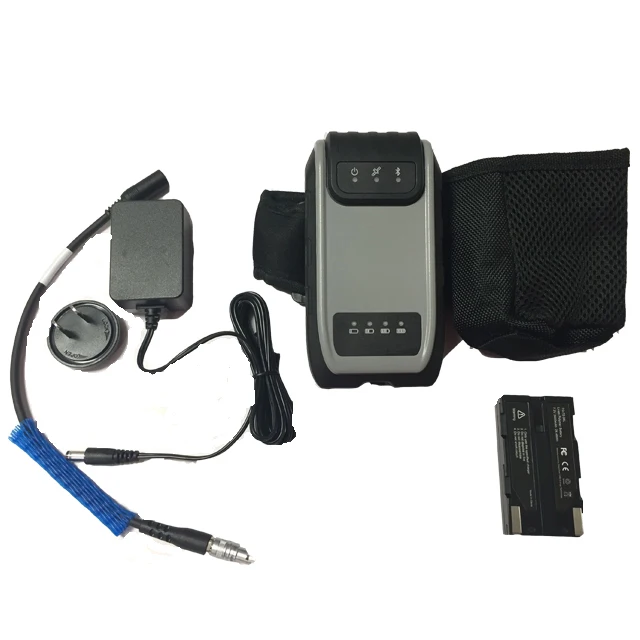

| Parts list | Standard | Battery,Charger,Fischer to CD IN cable,Wrist strap |
