deep drawing lubricating grease in stainless steel barrels cleaning Conveyor water pump spray degreasjng machine parts washers
- Category: >>>
- Supplier: Foshan Nanhai Juhe Ultrasonic Equipment Co. Ltd.
Share on (1600622909108):
Product Overview
Description
Product Description

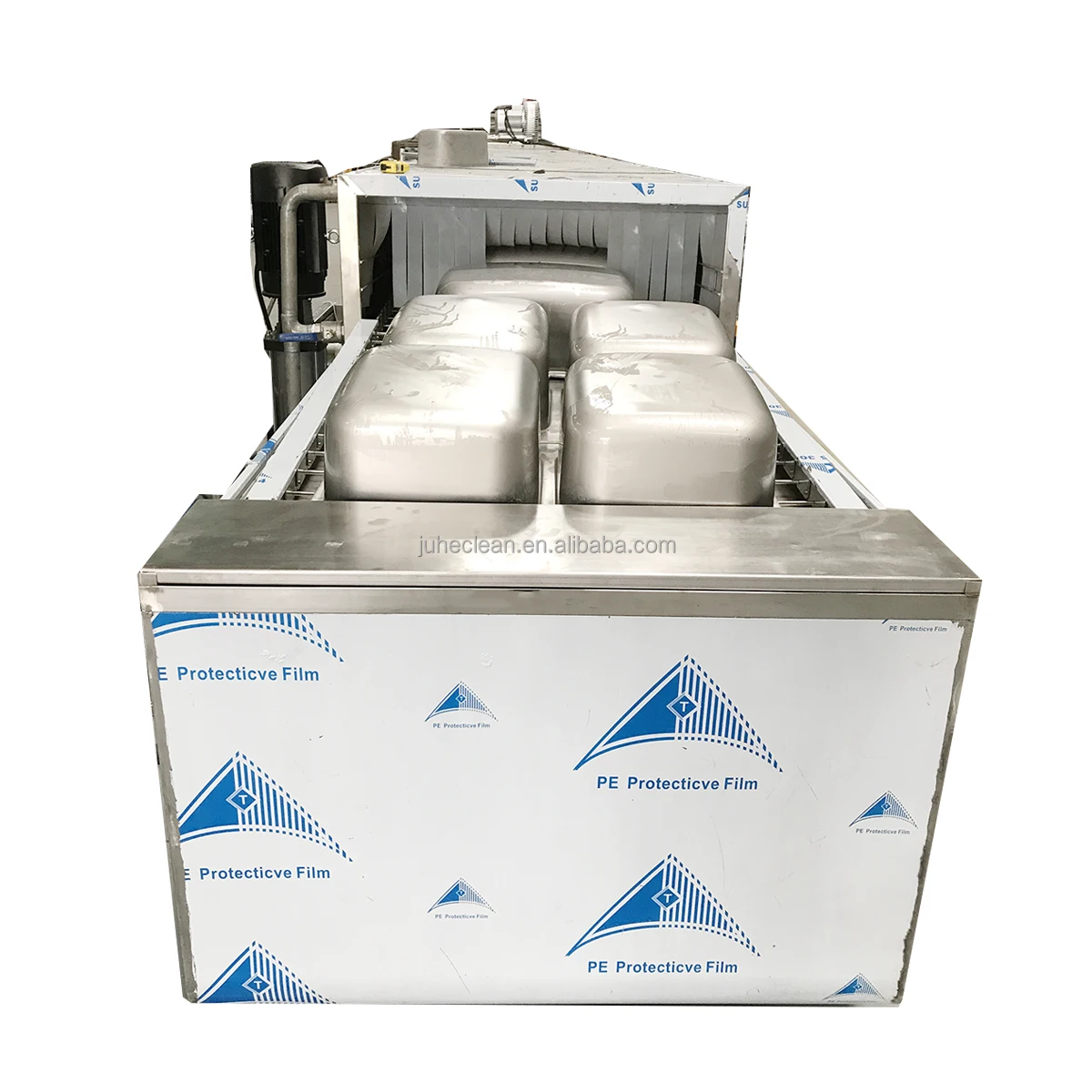

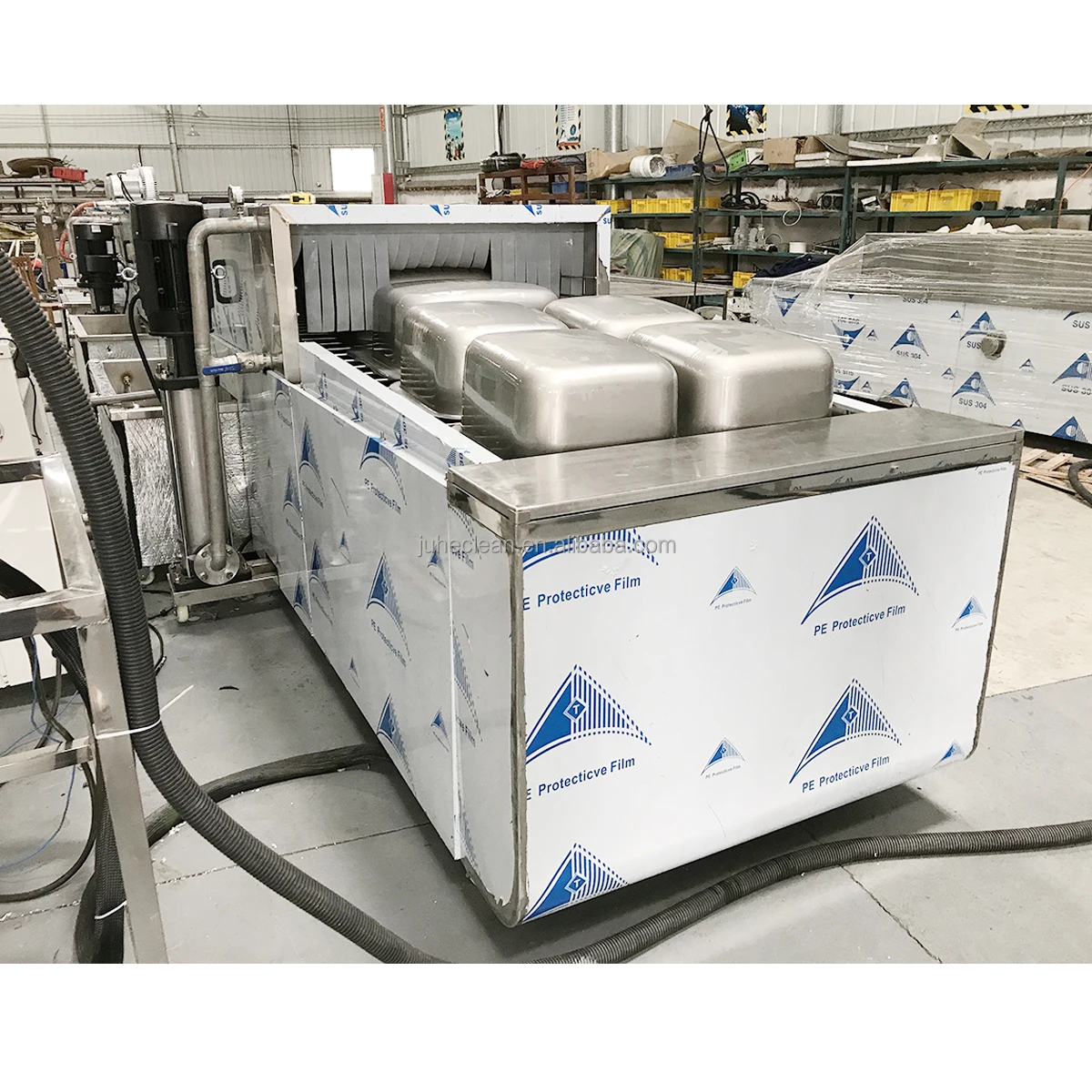

BRIEF INTRODUCTION - Industrial Mesh Conveyor Belt ultrasonic and spray cleaning machine
1.JUHE Conveyor Belt ultrasonic and spray cleaning machine has passed the ISO9001 international quality system certification,in strict accordance with the modern enterprise management.

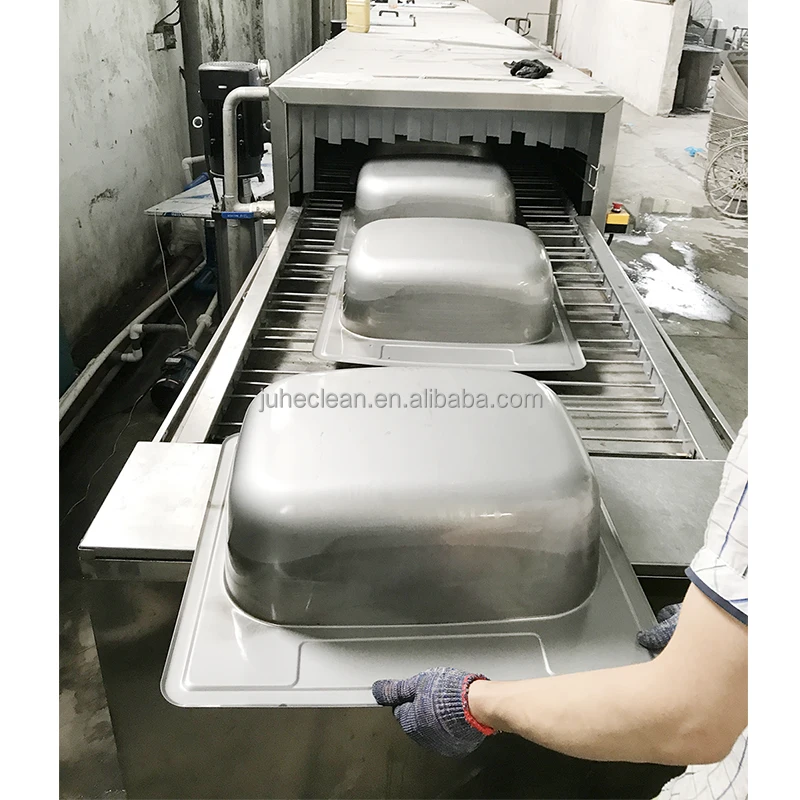

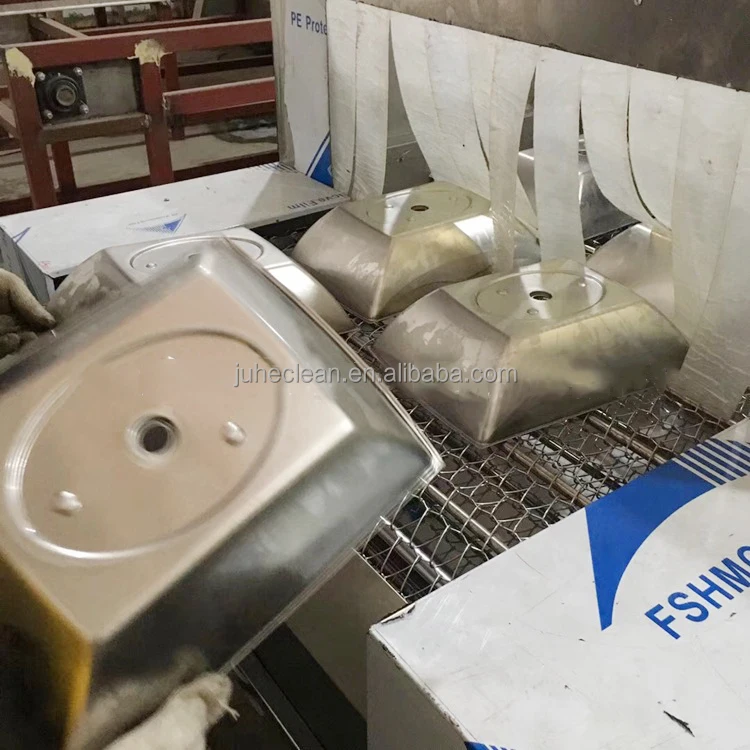

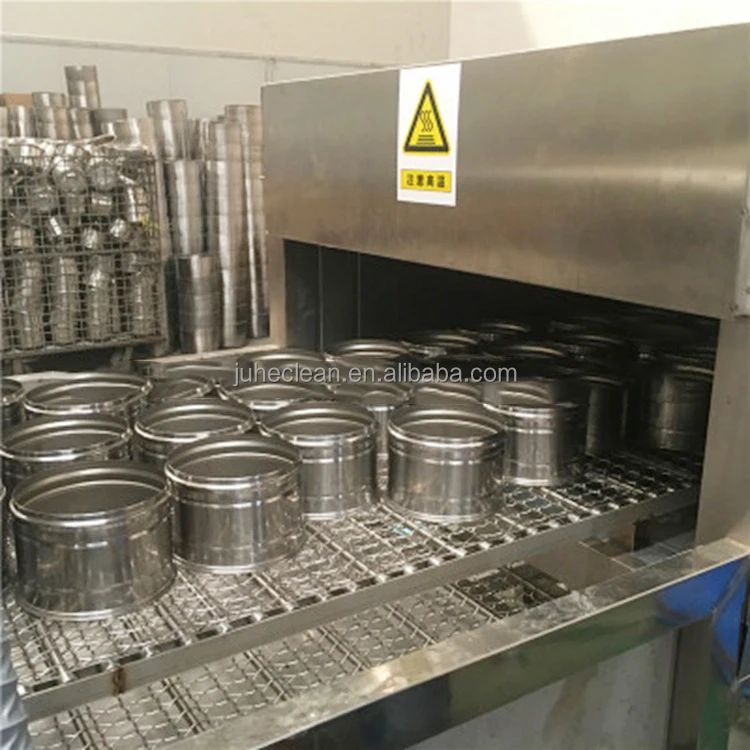

3.When the conveyor cleaning machine working, the parts are placed on the special mesh conveyor belt and go through continuous Ultrasonic cleaning, spray rinsing, high pressure air blower removing water,hot air drying and other processes.
5.Each slot is provided with a stainless steel anti-mist cover.
2.JUHE Conveyor Belt ultrasonic and spray cleaning machine is featured with smart structure,easy operation and high degree of automation, equipped with high-temperature sterilization,internal drying and other features.
3.When the conveyor cleaning machine working, the parts are placed on the special mesh conveyor belt and go through continuous Ultrasonic cleaning, spray rinsing, high pressure air blower removing water,hot air drying and other processes.
4.The liquid can be recycled after purified through water circulating filtration system.
5.Each slot is provided with a stainless steel anti-mist cover.
6.The machine has the advantages of multi work stations, full function, reasonable structure, convenient operation and satisfying cleaning effect, which can improve the working environment for assembly line parts cleaning. It is of great significance to improve the cleaning quality.
Features- Industrial Mesh Conveyor Belt ultrasonic and spray cleaning machine
1.It can meet continuous, large-volume cleaning requirement of various types of workpieces, and has features of high degree of automation, easy operation and maintenance.
3.The whole machine is made of high quality stainless steel, the conveying chain is customized according to the parts to be washed, convenient for operation.
5.The conveyor belt transmitting mode using inorganic speed-regulating motor to drive the chain, simple operation.
2.JUHE Conveyor Belt ultrasonic and spray cleaning machine has the functions of ultrasonic and spray cleaning, deoiling, circulating filtration, time control, heating, drying and temperature control.It is an ideal cleaning machine with high efficiency and energy saving and high cost performance.
3.The whole machine is made of high quality stainless steel, the conveying chain is customized according to the parts to be washed, convenient for operation.
4.The machine is equipped with a separate ultrasonic system in form of bottom or top or side vibration, cleaning products faster and cleaner., cleaning parts faster and cleaner.
5.The conveyor belt transmitting mode using inorganic speed-regulating motor to drive the chain, simple operation.
6.The machine one-button automatic operation / manual segmented operation optional
Model recommendation:
JH-TGS-L11M Industrial Mesh Conveyor Belt ultrasonic and spray cleaning machine
Model No. | JH-TGS-L11.5M-W800MM |
Voltage | 380V/50Hz/3phase |
Outer Dimensions | L11500xW1500xH2050MM |
Equipment power | Maximum design power :75 KW Normal operating consumption power :50 KW: |
Ultrasonic frequency | 28/40 KHZ |
Key Stucture | The main frame, cleaning tank, liquid storage tank, heating system, conveying chain and transmission system, spray cleaning system, spray rinsing system, oil-water separation system, circulating filtration system, electrical control system etc. |
Machine Specification | The total length of the machine is 11 .5m, the outer width of the frame is 900 mm the width of the working tank is 800 mm, the total width of the mesh chain is 785 mm (the effective chain inner network width is 730 mm), the depth of the liquid level is about 500mm, the depth of the inner groove is 650 mm, the height of the working table is 800 and the total machine height is about 2050 mm. |
Process flow | Loading (0.75 m)→ spray cleaning (2.5 m)→ spray rinsing (2m)→spray rinsing (2 m)→high pressure air blower removing water cutting (2.5m)→unloading (0.75m) |
Transmitting speed | 0.5-5 m/ min speed adjustable |
APPLICATION - Industrial Mesh Conveyor Belt ultrasonic and spray cleaning machine
Widely used in fields of Stainless steel / zinc / aluminum / copper / iron and other stamping / drawing / die-casting metal hardware and other metal parts batch continuous automatic cleaning, drying.
Package & Shipment
We mainly put these items in the container:
1.The largest main body of the equipment is wrapped with plastic thin films to get more space.
2.ultrasonic generators, major electric parts and spare parts are packed with foam +Paper Box or wood packing.
3.The optional powder detergent packaged with bags.
1.The largest main body of the equipment is wrapped with plastic thin films to get more space.
2.ultrasonic generators, major electric parts and spare parts are packed with foam +Paper Box or wood packing.
3.The optional powder detergent packaged with bags.
